Cloud Decision Support System for Risk Management

in Railway Transportation

Wojciech Górka

, Jacek Bagi

nski

, Michał Socha

, Tomasz Ste¸clik

, Dawid Le

sniak

, Marek Wojtas

Barbara Flisiuk

1 a

and Marcin Michalak

1 b

Research Network ŁUKASIEWICZ — Institute of Innovative Technologies EMAG,

ul. Leopolda 31, 40-189 Katowice, Poland

Telvis Sp. z o.o., ul. Karoliny 4, 40-189 Katowice, Poland

Keywords:

Decision Support System, Safety Management System, Risk Management, Software Support, Cloud Server.

Abstract:

The paper features the development of a decision support system for railway transportation based on risk

management. The implementation of risk management in this area is required by EU and national regulations.

At present, there are no dedicated systems that would provide complex support of this process and, at the

same time, enable to exchange experience and develop a common knowledge base not only on the level of

a particular railway company, but also the whole industry. The solution presented in this paper assists the

personnel responsible for risk management, allows to use a knowledge base and expertise, and supports data

exchange between particular organizations on the railway market.

1 INTRODUCTION

The risk management process is carried out in an or-

ganization by its managers and employees. It is re-

ﬂected in the organization’s strategy and covers the

whole organization. The goal of risk management is

to identify events, or potential events, which could

impact the fulﬁlment of the organization’s objectives

and to keep the risk on an accepted level.

Each organization is vulnerable to certain risks

which might seriously disrupt its functioning. Rail-

way transportation is particularly important in this re-

spect because it is a part of the national critical infras-

tructure. Having this in mind and realizing the ben-

eﬁts stemming from risk management, such as lower

maintenance cost due to deeper awareness of events

and security incidents, preparedness for crisis situa-

tions, and selection of security measures adequate to

potential losses, it is obvious to recognize risk man-

agement as an indispensable process in railway trans-

portation companies (a case study of traction break

due to icing and description of a decision making pro-

cess are provided in (Bagi

nski et al., 2019)).

This requirement results not only from the desire

to improve security and reduce the frequency and con-

https://orcid.org/0000-0002-0106-591X

https://orcid.org/0000-0001-9979-8208

sequences of events, but also from legal regulations

imposed by national–level authorities (e.g. in Poland

(Ministry of Infrastructure and Development, 2015))

and EU-level institutions (e.g. (European Commi-

sion, 2012)). Currently, there are several standards

where expert knowledge on risk management is col-

lected (Rausand, 2011).

The issues of risk management can be considered

in terms of making decisions which are appropriate

for the sake of the current environmental conditions

of the process and for the sake of expected future state

of the process.

Decision support systems (DSS) have been ap-

plied more and more often in different areas of hu-

man activity. The DSSes — depending on the areas

and purposes of their application — make use of ar-

tiﬁcial intelligence methods, knowledge engineering,

multi-criteria analysis, operational research, and deci-

sion theory.

Although there are known supporting systems for

public urban transport (Bellini et al., 2017) such solu-

tions cannot be applied directly in rail transport. It is

mostly due to the fact that rail transportation is much

more restricted: it is more difﬁcult to get the permis-

sion for rail transportation, there are fewer carriers

and other companies, the rail trafﬁc is more regular

and scheduled (similarly to air trafﬁc).

So, in the railway industry, there are currently no

Górka, W., Bagi

nski, J., Socha, M., Steclik, T., Le

sniak, D., Wojtas, M., Flisiuk, B. and Michalak, M.

Cloud Decision Support System for Risk Management in Railway Transportation.

DOI: 10.5220/0007837904750482

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 475-482

ISBN: 978-989-758-379-7

475

systems that would allow continuous exchange of in-

formation on safety and security (e.g. information

regarding threats, existing vulnerabilities). Accord-

ing to national legal requirements, stakeholders of the

Polish railway system (railway companies, infrastruc-

ture managers, entities responsible for maintenance)

are obliged to immediately report accidents, serious

accidents and incidents to the National Railway Ac-

cident Investigation Commission and the national Of-

ﬁce of Rail Transport (ORT).

The lack of any DSS dedicated to risk manage-

ment in the railway transportation branch was one of

the motivations to launch the project called Central

Threat Register (CTR): The management system of

information and expertise knowledge about threats for

railway transportation safety.

In the paper the selected elements and aspects of

developed CTR system are presented. They focus on

the risk management processes, cloud architecture of

the system, problems of data sharing and anonymiza-

tion. The necessity of such system development came

straight from rail companies. CTR is designed as a

cloud system, which comes from the business model

of its selling and licensing (see Section 5.1). More-

over, such an architecture improves data collecting

and sharing as well as performing statistical and risk

analyses.

The CRT system is dedicated to support security

representatives work in railway transport companies,

support activities in risk management, provision of

transport services and rail infrastructure maintenance.

Moreover, the risk analysis module and decision sup-

port module are more generic and may be used in dif-

ferent branches of industry too.

The system is still in the development phase, in

which rail transportation experts participate. During

this phase real acccidents and threats cases are ana-

lyzed.

The paper is organized as follows: it starts from

a description of the results of a questionnaire con-

ducted amongst 24 Polish railway companies; after-

wards, a short description of related works in the areas

of risk management and DSS systems is presented;

the following section brings results of some prelim-

inary studies in the CTR system requirements; next

section presents the selected elements of the system

architecture and is followed by a presentation of two

of the most important CTR system use cases; the pa-

per ends with some conclusions and perspectives of

further works and the system development.

2 RISK MANAGEMENT AND

DECISION SUPPORT IN

POLISH RAILWAY

TRANSPORTATION

Risk management is a relatively new and open is-

sue in Polish railway transportation: the appropri-

ate Polish standard comes from 2018 (Polish Com-

mittee for Standardization, 2018). As an element

of risk management, railway transportation authori-

ties require new fact sheets, reports and summary in-

formation reports (e.g. published by ORT). More-

over, railway companies do not exchange information

about threats, though they unanimously declare they

would be willing to use such data.

To better understand different approaches to risk

management performing, the authors conducted a

questionnaire among safety managers from 24 Polish

railway companies. Almost 80% of those questioned

said they did not use any IT systems supporting risk

management, security management (SMS — Secu-

rity Management System) or maintenance (MMS —

Maintenance Management System). Only 4 respon-

dents admitted they used IT management support sys-

tems. Most respondents used basic commonly avail-

able programs to maintain threats and events registers

and to prepare reports, i.e. text editors and spread-

sheets. Alternatively, these documents were produced

as paper ones. Fewer than 30% of those questioned

used IT systems to support the collection and analy-

sis of information about events. Only 2 respondents

declared they used IT support systems to exchange

information about the occurring events and threats.

Over 90% of the respondents admitted they had not

used any systems supporting mutual information ex-

change and 100% of them were willing to apply a sys-

tem for anonymous exchange of information, should

such a system be developed.

The above shows that the current level of infor-

mation exchange is not enough. This results from the

lack of knowledge, including the lack of awareness

about beneﬁts coming from risk management and

possibility to get prepared for the threats before they

actually occur. Now most corrective actions and anal-

yses are made no sooner than after the event occurs or

as a result of the event. Moreover, there are only few

available risk management support tools dedicated to

particular industries or infrastructures. The existing

tools do not support information exchange or use of

data from the whole industry or infrastructure.

ICSOFT 2019 - 14th International Conference on Software Technologies

476

3 RELATED WORKS

In this section a short overview of the present ap-

proaches to risk management and existing applica-

tions of DSS will be presented.

3.1 Risk Management

There are a number of solutions on the Polish mar-

ket which offer risk management support for railway

transportation, e.g. RailSoft (Petrosoft, 2017). The

RailSoft software is an integrated security manage-

ment system for railway companies in accordance

with the requirements of MMS/SMS. The software

has an analysis module RAMS (Reliability, Avail-

ability, Maintainability, Safety) which enables to test

railway systems in terms of their reliability, mainte-

nance and application safety. RailSoft also allows

to generate reports about security events in the com-

pany, which can be sent to the national ORT. Still, the

system does not ensure the exchange of information

about security events between railway companies.

There are also applications for risk analysis and

assessment, though these solutions are not dedicated

to railway companies. The available software was de-

signed to assess the risk for classiﬁed information, oc-

cupational hazards and operational risk. For example,

the application Risk Analysis (F-tec, 2019) enables to

analyze classiﬁed information in accordance with the

requirements of the Internal Security Agency.

There is no obligation to immediately inform

about identiﬁed internal threats or vulnerabilities.

ORT provides a portal where people can report de-

tected threats, security issues. However, in practice,

even if railway companies report such information,

usually they do not do it on a regular basis. There

are more elaborate tools supporting analyses, e.g. Re-

liability Workbench (Isograph, 2019), but they do not

offer the threat information exchange option.

Basically, on the European market there are no

integrated systems or platforms for the management

of railway threats, yet there have been attempts to

develop and implement such platforms. For exam-

ple, European Railway Agency (ERA) launched the

Safety Alerts IT Tool (SAIT) platform to exchange in-

formation about events that can potentially lead to ac-

cidents. The obligation to exchange such information

is a new requirement imposed by a European directive

(European Parliament, 2016). ERA facilitates one

more application, ERA SMS, which enables carriers

and managers to assess the functioning of their secu-

rity management systems. The application allows to

check the conformance with new SMS requirements

(so called 4th Railway Package).

3.2 Decision Support Systems

Decision support systems have evolved with the de-

velopment of technology (Shim et al., 2002) and

as it was mentioned in the Introduction section,

there are several types of DSSes deﬁned in literature

(Power et al., 2015), such as: data-driven, model-

driven, document-driven, communication-driven, and

knowledge-driven DSS. A decision support system

can be of one type, however, it can also contain sub-

systems representing different DSS types.

A characteristic feature of a data-driven DSS is ac-

cess to and processing of time series that can be inter-

nal or external company data (Power, 2008). The data

that are processed within the system can be stored in

various locations starting from a ﬁle system, where a

query and retrieval functionality is provided, up to a

data warehouse (Kimball and Ross, 2011; Poe et al.,

1997), where advanced data manipulation methods

are available. An appropriate data repository is par-

ticularly important for further analysis, inference and

decision support. Thanks to that, it is possible to in-

tegrate data from various sources and to clean and

prepare them. Such data-driven systems are used for

data originating, e.g., from sensors (Dong et al., 2018;

Sl˛ezak et al., 2018; Janusz et al., 2017).

The data stored in a system repository can be pro-

cessed by means of advanced data analysis methods

in order to derive a model assisting in decision mak-

ing. The systems where a model plays central role

are called model-driven DSSes (Power and Sharda,

2007). Such systems enable a non-technical user to

access a model by a dedicated interface. Additionally,

the created model is intended to be applied repeatedly

in the same or similar decision situation. The mod-

els utilized in the system can be of various types, e.g.,

differential equation models, analytical hierarchy pro-

cess based models, or forecasting models.

4 PRELIMINARY STUDIES

The support of risk management has to comprise

supporting tools (which implement certain knowable

practices), e.g. risk analysis methods, risk analyzers,

vulnerability analyzers, countermeasures. The sup-

port must be based on credible data on whose basis

(having already concrete quantitative data) it is pos-

sible to recommend certain solutions or to assess the

importance of deﬁned threats. The data necessary for

risk analyses cover a wide spectrum of information,

in terms of range, structure, granulation, and quanti-

tative aspects. A part of the data which are the ba-

sis to conduct risk analyses are entered by the opera-

Cloud Decision Support System for Risk Management in Railway Transportation

477

tors of domain systems, a part come from online au-

tomatic sensors, and another part are secondary data,

i.e. results of partial analyses. Thus, it is necessary for

the system to acquire information about events (acci-

dents, incidents, failures of railway stock, equipment,

etc). The acquisition of these data will give access to

the statistics about the occurrence of certain phenom-

ena within the organization. This, in turn, allows to

follow the trends of identiﬁed risks. In addition, the

acquisition of data about events makes it possible to

examine the causes of certain phenomena and points

to interim methods to solve them. Finally, it is possi-

ble to reason about the efﬁciency of the applied solu-

tions to mitigate the consequences of the events or to

reduce their frequency. The causes, actions, threats,

and consequences are elements used in the analytical

part.

Apart from quantitative data (based on events in

the company) it is necessary, particularly during the

ﬁrst stage of the system work, to support the users

with expert knowledge. This can be done by provid-

ing contact with a security expert. The users should

be able to contact the experts directly. Direct commu-

nication in the system will come down to running an

experts base and deﬁning the range of their compe-

tence. Expert knowledge is not only the support from

experts while solving current problems but also the

knowledge saved and available in the system.

Among the prerequisites identiﬁed during prelimi-

nary analyses of the system design there is an assump-

tion that the system should have a modular structure.

Thanks to that it will be possible to use a part of the

developed system in other risk management systems

dedicated to domains other than railway transporta-

tion. The development of a domain system only for

one sector (railway transport) would raise the cost of

an individual IT system. This led to the development

of a modular system whose components can be used

to construct systems dedicated to other industrial sec-

tors. Though the PN-ISO 31000 (Polish Committee

for Standardization, 2018) standard remains the ba-

sis of the system, the speciﬁcs of particular sectors

(e.g. railway, telecommunications, ﬁnances, fuels,

road transport) suggest that making a universal sys-

tem for all domains would not be a good solution.

Thus the common part of the system will cover certain

deﬁnitions of data structures, algorithms implementa-

tion, program libraries, and editors (tools) supporting

knowledge acquisition.

All these assumptions and requirements laid down

the basis to carry out the requirements analysis and

the functional analysis of the system.

5 CLOUD DSS FOR RISK

MANAGEMENT IN RAILWAY

TRANSPORT

In the ﬁrst stage of the system design the project

team focused on a data schema that would be general

enough to become a kind of a common point for risk

management systems. Such a universal data structure

allows not only to develop domain systems on the ba-

sis of the same data structure, but also to exchange

certain data elements between particular instances of

the system (this is important in the case of cloud so-

lutions). The ﬁrst step was to systematize the terms

used in the system and to determine the context of

their use in particular parts of the system (Figure 1).

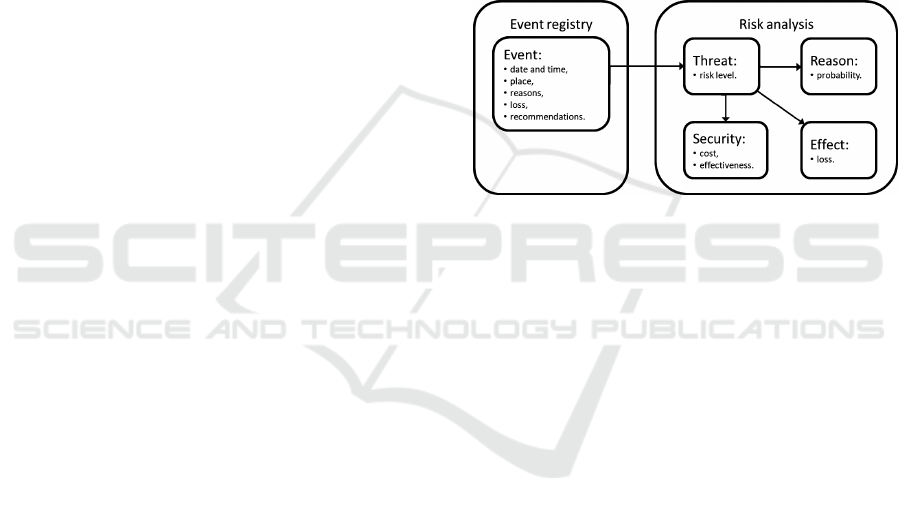

Figure 1: Dependencies and data ﬂow in the system.

In risk management there are four basic terms:

threat, vulnerability (cause), consequence, and pre-

ventive action (security measure). Their mutual re-

lations can be seen in Figure 1. In addition, risk man-

agement covers the assessment of the current situa-

tion. Therefore the system should store the events that

would make the basis for the analyses. An event will

be assigned to an existing threat. The statistics of the

event occurrence can be used for the assessment of

threats, probability and potential consequences of the

threat materialization.

5.1 System Architecture

The system architecture should allow for easy access

to the system, data exchange between particular com-

panies of the railway sector and mechanisms enabling

to preserve and promote expert knowledge in the sys-

tem. The best and the most commonly used method

is to develop the system in a cloud as it is presented

in Figure 2.

Such a solution facilitates the system commercial-

ization, particularly when it comes to smaller compa-

nies of the railway sector: it is possible to adapt the

price to the client’s ﬁnancial abilities, reduce mainte-

nance cost, eliminate the necessity to install the sys-

tem, and provide online update (Avram, 2014). An-

other argument is that the exchange of data between

ICSOFT 2019 - 14th International Conference on Software Technologies

478

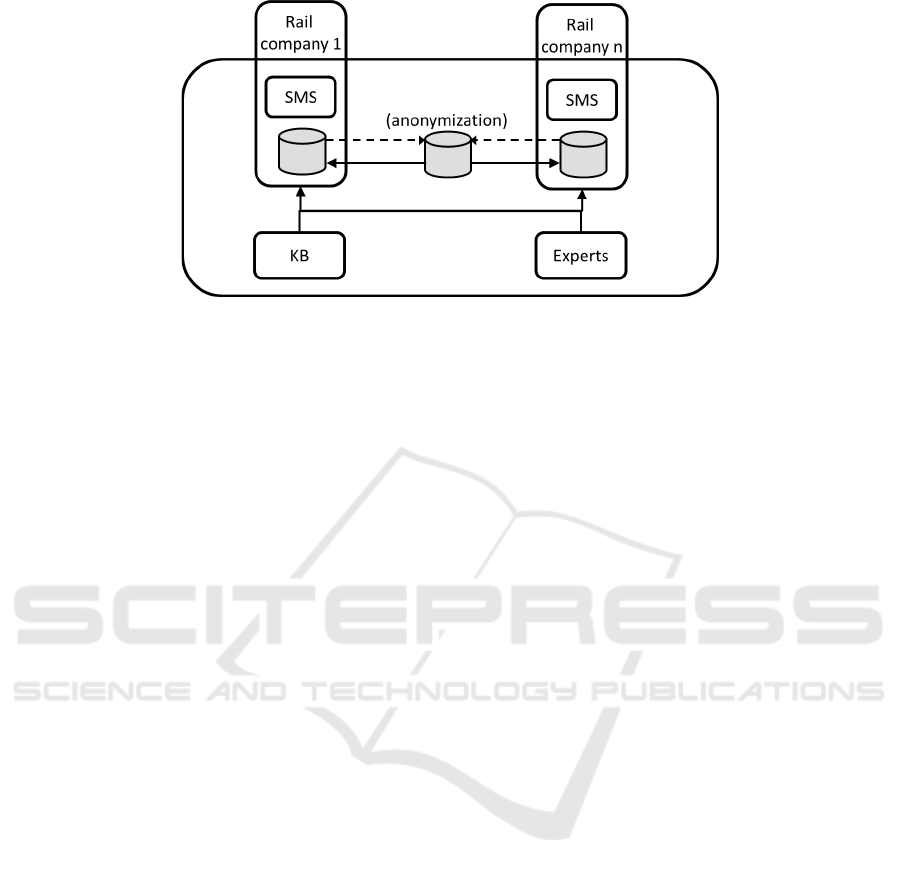

Figure 2: System architecture.

particular users is easier. It is not necessary to make

complicated integration of systems, either between

each other or with the central node – all data are stored

in one point and it is easy to use them, provided that

the given company gives consent to that. The access

to the system will be provided by a browser – the sys-

tem interface will have a WEB form.

The revision of existing practices and interviews

with the personnel responsible for keeping records of

risk management events showed that the events col-

lection and risk analysis were strictly related to each

other. Frequently, the information belonging to the

event description, e.g. consequences, causes or pre-

vention actions, was treated already as a resulting ele-

ment of risk analysis. In the developed system it was

proposed to separate these two areas. Thus the system

is logically divided into the supervision part related to

the collection of events and the analytical part where,

based on these events, threats are deﬁned and risk in-

dicators calculated.

An important element of the system architecture

is the method of deﬁning the knowledge base. The

system will have an independent data structure where

the patterns of threats, security controls, vulnerabili-

ties, and consequences will be stored. These data will

be constantly updated by the system experts based on

their experiences and observations. The users who

will deﬁne their own risk-related elements (threats,

security controls, etc) will refer to the patterns from

the knowledge base – the patterns will be given as

original elements for users-deﬁned elements.

This solution will allow to acquire global informa-

tion for the whole system, generate charts and statis-

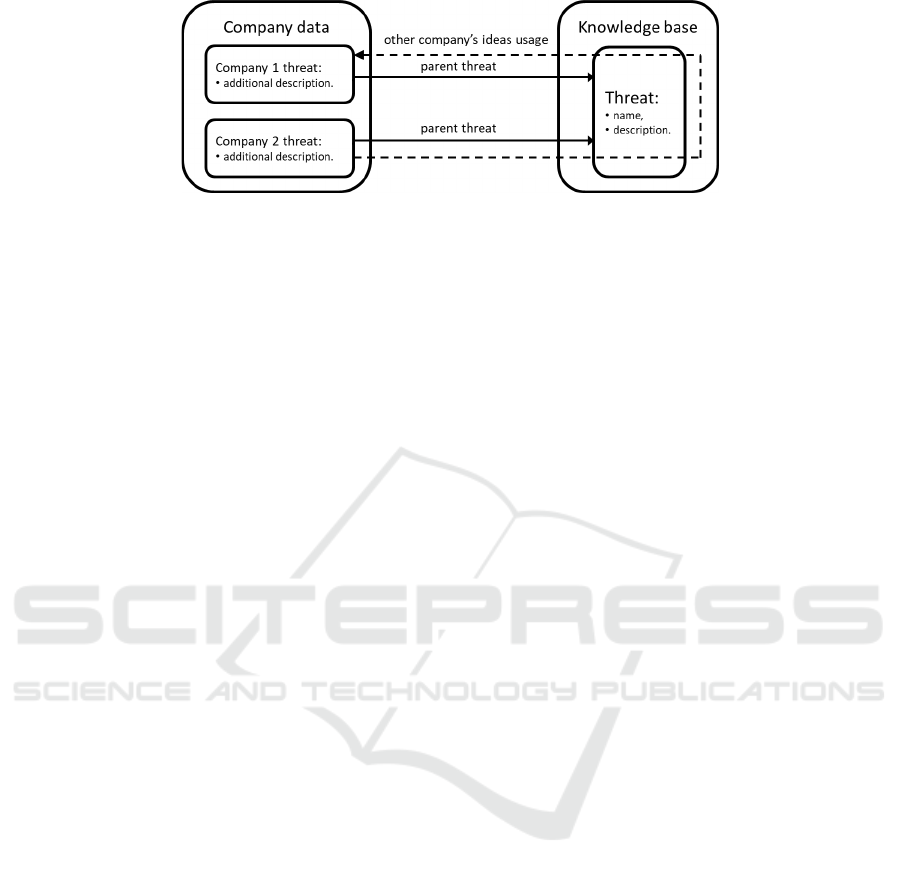

tics based on data from the whole sector. If, deﬁning

their own new threats, the users refer to a threat from

the knowledge base, the information or data about this

threat described by one user can be used as hints for

other users who refer to this element too. This aspect

of the system is presented in Figure 3.

5.2 Data Anonymization

The system architecture facilitates and promotes mu-

tual use of data by particular stakeholders of the rail-

way market who will make use of the developed sys-

tem. As it was mentioned before, this situation evokes

certain concern about possible disclosure of business

secrets. Therefore it is necessary to anomymize the

data, so that only this information could be provided

which does not subject the user to unauthorized dis-

closure of conﬁdential data or business secrets. To

anonymize the data, it is possible to use generaliza-

tion or permutation (Cormode and Srivastava, 2010)

as well as, in certain cases, clustering-based or graph

modiﬁcation approaches (Zhou et al., 2008). The de-

veloped system adopts data generalization with the

use of the knowledge base. Thus the anonymization

is reﬂected in the system architecture and in the data

model employed in the system. First of all, it was de-

cided to exchange aggregated quantitative data. For

example, it would be possible to get access to col-

lective data about the number of occurrences of the

given type of events (translated into certain threats)

but not to the contents of the events as such. Cer-

tain collective data will be collected for knowledge

base elements and the related elements deﬁned by the

users. The technique of using the knowledge base as

an intermediary between data of different organiza-

tions guarantees that the anonymization will be ap-

plied.

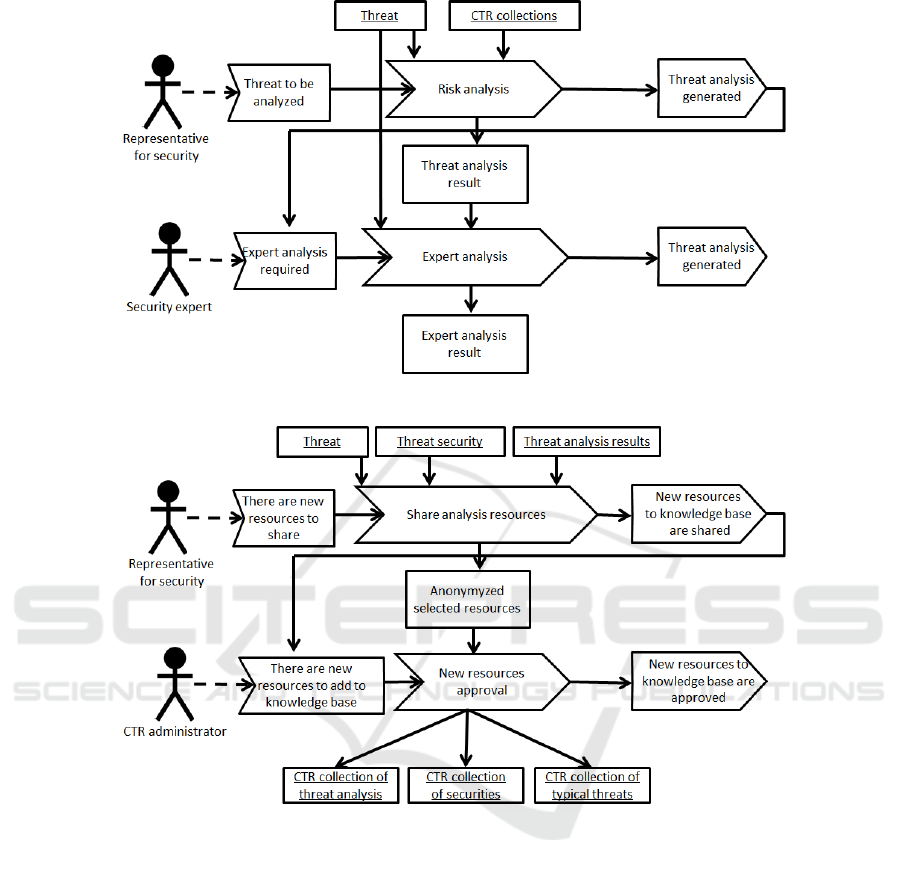

6 SAMPLE USE CASES

In this subsection two use cases are presented. They

reﬂect one of the most important situations: the

ﬁrst one represents a single risk analysis and the

second one illustrates data ﬂow in data analyzing,

anonymization and sharing.

Cloud Decision Support System for Risk Management in Railway Transportation

479

Figure 3: Use of knowledge base.

The ﬁrst use case deals with the single risk analy-

sis performance. The threat analysis will comprise, in

fact, several analyses. It will contain not only a risk

analysis for a certain threat but also the identiﬁcation

of the threat causes and consequences as well as pos-

sible security measures. Different types of analyses

will support these operations. For the given threat the

ﬁnal risk level will be determined with the use of one

of available analyses, e.g. FMEA.

A threat analysis, conducted by a railway com-

pany employee responsible for analyses, is done with

the use of available resources, such as the cata-

logues of previously collected data: consequences,

security measures, causes. For the purpose of the

analysis the user will have access to events asso-

ciated with the threat, so that, based on their de-

scriptions (including: recommendations of the com-

mission, quantitative consequences – victims, delays,

losses) he/she can draw proper conclusions and deﬁne

suitable causes, consequences and security measures.

An expert analysis, in turn, will be ordered by the

company’s representatives. Here the expert can be an

employee of a railway company, ORT or other institu-

tion. He/she must be familiar with the railway trans-

port speciﬁcs and have enough expert knowledge in

this domain. The expert will receive an order with

the description resulting from already analyzed data.

The description will have a form of a text paraphrase

of the collected data (from threat analysis), so the ex-

pert will not have direct access to threat-related data

(causes, security measures, consequences) but will be

provided with their text version.

Based on the description, the expert will be able

to examine the issue. The result of his/her work will

be either a description with remarks or his/her own

analyses. It will be possible for the expert to get fa-

miliar with the company’s own analyses in the form

of documents from analyzers.

The actors of the use case (security representative

and security expert) and the whole use case are pre-

sented in Figure 4.

The second use case deals with the data analysis

and sharing. A railway company employee who is re-

sponsible for security initiates the process of provid-

ing information about new threats, security measures,

etc. At this stage he/she decides which information

should be released to the remaining users of CTR. The

provided data are anonymized in the next stage.

The second actor of the process is the system ad-

ministrator whose task is to approve the anonymized

data provided by the employees of particular railway

companies. This step allows to ensure coherence and

suitable quality of data to be stored in the common

data base. The process itself is ﬁnalized by supple-

menting particular catalogues of the database.

The scheme of the use case is presented in Figure

7 CONCLUSIONS AND FURTHER

WORKS

In the paper the new developed decision support sys-

tem for risk management in Polish railway trans-

portation is presented. The description consists of

an overview of most general aspects such as data

anonymization, data sharing, experts involvement,

decision support, and cloud architecture.

Big railway transportation companies, which took

part in the above mentioned questionnaire, have at

their disposal some tools supporting risk analyses.

Still, these are local-level solutions. Therefore the

project is not focused on the risk analysis as such

but on collecting information from the whole railway

transport domain (e.g. information how often secu-

rity incidents occur, etc). The risk analysis module is

extra support for smaller railway transportation com-

panies which have not used such tools so far. The

AHP-based decision support module, in turn, is an

added value for this domain as this method has not

been employed by railway carriers before.

The presented ideas for the system development

are implemented progressively within the project. Not

until the implementation stage has been concluded,

the system use by real users will allow to assess

whether the decisions about possible solutions were

ICSOFT 2019 - 14th International Conference on Software Technologies

480

Figure 4: The use case illustrating the single risk analysis.

Figure 5: The use case illustrating the single data analysis and sharing.

right. The system is built in the Agile methodology,

so that permanent contacts with domain experts could

allow to verify the correctness of successive system

sections. A threat to proper functioning of the sys-

tem may be the users’ lack of willingness to exchange

data between each other (in spite of the existing data

anonymization). A supporting action here will be a

system of incentives, i.e. if a user wants to access data

from other users, he/she has to give access to his/her

data in return.

An important element that will impact the success

of the system will be its status during the start–up —

whether the system already has some data, which are

an added value, in the form of domain knowledge.

Thus, the contents of the data base should be prepared

by the domain experts already at the stage of the sys-

tem implementation. This will be done by means of a

special interface for knowledge base editing.

The developed common part for different risk

management systems in the organization will be veri-

ﬁed by an attempt to apply it in a different sector. No

doubt, this will involve some changes or will require

to work out another common elements. It is consid-

ered to give public access to this part of the system

in the form of a framework for risk management sys-

tems.

On the basis of the feedback from the domain ex-

perts the modules od Knowledge Base and Experts

are now ﬁlled with data. In addition, the compa-

nies’ databases and the global anonymized database

are ﬁlled with the sample initial data. The most im-

portant part of the project — the implementation in

selected rail companies — is still ahead.

Our future works will also focus on the system

Cloud Decision Support System for Risk Management in Railway Transportation

481

efectiveness and afﬁciency. Although the potential

number of system users might not be high (the access

to the rail transportation market is strictly supervised

and the total number of companies does not exceed

one hundred and several dozen) the next implementa-

tion phase may require to overcome some difﬁculties

in the system operation.

ACKNOWLEDGEMENTS

This work was supported by Polish National Cen-

tre for Research and Development (NCBiR) within

the Operational Programme Intelligent Development:

Grant No. POIR.04.01.02-00-0024/17-00 (Central

Threat Register — The management system of infor-

mation and expertise knowledge about threats for rail-

way transportation safety).

REFERENCES

Avram, M. (2014). Advantages and challenges of adopt-

ing cloud computing from an enterprise perspective.

Procedia Technology, 12:529 – 534.

Bagi

nski, J., Flisiuk, B., Górka, W., Rogowski, D., and

Ste¸clik, T. (2019). Multi–criteria decision analy-

sis in the railway risk management process. Com-

munications in Computer and Information Science,

1018:126–138.

Bellini, E., Ceravolo, P., and Nesi, P. (2017). Quan-

tify resilience enhancement of uts through exploit-

ing connected community and internet of everything

emerging technologies. ACM Trans. Internet Technol.,

18(1):7:1–7:34.

Cormode, G. and Srivastava, D. (2010). Anonymized data:

Generation, models, usage. In 2010 IEEE 26th In-

ternational Conference on Data Engineering (ICDE

2010), pages 1211–1212.

Dong, F., Zhang, G., Lu, J., and Li, K. (2018). Fuzzy com-

petence model drift detection for data-driven decision

support systems. Knowledge-Based Systems, 143:284

– 294.

European Commision (2012). Commision regulation no

1078/2012.

European Parliament (2016). Directive 2016/798 on railway

safety.

F-tec (2019). https://f-tec.pl/analiza-ryzyka/.

Isograph (2019). https://www.isograph.com/software/reliability-

workbench/.

Janusz, A., Grzegorowski, M., Michalak, M., Wróbel, L.,

Sikora, M., and

Sl˛ezak, D. (2017). Predicting seis-

mic events in coal mines based on underground sensor

measurements. Engineering Applications of Artiﬁcial

Intelligence, 64:83 – 94.

Kimball, R. and Ross, M. (2011). The data warehouse

toolkit: the complete guide to dimensional modeling.

John Wiley & Sons.

Ministry of Infrastructure and Development (2015). Com-

mon security indices decree. Dziennik Ustaw, 1061.

Petrosoft (2017). https://petrosoft.pl/produkty/oprogramowanie-

kolejowe/.

Poe, V., Brobst, S., and Klauer, P. (1997). Building a data

warehouse for decision support. Prentice-Hall, Inc.

Polish Committee for Standardization (2018). Polish stan-

dard PN-ISO 31000:2018–08: Risk management —

guidelines.

Power, D. J. (2008). Understanding data-driven decision

support systems. Information Systems Management,

25(2):149–154.

Power, D. J. and Sharda, R. (2007). Model-driven deci-

sion support systems: Concepts and research direc-

tions. Decision Support Systems, 43(3):1044–1061.

Power, D. J., Sharda, R., and Frada, B. (2015). Decision

Support Systems, pages 1–4. American Cancer Soci-

ety.

Rausand, M. (2011). Risk Assessment: Theory, Methods,

and Applications. Wiley.

Shim, J. P., Warkentin, M., Courtney, J. F., Power, D. J.,

Sharda, R., and Carlsson, C. (2002). Past, present,

and future of decision support technology. Decision

support systems, 33(2):111–126.

Sl˛ezak, D., Grzegorowski, M., Janusz, A., Kozielski, M.,

Nguyen, S. H., Sikora, M., Stawicki, S., and Wróbel,

L. (2018). A framework for learning and embedding

multi-sensor forecasting models into a decision sup-

port system: A case study of methane concentration

in coal mines. Information Sciences, 451-452:112 –

133.

Zhou, B., Pei, J., and Luk, W. (2008). A brief survey on

anonymization techniques for privacy preserving pub-

lishing of social network data. ACM SIGKDD Explo-

rations Newsletter, 10(2):12 –22.

ICSOFT 2019 - 14th International Conference on Software Technologies

482
