A Multi-layer Ontology for Data Processing Techniques

Man Tianxing

, Nataly Zhukova

1,2

, Nguyen Than

, Alexander Nechaev

and Sergey Lebedev

ITMO University, St. Petersburg, Russia

St. Petersburg Institute for Informatics and Automation of the Russian Academy of Sciences, St. Petersburg, Russia

Saint-Petersburg Electrotechnical University, St. Petersburg, Russia

Vyatka State University, Kirov, Russia

Keywords: Data Processing, Machine Learning, Multilayer Structure, Algorithm Selection, Ontology.

Abstract: Currently, data processing technology is applied in various fields. But non-expert researchers are always

confused about its diversity and complex processes. Especially due to the instability of real data, the

preparation process for extracting information is lengthy. At the same time, different analysis algorithms are

based on different mathematical models, so they are suitable for different situations. In the real data processing

process, inappropriate data forms and algorithm selections always lead to unsatisfactory results. This paper

proposes a multilayer description model of data processing algorithms and implements it based on ontology

technology. The model provides a multi-layered structure including data pre-processing, data form conversion,

and output model selection so that the user can obtain a complete data processing process from it. The

extensibility and interpretability of ontology also provide a huge space for model improvement. The multi-

level structure greatly reduces its complexity.

1 INTRODUCTION

A massive amount of domain-specific data which

contains useful knowledge are collected, data

processing techniques become more and more

important in different fields such as marketing,

medical, biology, etc (Najafabadi et al., 2015). The

researchers are focusing on mining and extracting

information from these real-world data sets.

Data collection methods always loosely

controlled, resulting in missing values, impossible

data combine, noisy value and so on. “Garbage in，

Garbage out” means useful information can't be

extracted from an incomplete data set (García et al.,

2016). The representation and quality of data is the

base of a data analysis task. Usually, data preparation

and transform take quite an amount of processing

time.

The data processing technique is one of today’s

most rapidly growing technical fields, lying at the

intersection of computer science and statistics, and at

the core of artificial intelligence and data science

(Jordan, M. I. and Mitchell, T. M. 2015).

With the development of related technologies,

researchers are always faced with too many choices

in dealing with the same data analysis tasks.

(Fernández-Delgado et al., 2014) make an incomplete

review about available classifiers which already

includes 179 classifiers arising from 17 families. And

based on the experiments there is no classifier that

always has the best performance in every data set.

There is no best algorithm, only the most appropriate

algorithm. But how to choose the appropriate

algorithm is always confusing the non-computer

professional researchers.

Anyway, it is a complicated process to generate

an object analysis model, which includes many steps.

For now, the problem of finding a process to build a

model from an initial set is being solved in an ad hoc

manner, so it is error-prone and not effective

relatively time or efforts

To solve this problem, this article proposes an

expandable multilayer conceptual model of data

processing techniques. It fixes some stereotypes

within the realm of data processing organization,

helps to choose among possible alternatives, provides

step by step instructions. The model defines possible

data formats, data set features, data features,

algorithms, user restrictions, data processing

workflows. It consists of four layers corresponding to

the four forms of data in the data processing process:

 Level 0. Raw layer corresponds to raw data set

648

Tianxing, M., Zhukova, N., Than, N., Nechaev, A. and Lebedev, S.

A Multi-layer Ontology for Data Processing Techniques.

DOI: 10.5220/0007839606480655

In Proceedings of the 16th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2019), pages 648-655

ISBN: 978-989-758-380-3

 Level 1. The parameter layer corresponds to tidy

data set, which is ready to be extracted

information by machine learning algorithms.

 Level 2. The indicator layer corresponds to the

indicator data which are extracted from raw data

set and considered as a new data set.

 Level 3. The processing layer corresponds to the

output model.

The authors implement this conceptual model

based on ontology technology to build a multilayer

ontology for data processing techniques. It describes

the processes and suitable situations of data pre-

processing techniques, feature extraction algorithms

and data processing algorithms. The researchers

could get reasonable advice of algorithm selection

and complete process description of selected

algorithms. The main advantages are as follow:

 This multilayer ontology includes entire process

of data processing. Users could find all the

information about the data processing techniques

in it.

 As an ontology its comprehensibility makes it

more friendly to the users and its extensibility

make it to be improved in use.

 The multilayer structure split the process of data

processing into 4 main steps. This makes the

process clearer and such a structure greatly

reduces the complexity of the use of the

ontology.

This article is organized as follow: the section 2

presents the related work about the existing review of

data processing and the techniques which are used in

the research; the section 3 describes the construction

of the multilayer structure; the section 4 presents the

implementation of the Multilayer ontology; the

section 5 is the conclusions of this research.

2 RELATED WORK

Data processing is a complex process. Many

researchers are committed to providing an excellent

taxonomy to help data engineers. Ayodele and T. O.

(2010) present a review of the type of machine

learning algorithms. Kotsiantis (2007) provide a

comprehensive review about Supervised machine

learning. Satyanandam and Satyanarayana (2013)

describe a taxonomy of ML and data mining for

Healthcare Systems. But these reviews just discuss

the Theoretical knowledge of data processing

techniques. On the other hand, some researchers try

to present an understandable introduction about how

to choose suitable data processing techniques. Dash

and Liu (1997) describe how to select the correct

features in classification tasks. Reif et al. (2014) even

present an automatic classifier selection model for

non-experts. Bernstein et al. (2005) apply ontology

technique to build an intelligent assistance for data

classification. Anastácio et al. (2011) describe the

related knowledge about data mining. Panov et al.

(2014) summarize the data mining entities in existing

ontologies. These reviews are focus on the part of

data analysis. But in fact, in data processing is a

complex process, that includes multiple steps starting

from data preparation. So the users still don't know

how to start with these reviews.

Although some reviews about dealing with the

dirty data can be found. Kim et al. (2003) provide a

taxonomy of dirty data. Chu et al. (2016, June)

describe the methods for data cleaning. García et al.

(2015) give a taxonomy of data pre-processing.

Anyway, it takes too much time to check so many

literatures to build a data processing process. This

article proposes a conceptual model based on the

forms of data including the entire data processing

process.

Ontology technique is selected to be the method

to implement this model. Ontology is a general

conceptual model that describes a domain of

knowledge (Simons, P., 2000). This model contains

the general terms and relationships between the terms

in this subject area. It has flexible logical

relationships which are suitable for the complex

process descriptions in the data processing domain.

Its expandability can make the ontology to be

expanded with the development of technology so that

it will not become obsolete. Its interpretability makes

it to be appropriate to the understanding and use of

researchers without computer expertise. Keet et al.

(2014, July) presented an ontology to describe the

knowledge about data mining. Rodríguez-García et

al. (2016) presented a semantically boosted platform

for assisting layman users in extracting a relevant

subdataset from all the data and selecting the data

analysis techniques.

Multi-layer concept is effective for the data

conversion process (Osipov et al., 2017). The concept

of multi-layer ontology is also used to implement

synthesized models. Pai et al. (2017) create a multi-

layer ontology-based information fusion for situation

awareness. CARVALHO, V. (2016) presents the

main method to build multi-layer ontology

conceptual model.

So this article present a multi-layer conceptual

model of data processing techniques. The forms of

data are the basis for splitting the process. A multi-

layer ontology is created as the implement of this

conceptual model.

A Multi-layer Ontology for Data Processing Techniques

649

3 MODEL STRUCTURE

The process of data processing, which extracts

information from the raw data, is complex. In order

to provide a clear structure, the authors designed a

multi-layer conceptual model based on the data forms

in data processing process. The essence of data

processing is to constantly transform the data set until

it becomes understandable knowledge. These

conversion operations are data processing techniques.

In this model data sets in different layers are

converted to each other with the operation of data

processing techniques. However, users only need to

consider the dataset characteristics and the available

algorithms in the current layer. Such a structure

greatly reduces the complexity of synthesizing the

entire data processing process.

Figure 1: The multi-layer structure of the conceptual model.

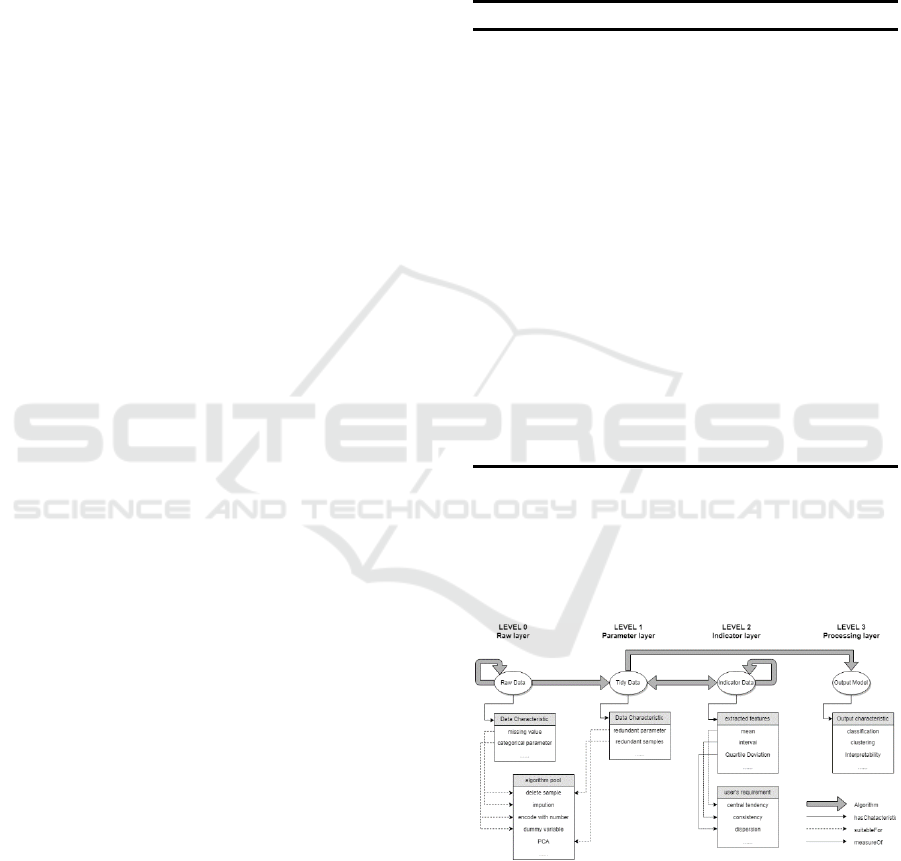

The multilayer structure is shown in Figure 1. The

data changes are divided into four levels. Pre-

processing techniques, feature extraction methods

and machine learning algorithm are applied as data

conversion operations.

Table 1: Main data defects and their corresponding pre-

processing technique.

Data defect Pre-processing technique

Missing value Delete, Ignore, Imputation etc.

Redundancy Reduction

Noisy value

Ensemble Filter, Iterative-Partitioning

Filter etc.

 Level 0: The raw layer is used to describe the

raw data set in real life due to the poor

management of data collection methods, many

anomalies are recorded on real-world data set.

These serious data defects make machine

learning algorithms not directly applicable. So

this level represents the defects of raw data set

and the corresponding pre-processing

techniques which are shown in table 1.

 Level 1： The output of data pre-processing is

actually the final train set for machine learning

algorithms. The tidy data means that its form is

ready to be analysed. But the characteristics of

data set are the important factor for choosing

suitable machine learning algorithm. So in this

level the data is marked with their characteristics

which are shown in table 2.

Table 2: Main characteristics of tidy data set.

Category Data characteristic

Sample size Great, Medium, Small

Attribute size Great, Medium, Small

Relevance Irrelevant, Related

Type Time series etc.

 Level 2: As mentioned earlier, the initial tidy

data is only formally ready to be analysed. Each

of its parameters has relatively complete and

reasonable data. But the original parameters do

not vividly express the needs of some users. The

data needs to be described with appropriate

features to represent the corresponding

properties. This situation is especially common

in time series data analysis. The data is subjected

to feature extraction and new parameters appear

as a new data set. The choices of the extracted

features depend on the data properties that the

user desires. Table 3 presents different features

which can represent different properties.

Table 3: Main data property and their measures.

Data property Data feature

consistency intervals

dispersion

Quartile Deviation, Mean

Deviation, skewness, kurtosis etc.

central tendency

Arithmetic mean, Geometric mean,

Harmonic mean, median, mode,

quantiles etc.

 Level 3: The output model is the final form of

data and the main goal of data processing.

Neither the classification model nor the cluster

model represents the knowledge extracted from

the data set. So this layer represents the user's

needs most directly. In the multi-layer

conceptual model this layer is described as the

characteristics of output model which is shown

in table 4.

ICINCO 2019 - 16th International Conference on Informatics in Control, Automation and Robotics

650

Table 4: Main characteristics of output model.

Category Model characteristic

Type of task classification, cluster, prediction etc.

number of classes non-class, two-classes, multi-classes

Interpretability Interpretable, Inexplicable

These 4 forms of data exist in the entire process of

data processing and the process actually is the mutual

conversion between data forms. As the Figure 2

shown raw data is prepared by pre-processing

techniques step by step until it becomes tidy enough.

Unless the user has special needs, tidy data can be

analysed by machine learning algorithms to generate

an output model. However, sometimes tidy data must

be converted by feature extraction methods to

generate a new data set whose parameters are the

features of original data. And this new data set is a

new raw data. It is very possible that this new data set

loses the tidy form, so it should be pre-processed

again to be ready for analysis.

The data at each level has unique characteristics

and problems to be solved. Data processing

techniques should be applied with the right sequence.

Without consideration of the states of data, some

repetitive operations will be applied. This situation

increases the complexity of data processing work.

Such as principal components analysis should be used

after representation, because the representation

methods can reconstruct the structure and content of

the data set, which offset the effect of principal

components analysis.

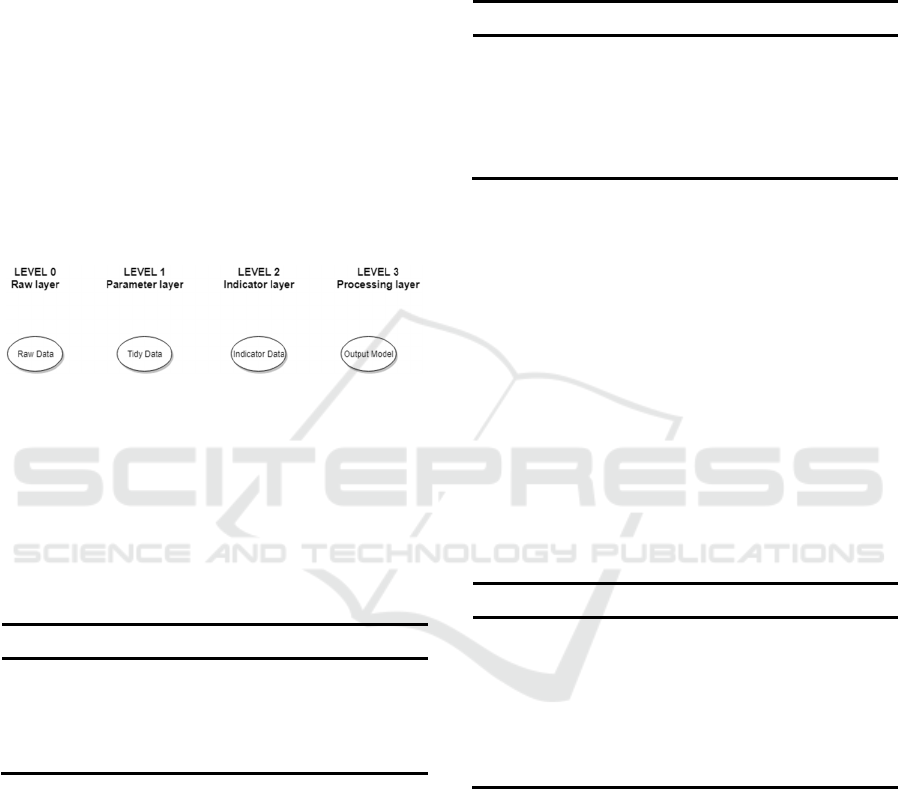

Figure 2: The conversion in the multi-layer conceptual

model.

However, the multilevel structure makes users

just consider the corresponding problems in each

level. The irrelevant conditions couldn't be seen. With

the transform among the data levels, a reasonable

operation process is generated.

4 IMPLEMENT WITH

ONTOLOGY

Ontology is a commonly used technique for

describing domain-specific knowledge. Its

extensibility and comprehensibility are suitable for

the construction of the conceptual model in this paper.

The authors build the multi-layer ontology of data

processing techniques on protege-5.5.0 using the owl

language (McGuinness and Van Harmelen, 2004). It

is inferred by Hermit 1.3.8.413 reasoner. There are no

highlight classes appeared and the defined individuals

are classified into the correct classes. It means this

ontology satisfies consistency and sufficiency.

4.1 Basic Structure of Multi-layer

Ontology

Figure 3 shows the basic structure of the multi-layer

ontology. It is obvious that description of different

data forms only connects to the appropriate algorithm

for themselves so that the information is split into

different levels.

The multi-layer structure is constructed based on

the relationships in ontology. All the data processing

techniques are linked the characteristics of data in

different level. The relationships are the object

property "suitableFor". When user deal with a data

set, they only can see all the available solution based

on the outward links of the characteristics of this data

set. And if the data set is converted to another form.

Users can find the suitable solutions based on the

outward links of the characteristics of the new data

set.

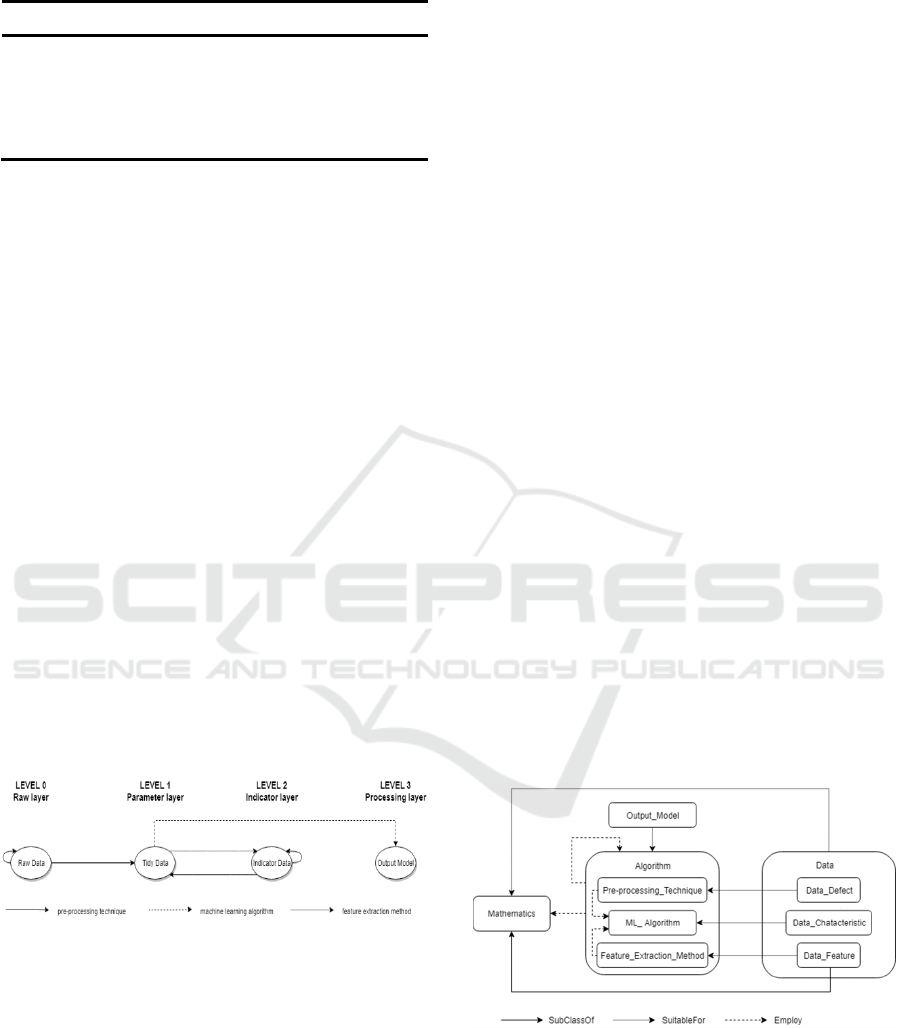

Figure 3: The basic structure of the multi-layer ontology.

4.2 Classes in Multi-layer Ontology

Classes are the core content of the ontology. In order

to provide users with clear data processing

knowledge, this multi-layer ontology creates several

main classes:

A Multi-layer Ontology for Data Processing Techniques

651

 Algorithm: This is the main part of the ontology.

Pre-processing techniques, feature extraction

methods, and machine learning algorithms are

all subclasses of this class. Hundreds of data

processing techniques are described in this class.

It also provides a variety of taxonomies to

classify these algorithms so that users can

understand these algorithms from different

angles.

 Mathematics: This class describes the

mathematical knowledge involved in data

processing. Because the performance

differences of the algorithm depend on the

mathematical foundation such as measure,

models etc. It is an important basis for algorithm

selection.

 Data: This class contains various information of

data such as data defect, data characteristic, data

property etc. It describes the characteristics of

the data in each level.

 Output model: This class describes the users'

requirement. It uses the characteristics to

represent tasks.

These classes describe the knowledge about data

processing. This is a comprehensive and extendable

review so that users can achieve enough information

from it.

4.3 Properties in Multi-layer Ontology

The definition of property is the greatest difference

between ontology and taxonomy. In ontology more

properties are defined to present more complicate

relations. In this multi-layer ontology both object

property and data property are used.

4.3.1 Object Property

The main object properties are as follow:

 "subclassOf" is a typical relation in ontology

and taxonomy. It makes the hierarchy of

algorithms and data information clearer. And

many taxonomies are integrated into this

ontology based on this relation.

 "employ" is used from class algorithm to class

mathematics to explain the algorithm process.

Sometimes the data sets are suitable for some

special measures or functions. So it connects

algorithms and mathematics to lead to find the

suitable algorithm with suitable measure.

 "suitableFor" is used to provide advice about

algorithm selection. The relations "suitableFor"

are from theory base and some previous

experiment results.

4.3.2 Data Property

Data property is just used to describe the value and

range of machine learning algorithms. This part is

very useful for non-expert researchers. The table 5 is

an example about data property.

Table 5: The use of data property “hasSize” in ontology.

Category Range of Class Value Entity in Ontology

Sample

size

hasSize some

xsd:integer[< 100]

SmallTrainDataset

hasSize some

xsd:integer[>= 100,

<=500]

SmallTrainDataset

hasSize some

xsd:integer[> 500]

LargeTrainDataset

Attribute

size

hasSize some

xsd:integer[< 300]

ShortDataset

hasSize some

xsd:integer[>= 300,

<=700]

MediumDataset

hasSize some

xsd:integer[> 700]

LongDataset

No. of

classes

hasSize some

xsd:integer[< 10]

FewClassDataset

hasSize some

xsd:integer[>= 10,

<=30]

MediumClassDataset

hasSize some

xsd:integer[> 30]

ManyClassDataset

4.4 Workflow of Multi-layer Ontology

Based on the object property defined in the ontology,

users can find the right solution at each level. Figure

4 is the workflow based on this multi-layer ontology.

Figure 4: The workflow of the multi-layer ontology.

The data is converted by the class “Algorithm”.

Since the data characteristics link their available

solutions with the object property “suitaleFor” in the

ontology, users don’t need check the whole algorithm

pool. And in each level users just choose the suitable

ICINCO 2019 - 16th International Conference on Informatics in Control, Automation and Robotics

652

solution based on the data characteristics and their

requirements.

5 APPLICATION

This multi-layer ontology is quite meaningful for

researchers who are not computer professionals. The

authors used this ontology to process real-world data

in various fields and achieved good results (Tianxing

and Zhukova, 2018). This article presents an

application to estimation of the complex object states.

In this experiment, the data set is the results of

measurements of technical objects parameters. The

user wants to make system analyses of the objects

states. Each object has some characteristics and users

want to find some deep information inside.

The original data set has 534 samples for 89

objects. And each object has up to 6 samples

corresponding to 6 state points. Each sample has 21

attributes corresponding to 21 parameters.

The original objects have already been classified

to 3 group: Group 1 and group 2 are two different

categories and group 3 is for the objects whose data

is not enough. In this experiment, we only try to find

the difference of the consistency of changes in the

parameters.

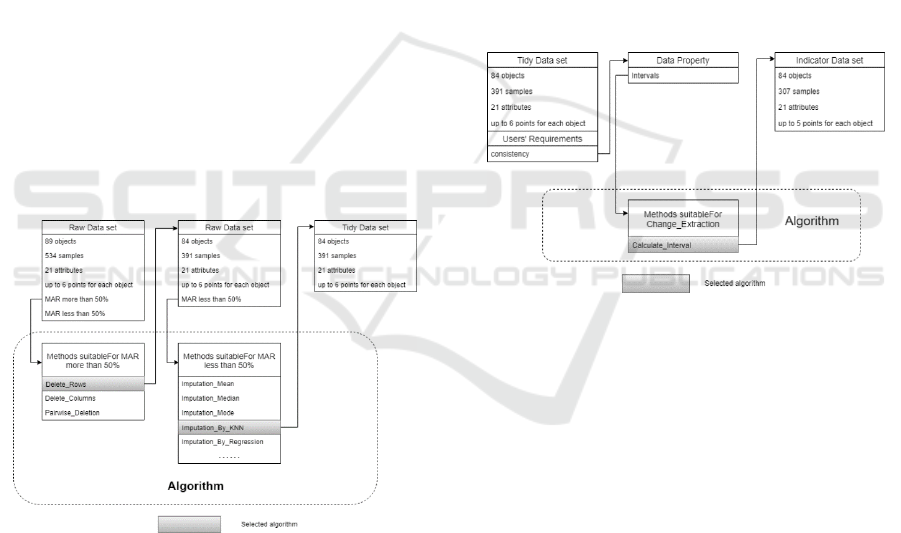

Figure 5: Data conversion from level 0 to level 1.

Users are often confused in the face of a messy

data set and abstract task requirements. They don't

know where to start. Choosing the right set of

algorithms in hundreds of data processing algorithms

to generate the correct process is a complex task. The

multi-layer structure provided by multi-layer

ontology simplifies this process. When users enter

current data characteristic, they only get a collection

of available solutions. For example, the raw data set

has several defects. But each time the user enters a

defect, they get a collection of suitable solutions.

After solving all the defects with the provided

solutions， the raw data set has no defects, then it is

converted to a tidy data set. Then user will just get

available solutions in the algorithms which are

available for tidy data. Therefore, the complexity of

data processing synthesis is greatly reduced. The

detailed operation flow is as follows:

First step is obviously to prepare the data which is

shown in Figure 5. Missing value is the problem of

this data set. Two solutions were chosen to solve two

different missing situations to get the tidy data. The

level changes from level 0 to level 1.

In order to verify the difference in the data of

different groups, Authors decided to test the

consistency of the changes between points in different

states. But it is difficult to express consistency from

the original parameters. So as shown in the figure 6,

interval is selected as the new parameter. The level

changes from level 1 to level 2.

Figure 6: Data conversion from level 1 to level 2.

However, the main idea is clustering the intervals

value to check consistency. The values in indicator

data have different ranges so that the clustering

algorithms couldn't achieve good results. So

normalization operation is applied on the indicator

data to convert it from level 2 to level 1 so that it is

ready for a clustering algorithm as the Figure 7 shown.

At last a clustering algorithm "EM" is selected

based on the characteristics of data and output model

as the Figure 8 shown.

And the result of clustering intervals between 1

point and 2

point in group 1 and group 2 with EM

algorithm is shown in table 6.

The intervals in group 1 are clustered into 1

cluster. That means the data is compact and

respectively changes of parameters are consistent in

group 1. On the other hand, the distribution in group

2 is blurred. The Figure 9 shows the example of the

probability distribution of an indicator. This

conclusion is a significant result of the technical

object analysis.

A Multi-layer Ontology for Data Processing Techniques

653

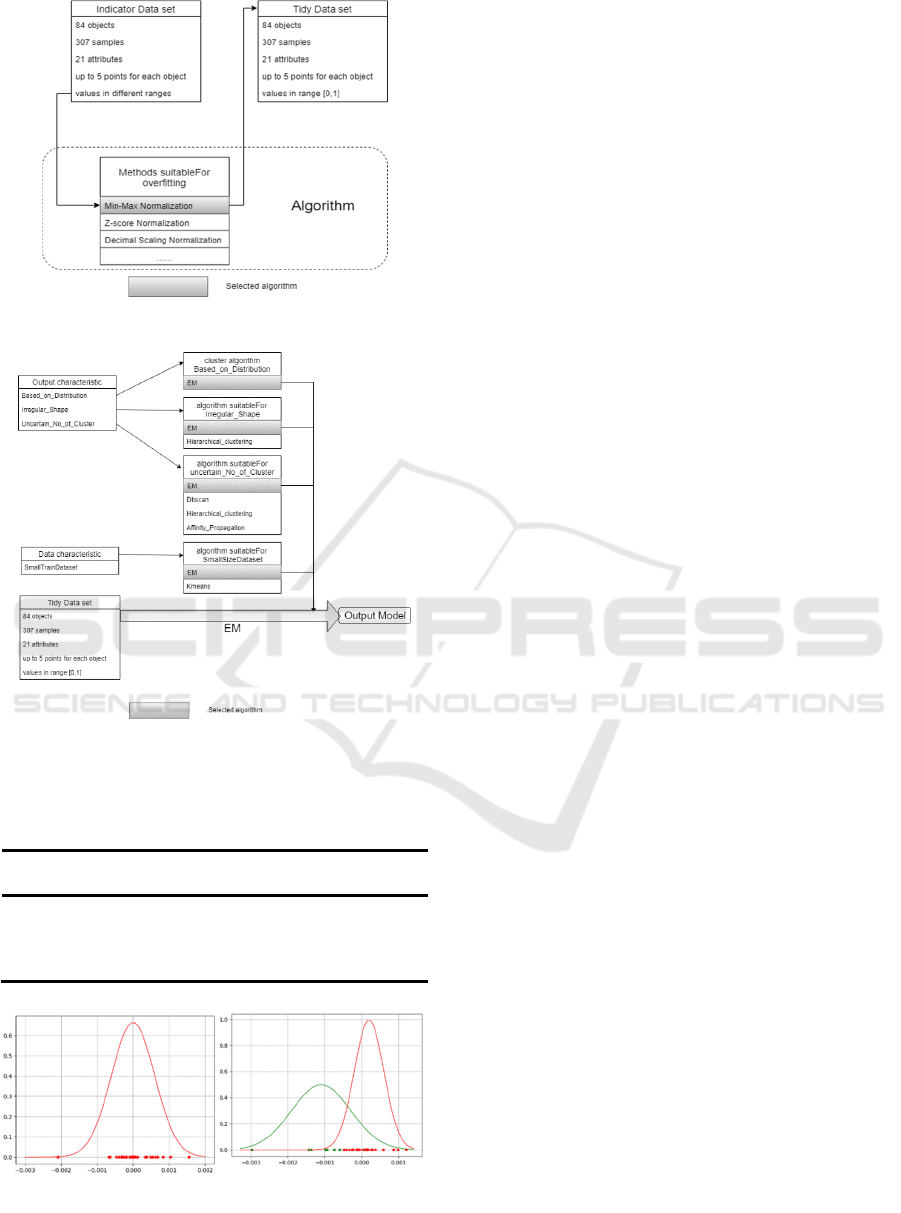

Figure 7: Data conversion from level 2 to level 1.

Figure 8: Data conversion from level 1 to level 3 (EM-

Expectation-Maximization algorithm).

Table 6: The results of clustering intervals between 1

point

and 2

point in group 1 and group 2 with EM algorithm.

dataset No. of samples

No. of

cluster

likelihood

group1_diff1

2_norm

29 1 {29} 89.23071

group2_diff1

2_norm

31 2 {8,23} 92.30114

Figure 9: The probability distribution of 1

intervals of

group 1 (1 cluster) above and group 2 (2 clusters: 1

cluster

in green colour and 2

cluster in red colour) below.

6 CONCLUSIONS

For the complex structure of data processing, a clear

conceptual model can effectively save time and

computational resources in process synthesis. This

paper proposes a conceptual model of data processing

technology based on the form of data transformation.

It includes the entire data processing process

including data pre-processing, feature extraction and

data analysis. The multi-layer structure divides these

methods into four levels: raw layer, parameter layer,

indicator layer and processing layer. Such a structure

reduces the complexity of the process synthesis. The

authors implemented this conceptual model using

ontology technology. Based on the advantages of the

ontology, this multi-layer ontology is also extensible

and understandable. The experiments prove that the

multi-layer ontology provides sufficient information

about the synthesis of real-world data processing

process and it is significant to the non-expert users.

REFERENCES

Kim, W., Choi, B. J., Hong, E. K., Kim, S. K., & Lee, D.

(2003). A taxonomy of dirty data. Data mining and

knowledge discovery, 7(1), 81-99.

Chu, X., Ilyas, I. F., Krishnan, S., & Wang, J. (2016, June).

Data cleaning: Overview and emerging challenges. In

Proceedings of the 2016 International Conference on

Management of Data (pp. 2201-2206). ACM.

García, S., Luengo, J., & Herrera, F. (2015). Data

preprocessing in data mining (pp. 59-139). New York:

Springer.

Pai, F. P., Yang, L. J., & Chung, Y. C. (2017). Multi-layer

ontology-based information fusion for situation

awareness. Applied Intelligence, 46(2), 285-307.

CARVALHO, V. (2016). Foundations for Multi-level

Ontology-based Conceptual Modeling.

Najafabadi, M. M., Villanustre, F., Khoshgoftaar, T. M.,

Seliya, N., Wald, R., & Muharemagic, E. (2015). Deep

learning applications and challenges in big data

analytics. Journal of Big Data, 2(1), 1.

García, S., Ramírez-Gallego, S., Luengo, J., Benitez, J. M.,

& Herrera, F. (2016). Big data preprocessing: methods

and prospects. Big Data Analytics, 1(1), 9.

Jordan, M. I., & Mitchell, T. M. (2015). Machine learning:

Trends, perspectives, and prospects. Science,

349(6245), 255-260.

Fernández-Delgado, M., Cernadas, E., Barro, S., & Amorim,

D. (2014). Do we need hundreds of classifiers to solve

real world classification problems?. The Journal of

Machine Learning Research, 15(1), 3133-3181.

Dash, M., & Liu, H. (1997). Feature selection for

classification. Intelligent data analysis, 1(3), 131-156.

ICINCO 2019 - 16th International Conference on Informatics in Control, Automation and Robotics

654

Reif, M., Shafait, F., Goldstein, M., Breuel, T., & Dengel, A.

(2014). Automatic classifier selection for non-experts.

Pattern Analysis and Applications, 17(1), 83-96.

Bernstein, A., Provost, F., & Hill, S. (2005). Toward

intelligent assistance for a data mining process: An

ontology-based approach for cost-sensitive

classification. IEEE Transactions on knowledge and

data engineering, 17(4), 503-518.

Anastácio, I., Martins, B., & Calado, P. (2011). Supervised

Learning for Linking Named Entities to Knowledge

Base Entries. TAC.

Panov, P., Soldatova, L., & Džeroski, S. (2014). Ontology

of core data mining entities. Data Mining and

Knowledge Discovery, 28(5-6), 1222-1265.

CARVALHO, V. (2016). Foundations for Multi-level

Ontology-based Conceptual Modeling.

Osipov, V., Vodyaho, A., & Zhukova, N. (2017). About one

approach to multilevel behavioral program synthesis

for television devices. International journal of

computers and communications, 11, 17-25.

Tianxing, M., & Zhukova, N. (2018). An Ontology of

Machine Learning Algorithms for Human Activity

Data Processing. learning, 10, 12.

Synthesis of integral models of system dynamics of an acid-

base state of patients at operative measures, http://

www.actascientific.com/ASMS-3-2.php

Simons, P. (2000). Parts Study in Ontology: A Study in

Ontology.

McGuinness, D. L., & Van Harmelen, F. (2004). OWL web

ontology language overview. W3C recommendation,

10(10), 2004.

Keet, C. M., d'Amato, C., Khan, Z. C., & Lawrynowicz, A.

(2014, July). Exploring Reasoning with the DMOP

Ontology. In ORE (pp. 64-70).

Rodríguez-García, M. Á., Medina-Moreira, J., Lagos-Ortiz,

K., Luna-Aveiga, H., García-Sánchez, F., & Valencia-

García, R. (2016). Ontology-Based Platform for

Conceptual Guided Dataset Analysis. In Distributed

Computing and Artificial Intelligence, 13th International

Conference (pp. 155-163). Springer, Cham.

A Multi-layer Ontology for Data Processing Techniques

655
