Identification of Causal Dependencies by using Natural Language

Processing: A Survey

Erika Nazaruka

Department of Applied Computer Science, Riga Technical University, Sētas iela 1, Riga, Latvia

Keywords: System Modelling, Knowledge Extraction, Natural Language Processing, Topological Functioning Model.

Abstract: Identification of cause-effect relations in the domain is crucial for construction of its correct model, and

especially for the Topological Functioning Model (TFM). Key elements of the TFM are functional

characteristics of the system and cause-effect relations between them. Natural Language Processing (NLP)

can help in automatic processing of textual descriptions of functionality of the domain. The current research

illustrates results of a survey of research papers on identification and extracting cause-effect relations from

text using NLP and other techniques. The survey shows that expression of cause-effect relations in text can

be very different. Sometimes the same language constructs indicate both causal and non-causal relations.

Hybrid solutions that use machine learning, ontologies, linguistic and syntactic patterns as well as temporal

reasoning show better results in extracting and filtering cause-effect pairs. Multi cause and multi effect

domains still are not very well studied.

1 INTRODUCTION

Models are known from ancient times. Models are

built for a specific purpose, and this determines their

level of abstraction, accuracy, representation means,

scale etc.

Traditional industries use graphical models for

design and experiments to predict how a new product

will function in the real circumstances. Software

development models are mostly textual starting from

requirements specifications and ending with the

source code. Graphical models are used mostly to

simplify understanding of key characteristics of the

product.

The idea of using models as a core element of

software development was met with interest when

The Object Management Group had published their

guide on Model Driven Architecture (MDA) in 2001

(Miller and Mukerji, 2001). MDA suggests using a

chain of model transformations, namely, from a

computation independent model (CIM, mostly

textual) to a platform independent model (PIM,

mostly graphical), then to a platform specific model

(PSM, graphical) and to source code. The weaker

place in this chain of transformations is the CIM, and

its transformations. The CIM is dedicated for

https://orcid.org/0000-0002-1731-989X

presentation of software requirements, business

requirements, knowledge about the system domain,

business rules, etc. The main task here is to process

textual descriptions, graphical information, discover

implicit knowledge, or, in other words, to find out all

knowledge about system (software) functioning,

behavior and structure. Analysis of the available

information includes so called causal reasoning

(Khoo et al., 2002). Identified causal dependencies

are those of control flows in the systems and influence

also some structural relations.

In our vision of implementation of MDA

principles, we suggest using a knowledge model

based on the Topological Functioning Model (TFM)

as the CIM to generate code via an intermediary

model – Topological UML model (Osis and Donins,

2017). The TFM elaborated by Janis Osis at Riga

Technical University (Osis, 1969) specifies a

functioning system from three viewpoints –

functional, behavioural and structural. Causal

dependencies are the key element in the Topological

Functioning Model.

Construction of the TFM is based on analysis of

verbal descriptions – instructions, interview

protocols, position descriptions, or other experts’

knowledge expressed in text. At the present we have

Nazaruka, E.

Identiﬁcation of Causal Dependencies by using Natural Language Processing: A Survey.

DOI: 10.5220/0007842706030613

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 603-613

ISBN: 978-989-758-375-9

603

two approaches:

 manual processing of the text in the TFM4MDA

(Topological Functioning Model for MDA)

approach (Osis et al., 2007a; Osis and Asnina,

2011b) and

 automated processing of steps in use case

scenarios in the IDM (Integrated Domain

Modelling) toolset (Osis and Slihte, 2010; Slihte

et al., 2011).

In practice, preparation of text and manual knowledge

acquisition are too resource-consuming (Elstermann

and Heuser, 2016). It is better either to skip the step

of preparation of the textual description and start from

human analysis of the available information, either to

automate or semi-automate this process.

As metnioned, certain causal dependencies in a

domain form control and message flows in a software

system. This relates not only to the TFM (Nazaruka,

2017), but also to other models used in the

transformations from CIM to (Kardoš and Drozdová,

2010; Kriouile et al., 2013; Kriouile et al., 2014;

Kriouile et al., 2015; Bousetta et al., 2013; Rhazali et

al., 2016; Essebaa and Chantit, 2016).

The key aspect of successful construction of the

domain model is correct and complete identification

of causes and effects. In software models, relations

between causes and effects are implemented as

control flows, message flows, transitions between

states of the system. Not less important it is in case of

the TFM construction, where identification of causal

dependencies (topological relations) between

functional characteristics of the system is crucial. The

open question is how to identify and extract these

relations from textual descriptions in the automated

way that Natural Language Processing (NLP) tools

suggest.

The goal of the given research is to make a survey

on ways and completeness of extracting causal

dependencies from text using NLP, Natural Language

Understanding (NLU) and linguistics techniques.

The paper is organized as follows. Section 2

describes the purpose of the research and enumerates

the research questions. Section 3 presents overview

of research results on identification and extracting

cause-effect relations from text. Section 4 presents a

discussion on findings. Section 5 concludes the paper

with discussion on main results and future research

directions.

2 BACKGROUND AND

RESEARCH QUESTIONS

This section discusses the background on cause-effect

relations in the TFM, i.e. the brief overview of the

TFM as well as formal definitions of cause-effect

relations are presented. At the end of the section

research questions are formulated.

2.1 Cause-effect Relations in the TFM

The TFM is a formal mathematical model that

represents system functionality in a holistic manner.

It describes the functional and structural aspects of

the software system in the form of a directed graph

(X, θ), where a set of vertices X depict functional

characteristics of the system named in human

understandable language, while θ is a set of edges

that depict cause-effect relations (topology) between

them. Such specification is more perceived, precise

and clearer then the large textual descriptions. The

TFM is characterized by the topological and

functioning properties (Osis and Asnina, 2011a). The

topological properties are connectedness,

neighbourhood, closure, and continuous mapping.

The functioning properties are cause-effect relations,

cycle structure, inputs, and outputs. The composition

of the TFM is presented in (Osis and Asnina, 2011b).

Rules of composition and derivation processes

within TFM4MDA from the textual description of

system functionality is provided by examples and

described in detail in (Asnina, 2006; Osis et al.,

2007b; Osis et al., 2008; Osis and Asnina, 2011b).

The TFM can also be generated automatically from

the business use case scenario specifications, which

can be specified in the IDM toolset (Šlihte and Osis,

2014). It also can be manually created in the TFM

Editor from the IDM toolset.

The cause-effect relations are those of causal

dependencies that exist between functional

characteristics of the system and define the cause

from which the triggering of the effect occurs. In fact,

this kind of relations indicates control flow transition

in the system. For instance, termination of execution

of a functional characteristic triggers initiation of

execution of related characteristics (Figure 1).

Formal definitions of a cause-effect relation and a

logical relation among those relations as well as their

incoming and outgoing groups are as follows (Asnina

and Ovchinnikova 2015; Osis and Donins 2017).

MDI4SE 2019 - Special Session on Model-Driven Innovations for Software Engineering

604

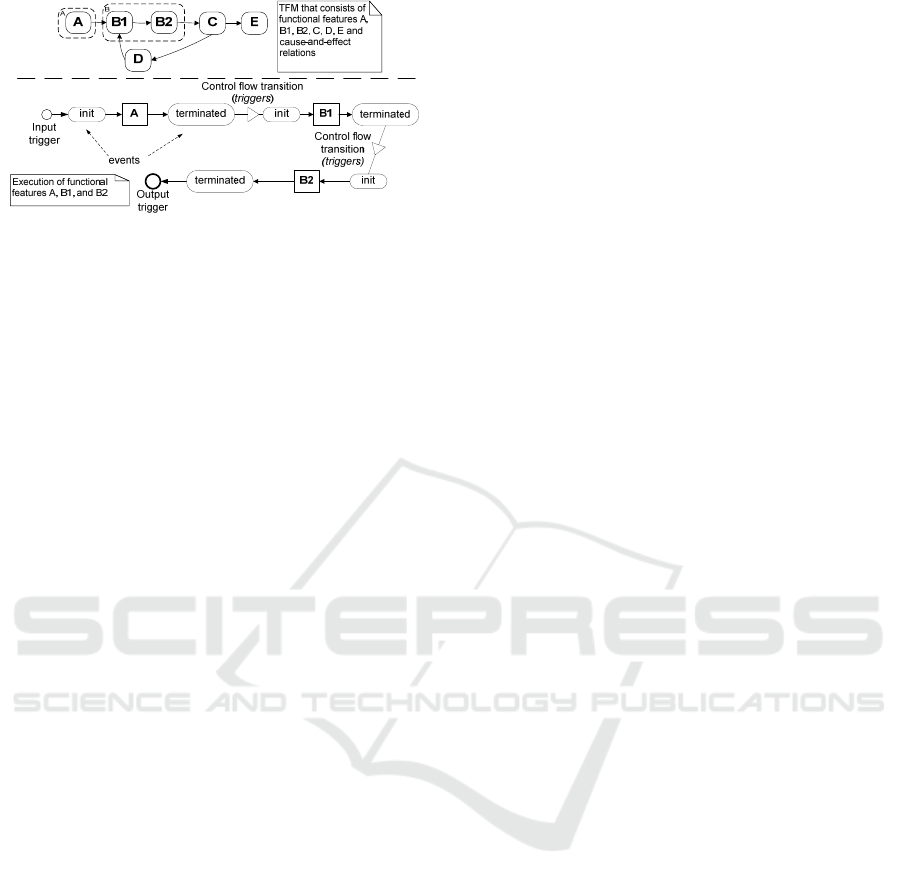

Figure 1: Execution of functional feature instances

(Nazaruka et al., 2016).

Formal Definition of a Cause-Effect Relation. A

cause-and-effect relation T

is a binary relationship

that relates exactly two functional features X

and X

Both X

and X

may be the same functional feature in

case of recursion. The synonym for cause-effect

relation is a topological relationship. Each cause-

effect relation is a unique 5-tuple (1):

= <ID, X

, X

, S>, whe

e (1)

 ID is a unique identifier of the relation;

 X

is a cause functional feature;

 X

is an effect functional feature;

 N is a Boolean value of the necessity of X

for

generating X

;

 S is a Boolean value of the sufficiency of X

for

generating X

Formal Definition of a Logical Relation. A logical

relation L

specifies the logical operator conjunction

(AND), disjunction (OR), or exclusive disjunction

(XOR) between two or more cause-effect relations T

The logical relation denotes system execution

behaviour, e.g. decision making, parallel or

sequential actions. Each logical relation is a unique 3-

tuple (2):

= <ID, T, R

>, where (2)

 ID is a unique identifier of the relation;

 T is a set of cause-effect relations {T

, ..., T

}

that

participate in this logical relation;

 R

is a logical operator AND, OR, or XOR over

T; operator OR is a default value.

Formal Definition of Incoming Topological

Relations. A set of logical relations that join cause-

and-effect relations, which go into functional feature

, is defined as a subset L

of set L = {L

, ..., L

where at least one topological relation T

such that its

effect functional feature X

is equal to X

is found in

set T of topological relations in each logical relation

Formal Definition of Outgoing Topological

Relations. A set of logical relations that join cause-

and-effect relations, which go out from functional

feature X

, is defined as a subset L

out

of set L = {L

..., L

}, where at least one topological relation T

such

that its cause functional feature X

is equal to X

found in set T of topological relations in each logical

relation L

The connection between a cause and an effect is

represented by a certain conditional expression, the

causal implication. It is characterized by the nature or

business laws (or rules) not by logic rules. In causal

connections “something is allowed to go wrong”,

whereas logical statements allow no exceptions.

Using this property of cause-effect relations a logical

sequence, wherein the execution of the precondition

guarantees the execution of the action, can be

prescinded, this means that even if a cause is

executed, the corresponding effect can be not

generated because of some functional damage.

The human mind applies very sophisticated

mechanism as well as empirical information and

world knowledge to construct “a theory of the causal

mechanism that produced the effect” (Khoo et al.

2002). Trying to discover this “causal mechanism”

they analyse “causal power” of events to generate an

effect.

Since a cause generates an effect, a cause

chronologically precedes an effect. This means that

the cause-effect conditions contain a time dimension.

Causes can be sufficient or necessary (or complete

or partial, correspondingly). A sufficient (complete)

cause generates its effect ever, or in any conditions.

On the other hand, a necessary cause (partial) only

promotes its effect generating, and this effect is

realized only if this partial cause joins other

conditions. However, most cause-effect relations

involve multiple factors. Sometimes there are factors

in series. Sometimes there are factors in parallel. In

case of the TFM, it is assumed that a deal is always

with necessary causes as the functionality of the

system has its known and unknown risks at the time

of analysis.

A cause not only precedes an effect and always is

followed by it, it causes (gives rise to, generates) and

is condition on an effect. The concept of causing

(generating) is necessary to distinguish a cause-and-

effect relation from the simple consequence that is not

causal. The causality is universal. This means that

there is no such a problem domain where no causes

and effects. The person can see nothing, but a cause

or an effect exists.

A structure of cause-effect relations can form a

causal chain. The causal chain begins with the first

cause and follows with series of intermediate actions

Identiﬁcation of Causal Dependencies by using Natural Language Processing: A Survey

605

or events to some final effect. Though one link may

not be as important or as strong like the other ones,

they are all necessary to the chain. If just one of these

intermediate causes is absent, then the final effect

would not be reached. Additionally, even if you

change something, you cannot remove the effect

without removing or changing the cause.

2.2 Research Questions

Identification of cause-effect relations in a domain is

a key element in the construction of the valid model

of the domain. Sources of information about the

domain can differ, and a human mind works using

visual and audio information as well as its own

background knowledge on the domain and the world.

In case of automation of such analysis, most of

information must be transformed into the verbal form

to be able to use NLP tools.

NLP tools are able to perform the following tasks:

tokenization, part-of-speech (POS) tagging,

chunking, Name Entity Recognition

(NER)/Classification, dependency analysis,

constituency parsing, and coreference resolution. So,

the result of the processing can be analysed further to

identify causes and effects in the text.

The research questions are the following:

 RQ1: What natural language constructs for

expressing cause-effect relations in text are used?

 RQ2: What models, patterns for identification of

cause-effect relations in text are used?

 RQ3: What automatic techniques for extracting

cause-effect relations from text are used?

The aim is to understand what natural language

constructs may be ambiguous for NLP, what pitfalls

exist in discovering cause-effect relations in text and

what issues have been found in application of

extracting tools.

3 CAUSE-EFFECT RELATIONS

EXPRESSED IN TEXT

This section represents discussion on means for

explicit and implicit expressing cause-effect relations

in natural language, what patterns may indicate

cause-effect relations in text at the sentence and

discourse levels, as well as overview of research

papers on automatic discovering cause-effect

relations from text using NLP tools and other

techniques.

3.1 Means for Expressing Cause-effect

Relations in Text

Considering natural language processing and

understanding tasks, researchers noted that causes

and effects usually are states or events that can have

different duration (Khoo et al., 2002; Solstad and

Bott, 2017). The cause-effect relations in text may be

expressed both explicitly and implicitly. And the very

important aspect is similar language constructs used

to express temporal and causal relations, and

sometimes only temporal relations dictate the causal

one (Ning et al., 2018).

3.1.1 Explicitly Expressed Relations

Several authors (Khoo et al., 2002; Solstad and Bott,

2017) mentioned that linguists have identified the

following ways of explicitly expressing causes and

effects:

 using causal links to link two phrases, clauses or

sentences,

 using causative verbs,

 using resultative constructions,

 using conditionals (i.e., if…then constructions),

 using causative adverbs, adjectives, and

prepositions.

As Khoo et al., (2002) stated, Altenberg (1984) had

classified causal links into four main types:

 the adverbial link (e.g., so, hence, therefore). It

can have a reference to the preceding clause or to

the following clause;

 the prepositional link (e.g., because of, on account

of). It connects a cause and an effect in the same

clause;

 subordination. It can be expressed using a

subordinator (e.g., because, as, since), a

structural link marked by a non-finite -ing clause,

and a correlative comparative construction (e.g.,

so…that);

 the clause-integrated link (e.g. that’s why, the

result was). Here they distinguish thematic link¸

when the linking words serve as a subject of the

sentence, and a rhematic link, when the linking

words serve as the complement of the verb.

One may say that causal links include as causal

reasons as temporal reasons (Ning et al., 2018).

Causative verbs are “verbs the meaning of which

include a causal element” (Khoo et al., 2002), e.g.

“register” that in “X registers Y” means that “X

causes Y to be registered”. One of the working

definitions of the causative verbs can be such that

“Causative verbs specify the result of the action,

MDI4SE 2019 - Special Session on Model-Driven Innovations for Software Engineering

606

whereas other action verbs specify the action but not

the result of action” (Khoo et al., 2002).

A resultative construction (Khoo et al., 2002) is “a

sentence in which the object of a verb is followed by

a phrase decribing the state of the object as a result of

the action denoted by the verb”, e.g. “A user marked

records yellow”. A resultative phrase can be an

adjective (the most common kind), a noun phrase, a

prepositional phrase or a particle.

If-then conditionals ofthen indicate that the

antecedent (the if part) causes the consequent (the

then part). However, sometimes they just indicate a

sequence of events not their cause-effect relation

(Khoo et al., 2002).

Causative adverbs, adjectives and prepositions

also can have a causal element in their meaning

(Khoo et al., 2002). Causative adverbs can be

different, the most interesting for us are adverbs that

involve the notion of a result whose properties are

context dependent (e.g. successfully), adverbs that

refer not to causes but to effects (e.g. consequentelly),

and adverbs of means (e.g. mechanically).

Causal adverbs and adjectives are not well studied

(Khoo et al., 2002).

As Khoo et al., (2002) mentioned, prepositions

also can be used to express causality. They can

indicate a cause as proximity, a cause as a source, and

a cause as volume.

3.1.2 Implicitly Expressed Relations

Implicit cause-effect relations usually are inferred by

the reader using information in text and their

background knowledge (Khoo et al. 2002; Solstad

and Bott 2017; Ning et al. 2018). As Khoo et al. stated

(Khoo et al. 2002) implicit causality can be inferred

by several groups of verbs that “have “causal

valence” – they tend to assign causal status to their

subject or object”. The authors referred to Corrigan’s

work (Corrigan 1993; Corrigan and Stevenson 1994),

where the following groups of verbs had been

identified:

 Experiential verbs (Experiencer-stimulus and

Stimulus-Experiencer),

 Action verbs (Actor verbs and Non-actor

verbs).

Experienced verbs describe someone having a

particular psychological or mental experience.

Therefore, experienced verbs can be skipped in the

system analysis for software development.

Action verbs describe events. The subject of the

verb can take the semantic role agent or actor. The

object of the verb takes the role of patient. Some

verbs give greater causal weight to the subject (actor

verbs), other – to the object (non-actor verbs). At the

moment, causal weigth seems not so important for

domain analysis. However, the interesting thing is

that both verbs have derived adjectives reffering to

the subject or object. This means that some preceding

actions can be expressed in text using not verbs, but

adjectives. Some implicit causative verbs trigger

expectations of explanations to occur in subsequent

discourse (Solstad and Bott, 2017).

3.2 Identification of Cause-effect

Relations in Text

Many theories exist for identification, modeling and

analysis of cause-effect relations in psycholinguistics,

linguistics, psychology and artificial intelligence.

Those of theories attempting to reduce causal

reasoning to a domain-general theory can be grouped

as associative theories, logical theories and

probabilistic theories (Waldmann and Hagmayer

2013).

Waldmann and Hangmayer (2013) stated that

associative theories underestimate aspects of

causality that are important for causal reasoning,

however in some cases causes and effects can be

identified only using associations.

Logical theories model causal reasoning as a

special case of deductive reasoning. Waldmann and

Hangmayer (2013) noted that conditionals do not

distinguish between causes and effects, and

background knowledge can be necessary to

distinguish them as well as some temporal priorities.

Probabilistic theories considers causes as

“difference makers, which raise (generative cause) or

reduce (preventive cause) the probability of the

effect” (Waldmann and Hagmayer 2013). However,

as the authors noted, covariation does not necessarily

reflect causation.

All the theories have their limitations in

identification of causes and effects. In case of

processing verbal (written) information to develop

software, causes and effects mostly relate to business,

mechanical and physical domains that certainly make

a task easier for developers. At the present, logical

theories seem to be the most suitable for this task and

domains.

3.2.1 Verbal (Sentence) Domain

Solstad and Bott (2017) stated that verbs, as causative

as action, indicate a cause between two events (3).

[[event1]] CAUSE [[event2]] (3)

Identiﬁcation of Causal Dependencies by using Natural Language Processing: A Survey

607

Where [[event1]] is when the subject does something,

and [[event2]] is when the object changes its state.

Besides that, it is inferred that the object wasn’t in this

state before the [[event1]] if otherwise is not

mentioned in text.

Causing entities and the manner of the causing

may be introduced using “by” phrases (Solstad and

Bott, 2017).

As Khoo et al. mentioned (Khoo et al., 2002), the

subject of the verb describing the event must be some

agent or actor. It needs not be obligatory an animate

agent, it may be an object, an abstract property, or an

event (Solstad and Bott, 2017). Implicit causality

verbs in most cases express causality between two

animate objects followed by explanation (Solstad and

Bott, 2017).

3.2.2 Discourse Domain

Solstad and Bott (2017) stated that causal relations

such as explanations are crucial for understanding of

discourse. Connections between causal relations may

be expressed explicitly using causal links (Section

3.1) or implicitly. In the latter they must be inferred

by the reader.

Some researchers (Kang et al., 2017; Solstad and

Bott, 2017) indicate that at the level of discourse, the

causal relations differ from thouse of at the sentence

or clause level. At the discourse level they are

supplemented with reasons and explanations. The

authors assumed that the causal relations exist

between entities that are propositional in nature:

[[proposition1]] CAUSE [[proposition2]].

Sometimes, it is hard to understand are they express

parallel or sequential propositions or explanations, as,

for instance, in sentence “The user access was denied.

The hackers taked the control.”

Solstad and Bott stated that in case of implicit

causality verb and discourse domains are mixed,

where causal expressions connect causative verbs

with reasoning and explanations within the same

sentence (Solstad and Bott, 2017).

3.2.3 Conditionals

Conditionals do not express causal relations

explicitly, but they involve causal models in their

evaluation. Solstad and Bott (2017) mentioned that

If…then constructs (i.e., conditionals) may form

constructs hard for NLP analysis – the so-called

counterfactual conditionals. They include such

constructs as might, would, if only. They indicate

possible “state of the world” in case of some “action”

that would be done. For example, as in the sentence

“If librarian would not have ordered the book, a

manager assistant would have”.

From one’s viewpoint, such constructs must be

avoided in the description of system functionality.

However, counterfactual conditions may be used in

expert systems to produce answers to queries of

interest (Pearl, 2019).

3.2.4 Causal and Temporal Reasons

Ning et al., (2018) indicated that many of NLP

research papers focus on the abovementioned

language constructs (causative verb, causal links,

discourse relations, etc.) skipping (or

underestimating) temporal reasons. They believe that

joint consideration of causal models and temporal

models is more valuable for identifying and

extracting cause-effect relations from text. The

authors indicated that starting from 2016 researchers

pay greater attention to this aspect (Mirza, 2014;

Asghar, 2016; Mostafazadeh et al., 2016; Ning et al.,

2018).

The interesting fact is that joint temporal and

causal reasoning correctly identify counterfactual

clauses (Ning et al., 2018).

3.3 Automated Extraction of

Cause-effect Relations using NLP

Cause-effect relations are extracted using so-called

linguistic and syntactic patterns that in most cases are

created manually (at least at the beginning).

Linguistic and syntactic patterns are based on means

for explicit expressing causes and effects, e.g. causal

links and causative verbs for linguistic patterns and

verb phrases and noun phrases for syntactic patterns

(Blanco et al., 2008; Ning et al., 2018; Mirza, 2014;

Blass and Forbus, 2016).

Joint usage of both temporal reason model and

causal model as well as Machine Learning (ML) are

presented by several authors (Mirza, 2014; Ning et

al., 2018).

The temporal model discovers a temporal relation

between two events. The temporal relation can be

annotated as before, after, include, is_included, vague

(Ning et al., 2018), and simultaneous, begins/

begun_by, ends/ended_by, during/during_inv,

identity (Mirza, 2014). Other authors (Mostafazadeh

et al., 2016) use another annotations, i.e., before,

meets, overlaps, finishes, starts, contain and equals.

Their model distinguishes between a precondition

and a cause. The causal models of all the mentioned

authors discover causal relations between events

using linguistic patterns. The authors state that

MDI4SE 2019 - Special Session on Model-Driven Innovations for Software Engineering

608

analysis of both relation types allows extracting

cause-effect relations even if they lack explicit causal

reason.

A set of logical rules and Bayesian inference (in

ML) are used by Sorgente, Vettigli and Mele

(Sorgente et al., 2013; Sorgente et al., 2018).

Bayesian inference is applied to exclude discovered

cause-effect pairs that in essence are non-causal.

Filtering takes into account such features as lexical

features, semantics features (hyponyms and

synonyms) and dependency features.

A comprehensive survey of automatic extraction

of causal relations is presented by Asghar (2016). The

author divided automatic methods into two groups:

 approaches that employ linguistic, syntactic and

semantics patter matching, and

 techniques based on statistical methods and ML.

The first group started from small text fragments and

evolved till large text corpuses. As Asghar stated the

first group at their beginning was forced to prepare

text fragments manually for automatic processing,

like, for instance, in Blass’ and Forbus’ work (2016).

However, now this group uses NLP techniques to

prepare cause-effect pairs (by using linguistic

patterns) and then filtering them to reduce a number

of non-causal pairs. Starting from the early 2000s,

ML techniques have been used to gain extracting

cause-effect relations. These techniques do not

require a large set of manually predefined linguistic

patterns, however, quality of learning depends on

corpuses used for learning.

4 DISCUSSION

Summarizing results (Table 1), we can conclude that

the larger number of overviewed research papers is

focused on analysis of explicitly expressed cause-

effect relations by using causal links and causative

verbs (Sorgente et al., 2013; Sorgente et al., 2018;

Asghar, 2016; Blanco et al., 2008; Mirza, 2014;

Mostafazadeh et al., 2016). However, a few research

papers pay their attention also to resultative

constructions and causative prepositions. In other

words, causal links, causative verbs and prepositions

are more valuable for creation of linguistic/syntactic

patterns for text processing. The advantage is small

cost of preparation, while the result can be quite

ambiguous.

Causative adverbs and adjectives up to 2018 are

not well studied comparing to the main studies on

causative verbs, causal links and temporal aspects of

events and propositions.

According to survey in (Asghar, 2016), accuracy

of results of extracting if…then conditionals is

satisfactory only using ML techniques

Extracting multiple causes and effects is very

domain-specific task, therefore only a few research

solve it directly (Sorgente et al., 2013; Sorgente et al.,

2018; Mueller and Hüttemann, 2018).

Cause-effect relations implicitly expressed by

action verbs are analysed in the same group of

causative verbs. While automated analysis of

counterfactual conditionals is a quite hard task and

some results are presented just in a few papers (Ning

et al., 2018; Pearl, 2019).

Speaking about techniques used for automated

cause-effect extracting, it could be found from results

in Table 1 that preparation of text corpuses using

predefined syntactic and linguistic patterns is less

costly than using supervised ML techniques.

However, the use of patterns limits discovered types

of cause-effect relation only to these patterns. While

ML enables discovering of much more cause-effect

relations.

Filtering and statistical inferencing may be

considered as a less expensive solution in comparison

with ML techniques. However, some linguistic

constructs may be ambiguous and, thus, results may

differ from the desired ones. But statistical

inferencing requires large datasets.

Ontology banks are also used, but moslty

WordNet. VerbNet, PropBank and FrameNet are

used sparsely.

The more successful results are shown by hybrid

solutions where patterns, temporal reasons, ML and

ontologies are presented. The limitation of the hybrid

solutions is a lack of enough text corpuses for

learning.

TFM construction requires processing verbal

descriptions of the modelled environment. The

descriptions contain information on system

functioning within and interacting with its

environment. Identification and extraction of causes

and effects, as well as their relations, are vital for

correct identification and specification of system’s

functional chacacteristics and causal dependencies

between them.

Most of researh papers investigates cases with one

cause and one (or two) effects. The TFM may have

relationships between causal relations.

So, multi causes and multi effects must be

idenified and extracted from text. However, there is

just a few research papers presenting results on this,

since this is a quite hard task.

It is clear that the starting point for extracting

cause-effect relations from the descriptions of func-

Identiﬁcation of Causal Dependencies by using Natural Language Processing: A Survey

609

Table 1: Automated extracting cause-effect relations using NLP and other techniques.

Lexical mark / discourse relation Sou

ce Pros and cons

Explicit cause-effect relations

Causal links:

- the adverbial link

- the prepositional link

- subordination

- the clause-integrated lin

(Sorgente et al., 2013; Sorgente et

al., 2018), survey in (Asghar, 2016);

(Mirza, 2014; Blanco et al., 2008;

Mostafazadeh et al., 2016)

Pros: small costs of preparation

Cons: huge number of potential patterns, ambiguity

Causative verbs

(Sorgente et al., 2013; Sorgente et

al., 2018), survey in (Asghar, 2016;

Mostafazadeh et al., 2016)

Pros: small costs of preparation

Cons: huge number of potential patterns, ambiguity

Resultative constructions survey in (Asgha

, 2016)

Causative adverbs

Causative adjectives

Causative prepositions:

- cause as proximity

- cause as source

- cause as volume

(Sorgente et al., 2013; Sorgente et

al., 2018; Blanco et al., 2008)

Pros: small costs of preparation

Cons: huge number of potential patterns, ambiguity

If-then conditionals survey in (Asghar, 2016)

Cons: accuracy is satisfactory only using ML

techniques

Multiple causes and effects

(conjunctions)

(Sorgente et al., 2013; Sorgente et

al., 2018; Mueller and Hüttemann,

2018)

mplicit cause-effect relations

Counterfactual conditionals (Ning et al., 2018; Pearl, 2019) Use for prediction

Action verbs Consider as a subset of causative verbs

Techniques

Temporal relations

(Mirza, 2014; Asghar, 2016;

Mostafazadeh et al., 2016; Ning et

al., 2018)

Pros: Analysis of event/proposition pairs where

causality is implicit.

Cons: Some linguistic constructs may be

ambiguous.

Linguistic/syntactic patterns

(Ning et al., 2018), (Sorgente et al.,

2013; Sorgente et al., 2018), survey

(Asghar, 2016), (Blass and Forbus,

2016)

Pros: Does not require large corpuses of text for

learning, domain-independent.

Cons: Limited to the manually predefined set of

patterns and propositions. A use of explicit causal

indicators and in most cases ignoring implicit

causalities.

Filtering (Bayesian inference,

WordNet-based filtering, semantic

filtering based on verb’s senses)

(Sorgente et al., 2013; Sorgente et

al., 2018), survey in (Asghar, 2016)

Pros: reducing a number of non-causal pairs.

Cons: a set of pairs depends on a set of linguistic

patterns

Machine Learning

survey in (Asghar, 2016), (Blanco et

al., 2008; Mirza, 2014; Ning et al.,

2018)

Pros: discovering implicit causality, analysis of

ambiguous constructs, pre-conditions and

postconditions

Cons: requires large corpuses of text, may be

domain-specific.

Statistical inferencing survey in (Asgha

, 2016) Cons: requires large datasets

Ontology banks

survey in (Asghar, 2016),

(Mostafazadeh et al., 2016; Kang et

al., 2017)

Pros: WordNet is used frequently

Cons: VerbNet, PropBank and FrameNet are used

sparsely

tionality must be preparation of a corpus of linguistic/

syntactic patterns as well as more thorough analysis

of if…then conditionals.

A use of temporal models, filtering and ontology

banks seems more promising than a use of ML

techniques since each problem domain will certainly

have its own unique characteristics, but at the same

time the diversity in description of functionality is not

so defining than in descriptions of world phenomena.

5 CONCLUSIONS

The results of the survey show that identification of

causes and effects as well as their relations can be

based first on linguistic/syntactic patterns and

temporal reason models. However, main

disadvantage of the patterns is that it is not possible

to identify all patterns for all types of cause-effect

relations. The expression means of the natural

language differ more than any set of predefined rules.

MDI4SE 2019 - Special Session on Model-Driven Innovations for Software Engineering

610

Besides that, one and the same pattern may be applied

for both causal and non-causal relations. As well as

not all linguistic and syntactic patterns have been

researched, e.g. causal adverbs and adjectives.

Filtering can help to solve this issue but is also limited

to the known non-causal constructs. A use of

temporal relation models is more valuable solution of

this issue. However, some discourse descriptions may

be very ambiguous, and there is no a guarantee that

temporal relations will be identified correctly.

The more expensive and more flexible solutions

are those of hybrid using machine learning, ontology

banks and statistics. However, these solutions are

more domain specific. They require a large amount of

text corpuses for supervised learning of models. This

could be a challenge, since not all the domains have

them.

There are two clear trends in cause-effect relation

extraction. The first is increasing the accuracy of the

results using ontology banks, machine learning and

statistical inferring. The second is decreasing the cost

of these activities. The main challenge for

construction of software models is a lack of a large

amount of text corpuses and statistical datasets for

potential problem domains. However, the potential

positive aspect is that source documents for

construction of software models may be limited to

specifications (requirements, scenario, etc.) having

less variability in expressing causality.

The future research direction is related to

implementation of extracting causes and effects from

the description of system functioning. The first step is

to define a list of more frequent (potential)

linguistic/syntactic patterns of causal dependencies in

descriptions of system functioning. One of the very

important aspects here is discovering of multi causes

and multi effects. The accuracy of the obtained results

will lead to the second step, i.e., to finding a solution

that will show acceptable accuracy of results and will

not be very expensive.

REFERENCES

Altenberg, B., 1984. Causal linking in spoken and written

English. Studia Linguistics, 38(1), pp.20–69.

Asghar, N., 2016. Automatic Extraction of Causal

Relations from Natural Language Texts: A

Comprehensive Survey. CoRR, abs/1605.0. Available

at: http://arxiv.org/abs/1605.07895.

Asnina, E., 2006. The Computation Independent

Viewpoint: a Formal Method of Topological

Functioning Model Constructing. Applied computer

systems, 26, pp.21–32.

Asnina, E. and Ovchinnikova, V., 2015. Specification of

Decision-making and Control Flow Branching in

Topological Functioning Models of Systems. In

International Conference on Evaluation of Novel

Approaches to Software Engineering (ENASE), 2015.

Barcelona, Spain: SciTePress, pp. 364–373.

Blanco, E., Castell, N. and Moldovan, D., 2008. Causal

Relation Extraction. In Proceedings of the Sixth

International Conference on Language Resources and

Evaluation (LREC’08). European Language Resources

Association (ELRA), pp. 28–30.

Blass, J.A. and Forbus, K.D., 2016. Natural Language

Instruction for Analogical Reasoning: An Initial

Report. In Workshops Proceedings for the Twenty-

fourth International Conference on Case-Based

Reasoning (ICCBR 2016). pp. 21–30.

Bousetta, B., Beggar el, O. and Gadi, T., 2013. A

methodology for CIM modelling and its transformation

to PIM. Journal of Information Engineering and

Applications, 3(2), pp.1–21.

Corrigan, R., 1993. Causal attributions to the states and

events encoded by different types of verbs. British

Journal of Social Psychology, 32, pp.335–348.

Corrigan, R. and Stevenson, C., 1994. Children’s causal

attribution to states and events described by different

classes of verbs. Cognitive Development, 9, pp.235–

256.

Elstermann, M. and Heuser, T., 2016. Automatic Tool

Support Possibilities for the Text-Based S-BPM

Process Modelling Methodology. In Proceedings of the

8th International Conference on Subject-oriented

Business Process Management - S-BPM ’16. New

York, New York, USA: ACM Press, pp. 1–8.

Essebaa, I. and Chantit, S., 2016. Toward an automatic

approach to get PIM level from CIM level using QVT

rules. In 2016 11th International Conference on

Intelligent Systems: Theories and Applications (SITA).

Mohammedia: IEEE, pp. 1–6.

Kang, D. et al., 2017. Detecting and Explaining Causes

From Text For a Time Series Event. In Proceedings of

the 2017 Conference on Empirical Methods in Natural

Language Processing. The Association for

Computational Linguistics, pp. 2758–2768.

Kardoš, M. and Drozdová, M., 2010. Analytical method of

CIM to PIM transformation in model driven

architecture (MDA). Journal of Information and

Organizational Sciences, 34(1), pp.89–99.

Khoo, C., Chan, S. and Niu, Y., 2002. The Many Facets of

the Cause-Effect Relation. In R. Green, C. A. Bean, and

S. H. Myaeng, eds. The Semantics of Relationships: An

Interdisciplinary Perspective. Dordrecht: Springer

Netherlands, pp. 51–70.

Kriouile, A., Addamssiri, N., Gadi, T. and Balouki, Y.,

2014. Getting the static model of PIM from the CIM. In

2014 Third IEEE International Colloquium in

Information Science and Technology (CIST). Tetouan:

IEEE, pp. 168–173.

Kriouile, A., Addamssiri, N. and Gadi, T., 2015. An MDA

Method for Automatic Transformation of Models from

Identiﬁcation of Causal Dependencies by using Natural Language Processing: A Survey

611

CIM to PIM. American Journal of Software

Engineering and Applications, 4(1), pp.1–14.

Kriouile, A., Gadi, T. and Balouki, Y., 2013. CIM to PIM

Transformation: A Criteria Based Evaluation. Int. J.

Computer Technology and Applications, 4(4), pp.616–

625.

Miller, J. and Mukerji, J., 2001. Model Driven Architecture

(MDA), Available at: http://www.omg.org/cgi-

bin/doc?ormsc/2001-07-01.

Mirza, P., 2014. Extracting Temporal and Causal Relations

between Events. In Proceedings of the ACL 2014

Student Research Workshop. Baltimore, Maryland,

USA: Association for Computational Linguistics, pp.

10–17.

Mostafazadeh, N., Grealish, A., Chambers, N., Allen, J. and

Vanderwende, L., 2016. CaTeRS: Causal and Temporal

Relation Scheme for Semantic Annotation of Event

Structures. In Proceedings of the Fourth Workshop on

Events. San Diego, California: Association for

Computational Linguistics, pp. 51–61.

Mueller, R. and Hüttemann, S., 2018. Extracting Causal

Claims from Information Systems Papers with Natural

Language Processing for Theory Ontology Learning. In

Proceedings of the 51st Hawaii International

Conference on System Sciences (HICSS). Hawaii, USA:

IEEE Computer Society Press.

Nazaruka, E., 2017. Meaning of Cause-and-effect Relations

of the Topological Functioning Model in the UML

Analysis Model. In Proceedings of the 12th

International Conference on Evaluation of Novel

Approaches to Software Engineering. SCITEPRESS -

Science and Technology Publications, pp. 336–345.

Nazaruka, E., Ovchinnikova, V., Alksnis, G. and

Sukovskis, U., 2016. Verification of BPMN Model

Functional Completeness by using the Topological

Functioning Model. In Proceedings of the 11th

International Conference on Evaluation of Novel

Software Approaches to Software Engineering.

Portugal: SCITEPRESS - Science and and Technology

Publications, pp. 349–358.

Ning, Q., Feng, Z., Wu, H. and Roth, D., 2018. Joint

Reasoning for Temporal and Causal Relations. In

Proceedings of the 56th Annual Meeting of the

Association for Computational Linguistics (Long

Papers). Melbourne, Australia: Association for

Computational Linguistics, pp. 2278–2288.

Osis, J., 1969. Topological Model of System Functioning

(in Russian). Automatics and Computer Science, J. of

Academia of Siences, (6), pp.44–50.

Osis, J. and Asnina, E., 2011a. Is Modeling a Treatment for

the Weakness of Software Engineering? In Model-

Driven Domain Analysis and Software Development.

Hershey, PA: IGI Global, pp. 1–14.

Osis, J. and Asnina, E., 2011b. Topological Modeling for

Model-Driven Domain Analysis and Software

Development: Functions and Architectures. In Model-

Driven Domain Analysis and Software Development:

Architectures and Functions. Hershey, PA: IGI Global,

pp. 15–39.

Osis, J., Asnina, E. and Grave, A., 2007a. Formal

computation independent model of the problem domain

within the MDA. In J. Zendulka, ed. Proceedings of the

10th International Conference on Information System

Implementation and Modeling, Hradec nad Moravicí,

Czech Republic, April 23-25, 2007. Jan Stefan MARQ.,

pp. 47–54.

Osis, J., Asnina, E. and Grave, A., 2007b. MDA oriented

computation independent modeling of the problem

domain. In Proceedings of the 2nd International

Conference on Evaluation of Novel Approaches to

Software Engineering - ENASE 2007. Barcelona:

INSTICC Press, pp. 66–71.

Osis, J., Asnina, E. and Grave, A., 2008. Formal Problem

Domain Modeling within MDA. In J. Filipe et al., eds.

Software and Data Technologies: Second International

Conference, ICSOFT/ENASE 2007, Barcelona, Spain,

July 22-25, 2007, Revised Selected Papers. Berlin,

Heidelberg: Springer Berlin Heidelberg, pp. 387–398.

Osis, J. and Donins, U., 2017. Topological UML modeling:

an improved approach for domain modeling and

software development, Elsevier.

Osis, J. and Slihte, A., 2010. Transforming Textual Use

Cases to a Computation Independent Model. In J. Osis

and O. Nikiforova, eds. Model-Driven Architecture and

Modeling-Driven Software Development: ENASE

2010, 2ndMDAandMTDD Whs. SciTePress, pp. 33–42.

Pearl, J., 2019. The Seven Tools of Causal Inference, with

Reflections on Machine Learning. Communications of

Association for Computing Machinery, 62(3), pp.54–

60.

Rhazali, Y., Hadi, Y. and Mouloudi, A., 2016. CIM to PIM

Transformation in MDA: from Service-Oriented

Business Models to Web-Based Design Models.

International Journal of Software Engineering and Its

Applications, 10(4), pp.125–142.

Šlihte, A. and Osis, J., 2014. The Integrated Domain

Modeling: A Case Study. In Databases and

Information Systems: Proceedings of the 11th

International Baltic Conference (DBandIS 2014).

Tallinn: Tallinn University of Technology Press, pp.

465–470.

Slihte, A., Osis, J. and Donins, U., 2011. Knowledge

Integration for Domain Modeling. In J. Osis and O.

Nikiforova, eds. Model-Driven Architecture and

Modeling-Driven Software Development: ENASE

2011, 3rd Whs. MDAandMDSD. SciTePress, pp. 46–

56.

Solstad, T. and Bott, O., 2017. Causality and causal

reasoning in natural language. In M. R. Waldmann, ed.

The Oxford Handbook of Causal Reasoning. Oxford

University Press.

Sorgente, A., Vettigli, G. and Mele, F., 2018. A Hybrid

Approach for the Automatic Extraction of Causal

Relations from Text. In Emerging Ideas on Information

Filtering and Retrieval. Springer International

Publishing AG, pp. 15–30.

Sorgente, A., Vettigli, G. and Mele, F., 2013. Automatic

extraction of cause-effect relations in Natural Language

Text. In C. Lai, G. Semeraro, and A. Giuliani, eds.

MDI4SE 2019 - Special Session on Model-Driven Innovations for Software Engineering

612

Proceedings of the 7th International Workshop on

Information Filtering and Retrieval co-located with the

13th Conference of the Italian Association for Artificial

Intelligence (AI*IA 2013). pp. 37–48.

Waldmann, M.R. and Hagmayer, Y., 2013. Causal

reasoning. In D. Reisberg, ed. Oxford Handbook of

Cognitive Psychology. New York: Oxford University

Press.

Identiﬁcation of Causal Dependencies by using Natural Language Processing: A Survey

613
