Simulating a Commercial Power Aggregator at Scale
Design and Lessons Learned
Gary Howorth
1 a
and Ivana Kockar
2 b
1
Institute of Energy and Environment, University of Strathclyde, 99 George St., Glasgow, U.K.
2
Institute of Energy and Environment, University of Strathclyde, 204 George St., Glasgow, U.K.
Keywords: Agent based Modelling, Aggregation, Power, Simulation, Smart Grid.
Abstract: To evaluate aggregation models in the context of a power system, a software tool (the SmartNet simulator)
has been developed to look at the impact of managing Distributed Energy Resources (DERs) on networks’
technical operation (e.g. power flows and voltage levels) and simulates wholesale and ancillary services
market conditions. This paper focusses on the design and implementation of one of the aggregation models
that addresses the Curtailable Generator / Curtailable Load (CGCL) aggregator. The paper outlines the design
of such a software aggregator agent and discusses the lessons learned in simulating a more realistic large
power grid system. The aggregator is represented as an agent based object orientated model using a financed
based buckets system to aggregate bids from up to 300,000 devices across 10 -20,000 power nodes. The
concept/implementation can be extended to include more sophisticated bidding strategies and to use multiple
perspectives on tranches. Simulation and testing of such a large simulation system was challenging, and we
have proved that it is possible to simulate the aggregation and clustering of different types of flexibility into
a number of manageable bids in a timely manner.
1 INTRODUCTION
The objective of the EU Horizon 2020 SmartNet
project (Migliavacca et al., 2017) is to compare
different coordination approaches between actors
such as Transmission operators (TSO), Distribution
System Operators (DSO) and customers. To facilitate
interaction between, potentially, millions of
Distributed Energy Resources (DERs)
1
and manage
the TSO-DSO interaction, it is also necessary to
develop and analyse aggregation models. According
to the English Oxford Dictionary aggregation is
defined as “the formation of a number of things into
a cluster”. In a similar way, an aggregator is defined
as “a company that negotiates with producers of a
utility service such as electricity on behalf of groups
of consumers”. In this way the SmartNet aggregators
take millions of volume-cost bids from homes,
businesses and other DER’s, packages those bids into
a
https://orcid.org/0000-0002-5625-4937
b
https://orcid.org/0000-0001-9246-1303
1
Small units connected to the distribution grid with possible two-way flow of electrical power. Common examples of DERs
are Distributed Generators (solar, wind) battery storage, electric vehicles (EV) and active demand response (load that can
change its consumption to provide flexibility to the system).
larger bid units and submits those bids to a TSO, DSO
or some hybrid organization that manages flexibility
markets on behalf of TSO and DSO. The system uses
bids from a number of aggregators that represent
thousands of DERs to clear the market at thousands
of nodes. The simulator developed in the SmartNet is
based on a Dist-flow AC Optimal Power Flow
methodology to minimise system costs, i.e. minimize
cost of activation of flexibility bids, while ensuring
that network constrains are respected. The solution
provided by the simulator yields electricity nodal
prices and dispatch volumes for participating DERs
over thousands of nodes.
The focus of this paper is on the design and
implementation of one of the aggregation models, the
Curtailable Generator / Curtailable Load (CGCL)
aggregator (Marthinsen et al., 2017). This paper
outlines the design of such a software aggregator
Howorth, G. and Kockar, I.
Simulating a Commercial Power Aggregator at Scale Design and Lessons Lear ned.
DOI: 10.5220/0007854402770284
In Proceedings of the 9th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2019), pages 277-284
ISBN: 978-989-758-381-0
Copyright
c
2019 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
277
agent, and discusses the lessons learned from
simulating a more realistic large power grid system.
An agent based object orientated design was used
to construct the CGCL aggregator using a novel
finance based buckets or tranche system to aggregate
bids from up to 300,000 devices of four different
DER types (Solar, Hydro, Wind and Sheddable
Loads) across 10 -20,000 power nodes. A bucket is a
term typically used in business or finance to
categorize assets, but so far has not been applied in
modelling aggregators in the power industry. This
approach represents an alternative methodology to
the standard designs using optimisation techniques
and has been integrated into the aggregator agents.
The paper is organized as follows. In Section 2,
the design and operation of the CGCL aggregator is
discussed in the context of its operation in a future
power grid a smart grid. The section focusses on the
use of financial bucketing as a methodology to
represent aggregators. Section 3 focusses on the
challenges faced and lessons learned in development
of this large-scale model, and discusses the use of
python vs other languages, as well as database issues
that occurred at scale. Section 4 expands on the
previous sections and explores potential future
designs, and reports on work that has explored these
ideas. Finally, Section 5 concludes this paper.
2 CGCL AGGREGATOR MODEL
DESIGN
The power grids in Europe and the United States are
undergoing great changes, as regulators look to
develop the so called Smart Grid and to include
participation from residential consumers and other
DERs. The objective of the EU Horizon 2020
SmartNet project is to compare different approaches
and TSO-DSO coordination schemes that will enable
better integration of DERs and their participation in
Ancillary Services (AS) provision. It will be difficult
for the traditional operators of the power grid to
interact with so many devices and individuals so a
“middle man” or a so called aggregator will be
required to manage their participation. The TSO
and/or DSOs will still need to deal with a large
number of aggregators, so to make the interactions
manageable and to facilitate market clearing, the
TSO/DSOs will need to limit the number of bids that
each aggregator can submit to participate in AS
and/or flexibility markets. In California, Demand
Side Response aggregators (DSR) are currently
limited to a maximum of 10 bids per hour per
aggregator (Kohansal and Mohsenian-Rad, 2016).
The number chosen seems somewhat arbitrary, but
fewer buckets would result in less granularity in price
bids, whilst taking significantly more bid buckets
would result in additional computational complexity
and a requisite increase in solution time.
Aggregators will eventually take many forms and
follow different types of business models. Some
aggregators will specialize on different types of
devices e.g. Electric Vehicles (EV) or CGCL. Some
will focus on multiple groups. As a first step
SmartNet developed five types of aggregators
(Storage, CHP, CGCL, thermostatically controlled
Loads [TCL] and Atomic Loads (e.g. washing
machines) (Dzamarija et al., 2018). Each aggregator
focuses on those specific devices only.
Although the focus of the simulation framework
is on coordination schemes, we present here for the
first time, a focus on a particular aggregator agent
known as the CGCL aggregator. This agent
aggregates renewable devices such as wind, solar and
hydro and also encompasses sheddable loads such as
street lamps. The simulation currently uses the
marginal bidding costs as the basis on which to
aggregate, although strategic bidding and agent
learning could be added at a later date. So far the
major focus of research has been on the aggregation
of EV’s, mainly from an algorithmic and optimization
point of view (Shafie-Khah et al., 2016, Vayá and
Andersson, 2015). There is therefore a lack of work
looking at aggregation of customers in general, as
well as the role of the CGCL aggregator.
Optimization is one method that we can use to
aggregate bids, but other alternatives could be
investigated.
In that context, we have borrowed from the
finance and risk management sector as we believe
that many future commercial aggregators would use
simpler more pragmatic solutions based on bucket
concepts which fit well with portfolio and risk
management theories. These are integrated with the
network calculations. Although we do not present the
risk and portfolio management concepts here, the
paper focusses on simulating buckets as a first step in
developing an agent that would be representative of
such a commercially focussed agent.
Buckets could be time based (Kumar, 2017), risk
based (Riskviews, 2012), default based (Krink et al.,
2008) or price /cost based. As a first step we chose to
ignore risk and concentrate on marginal costs without
risk, to investigate coordination schemes and the
feasibility of performing such an aggregation in the
SmartNet context
SIMULTECH 2019 - 9th International Conference on Simulation and Modeling Methodologies, Technologies and Applications
278
Choosing which devices go into which buckets
can be thought of as clustering exercise. At its
simplest if we ignore risk we can cluster on price/cost
but in practice a more sophisticated clustering
strategy would usually be required.
The current design of SmartNet does not address
risk in any sophisticated way, but does include a cost
adjustment or delta that can be added to the marginal
bid cost. Calculation of the delta value has not
currently been implemented.
Although simulation approaches using stochastic
optimization with constrained chance (Li, 2015)
provides a potential solution to managing risk, the
bucket approach presented below will allow us to
represent risk as in a way that is familiar to many risk
professionals in trading companies and banks. In
addition, run times for stochastic optimization
algorithms can be of the order of 30 minutes to just
over one hour (Furlonge, 2011) and may prove to be
impractical in the context of real time electricity
market clearing.
2.1 CGCL Aggregator Overview
Aggregators will be assumed commercial entities,
which are profit maximising and will have to provide
a number of functions/roles within a real market
setting. These will include but are not be limited to:
Analysis of Customers;
Analysis of the Market;
Weather forecasting;
Demand and Clearing Price forecasting;
Risk management;
Data management, Accounting and Billing;
Congestion modelling (see below);
Aggregation of Bids (Clustering) with the view to
maximise profits;
Bidding to Market and Interactions with
TSO/DSO;
Disaggregation based on the bids submitted to
the market during the aggregation process and
results from the market clearing entity, apportion
accepted flexibility to individual devices. Note the
CGCL aggregator may be given partial
acceptance of its bids e.g. only 25% of the volume
is accepted at a certain price. The organisation
responsible for market clearing would be using
optimal power flow software to dispatch
generation and demand response bids, taking
account of constraints on power lines (voltage and
flow) as well as looking to minimise system costs.
Lower bids may be curtailed to overcome
potential congestion in the power system;
Notification of any adjustments to individual
devices from the disaggregation process.
This paper is going to focus on the modelling of
the last four listed functions. Although SmartNet also
simulates day ahead price bidding, and solving the
optimal power flow, we are going to focus on the real
time flexibility or ancillary services market portion of
the wholesale power market. In the following
subsections, we now focus on our design of a CGCL
aggregation agent written in Python using a
financially based “bucket” bidding system.
2.2 Module Descriptions
The Curtailable Generation Curtailable Load (CGCL)
aggregator/disaggregator module (henceforth called
the CGCL Aggregator) simulates the
aggregation/disaggregation of data and bids from
hundreds of thousands of devices attached to a
particular node/ or a set of nodes on a physical power
network. In this case, four different types of devices
are collated from thousands of power nodes in a
model of a real system in this case the Italian,
Spanish and Danish Power grids:
Hydro;
Solar;
Wind;
Sheddable Loads (SEL) e.g. Street Lamps.
For each time step, bids from these different types
of devices are combined into price “buckets” to
produce up to 20 price volume bids per time step (10
up bids and 10 down bids). Market rules determine
when aggregators will bid i.e. the time step and for
how many future intervals e.g. 12 bids of 5 minutes
for the next hour. SmartNet allows us to experiment
with these parameters.
Overall control of the bidding process, including
time steps, the number of periods bid, aggregation
and disaggregation start signals are driven by the
Market Scheduler and scenario inputs which include
details on the number of time steps , rolling time bid
window and the grid to be used in the simulation. This
data is sent to a CGCL aggregator by the scheduler.
The CGCL aggregator code initialises and creates
all the aggregators for the scenario, and collects all
the device data associated with a node to which
aggregator is connected. In effect each aggregator is
an agent (a software object), who stores the data from
all the devices connected to the aggregator’s node or
nodes, in an in-memory three dimensional matrix.
Note in the case of a transmission nodes, SmartNet
assumes that all devices associated with distribution
nodes downstream are attached to the aggregator. In
practice, aggregators may take customers from a
Simulating a Commercial Power Aggregator at Scale Design and Lessons Learned
279
variety of nodes. Different co-ordination schemes,
which are scenario driven, determine where the
aggregators are placed (Figure 1).

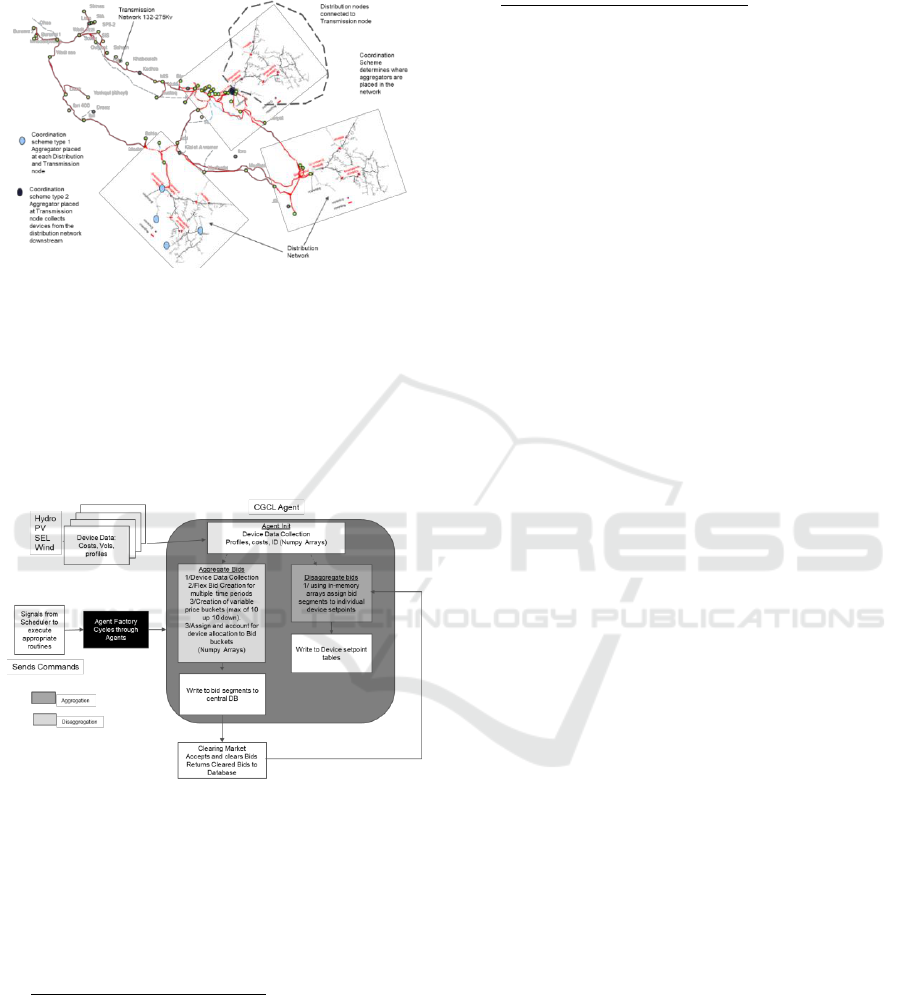

Figure 1: Aggregators assigned to transmission or
distribution nodes.
Data for each device and node locations are stored
in a Django based SQL database (Django Software
Foundation, 2017).
In the current version, buckets are clustered by
cost, but the concept can be extended to a more
general clustering algorithm using multiple variables.
Figure 2: CGCL aggregator design.
The CGCL aggregator code makes extensive use
of Pythons Numpy Array data manipulation routines
for calculation speed, which is ideally suited to n
dimensional matrix manipulation. As illustrated in
Figure 2, the CGCL aggregator code is split into two
main parts:
CGCL Aggregator Factory. This creates the
appropriate number of aggregator agent objects,
creates a list (an agent directory) of those objects,
so that we can take control of them later and
populates them with data from a relational
database. On receipt of an aggregation or
disaggregation signal from the scheduler module,
it also triggers the individual agents to perform
their calculations. Currently this is performed
sequentially, but this could be multi tasked later.
Aggregators are placed at network nodes ;
CGCL Implementation module that contains the
logic of the individual aggregator agents.
Control of the aggregator functions is achieved
via an external scheduler.
2.2.1 CGCL Aggregator Logic
The aggregator implementation module, contains the
logic of the aggregator agents, and currently performs
four main tasks:
Initialisation of agent object - When an agent
object is created this simple function creates
internal storage of variables and sets up
parameters such as agent name and ID, max
number of bids allowed, device lists and ID’s, the
actor that “owns” the aggregator and initialises the
arrays for use in the calculations;
Initialisation of agent data - This function pulls
device specific data from the database and creates
device profiles for the devices attached to the
aggregator;
Aggregation Creates bids for the aggregator and
sends these bids to a database, so that the market
layers can clear the market;
Disaggregation Recovers cleared bid data
associated with the specific aggregator agent and
disaggregates cleared bids. This results in an agent
sending new set points to all of the devices on the
particular node. These setpoints are stored in an
aggregator setpoint out table.
In a large system, like the Italian power grid, we
have tens of thousands of aggregator agents. Note
SmartNet currently models aggregators at each node
but in practice, one aggregator may cover several
nodes. Each agent stores its own data such as device
profiles (both day ahead (base) and their expected or
actual profiles, performs its own calculations, and
stores the results of those calculations within its own
memory. It takes device data/flex bids from four types
of devices namely Hydro, PV (Solar) , Wind and
sheddable loads (SEL), clusters that data into price
buckets or segments and effectively bids this data to
the market by storing those bids into an agreed format
into database tables.
The aggregator sends out forward flexible bids
e.g. for the next hour we will bid 12 x 5 minute time
intervals. For each time slice, the aggregator sends
out bid buckets, which represents the aggregation of
all the devices associated with that aggregator. Each
bucket represents a price range. E.g. 10-30, 30-70
/Mwh and so on (see Figure 3).
SIMULTECH 2019 - 9th International Conference on Simulation and Modeling Methodologies, Technologies and Applications
280

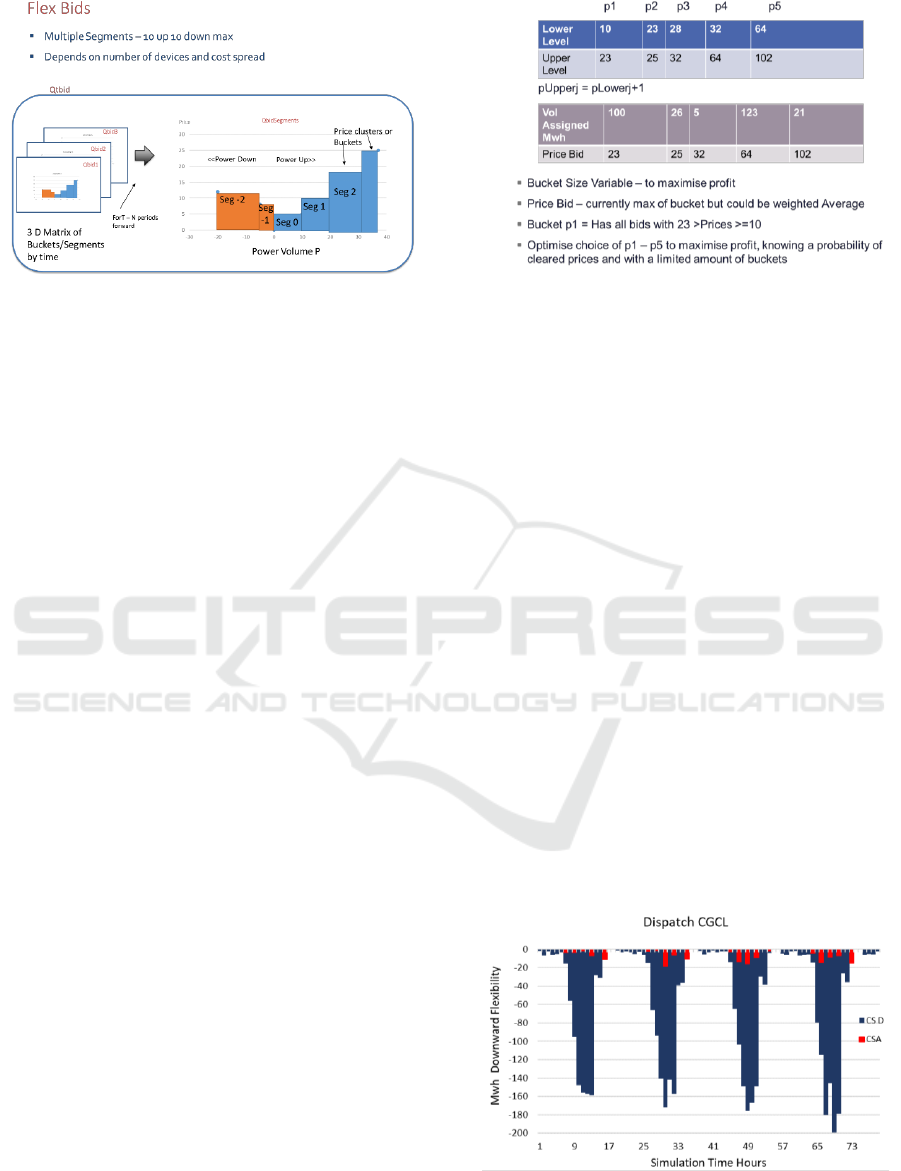

Figure 3: Bid structure overview.
Each aggregator agent performs its own
calculations and updates databases as necessary. A
minimum bid size of 1kW is used to filter bid buckets
(this is parameter driven).
Bids for the time slices are stored in a 3D array
within the agent (flex up and down versions). The
matrix represents the clusters/segments as well as the
devices in that cluster including details on its type,
volumes (real power P and reactive power Q), its bid
(price) and so on. This matrix approach allows the
logic in the module to unpick cleared bids,
disaggregate, and apportion them to individual devices
associated with aggregator. We need some way of
assigning devices to clusters and to keep a record of it
but at speed. A database solution would have been
slow for this purpose.
2.3 Agent Aggregation
In the initial design, the aggregator calculated the
bucket price ranges so that equal number of devices
will be apportioned to each range. The price ranges
are therefore variable (see Figure 4). Our current
methodology uses a genetic algorithm optimizer to
maximise the profit of the aggregator by adjusting the
bucket sizes for both the flex up and down bids.
Devices are assigned to these buckets based on their
cost, while their ID’s are also stored in tables linked
to these buckets.
2.4 Agent Disaggregation
The market is cleared using an OPF calculation. The
clearing module then informs aggregators and their
schedulers, which trigger the aggregator
disaggregation routine. The disaggregator function
retrieves accepted bid data from appropriate database
table and uses the previously internally stored 3D
Numpy arrays (matrices) to unpick the bids to
Figure 4: Bid buckets example.
apportion them to individual devices. Where the
market clears or accepts the full volume of a
particular bucket or segment, the module logic
accepts all bids from all the devices assigned to that
particular bucket. In the case where the market
accepts a fraction of the bid segment, volumes are
apportioned on a “greedy” basis lowest device cost
first. Cleared volumes are assigned to individual
devices appropriately bucket by bucket, by writing to
a setpoint table in the database.
2.5 Simulation Results
SmartNet stores bidding behaviour for later analysis
and provides prices at each of the nodes modelled in
the power grid. Behaviour of the CGCL agents under
different co-ordination schemes set out in the
SmartNet documentation can be very different and
imposes different costs on the system. Figure 5 shows
coordination scheme (CS) D results in much more
downward flexibility being provided by CGCL
agent’s than CS A. Prices (Figure 6) follow a similar
pattern but in the case where volumes are relatively
small, prices are set by other aggregator agent types
e.g. CHP. Price patterns will also be node dependent.
Figure 5: Volume output for 80 hours of simulation.
Simulating a Commercial Power Aggregator at Scale Design and Lessons Learned
281

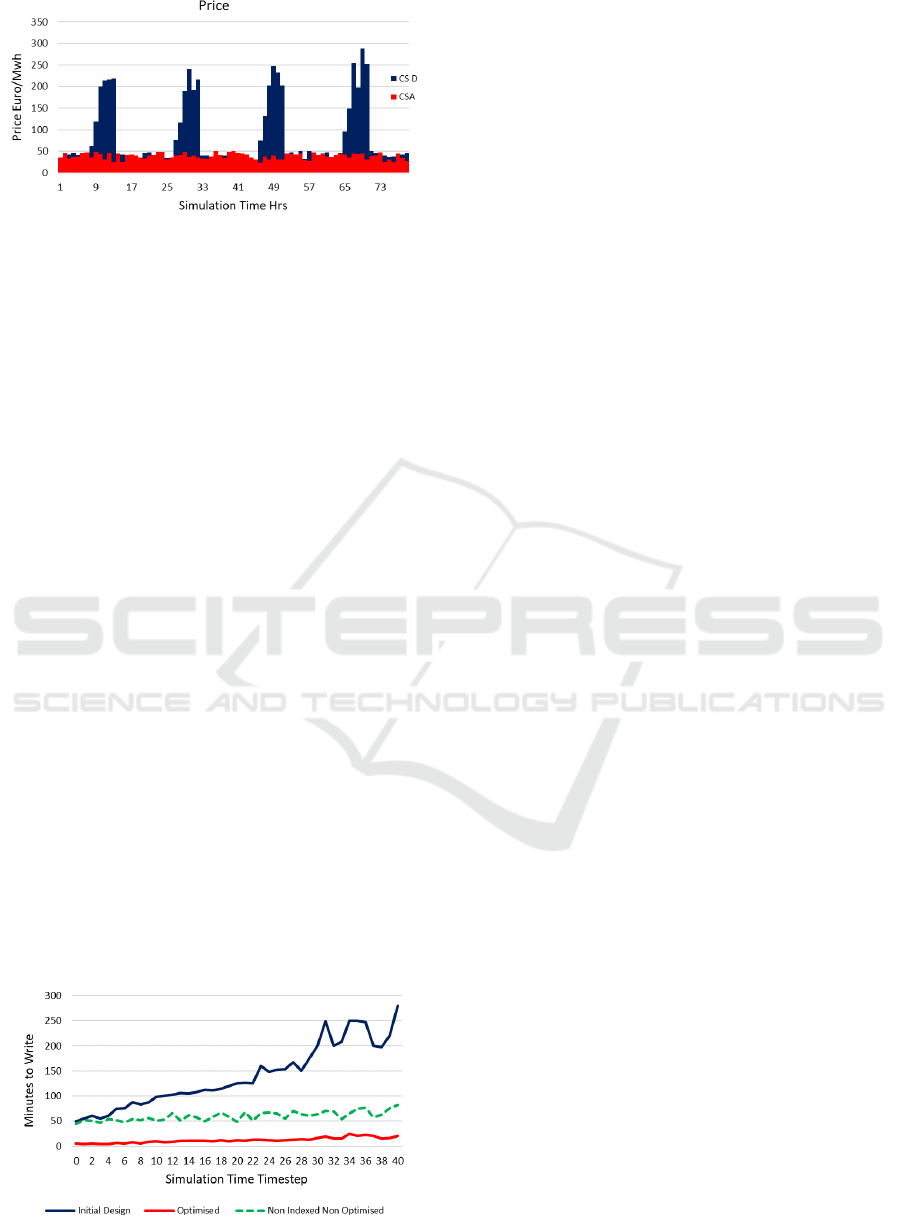

Figure 6: Price output for 80 hours of simulation.
3 CHALLENGES AND LESSONS
LEARNED
Development of the full SmartNet project has taken
many man-years with the CGCL aggregator agent
model part taking around 6 man months of effort.
Simulation and testing of such a large simulation
system is challenging, and we have shown that it is
possible to simulate the aggregation and clustering of
different types of flexibility into a number of
manageable bids. Simulation for 96-time steps on a
representation of the Italian grid with 5 types of
aggregators using this framework is currently taking
around 5-6 hours per scenario using one machine
(Alienware 15 R3 7700 HQ 2.8 GHz 4 cores 8 logical
32GB DDR4). Most of the time is spent writing to a
single database, which is required to store data on
bids and other data for later analysis.
3.1 Database Speed
Simulation write speeds at each tick are shown in
Figure 7. The initial design resulted in a single time
step write time of around 4 hours at the 40th tick.
Optimisation of code using “SQL BulkCreate”
commands resulted in a significant drop to around 4-
5 minutes. Long write times are a natural
consequence of writing around 5 million records per
time step.
Figure 7: Database speed during each tick.
Experiments with database writes indicate that
having a database index causes the slowdown in
insert speed as table size. Removal of the index before
writing can improve this performance (Figure 7).
Note that indexing does help in improving read speed.
A deindexing, write and re-index approach may be
worth investigating.
Use of an in-memory database (Anikin, 2016)
could also be an option with a “write at leisure”
approach to a main database which would be stored
on a Hard Disk Drive (HDD). This would be about
200 times faster than the HDD. Our agent design
already uses this approach extensively but requires
large amounts of memory. Finally, use of a Solid-
State Drive (SDD) would bring a speed improvement
of around two times over an HDD. We are currently
using HDD for storage.
3.1.1 Database Shards
Writing to smaller focussed databases would also
help to improve database write performance.
SmartNet currently uses one database to store
everything. Writing bids to a database for one time
period only, “a current time bid database”, could
potentially improve performance. Joining of these
current bids to a historical collection of bid data could
be performed at a later time. We may wish to consider
horizontal partitioning of the database or “sharding”
(Kerstiens, 2018), although this technique can prove
to be slow when querying multiple databases.
3.2 Python vs Java Vs C++
The software simulation framework uses python as its
base. Extensive use of Numpy arrays in the CGCL
aggregator calculations helps to speed up calculations
of the order of 100-1000 times, depending on
operation, over iterating through a list.
We have considered a port of the code to Java, as
it is known that Java code could be up to 50 times
faster than python (Gouy, 2018). Benchmarks can
range from no speed up for simple algorithms to 50
times or more where computations are complex.
Unfortunately, this would involve a large conversion
effort and the Python development environment is
more productive potentially by a factor of five. A C++
formulation would also provide significant speed
improvements over Java and Python but as we have
discussed in section 3.1, database operations impose
a significant speed restriction on this implementation,
which far exceeds any benefit from a swap of
language.
SIMULTECH 2019 - 9th International Conference on Simulation and Modeling Methodologies, Technologies and Applications
282
Installation of Intel’s ® Python Interpreter using
uses its Data Analytics Acceleration and Claim Math
Kernel Library could also improve calculation times
(Intel, 2018).
3.3 Multi-threading/HPC/CUDA
Multi-threading or the use of a High Performance
Computing (HPC) environment could bring
significant benefits to simulation times. In a practical
sense, each aggregator company in the real world
would be aggregating on a separate computer
system/server remotely from the TSO/DSO clearing
entity. However, HPC data transfer latency could
reduce the benefits if machines are located on distant
clusters or are at different company premises.
Multithreading allows for improvements in
calculation times of the order of 7x (with 8 logical
cores) i.e. of the order of 87% x the number of cores.
HPC using 65 cores would therefore drastically
reduce calculation times to 1-2% of the one machine
calculation time if we ignore latency effects. An
aggregator with 300,000 devices is taking around 15
secs to perform its calculations on one machine using
single threading so a HPC setup could reduce this to
around 0.3 secs. An aggregator with a single device is
taking around <0.05 secs on a single thread.
Use of a Graphics Processing unit (GPU) with
CUDA (Couturier, 2013) would be an ideal method
to use on an aggregator module that makes extensive
use of the Numpy arrays and associated calculations.
We have estimated that speed improvements of
around 30X could be made for our design based on
the calculations alone when using an Nvidia Geforce
GTX 1070 GPU. Database access issues would
remain. Speedup will depend on array size, so in the
case of very large arrays, we may expect
improvement of 100-200, but some of aggregator
arrays only contain 1 device, so the overhead of
transferring data to the associated GPU may actually
degrade performance. This of course will depend on
the number of cores available in the GPU.
3.4 Congestion
Unintended aggregator actions caused DSO agent
intervention in the market to relieve network
congestion (power flows, voltages). Forecasting
errors (day ahead vs real time) also play a part in this
process especially when devices promised to deliver
more they actually could.
DSO Congestion management has implications
for both the overall system costs and aggregator profit
margins, and presents additional risks to the
aggregator. If the additional risk is high, aggregators
may want to anticipate congestion separately from the
DSO, and incorporate congestion risk value into their
bids.
4 FUTURE WORK
Realistic aspects of aggregation such as risk
management, strategic bidding, agent learning,
congestion and portfolio management are missing
from the current approach. A more realistic
representation of a power aggregator will require that
we include these various elements. Early work
indicates that the price of particular bids could rise by
as much as 30% under certain scenarios if we include
some of these effects. Finally, the current SmartNet
framework does not consider aggregator-to-
aggregator interactions nor does it consider
aggregators with multiple device types e.g. CGCL +
CHP or competition between them. Future versions
of our modelling will include this and will implement
the mechanisms discussed in section 3.
5 CONCLUSIONS
This paper introduced the concept of financial
buckets as a method to aggregate bids to maximise
profits to a power aggregator. Simulation and testing
of such a large simulation system is challenging, and
we have shown that it is possible to simulate the
aggregation and clustering of different types of
flexibility into a number of manageable bids in a
timely manner but this will require parallelization and
a more efficient use of database technology.
ACKNOWLEDGEMENTS
This research is funded by the UK Engineering and
Physical Science Research Council (EPSRC) and the
International Strategic Partner (ISP) Research
Studentship and the EU Hor2020 SmartNet project.
REFERENCES
Anikin, D. 2016-10-12 2016. What an in-memory database
is and how it persists data efficiently. Available from:
https://medium.com/@denisanikin/what-an-in-
memory-database-is-and-how-it-persists-data-
efficiently-f43868cff4c1.
Simulating a Commercial Power Aggregator at Scale Design and Lessons Learned
283
Couturier, R. 2013. Introduction to CUDA. Designing
Scientific Applications on GPUs, 13.
Django Software Foundation 2017. Django
Documentation.
Dzamarija, M., Plecas, M., Jimeno, J. & Marthinsen, H.
2018. Aggregation models.
Furlonge, H. I. 2011. A stochastic optimisation framework
for analysing economic returns and risk distribution in
the LNG business. International Journal of Energy
Sector Management, 5, 471-493.
Gouy, I. 2018. Python 3 vs Java - Which programs are
faster? | Available: https://benchmarksgame-
team.pages.debian.net/benchmarksgame/faster/python.
html [Accessed].
Intel 2018. Intel® Distribution for Python* Accelerate
Python* Performance.
Kerstiens, C. 2018. Database sharding explained in plain
English. Available: https://www.citusdata.com/blog/
2018/01/10/sharding-in-plain-english/.
Kohansal, M. & Mohsenian-Rad, H. 2016. A closer look at
demand bids in california iso energy market. IEEE
Transactions on Power Systems, 31, 3330-3331.
Krink, T., Paterlini, S. & Resti, A. 2008. The optimal
structure of PD buckets. Journal of Banking & Finance,
32, 2275-2286.
Kumar, D. 2017. The four bucket system. Available:
http://vro.in/s33527.
Li, C. 2015. Chance-constraint method - optimization
[Online]. Available: https://optimization.mccormick.
northwestern.edu/index.php/Chance-
constraint_method [Accessed].
Marthinsen, H., Plecas, M., Morch, A. Z., Kockar, I. &
Džamarija, M. 2017. Aggregation model for curtailable
generation and sheddable loads.
Migliavacca, G., Rossi, M., Six, D., Džamarija, M.,
Horsmanheimo, S., Madina, C., Kockar, I. & Morales,
J. M. 2017. SmartNet: H2020 project analysing TSO
DSO interaction to enable ancillary services provision
from distribution networks. CIRED-Open Access
Proceedings Journal, 2017, 1998-2002.
Riskviews. 2012. Five Buckets of Risk. Available:
https://riskviews.wordpress.com/2012/01/17/five-
buckets-of-risk/ [Accessed 2012-01-17].
Shafie-Khah, M., Heydarian-Forushani, E., Golshan, M.,
Siano, P., Moghaddam, M., Sheikh-El-Eslami, M. &
Catalão, J. 2016. Optimal trading of plug-in electric
vehicle aggregation agents in a market environment for
sustainability. Applied Energy, 162, 601-612.
Vayá, M. G. & Andersson, G. 2015. Optimal bidding
strategy of a plug-in electric vehicle aggregator in day-
ahead electricity markets under uncertainty. IEEE
Transactions on Power Systems, 30, 2375-2385.
SIMULTECH 2019 - 9th International Conference on Simulation and Modeling Methodologies, Technologies and Applications
284
