Towards Intra-Datacentre High-Availability in CloudDBAppliance

Luis Ferreira, F

abio Coelho, Ana Nunes Alonso and Jos

e Pereira

INESC TEC & Universidade do Minho, Braga, Portugal

Keywords:

CloudDBAppliance, High-Availability, Replication.

Abstract:

In the context of the CloudDBAppliance (CDBA) project, fault tolerance and high-availability are provided in

layers: within each appliance, within a data centre and between data centres. This paper presents the proposed

replication architecture for providing fault tolerance and high availability within a data centre. This layer

conﬁguration, along with speciﬁc deployment constraints require a custom replication architecture. In partic-

ular, replication must be implemented at the middleware-level, to avoid constraining the backing operational

database. This paper is focused on the design of the CDBA Replication Manager along with an evaluation,

using micro-benchmarking, of components for the replication middleware. Results show the impact, on both

throughput and latency, of the replication mechanisms in place.

1 INTRODUCTION

CloudDBAppliance aims at delivering a database ap-

pliance (software and hardware), leveraging the capa-

bilities of newer hardware by incorporating NUMA

awareness, terabyte-scale in-memory processing and

high-availability. This paper focuses on how to pro-

vide a highly available conﬁguration using resources

available within a data centre. Simply put, the goal

is to guarantee that if an appliance fails, a standby

is available to take over, powering a transparent ex-

ecution scenario for the client, thus hiding faults

and maintaining the perceived quality of service.

The operational database is the fulcrum of the high-

availability effort, as it holds the data that needs to be

persisted, either if used directly by an external appli-

cation or along with an in-memory many-core analyt-

ics framework (also a part of the project), providing it

with the necessary data.

Replication is often presented as the solution to

achieve highly dependable database services. Exist-

ing database replication architectural models should

then be examined to determine to what extent their as-

sumptions, strengths and weaknesses hold in this type

of scenario. Namely, the consistency guarantees that

can be afforded, the cost to do so in terms of latency

and processing resources, and their implementation

cost, should be analysed. Ensuring high availability

within a datacentre requires deﬁning a replication al-

gorithm that, in case of a failure, enables the failover

of the operational database to a consistent and up-to-

date standby replica, running in a different appliance.

There are a number of different models for database

replication that mainly differ on: whether transactions

are executed at each replica, or just at one while others

apply updates; and how (if at all) replicas are allowed

to diverge.

In this paper we present the architecture of

the replication middleware for CloudDBAppliance

along with the motivating design constraints. Sec-

tion 2 covers background on replication and fault-

tolerance mechanisms. Section 3 introduces the high-

availability middleware, with Section 4 showing the

preliminary results on the selected replication mech-

anisms. Section 5 concludes the paper and overviews

the major takeaways.

2 BACKGROUND

Replication protocols are often divided into two dis-

tinct approaches: active and passive replication. Ac-

tive replication protocols follow the state-machine ap-

proach (Schneider, 1990) where the database is con-

sidered to behave like a state-machine in which each

operation deterministically causes a change in state:

each operation is forwarded to every replica, which

then executes it. In order for this approach to be ap-

plicable, operations must be guaranteed to be deter-

ministic, precluding the usage of current time values

and random numbers, as these would likely differ be-

tween replicas.

In contrast, in passive replication protocols, com-

Ferreira, L., Coelho, F., Alonso, A. and Pereira, J.

Towards Intra-Datacentre High-Availability in CloudDBAppliance.

DOI: 10.5220/0007876306350641

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 635-641

ISBN: 978-989-758-365-0

635

monly referred to as primary-backup, only the pri-

mary replica executes the transaction, propagating the

transaction’s write set to other replicas. The primary’s

native database engine concurrency control decides

which transactions to commit or abort, and in which

order. To ensure that replicas remain consistent, these

must know or decide on the same serialization or-

der as the primary. In a multi-primary setting, i.e.,

where, for example, different replicas may have the

role of primary for different parts of the data, each

transaction still executes in a single primary, but hav-

ing several primaries means that these must agree on

a total order for transaction execution, as a transac-

tion might update data owned by multiple primaries.

If replicas apply updates according to that total or-

der, strong consistency is guaranteed. Group com-

munication protocols that guarantee message deliv-

ery with appropriate semantics, which are instances

of the abstract consensus problem (Guerraoui and

Schiper, 2001), can be used for that purpose. In

(Wiesmann et al., 2000), the authors compare differ-

ent approaches for replication as well as the primitives

needed in each case and a survey of atomic broadcast

algorithms can be found in (D

efago et al., 2004).

Because the total order property guarantees that

all replicas receive the same set of messages and that

messages are delivered in the same order to all repli-

cas, the transaction order can be established simply

by sending the transaction identiﬁer (along with other

relevant metadata) to the group; if transactions are

queued in the same order in which the respective mes-

sages are delivered, the queues at each replica will

be identical and can be considered as instances of a

replicated queue. Because active replication requires

every replica to execute every transaction, if non-

determinism in transactions is allowed and strongly

consistent replication is a requirement, performance

is limited by the slowest replica in the group. While

passive replication protocols do not suffer from this

limitation, transferring large write sets across the net-

work to several replicas can be costly. Protocols that

combine active and passive replication have been pro-

posed (Correia Jr et al., 2007). There have also

been proposals for mitigating the limitations of state-

machine replication, namely by implementing spec-

ulative execution and state-partitioning (akin to par-

tial replication) (Marandi et al., 2011) and eschew-

ing non-determinism by restricting valid execution to

a single predetermined serial execution (Thomson

and Abadi, 2010). Using primary-backup (and multi-

primary), ownership of data partitions must be guar-

anteed to be exclusive. This means that when the pri-

mary fails, the database must block until a new pri-

mary is found, usually through a leader election pro-

tocol. This is costly, particularly in churn-prone envi-

ronments.

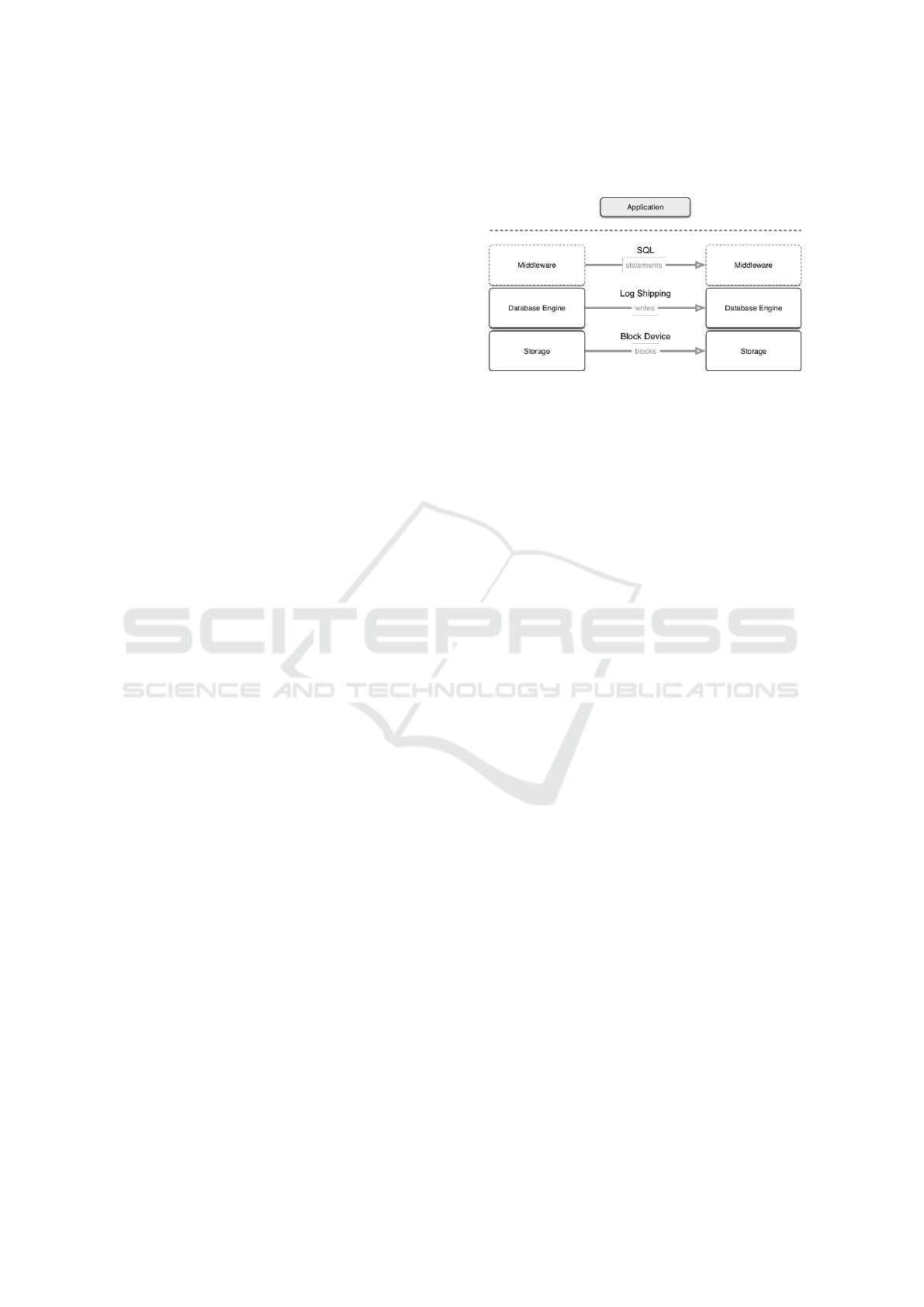

Figure 1: Strategies for database replication.

Having stand-by failover replicas might avoid

most runs of the leader election protocol, but at the

cost of increasing the number of replicas that need

to be updated in each transaction, thereby increas-

ing network utilization and generally increasing the

number of nodes in the system without a correspond-

ing improvement in system throughput. Update-

everywhere protocols avoid this issue because all

replicas are equivalent. Again, replicas must apply

updates according to the deﬁned total order to guar-

antee correctness. Database replication protocols can

also be classiﬁed in terms of when the client is noti-

ﬁed that the transaction has been committed: in ea-

ger (synchronous) replication protocols, the client is

only replied to after all replicas have committed the

transaction (using, e.g., two-phase commit (2PC)),

which can be costlier in terms of latency but provides

stronger consistency; lazy (asynchronous) replication

protocols reply to the client as soon as the transac-

tion has committed in some replica, later propagating

updates to other replicas, providing weaker consis-

tency because of potential temporary divergence be-

tween replicas. An alternative deﬁnition is to consider

whether updates are propagated to other replicas be-

fore the transaction is committed at the primary using

a primitive that guarantees delivery and the appropri-

ate message order properties needed by the protocol.

Figure 1 depicts distinct strategies for a replicated

database system and how replication can be imple-

mented at that level:

• SQL-based, at a middleware layer, above the

database engine layer;

• Log shipping, at the database engine layer; and

• Block Device, at the storage layer, below the

database engine layer.

Active replication can be implemented above the

database engine layer by reliably forwarding SQL

statements from clients to all replicas, handling syn-

chronization/recovery at this level, when needed.

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

636

HA-JDBC (High Availability JDBC) (Paul Ferraro,

2014) is an open source tool that can be used to im-

plement replication at this level, using the JDBC stan-

dard to communicate with the database layer, mak-

ing it generic. At the database engine layer, pas-

sive replication can be implemented by, for example,

recording updates in a transactional log that can then

be shipped to other replicas and replayed. Concep-

tually, leader election can be handled either at this

layer or above. Active replication can be implemented

by sending each operation to other replicas, handling

synchronization/recovery at this level. The imple-

mentations of replication protocols at this level tend to

be tightly coupled to the speciﬁc database engine and

its internals. At the storage layer, passive replication

can be implemented by mirroring block devices be-

tween the primary and backup replicas. However, in

current solutions such as DRDB (LinBit) (Ellenberg,

2007), while an underlying protocol guarantees detec-

tion and recovery of lost updates, there is no notion

of transactional context for the blocks, so transaction

atomicity/consistency cannot be enforced at this level.

Leader election would need to be handled above. Ac-

tive replication does not make sense at this level.

3 HIGH AVAILABILITY

In the context of the CloudDBAppliance, appliances

can be deﬁned as the integration of software with high

performance computing hardware to provide a main-

frame analogue for data processing. Providing high

availability within a data centre means, in this con-

text, providing fast failover between consistent repli-

cas. Minimizing any synchronization overhead dur-

ing normal operation is a concern, addressed by im-

plementing replication at the middleware level, which

makes it independent of the operational database.

This decoupling also prevents the design of the opera-

tional database from being constrained by replication.

Unlike common replication scenarios, due to the

considerable amount of resources that each appliance

represents, replicas are limited to two. This precludes

approaches based on quorums, which require at least

3 replicas to function correctly. The solution, feasible

considering a data centre environment, is to assume

the existence of an eventually perfect failure detec-

tor (Chandra and Toueg, 1996). In the following sec-

tions we describe the proposed replication architec-

ture and protocol.

3.1 Architecture Overview

This section discusses the proposed replication archi-

tecture its integration with the operational database.

Replication is implemented at the SQL level, as de-

picted in Figure 2, as a middleware layer, making

it transparent to the operational database and client

applications. The middleware intercepts SQL state-

ments and is able to perform tasks such as removing

non-determinism or imposing a total-order on state-

ments before forwarding the processed statements to

the operational database instances as required. This

simpliﬁes integration in existing systems, as it re-

quires only a conﬁguration change in JDBC drivers

and data sources.

Failure

Detector

Operational

Database

Replication

Manager

JDBC proxy

Failure

Detector

Operational

Database

Replication

Manager

appliance 2

appliance 1 primary standby

SQL

data/acks

Application

JDBC proxy

Application

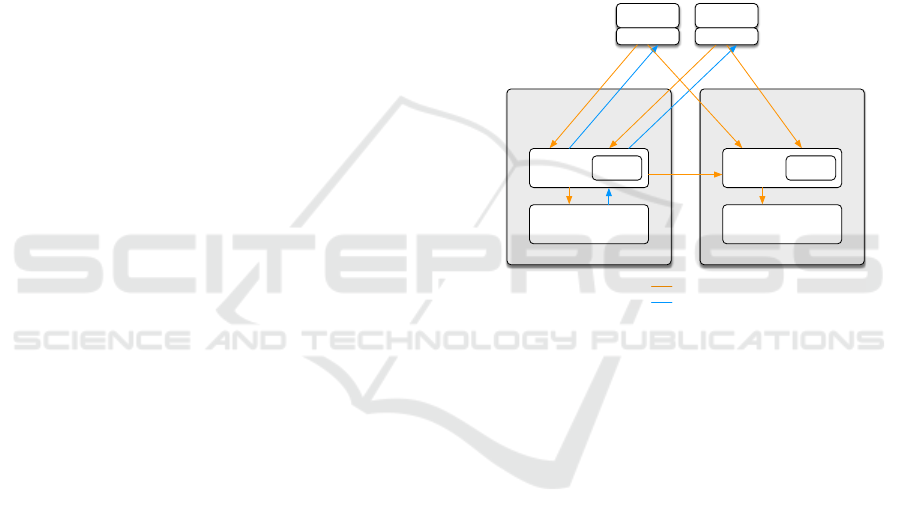

Figure 2: High Availability conceptual architecture.

Figure 2 depicts the proposed architecture for the

intra-data centre replication and fault tolerance pro-

tocol, considering applications running outside the

primary appliance. Appliance components include a

Replication Manager (RM), a Failure Detector (FD)

and the operational database (opDB). Clients connect

to the replication manager through a JDBC proxy. In-

tercepting requests from client applications to the op-

erational database is key as these contain SQL state-

ments, parameters, and a variety of control com-

mands. Replies return data to the application and re-

port various status information. The JDBC interface

provides just that.

3.2 Replication and Fault-Tolerance

Algorithms

The replication and fault tolerance protocol is based

the state machine depicted in Figure 3, which shows

the primary, standby and recovering states, along with

the allowed state transitions.

Normal protocol operation is described in Algo-

rithm 1.

Towards Intra-Datacentre High-Availability in CloudDBAppliance

637

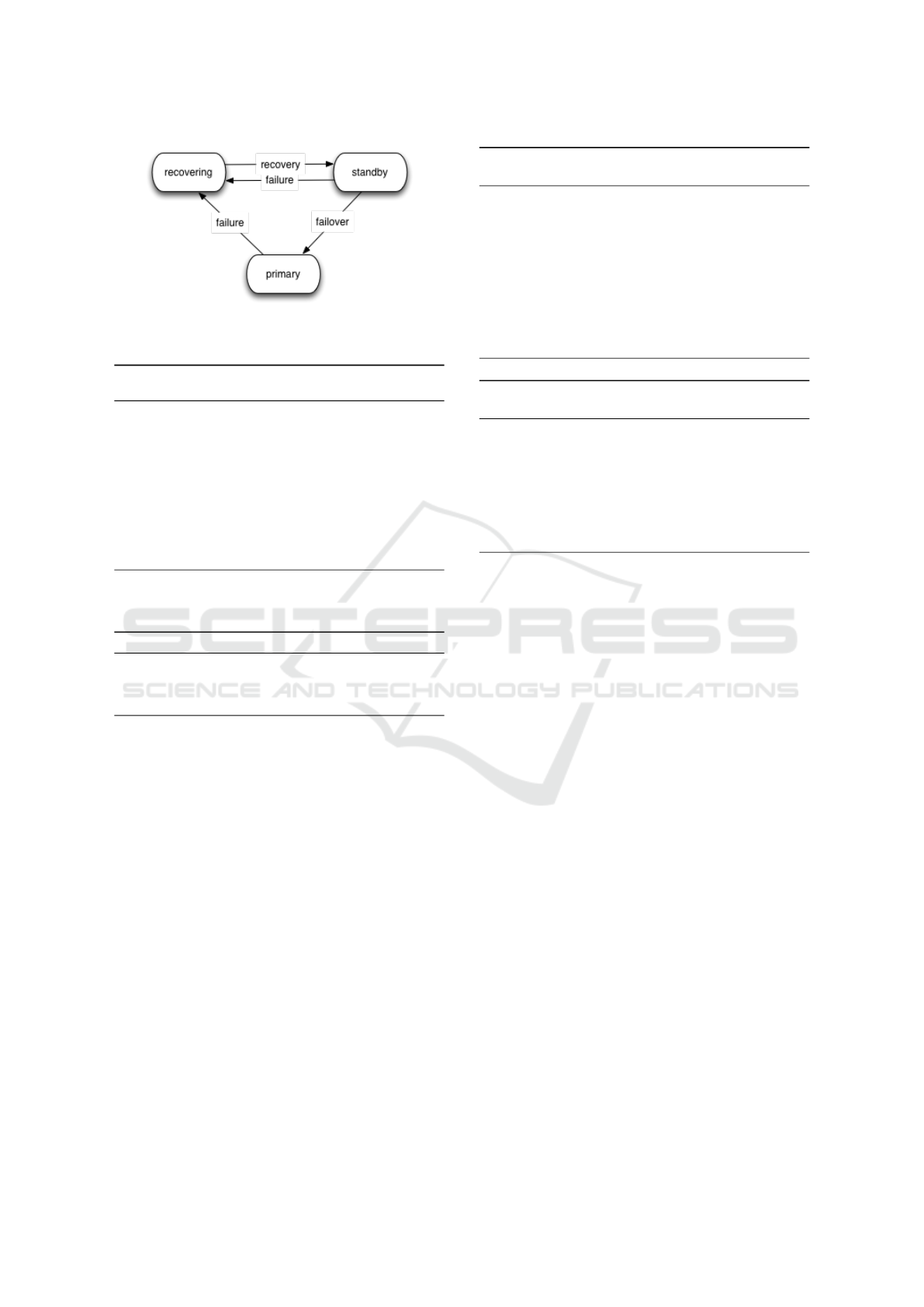

Figure 3: State machine for the replication and fault-

tolerance protocol.

Algorithm 1: CDBA replication protocol - regular sce-

nario.

1: Applications send SQL statements to the pri-

mary’s Replication Manager (RM).

2: Non-determinism in SQL statements is removed

by the primary’s RM.

3: Statements are logged and reliably sent to the RM

of the standby appliance.

4: RMs push SQL statements to their opDB replica.

5: The primary’s opDB replies are forwarded to the

application via JDBC.

Algorithms 2, 3 and 4 describe how failover and

recovery are handled.

Algorithm 2: CDBA replication protocol - failover.

1: The standby’s Failure Detector (FD) reliably de-

tects the failure of the primary.

2: Standby takes over, becoming primary.

Regarding Algorithm 3, if the other appliance is

ofﬂine, the recovering appliance could serve a pos-

sibly stale version of the data. Also, the recovering

appliance cannot become the primary in this situa-

tion to prevent inconsistencies, as the other appliance

may have committed transactions before failing itself.

Also, a process for breaking ties regarding which be-

comes the primary, when both appliances become on-

line, is required.

During state transfer, reads can still be served by

the primary from a consistent snapshot.

4 PRELIMINARY RESULTS

In this section, we evaluate a set of JDBC-based

mechanisms, considering different conﬁgurations,

and compare these to a non-replicated baseline. All

tests ran over CDBA’s operational database (opDB)

and none required speciﬁc database-level conﬁgura-

tion.

Algorithm 3 : CDBA replication protocol - recovery

(restart).

1: Appliance starts in the recovering state.

2: if the other appliance is available then

3: if this appliance is up-to-date then it enters

the standby state.

4: else a state transfer process ensues.

5: else this appliance remains in the recovering

state.

6: When both appliances become online, one be-

comes the primary.

Algorithm 4 : CDBA replication protocol - recovery

(state transfer).

1: The primary pauses transaction processing, queu-

ing requests.

2: The primary sends its state (or missing transac-

tions) to the recovering appliance.

3: Once up-to-date, the recovering replica enters the

standby state and normal operation resumes with

pending requests.

Each conﬁguration was tested using the YCSB

benchmark with balanced read and write operations

(50/50). It should be pointed out that as the num-

ber of performed operations increases, the number of

records loaded into the database also increases. First,

we present an assessment of the overhead each JDBC

technology introduces without replication. The se-

lected technologies include an implementation that

provides high availability (HA-JDBC) and an imple-

mentation that uses a client-server model that matches

the architecture proposed in Section 3.

Then we evaluate each mechanism in a replicated

setting and compare these with the implementation

proposed in Section 3.

4.1 JDBC Overhead

The baseline conﬁguration consists of accessing a sin-

gle opDB instance directly. HA-JDBC (Paul Ferraro,

2014) enables high-availability by allowing an appli-

cation to use clusters of identical databases through

an embedded client. V-JDBC (Michael Link, 2007),

on the other hand, provides a client-server interface

for remote databases, offering a selection of transport

protocols, but lacks replication awareness. For these

experiments, V-JDBC was conﬁgured to use Remote

Method Invocation (RMI) (Pitt and McNiff, 2001) as

the service protocol.

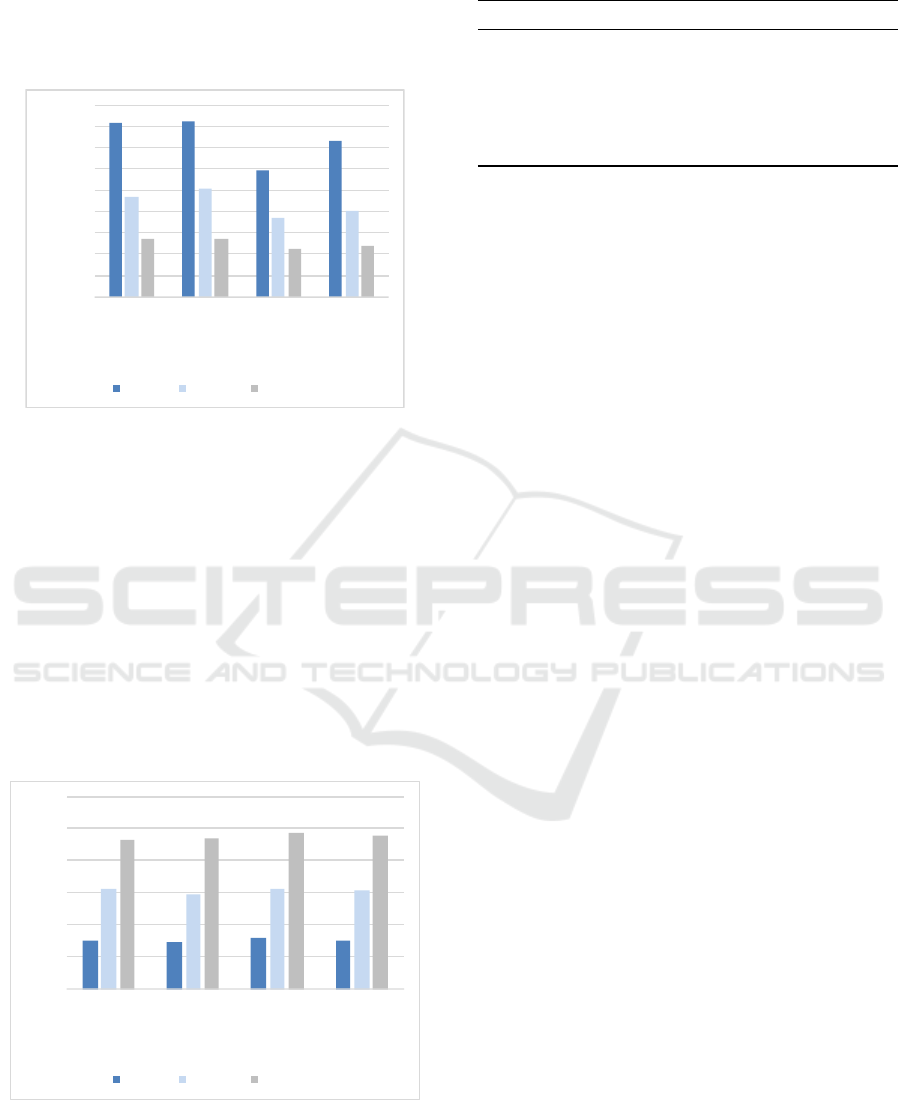

Figure 4 shows throughput for the baseline, HA-

JDBC and V-JDBC over a single opDB instance, as

the number of operations per second [ops/sec]. Ex-

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

638

periments were ran for databases of different sizes:

from ten thousand to three million records. Increas-

ing the size of the database seems to have an impact

on throughput.

100

200

300

400

500

600

700

800

900

10K 100K 1M 3M

Throughput [ops/sec]

# of records in each configuration [K = x1000] [M=

x1000000]

baseline HA-JDBC V-JDBC RMI

Figure 4: Mean throughput for JDBC proxies under increas-

ing workloads.

Results show that the HA-JDBC middleware,

even without replication, imposes a high penalty on

throughput, when compared to the baseline (41,15%).

V-JDBC imposes an even higher overhead, due to its

client/server architecture.

Latency for read operations is depicted in Fig-

ure 5, considering the same workloads. Results match

those presented for throughput with V-JDBC impos-

ing the highest penalty on latency and still signiﬁcant

overhead introduced by HA-JDBC. Read latency re-

mains stable even as the number of pre-loaded items

in the opDB increases.

10K 100K 1M 3M

READ Latency [ms]

# of records in each configuration [K = x1000] [M=

x1000000]

baseline HA-JDBC V-JDBC RMI

Figure 5: Mean read latency for JDBC proxies under in-

creasing workloads.

Table 1: Evaluated conﬁgurations.

Conﬁgurations Description

Baseline Direct access, 1 opDB instance

HA-JDBC 2 HA-JDBC, 2 opDB instances

V-JDBC HTTP V-JDBC using HTTP

V-JDBC AUGEO AUGEO’s V-JDBC (HTTP)

CDBA CDBA with 1 opDB instance

CDBA 2 CDBA with 2 opDB instances

4.2 Evaluation of Replication

Mechanisms

The implementation of CloudDBAppliance’s Repli-

cation Manager merges HA-JDBC with V-JDBC, en-

abling the system to establish clusters with groups

of replicas with the proxy capabilities of V-JDBC.

This enables requests to be marshalled and transmit-

ted across a network, delivering them to a remote in-

stance. In this section, we evaluate each component

along with the integrated version in non-replicated

settings and settings with two replicas. This micro-

benchmarking campaign focuses on evaluating repli-

cation algorithms during normal operation, i.e., in the

absence of faults.

Table 1 provides an overview of the evaluated

replication conﬁgurations. The baseline is, as in Sec-

tion 4.1, direct access to a single instance of the

CDBA’s operational database. We evaluated V-JDBC

using HTTP as the transport protocol, including a

vendor-speciﬁc implementation over HTTP, that uses

a different serialization mechanism to marshal pack-

ets over the network, Augeo (Augeo Software, 2016).

HA-JDBC was evaluated in a replicated conﬁgura-

tion, with two opDB instances (HA-JDBC 2). The

replication protocol proposed in Section 3, realized

in CDBA’s Replication Manager was evaluated both

in a non-replicated setting and a setting with two

opDB replicas (CDBA 1 and CDBA 2, respectively).

In either conﬁgurations with 2 opDB instances, no

additional synchronization mechanisms were conﬁg-

ured. This ensures that the requests are replicated

solely by the JDBC-based middleware, and does not

take advantage of the synchronization mechanisms of

the underlying opDB instances. Also, request load-

balancing was not enabled, with read requests di-

rected to the primary replica, where applicable. Eval-

uation of the replication mechanisms was conducted

on a scenario with 100K pre-populated records.

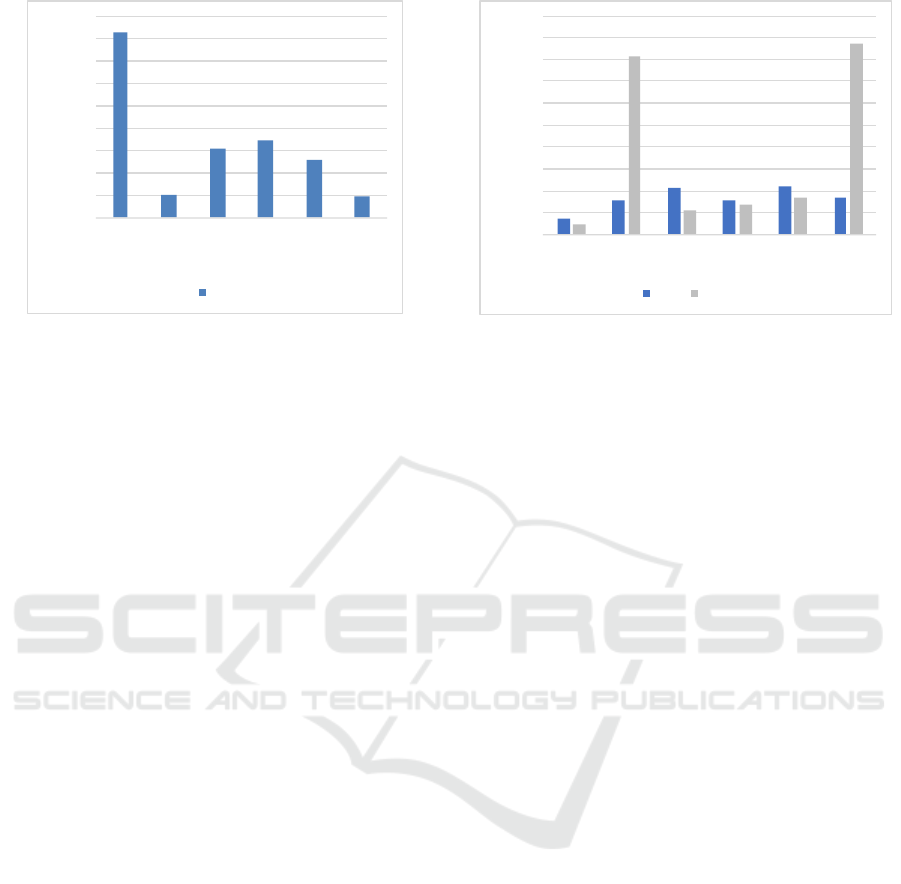

Figure 6 shows the throughput achieved by the

conﬁgurations in Table 1. Comparing results for V-

JDBC RMI (Figure 4), V-JDBC HTTP and V-JDBC

AUGEO shows a slight improvement for V-JDBC

HTTP over V-JDBC RMI, with V-JDBC AUGEO per-

Towards Intra-Datacentre High-Availability in CloudDBAppliance

639

100

200

300

400

500

600

700

800

900

baseline HA-JDBC

Instances

V-JDBC

HTTP

V-JDBC

AUGEO

CDBA CBDA 2

instances

Throughput [ops/sec]

100K

Figure 6: Mean throughput for conﬁgurations in Table 1.

forming even better. CDBA achieved a throughput

of approximately 250 operations per second, lower

than that of HA-JDBC and V-JDBC HTTP and V-

JDBC AUGEO, but practically on par with V-JDBC

RMI. Regarding replicated setups, HA-JDBC 2 and

CDBA 2 achieved similar throughput, of approxi-

mately 100 operations per second. As CDBA’s repli-

cation management derives from HA-JDBC this is to

be expected. Impact on throughput is justiﬁed by

the need to maintain two state machine instances:

one per opDB instance. Moreover, because an ac-

tive replication mechanism is being used, to ensure

consistency, an answer to the client is only provided

once both opDB instances have successfully applied

all changes.

Figure 7 shows the mean latency of read and write

operations, for the conﬁgurations in Table 1.

The impact of marshalling and sending requests

across the network is visible both in write and read

latencies for V-JDBC HTTP but, to a lesser extent,

on V-JDBC AUGEO, when compared to the base-

line. This is a consequence of the more efﬁcient seri-

alization mechanism in V-JDBC AUGEO, as, in fact,

mean read latency for V-JDBC AUGEO is on par with

HA-JDBC 2. Capitalizing on V-JDBC AUGEO’s ef-

ﬁciency, mean read latency for the CDBA 2 conﬁgu-

ration is also on par with HA-JDBC 2. For more de-

manding workloads, the ability to use load balancing

for read requests will likely yield better read latency

in the replicated scenarios, when compared to single-

replica scenarios.

The impact of replication is most visible on writes

as mean latency for HA-JDBC 2 and CDBA 2 is

signiﬁcantly higher than for single replica conﬁgura-

tions. Regarding HA-JDBC 2, several factors con-

tribute to the increase in latency: (1) execution on

the standby replica takes place only after the success-

ful execution on the primary; (2) a result is only re-

turned to the client after comparing results from the

baseline HA-JDBC 2

Instances

V-JDBC

HTTP

V-JDBC

AUGEO

CDBA CBDA 2

instances

Latency [ms]

READ WRITE

Figure 7: Mean latency of read and write operations for

conﬁgurations in Table 1.

standby to the primary’s. Regarding CDBA 2, over-

head is due to: (1) preprocessing the query to remove

non-determinism; (2) serialization and network com-

munication (3) ensuring queries are guaranteed to be

delivered to both the primary and the standby and in

the same order; (4) waiting for both replicas to ac-

knowledge the write was successful before notifying

the client.

This benchmarking campaign exposed the over-

head imposed by each feature of the replication proto-

col. First, we showed how using a client-server model

for JDBC adds overhead and the impact of different

transport protocols, when compared to other JDBC

models (HA-JDBC) and the direct access baseline.

Second, we showed the performance penalty for intro-

ducing replication to the client-server JDBC model.

The penalty is most noticeable on write requests,

as evidenced by results on write latency. Neverthe-

less, performance largely follows what is observed

for other high-availability providers, notwithstanding

CDBA’s additional ability to forward JDBC objects

across the network. This ability endows CDBA’s

Replication Manager with extended ﬂexibility in ex-

ploring different replication conﬁgurations, namely

based on multiple communication patterns, as it de-

couples the client from the operational database in-

stances.

5 CONCLUSION

This paper introduced CloudDBAppliance’s replica-

tion architecture for high-availability within a data

centre, along with a proposed replication protocol.

Moreover, it provides a set of micro-benchmarks that

evaluate the performance of each component with dif-

ferent conﬁgurations, as well as the impact of each

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

640

feature. Results show the penalty on throughput and

latency of decoupling clients from database instances

by leveraging a client-server implementation of JDBC

and, particularly for writes, of introducing a replica-

tion mechanism for high-availability.

The proposed replication mechanism, that pro-

vides high-availability while still decoupling clients

from database instances, performs with minimal over-

head regarding other proposals for implementing

high-availability at the SQL level, namely HA-JDBC.

ACKNOWLEDGMENTS

The research leading to these results has received

funding from the European Union’s Horizon 2020

programme – The EU Framework Programme for Re-

search and Innovation 2014-2020, under grant agree-

ment No. 732051 and by the ERDF – European

Regional Development Fund through the Operational

Programme for Competitiveness and Internationaliza-

tion - COMPETE 2020.

REFERENCES

Augeo Software (2016). Augeo v-jdbc: Virtual remote ac-

cess for jdbc datasources.

Chandra, T. D. and Toueg, S. (1996). Unreliable failure

detectors for reliable distributed systems. Journal of

the ACM (JACM), 43(2):225–267.

Correia Jr, A., Pereira, J., Rodrigues, L., Carvalho, N.,

Vilac¸a, R., Oliveira, R., and Guedes, S. (2007). Gorda:

An open architecture for database replication. In Sixth

IEEE International Symposium on Network Comput-

ing and Applications (NCA 2007), pages 287–290.

IEEE.

efago, X., Schiper, A., and Urb

an, P. (2004). Total order

broadcast and multicast algorithms: Taxonomy and

survey. ACM Computing Surveys (CSUR), 36(4):372–

421.

Ellenberg, L. (2007). Drbd 8.0. x and beyond: Shared-disk

semantics on a shared-nothing cluster. LinuxConf Eu-

rope.

Guerraoui, R. and Schiper, A. (2001). The generic consen-

sus service. IEEE Transactions on Software Engineer-

ing, 27(1):29–41.

Marandi, P. J., Primi, M., and Pedone, F. (2011). High

performance state-machine replication. In 2011

IEEE/IFIP 41st International Conference on Depend-

able Systems & Networks (DSN), pages 454–465.

IEEE.

Michael Link (2007). V-jdbc: Virtual remote access for jdbc

datasources.

Paul Ferraro (2014). Ha-jdbc: High availability jdbc.

Pitt, E. and McNiff, K. (2001). Java. rmi: The Remote

Method Invocation Guide. Addison-Wesley Longman

Publishing Co., Inc.

Schneider, F. B. (1990). Implementing fault-tolerant ser-

vices using the state machine approach: A tutorial.

ACM Computing Surveys (CSUR), 22(4):299–319.

Thomson, A. and Abadi, D. J. (2010). The case for deter-

minism in database systems. Proceedings of the VLDB

Endowment, 3(1-2):70–80.

Wiesmann, M., Pedone, F., Schiper, A., Kemme, B., and

Alonso, G. (2000). Understanding replication in

databases and distributed systems. In Proceedings

20th IEEE International Conference on Distributed

Computing Systems, pages 464–474. IEEE.

Towards Intra-Datacentre High-Availability in CloudDBAppliance

641
