DistributedFaaS: Execution of Containerized Serverless Applications in

Multi-Cloud Infrastructures

Adbys Vasconcelos, Lucas Vieira,

Italo Batista, Rodolfo Silva and Francisco Brasileiro

Departamento de Sistemas e Computac¸

ao, Universidade Federal de Campina Grande, Brazil

Keywords:

Distributed Computing, Cloud Federation, Function-as-a-Service.

Abstract:

The adoption of cloud computing is continuously increasing due to the attractiveness of low costs of infrastruc-

ture acquisition and maintenance, as well as having virtually inﬁnite resources available for scaling applica-

tions based on demand. Due to the increasing interest in this topic, there is a continuos search for better, more

cost-effective ways to manage such infrastructures. One of the most recent steps was taken by the deﬁnition

and development of Serverless computing, a.k.a. Function-as-a-Service (FaaS). FaaS is a cloud computing

service model where developers can deploy functions to a cloud platform and have them executed based either

on the triggering of events by other services, or by making requests directly to an HTTP(S) gateway, without

having to worry about setting up the underlying infrastructure. In this paper, we propose an architecture for de-

ploying FaaS platforms in hybrid clouds that can be composed by multiple cloud providers. This architecture

aims at enabling privately deployed FaaS platforms to perform auto-scaling of resources (virtual machines)

in a distributed infrastructure, while considering the scenario where the users of such platform are scattered

around the globe. This allows the execution of requests in servers geographically located as close as possible

from the client, with beneﬁts to both the clients and the service providers.

1 INTRODUCTION

Cloud Computing has become one of the pre-

ferred means of hosting Information Technology ser-

vices (RightScale, 2018). In the last decade, multi-

ple deployment models have been proposed for such

infrastructures. Initially, cloud computing was only

possible via the use of services offered by big cloud

providers, namely public clouds. Then, the rise of

new technologies, similar to the ones used by big

cloud providers, enabled the deployment of private

clouds, using companies’ own infrastructures. More

recently, an increasing demand for hybrid cloud de-

ployments has emerged. Such kind of cloud deploy-

ments integrates a number of different public and/or

private providers in a single environment, creating

multi-cloud infrastructures. A recent study conducted

by RightScale indicates that 81% of the respondents

used a multi-cloud approach (10% using multiple pri-

vate clouds, 21% using multiple public clouds, and

51% using a hybrid cloud formed by public and pri-

vate cloud providers).

Likewise, different service models for deployment

in cloud computing infrastructures have been pro-

posed. Initially those models were restricted to SaaS

– Software as a Service, PaaS – Platform as a Ser-

vice, and IaaS – Infrastructure as a Service, but nowa-

days almost anything can be provided as a service and

offered by cloud computing providers. One of those

service models particularly has drawn interest from

a large number of researchers and cloud computing

users, FaaS – Function as a Service.

The main goal of a FaaS provider is to allow de-

velopers to deploy functions in highly scalable and

highly available infrastructures, without having to

deal directly with the underlying physical and virtual

infrastructure that will host and execute such func-

tions. Developers who want to use the FaaS service

can then focus on writing highly-specialized code that

performs a single task. The result is a much shorter

development cycle, due to the fact that the code base

will be very small and much easier and faster to be

tested in such environments. Additionally, this model

also enables the application to adopt the widely used

pay-per-use billing model, using a very ﬁne-grain,

based on the number of individual requests made.

The FaaS service model has been made available

by the big cloud providers since 2014, but it has

gained a lot of interest also in the private clouds sce-

nario. Because of that, multiple initiatives to provide

Vasconcelos, A., Vieira, L., Batista, Í., Silva, R. and Brasileiro, F.

DistributedFaaS: Execution of Containerized Serverless Applications in Multi-Cloud Infrastructures.

DOI: 10.5220/0007877005950600

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 595-600

ISBN: 978-989-758-365-0

595

FaaS support were created, making it possible to de-

ploy FaaS-based services on private and public cloud

computing infrastructures.

FaaS architectures usually rely on the existence of

a main component – API Gateway – that works as

an entry point for the entire platform, i.e., it receives

requests to deploy, update or remove functions and

executes them when an event is triggered or an ex-

ecution request is made to it. The API Gateway is

also responsible for managing the computational in-

frastructure where the functions will be executed and

to increase or decrease the allocated resources for ex-

ecuting the functions, depending on the demand.

Considering the possibility that the user base of

a FaaS-based service is spread around the globe, it

makes sense that the infrastructure that is used for

such service is also distributed around the globe, al-

lowing requests made by users to be handled by in-

stances of the service hosted closer to them.

In this work we analyse the feasibility of imple-

menting distributed platforms that support FaaS, con-

sidering both multi-cloud and federated cloud sce-

narios, that can effectively balance the load between

multiple instances of the service, as well as automati-

cally manage the computational infrastructure capac-

ity available for executing each registered function

(auto-scaling), considering both virtual machines and

containers.

The rest of the paper is structured as follows: in

Section 2, we present work related to this research.

Then, in Section 3 we propose an architecture for

deploying FaaS-based services in geographically dis-

tributed multi-clouds. Thereafter, in Section 4 we

provide a reference implementation of the proposed

architecture. Finally, in Section 6 we present our in-

sights when developing this work.

2 RELATED WORK

Over the course of years, several researches about

cloud computing deployment and service models

have been developed. Such researches aim at pro-

viding cloud-based services that have, among other

characteristics, high availability and scalibility, while

maintaining low operation costs.

Considering the deployment and management

of hybrid multi-clouds, Brasileiro et al. pro-

posed Fogbow – a middleware to federate IaaS

clouds (Brasileiro et al., 2016). This middleware

eases the interoperability of hybrid multi-clouds and

the management of federated cloud resources.

Multiple open source FaaS platforms have been

developed, but they are usually only able to per-

form auto-scaling of function replicas (containers)

and not the auto-scaling of the underlying infrastruc-

ture (Spillner, 2017).

To the best of our knowledge, this is the ﬁrst time

that the aforementioned technologies or any of their

kind have been combined together to enable the de-

ployment of a FaaS platform in a multi-cloud environ-

ment with auto-scaling of nodes (virtual machines).

3 ARCHITECTURE

In this paper we propose an architecture for deploy-

ing and executing Serverless applications in federated

clouds. This architecture comprises three main com-

ponents: (i) FaaS Cluster, (ii) FaaS Proxy, and (iii)

Multi-Cloud Resource Allocator (MCRA). Such ar-

chitecture is depicted in Figure 1.

The FaaS Cluster, as its name suggests, is a clus-

ter where the actual FaaS platform is deployed. Mul-

tiple instances of the FaaS Cluster are deployed on

geographically distributed cloud infrastructures. This

component receives and processes requests coming

from the FaaS Proxy. It is also responsible for moni-

toring the resources used in each individual cloud, and

request the MCRA to provide more resources when

needed, or release resources when they are no longer

necessary.

The FaaS Proxy is responsible for providing the

same interface that a regular FaaS gateway would.

However, instead of processing the requests directly,

it must choose between either forwarding the request

to a load balancing service or forwarding it to a mul-

ticasting service. This choice depends on the type of

the request received. Requests related to registering

or removing functions available should be sent to a

multicaster service. This service will make sure the

received requests are replicated in all FaaS Clusters

deployed. On the other hand, requests for the execu-

tion of a function are forwarded to a load balancing

service. This service will chose where to execute the

function, based on the geographic location of the user

who made the request and that of the available FaaS

Clusters.

Last but not least, the Multi-Cloud Resource Al-

locator (MCRA) is a component able to allocate or

remove resources in any of the clouds that provide

the infrastructure to the FaaS Clusters. These clouds

may be operated by different providers, and run dif-

ferent orchestrator middleware. The MCRA imple-

ments auto-scaling at the virtual machine level.

IWFCC 2019 - Special Session on Federation in Cloud and Container Infrastructures

596

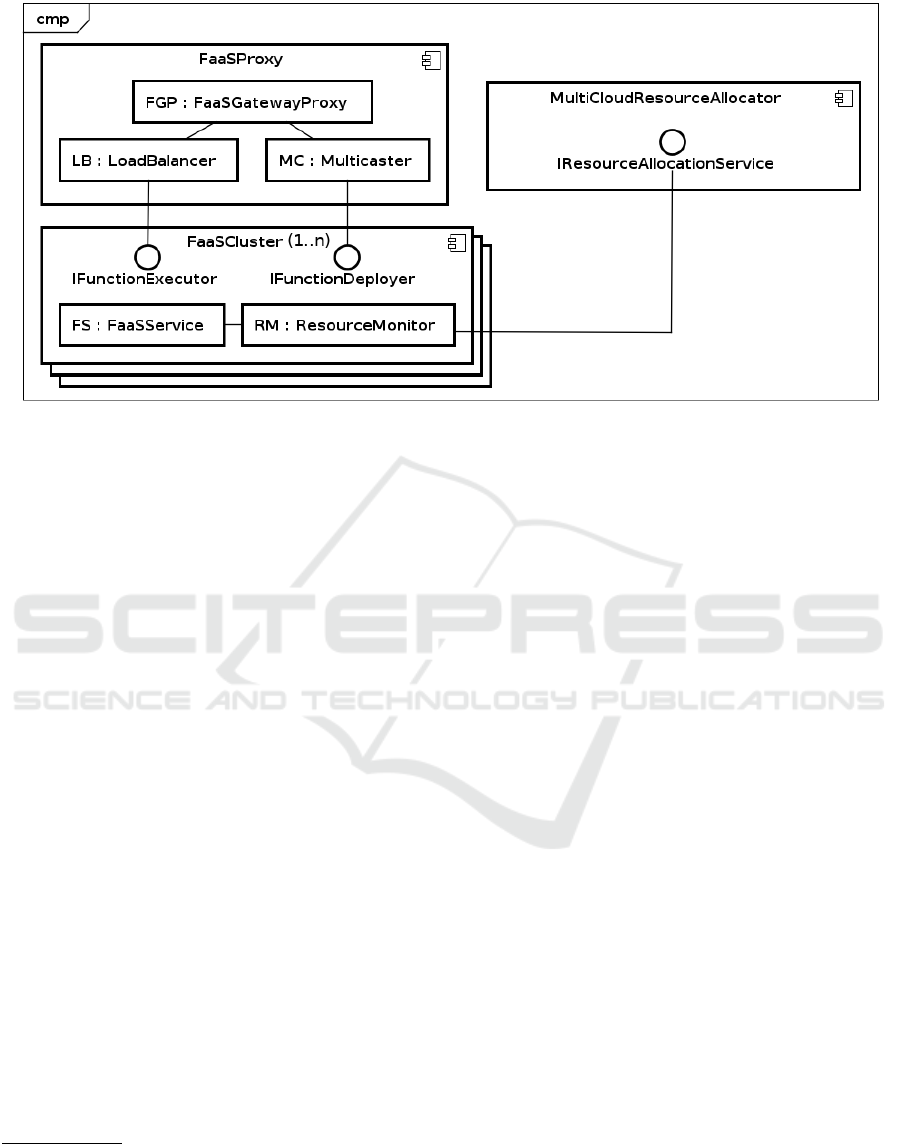

Figure 1: DistributedFaaS architecture.

4 IMPLEMENTATION

As a proof of concept, we have implemented the ar-

chitecture proposed in this paper based on some of the

most prominent solutions in cloud computing at this

time: Fogbow

, OpenFaaS

, Kubernetes

, HAProxy

and Asperathos

. Fogbow is used for the provisioning

of virtual machines in a heterogeneous multi-cloud

setting, where the FaaS Clusters will be deployed.

OpenFaaS is used as the FaaS platform of the indi-

vidual FaaS Clusters. It is used for deploying and ex-

ecuting functions, as well as performing intra-cluster

auto-scaling of resources (containers). Kubernetes is

the backend technology used by OpenFaaS to deploy

its infrastrucure. HAProxy, on its turn, is used to im-

plement load balancing at the FaaS Proxy component.

Finally, Asperathos is used for monitoring the usage

of physical resources (memory, CPU, etc.) at each

FaaS Cluster, and perform the auto-scaling of virtual

machines using Fogbow. The implementation of the

FaaS Proxy is complemented with a simple multicas-

ter explained next.

4.1 FaaS Proxy

The FaaS proxy is composed by three subcompo-

nents: (i) an OpenFaaS Gateway Proxy, a (ii) Load

Balancer, and a (iii) Multicaster.

http://www.fogbowcloud.org/

https://www.openfaas.com/

https://kubernetes.io/

http://www.haproxy.org/

https://github.com/ufcg-lsd/asperathos

The OpenFaaS Gateway Proxy is an HTTP(S)

server written in Golang that exposes the same API as

a regular OpenFaaS API Gateway. That is, the server

is able to take requests to create, update, and delete

functions, as well as requests for deleting functions

that are no longer needed. When a request for creat-

ing, updating or deleting a function is received, it is

forwarded to the FaaS Proxy Multicaster, so that the

message can then be sent to all FaaS Clusters belong-

ing to the same cloud federation. If a request to exe-

cute a function is received, it is forwarded to the FaaS

Proxy Load Balancer, so that it can choose to which

cloud provider should that request be forwarded.

The FaaS Proxy Multicaster, also developed in

Golang, receives requests from the FaaS Gateway

Proxy and replicates such requests across all FaaS

Clusters currently deployed. If a request fails to be

executed in any of the FaaS Clusters, the Multicas-

ter is responsible for retrying it in background, until

it succeeds. The Multicaster also keeps a history of

all actions performed in time, so that if a new FaaS

Cluster joins the cloud federation, it can replicate the

state of the other FaaS Clusters (deploying the cur-

rently available functions).

The FaaS Proxy Load Balancer, implemented us-

ing HAProxy, receives requests from the FaaS Gate-

way Proxy to execute functions. It then uses a set of

rules conﬁgured as Access Control Lists (ACLs) and

the information about the client geographic location

(based on the IP of the sender) to determine to which

FaaS Cluster should it forward the request for execut-

ing a given function.

DistributedFaaS: Execution of Containerized Serverless Applications in Multi-Cloud Infrastructures

597

Table 1: Delay added to messages when sending messages from clients depending on the vLAN used.

Network Source Delay (in ms)

Distributed-faas-main-subnet Client 1 40 ± 5

Distributed-faas-main-subnet Client 2 40 ± 5

Distributed-faas-site-1-subnet Client 1 40 ± 5

Distributed-faas-site-1-subnet Client 2 110 ± 10

Distributed-faas-site-2-subnet Client 1 110 ± 10

Distributed-faas-site-2-subnet Client 2 40 ± 5

4.2 FaaS Cluster

The FaaS Cluster is based on the OpenFaaS platform.

It can be subdivided in two main subcomponents: (i)

FaaS Service, and (ii) Resource Monitor, further de-

scribed in the following.

The FaaS Service is an instance of the OpenFaaS

platform. We have chosen to use Kubernetes as the

underlying technology for deploying it, as it eases the

task of auto-deploying and auto-scaling the contain-

ers that compose a given application or service. The

OpenFaaS platform comprises an API Gateway, re-

sponsible for receiving requests to create, update exe-

cute and remove functions, as well as containers of the

functions themselves. Additionally, we have included

a deployment of a Kubernetes Metrics API, that en-

ables us to collect metrics about the resources (CPU,

memory, etc.) used by the OpenFaaS cluster.

The FaaS Cluster Resource Monitor was imple-

mented in Python using Asperathos, which is a plat-

form to facilitate the deployment and control of ap-

plications running in cloud environments. For the

purposes of this work, we have developed three As-

perathos plugins that are responsible for: (i) col-

lecting metrics from the Kubernetes Metrics API,

(ii) analysing the need for new resources (virtual

machines) or releasing resources that are no longer

needed, and (iii) making the actual requests to the

MCRA to allocate or release resources.

4.3 Multi-Cloud Resource Allocator

The MCRA is based on the Fogbow middleware. It

is responsible for receiving requests from the FaaS

Cluster Resource Monitor to allocate and release re-

sources. Upon receiving a request, the MCRA con-

tacts the Fogbow Resource Allocation Service (RAS),

and asks it to make the necessary adjustments (adding

or removing virtual machines) to the appropriate

cloud where the request came from. This component,

together with the FaaS Cluster enables our solution to

achieve the aimed auto-scaling of resources.

5 EVALUATION

To assess the performance of serverless applications

deployed in a DistributedFaaS environment, we per-

formed a series of experiments that compare it to a

regular OpenFaaS deployment model. In this section

we describe the experiments performed, and present a

discussion based on the results obtained.

5.1 Experiments Setup

The experiments were conducted using 5 virtual ma-

chines running Ubuntu Linux 16.04, each with two

virtual CPUs @2.4GHz and 4 GB of RAM. We used

each of the virtual machines to host two clients, two

OpenFaaS sites and an OFGP as depicted in Figure 2.

To emulate different scenarios in our architecture,

we have also created three vLANs, i.e., Distributed-

faas-main-subnet, Distributed-faas-site-1-subnet and

Distributed-faas-site-2-subnet. Such vLANs were

used to simulate multi-cloud platforms, where the

proximity of the clients to the OpenFaaS sites was

emulated by adding a delay to messages sent from

the clients depending on the vLAN it sends messages

to. Table 1 describes the delay added when sending

messages depending on the vLAN used. The posible

communication paths considering all participants and

vLANs is shown in Figure 2.

In our experiments, we measured the latency that

represents the total time taken from the client request-

ing the server to process a function until the client re-

ceives the response from the server. As the sample

function requested to be executed by our clients, we

used the nodeinfo function

, published by OpenFaaS

itself, which retrieves CPU/network information on

the container where the function is executed.

To benchmark the performance of both deploy-

ments we used the widespread Apache Benchmark

tool

, which provides, among other information, a

https://github.com/openfaas/faas/tree/master/sample-

functions

https://httpd.apache.org/docs/2.4/programs/ab.html

IWFCC 2019 - Special Session on Federation in Cloud and Container Infrastructures

598

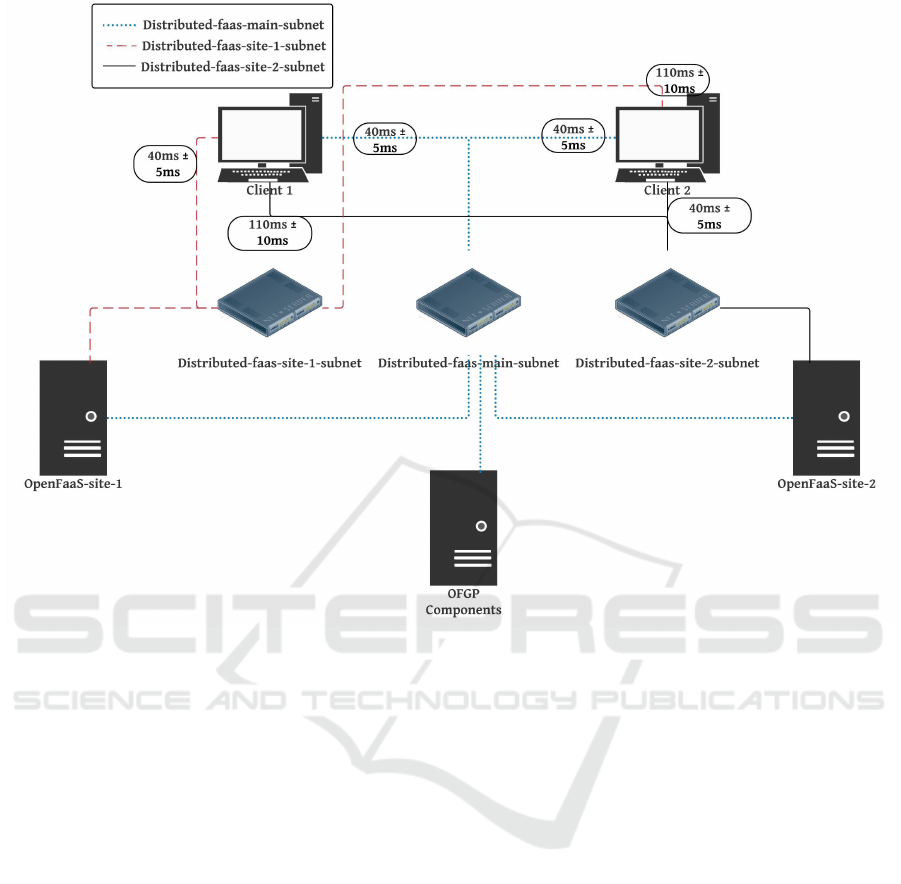

Figure 2: Experiments Network Diagram.

summary of the latency obtained from performing re-

quests to a given server.

5.2 The Experiments

The experiments consisted of three scenarios. In our

ﬁrst scenario, which is our baseline evaluation, both

clients performed requests directly to the OpenFaaS

sites closest to them. That is, Client 1 sent the re-

quests directly to OpenFaaS-site-1 while Client 2

sent the requests directly to OpenFaaS-site-2, both

using the Distributed-faas-main-subnet.

In the second scenario, used to evaluate the over-

head of adding the OFGP components, to a regular

OpenFaaS deployment, both Client 1 and Client 2

sent their requests via the OFGP components also us-

ing the Distributed-faas-main-subnet.

In the third scenario, we simulated the overhead

of having geographically distributed multi-clouds by

considering two situations: (i) both Client 1 and

Client 2 sending requests directly to OpenFaaS-site-

1 using the Distributed-faas-site-1-subnet, and (ii)

both Client 1 and Client 2 sending requests directly

to OpenFaaS-site-2 using the Distributed-faas-site-

2-subnet.

In all scenarios of the experiment each client sent

one request to execute the nodeinfo function in the

designated OpenFaaS site and using the described

vLAN. In total, 100 runs of each scenario were ex-

ecuted.

5.3 Results Obtained

Table 2 shows the results obtained from our experi-

ments. From the results obtained, we can show that

the addition of the OFGP components only generates

an overhead of 2.2% when compared with our base-

line deployment model, which uses the OpenFaaS ref-

erence implementation. That overhead is negligible

when compared to the overhead resulting from the use

of geographically distributed multi-clouds which is of

27.1%.

With that being said, we demonstrated that the ar-

chitecture proposed in this paper can be used to en-

able the deployment of serverless applications in dis-

tributed multi-clouds without adding much overhead

to it.

DistributedFaaS: Execution of Containerized Serverless Applications in Multi-Cloud Infrastructures

599

Table 2: Delay added to messages when sending messages from clients depending on the vLAN used.

Latency (in ms) Requests/sec Relative overhead

Scenario 1 (baseline) 290.910 3.44 -

Scenario 2 (OFGP overhead) 297.303 3.36 2.2%

Scenario 3 (Distributed multi-cloud overhead) 369.683 2.81 27.1%

6 CONCLUSIONS

In the ﬁrst implementation of the proposed architec-

ture we were able to deploy and execute a FaaS plat-

form distributed across federated clouds. This was

done by implementing a new component (FaaS Gate-

way Proxy) that acts as an interface between the users

of the distributed FaaS platform and the actual FaaS

Clusters that are deployed in the federated clouds.

The availability and scalability of functions was

achieved by the use of OpenFaaS and Kubernetes

clusters. By using such technologies, replicas of the

functions are automatically deployed and removed in

virtual machines belonging to a same FaaS Cluster.

We were also able to achieve auto-scaling of virtual

machines in a distributed multi-cloud environment, by

using the Asperathos framework in conjunction with

the Fogbow middleware. This allowed our system to

allocate and release both containers and virtual ma-

chines seamlessly.

The third goal of this work, distributing the load

across the multiple FaaS Clusters based on the ge-

ographic location of users who make the requests

was achieved by writing ACLs to an HAProxy server

proxy.

We have also shown that the use of the OFGP

components only contribute to a small overhead

of 2.2% in latency when compared to a regular

OpenFaaS deployment.

As a future work, we intend to better evaluate the

performance of FaaS-based applications deployed in

such platform, as well as to assess the overall beneﬁts

regarding resources utilisation.

ACKNOWLEDGEMENTS

This work was partially funded by CAPES and Dell

EMC.

REFERENCES

Brasileiro, F., Silva, G., Ara

ujo, F., N

obrega, M., Silva, I.,

and Rocha, G. (2016). Fogbow: A middleware for the

federation of iaas clouds. In 2016 16th IEEE/ACM

International Symposium on Cluster, Cloud and Grid

Computing (CCGrid), pages 531–534. IEEE.

RightScale (2018). Rightscale

2018 state of the cloud report.

https://assets.rightscale.com/uploads/pdfs/RightScale-

2018-State-of-the-Cloud-Report.pdf. Last access

12/06/2018.

Spillner, J. (2017). Practical tooling for serverless comput-

ing. In Proceedings of the10th International Confer-

ence on Utility and Cloud Computing, pages 185–186.

ACM.

IWFCC 2019 - Special Session on Federation in Cloud and Container Infrastructures

600
