Applications of Automated Model’s Extraction in Enterprise Systems

Cristina Marinescu

LOOSE Research Group, Politehnica University Timis¸oara, Romania

Keywords:

Enterprise Systems, Meta-models, Models, Static Analysis.

Abstract:

As enterprise software systems become more and more complex, the need of automated approaches for their

understanding and quality assessment increases. Usually the automated approaches make use of a meta-model

according to the information is mainly extracted from the source code but when considering enterprise systems,

the meta-model should contain information from two different paradigms (e.g., object-oriented and relational)

which are not enough to be loaded only from the source code. In this paper, based on a speciﬁc meta-model

for enterprise systems, we present a set of applications (approaches) which help us to understand and assess

the quality of the design, as part of the maintenance process.

1 INTRODUCTION

As object-oriented systems become more and more

complex, the need of using proper reverse engineering

as well as quality assurance techniques upon such sys-

tems has increased signiﬁcantly. Moreover, the men-

tioned activities become even more difﬁcult, when

considering a category of software systems, namely

enterprise. These systems are about the display, ma-

nipulation, and storage of large amounts of complex

data and the support or automation of business pro-

cesses with that data (Fowler, 2003). Consequently,

almost all enterprise systems involve two program-

ming paradigms: the object-oriented one, for imple-

menting the entire business logic, and the relational

paradigm, for ensuring the persistency of the involved

data.

As stated in (Rugaber and Wills, 1996), one

step toward a research infrastructure accelerating the

progress of reverse engineering is the creation of

an intermediate representation of software systems.

Probably the best-known intermediate representation

of a software system is its model. The model of

a given software system contains speciﬁc informa-

tion extracted from the source code based on a meta-

model. The meta-model speciﬁes the relevant entities

(e.g., classes, methods) and their relevant properties

and relations (e.g., inheritance, method calls) found

in an object-oriented system. According to the study

we present in (Marinescu and Jurca, 2006), it is not

suitable to perform reverse engineering upon an en-

terprise system using a meta-model for representing

a regular object-oriented system (i.e., a system which

does not involve persistency). In order to perform re-

verse engineering on enterprise software systems we

need a speciﬁc meta-model which contains, on one

hand, entities from the object-oriented part and, on

the other hand, entities regarding the relational part of

the enterprise system and the interactions between the

two paradigms. Based on such a meta-model, in this

paper we deﬁne new techniques which facilitate the

maintenance of enterprise systems.

The paper is structured as follows: in Section 2

we present our approach for modeling enterprise ap-

plications. Next (Section 3), we introduce the facili-

ties provided by our approach, and we conducted an

experiment based on three case-studies. The paper

concludes with a discussion on related work (Section

4) and some ﬁnal remarks towards the future work

(Section 5).

2 A META-MODEL FOR

ENTERPRISE SYSTEMS

In this section we present each type of design infor-

mation from our meta-model.

Modeling Object-oriented Entities. We model the

object-oriented entities using an object-oriented lan-

guage. In this case, the meta-model is represented as

an interconnected set of data classes, usually one for

each type of design entity. The ﬁelds are either el-

254

Marinescu, C.

Applications of Automated Model’s Extraction in Enterprise Systems.

DOI: 10.5220/0007916102540261

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 254-261

ISBN: 978-989-758-379-7

ementary properties of that design entity or links to

other related data structures. For example, the struc-

ture that models the Class design entity has a ﬁeld

of type Method that establishes its connection to the

methods the class contains. The model of the sys-

tem, extracted based on the meta-model, contains also

information regarding the calls (i.e., which methods

are called by a particular method) and accesses (i.e.,

which variables are accessed by a particular method)

from existing methods.

Modeling Relational Entities. According to the

presentation of relational databases from (Ramakrish-

nan and Gehrke, 2002), a relational database consists

of one or more tables where each table has its own

schema. A schema of a table consists of the name of

the table, the name of each ﬁeld (or attribute, or col-

umn) and the type of each ﬁeld from the table. Ad-

ditionally, integrity constraints can be deﬁned on the

database schema. Thus, our meta-model for repre-

senting relational databases contains the entities Table

and Column found in a relational database.

Modeling Object-relational Interactions. The en-

tities (e.g., classes, methods) that ensure the commu-

nication with the relational database belong to a layer

called data source. Consequently, between the object-

oriented part of an enterprise system and the relational

part there are interactions only within the data source

layer. In order to capture these interactions we take

into account the various usages of third-party libraries

and/or frameworks that are speciﬁc for the data source

layer: a method is considered to belong to the data

source layer if it invokes one or more methods from a

speciﬁc library that provides an API for accessing and

processing data stored in a data source, usually a rela-

tional database (e.g., the method invokes the execute-

Query() method from the java.sql package). A class

containing one or more methods belonging to the data

source layer is also mapped to the data source layer.

The methods of classes are the primary entities

that ensure the communication with the databases -

in this context, the Method entity from the object-

oriented meta-model has to be enriched with infor-

mation regarding the operations performed upon a re-

lational database. Within our solution, we propose to

annotate the Method entity from the object-oriented

meta-model with information regarding the opera-

tions upon the database the method performs: e.g.,

delete, insert, select, update, each of these operations

involving one or more tables. The class which models

the SQL statement contains an attribute that stores the

tables accessed by the operation. The information re-

garding the tables accessed by an entity is propagated

from low-level entities (operations performed within

the bodies of methods) to high-level entities (classes)

according to the following rules:

• a method stores the set of the tables accessed by

its body.

• a class stores the set of the tables accessed by its

methods.

We store in the entity Table also information regard-

ing the entities that access the table (e.g., methods,

classes).

Due to the fact that our meta-model for enterprise

systems contains entities speciﬁc to regular object-

oriented systems, we decide not to build our tool sup-

port for modeling enterprise systems from scratch –

we built it on the top of the MEMORIA (Rat¸iu, 2004)

meta-model which is part of IPLASMA (Marinescu

et al., 2005). IPLASMA is an integrated environment

for quality analysis of object-oriented software sys-

tems that includes support for all the necessary phases

of analysis: from model extraction up to high-level

metrics-based analysis, or detection of code duplica-

tion. The tool platform relies only on the source code

as input. All of the provided support is integrated by

an uniform front-end. The DATES module (Mari-

nescu, 2007) extracts a model of enterprise applica-

tions relying on top of the presented meta-model.

3 APPLICATIONS OF THE

META-MODEL

The goal of this section is to present several types of

speciﬁc information extracted by DATES from enter-

prise software systems. These are intended to help us

in order to understand and assess the design quality of

the analyzed systems. The size characteristics of the

applications for which we present the obtained results

are summarized in Table 1.

Table 1: Characteristics of the case studies.

TRS Payroll CentraView

Size 590 Kb 995 Kb 14,3 Mb

Classes 54 115 1527

Methods 500 580 13369

Tables 10 12 217

LOC 13598 13025 177655

TRS is an enterprise system developed by a team

of students within the software engineering project

classes. Payroll is an industrial enterprise applica-

tion whose scope is to manage information about

the employees from a company. CentraView is an

Applications of Automated Model’s Extraction in Enterprise Systems

255

open-source enterprise application

which provides

a growing businesses with a centralized view of all

customer and business information.

3.1 Visualizing how Tables are Accessed

in the Source Code

In order to provide an overview regarding the accesses

of tables in the source code we deﬁne next two visu-

alizations, namely: Tables Accesses and Distribution

of Operations.

3.1.1 Tables Accesses

The main goal of this visualization is to provide an

overview regarding the usage of tables in the source

code in correspondence with their size. Thus, we rep-

resent each table with a rectangle enriched with three

metrics, as we show in Figure 1.

The width of the rectangle represents the number

of statements performed within the source code upon

the represented table. The height is associated with

the number of classes whose methods perform opera-

tions upon the table. The ﬁll (color) of the rectangle is

a gray gradient (i.e., it goes between white and black),

and it is related to the number of columns in a table

(i.e., the more columns the darker the rectangle).

# Statements

# Classes

accessing table

# Columns

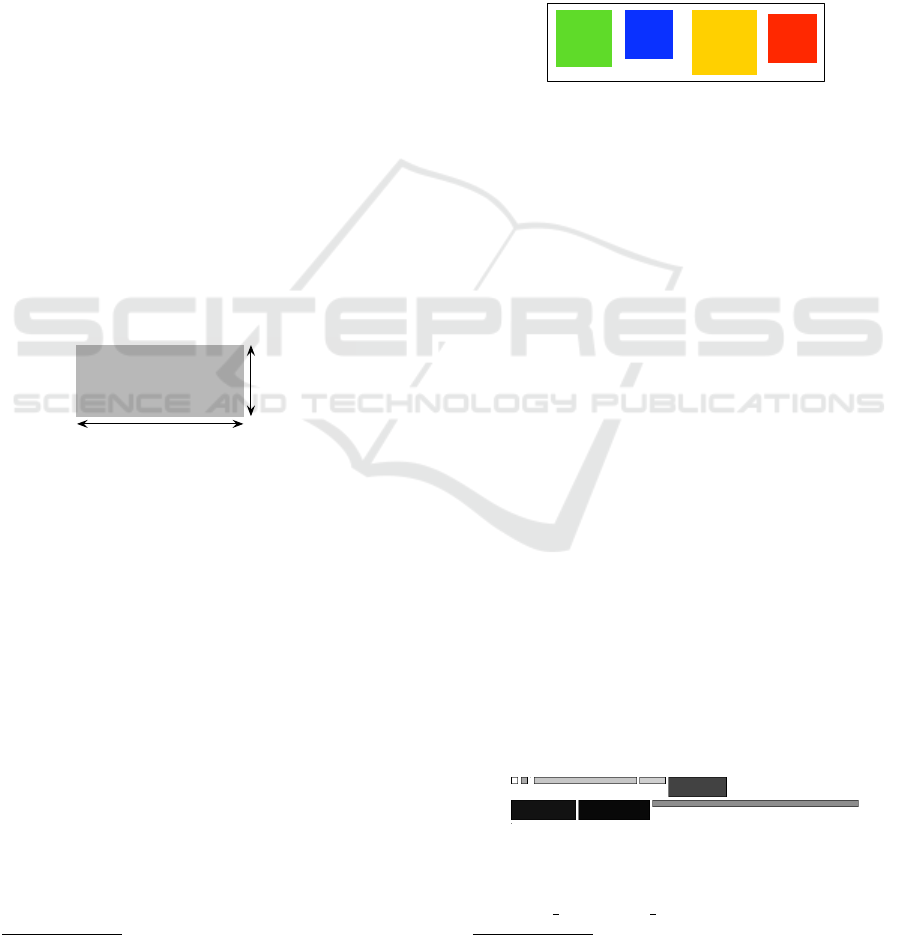

Figure 1: Tables Accesses. Representation.

Having in front of us the deﬁned visualization for

a given system may bring valuable information in the

reengineering process. Next, we explain different sit-

uations that may appear and their impact:

• a small rectangle whose size is just a pixel – the

table is not used in the source code.

• a square – every class that accesses the table per-

forms only an operation on the table.

• a rectangle with an excessively large height –

the operations upon the table are spread in many

classes and, consequently, the impact of changing

the table would affect many entities in the source

code. If in this situation the color of the rectangle

is near black (i.e., a large value associated with the

number of columns the table has), there is a high

probability that the table is affected by the Multi-

purpose Table design ﬂaw (Ambler and Sadalage,

2006).

https://github.com/shaunscott12/CentraView

3.1.2 Distribution of Operations

In order to have a detailed view about the types of op-

erations that are performed upon the existing tables

we create another type of visualization (see Figure

2). This visualization represents each used table as

a rectangle containing 4 squares, each square having

its color mapped to one of the following SQL state-

ments: insert, select, update and delete. The side of

each square is equal to the number of SQL statements

whose type is represented by its color. Consequently,

if the rectangle associated with a table:

insert

select

update

delete

Figure 2: Distribution of Operations. Representation.

• contains only a blue square (i.e., upon the table

only select statements are performed) it means

that the table contains only constant data which is

usually maintained by the database administrator.

• contains only a green square (i.e., upon the ta-

ble only insert statements are performed) it means

that the information is only recored in the table but

not manipulated directly from the source code. In

this situation it would be interesting to ﬁnd out

who are the real consumers of the stored data

within the table. The same is applicable if the

rectangle contains also a red square (delete state-

ments).

• contains 2 squares whose colors are green and

blue then it means that the information, after it is

introduced in the table, is never modiﬁed from the

source code of the application.

We implemented these visualizations within the

DATES module using the existing module JMON-

DRIAN

(Mihancea, 2010) for visualizing data within

the IPLASMA platform.

3.1.3 Results

Visualizations in TRS. From the ﬁrst overview ob-

tained (Figure 3) we ﬁnd out that:

Figure 3: Tables Accesses in TRS.

• 2 tables are unused in the source code (e.g.,

Flight reservation comp and PasteErrors).

https://github.com/petrufm/jMondrian.git

ICSOFT 2019 - 14th International Conference on Software Technologies

256

• there are 3 tables which are accessed in 3 classes,

while the rest of the tables are accessed from only

one class.

• we have a table which is accessed from a single

class frequently (the rectangle with the highest

width). We took a closer look at the class and

found out that a lot of duplications occur, some

of them being related to the where clauses of the

SQL statements.

From the second visualization (Figure 4) related to

the existing types of SQL statements for manipulating

data in tables we notice that:

Figure 4: Distribution of Operations in TRS.

• there are 4 tables storing data which is only read

within the source code (i.e., only select operations

are performed).

• there are 3 tables whose stored information af-

ter the insertion is only selected and deleted and

never modiﬁed.

• there is a table Credit Card whose number of rows

is never modiﬁed from the source code – only se-

lect and update operations performed upon.

Visualizations in Payroll. From the Tables Ac-

cesses Visualization (Figure 5) we ﬁnd out that:

• there is a table which is not accessed in the source

code.

• most of the tables are accessed by only one class.

Figure 5: Tables Accesses in Payroll.

Regarding the Distribution of Operations in Payroll

we notice from the Figure 6 the following:

• upon more than a half from the tables accessed in

the source code (6 from 11) all the four types of

SQL operations are performed.

• from table employee information is only read.

• the information from the table salaryhistory is

never read, only inserted, updated and deleted.

Figure 6: Distribution of Operations in Payroll.

Visualizations in CentraView. From Figure 7

which contains information regarding the usages of

tables in the source code we discover that:

• there is a large number of unused tables.

• the most used table in the source code is table in-

dividual upon which 33 SQL statements are per-

formed from 15 classes.

• there is a group of tables which are heavily used in

the source code – e.g., emailmessage (8 SQL op-

erations), mocrelate (19 SQL operations), activity

(26 SQL operations).

In Figure 8 we present the deﬁned visualization ob-

tained by analyzing CentraView. According to it we

ﬁnd out that the application contains:

• a large number of tables whose stored information

is only read in the source code – e.g., activity.

• many tables whose information is only read and

modiﬁed (we ﬁnd only blue and orange squares)

– e.g., expense, opportunity.

• tables whose rows are never updated.

3.2 Finding Improper Usages of

Exceptions in the Source Code

In this section we introduce another automatic ap-

proach that our meta-model supports related to an im-

proper usages of exceptions in the source code. An

empirical study which correlates the usage of excep-

tions in the source code with the defects encountered

in a system is presented in (Marinescu, 2013). This

study provides evidence about a positive correlation

between the classes that use exceptions and the de-

fects those classes exhibit. It shows that the classes

which use exceptions are more likely to exhibit de-

fects than the classes which do not use exceptions.

Applications of Automated Model’s Extraction in Enterprise Systems

257

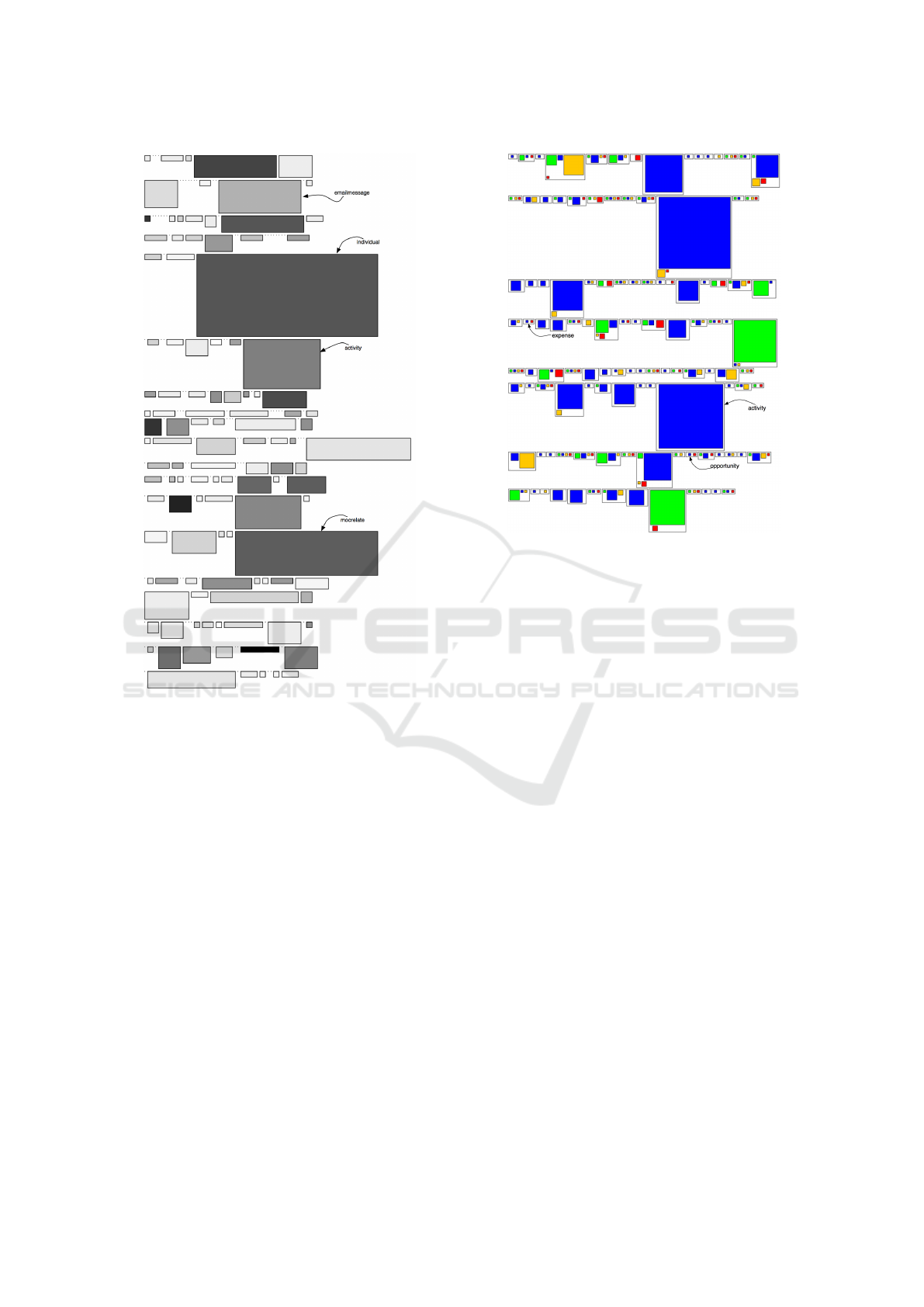

Figure 7: Tables Accesses in CentraView.

Based on the mentioned ﬁndings, we consider that de-

velopers should not neglect special cases (i.e., excep-

tions) in the source code.

We introduce a technique that automatically de-

tects the situations in which exceptions related to in-

formation’s retrieval from the database are not prop-

erly handled in the source code. Based on the infor-

mation provided by our approach, the fragments from

the source code which do not properly handle the ex-

ceptions are good candidates for refactoring.

3.2.1 Motivation

Most of the existing library methods which perform

operations upon the persistent data reveal abnormal

situations (e.g., embedded SQL errors, broken com-

munication with the database) to its callers from the

data source layer by throwing exceptions. We present

the problems that may arise due to an improper mech-

anism for handling exceptions within the data source

layer with respect to an example.

Assuming that we have a table called Books (Fig-

Figure 8: Distribution of Operations in CentraView.

create table books (

ID int primary key, title varchar,

author varchar, publisher varchar)

Figure 9: Table books.

ure 9) there are a lot of possibilities for retrieving the

stored data within. For example, we create the Id-

iomaticBookDataSource class (Figure 10). As you

notice the class is intended to have for each column

in the table a method that returns its corresponding

value for a given ID. The used library method (e.g.,

executeQuery) for retrieving the requested informa-

tion throws a SQLException. In our example the ex-

ception is not thrown to the next architectural level

(domain) and, instead, a null value (or a particular

value) is sent. This is a bad style for handling ex-

ceptions and it has a lot of drawbacks:

• the caller of the getAuthor method may forget to

check the returned value. If the method returns

null due to error at the database level the applica-

tion will crash.

• if the caller checks the returned value, the id-

iomatic mechanism for handle exceptions ham-

pers the maintenance of the source code.

According to (Bruntink et al., 2006), a system

without a proper exception handling is likely to crash

continuously, which renders it useless for practical

purposes. In this paragraph we introduce an approach

for detecting missing thrown exceptions within the

data source layer of enterprise systems. It provides us

ICSOFT 2019 - 14th International Conference on Software Technologies

258

class IdiomaticBookDataSource {

public String getAuthor(int id) {

try {

String query;

...

query = "SELECT author from books " +

"WHERE ID=" + id;

ResultSet rs;

rs = statement.executeQuery(query);

return rs.getString("author"); }

catch (SQLException e) {

return null; //or return ""; }}

... }

Figure 10: Class IdiomaticBookDataSource.

with those methods which make use of an idiomatic

style for dealing with exceptions and, consequently,

are good candidates for refactoring. In (Mortensen,

2007) the authors propose a technique for refactor-

ing return code idiom for exceptions with aspects and

present the beneﬁts. The methods detected by our ap-

proach might be refactored according to the presented

technique. In (Robillard and Murphy, 2003) is intro-

duced a mechanism for inspecting the structure of ex-

ceptions in Java programs; based on the extracted in-

formation it allows us to detect and correct problems

like unused handlers. In this context we want to em-

phasize that the our approach does not address prob-

lems relating to the use of exceptions in the source

code; instead, it points out situations where the use of

exceptions is missing from the source code.

The detection of the methods from the data source

layer which use an idiomatic style for handling ex-

ceptions (i.e., the missing thrown exceptions ﬂaw is

encountered) is done according to the steps presented

next.

1. We detect the methods responsible for retriev-

ing/storing the persistent data from the relational

database. These methods belong to the data

source layer.

2. We select from the previous group only the meth-

ods which do not throw exceptions, as we believe

this rule quantiﬁes the fact that the clients(e.g.,

callers) of these data source methods are not in-

formed about special situations using exceptions.

We consider that from the provided methods a special

attention is requested by those whose return type is

void because they might cause hidden defects. This

is due to the fact that their callers are unable to check

if the requested operation has been properly executed

upon the persistent data.

3.2.2 Results

Findings in TRS. This system has 25 methods be-

longing to the data source layer, none of them throw-

ing an exception. Thus, all of them use an idiomatic

style for reporting exceptions. For example, we

encounter a method called cardCredit(long cardNo)

which returns the amount of money available from a

particular card (see Figure 11). As we may notice, the

method returns zero if:

• the amount stored by the card cardNo is zero.

• the card cardNo does not exist.

• the SQL command was not executed, due to an

improper connection to the database or to a syntax

error (the syntax of the embedded SQL can’t be

veriﬁed by the compiler).

Consequently, it is impossible for the callers of card-

Credit to determine the exact meaning of the return

value and usually they assume the ﬁrst case was en-

countered.

public double cardCredit(long cardNo) {

double credit=0;

try {

String sql;

sql="SELECT Credit From Credit_card" +

" WHERE Number=" +cardNo;

PreparedStatement pst;

pst = db.prepareStatement(sql);

ResultSet rs = pst.executeQuery();

while (rs.next()) {

credit=rs.getDouble("Credit");

return credit; }

... }

catch(SQLException ex) {

System.out.println("SQL Exception"); }

return credit; }

Figure 11: Method cardCredit from TRS.

We encounter also a method which performs some

operations upon the persistent data and returns void.

Thus, its callers are forced to assume that no errors

occur among the communication with the database, a

practice which often proved to be a source of hidden

defects.

Findings in Payroll. This system reveals a small

number of methods (less than 1 percent) which belong

to the data source layer and do not throw exceptions.

Findings in CentraView. In this system we en-

counter a lot of methods belonging to the data source

layer which deal with exceptions in an idiomatic way.

For example, we ﬁnd that method addNewSearch in-

serts into table search a new request from the user.

If the operation succeeds, it returns the newly unique

id assigned to the request, otherwise -1. Another ex-

ample we notice is method getAccessEntityList whose

return type is a collection. This method has 146 LOC

Applications of Automated Model’s Extraction in Enterprise Systems

259

(Lines of Code) and performs more than one SQL

operation upon the involved table. Consequently, if

an empty collection is returned from getAccessEn-

tityList, it is impossible for its callers to establish if

it is an empty collection because no data that meet the

requested criteria were found or an abnormal situation

occurred.

From the reported methods which throw no ex-

ception and return void we illustrate an interesting

case in Figure 12. This method is a private one,

being called from two other methods – addFile and

updateFile. The ﬁrst mentioned method collects the

data which have to be inserted into the table, estab-

lishes the corresponding id, inserts the data (by call-

ing addFileLink from Figure 12) and returns the gen-

erated id or zero if some error occurs regarding the

assignment of the id. But the unexpected part is that

this method (addFile) returns the associated id with-

out checking that the data actually have been intro-

duced into the database – the called method which in-

serts the data (addFileLink) returns void, being unable

to report any error that might occur. Thus, the sys-

tem’s users will receive an id for their request, without

ensuring that the request has actually been recorded

into the table. In the context of this example we want

to emphasize that it is also a case of an inconsistent

idiomatic value returned within the application – we

have previously showed an example which returns -1

in case of encountering an error when inserting data

into a table.

private void addFileLink(int fileId,...) {

double credit=0;

try {

d1.setQuery("insert into"...);

...

d1.executeUpdate(); }

catch(Exception ex) {

logger.error("[addFileLink] " + e); }}

Figure 12: Method addFileLink from CentraView.

Another example we notice is method export-

Table. It has two parameters (ﬁlePath, tabname), the

last being the name of a table whose information is in-

tended to be saved into the ﬁle ﬁlePath. Because the

method doesn’t throw any exception and returns void

its clients will not be able to determine when dealing

with an empty ﬁle if the queried table stores no data

or an error involving the database operation was en-

countered (e.g., table tabname not found).

4 RELATED WORK

A tool speciﬁcally designed for database reengineer-

ing is proposed in (de Guzman et al., 2005). The

main difference between this approach and our ap-

proach resides in the fact that our approach provides a

meta-model for representing relational databases and

also the interactions between an object-oriented pro-

gramming language (at this moment, Java) and the

databases.

A recent approach that quantiﬁes the quality of the

database schema and detects design ﬂaws related to

the database usages is described in (Delplanque et al.,

2017). The approach is accompanied by a tool named

DBCritics. Another recent approach accompanied by

a tool named SQLInspect (Nagy and Cleve, 2018) for

detecting SQL anomalies in the source code is intro-

duced in (Nagy and Cleve, 2017). Our approach com-

plements the existing analyses by providing new di-

mensions: visualizing how tables are accessed in the

source code and ﬁnding improper usages of excep-

tions.

Currently there are also enterprise systems where

the persistence layer is manipulated by frameworks

like Hibernate (Bauer and King, 2007). In this context

we want to emphasize that our approach can be ap-

plied upon enterprise systems which use such frame-

works, but in this case the information regarding the

connections between the object-oriented part and the

relational part will be extracted (and, consequently,

we need to develop and use a different model loader)

also from existing conﬁguring XML ﬁles.

5 CONCLUSIONS AND FUTURE

WORK

In this paper we decribe a speciﬁc meta-model for

representing enterprise software systems in order to

facilitate the process of reverse engineering upon

these systems. As applications of the described meta-

model (i) we introduce two visualizations regarding

the accesses of tables in the source code, and (ii) we

capture some improper usages of exceptions in the

source code.

In the future, we intend to (i) extend the tool sup-

port in order to be able to use it upon enterprise sys-

tems written using other technologies (.NET, different

persistency providers, different communication tech-

niques), (ii) continue the evaluation of the introduced

approaches against other enterprise systems, and (iii)

integrate our tool support into an IDE like Eclipse in

order to facilitate its use, as the integration would al-

low to analyze the system in real-time instead of using

a separate tool to construct its model.

ICSOFT 2019 - 14th International Conference on Software Technologies

260

REFERENCES

Ambler, S. and Sadalage, P. (2006). Refactoring Databases:

Evolutionary Database Design. Addison-Wesley.

Bauer, C. and King, G. (2007). Java Persistance with Hi-

bernate. Manning Publications.

Bruntink, M., van Deursen, A., and Tourw

e, T. (2006). Dis-

covering faults in idiom-based exception handling. In

Proc. International Conference on Software Engineer-

ing (ICSE). ACM Press.

de Guzman, I., Polo, M., and Piattini, M. (2005). An inte-

grated environment for reengineering. In Proc. IEEE

International Conference on Software Maintenance.

Delplanque, J., Etien, A., Auverlot, O., Mens, T., Anquetil,

N., and Ducasse, S. (2017). Codecritics applied to

database schema: Challenges and ﬁrst results. In Proc.

International Conference on Software Analysis, Evo-

lution and Reengineering (SANER).

Fowler, M. (2003). Patterns of Enterprise Application Ar-

chitecture. Addison-Wesley.

Marinescu, C. (2007). DATES: Design analysis tool for en-

terprise systems. In Proc. IEEE International Working

Conference on Source Code Analysis and Manipula-

tion (SCAM).

Marinescu, C. (2013). Should we beware the exceptions?

an empirical study on the eclipse project. In Proc. In-

ternational Symposium on Symbolic and Numeric Al-

gorithms for Scientiﬁc Computing (SYNASC).

Marinescu, C. and Jurca, I. (2006). A meta-model for en-

terprise applications. In Proc. International Sympo-

sium on Symbolic and Numeric Algorithms for Scien-

tiﬁc Computing (SYNASC). IEEE Computer Society

Press.

Marinescu, C., Marinescu, R., Mihancea, P., Rat¸iu, D., and

Wettel, R. (2005). iPlasma: An integrated platform for

quality assessment of object-oriented design. In Proc.

IEEE International Conference on Software Mainte-

nance (ICSM Industrial and Tool Volume), Budapest,

Hungary. IEEE Computer Society Press.

Mihancea, P. (2010). A Novel Client-Driven Perspective on

Class Hierarchy Understanding and Quality Assess-

ment. In Ph.D. Thesis.

Mortensen, M. (2007). Refactoring idiomatic exception

handling in C++: Throwing and catching exceptions

with aspects. In Proc. International Conference on

Aspect-Oriented Software Development. ACM Press.

Nagy, C. and Cleve, A. (2017). A static code smell detector

for sql queries embedded in java code. In Proc. Inter-

national Working Conference on Source Code Analy-

sis and Manipulation (SCAM).

Nagy, C. and Cleve, A. (2018). Sqlinspect: a static ana-

lyzer to inspect database usage in java applications. In

Proc. International Conference on Software Engineer-

ing: Companion Proceeedings (ICSE).

Rat¸iu, D. (2004). Memoria: A Uniﬁed Meta-Model for Java

and C++. Master Thesis, ”Politehnica” University of

Timis¸oara.

Ramakrishnan, R. and Gehrke, J. (2002). Database Man-

agement Systems. McGraw Hill, second edition.

Robillard, M. P. and Murphy, G. C. (2003). Static analy-

sis to support the evolution of exception structure in

object-oriented systems. ACM Transactions on Soft-

ware Engineering and Methodology, 12.

Rugaber, S. and Wills, L. (1996). Creating a research in-

frastructure for reengineering. In Proc. IEEE Working

Conference on Reverse Engineering.

Applications of Automated Model’s Extraction in Enterprise Systems

261
