Master of Puppets: Trusting Silicon in the Fight for Practical Security in

Fully Decentralised Peer-to-Peer Networks

Bernd Pr

unster

1,2 a

, Edona Fasllija

1,2

and Dominik Mocher

1,2

Institute of Applied Information Processing and Communications (IAIK), Graz University of Technology, Austria

Secure Information Technology Center – Austria (A-SIT), Austria

Keywords:

Peer-to-Peer Security, Decentralised System Security, Hardware-based Security, Trusted Computing.

Abstract:

This paper presents a practical solution to Sybil and eclipse attacks in a fully decentralised peer-to-peer context by

utilising trusted computing features of modern Android devices. We achieve this by employing hardware-based

attestation mechanisms introduced in recent Android versions and bind each P2P network node identiﬁer to a distinct

physical device. In contrast to resource-testing approaches, this binding makes it impossible for attackers to rely on

cheap cloud computing resources to outperform legitimate users. We address well-known P2P challenges by applying

trusted computing approaches, which were previously only theorised in this context. This results in a system that can

now actually be implemented on a global scale. We thoroughly mind bandwidth, power and performance constraints

to achieve a ready-to-use solution whose only requirement is the possession of a recent Android phone.

1 INTRODUCTION

Practical security in fully decentralised peer-to-peer (P2P)

networks has remained a challenge ever since such sys-

tems have been proposed. As centralised peer-to-peer

security is a non-issue, this paper focuses on decent-

ralised P2P systems. Sybil Douceur (2002) and eclipse

attacks Singh et al. (2004) are still prominent threats

to peer-to-peer systems and require elaborate counter-

measures. The advent of cheap cloud computing power

even worsened this situation, rendering resource testing

approaches virtually ineffective (Pr

unster et al., 2018). In

fact, Pr

unster et al. argue that the only effective counter-

measure is to either introduce some degree of central-

isation or couple the P2P network layer tightly to the

application running on top of it.

We present the Master of Puppets as a practical

solution to the most critical security issues in fully

decentralised scenarios. The Master of Puppets’ approach

does, for the ﬁrst time, not involve inefﬁcient resource

testing or centralisation. Our solution follows a mobile-

ﬁrst approach targeting current Android devices and

builds upon hardware-based key attestation capabilities

and self-certifying identiﬁers to effectively eliminate

eclipse and Sybil attacks under real-world conditions.

In essence, recent advancements of Android’s remote

attestation capabilities have made it possible to actually

https://orcid.org/0000-0001-7902-0087

utilise trusted-hardware-based security measures while

still providing a practically applicable solution.

In short, we present the ﬁrst practical P2P network

design which can actually enforce every device to operate

only a single peer. This rules out both Sybil and eclipse

attacks and thus eliminates the foundation of whole

classes of peer-to-peer-speciﬁc attacks. We accomplish

this without requiring elaborate enrolment procedures,

centralised identiﬁer generation, inefﬁcient resource

testing like proof-of-work (PoW).

The following section covers the technological back-

ground of our concept and summarises the state of P2P

security and Android’s security features to illustrate

how they can be used to enforce operating unmodiﬁed

applications on actual physical devices. We combine

these features with self certifying identiﬁers and harness

it as the cornerstone of the Master of Puppets. Section 3

discusses our approach, while Section 4 analyses its

security aspects. Section 5 concludes this work.

2 BACKGROUND

Peer-to-peer overlays differ drastically in terms of their

overlay structure, routing mechanism, how they assign

identiﬁers, exchange data and share responsibilities.

When considering security features of Peer-to-Peer net-

works, the speciﬁcs of the targeted P2P overlay model are

252

Prünster, B., Fasllija, E. and Mocher, D.

Master of Puppets: Trusting Silicon in the Fight for Practical Security in Fully Decentralised Peer-to-Peer Networks.

DOI: 10.5220/0007926702520259

In Proceedings of the 16th International Joint Conference on e-Business and Telecommunications (ICETE 2019), pages 252-259

ISBN: 978-989-758-378-0

critical. In this paper, we focus on structured P2P over-

lays, and more speciﬁcally in Kademlia (Maymounkov

and Mazi

eres, 2002) networks, due to the many desired

features and their practical impact, with BitTorrent (Co-

hen, 2013) and IPFS (Benet, 2014) both being based on

this design.

The distributed nature of P2P systems introduces

susceptibility to a series of attacks that aim at disrupting

their storage, service quality, consistency, behaviour,

or overall operability of the network. Examples of the

most prominent attacks include routing table poisoning

(Locher et al., 2010), ﬂooding (Zargar, Joshi and Tipper,

2013), eclipse (Singh et al., 2004), and Sybil (Douceur,

2002) attacks. Certain threats, such as Sybil and eclipse

attacks, are based on malicious control of identiﬁers. The

absence of a central authority makes authentication in

decentralised peer-to-peer overlays inherently difﬁcult.

Secure, veriﬁable, and limited node identities are essential

for preventing attackers from forging node identities and

staging subsequent attacks.

The Sybil attack deﬁned by Douceur (2002) is based

on the concept of inserting a node into a P2P network

multiple times, each time with a different identity. The

goal of Sybil attack might range from enabling other

attacks to disrupting the network connectivity, or even

effect majority decisions in consensus protocols. Levine,

Shields and Margolin (2006) categorise approximately

90 approaches that have been proposed as defense mech-

anisms against Sybil attacks. These fall into categories

such as: trusted certiﬁcation, resource testing, no solu-

tion, recurring costs and fees and trusted devices. A

running theme among these approaches is the idea that

without a central trusted authority that certiﬁes peers’

identities, there is no realistic approach to prevent Sybil

attacks. Resource-testing based approaches mandate

that all peers—even highly-constrained ones—have to

spend a certain amount of resources, such as a proof-of-

work (PoW) to have the network accept them. Given the

heterogeneous distribution of computing power, storage

and bandwidth in today’s diverse device landscape and

the cheap availability fo cloud computing, the utility of

such approaches is questionable (Pr

unster et al., 2018).

Eclipse attacks (Singh et al., 2004), on the other hand,

target a node or a speciﬁc group of nodes and try to isolate

(or ’eclipse’) them by populating their ﬁrst-hop neighbor

set. The goal is to control a victim’s neighbours as wells

as incoming and outgoing trafﬁc. Attackers might ﬁrst

stage a Sybil attack in order to create seemingly distinct

malicious nodes around attack targets, or directly mount

an eclipse attack using a small set of malicious nodes.

Various countermeasures have been proposed to en-

hance the resiliency of P2P overlays against eclipse

attacks. Baumgart and Mies (2007) propose a mitigation

mechanism against, amongst others, eclipse attacks, on

Kademlia networks. They base their proposal on self-

certifying identiﬁers combined with proof-of-work-based

identiﬁer generation and disjoint key lookup paths. Their

cryptographic scheme for signatures used to authenticate

their nodes relies either on a crypto puzzle, or a central

certiﬁcate authority. The latter is required since their se-

curity model is based on effective defences against Sybil

attacks. Other similar strategies against eclipse attacks

base their mitigation schemes on a centralized encryption

authority. For example, Castro et al. (2002) solve the

problem of secure node ID assignment by making use

of a set of central trusted authorities (CAs) to assign

and sign node IDs when joining the network. Likewise,

Fantacci et al. (2009) enhance the Kademlia architecture

and protocol by employing external certiﬁcation services

to bind node IDs to a public key in a token.

Some of the proposed mitigation approaches pose

additional structural or proximity constraints on neigh-

bour selection. Nonetheless, they still rely on a trusted

authority for the issuance of unique node IDs. Hildrum

and Kubiatowicz (2003) propose to defend P2P sys-

tems against eclipse attacks by enforcing neighbour

node selection based on the minimum network delay.

However, these approaches negatively affect the perform-

ance by introducing additional overheads and impeding

optimisations.

Having provided an overview about peer-to-peer

security measures, we now discuss Android security, as

the second pillar of our approach.

2.1 Android as Trusted Computing

Base

Since Android security in general has been discussed

extensively in existing literature and is well documented

by Google, we only recap the basics and focus on recent

features, such as key attestation, that elevate Android

smartphones to a trusted computing base (TCB).

2.1.1 Android Security

To prevent applications from accessing arbitrary data, the

Android operating system uses sandboxing in combina-

tion with mandatory access control. The former concept

is realised by assigning a unique user ID to each pro-

cess, while the latter relies on SELinux (Android Source,

2019b). As sandboxing is implemented purely in soft-

ware, a compromised or altered OS (like a custom ROM)

allows for circumventing these restrictions. With the

introduction of Trusty (Android Source, 2019c) Google

has taken action to prevent access to cryptographic keys

in such scenarios by relying on trusted hardware.

Since Trusty is a trusted execution environment (TEE)

designed to perform only predeﬁned tasks, it is isolated

Master of Puppets: Trusting Silicon in the Fight for Practical Security in Fully Decentralised Peer-to-Peer Networks

253

from the system by hardware and software, meaning

interaction from the operating system is only possible

through a dedicated interface. With the absence of any

means to export keys, cryptographic binding to hardware

is enforced at the cost of limiting the TEE to operations

deﬁned by the interface. With the support of hardware

security modules (HSMs) in Android 9, even stronger

security guarantees are provided. Smartphones equipped

with such an HSM must have it “certiﬁed against the

Secure IC Protection Proﬁle BSI-CC-PP-0084-2014 or

evaluated by a nationally accredited testing laboratory”

(Android Source, 2019a, p. 128). This essentially certiﬁes

the HSM as tamper-proof hardware that protects key

material to a degree equivalent to smart card standards.

Although keys might not be extractable, managing key

access is managed by the operating system and thus relies

on the integrity of the system. System integrity is ensured

by a veriﬁed boot process, which is heavily dependent on

trusted hardware and thus cannot be circumvented using

software-only mechanisms.

2.1.2 Remote Attestation

Even though the veriﬁed boot process ensures system

integrity, the user might still be able to inﬂuence the exe-

cution of an application at runtime, as static or dynamic

code integrity checks are not an integral part of Android.

Software-only attestation mechanisms like SafetyNet (An-

droid Open Source Project, 2018) can be circumvented

by rooting tools like Magisk

, thus demonstrating the

need for a reliable attestation mechanism implemented in

hardware. As a requirement for this kind of attestation,

the device has to be outﬁtted with a TEE or HSM. As

mandated by Google, these hardware modules are pre-

loaded with an X.509 certiﬁcate and a signing key during

the manufacturing process (Android Source, 2019a). We

refer to this certiﬁcate as the attestation certiﬁcate and the

attestation key, respectively. In addition, a chain leading

up from the signing certiﬁcate to a Google-signed root

certiﬁcate (which is publicly available) is provisioned

during the manufacturing process.

Harrware-based remote attestation thus makes it possible

to verify that cryptographic keys created by an applica-

tion are actually stored in hardware. Moreover, recent

Android versions (8.0 and later) enable attesting app

integrity, which is a key enabler of trusted computing.

This process works as follows: The HSM/TEE queries

veriﬁed boot and bootloader lock state, as well the hash

of the certiﬁcate that was used to sign an application. The

output of this attestation process is a certiﬁcate, signed

by the attestation key in hardware and then returned

to the application, containing all queried information

as certiﬁcate extensions. Thus, it becomes possible to

https://topjohnwu.github.io/Magisk/

remotely verify these values. If the trust chain up to the

Google-signed root certiﬁcate holds, the bootloader state

is attested as locked and the system image as veriﬁed, we

can assume an uncompromised device. As for verifying

app integrity, the mentioned hash of the app’s signature

certiﬁcate can simply be checked against a precomputed

hash value (typically published by the app’s developer).

Thus, attested applications run on a TCB and generated

cryptographic material is securely stored in hardware and

therefore bound to a physical device.

Almost all upcoming devices with Android 8.0 or later

are expected to support hardware-backed key attestation

according to the FIDO Alliance (FIDO Alliance, 2018).

This kind of hardware-based attestation enables the

practical implementation of security models previously

proposed only in theoretical scenarios. The following

section introduces the Master of Puppets and explains

how it utilises this fact to deliver practically secure P2P

networking in a fully decentralised context.

3 THE MASTER OF PUPPETS

This section presents our approach towards practically

secure, fully decentralised P2P networking by binding the

creation and operation of peer-to-peer nodes to trusted

devices as discussed in Section 2.1.2. We present how

this previously purely theoretical thought experiment can

be transformed into a practically feasible solution. We

achieve this by harnessing already deployed Android

devices whose trusted state can be veriﬁed remotely.

Our solution is based on the S/Kademlia (Baumgart

and Mies, 2007) extension of the Kademlia structured

P2P network and supports the following operations:

Ping: Probes a node to see whether it is online

Lookup:

Queries the network for IP address and port

of a node based on its identiﬁer.

Store:

Stores some data among the set of nodes whose

identiﬁers are closest to the data’s hash

Find: Retrieves some data based on its hash

We rely on Android’s remote attestation capabilities to

defend against Sybil attacks. Therefore, a recent Android

device is needed to operate a network node. Thus, we

require an Android application to be run on a suitable

device as deﬁned in the following section.

3.1 Targeted Devices

We base our deﬁnition of the targeted device set on the

features discussed in Section 2.1. Devices must feature a

hardware-backed keystoreand must provide all remote

attestation capabilities introduced by Android 8.0.

SECRYPT 2019 - 16th International Conference on Security and Cryptography

254

While we have validated that these requirements

rule out some devices that were released with older

Android versions that received an 8.0+ update, we still

conservatively estimate at least 100M suitable devices

deployed as of February 2019. This ﬁgure is based on

matching Android version market shares against sales

numbers of popular handsets: Samsung’s Galaxy S9

device range alone accounts for

> 45

M devices (Statista,

2019). Huawei’s P20 family has sold an additional 16M

and its Mate 20 series

> 10

. Moreover, if we estimate

a typical device life time at two years, compatibility

issues will become irrelevant in the foreseeable future.

3.2 System Model

As the Master of Puppets is based on Kademlia, it shares

most of its basic characteristics, like the XOR distance

function and the iterative node lookup procedure. We

therefore do not reiterate about these basic properties at

this point and only describe where our system deviates

from the vanilla Kademlia design.

First and foremost, we borrow the core ideas from

S/Kademlia and mandate self-certifying identiﬁers based

on public key cryptography as well as disjoint paths for

node lookups. We do not modify the original Kademlia

lookup procedure in any other way.

In essence, each message contains the identiﬁer of

the sender, which is bound to the possession of a private

key that is used to sign this message. Thus, anyone can

verify the origin of each message. As initially stated,

our defence against Sybil attacks is based on Android’s

remote attestation features.

Apart from identiﬁers binding to an Android device,

this design aligns with the security concepts outlined in

Section 2 and results in a robust P2P network, as long as

a defence against Sybil attacks is in place.

3.3 Remote Attestation-based Identiﬁer

Preliminaries

As our design mandates Android-device-bound keys for

identiﬁer creation, we discuss the process of obtaining a

self-certifying identiﬁer and its structure. We then explain

how this can be integrated into the above system model

and argue why this is practically feasible.

The foundation of identiﬁer creation is a suitable

Android device as described in Section 3.1 (equipped with

either a TEE or and HSM). Our system therefore requires

https://consumer.huawei.com/en/press/news/2018/

huawei-annual-smartphone-shipments-exceed-200-

million-units/

https://consumer.huawei.com/en/press/news/2019/

huawei-mate-20-series-shipments-exceed-10-million-

units/

an Android app to generate a public/private key pair using

Android’s hardware-backed keystore implementation and

have it attested. This results in the following data:

•

App metadata (including app signature certiﬁcate’s

hash)

•

Key metadata (algorithm, public key ﬁngerprint, . . . )

• Bootloader lock state (one of locked, unlocked)

•

Veriﬁed Boot state (one of Veriﬁed, SelfSigned, Un-

veriﬁed)

These values are encoded into an X.509 certiﬁcate as

extensions and signed using the attestation key provi-

sioned into the trusted hardware during the manufacturing

process. The signed certiﬁcate, including the certiﬁcate

chain leading up to the root certiﬁcate published by

Google, is returned to the application.

If we mandate the Google root certiﬁcate as root of

trust on all nodes, we can validate the authenticity of such

an attestation result. As we aim for a fully decentralised

design, this happens ofﬂine, and no third party is involved

in this process. By checking whether the boot chain is

Veriﬁed for a system running on a locked device, we can

make sure that the Master of Puppets’ Android app is

running on a trusted device. By comparing the hash of its

signature certiﬁcate contained in the attestation result,

we can further ensure that an unmodiﬁed version of the

app is used, thus establishing trust in installed instances

remotely.

By deriving a node’s identiﬁer from its attestation

result, we can ensure that the identiﬁer of each node

in the Master of Puppets’s P2P network is bound to a

physical, trusted device and thus prevent the creation of

multiple identiﬁers per device. The following section

provides detailed information on how this is achieved.

3.4 Preventing Sybil Attacks through

Device-bound Identiﬁers

Applying the proposed process to the system model

deﬁned in Section 3.2 aligns with the concept of self-

certifying identiﬁers, since receivers can directly validate

the authenticity of every incoming message by match-

ing its signature against the included identiﬁer. Yet,

this still leaves one attack vector: Android enables the

creation of multiple user accounts per device—each

with its own set of apps and data. To prevent this scen-

ario, we designed our Android app such that it also

includes the hash of a device’s International Mobile

Equipment Identity (IMEI) (or mobile equipment identi-

ﬁer (MEID), in case of a CDMA device) as part of the

self-certifying identiﬁer. Thus identiﬁers in our system

are computed as

SHA3-256(SHA3-256($IMEI/$MEID)

||$attestation cert).

Master of Puppets: Trusting Silicon in the Fight for Practical Security in Fully Decentralised Peer-to-Peer Networks

255

A comprehensive discussion about the security prop-

erties of our approach is provided in Section 4 that deals

with our system as a whole, and also discusses attack

costs compared to existing solutions relying on resource

testing. Before going into more detail about security

properties, we present the remaining details of our system.

3.5 Efﬁciency and Overhead

Relying on a whole certiﬁcate chain that can easily

exceed

1kB

for messages whose payload is often less

than

100B

is not practical. We utilise a key property of

the certiﬁcate chain to remedy this issue, originally aimed

at preventing device identiﬁcation: Google mandates

that no less than 100k devices share an intermediate

certiﬁcate (Android Source, 2019a). Therefore, our design

only mandates the attestation certiﬁcate to be present in

messages as the self-certifying identiﬁer and omits the

full chain. Instead, receivers can enquire the full chain

if they receive a message whose signature cannot be

veriﬁed due to missing intermediate certiﬁcates. Each

node is obliged to store all certiﬁcate chains received,

which, in time, leads to all nodes learning all chains.

Matching this approach even against all

> 2.3

billion

active Android devices (van der Wielen, 2018),

∼ 21%

of which are running Android 8+

(the majority of which

are not within the set of targeted devices) still only results

∼ 5000

possible certiﬁcate chains. This approach

reduces the overhead introduced through the Master of

Puppets to less than 256B per message.

3.6 Architecture

Although our design mandates the use of an Android app,

this does not necessitate burdening resource-constrained

mobile devices with the operation of network nodes.

Instead, the Master of Puppets offers two distinct modes

of operation:

Mobile-only:

Using only the Android app to operate a

node directly on a mobile device.

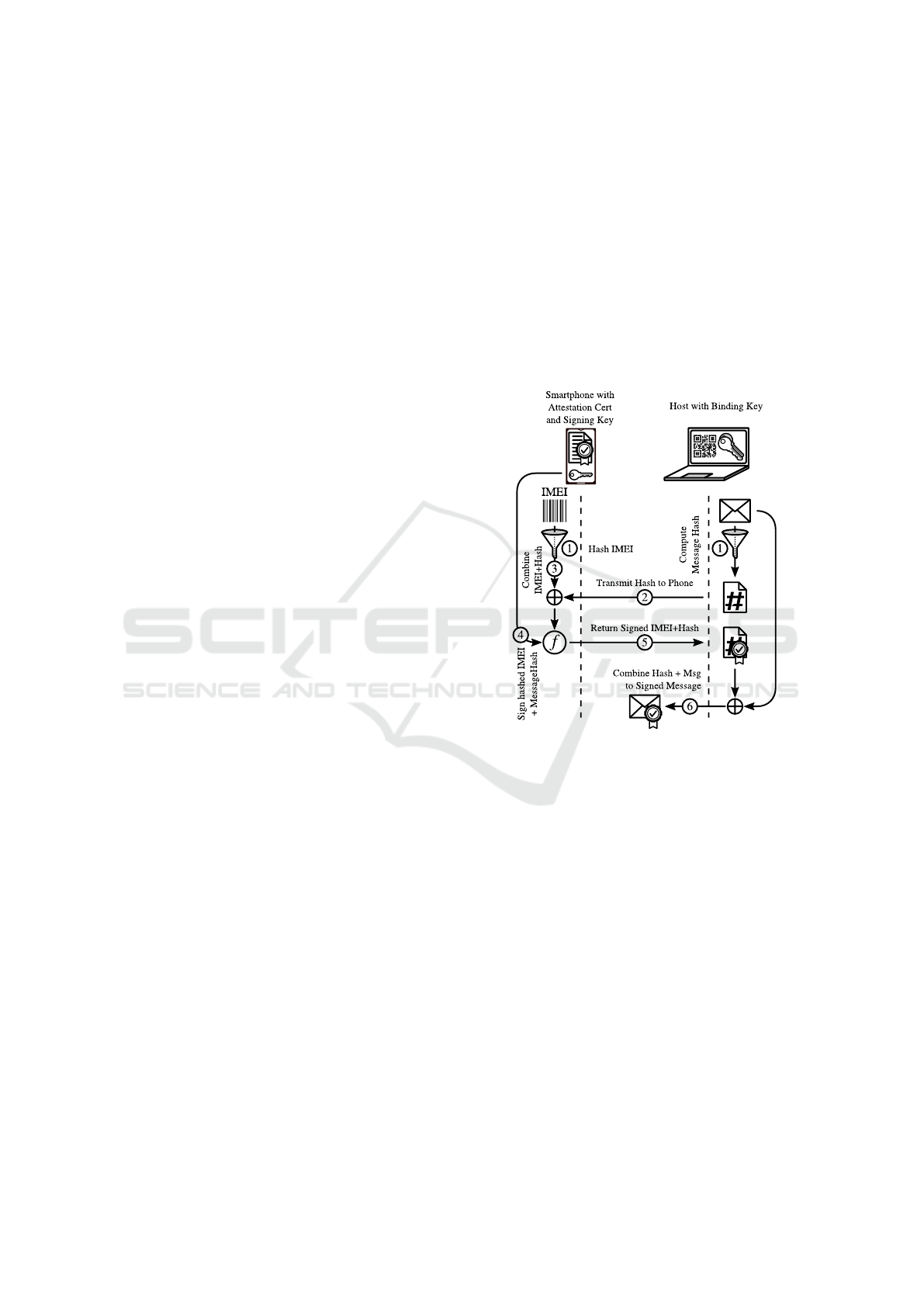

Phone-bound:

Outsourcing only identiﬁer generation

and message signing to the Android app from another

device (typically a PC or a laptop) operating the

actual node. For the remainder of this paper, we refer

to this device as the host.

The mobile-only mode of operation is self-explanatory

from an architectural point of view. Therefore, we do not

focus on it and instead elaborate on the phone-bound

mode of operation and its implications.

https://developer.android.com/about/dashboards/

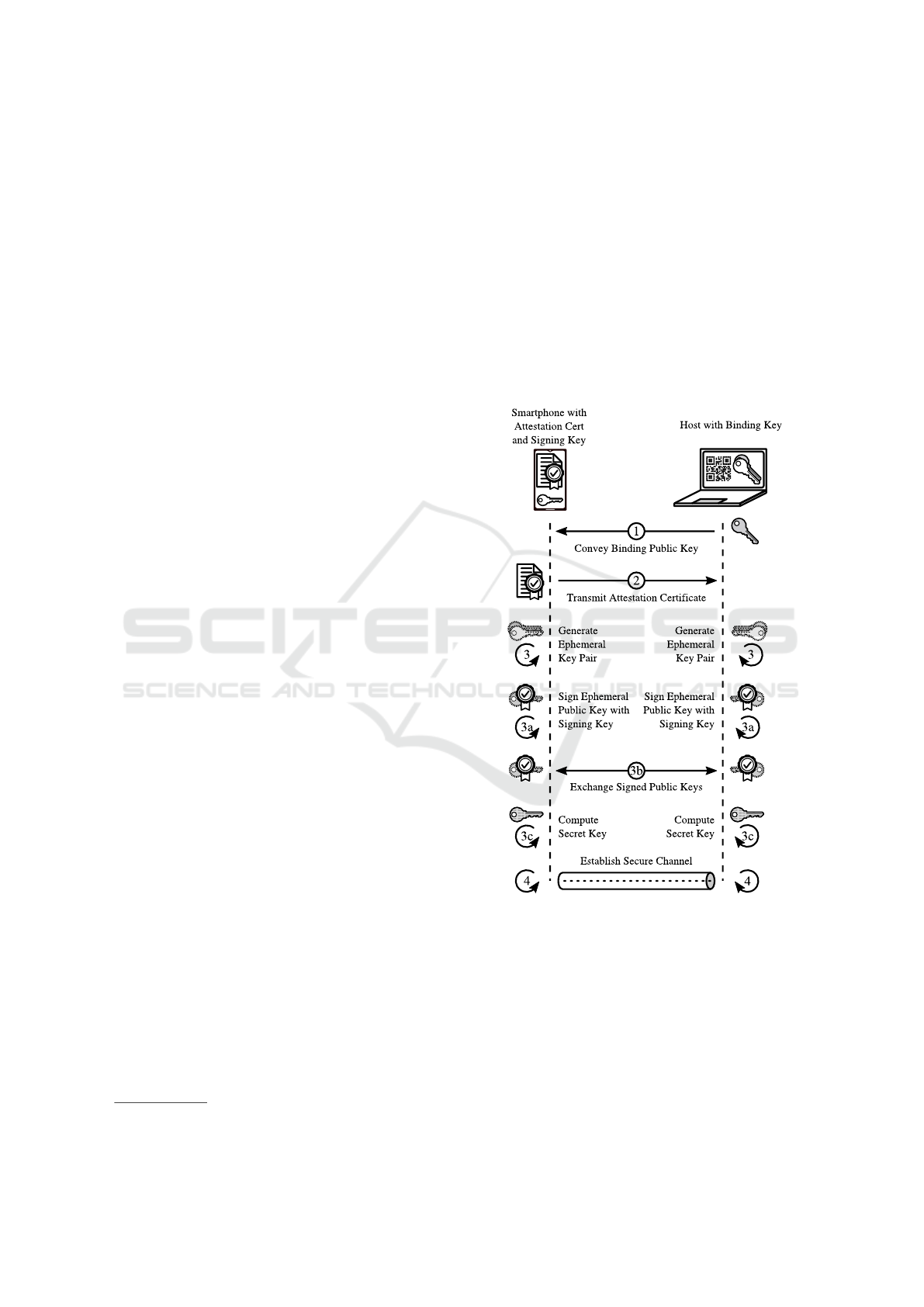

3.6.1 Universal Trust using Phone-bound Nodes

By only relying on a mobile device running the Master

of Puppets’ Android app for cryptographic operations

involving private key material, the device becomes not

much more than a universally trusted smartcard. Com-

pared to previously theorised approaches using smartcards

or trusted computing concepts, we solve the trust problem

by relying on devices that are already trusted on a global

scale. The Android app is designed such that it only

supports a single host, to still uphold the premise of

requiring a distinct device for each node. To achieve this,

we mandate an authenticated channel between host and

phone.

Figure 1: Binding host to phone and establishing a mutually

authenticated channel using ECDHE key agreement.

3.6.2 Authenticated Phone-host Channel

We accomplish mutual authentication based on an Elliptic

Curve Difﬁe-Hellman ephemeral (ECDHE) scheme to

efﬁciently establish authenticated, end-to-end encrypted

communication between the Android app and the host

(see Figure 1). The phone is identiﬁed using the private

key matching its attestation certiﬁcate. We refer to this

key as the signing key. The host, on the other hand,

generates a public/private key pair. This is called the

SECRYPT 2019 - 16th International Conference on Security and Cryptography

256

binding key. Binding the host to the phone works as

follows:

The host’s public binding key is convened to the

phone, by scanning a QR-code off the host’s screen.

The attestation certiﬁcate is transmitted to the host.

Having established a binding, both phone and host

generate an ephemeral public/private key pair to

engage in an ECDHE key agreement process to create

a mutually-authenticated communication channel:

(a)

The phone signs its ephemeral public key using

its signing key and the host signs its ephemeral

public key using its private binding key.

(b)

The signed ephemeral public keys are exchanged.

(c)

Both parties compute a secret key based on their

ephemeral private keys and the received signed

ephemeral public keys (using ECDH).

Phone and host establish a communication channel

based on the previously computed secret key.

For the actual transmission of message digests and signa-

tures values, we employ the ChaCha20 (Nir and Langley,

2018) stream cipher and use the secret key agreed upon

between host and phone during the ECDHE key exchange.

Utilising a stream cipher does, by deﬁnition, not introduce

any payload overhead, once a communication channel

has been established. Consequently, throughput even

on low-bandwidth links (like Bluetooth Enhanced Data

Rate (EDR)) is not impaired. We mandate re-keying

every

messages as a middle ground between security

margin and overhead.

Most probably, the key material created on the host

will not be stored in hardware and is thus extractable

and can be replicated. This, however, has no impact on

the overall security of our network design: Binding the

host to a phone is only required to prevent unauthorised

third parties from utilising the phones of others. Even

if a malicious entity copies their binding key to a huge

amount of host devices, signing messages would still be

done by a single phone. Consequently, this entity would

still only present a single identity to the network.

Having means in place to establish an authenticated,

encrypted communication channel between the host

and the phone, the characteristics of the transport layer

regarding these properties become irrelevant.

3.6.3 Efﬁciently Outsourced Signing

From a technical point of view, we mandate a Bluetooth

EDR (Bluetooth SIG, 2019) or WIFI connection between

the Android app and the host. Although Bluetooth EDR

is a low-bandwidth link, it is still perfectly adequate if

we reduce the trafﬁc required to operate a network node

to a minimum. We achieve this as follows:

Firstly, we implement detached signing and detached

signatures as depicted in Figure 2 (assuming an authen-

ticated channel between host and phone is in place): The

phone (1) hashes its IMEI, and the host (1) hashes the

message to be sent, and (2) only transmits the hash to the

phone. The phone then creates a detached signature by

(3) combining the received hash with its hashed IMEI,

and by (4) directly applying the signature operation to

this data (thus skipping the usually required hashing

operation during signature creation). The signed data is

then (5) returned to the host where it is (6) appended to

the message, resulting in a signed message that is bound

to an individual phone.

Figure 2: Creation of a signed message.

Secondly, validation of incoming messages happens

on the host and thus puts no strain even on a Bluetooth

EDR connection. This way of producing signed messages

addresses the basic process carried out for the Kademlia

operations (Ping, Lookup, Store, and Find).

4 SECURITY CONSIDERATIONS

Due to its conceptual resemblance of S/Kademlia, our sys-

tem inherits its overall security properties. Consequently,

like S/Kademlia, our design remains secure, unless identi-

ﬁers can be chosen freely and Sybil attacks can be carried

out. In general, we do not tackle implementations ﬂaws

and deﬁciencies of cryptographic primitives and consider

such ﬂaws out of scope. By extension, we also do not

cover the area of root exploits on Android. While this

may seem like a limitation, it simply entails that we trust

the platform the Master of Puppets is developed for.

Master of Puppets: Trusting Silicon in the Fight for Practical Security in Fully Decentralised Peer-to-Peer Networks

257

4.1 On Phone-bound Identiﬁers

As presented in Section 3.4, the Master of Puppets’ iden-

tiﬁers are derived by combining an attestation result,

created by trusted hardware with the hash of a device’s

IMEI or MEID and then have these values signed by the

key referenced in the attestation result. Since the attesta-

tion result contains a proof that an unmodiﬁed app has

been used (in the form of the hash of the certiﬁcate that

was used to sign the app), identiﬁers cannot be spoofed.

Consequently, any other node in the network can remotely

verify that an unmodiﬁed application was used. Since

this happens on every incoming message, it becomes

impossible to establish the presence of compromised

nodes in the network. Although the software running

on the host is not considered trusted, this has no impact

on our security model, since it aligns perfectly with

S/Kademlia. Thus, the security analyses performed on

this design can also be applied to the Master of Puppets.

4.2 Attack Costs

By binding an identiﬁer to the possession of a distinct

device, the cost for identiﬁer generation and node opera-

tion can be estimated in a straight-forward manner. The

cheapest phone we know of (that supports all required

attestation features) is the Nokia 1, currently retailing

79.00 on Amazon.de. We compare this price tag

for node operation to the ﬁgures obtained by Pr

unster et

al. (2018), who analysed the cost of Sybil and eclipse

attacks for proof-of-work-based identiﬁer creation in

a hardened S/Kademlia network, based on the price of

cloud computing resources. As these prices have not

signiﬁcantly changed since, these 2018ﬁndings still hold.

4.2.1 Sybil Attack Costs

unster et al. reached reached the conclusion that creat-

ing a million identiﬁers, even in a hardened S/Kademlia

design mandating a PoW could be priced at roughly some

few thousand Euro, while operating this amount of nodes

would incur running costs of about

33/h for a network

of 1M nodes. If we map this scenario to our approach and

optimise attack costs by relying on cheap Nokia 1 phones,

operating a million nodes, we arrive at initial costs of

79 000 000. Running costs are essentially depended on

the cost of electricity.

4.2.2 Eclipse Attack Costs

Successfully eclipsing a target node in a network of a

million nodes requires generating some tens of millions

of nodes, as identiﬁer generation using the SHA3 cryp-

tographic hash function is unpredictable due its output

being pseudorandom. In short, a brute-force approach is

the best possible way to obtain the desired identiﬁers. We

again refer to Pr

unster et al. (2018) for concrete ﬁgures.

Based on this, we can estimate the time it would

take to generate and test 20M identiﬁers to eclipse a

single target in a network of 1M nodes. We assume an

attacker possesses 20 devices (to be able to operate 20

nodes). Each node generation process requires discarding

the previously generated identiﬁer by clearing the data

of the Master of Puppets’ App and re-initialising it. If

we optimistically assume a duration of 100ms for this

process and have it run in parallel on all 20 devices, it

would take roughly one day to eclipse a target (see Eq. 1).

ecl

= 20 × 10

| {z }

#IDs to try

× 0.1/3600

| {z }

time per ID in hours

/ 20

|{z}

# of phones

∼ 28h (1)

This is perfectly feasible and does not incur high

initial or running costs. However, it is impossible to

outsource this process, as identiﬁers are bound to crypto-

graphic keys located inside the phone’s trusted hardware.

Obviously, our solution would fail to defend against

eclipse attacks, without other countermeasures in place.

We therefore introduce a delay of 1 minute into the

identiﬁer generation process. Since this delay is executed

on the phone as part of the remotely attested Android

application, it also cannot be sped up. As this results in a

slow-down factor of 600, generating and testing enough

identiﬁers to eclipse a single node in a network of 1M

nodes would then take approximately two years.

Even if a malicious entity owns hundreds of devices to

mount an eclipse attack, the victim could simply generate

a new identiﬁer and thus be out of the attacker’s reach. It

is important to note that mounting another eclipse attack

on the new identiﬁer would take the same mount of time

than the initial attack.

5 CONCLUSIONS

This work presented the Master of Puppets as a practically

secure approach towards fully decentralised P2P network-

ing. Our design utilises current Android smartphones as

universally trusted smartcards and binds the operation of

P2P network nodes to the possession of a physical device.

Compared to resource testing approaches like PoW, this

prevents attackers from utilising cheap cloud computing

offers to outperform legitimate users. We base our system

on the S/Kademlia P2P network, adapt its self-certifying

identiﬁers to utilise Android’s key attestation framework

to bind identiﬁers to the possession of a physical device.

In a nutshell, this means that a distinct device is required

to operate a peer-to-peer network node. This effectively

combats Sybil and eclipse attacks, and shows how it is

now, for the ﬁrst time, possible to apply trusted computing

SECRYPT 2019 - 16th International Conference on Security and Cryptography

258

to provide secure P2P networking without relying on a

central authority.

Although this limits the potential user base to owners

of supported devices, the popularity of Android still

makes our approach usable by millions of users. As our

design outsources only some cryptographic operations

to phones, even low-end devices can be used. Most

importantly, however, we have shown that it is now, for

the ﬁrst time possible to utilise a widely available trusted

computing base to effectively combat eclipse or Sybil

attacks without relying on inefﬁcient resource-testing

approaches that can easily be circumvented due to the low

prices of widely-available cloud computing resources.

REFERENCES

Android Open Source Project (Apr. 2018). Protecting against

Security Threats with SafetyNet. U R L: https://developer.

android.com/training/safetynet/ (visited on 11/01/2019).

Android Source (Feb. 2019a). Android 9.0 Compatibility Deﬁn-

ition. U R L: https://source.android.com/compatibility/9/

android-9-cdd.pdf (visited on 20/02/2019).

— (2019b). Security-Enhanced Linux in Android. U R L:

https://source.android.com/security/selinux/ (visited on

19/02/2019).

— (2019c). Trusty TEE. U R L: https://source.android.com/

security/trusty/ (visited on 11/01/2019).

Baumgart, I. and S. Mies (Dec. 2007). ‘S/Kademlia: A Practic-

able Approach towards Secure Key-Based Routing’. In:

2007 International Conference on Parallel and Distrib-

uted Systems, pp. 1–8. D O I: 10.1109/ICPADS.2007.

4447808.

Benet, Juan (July 2014). IPFS - Content Addressed, Versioned,

P2P File System (DRAFT 3). U R L: https://ipfs.io/ipfs/

QmR7GSQM93Cx5eAg6a6yRzNde1FQv7uL6X1o4k7zr

Ja3LX/ipfs.draft3.pdf (visited on 04/01/2019).

Bluetooth SIG (Jan. 2019). Bluetooth Core Speciﬁca-

tion v5.1. U R L: https://www.bluetooth.org/docman/

handlers/downloaddoc.ashx?doc id=457080 (visited on

09/03/2019).

Castro, Miguel et al. (2002). ‘Secure Routing for Struc-

tured Peer-to-peer Overlay Networks’. In: OSDI ’02,

pp. 299–314. U R L: http://dl.acm.org/citation.cfm?id=

1060289.1060317.

Cohen, Bram (Oct. 2013). The BitTorrent Protocol Speciﬁcation.

U R L: http://www.bittorrent.org/beps/bep0003.html

visited on 24/04/2017).

Douceur, John R. (2002). ‘The Sybil Attack’. In: Peer-to-Peer

Systems. Ed. by Peter Druschel, Frans Kaashoek and

Antony Rowstron. Vol. 2429. Lecture Notes in Com-

puter Science. Berlin, Heidelberg, Germany: Springer, pp.

251–260. I S B N: 978-3-540-44179-3.

Fantacci, R. et al. (June 2009). ‘Avoiding Eclipse Attacks on

Kad/Kademlia: An Identity Based Approach’. In: 2009

IEEE International Conference on Communications. pp.

1–5. D O I: 10.1109/ICC.2009.5198772.

FIDO Alliance (June 2018). Hardware-backed

Keystore Authenticators (HKA) on Android

8.0 or Later Mobile Devices. U R L: https:

//ﬁdoalliance.org/wp-content/uploads/Hardware-

backed Keystore White Paper June2018.pdf (visited on

14/01/2019).

Hildrum, Kirsten and John Kubiatowicz (2003). ‘Asymptotically

efﬁcient approaches to fault-tolerance in peer-to-peer

networks’. In: International Symposium on Distributed

Computing. Springer, pp. 321–336.

Levine, Brian Neil, Clay Shields and N. Boris Margolin (Oct.

2006). A Survey of Solutions to the Sybil Attack. 2006-052.

Amherst, MA: University of Massachusetts Amherst.

Locher, Thomas et al. (2010). ‘Poisoning the Kad network’. In:

International Conference on Distributed Computing and

Networking. Springer, pp. 195–206.

Maymounkov, Petar and David Mazi

eres (2002). ‘Kademlia:

A Peer-to-Peer Information System Based on the XOR

Metric’. In: International Workshop on Peer-to-Peer

Systems. Ed. by Peter Druschel, Frans Kaashoek and

Antony Rowstron. Red. by Gerhard Goos, Juris Hartmanis

and Jan van Leeuwen. Vol. 2429. Berlin, Heidelberg:

Springer, pp. 53–65. I S B N: 978-3-540-44179-3 978-3-

540-45748-0. D O I: 10.1007/3-540-45748-8 5.

Nir, Y. and A. Langley (July 2018). ChaCha20 and Poly1305

for IETF Protocols. RFC 8439. Published: Internet

Engineering Task Force Request for Comments. U R

L: https://www.ietf.org/rfc/rfc8439.txt(visitedon21/03/

2019).

unster, Bernd et al. (2018). ‘A Holistic Approach Towards

Peer-to-Peer Security and Why Proof of Work Won’t

Do’. In: 14th EAI International Conference on Security

and Privacy in Communication Networks. Vol. 255.

Lecture Notes of the Institute for Computer Sciences,

Social Informatics and Telecommunications Engineering.

Singapore: Springer, pp. 122–138.

Singh, Atul et al. (2004). ‘Defending Against Eclipse Attacks on

Overlay Networks’. In: Proceedings of the 11th Workshop

on ACM SIGOPS European Workshop. EW 11. New

York, NY, USA: ACM. D O I: 10.1145/1133572.1133613.

U R L: http://doi.acm.org/10.1145/1133572.1133613

(visited on 21/06/2018).

Statista (2019). Shipments of Samsung Galaxy

S series smartphones worldwide from 2016

to 2018 (in million units). U R L: https:

//www.statista.com/statistics/864691/samsunggalaxy-

s-series-smartphone-shipments-worldwide/ (visited on

27/02/2019).

van der Wielen, Bernd (Jan. 2018). Insights into the 2.3 Billion

Android Smartphones in Use Around the World. Newzoo.

U R L: https://newzoo.com/insights/articles/insights-

intothe-2-3-billion-android-smartphones-in-use-

aroundthe-world/ (visited on 28/02/2019).

Zargar, Saman Taghavi, James Joshi and David Tipper (2013).

‘A survey of defense mechanisms against distributed

denial of service (DDoS) ﬂooding attacks’. In: IEEE

communications surveys & tutorials 15.4, pp. 2046–2069.

Master of Puppets: Trusting Silicon in the Fight for Practical Security in Fully Decentralised Peer-to-Peer Networks

259
