A Wizard-based Approach for Secure Code Generation of Single

Sign-On and Access Delegation Solutions for Mobile Native Apps

Amir Sharif

1,2 a

, Roberto Carbone

1 b

, Silvio Ranise

1 c

and Giada Sciarretta

1 d

Fondazione Bruno Kessler, Trento, Italy

DIBRIS- University of Genoa, Genoa, Italy

Keywords:

Single Sign-On, OAuth 2.0, Android Security, Identity Management, Android Native Applications.

Abstract:

Many available mobile applications (apps) have poorly implemented Single Sign-On and Access Delegation

solutions leading to serious security issues. This could be caused by inexperienced developers who prioritize

the implementation of core functionalities and/or misunderstand security critical parts. The situation is even

worse in complex API scenarios where the app interacts with several providers. To address these problems,

we propose a novel wizard-based approach that guides developers to integrate multiple third-party Identity

Management (IdM) providers in their apps, by (i) “enforcing” the usage of best practices for native apps, (ii)

avoiding the need to download several SDKs and understanding their online documentations (a list of known

IdM providers with their conﬁguration information is embedded within our approach), and (iii) automatically

generating the code to enable the communication with the different IdM providers. The effectiveness of the

proposed approach has been assessed by implementing an Android Studio plugin and using it to integrate

several IdM providers, such as OKTA, Auth0, Microsoft, and Google.

1 INTRODUCTION

Identity Management (IdM) solutions are the main

enabler for the development of applications that use

the functionalities offered by Application Program-

ming Interface (API) platforms. A widely adopted

approach to integrate IdM solutions in mobile ap-

plications (hereafter, apps)—with the goal of strik-

ing the best possible trade-off between security and

usability—is to use API for IdM made available from

third-party IdM providers (hereafter IdMPs) such as

Google, OKTA, and Auth0 (to name but a few). The

following two are the scenarios in which IdMPs are

most frequently used:

Single Sign-On (SSO) Login. solutions are widely

used by app developers to authenticate the user

leveraging an IdMP, which allow users for using

the same credentials along different apps.

Access Delegation. allows users to delegate to the

app the access to an API trough an IdMP.

https://orcid.org/0000-0001-6290-3588

https://orcid.org/0000-0003-2853-4269

https://orcid.org/0000-0001-7269-9285

https://orcid.org/0000-0001-7567-4526

OAuth 2.0 (Hardt, 2012) (hereafter OAuth) and

OpenID Connect (Sakimura et al., 2014) (hereafter

OIDC) are among the most popular open standards

for access delegation and SSO Login, respectively.

Recently, the OpenID Foundation made an effort to

support app developers by releasing AppAuth, a client

SDK for native apps to authenticate and authorize

end-users by communicating with OAuth and OIDC

providers, beside implementing the security and us-

ability best practices.

In this work, we analyze the compliance of pop-

ular IdMPs with the OAuth/OIDC best current prac-

tices for native apps. Our analysis reveals that, un-

fortunately, many IdMPs still do not follow the best

practices. In addition, many apps have poorly imple-

mented IdM mechanisms because of inexperienced,

distracted, or overwhelmed developers (Liu et al.,

2018). In general, developers with little security

awareness, prioritize code functionality and ignore

the security implications of their choices. Although

IdMPs try to mitigate security issues by providing

documentations, if developers are not security experts

and do not understand security critical code, this may

lead to serious security vulnerabilities. According

to (Yang et al., 2017), 41% of 600 top-ranked US and

Chinese Android apps that use Facebook, Sina, and

268

Sharif, A., Carbone, R., Ranise, S. and Sciarretta, G.

A Wizard-based Approach for Secure Code Generation of Single Sign-On and Access Delegation Solutions for Mobile Native Apps.

DOI: 10.5220/0007930502680275

In Proceedings of the 16th International Joint Conference on e-Business and Telecommunications (ICETE 2019), pages 268-275

ISBN: 978-989-758-378-0

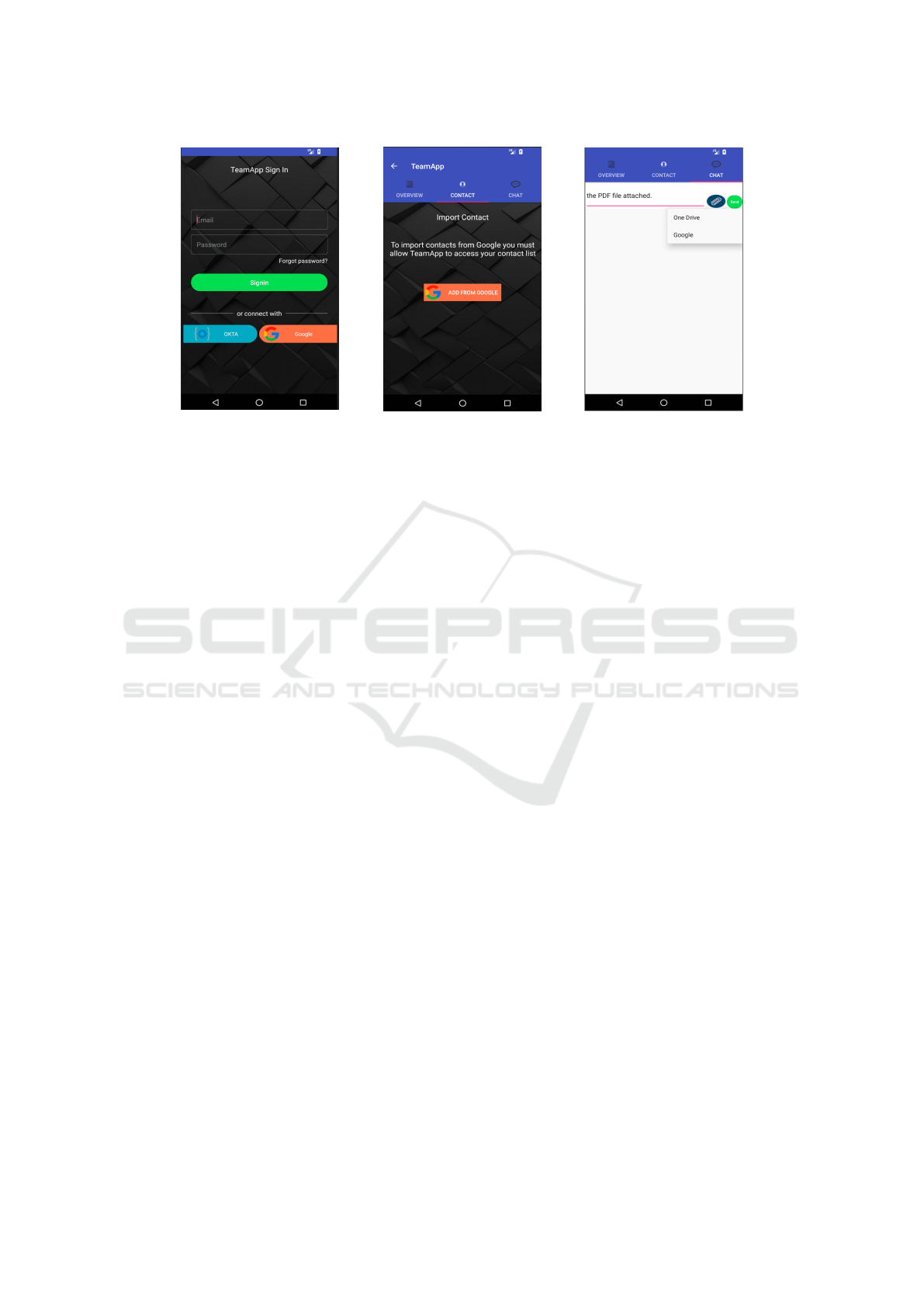

(a) Login Activity. (b) Contact Activity. (c) Chart Activity.

Figure 1: TeamApp screen shots.

Google as IdMP providers are vulnerable. The situ-

ation is even worse in complex scenarios—which are

more and more frequent with the advent of the API

economy—where the app interacts with many IdMPs.

To illustrate, let us describe a typical use case sce-

nario in which the mobile app TeamApp helps team

members to improve collaboration and the sharing

of information. To access heterogeneous services on

TeamApp, the user should login into TeamApp by us-

ing either traditional login methods or SSO solutions

(e.g., OKTA or Google as shown in Figure 1a). Af-

ter authentication, a User can (i) create a new team

by choosing to import her Google Contacts by navi-

gating to the Contacts tab within the app (Figure 1b)

and clicking on the button add from Google, and (ii)

share documents with the team using the Chat tab and

clicking on the attachment button to import the doc-

ument from external providers (e.g., OneDrive and

Google as shown in Figure 1c). The effort required

to implement TeamApp is substantial. As shown in

Figure 2a, a developer should: (P1) refer to the docu-

mentation of each IdMP; (P2) download the different

SDKs and understand how to interact with them to

implement the IdM solution; and (P3) write different

pieces of code to integrate the SDKs. Furthermore, in

such a kind of scenarios where multiple IdMPs must

be integrated, AppAuth cannot be easily adopted, be-

cause the available documentation is tailored to in-

teract with a single IdMP. Therefore, app developers

have two options: either reuse the same classes and

conﬁguration ﬁles of AppAuth with different names

in order to avoid conﬂicts, or should implement some

additional methods from scratch. Both options are not

only time-consuming but also error-prone, especially

for inexperienced developers.

To overcome these difﬁculties, we present a novel

approach based on a wizard to support developers

in the integration of multiple IdMPs for SSO Login

and Access Delegation. Our approach (shown in Fig-

ure 2b) automates most of the process by: (S1) avoid-

ing the need for reading online documentations: it

provides a built-in list of IdMPs with their related

information (e.g., endpoints); thus solving problem

(P1) above; (S2) avoiding the need for downloading

several SDKs: it is based only on the AppAuth SDK

that is (effortlessly) integrated once and for all (solv-

ing P2); and (S3) automatically generating the code

to integrate AppAuth within the app and enable the

communication with multiple IdMPs (solving P3).

To summarize, our main contributions are three.

First (to the best of our knowledge), we provide the

ﬁrst report about the compliance of popular IdMPs

with the OAuth/OIDC best current practices for na-

tive apps. Our analysis reveals that, unfortunately,

several IdMPs still do not follow the best practices.

All the details of the report are available at https://

sites.google.com/fbk.eu/midassistant. Sec-

ond, we propose a novel wizard-based approach for

secure code generation for mobile apps, allowing app

developers to integrate multiple third-party IdMPs ef-

fortlessly and in a secure manner. In particular—by

leveraging the information in a DB and a user-friendly

guide for app developers—it provides a way to “en-

force” the usage of best practices for the compliant

IdMPs by using AppAuth, and securely interact with

the IdMPs that are not fully-compliant. Third, we pro-

vide a prototype implementation of our approach as

a plugin for Android Studio, and test it by interact-

ing with several IdMPs, such as OKTA, Auth0, Mi-

crosoft, and Google.

A Wizard-based Approach for Secure Code Generation of Single Sign-On and Access Delegation Solutions for Mobile Native Apps

269

Your Application

code

SDKs

DOC

Online Docs IdM Providers

...

Developer

read

write

...

(a) Without our approach.

Wizard

AppAuth

SDK

follow

Developer

code

...

Your Application IdM Providers

...

(b) With our approach.

Figure 2: The comparison between current and proposed approach.

Paper Structure. Section 2 introduces OAuth and

OIDC, the de-facto standards for access delegation

and SSO, respectively. Section 3 describes the cur-

rent best practices for native apps. The proposed

wizard-based approach for compliant and not fully-

compliant IdMPs is explained in Section 4. We sum-

marize the main results and provide some insights for

future work in Section 5.

2 BACKGROUND ON OAUTH

AND OPENID CONNECT

In the context of light-RESTful API services, OAuth

and OIDC are the current de-facto standards for pro-

viding access delegation and SSO login, respectively.

2.1 Access Delegation: OAuth 2.0

OAuth (Hardt, 2012) is an authorization protocol

that regulates what an entity is allowed to access. In

simple words, it is a mechanism by which a user,

called Resource Owner (RO ), can delegate access for

selected pieces of information hosted in a Resource

Server (RS) to a designated Client (C ) app, without

having to share her credentials with C. Indeed, RO di-

rect authenticates by using her User Agent (UA, e.g.,

a browser) with a trusted server, called Authorization

Server (AS ), which issues a token (called access to-

ken) to C carrying the requested authorization dele-

gation. Finally, C uses the access token to access the

RO ’s resource in RS.

The OAuth Work Group (WG) deﬁnes four grant

types, which are dependent on the both involved en-

tities and the relative scenario assumptions, which

are: RO Password Credentials, Implicit, Authoriza-

tion Code, and Client Credentials. The aforemen-

tioned grant types have a common goal that is releas-

ing an access token to C for granting access to re-

sources; differences lie in the process used to obtain

tokens. Among these four grant types, Implicit and

Authorization code ﬂows are the most used by the

apps. The Implicit grant is a ﬂow optimized for UA-

based apps, which are developed using a scripting

language. However, the OAuth WG recommended

not to use the Implicit grant ﬂow as it is vulnerable

to access token leakage and replay as detailed in the

OAuth 2.0 Security Best Current Practice (Lodderst-

edt et al., 2019). The Authorization Code is the most

popular grant type, which is suitable for both conﬁ-

dential (web) and public (native) apps. This ﬂow pos-

sesses some security beneﬁts in comparison with pre-

vious ﬂows, such as the ability of AS to authenticate

C and the direct transmission of the access token to C

without passing it through UA, which is avoiding the

exposure of the token to others, including RO.

2.2 SSO Login: OpenID Connect

OIDC (Sakimura et al., 2014) is an authentication

layer developed on top of the OAuth standard. The

problem that has led to introduce OIDC is the fact

that OAuth protocol is often abused to implement au-

thentication by major apps, while its main purpose is

Access Delegation. In (Chen et al., 2014), the au-

thors studied several vulnerabilities that raised by us-

ing OAuth for authentication. Furthermore, the afore-

mentioned study highlights the main demands that an

authentication protocol should satisfy.

OIDC adds two main features into the OAuth stan-

dard: the id token and the userInfo endpoint. The

token is a structured JSON token (Jones et al.,

2015) that contains information about the token issuer

(the OpenID provider), the subject (user identiﬁer)

and the audience (the intended C app), all signed by

the OpenID provider. This token enables C to safely

verify that the received token is issued as result of its

previous token request. While the userInfo endpoint

is used to obtain identity-related attributes (e.g., the

email and address) of the user.

SECRYPT 2019 - 16th International Conference on Security and Cryptography

270

3 A CRITIQUE OF AVAILABLE

BEST PRACTICES AND OUR

FINDINGS

The goal of this section is to present the current best

practices for SSO and Access Delegation for native

apps and provide a brief description of our ﬁndings

about IdMPs compatibility. In the following, ﬁrstly,

the OAuth best practices for native apps are presented

(cf. Section 3.1). Finally, a summary of our ﬁndings

with regard to the IdMPs compatibility with the de-

scribed best practice are displayed (cf. Section 3.2).

3.1 Best Practices for Native Apps

The lack of details in (Hardt, 2012) on how to imple-

ment OAuth for native apps has caused the spread of

many insecure solutions. This is probably the reason

why in 2017, the OAuth WG has released “OAuth 2.0

for Native Apps” (Denniss and Bradley, 2017), a set

of best practices for implementing in a secure and us-

able way OAuth—and consequently OIDC given that

is based on OAuth—in case the role of C is played

by a native app. They suggest which (i) ﬂow, (ii) UA

and (iii) redirection mechanism must be used. More

details are provided in the following sections and the

key points are summarized in Table 1.

3.1.1 Flow: Authorization Code with PKCE

The suggested ﬂow is the Authorization Code ﬂow

together with the Proof Key for Code Exchange

(PKCE) protocol (Sakimura et al., 2015). The OAuth

WG introduced PKCE to avoid the authorization code

interception on public clients. If an attacker is able to

steal an authorization code, then he can use it to ob-

tain an access token and so access the user data. The

PKCE avoids the aforementioned attack by adding

three parameters: a code veriﬁer (an unique secret of

C app), a code challenge (e.g., hash of the code veri-

ﬁer) and the name of the transformation function used

to calculate the challenge value. In simple words, the

security introduced by the PKCE comes from the fact

that no one rather than the legitimate C app should

know the code veriﬁer. This ﬂow, illustrated in Fig-

ure 3, encompasses the following steps:

Table 1: Best practices for native apps.

Concept Best Practice

Flow Authorization Code w/o client secret

PKCE If Custom URI, then PKCE mandatory

UA External (possibly “in-app browser”)

Redirection HTTPS or Custom URI

5. access_token + id_token

1. Authn request

client_id,

redirect_uri, t_m,

t(code_verifier)

2. user login + consent

3. redirect_uri?code

4. Token request

code, code_verifier

Figure 3: Authorization Code Flow with PKCE.

1. the C app initiates the ﬂow by directing the RO’s

UA to the authorization endpoint. It sends, together

with the OAuth parameters (client id, redirect URI ),

the PKCE parameters: t(code veriﬁer) and t m;

2. AS authenticates RO by displaying the login form

(in UA) and establishes whether RO has granted or

denied the access request;

3. assuming the access grant acceptance by RO, AS

redirects UA back to C with an authorization code;

4. C sends the authorization code with code veriﬁer

to AS;

5. in this step, AS computes the t(code veriﬁer) value

and compares it with the value received in Step 1. If

they are the same, it releases an access token and id

token to C.

In addition, as all information passing through a

mobile device is visible to RO, the conﬁdentiality of

the client secret is not guaranteed (a mobile app is a

public client). Therefore, compared to the web sce-

nario, there is no demand to send the client secret

alongside the authorization code to ask for the token.

3.1.2 User Agent: External Browser

In the Android environment, two kinds of UA are

supported: embedded (e.g., Web View) and exter-

nal (e.g., OS browsers or native apps). Based on the

best practices, for security reasons, developers should

avoid the usage of embedded UA, due to the full con-

trol of the app on the user data (a malicious C app

could, for example, steal the RO’s password). Thus,

the best practice recommends the usage of the ex-

ternal UA, in particular an external browser support-

ing the “in-App browser tabs” (Denniss and Bradley,

2017). This feature (known as Android Custom Tab in

the Android platform) is a programmatic instantiation

of the browser that keeps both security properties and

authentication of the browser, while being displayed

within the host app.

A Wizard-based Approach for Secure Code Generation of Single Sign-On and Access Delegation Solutions for Mobile Native Apps

271

3.1.3 Redirection Method: Custom URI or

HTTPS URI Scheme

For the redirection of the authorization code to the

C app, there are three methods, which can be used

within native apps. These methods can be categorized

as (i) App-declared Custom URI scheme, (ii) App-

claimed HTTPS URI scheme, and (iii) Loopback URI

redirection (Denniss and Bradley, 2017). Among the

aforementioned methods, App-claimed HTTPS URI

redirection is recommended wherever it is supported

by the operating system, because it provides a way to

guarantee the identity of native apps, which is known

as App Link. In this case, the OS checks, after the

installation of the app, that the app has the right to

claim a speciﬁc URL, in this way checking the app

identity (Liu et al., 2017). Otherwise, Custom URI

scheme is recommended—due to its wider adaptabil-

ity with different Android OS versions—but it must

be used alongside with PKCE.

3.1.4 AppAuth Library

AppAuth is an open source library for third-

party apps to communicate with OAuth and OIDC

providers, which is maintained by the OpenID foun-

dation. It follows the best practices that are set out

in (Denniss and Bradley, 2017). The current library

can be downloaded, for both Android and iOS, at

https://appauth.io.

3.2 IdMP Compatibility with AppAuth

We have selected a total of 15 IdMPs, from the lists

that are available on the OIDC and OAuth websites,

based on their Alexa Rank, if they support the mobile

native scenario and for which the developer console

is accessible without subscription. We veriﬁed the

compatibility of the selected IdMPs with AppAuth by

integrating AppAuth SDK within a demo app. Our

ﬁnding can be brieﬂy summarized as follows:

• 5 IdMPs are not supported by the AppAuth due to

the different grant types (e.g., Facebook and Spo-

tify);

• 5 IdMPs are fully-compatible with the default set-

ting of AppAuth (e.g., Google and OKTA). By

using the AppAuth, the library enforces the best

practices by avoiding using of implicit ﬂow and

embedded web view in Auth0 and Microsoft, re-

spectively;

https://www.openid.net/certiﬁcation/ and

https://oauth.net/code/. Last accessed Dec., 2018.

Developer

Security

Expert

Study OAuth best practices

Analyze known IdM Providers

Create / update

IdM Provider info

IdM Providers

Follow the wizard:IdM Provider Selection, Conﬁg Info

Wizard

DB Population

Wizard Questions

Figure 4: Approach.

• 5 IdMPs require some code changes like omitting

PKCE and adding the client secret (e.g., Yahoo

and Linkedin).

Even if the AppAuth SDK could be used with a spe-

ciﬁc IdMP, its integration in the use case scenario

described in Section 1 is not easy and requires ma-

jor changes: the developer should implement varied

classes and methods to handle the communication

with multiple providers. Furthermore, complemen-

tary details about the selection provedure, the met-

rics used and our ﬁndings with regard to the IdMPs

compatibility are available at our companion website:

https://sites.google.com/fbk.eu/midassistant.

4 WIZARD-BASED APPROACH

Our wizard-based approach encompasses the two pro-

cesses depicted in Figure 4. In the former process, se-

curity experts or a community of them (e.g., members

of the OAuth WG) populate the database of supported

IdMPs. In the latter process, (possibly security inex-

perienced) app developers—taking advantage of the

information given by security experts about supported

IdMPs—select one of them and follow the instruc-

tions of the wizard, by providing the missing informa-

tion concerning their own apps. The following sec-

tions detail these two processes for compliant IdMP

and not fully-compliant IdMP, respectively.

4.1 Support Compliant IdMP

We refer to compliant IdMP in case a provider follows

the current best practices for SSO and access dele-

gation for native apps (cf. Table 1). In our analysis:

Google, Microsoft v2, OKTA and Auth0.

4.1.1 Security Experts: DB Population

Let us preliminary consider the information that

security experts are required to provide for

each new IDMP. At ﬁrst, the security experts

must evaluate whether IDMP is fully-compliant

SECRYPT 2019 - 16th International Conference on Security and Cryptography

272

Table 2: Example of IdM providers info.

COMPLIANT

Google Scenario=both Redirect=both Discovery=accounts.google.com/.well-known/openid-configuration

DevDomain=no

OKTA Scenario=both Redirect=both Discovery=DevDomain/.well-known/openid-configuration

DevDomain=yes

NO COMPLIANT

Yahoo Scenario=both Redirect=https Discovery=login.yahoo.com/.well-known/openid-configuration

PKCE=no Secret=yes

DevDomain=no

Box Scenario=AD Redirect=https AuthnURL=https://account.box.com/api/oauth2/authorize

PKCE=no Secret=yes TokenURL=https://account.box.com/api/oauth2/token

DevDomain=no

with AppAuth, namely if it follows what re-

ported in Section 3.1. If this is the case, they

should specify which are the scenarios offered

by IDMP, that is, SSO (IDMP.Scenario=SSO),

Access Delegation (IDMP.Scenario=AD), or both

(IDMP.Scenario=both). Another information

is related to the supported redirection mecha-

nisms: IDMP supports only HTTPS redirection

(IDMP.Redirect=HTTPS), only Custom URI

Scheme (IDMP.Redirect=CustomURI), or both

(IDMP.Redirect=both). In addition, they should

specify either the discovery URL (if supported)

(IDMP.Discovery=Value), or their endpoints: Au-

thorization Endpoint (IDMP.AuthnURL=Value) and

Token Endpoint (IDMP.TokenURL=Value). In some

cases, these endpoints are generated starting from a

domain that is assigned to the developer. In these

cases, the security expert must specify this setting

IDMP.DevDomain=yes. If IDMP.Scenario=both

or IDMP.Scenario=SSO the User Info Endpoint

(IDMP.UserInfoURL=Value) must be provided

as well. An example of DB population for two

compliant IDMPs is provided in Table 2.

While some of the aforementioned information

(e.g., the endpoints) is used to properly conﬁgure Ap-

pAuth, the others (e.g., supported scenario and redi-

rection scheme) are used by the wizard to customize

the questions for the app developer, as detailed in the

following subsection.

4.1.2 Developers: Wizard Questions

In Listing1, we clarify which are the questions asked

to an app developer through the wizard (in italic) and

how they are customized according to the information

about IDMP. According to the choices of the app de-

veloper either OIDC or OAuth is used, and the wizard

enforces the proper implementation by automatically

adding the correct code within the developer app. It is

important to remark that the wizard helps the devel-

oper to select the proper ﬂow based on the scenario to

avoid for instance the wrong usage of OAuth, instead

of OIDC, for authentication purposes.

4.2 Support not Fully-compliant IdMPs

The described wizard-based approach works for the

IdMPs that are compliant with (Denniss and Bradley,

2017) and thus compatible with AppAuth SDK. To

extend the capabilities of our wizard in order to sup-

port other IdMPs that can be still used in a secure

manner (referred as not fully-compliant IdMPs), by

leveraging the results of the analysis, we identiﬁed the

following changes: (i) omit the sending of the PKCE

parameters whenever the IdMP’s server does not sup-

port the PKCE protocol, but at the same time enforce

the HTTPS Redirection scheme within the wizard,

and (ii) enforce the sending of the Client Secret when-

ever its value is not actually used as a secret. The best

practices for the native apps recommend to avoid us-

ing the Client Secret. The only exceptions that our

approach permits are for solutions where the Client

Secret is not used to authenticate the client, but it is

needed for legacy reasons. Thus, a security expert

has to verify that the Client Secret used for a mobile

native app is, at least, different from the one released

for web apps. In the case that the IdMPs rely on the

“secrecy” of the Client Secret, as future work we plan

to: require the dynamic client registration, in such a

way to have a different Client Secret for app instal-

lation; or perform the code exchange step though the

backend of the mobile app (if it is present) that can

store the Client Secret.

4.2.1 Security Experts: DB Population

As a consequence, as shown in Table 2, in case an

IdMP is not fully-compliant with AppAuth, the secu-

rity experts must evaluate whether it is due to:

A Wizard-based Approach for Secure Code Generation of Single Sign-On and Access Delegation Solutions for Mobile Native Apps

273

Listing 1: Wizard for compliant IdMPs.

1/ / S c e n a r i o

21. Choose whether you want to add in your app a

button for either [1.1] SSO Login, or [1.2] AD

3if [1.1] then

4the wizard shows a list of all IDMP such that

IDMP.Scenario=both or IDMP.Scenario=sso

5if [1.2] then

6the wizard shows a list of all IDMP such that

IDMP.Scenario=both or IDMP.Scenario=AD

8/ / S e l e c t i o n

92. Please, select IDMP among the list of supported

IdM Providers

10The wizard reads from the IdM Providers DB the

IDMP endpoints and ﬁlls the AppAuth conf ﬁle.

12/ / C o n f i g u r a t i o n

133. Enter Conﬁguration Info: Scopes (optional),

ClientID, the Name of the Button you want to add

14The provided info is used by the wizard to update the

AppAuth conf ﬁle and create the button.

16If [1.2] then

17Please, enter the resource endpoint

18The provided endpoint is used by the wizard to update

the AppAuth conf ﬁle.

20If IDMP.DevDomain=yes then

21Please, enter your developer domain

22The provided endpoint is used by the wizard to update

the AppAuth conf ﬁle.

24/ / R e d i r e c t i o n

25If IDMP.Redirect=both then

264. Choose the preferred Redirection Method: either

[4.1] HTTPS scheme, or [4.2] CustomURI

scheme

27If [4.1] or IDMP.Redirect=HTTPS then

28Enter your valid domain URL: scheme, host, and path

29If [4.2] or IDMP.Redirect=CustomURI then

30Enter the Custom URI of your app

31The provided info is used by the wizard to complete

the AppAuth conf ﬁle and ﬁll the Intent ﬁlter in

the Android manifest.

• the lack of PKCE and the IdMP supports HTTPS

Redirect, and if this is the case it should specify

IDMP.PKCE=no, and/or

• the need to include a Client Secret for legacy rea-

sons. The security expert should check that it is

not considered by IDMP as a real “secret”. If this

is the case it should specify IDMP.Secret=yes.

4.2.2 Developers: Wizard Questions

Concerning the changes in the wizard, while the

Scenario, Selection and Conﬁguration parts are the

same of Listing 1, in Listing 2, we clarify how the

other questions change in case IDMP is not fully-

compliant. In detail: in lines 1-4, if IDMP does not

support the PKCE protocol then we ask for an HTTPS

Listing 2: Wizard for not fully-compliant IdMPs.

1/ / R e d i r e c t i o n

2If IDMP.PKCE=no then

3Enter your valid domain URL: scheme, host, and path

4Otherwise same behaviour of Listing 1, lines 20-27

6/ / C l i e n t S e c r e t

7If IDMP.Secret=yes then

8Enter the App Client Secret

URI scheme, while in lines 6-8, if IDMP requires a

Client Secret, its value is asked to the developer.

4.3 Prototype and Experimental Results

To assess the effectiveness of our approach, we de-

veloped mIDAssistant, a prototype implementing our

approach for Android OS to support native apps. mI-

DAssistant is an open-source Android Studio plugin

developed using the Intellij Idea environment, and

it can be integrated in the development environment

just with few clicks. The plugin leverages the Ap-

pAuth library as a main core to guarantee the enforce-

ment of the best practices. On top of that, differ-

ent methodologies—such as File Template and Pro-

gram Structure Interface (PSI)—are used in order to

enable the plugin to generate and automatically in-

sert the code within the proper location of developer’s

app. We have used mIDAssistant to implement our

use-case scenario within a demo app, which is ca-

pable of communicating with Auth0, OKTA, Google

and Microsoft as they are compatible with AppAuth,

and with Yahoo, Linkedin, DropBox, Buffer, and Box

after the changes explained in Section 4.2.

5 DISCUSSION AND FUTURE

WORK

To the best of our knowledge, the state-of-the-art

methods are not strictly in the same line as the

work presented. There are some works, such as

Chex (Lu et al., 2012), RoleCast (Son et al., 2011),

Android Lint Tool (Google, 2016), FixDroid (Nguyen

et al., 2017), and App Link Assistant (Google, 2017)

that help app developers to implement secure code,

but none of the aforementioned works help devel-

opers with multiple IdMPs integration. Concerning

other tools supporting AppAuth, it is worth men-

tioning that Xamarin (Xamarin, 2015)—a tool for

cross-platform mobile app development—provides an

SDK (Xamarin.OpenID.AppAuth) for helping de-

velopers to communicate with OAuth and OIDC

SECRYPT 2019 - 16th International Conference on Security and Cryptography

274

Providers. As a consequence, by leveraging the “Xa-

marin.OpenID.AppAuth” SDK, our approach can be

applied on top of Xamarin so to support the cross-

platform scenario as well.

To conclude, in this paper we have discussed how

it is time-consuming and error-prone for inexperi-

enced app developers to integrate several IdMPs (e.g.,

using Google for SSO login and Microsoft OneDrive

for managing the document Access Delegation). To

this end, we propose a novel wizard-based approach

that guides developers through integration of multi-

ple third-party IdMPs within their app, by (i) “enforc-

ing” the usage of the best practices for native apps

(AppAuth support), (ii) avoiding the need for down-

load several SDKs and reading their online documen-

tations (a list of known IdMPs with their conﬁgura-

tion are embedded within our approach), and (iii) au-

tomatically generating the required code. A prototype

of our approach has been implemented as an Android

Studio plugin. It is currently capable of speaking with

Google, OKTA, Auth0, and Microsoft, which en-

force the best practices, and with not fully-compliant

IdMPs such as Yahoo, DropBox, Box, Linkedin, and

Buffer. It is worth mentioning that, during the OAuth

Security Workshop 2019, we spoke with members of

the OpenID Foundation about possible collaborations

and they have shown interest on our approach.

As a future work, we plan to: (i) expand our anal-

ysis by considering other popular IdMPs; (ii) evalu-

ate the possibility to provide an automatic way to ex-

tract the information for the new IdMP; (iii) design

and conduct a user-study experiment to evaluate our

approach; and (iv) add the code exchange on the app

backend to secure cases that need to use the client se-

cret during the authorization request.

REFERENCES

Chen, E. Y., Pei, Y., Chen, S., Tian, Y., Kotcher, R., and

Tague, P. (2014). OAuth Demystiﬁed for Mobile Ap-

plication Developers. In ACM CCS.

Denniss, W. and Bradley, J. (2017). OAuth 2.0 for Native

Apps. IETF.

Google (2016). Android Lint. https://developer.android.

com/studio/write/lint.

Google (2017). App Link Assistant Tool. https://developer.

android.com/studio/write/app-link-indexing.

Hardt, D. (2012). The OAuth 2.0 Authorization Framework.

IETF.

Jones, M., Bradley, J., and Sakimura, N. (2015). JSON Web

Token (JWT). IETF.

Liu, F., Wang, C., Pico, A., Yao, D., and Wang, G. (2017).

Measuring the Insecurity of Mobile Deep Links of

Android. In USENIX Security’17.

Liu, X., Liu, J., Wang, W., and Zhu, S. (2018). Android Sin-

gle Sign-On Security: Issues, Taxonomy and Direc-

tions. Future Generation Computer Systems, 89:402–

420.

Lodderstedt, T., Bradley, J., Labunets, A., and Fett, D.

(2019). OAuth 2.0 Security Best Current Practice.

Lu, L., Li, Z., Wu, Z., Lee, W., and Jiang, G. (2012). Chex:

Statically Vetting Android Apps for Component Hi-

jacking Vulnerabilities. In ACM CCS, pages 229–240.

Nguyen, D. C., Wermke, D., Acar, Y., Backes, M., Weir,

C., and Fahl, S. (2017). A stitch in time: Supporting

Android developers in writing secure code. In ACM

CCS, pages 1065–1077.

Sakimura, N., Bradley, J., and Agarwal, N. (2015). Proof

Key for Code Exchange by OAuth Public Clients.

IETF.

Sakimura, N., Bradley, J., Jones, M., de Medeiros, B., and

Mortimore, C. (2014). OpenID Connect Core 1.0 in-

corporating errata set 1. OIDF.

Son, S., McKinley, K. S., and Shmatikov, V. (2011). Role-

cast: ﬁnding missing security checks when you do not

know what checks are. In ACM Sigplan Notices, vol-

ume 46. ACM.

Xamarin (2015). Xamarin Tools for cross platform app de-

velopment. https://releases.xamarin.com.

Yang, R., Lau, W. C., and Shi, S. (2017). Breaking and Fix-

ing Mobile App Authentication with OAuth2.0-based

Protocols. In ACNS, pages 313–335. Springer.

A Wizard-based Approach for Secure Code Generation of Single Sign-On and Access Delegation Solutions for Mobile Native Apps

275
