Prying CoW: Inferring Secrets across Virtual Machine Boundaries

Gerald Palﬁnger

1 a

, Bernd Pr

unster

2 b

and Dominik Ziegler

3 c

A-SIT Secure Information Technology Center Austria, Seidlgasse 22 / Top 9, 1030 Vienna, Austria

Institute of Applied Information Processing and Communications (IAIK), Graz University of Technology, Inffeldgasse 16a,

8010 Graz, Austria

Know Center GmbH, Inffeldgasse 13, 8010 Graz, Austria

Keywords:

Deduplication, Side Channel, Cloud, File System, Copy-on-Write, CoW, ZFS, Storage, Virtual Private Server,

Virtual Machine.

Abstract:

By exploiting a side channel created by Copy-on-Write (CoW) operations of modern ﬁle systems, we

present a novel attack which allows for detecting ﬁles in a shared cloud environment across virtual machine

boundaries. In particular, we measure deduplication operation timings in order to probe for existing ﬁles of

neighbouring virtual machines in a shared ﬁle system pool. As a result, no assumptions about the underlying

hardware and no network access are necessary. To evaluate the real-world implications, we successfully

demonstrate the feasibility of our attack on the ZFS ﬁle system. Our results clearly show that the presented

attack enables the detection of vulnerable software or operating systems in a victim’s virtual machine on the

same ﬁle system pool with high accuracy. Furthermore, we discuss several potential countermeasures and

their implications.

1 INTRODUCTION

Data deduplication is an efﬁcient way to share a

limited set of resources, like storage or memory,

among several parties. It allows for eliminating re-

dundant or repeating data by carefully analysing

chunks of information. Once redundant parts have

been identiﬁed, they are replaced with reference to

the unique chunk of data. In the event that referenced

parts are modiﬁed, techniques such as CoW ensure

that affected chunks are replicated again. In other

words, data deduplication ensures that only one in-

stance of information needs to be retained, effectively

eliminating the need to store the same data multiple

times.

In recent years, there has been an increasing

interest in data deduplication in environments where

resources are limited or shared, like in multi-user or

Virtual Private Server (VPS) systems. For example,

a signiﬁcant challenge in virtualised environments is

how to cope with storage space, typically associated

with a large number of virtual machines. In fact,

virtual machine images can quickly grow to several

https://orcid.org/0000-0001-6633-858X

https://orcid.org/0000-0001-7902-0087

https://orcid.org/0000-0002-5930-8216

gigabytes in size. Notwithstanding, virtual machines

usually have large overlapping areas due to similar

software or operating systems. Thus, deduplicating

data can help to improve the efﬁciency of the system,

thus reducing the operating costs.

This issue has been acknowledged in academia

as well. For instance, Jin and Miller (2009) have

demonstrated that ”deduplication of virtual machine

images can save 80% or more of the space required

to store the operating system”. Furthermore, ﬁle

systems speciﬁcally designed for deduplication of

virtual machine images, like LiveDFS (Ng et al.,

2011) or Liquid (Zhao et al., 2014), clearly demon-

strate the demand for storage deduplication in cloud

environments.

Although deduplication comes with clear storage

space advantages, it can be susceptible to memory

disclosure attacks. Consequently, information about

systems can be leaked across security boundaries.

For instance, Suzaki et al. (2011) have shown that

deduplication of the main memory can be used to

perform side-channel attacks, disclosing memory

contents to an attacker. The authors have successfully

shown how an adversary can measure the write access

times in one virtual machine to detect applications or

downloaded ﬁles in another virtual machine. This

Palﬁnger, G., Prünster, B. and Ziegler, D.

Prying CoW: Inferring Secrets across Virtual Machine Boundaries.

DOI: 10.5220/0007932301870197

In Proceedings of the 16th International Joint Conference on e-Business and Telecommunications (ICETE 2019), pages 187-197

ISBN: 978-989-758-378-0

187

attack effectively breaks one of the core security

assumptions of cloud computing, i.e., that virtual

machines are conﬁded environments which separate

different users’ conﬁdential data from each other.

While countermeasures like restricting access or

obfuscation exist, deploying them generally decreases

the performance or efﬁciency of a system. Thus,

they are typically not acceptable in VPS or shared

cloud environments where resources need to be used

efﬁciently.

In this paper, we present a novel attack that builds

upon this property, which allows for breaking out of

the strict sandbox environment of virtual machines.

We discuss our contribution in detail in the following

section.

1.1 Contribution

We present a novel attack to determine the existence

of conﬁdential ﬁles in a shared ﬁle system pool, by

relying on a side channel created by data deduplica-

tion techniques of modern ﬁle systems. In a nutshell,

our contribution is threefold:

We successfully demonstrate for the ﬁrst time

how write operation times of modern ﬁle sys-

tems for virtual machine storage can leak critical

information about chunks of data beyond the

context of a virtual machine. We showcase how

this exploit can be used to detect the existence of

ﬁles in a shared ﬁle system pool. In particular,

our attack is accurate enough that it enables an

attacker to probe for the installation of vulnerable

software or operating systems on neighbouring

virtual machines. Still, our approach does not

make any assumptions about the underlying host

CPU or the victim and does not rely on network

access.

We evaluate the real-world implications of our

attack on the ZFS ﬁle system. ZFS is one of

the most mature ﬁle systems which support data

deduplication. We evaluate ZFS regarding three

metrics. First, by detecting any alignment dif-

ferences between the probed ﬁle on the virtual

machine’s internal ﬁle system and the underlying

ZFS storage pool. Second, by determining the

operating systems of adjacent virtual machines.

Third, by detecting speciﬁc applications and their

major and minor version. Our evaluation shows

that we were able to successfully detect block

offsets between the ﬁles inside the victim’s virtual

machine and the ZFS pool, as well as the used

operating system. Furthermore, we were able

to detect speciﬁc versions of an application in a

victim’s virtual machine with high accuracy.

3. We propose several countermeasures to cope with

the presented attack. The majority of solutions,

however, either limits the efﬁcacy of data dedu-

plication or requires changes inside the victim’s

virtual machine. This fact again underlines the

severe impact of our ﬁndings.

1.2 Outline

The paper proceeds by providing background infor-

mation about deduplication in Section 2. Section 3

discusses related work and puts our contribution into

context. Afterwards, Section 4 covers our results and

shows the feasibility of our approach. We evaluate

the practicability of the attack on ZFS, which is one

of the most advanced ﬁle systems to support data

deduplication. Section 5 continues by discussing the

limitations of this attack and possible countermea-

sures. Finally, Section 6 concludes this work and

provides an outlook on future work.

2 BACKGROUND

This section provides background information about

the deduplication support in modern ﬁle systems and

describes different types of deduplication. Further-

more, we take a closer look at the ZFS ﬁle system,

which is one of the ﬁle systems supporting deduplica-

tion.

2.1 Deduplication Support

Modern ﬁle systems such as ZFS

and btrfs

offer

an extended range of functionality compared to con-

ventional ﬁle systems. Among a plethora of new

features, one of the main selling points of these ﬁle

systems is the support for Copy-on-Write (CoW). By

supporting CoW, these ﬁle systems can reference

individual blocks of data multiple times. This tech-

nology enables various features, such as the support

for deduplication of ﬁles with (partially) the same

content. Further advantages are, for instance, the

support for snapshots, which enable the user to cre-

ate images of whole partitions without doubling the

storage space. Developers of more traditional ﬁle

systems have also recognised the advantage of CoW

— for example, the XFS ﬁle system received support

for CoW with the Linux kernel version 4.9 and thus

https://docs.oracle.com/cd/E19253-01/819-5461/

zfsover-2/index.html

https://btrfs.wiki.kernel.org/

SECRYPT 2019 - 16th International Conference on Security and Cryptography

188

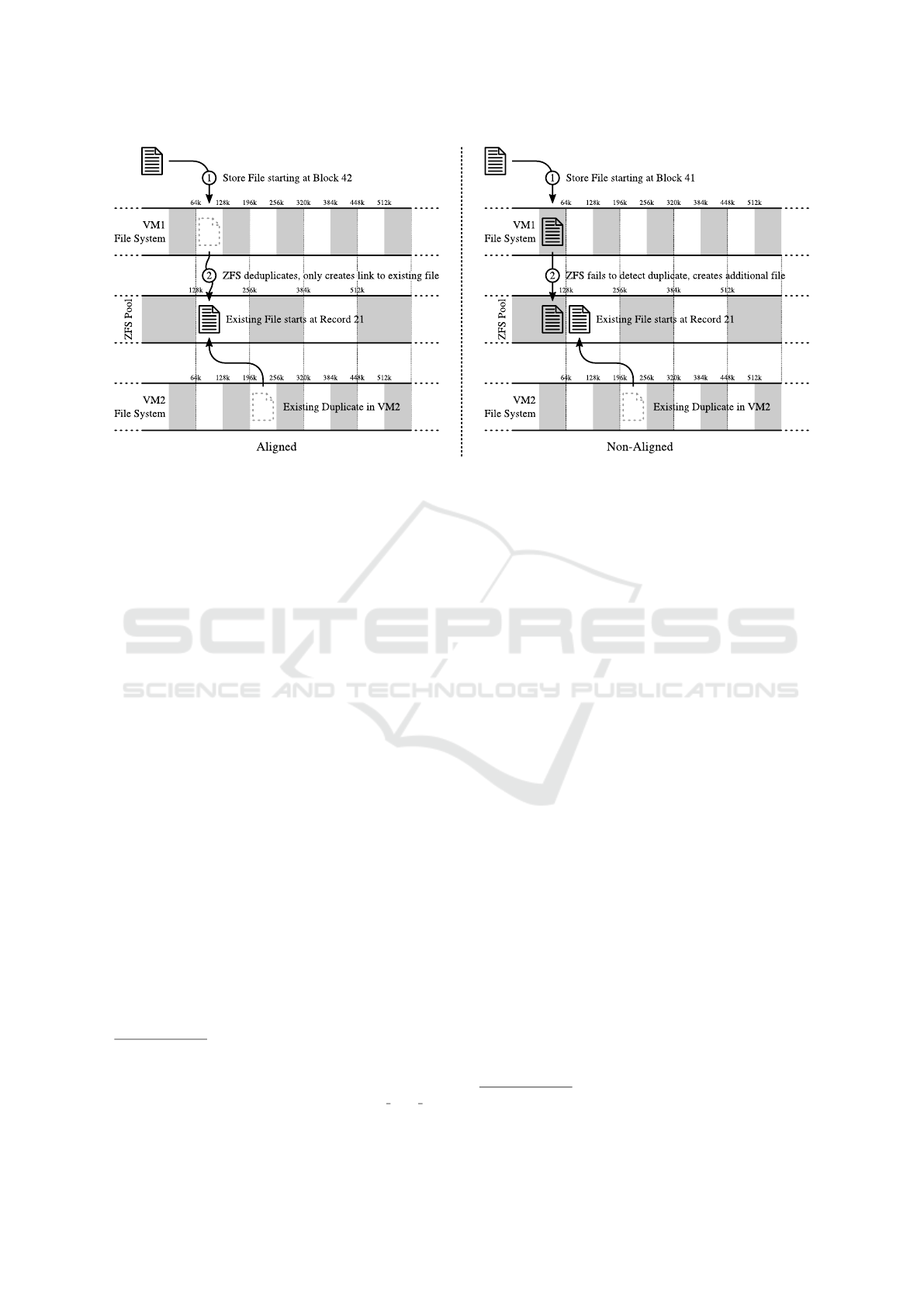

Figure 1: Effect of (mis-)alignment when operating with different block sizes.

also supports deduplication

Deduplication support can be implemented on

three different levels — either on a ﬁle, block, or

byte level. When implemented on the ﬁle level, ﬁles

are only deduplicated if the exact same ﬁle already

exists on the volume. While this approach may be

applicable to individual ﬁles, it does not perform

well with large ﬁles such as virtual machine images,

as these generally only have partial overlap. When

deduplication is performed on the block or byte level,

it is possible to deduplicate ﬁles with only partially

matching contents. While deduplication on the byte

level achieves the highest deduplication ratio due to

its ﬁne granularity, it also has the highest overhead,

as metadata, such as the reference to each byte, have

to be stored for each use of this byte individually.

Hence, most ﬁle systems operate on blocks of data.

These provide a sweet spot between the metadata

overhead and the granularity of the blocks, which

indirectly deﬁnes the deduplication efﬁcacy.

Some ﬁle systems allow tweaking the size of the

blocks for different use cases. As virtual machine

images are generally stored in a single monolithic

ﬁle, tuning the block size is essential to achieve a

high level of deduplication. For instance, the ext4 ﬁle

system, which is the standard ﬁle system for many

Linux distributions, works with a default block size

of 4 KiB

. Furthermore, the ﬁle formats for virtual

machine images may also operate on blocks of data,

https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/

linux.git/commit/?id=35a891be96f1f8e1227e6ad3ca827b8

a08ce47ea

https://ext4.wiki.kernel.org/index.php/Ext4 Disk Lay

out

inﬂuencing the deduplication efﬁciency to a lesser

degree. For example, one of the default ﬁle formats in

QEMU operates on blocks of with a size of 64 KiB

To achieve a high level of deduplication, aligning the

different block sizes is recommended. Otherwise,

even if exactly the same ﬁle is stored on two different

virtual machines, it may not be deduplicated by the

ﬁle system. An overview of this issue is illustrated in

Figure 1.

Let us assume that the ﬁle system inside the virtual

machine uses blocks with a size of 64 KiB, while

the ﬁle system storing the virtual machine images

is operating on blocks of 128 KiB. In this case, the

replicated ﬁle is only deduplicated if it is aligned to

the same part of a block. Particularly, if the beginning

of both ﬁles is to be stored at the beginning of a ﬁle

system block, or the 64 KiB mark, the ﬁles will be

deduplicated as expected. However, if the existing

ﬁle is stored at the beginning of the block but the new

ﬁle is to be stored at the 64 KiB mark, none of the

blocks will be exactly the same. As the blocks do

not align in this case, none of the two ﬁles will be

deduplicated.

In general, there are two different approaches for

supporting deduplication that differ in the point of

time in which deduplication is executed. The follow-

ing subsection will detail the differences between

these two types of deduplication.

https://blogs.igalia.com/berto/2017/02/08/qemu-and-

the-qcow2-metadata-checks/

Prying CoW: Inferring Secrets across Virtual Machine Boundaries

189

2.2 In-line- and Post-process

Deduplication

With in-line or in-band deduplication, the dedupli-

cation process is performed directly when the data

are written. Therefore, data that already exist in this

form on the medium are immediately referenced to

the existing data blocks and do not have to be written

to the medium ﬁrst. In order to avoid unnecessary

slowdowns of the writing process, ﬁngerprints of the

blocks already present on the data storage medium are

generally cached in the main memory during online

deduplication. These ﬁngerprints are compared with

the ﬁngerprint of the data to be written. However,

this cache increases main memory consumption as

the amount of data on the volume increases.

With post-process deduplication, on the other

hand, the data are ﬁrst written to the medium, similar

to conventional ﬁle systems. Only at a later point

in time are the data compared and duplicates are

removed. This process can usually be started manu-

ally by the user or automatically at regular intervals.

This approach avoids the main memory overhead

of in-line-deduplication but increases the amount of

storage required until the deduplication is executed.

Additionally, it also increases the amount of data that

have to be written to disk, producing more wear on

the storage devices. The ZFS ﬁle system supports

in-line deduplication, while btrfs and XFS rely on

post-process deduplication.

In summary, in-line deduplication provides imme-

diate storage space reductions, while post-process

deduplication only consumes main memory while it

is executed. In the next subsection, we will take a

look at ZFS, which is the most mature ﬁle system to

support deduplication.

2.3 The ZFS File System

ZFS operates on storage pools, generally referred

to as zpools. Insides these storage pools, datasets

can be created. For these datasets, options such as

deduplication or compression can be conﬁgured in-

dividually. Even if two identical ﬁles are stored on

different datasets with activated deduplication, the

data will still be deduplicated across these different

datasets as long as these datasets reside on the same

zpool

. In general, ZFS utilises block-level dedu-

plication. These blocks are referred to as records.

The maximum size of these records can be conﬁg-

ured through the recordsize parameter. By default,

https://www.fujitsu.com/global/Images/ZFS%20Imple

mentation%20and%20Operations%20Guide.pdf

these records have a size of 128 KiB. A peculiarity

of ZFS is that records can also be smaller than the

deﬁned recordsize. This property is used to store

small ﬁles more efﬁciently. However, as we deal with

monolithic virtual machine images in this paper, this

property does not inﬂuence any of our experiments.

When committing data to the ﬁle system, ZFS

computes a hash value of the written records and

saves it alongside other metadata to the disk. This

value is generated regardless of the usage of dedupli-

cation as it is also used, for example, to verify the

integrity of stored records. When deduplication is

activated, the hashes and other metadata required

to detect replicated records are kept in the DeDupli-

cation Table (DDT), which is stored inside ZFS’s

Adaptive Replacement Cache (ARC). The ARC gen-

erally resides in the main memory of the system,

which may be supplemented by separate cache de-

vices. If deduplication is activated, ZFS compares the

computed hash value with the hashes inside the DDT.

If the hash exists in the DDT, the reference count

for this record is increased, and the write is ﬁnished.

Therefore, the record does not have to be written to

disk. If, on the other hand, the hash cannot be found

in the DDT, the record has to be committed to the

underlying storage media. Hence, it is reasonable

to assume that the writing process will be ﬁnished

earlier if the ﬁle already exists on disk. Alterna-

tively, when writing to an existing ﬁle that has been

deduplicated, ZFS has to remove the reference to the

existing record, reserve new blocks on the ﬁle system,

possibly copy the existing data to these new blocks,

and subsequently commit the new data. In this case,

we assume that overwriting deduplicated records

will take longer than overwriting non-deduplicated

records. Before we put these assumptions to the

test in Section 4, we will discuss related work in the

following section.

3 RELATED WORK

The side channels resulting from memory deduplica-

tion have been the source for a variety of vulnerabili-

ties. In general, these fall into two categories:

Memory-based

attacks, where RAM deduplication

or cache timings are exploited.

Storage-based attacks, utilising persistent data dedu-

plication, as we do in our work.

While the former has received wide-spread attention

due to the wide applicability of ﬂush+reload (Yarom

and Falkner, 2014) or prime+probe (Tromer et al.,

2010) attacks, the latter has not been applied in the

SECRYPT 2019 - 16th International Conference on Security and Cryptography

190

context of multi-tenant cloud computing. Rather, at-

tacks based on the deduplication features of persistent

data has mostly focused on cloud storage providers

like Dropbox

, for example.

This section ﬁrst delves into memory-based attacks

and summarises their potential compared to our work.

Afterwards, we discuss previous storage deduplica-

tion attacks and argue why our contribution presents

a signiﬁcant advancement over existing solutions.

3.1 Memory-based Deduplication

Attacks

As our solution is based on storage deduplication

features, we brieﬂy discuss attacks based on memory

deduplication to better differentiate the possibilities

and attack scenarios of both approaches. In 2014,

Yarom and Falkner presented a last-level cache attack

(based on the prime+probe principle as outlined by

Tromer et al. (2010)) aimed speciﬁcally at cloud

computing scenarios. This attack exploits timing

differences when accessing data structures based on

whether it has been loaded into the last-level cache or

not. Since hypervisors implement memory deduplica-

tion and the last-level cache is shared between CPU

cores, two otherwise isolated virtual machines actu-

ally share some memory. This makes it possible for

attackers to extract conﬁdential information across

virtual machine boundaries, as long as the target vir-

tual machine is located on the same physical machine

as the attacker’s (Yarom and Falkner, 2014). Based

on this principle, Maurice et al. (2017) have shown

that it is even possible to establish an SSH connection

between two virtual machines over a covert channel,

fast enough even to stream high deﬁnition video.

More closely related to our contribution is the work

by Irazoqui et al. (2015) aimed at detecting installed

cryptographic libraries across virtual machine bound-

aries. Due to the high precision of this side channel, it

is possible to pinpoint the exact version of an installed

library and thus, probe for versions containing known

vulnerabilities to be exploited.

Although all of these attacks make it possible to

extract information in a very ﬁne-grained manner and

can therefore be devastating, they require attacker and

victim VMs to be located on the same physical ma-

chine. Moreover, some of these exploits are speciﬁc

to certain CPU architectures. Our storage-based side

channel attack, on the other hand, is OS-independent

and makes no assumptions about the host machine’s

architecture. In its current form it does, however, not

enable high-resolution attacks or high-speed covert

https://dropbox.com/

channels and is thus better suited to probe for instal-

lations of known vulnerable software to be exploited

separately, similarly to the work of Irazoqui et al.

The following section outlines attacks on storage

deduplication to put our work into context.

3.2 Storage-based Deduplication

Attacks

Already in 2010, Harnik et al. have shown that

client-side, cross-user deduplication in cloud storage

settings can be exploited to violate some privacy

guarantees typically assumed in such a context. In

essence Harnik et al. (2010) show how it is possible to

detect whether or not some ﬁle is present on a cloud

storage platform by observing trafﬁc when uploading

a ﬁle. This works, because prior to uploading a ﬁle,

its hash is transmitted to the cloud storage provider to

check whether the ﬁle is already present and if it is,

no upload takes place. After projects like dropship

started to actively exploit this feature for covert, cross-

user ﬁle sharing, countermeasures were put in place

by Dropbox.

While our work is based on the same principle, it

targets a multi-tenant cloud computing context. It

can therefore be considered an extension of memory-

deduplication attacks across the physical machines

hosting virtual machines and makes it even possible

to infer information about the hosts themselves. This

opens up new attack vectors compared to memory-

based side channel attacks, since our only require-

ment is a shared ZFS pool and thus no assumptions

about sharing a CPU with a victim need to be made.

This is especially devastating in a managed cloud

scenario, where tenants do not have full access to the

instances they are using and are thus incapable of

deploying countermeasures. Pooranian et al. (2018),

for example, propose to group storage requests as to

make guesses about which chunk of data may be al-

ready present less reliable. Since this defence targets

only the cloud storage sector it is difﬁcult to transfer

this approach to performance-critical settings such

as the multi-tenant cloud computing sector. Other

approaches based on convergent encryption, such as

ClouDedup proposed by Puzio et al. (2013), on the

other hand, would require invasive changes to the

software stack deployed by cloud providers. In effect,

it is unlikely that countermeasures proposed for cloud

storage are applicable to the cloud computing sector

due to highly different constraints.

Our work essentially closes the gap between

cross-user cloud storage deduplication attacks and

https://github.com/driverdan/dropship

Prying CoW: Inferring Secrets across Virtual Machine Boundaries

191

memory-based side channel exploits directly aimed

at the cloud computing sector. This means that

we are able to apply storage-based techniques to

establish multi-bit covert channels between virtual

machines, even if they do not share a host, as long

as their virtualised drives reside on the same ZFS

pool. Consequently, schemes like those proposed by

Hovhannisyan et al. (2015) to establish more than

just single-bit covert channels based on the existence

of a particular ﬁle can directly be applied in our

setting. While the original publication on this matter

presented a signiﬁcant advancement over single-bit

channels, it is still limited to bandwidth constraints

under real-world settings. Our attack scenario, on the

other hand, is not subject to such limitations as it puts

no strain on network links. Consequently, it works

even when no network access is available, similar to

the attack presented by Maurice et al. (2017). Far

more effective than applying ﬁle-based deduplication

side channels to establish covert communication,

however, is using our approach to probe for the

installation of vulnerable software, as explained

by Irazoqui et al. (2015).

To actually recover the IP address of a virtual

machine that has a vulnerable software installed,

we can apply the same mechanism as proposed by

Irazoqui et al.: In effect, once a vulnerable version

of a service is found, we can simply probe the IP

neighbourhood of the virtual machine we control

and try to mount known attacks on each reachable IP

address to see which one responds to the attack.

4 PRYING COW

The following subsections describe the test setup,

the experiments performed, and the results obtained,

showing that it is indeed possible to infer information

about neighbouring virtual machines.

4.1 Test Setup

In our evaluation, we concentrate on the ﬁle system

ZFS, as it is the most mature representative of ﬁle

systems supporting deduplication. The experiments

were performed on a computer with an Intel



Core

i5-6200U CPU and 12 GB RAM. The host

operating system was Ubuntu 18.04 LTS with Linux

Kernel 4.15 and ZFS on Linux 0.7.5. While ZFS was

originally developed for the Solaris operating system,

ZFS has also been ported to Linux and is, for example,

ofﬁcially supported by Ubuntu since version 16.04

LTS

. The virtual machines in the experiment are

running on QEMU/KVM. The images of the virtual

machines are stored on a common ZFS pool, which

uses a recordsize of 64 KiB. The adjacent virtual

machines generally run in the background during the

experiments.

The measurement program was executed on a

virtual machine running Ubuntu 18.10. For this pur-

pose, the ﬁles to be detected were loaded into the

virtual machine of the attacker. In order to exclude

false positives, these ﬁles were saved onto a tmpfs,

i.e., they were written directly into the allocated

main memory of the virtual machine instead of the

storage volume. In general, the ﬁles stored on the

virtual machine executing the measurement program

should have as little overlap as possible with the data

used to detect the victims. Due to the immediate

deduplication of the contents using in-line deduplica-

tion, measurements can be performed directly when

writing data. Compared to post-process deduplica-

tion as used in btrfs, there is no need to wait until

the deduplication process is complete. During the

evaluation phase, the measuring program directly

memory maps the ﬁle. The application then proceeds

by writing the mapped ﬁle to the storage volume

of the virtual machine, which is backed by the ZFS

pool. To measure the execution time more precisely,

the ﬁle descriptor used to write the ﬁle is opened

with the option

O SYNC

. As a result, the operating

system waits until all data have been written, and,

compared to the default behaviour, does not continue

the program ﬂow before the data are committed to

the system. In addition, the execution times of the

write operations were measured on the basis of the

guidelines provided by Intel



for benchmarking

code as outlined by Paoloni (2010). This prevents

the measurement results from being falsiﬁed by the

out-of-order execution of modern processors.

Simultaneous processes on the storage volume or

the system could, in general, lead to differences in

the execution time. While this has not been an issue

for large ﬁles in our experiments, as the difference

between the execution times is more signiﬁcant, it

may lead to wrong conclusions when writing smaller

ﬁles. In order to compensate for such differences,

the measurements can be performed several times

and then statistically analysed. To restore the virtual

machine to the starting point after a measurement,

the ﬁle is overwritten with random data and subse-

quently deleted. We measure both the time it takes to

write the ﬁle initially, and the duration of overwriting

the ﬁle afterwards. As mentioned previously, our

https://arstechnica.com/gadgets/2016/02/zfs-ﬁle

system-will-be-built-into-ubuntu-16-04-lts-by-default/

SECRYPT 2019 - 16th International Conference on Security and Cryptography

192

0 4 8 12 16 20 24 28 32 36 40 44 48 52 56 60

Offset [KiB]

Execution Time [s]

Figure 2: Detection of the the block offset inside a ZFS record.

assumption is that writing the ﬁle initially is faster if

the ﬁle already (partially) exists on the volume, while

overwriting a deduplicated ﬁle is slower than over-

writing a non-deduplicated ﬁle. In our experiments,

we found that the difference is more pronounced in

the ﬁrst case. Therefore, the stated measurements in

the following case studies are from the initial writes,

if not mentioned otherwise. The following subsection

proceeds by showing how to detect the block offset,

in case the blocks stored in the virtual machine image

are not aligned with the recordsize.

4.2 Detection of the Block Offset

As stated in the previous section, our ZFS pool works

on records with a size of 64 KiB. However, we

observed that most ﬁle systems created during the

installation of an operating system use a block size of

4 KiB. Thus, replicated ﬁles may not be aligned to the

recordsize and may not get deduplicated, as outlined

in Section 2.1. While we observed that some oper-

ating systems, such as Ubuntu 18.10, align (large)

ﬁles to 64 KiB, other operating systems such as Win-

dows 10 do not. To account for a possible alignment

mismatch on real-world systems, the measurements

can be invoked repeatedly with padded ﬁles. Without

loss of generality, we assume that the victim virtual

machine uses a block size of 4 KiB. Therefore, we

will pad the ﬁle at the beginning in steps of 4 KiB. To

avoid skewing the measurements by writing paddings

of different size, we always pad the written ﬁle by

64 KiB. The part of the pad that is not used at the

beginning of the ﬁle will be attached to the end of

the ﬁle. Figure 2 shows the results of detecting a

non-aligned ﬁle inside a virtual machine running

Windows 10. As shown in this ﬁgure, writing the ﬁle

with an offset of 36 KiB takes less time than writing

the ﬁle at other offsets. Therefore, we detected that

the ﬁle exists in another virtual machine at this offset.

In the following subsections, we assume that the ﬁles

are aligned to the recordsize of the ZFS pool.

1.5

2.5

Test Sample

Execution Time [s]

File exists

File does not exist

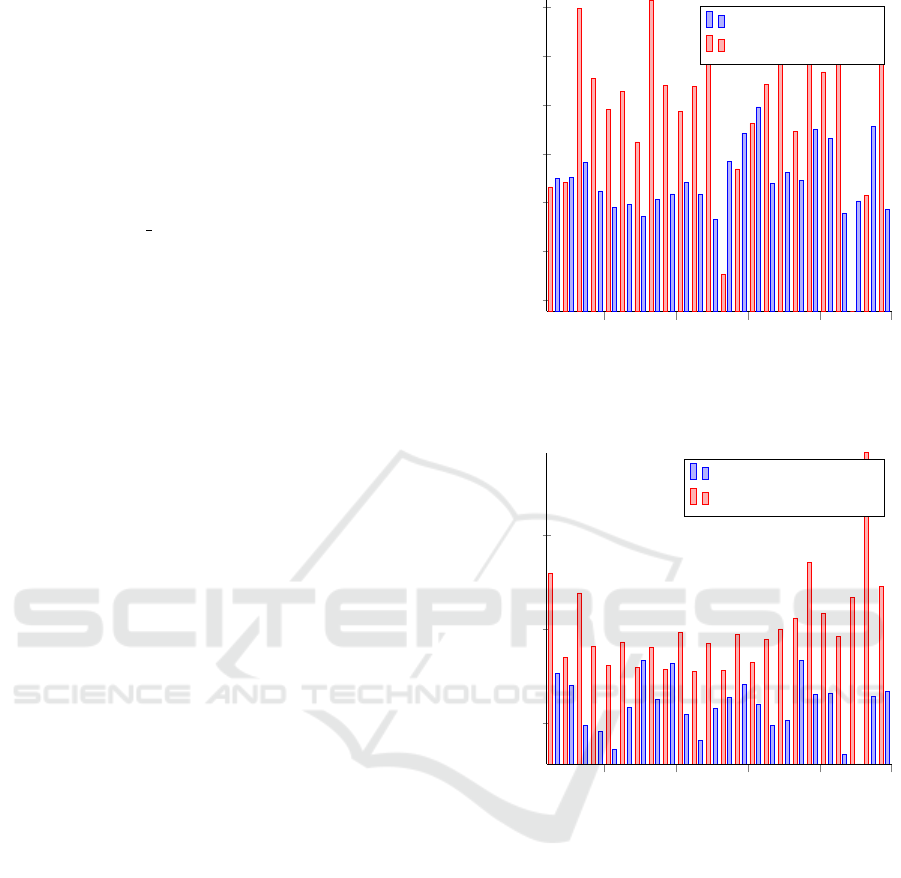

Figure 3: Execution times of writing the ﬁle gnome-3-26-

1604 70.snap (part of Ubuntu 18.10) to disk.

Prying CoW: Inferring Secrets across Virtual Machine Boundaries

193

4.3 Detection of Adjacent Operating

Systems

In the ﬁrst case study, we identify the operating

system an adjacent virtual machine is running. To

identify the operating system, a ﬁle unique to the

operating system was chosen. For example, in this

experiment, we ﬁrst detect whether or not a neigh-

bouring virtual machine has Ubuntu installed. The

gnome-3-26-1604 70.snap ﬁle was chosen to identify

the operating system, as it comes by default with the

operating system, even when choosing a minimal set

of applications during the installation. As the virtual

machine used to conduct the measurements also runs

Ubuntu 18.10, the corresponding ﬁle was removed

from this system prior to the measurement runs to

avoid any false negatives. The measurements can be

found in Figure 3. The red bars show the experiments

where Ubuntu was not installed on the same volume,

while the blue bars show the experiments where

Ubuntu was installed. The Figure depicts 25 different

measurements for each of the cases, out of the 200

measurements conducted. As shown in the ﬁgure, the

writing time is generally much higher if the library

ﬁle does not exist, conﬁrming our earlier assumption.

Due to some outliers, it is advisable to perform mul-

tiple measurements before coming to a conclusion

about the utilised operating system. However, even

considering these outliers, using k-means we were

able to cluster

81%

of the measurements correctly.

As each measurement only takes a few seconds, it is

possible to detect the adjacent operating system in a

short amount of time, even when conducting multiple

measurements.

For the sake of completeness, we also identify

a neighbouring Windows 10 virtual machine. The

measurements are depicted in Figure 4. Similar to

the previous illustration, the red bars show the experi-

ments where Windows 10 was not installed, while the

blue bars show the experiments where Windows 10

was installed. In this case, the Microsoft.Photos.dll

library was chosen to identify the operating system,

as it only exists in Windows 10. As in the previous

experiment, it is again possible to distinguish whether

or not the operating system is deployed in the vicinity.

Summing up, it is possible to detect both Linux- and

Windows-powered virtual machines.

4.4 Detection of Applications

The following case study shows that it is even pos-

sible to detect individual applications in a virtual

machine running in parallel. The adjacent virtual

machine is running Ubuntu 18.10. The application

0.8

1.2

1.4

1.6

1.8

Test Sample

Execution Time [s]

File exists

File does not exist

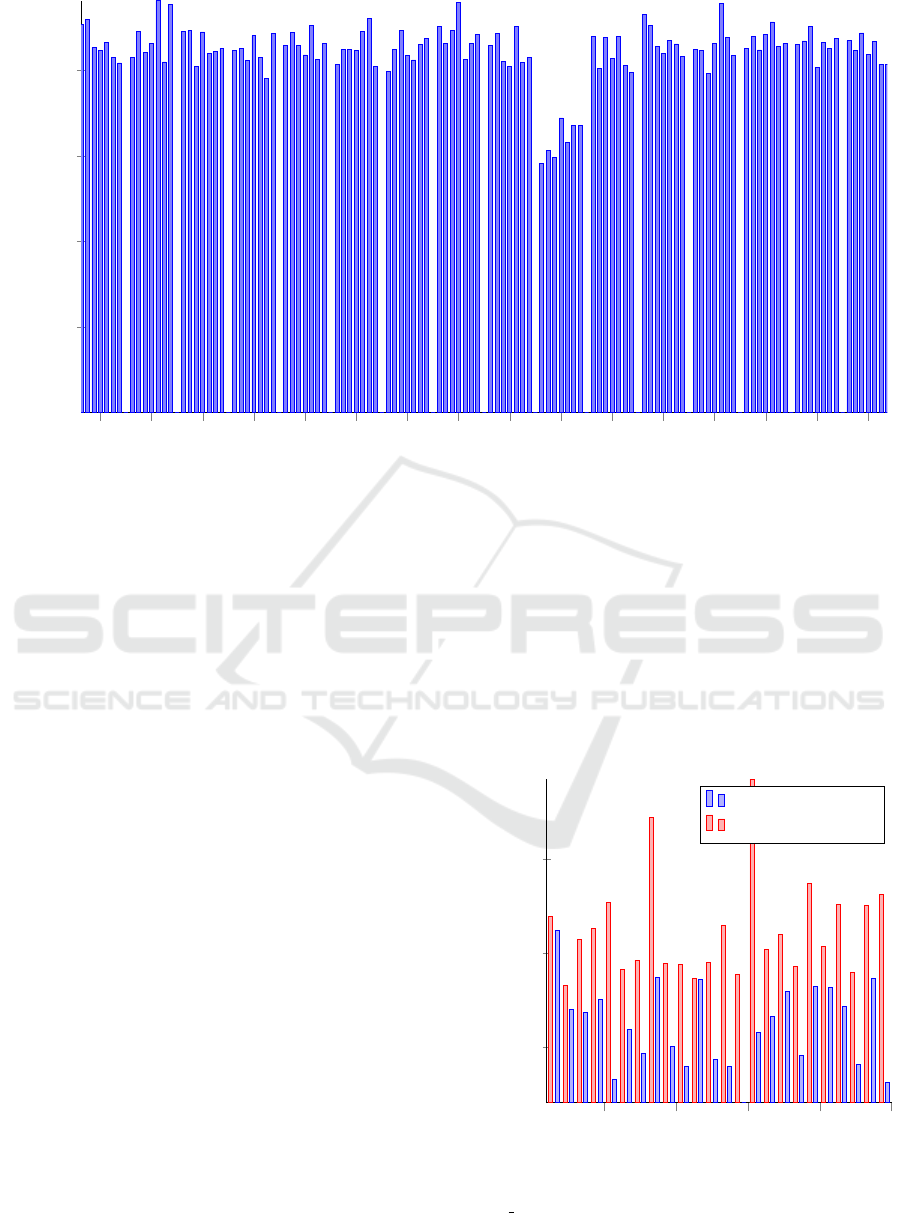

Figure 4: Execution times of writing the Mi-

crosoft.Photos.dll library (part of Windows 10) to disk.

1.5

2.5

Test Sample

Execution Time [s]

Firefox installed

Firefox not installed

Figure 5: Execution times of writing Firefox’s libxul.so to

disk.

to be detected is the Firefox web browser. The mea-

surements conducted for this experiment are shown

in Figure 5. Similar to the previous case study, 25

measurements are depicted, where the red bars illus-

trate the case where Firefox is not installed, while the

blue bars show the experiments where Firefox was

installed in a neighbouring virtual machine. In the

test cases where Firefox is installed, it was installed

from the ofﬁcial repositories of Ubuntu. We identify

Firefox by detecting the libxul.so shared object ﬁle,

which is an integral part of the web browser. In total,

we conducted 100 measurement runs (50 for each

case) for this experiment. In addition to giving an

intuition about the detectability of an application,

we again used k-means to cluster the results into

SECRYPT 2019 - 16th International Conference on Security and Cryptography

194

2 4

8 10 12 14

18 20 22 24

1.2

1.4

1.6

1.8

Test Sample

Execution Time [s]

65.0 installed, probing for 65.0.1

65.0.1 installed, probing for 65.0.1

65.0.1 installed, probing for 65.0

65.0 installed, probing for 65.0

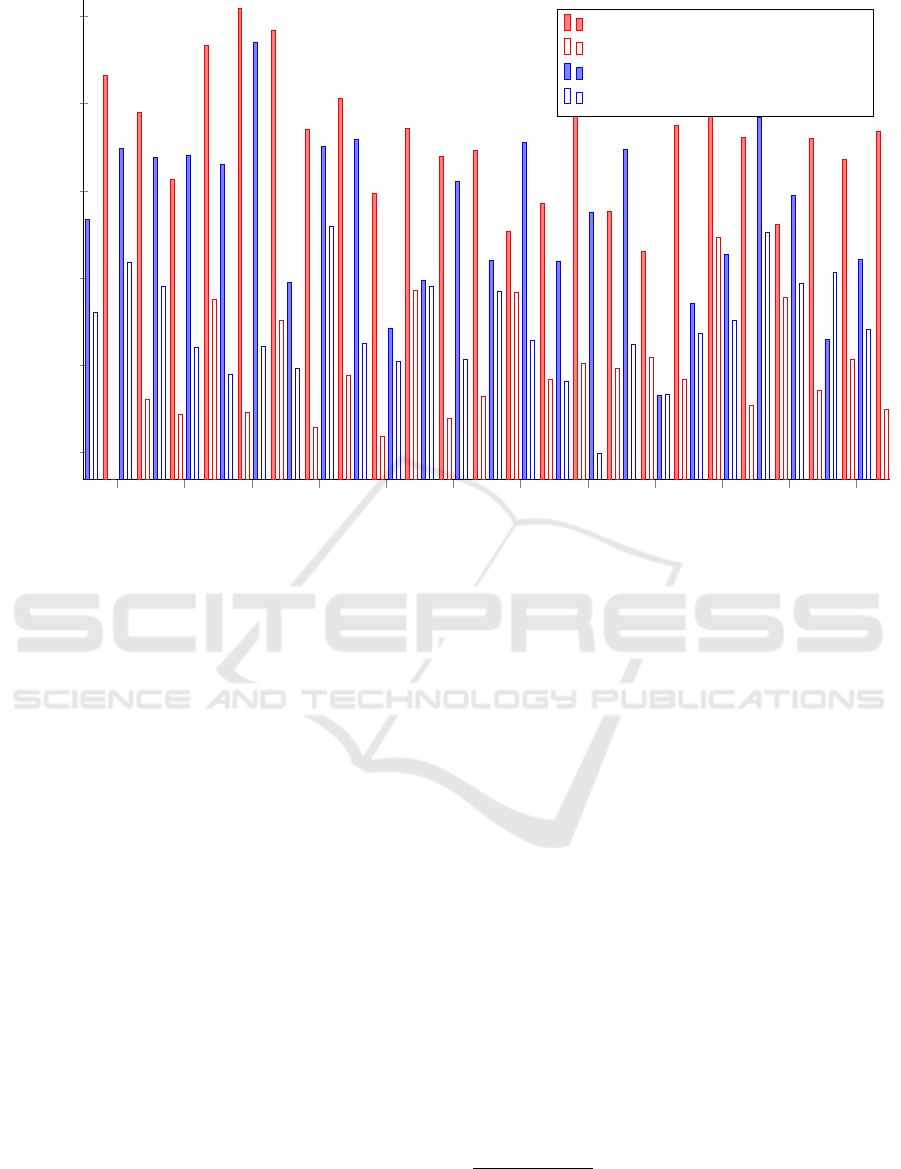

Figure 6: Execution times of writing different versions of Firefox’s libxul.so to disk.

two classes. It was possible to partition

83%

of the

measurements correctly, showing that it is indeed

feasible to detect the existence of an application in a

neighbouring virtual machine.

Even more interesting than the mere presence

of an application is the patch level of a program,

as accompanying changelogs provide information

about potential vulnerabilities. Thus, we show in the

next experiment that it is possible to detect the exact

version number of Firefox, down to the minor version.

Figure 6 shows these results. In the experiment, we

distinguish four different cases:

Firefox 65.0 installed, but probing for Firefox

65.0.1

Firefox 65.0.1 installed, probing for Firefox

65.0.1

Firefox 65.0.1 installed, but probing for Firefox

65.0

4. Firefox 65.0 installed, probing for Firefox 65.0

Like in the previous experiments, the diagram shows

25 measurements for each case. This experiment

shows that an adversary can detect the exact version

of an application by recording the execution time of

writing the corresponding ﬁle. Consequently, it is

possible to detect applications with known vulnerabil-

ities in a neighbouring virtual machine. For example,

Firefox 65.0.1 closed four different security vulnera-

bilities

, some of which are openly documented

The update did not include any other changes. An at-

tacker could potentially use the known vulnerabilities

to compromise an adjacent virtual machine.

Similar to the previous experiments, we used k-

means to cluster all the 200 conducted measurement

runs (100 for each case) into two clusters, i.e., into

application detected and not detected. With k-means

we were able to correctly partition

91.5%

of the mea-

surements between case 1 and 2. By combining

both writing measurements and overwriting measure-

ments, we were able to increase the accuracy to

94%

On its own, the overwriting measurements achieve

an accuracy of

79.5%

. When applying k-means to

case 3 and 4,

93.5%

of the writing measurements

can be partitioned correctly. Combining the writing

and overwriting measurements did not increase the

achieved accuracy. Still, this experiment shows that

it is possible to detect the installed version of an

application with high accuracy, even by evaluating

only a single measurement.

https://www.mozilla.org/en-US/security/advisories/

mfsa2019-05/

https://googleprojectzero.blogspot.com/2019/02/the-

curious-case-of-convexity-confusion.html

Prying CoW: Inferring Secrets across Virtual Machine Boundaries

195

5 DISCUSSION

This section deals with limitations of the attack vector

and possible countermeasures on the part of the

operators of cloud services and the users of the virtual

machines.

5.1 Limitations

The attack cannot determine whether a program or

virtual machine is currently running or only resident

on the disk. If multiple adjacent virtual machines

are present, it is hard to tell which of the virtual

machines is running a speciﬁc operating system or

application. Thus, this attack is comparable to attacks

on the page deduplication of the main memory, such

as outlined by Suzaki et al. (2011). In their attack,

no deﬁnitive statement can be made about currently

running programs, as non-executed program ﬁles can

also be stored in RAM. Likewise, it is not possible

to recognise which neighbouring virtual machine

a program is located in. Even when considering

these limitations, the ability to recognise ﬁles in other

virtual machines undermines the security and privacy

assumptions associated with virtualisation.

5.2 Countermeasures

To avoid this vulnerability on the side of the operators

of VPSs, images of different virtual machines can

be stored on separate ZFS pools or, in general, on

partitions that are deduplicated independently. This

means that ﬁles in other virtual machines can no

longer be identiﬁed by an attacker. However, by

applying this countermeasure, only the blocks within

a single image can be deduplicated. Since the storage

advantages result primarily from the fact that the

operating system and application ﬁles of different

images are similar, the beneﬁts of deduplication are

greatly reduced.

As an alternative to deduplication, compression

can be utilised. Although, while compression can

save storage space, it does not prevent similar ﬁles

from being replicated on the medium. On the other

hand, compression requires less memory compared to

in-line deduplication, since the information required

for deduplication does not have to be stored in the

main memory. However, especially with many dupli-

cated blocks, the reduction in storage space achieved

by compression alone is likely to be lower.

On the side of the end users of the virtual ma-

chines, encryption can be applied to the stored data.

This effectively prevents applications or data stored

in the virtual machine from being recognised by an

Encrypted Partition(s)

VM Image 2

ZFS Pool

VM Image 1

Block Device

Encrypted Partition(s)

Figure 7: Applying encryption on the user side to avoid

deduplication.

attacker. Encryption, in general, completely prevents

deduplication of the data, as it renders each repli-

cated block of data different. Therefore, encryption

has to be applied above the deduplication layer, as

shown in Figure 7. At the same time, this approach

nulliﬁes any advantage of deduplication. Moreover,

even when enabling full hard disk encryption in the

installation process of some operating systems, data

sufﬁcient for identiﬁcation of the operating system

type may be stored unencrypted (Landau, 2018). For

this reason, it should be ensured that all ﬁles are

properly encrypted as outlined by Kogan (2014) —

even the ﬁles required for the boot process, such as

the Linux kernel image.

6 CONCLUSIONS

Data deduplication is typically used in cloud environ-

ments to reduce the required storage space and thus

improve efﬁciency and in turn provide cost reductions.

However, as we have shown in this paper, relying

on deduplication can also reveal information about

neighbouring systems that compromises the privacy

and security of virtual machine users. More specif-

ically, this work has demonstrated a novel attack

which exploits the deduplication feature of modern

ﬁle systems. We have successfully demonstrated for

the ﬁrst time how timing attacks on write operations

in a shared ﬁle system pool enable an adversary to

probe for installed software or operating systems

inside adjacent virtual machines, including version

numbers and patch levels of applications.

Our approach differs from existing attacks in

the sense that it is purely based on measuring write

operation timings of modern ﬁle systems and does

not require elevated user rights. Furthermore, the

approach does not make assumptions about the un-

derlying hardware or network access. As a result,

the attack effectively breaks one of the core security

assumptions of cloud computing.

In general, the attack can be prevented by relying

on separate pools for each virtual machine or by

SECRYPT 2019 - 16th International Conference on Security and Cryptography

196

relying solely on compression instead of dedupli-

cation to reduce storage usage. Another approach

to counter this attack is to encrypt the data inside

the virtual machines. However, all of the discussed

countermeasures impact the achievable storage space

reductions negatively. Therefore, we plan to explore

how to better mitigate such attacks in future work.

While this paper focused on detecting individual ﬁles,

we believe that it is also possible to discover multiple

consecutive ﬁles. In this case, each of the written

ﬁles has to be aligned to the block size of the ﬁle

system. We leave the extension of the measurement

application as future work. Nevertheless, due to

the severity of the presented attack, we propose to

reconsider relying on data deduplication in multi-user

and shared cloud environments.

REFERENCES

Harnik, D., Pinkas, B., and Shulman-Peleg, A. (2010). Side

Channels in Cloud Services: Deduplication in Cloud

Storage. IEEE Security & Privacy, 8:40–47.

Hovhannisyan, H., Lu, K., Yang, R., Qi, W., Wang, J.,

and Wen, M. (2015). A Novel Deduplication-Based

Covert Channel in Cloud Storage Service. In 2015

IEEE Global Communications Conference, GLOBE-

COM 2015, San Diego, CA, USA, December 6-10,

2015, pages 1–6. IEEE.

Irazoqui, G., Inci, M. S., Eisenbarth, T., and Sunar, B.

(2015). Know Thy Neighbor: Crypto Library Detec-

tion in Cloud. PoPETs, 2015:25–40.

Jin, K. and Miller, E. L. (2009). The effectiveness of

deduplication on virtual machine disk images. In The

Israeli Experimental Systems Conference – SYSTOR

2009, ACM International Conference Proceeding

Series, page 7. ACM.

Kogan, P. (2014). Full disk encryption with luks (including

/boot). https://www.pavelkogan.com/2014/05/23/luks-

full-disk-encryption/. Last accessed on Mar 13, 2019.

Landau, P. (2018). Full-system encryption needs

to be supported out-of-the-box including /boot

and should not delete other installed systems.

https://bugs.launchpad.net/ubuntu/+source/ubiquity/+

bug/1773457/. Last accessed on Mar 13, 2019.

Maurice, C., Weber, M., Schwarz, M., Giner, L., Gruss, D.,

Boano, C. A., Mangard, S., and R

omer, K. (2017).

Hello from the Other Side: SSH over Robust Cache

Covert Channels in the Cloud. In Network and Dis-

tributed System Security Symposium – NDSS 2017.

The Internet Society.

Ng, C., Ma, M., Wong, T., Lee, P. P. C., and Lui, J. C. S.

(2011). Live Deduplication Storage of Virtual Ma-

chine Images in an Open-Source Cloud. In Interna-

tional Middleware Conference 2011, volume 7049 of

LNCS, pages 81–100. Springer.

Paoloni, G. (2010). How to benchmark code execution

times on intel ia-32 and ia-64 instruction set architec-

tures. Intel Corporation, page 123.

Pooranian, Z., Chen, K., Yu, C., and Conti, M. (2018).

RARE: Defeating side channels based on data-

deduplication in cloud storage. In IEEE INFOCOM

2018 - IEEE Conference on Computer Communi-

cations Workshops, INFOCOM Workshops 2018,

Honolulu, HI, USA, April 15-19, 2018, pages 444–

449. IEEE.

Puzio, P., Molva, R.,

Onen, M., and Loureiro, S. (2013).

ClouDedup: Secure Deduplication with Encrypted

Data for Cloud Storage. In IEEE 5th International

Conference on Cloud Computing Technology and

Science, CloudCom 2013, Bristol, United Kingdom,

December 2-5, 2013, Volume 1, pages 363–370. IEEE

Computer Society.

Suzaki, K., Iijima, K., Yagi, T., and Artho, C. (2011).

Memory deduplication as a threat to the guest OS. In

European Workshop on System Security – EUROSEC

2011, page 1. ACM.

Tromer, E., Osvik, D. A., and Shamir, A. (2010). Efﬁcient

Cache Attacks on AES, and Countermeasures. J.

Cryptology, 23:37–71.

Yarom, Y. and Falkner, K. (2014). FLUSH+RELOAD: A

High Resolution, Low Noise, L3 Cache Side-Channel

Attack. In USENIX Security Symposium 2014, pages

719–732. USENIX Association.

Zhao, X., Zhang, Y., Wu, Y., Chen, K., Jiang, J., and Li,

K. (2014). Liquid: A Scalable Deduplication File

System for Virtual Machine Images. IEEE Trans.

Parallel Distrib. Syst., 25:1257–1266.

Prying CoW: Inferring Secrets across Virtual Machine Boundaries

197
