Detecting, Opening and Navigating through Doors:

A Uniﬁed Framework for Human Service Robots

Francesco Savarese

1,2

, Antonio Tejero-de-Pablos

, Stefano Quer

and Tatsuya Harada

DAUIN Department of Control and Computer Engineering, Politecnico di Torino, Turin, Italy

Machine Intelligence Lab., The University of Tokyo, Tokyo, Japan

Keywords:

Service Robotics, Door Opening, State Machines, Object Detection, Autonomous System.

Abstract:

For an autonomous robotic system, detecting, opening, and navigating through doors remains a very challeng-

ing problem. It involves several hard-to-solve sub-tasks such as recognizing the door, grasping the handle,

discriminating between pulling or pushing the door, and detecting locked doors. Previous works tackle in-

dividual sub-problems, assuming that the robot is already facing the door handle or that the robot knows in

advance the exact location of the door. However, ignoring the navigation through the door, using specialized

robots, or speciﬁc types of doors, reduce the applicability of existing approaches. In this paper, we present a

uniﬁed framework for the door opening problem, by taking a navigation scenario as a reference. We implement

speciﬁc algorithms to solve each sub-task, and describe the hierarchical automata which integrates the control

of the robot during the entire process. Moreover, we implement error recovery mechanisms to add robustness

and to guarantee a high success rate. We carry out experiments on a realistic scenario using a standard service

robot, the Toyota Human Support Robot. We show that our framework can successfully detect, open, and

navigate through doors in a reliable way, with low error rates, and without adapting the environment to the

robot. Our experiments demonstrate the high applicability of our framework.

1 INTRODUCTION

First attempts of human-robot cooperation focused on

robots capable of guiding people in public environ-

ments like museums (Burgard et al., 1998; Kim et al.,

2004; Thrun et al., 1999). However, inﬂuenced by the

aging population problem, current service robotics is

mainly focusing on the design of robots to assist el-

derly people, or people with mobility impairments, in

their daily life at home (Khatib, 1999). Nowadays,

robots are able to work in environments like houses or

ofﬁces to perform common tasks such as picking up

objects or delivering articles. They have also reached

a high level of human-robot cooperation (Hernandez

et al., 2017; Johnson et al., 2015; Krotkov et al., 2017;

Lim et al., 2018). Overall, current approaches empha-

size the ability to autonomously navigate unknown

environments and to interact with humans.

To freely navigate in unmodiﬁed domestic envi-

ronments, robots have to be able to perform basic ob-

stacle avoidance and handle complex situations. In

particular, one very common and still unsolved prob-

lem is opening a door, without the human assistance.

Door opening has drawn attention because of its com-

plexity, and because it involves different sub-tasks

such as handle recognition, handle grasping, discrim-

ination between pulling or pushing the door, and the

detection of locked doors.

1.1 Related Works

Recent works have approached the problem of door

opening using robots designed or speciﬁcally modi-

ﬁed for the target. For example (Rhee et al., 2004)

adopts an exclusive robot whose hand is speciﬁcally

designed for the door opening task. Other approaches,

e.g., (Aude et al., 2006; Chitta et al., 2010; Ott et al.,

2007), detect doors and handles relying on data fu-

sion information coming from cameras, lasers, and

other sensors. Andreopoulos et al. (Andreopoulos and

Tsotsos, 2007) tried to solve the door opening prob-

lem using a robotics wheelchair. They used a com-

puter vision approach based on Viola-Jones for door

and handle recognition. However, they only stud-

ied handle detection and grasping, without propos-

ing a method for door opening. Boston Dynamics

https://www.bostondynamics.com/spot-mini.

416

Savarese, F., Tejero-de-Pablos, A., Quer, S. and Harada, T.

Detecting, Opening and Navigating through Doors: A Uniﬁed Framework for Human Service Robots.

DOI: 10.5220/0007947604160427

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 416-427

ISBN: 978-989-758-379-7

presented a solution based on the cooperation of two

SpotMini robots. However, given the robot structure

(i.e., a four-legged robot), it is hard to transfer the ap-

proach to common service robots. Moreover, their ap-

proach is not public.

Many works concentrate on independent tasks of

the door opening problem, often neglecting naviga-

tion issues. For example, the research in (Petrovskaya

and Ng, 2007; Rhee et al., 2004; Peterson et al., 2000;

Dongwon et al., 2004) only tackles handle unlatch-

ing and door opening, obviating approaching the door

and navigating through it. For that reason, their major

limitation lies on the premise that the robot is initially

facing the door to detect the handle. The position of

the robot with respect to the door can inﬂuence signif-

icantly the success of the detection process, meaning

that the robot needs to know the door position in the

space to proceed correctly. Thus, they are not suitable

for realistic scenarios in which the robot is moving.

The challenging task of door opening while navi-

gating has also received a lot of attention. Meeussen

et al. (Meeussen et al., 2010) propose a framework

that integrates autonomous navigation and door open-

ing. For door detection, they use a point cloud repre-

sentation, while for handle recognition, they combine

laser scans and a computer vision approaches. Al-

though they analyzed the entire navigation and door

opening problem, their approach requires the knowl-

edge of several details on the environment, such as

the door width and the door type. Similar considera-

tions can be made for Chitta et al. (Chitta et al., 2010),

where a planning algorithm is proposed for opening

(pulling and pushing) doors, but the robot needs to

know in advance if the target door is a pulling or

a pushing one. As the ﬁrst task to solve to open a

door is to ﬁnd the door and detect the handle, Kim

et al. (Kim et al., 2011) solve the detection task us-

ing a video cameras. However the proposed method

detects doors using a context-based object recogni-

tion approach, limiting its applicability to well known

environments. Shalaby et al. (Shalaby et al., 2014)

base their recognition task completely on a vision

system. The task is accomplished pairing visual in-

formation and door geometric description. However,

the approach requires a prior knowledge of doors de-

tails (such as the handle height) limiting the method

applicability to only well-known scenarios. Rusu et

al. (Rusu et al., 2009) use a laser perception-based

to robustly estimate the handle position. Klingbeil et

al. (Klingbeil et al., 2010) combine a visual algorithm

with laser data to locate the handle in the space. How-

ever, after handle unlatching, they do not tackle the

problem of door opening. Jain et al. (Jain and Kemp,

2008) roughly estimate the handle position using a

laser scan. After that, the robot haptically searches

for the door handle over the surface of the door. Af-

ter the handle unlatching, the door is pushed to be

opened. They do not study the case of pulling door

and they do not move the robot through the door. Gray

et al. (Gray et al., 2013) focus their attention to both

non-spring and spring-loaded doors. They propose

a graph-based planning algorithm for opening both

pulling and pushing doors. However, they do not ana-

lyze the entire problem ﬂow. Moreover, their opening

strategy requires to store additional information about

the doors. Fern

andez et al. (Fern

andez-Caram

es et al.,

2014) proposed a method for detecting doors in corri-

dors by detecting vertical lines from images obtained

with a laser scan. The goal of this method is not open-

ing the door (since it cannot detect handles), but to use

the detected doors as a reference to correct the robot

position in the map.

1.2 Contributions

The tasks required in a robust uniﬁed pipeline for

door opening and navigation that does not rely in prior

knowledge of the door characteristics are: Door and

handle detection, door type/opening direction estima-

tion, handle grasping, and ﬁnally navigation through

the door. None of the aforementioned works tackle

this pipeline in its entirety. Moreover, while an

off-the-shelf system is desirable, most of them use

custom-made robots that hinder reproducibility.

In this work, we present a uniﬁed framework to

open doors while navigating the environment. We

suppose no prior knowledge of the characteristics of

the doors. We also recognize whether the door has

to be pushed or pulled, and we perform appropriate

actions to open it. We present a detailed hierarchical

automata model of our framework. Using this model,

we decompose the overall task into sub-tasks, and we

perform proper error recovery during all main phases.

We solve the implied sub-problems adopting a uni-

ﬁed approach, providing detailed explanations of the

resulting automata. For door and handle location es-

timation, we leverage a deep learning approach for

automatic detection of doors and handles. In order to

train such a detector, we contribute with the “MIL-

door” data-set

. This approach allows our robot to

recognize doors and handles even while navigating

unknown environments, that is, without previously

knowing their existence. After the door and the han-

dle are detected, depth images are used to evaluate the

location of the handle more precisely.

We assume the robot navigates an unmodiﬁed

house, that is, a house furnished with common fur-

https://www.mi.t.u-tokyo.ac.jp/projects/mildoor.

Detecting, Opening and Navigating through Doors: A Uniﬁed Framework for Human Service Robots

417

niture pieces and with non-automatic doors. In our

framework all door characteristics, i.e., door width,

handle position, and opening direction, are estimated

at run-time. Moreover, our approach performs auto-

matic door type detection (pushing or pulling) which

is particularly important in real world scenarios. Our

proposed framework also considers robot navigation

in a structured environment, admitting semantic nav-

igation. This allows studying the door opening prob-

lem from the perspective of a realistic navigation

problem. To evaluate our framework, we chose a

complex task among the Robocup 2018

challenges

(i.e., the “Help Me Carry” task).

The proposed solution is more appropriate for

real applications than the all aforementioned previ-

ous works. Moreover, we implemented it into a stan-

dard general purpose robot, namely, the Toyota Hu-

man Support Robot (HSR)

, whereas the majority of

the proposed solutions use speciﬁc architectures, such

as the Personal Robot 2 (PR2) robotic platform, de-

veloped by Willow Garage

. We present extensive

experimentation using a standard domestic robot plat-

form in a realistic scenario, and we show the high ap-

plicability of our approach.

2 CONFIGURATION

2.1 Hardware Platform

As our development platform, we used the Toyota

Human Support Robot (HSR). The robot is aimed

at helping elderly people and people with disabili-

ties. Given its design, HSR is optimal for operating in

home settings without any modiﬁcation that facilitates

its tasks (e.g., automatic doors). Toyota also provides

some primitives and some basic software routine for

controlling the robot.

The HSR body is cylindrical with a set of wheels

that makes the robot movable in all directions. It is

equipped with a folding arm capable of grabbing ob-

jects, manipulating handles and even grasping paper

sheets from the ﬂoor. Thanks to its microphone array

and its speakers, HSR is able to receive voice com-

mands and communicate with the user. Several sen-

sors allow the robot interacting with the surrounding

environment. The HSR head is equipped with a stereo

video camera and a depth camera. The robot base is

equipped with a collision detector. The Robot Operat-

http://www.robocup2018.com.

https://www.toyota-global.com/innovation/partner -

robot/robot/#link02.

http://www.willowgarage.com.

Help Me Carry

Voice Other

ResultsResults

Voice

Inputs

Other

Other Tasks SM

Task SM

State Machine Container

Speech−To−Text

Text−To−Speech

Commands

Figure 1: Our Robot Software Architecture consists of

three layers: A speech to text layer for command process-

ing, a state machine container layer that activates state ma-

chines according to the task, and a text to speech layer for

result conveying.

ing System (ROS)

is installed on the robot, allowing

communicating with the hardware layer. This way,

writing low level controlling algorithms is not neces-

sary.

2.2 Software Architecture

Figure 1 shows our software architecture. We de-

signed it to implement the robot’s functionality, and it

is the backbone of the entire system. It allows manag-

ing several basic tasks, the human-robot interaction,

and easily adding new functionality on-demand (e.g.,

replacing voice commands with visual QR-code in-

puts). This improves system versatility, but it is not

essential for the paper’s goal.

We deﬁned three different layers:

• A command processing layer (speech-to-text).

We use the HSR’s microphone array to capture the

user command, and then we internally process it.

• A container (state machine container). State ma-

chines are deployed to solve different tasks.

• A user-friendly communication layer (text-to-

speech). This is used to convey the operation re-

sults to the user.

The ﬁrst layer processes the user’s voice command,

and it forwards the result to the second layer. To in-

terpret the voice command, and generate a command,

we used the Google Cloud Speech-to-Text API

. This

tool allows developers to convert speech into text ex-

ploiting the power of neural networks and using the

Google Cloud suite. Depending on the given com-

mand, the second layer activates the proper state ma-

http://www.ros.org.

https://cloud.google.com/speech-to-text.

ICSOFT 2019 - 14th International Conference on Software Technologies

418

chine to execute the task required by the user. The

third layer receives the results of the state machines,

which are interpreted and communicated to the user in

a user-friendly fashion. The state machine container

is the element that provides ﬂexibility to the entire ar-

chitecture. It is possible, in fact, to embed new state

machines for executing tasks. We implement all state

machines using SMACH

2.3 Semantic Navigation Framework

For the path planning we rely on the ROS global and

local path planners. These modules receive the de-

sired coordinates in the space, and they convert these

coordinates into commands to move the robot. Using

the ROS navigation stack built-in Hector-SLAM algo-

rithm (Kohlbrecher et al., 2011) we can create a map

describing the environment and the obstacles. This

map allows the robot to receive coordinates and reach

speciﬁc locations by automatically choosing an opti-

mal path free of obstacles. However, semantic naviga-

tion requires a richer description of the environment

to convert human understandable locations (e.g., the

kitchen table) into suitable coordinates for the robot.

As a consequence, additional information needs to be

added to the map to improve the knowledge about the

environment. We propose a framework for creating

and managing semantic maps. This framework works

as an interface layer, converting the location sent by

the user to a location understandable by the motion

planning module. Using RVIZ

we manually asso-

ciate coordinates in the path planner map to human

understandable locations. The association among co-

ordinates and locations are stored as metadata into an

xml, and a csv ﬁles.

We manage two different types of entities in the

environment: Rooms and locations. A room is a por-

tion of the map identiﬁed by walls or boundaries. Lo-

cations are places inside rooms. Each room can con-

tain multiple locations. A room entity is identiﬁed by

its name and it is represented by a list of corners, ar-

ranged as a polygon, plus a room center. To manage

polygons and coordinates we use the python pack-

age matplotlib.path. A location, on the other hand,

is represented by a location name, its coordinates in

the map and some attributes describing the place (e.g.,

“isStorage” is a Boolean attribute stating if the loca-

tion is a storage area). The hierarchical relationship

between rooms and locations are stored in xml format

while the room and location names with their respec-

tive coordinates are stored in csv format.

small SMACH is a ROS-independent Python library

for building hierarchical state machines.

RVIZ is a tool for displaying sensor data using ROS.

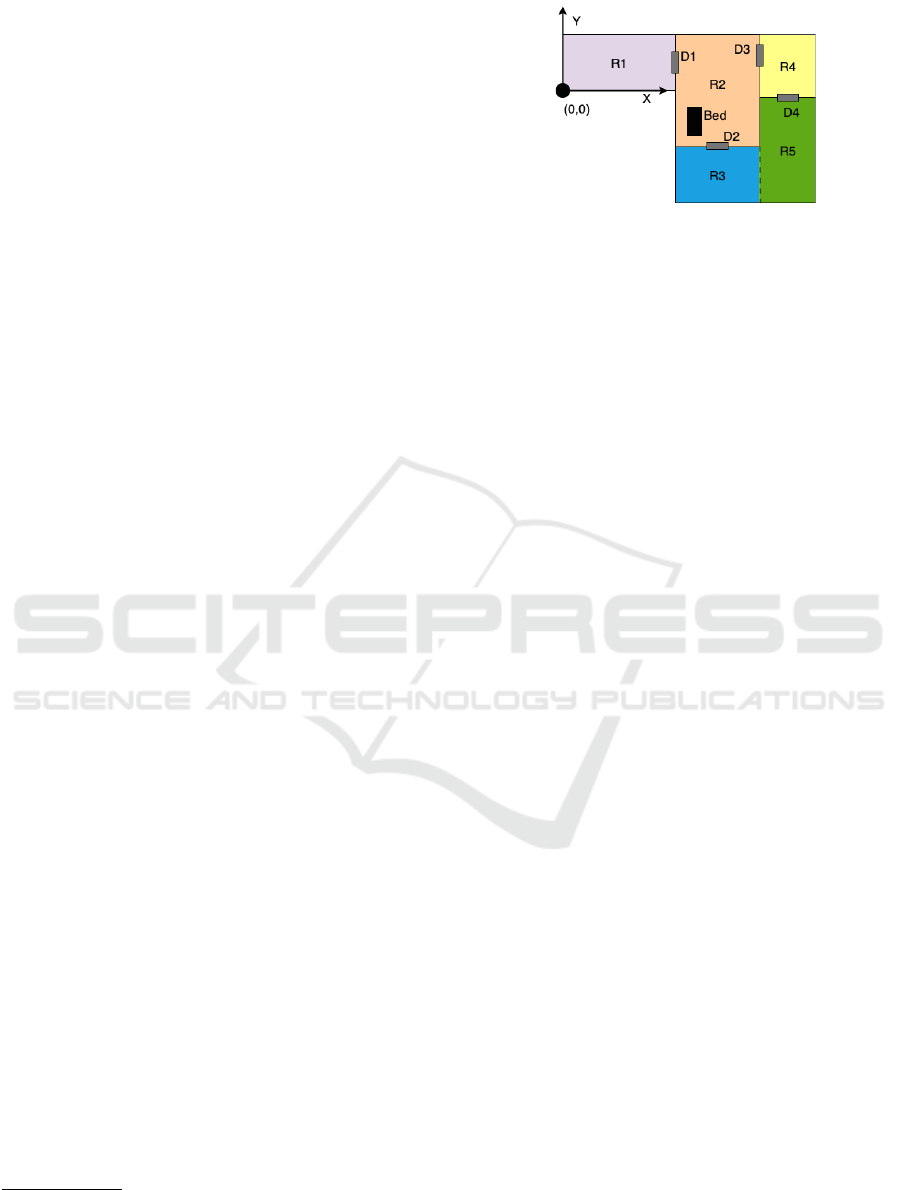

Figure 2: Example of a map for the navigation environ-

ment, with rooms (R), doors (D), and locations (Bed).

Figure 2 is a graphical representation of a possi-

ble environment map, where R1–R5 designate rooms

and D1–D4 indicate doors. R3 and R5 are not sepa-

rated by a wall. The position of elements in the map

is retrieved with respect a ﬁxed reference system as

represented in the ﬁgure. The origin of the Carte-

sian system is the robot initial position, from where

the entire process starts. Even though the location of

the doors is indicated, the robot keeps checking for

the door while approaching it, to calibrate its position

and its state (open/closed, etc.). The semantic nav-

igation framework is also used for completing other

tasks, such as localizing a person or an object.

To gain planning stage ﬂexibility, we also devel-

oped a way-points based navigation approach. In this

way, to move the robot between two locations in the

map, we can force it to follow intermediate points not

belonging to a speciﬁc or optimal path. This is partic-

ularly useful to test motion features in speciﬁc parts

of the scenario, or to reach speciﬁc places during the

trajectory (e.g., to force the robot to pass through a

speciﬁc door). The path between intermediate points

is computed by the ROS path planner. A dictionary

data structure is used to represent way-points paths:

The keys are entity pairs (i.e., the source and the desti-

nation in the map), and the values are the list of places

reached along the path. The way-points dictionary is

stored as a json ﬁle. The way-points based navigation

is activated if the pair source-destination is present in

the dictionary.

2.4 The “Help Me Carry” Context

As a realistic scenario for door opening, we based

our study on the “Help Me Carry” task included in

Robocup 2018. To complete it, the robot has to

memorize locations, move following user commands,

avoid obstacles, and open doors. The task description

is as follows. The user went shopping, and needs the

robot’s help for bringing inside all the bags. To com-

plete the task the robot will:

1. Follow the owner to the bags.

2. Memorize the bags location.

Detecting, Opening and Navigating through Doors: A Uniﬁed Framework for Human Service Robots

419

Wait Cmd

Track

People

Save

Location

Pick Up

Bag

Drop Bag

Door

Opening

Ask To

Open The

Door

Move To

Error

Recovery

FOLLOW_CMD

STORE

LOCATION

PICK UP

BRING BAG

PICK UP

CLOSED DOOR

DETECTION

DOOR OPENED

DOOR LOCKED

DOOR OPENED

DROP BAG

MOVE TO BAGS

TASK_OK

Ask For

Human

Help

ERRO NOT

RECOVERED

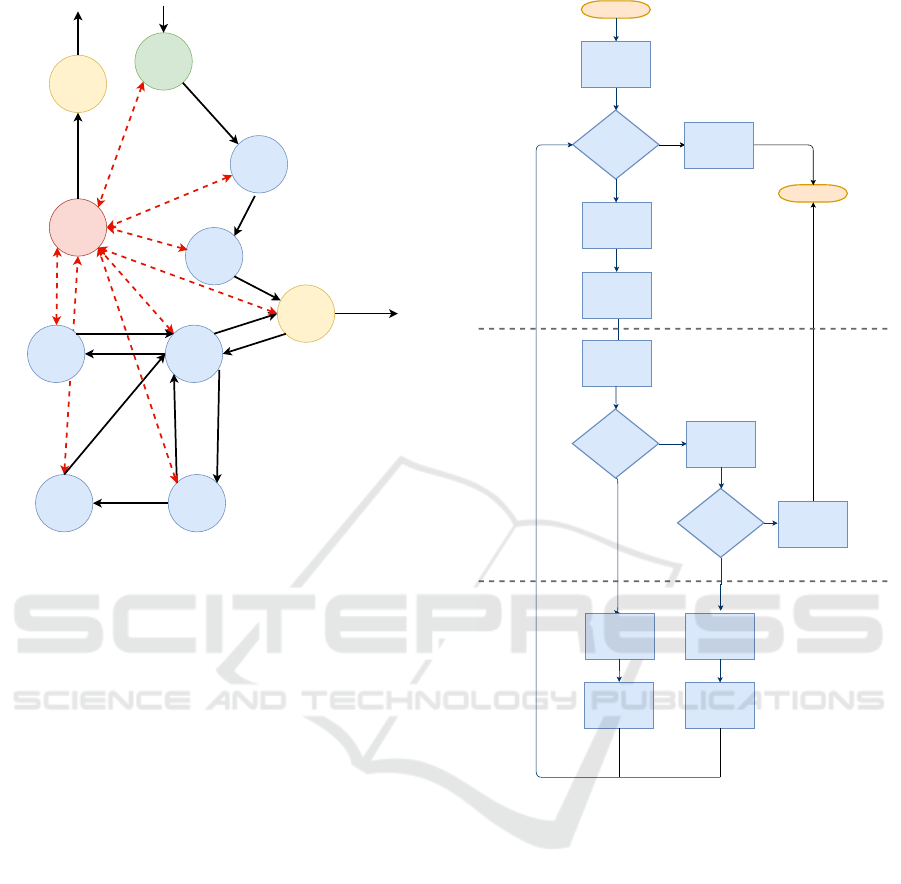

Figure 3: Automaton representing the “Help Me Carry”

task. It shows the problem of door opening in the context

of a more complex task, which involves human interaction

and navigation.

3. Understand the owner’s command to bring the

bags to a speciﬁc different location.

4. Bring all bags to that desired speciﬁed location.

The automaton designed to perform the task is

shown in Figure 3. Blue circles indicate operational

states, green ones are initial states, and yellow ones

represent ending states. The red color represents er-

ror recovery states. Black and red dashed arrows in-

dicate transitions between states and transitions be-

tween a state and the error recovery state, respectively.

The red lines are bi-directional because after the error

handling the control may be given back to the call-

ing state. The text on the arrows represent the event

causing the transition. Each state is implemented as

an automaton, hence the overall architecture is a hi-

erarchical state machine. For the sake of readability,

we did not used the often used “double border” nota-

tion to identify nested state machines. This structure

is quite ﬂexible and it is easy to maintain.

As an example of behavior, the robot is activated

in the state named “Wait Cmd” (wait for command).

In this state the robot simply waits for commands

coming from the user. If the command for following

the user is received, the state machine transit to the

“Track People” state. Otherwise, if the command can-

not be correctly interpreted, the state machine transits

Start

Pulling

Succeded ?

Yes

Pushing

Succeeded?

Yes

Door/Handle

Detection

Move

Through

Handle

Grasping &

Unlatching

Pull Door

of 5 cm

Push Door

of 5 cm

Compute

Pushing

Trajectory

Compute

Pulling

Trajectory

Push Door

Closed

Door ?

Door

Parameters

Computation

End

Door Locked

Pull Door

Figure 4: The operational ﬂowchart for door opening. It

includes the entire ﬂow from the moment if which the robot

detects a door to the one in which it crosses the door or it

understands that the door is locked.

to the “Error Recovery” state. The general policy of

the “Error Recovery” state is that, if the error is recti-

ﬁed, the control is given back to the incoming state. If

the error cannot be rectiﬁed, the state returns the con-

trol to a higher level state machine or directly interacts

with the user asking for help.

3 NESTING AUTOMATA

Detecting, opening and navigating through doors is a

complex problem that involves many algorithms. In

our approach, we decomposed the problem into dif-

ferent stages. The ﬂowchart in Figure 4 describes the

algorithmic approach we followed.

ICSOFT 2019 - 14th International Conference on Software Technologies

420

Estimate

Door Width

Grasp

Handle

Unlatch

Handle

GRASP_OK

Try to Pull

Try to Push

Compute

Pushing

Traj

Door

Pulling

Door

Pushing

UNLATCHING_OK

PULL_OK

PULLING_NOK

PUSHING_OK

Door

Locked

PUSH_NOK

TRAJ_READY

OPEN_OK

Locate

Handle

LOCATE_OK

PUSHING_OK

MOVING_OK

Error

Recovery

Move back

to door

LOCATE_NOK

MEM_OK

GRASP_NOK

UNLATCHING_NOK

PULLING_ERROR

TRAJ_ERR

PULLING_ERR

Compute

Pulling

Traj

PUSHING_ERR

TRAJ_ERR

PUSHING_ERR

DOOR_OPEN_

NOK

Store

Location

ESTIMATION_NOK

ESTIMATION_OK

MEM_NOK

Door

Opened

OPEN_OK

OPEN_NOK

Error Not

Recovered

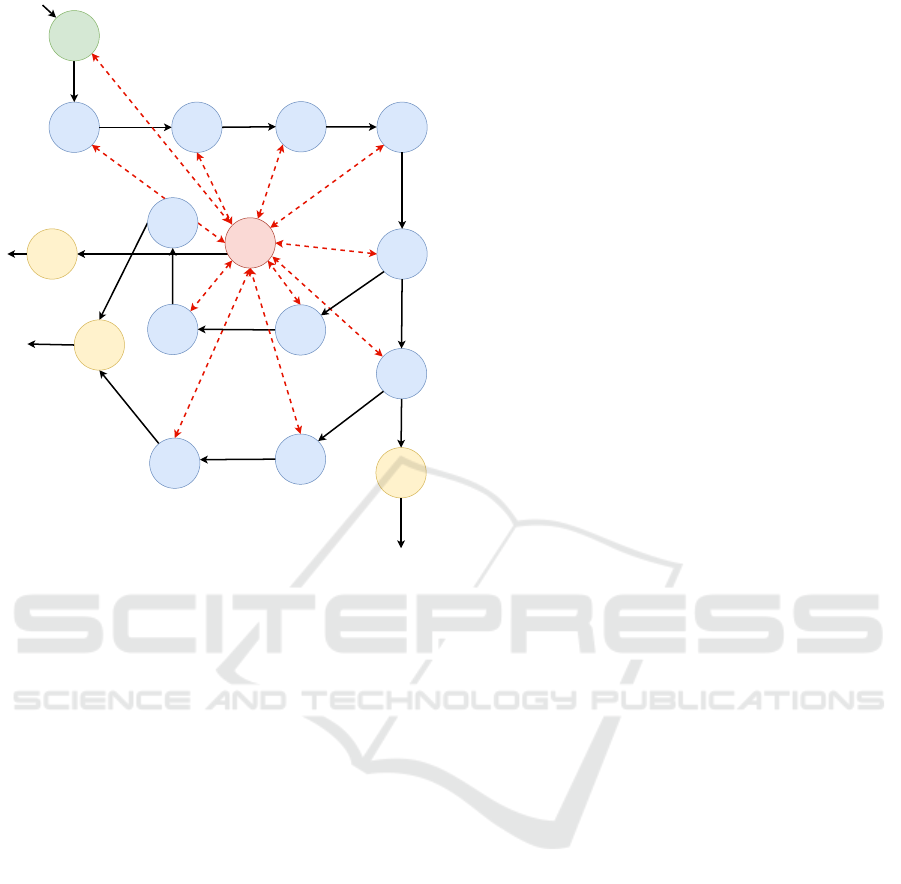

Figure 5: Our automaton for door opening. The names over

the red dashed lines indicate the type of transition between

a state and the “Error Recovery” state.

Each block involves different technologies and

techniques. The top part represents the overall

door/handle detection, and the door parameters esti-

mation. The door type (pulling or pushing) is checked

in the central part, whereas the opening phase is ex-

ecuted at the bottom part. In summary, the robot au-

tonomously recognizes the door, it localizes the han-

dle for grasping, and it decides the opening action

(i.e., pulling or pushing). To open the door, the robot

needs to know two parameters, i.e., the opening di-

rection (pushing or pulling), and the door width. Fol-

lowing many other approaches, these characteristics

could be annotated in advance in the environment de-

scription. However, we want to achieve a ﬂexible

and completely autonomous interaction with the door.

Therefore, our robot computes the door width and the

opening direction at run-time. The automaton imple-

menting our door opening approach is shown in Fig-

ure 5. Notice that this state machine is nested in the

automaton designed for the overall “Help Me Carry”

task and previously described in Figure 3. The door

opening state machine is launched when the robot de-

tects a closed door. In the ﬁrst state the current lo-

cation is memorized. The following states complete

the entire process described in the ﬂowchart. The au-

tomaton has 3 ending states:

• “Door Opened”: Reached when the door is open.

• “Door Locked”: Reached if the door is locked.

• “Error Not Recovered”: Reached if an error that

prevents door opening occurs.

If the “Door Locked” or the “Error Not Recovered”

states are reached, the door can not be opened. This

situation is managed by the state machine working at

a higher hierarchical level (i.e., the one in Figure 3).

Our error recovery approach plays an essential role

to reach robustness and ﬂexibility against unexpected

situations. First of all, the error is handled locally

within the state in which occurs. For the sake of us-

ability, the robot should not rely on human help for

solving minor issues. Thus, in our framework, each

state stores enough knowledge of the situation to han-

dle minor problems. Examples of minor errors are: A

wrong handle recognition in the 3D space, a grasping

failure, a wrong location spelling from the user, etc. If

local error correction is not possible, the control ﬂow

jumps to the previous (higher) hierarchical level, in

which the error recovery state tries more drastic error

rectiﬁcation procedures. Only after the system has at-

tempted all error recovery procedures, the robot will

ask for help from the human operator.

3.1 Door and Handle Detection

For the door and handle detection we use a deep learn-

ing approach. Several deep neural networks have

been proposed for object detection, and more specif-

ically for door and handle recognition. Among state-

of-the-art networks, we decided to exploit the Single

Shot MultiBox Detector (SSD) neural network (Liu

et al., 2016). Authors proved that this network outper-

forms other well know networks, like Yolo and Faster

R-CNN in terms of speed and accuracy. Moreover,

since SSD performs better on embedded systems, the

network can work correctly at run-time, and it guar-

antees a fast interaction with the environment. Com-

pared to other single shot methods, SSD provides a

much better accuracy, even with a smaller input im-

age size. The input to SSD is a monocular color im-

age, and the output is a list of bounding boxes con-

taining the detected objects in the image, namely, the

top left angle of each detected object plus its height

and width (object detection part). Each detected ob-

ject has an associated label indicating which class the

object belongs to (object recognition part).

In our version of SSD, the object recognition

part is based on the VGG16 model pre-trained on

the ILSVRC CLS-LOC data-set (Russakovsky et al.,

2015). Then, we trained the object detection part, and

ﬁne-tuned the object recognition part, by construct-

ing our own data-set, the “MIL-door” data-set. The

“MIL-door” data-set consists of images of “doors”

Detecting, Opening and Navigating through Doors: A Uniﬁed Framework for Human Service Robots

421

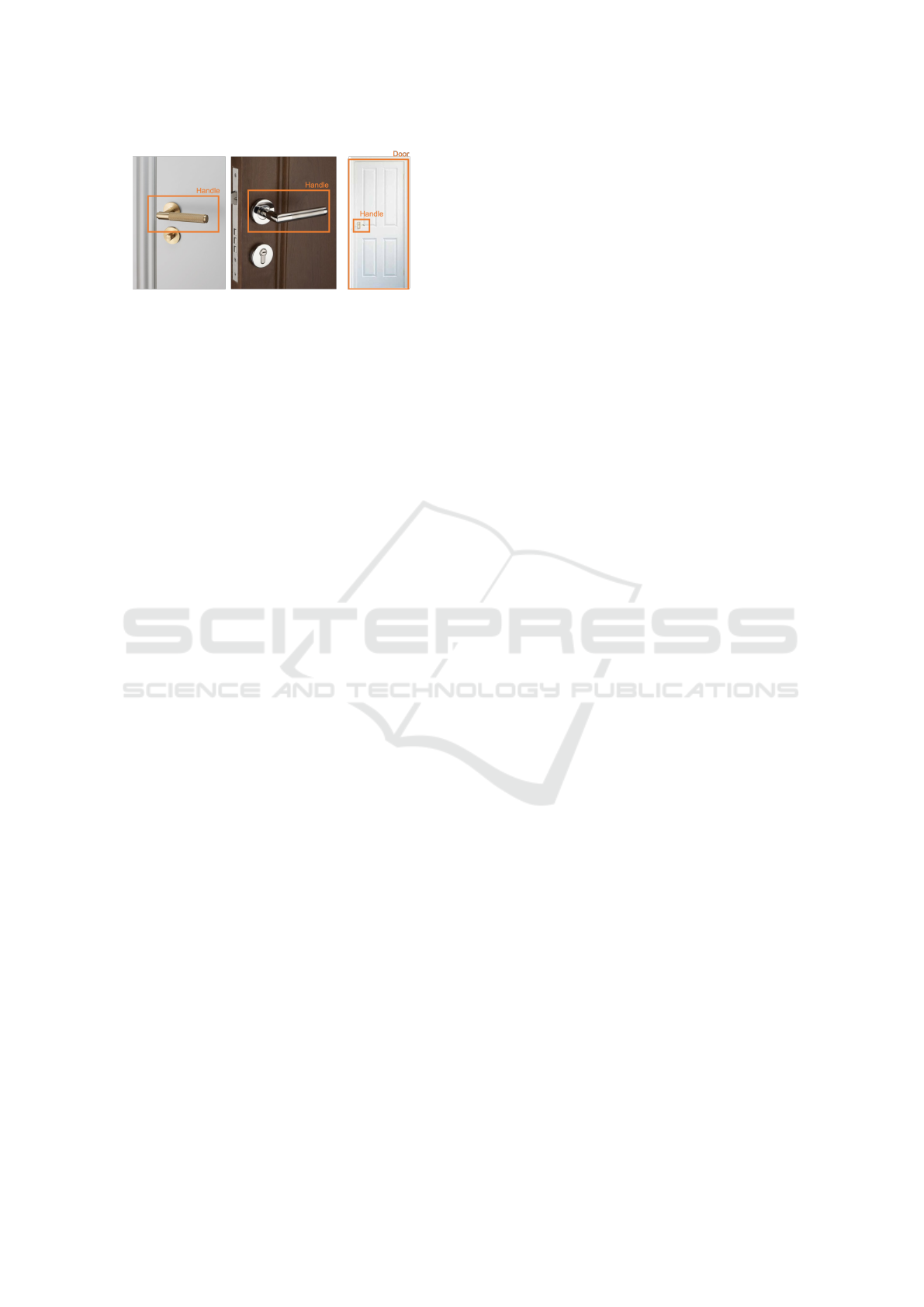

Figure 6: Sample images from the “MIL-door” data-set.

and “handles” crawled from Google Images. After

ﬁltering the erroneous results, MIL-door contains 462

images of doors and 318 images of handles, for a to-

tal of 780 images. The height and width of the im-

ages range from 400 to 1200 pixels. For each im-

age, we manually annotated bounding boxes delimit-

ing the area corresponding to doors and handles. An-

notations are not inserted on top of the images, but

stored in a separate text ﬁle. Figure 6 shows three ex-

ample images extracted from our annotated data-set.

When training our SSD network with the MIL-

door data-set, we performed data augmentation on the

training data, namely, 90 degrees rotations and hori-

zontal ﬂips. This increases the size of our data-set

eight times, for a total of 6240 images. Considering

that the object detection part of the original SSD was

trained with 9963 images for 20 object classes, we be-

lieve our data size is reasonable for our 2 object class

detection problem.

As training parameters, we used the following

conﬁguration (please refer to (Liu et al., 2016) for

more details on the meaning of these parameters):

Batch size 32, maximum iterations 120, 000, learning

rate 0.001 (the original learning rate is decayed by 10

at iterations 80, 000, 100, 000 and 120, 000), weight

decay 0.0005, γ 0.1, momentum 0.9.

We used a low learning rate to assure conver-

gence during training and we selected it empirically.

We evaluated our door and handle detection with our

MIL-door data-set using a 10-fold cross-validation

setting. We consider that the door (or handle) has

been correctly detected if the intersection over union

(IoU) between the estimated bounding box and the

annotation is greater than 85%. The detection accu-

racy in this controlled setting is of 94.7% for doors,

and 86.3% for handles. However, during the evalua-

tion in a real setting, the IoU recognition accuracy was

slightly lower than using the data-set images. This

was mainly due to three factors: The large diversity

of doors that exist in the real world, the small size of

some handles, and sporadic image quality loss due to

poor lighting conditions.

Since there are cases in which the door is detected

but the handle is not, we designed an error recovery

algorithm to add robustness. When a door is detected

but the handle is not, the robot moves slightly for-

ward, backwards, and laterally to change the perspec-

tive until the recognition succeeds. If the handle is

not detected after a certain number of trials (5 in our

case), the error is passed to the above error recovery

state in the state machine hierarchy.

3.2 Door Width Computation

The door width is an important parameter to correctly

estimate the robot’s trajectory. To compute it, we

combine the door size in the image, taken from the

robot camera, and the door to robot distance com-

puted using the depth camera. Assuming that the ob-

ject width on the image is width


, and the detected

distance is d, we can obtain the relative size in the real

world using the following formula:

width

real [pixel]

= width


· d. (1)

However, Equation 1 measures the door size using the

pixels as measurement unit. To transform the com-

puted value from pixel into centimeters, we empiri-

cally calibrated our camera and we computed a con-

version factor conversion

coe f f

. The door width, ex-

pressed in length units (centimeters), is thus given by:

width

real [cm]

= d · conversion

coe f f

· width


. (2)

We measured the quality of our method by comparing

our estimated widths against ground truth values, on

four different types of doors. These doors differ in

terms of color, surface material, and shape. We also

varied the distance of the robot from the door from

1 m to 3 m, measures that are somehow reasonable in

a home environment. We used the root mean square

error to evaluate the error. Our results show that we

reached an average error of ± 6 cm. As observed in

our experiments, this value does not affect the door

opening noticeably.

3.3 Opening Direction

To open the door, the robot should move backward

from left to right if the hinges are on the right, and

vice-versa. Anyway recognizing the hinge position is

not robust enough, since hinges are often undeﬁned or

barely visible. However, our handle and door detector

provides the handle location with respect to the door,

and thus, inferring the opening direction is straight-

forward. The opening direction is used to compute

the opening trajectory for both pulling and pushing

doors (see Sections 3.7 and 3.8, respectively).

ICSOFT 2019 - 14th International Conference on Software Technologies

422

3.4 Closed Door

The door detected in the door recognition phase may

be already open. To check this, we use the HSR’s

RGB-D sensor, the Xtion PRO LIVE. First, we obtain

the depth image corresponding to the frame where the

door has been located. Then, we take two horizontal

rows (e.g., one in the lower half and one in the up-

per). Finally, we compute the Sobel derivative along

the horizontal direction of these lines, and we check

if it contains values above a certain threshold t. This

allows our method to detect if there are edges where

the depth suddenly increases, which translates into the

door being open.

We experimentally established that the door can

be considered open if the log

of the derivatives ex-

ceed a threshold t = 3.5.

3.5 Handle Grasping and Unlatching

Once the door opening direction has been established,

and the distance from the door d evaluated, the robot

can approach the handle enough to get a more precise

measure of its location with the depth sensor. If some

error occurs while evaluating the handle position, we

retrieve a new depth measurement from the sensor to

get the right location. The robot, with its grip open,

gets in front of the door, and when it reaches the han-

dle location, the grip closes and the robot grasps the

handle. To unlatch the handle, we combine the robot

hand rotation with a downward movement. We ro-

tate the hand 20 degrees, and we move it downwards

10 cm. We empirically found that HSR does not have

a strong grip and a rotation plus a downward move-

ment can improve the pressure that the hand can apply

to the handle. This allows a robust unlatching even if

the handle is not grasped perfectly at its end, or the

surface of the handle is slippery (e.g., metallic).

3.6 Door Type Checking

Before computing the opening trajectory the robot has

to understand the door type, i.e., whether the door is

a pulling or a pushing door. To discriminate between

the two categories, after the grasping and the unlatch-

ing, the robot tries to move backwards and forward

to test the opening type. First, it attempts to pull the

door back 5 cm while monitoring the force acting on

the wrist torque sensor. The measure of 5 cm has been

heuristically selected as a good compromise among

several requirements. If during this movement, the

torque on the wrist sensor grows continuously, the

door cannot be pulled. In this case, the HSR attempts

to push the door by moving forward and it checks the

(a) (b) (c)

(d) (e) (f)

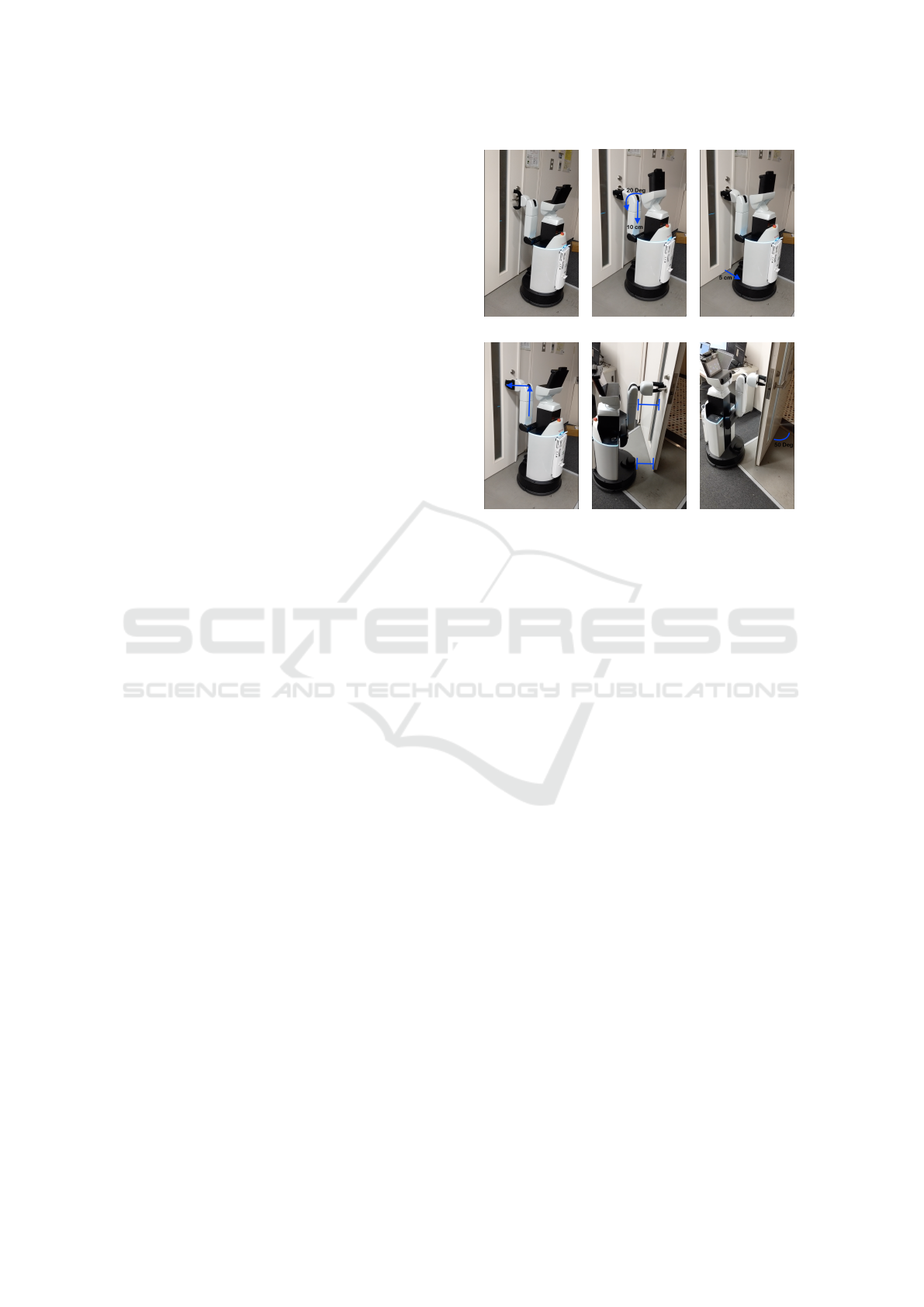

Figure 7: A visual example of our door opening approach.

The HSR (a) grasps the handle and (b) unlatches it, then (c)

tries to move back for 5 cm to pull the door. If the door

cannot be pulled, the robot (d) moves the handle back to

its neutral position, and (e) the door is opened by moving

backwards and drawing an angle with respect to the door

closing position. During the entire process (Figure (f)) the

door-to-robot distance is maintained constant.

force acting on the wrist sensor as before. In case

the torque force does not increase in one of these two

attempts, the robots start the opening phase (see Sec-

tions 3.7 and 3.8). On the other hand, if the door can-

not be pulled or pushed, the robot assumes that the

door is locked. The “Error Recovery” state handles

this case by calling for human help.

We also considered other approaches for testing

the door type. One of those involves monitoring

movement of the robot’s base while performing the

test. This approach did not succeed mainly because,

to measure a signiﬁcant movement of the base, we

have to move the robot more than 5 cm. This in

turn can damage both the robot and the door (e.g., by

pulling a pushing door too hard). Another approach

implies the classiﬁcation of the door type using a

computer vision approach. However, this solution

depends largely on the size of the training data-set,

which should contain a wide variety of doors and an-

notations indicating their type. Unfortunately, many

available images are not annotated, and manually cre-

ate a large data-set is very time consuming.

Notice that all checks performed by our approach

are done to assure robustness and to minimize the

number of errors. We emphasize the importance of

Detecting, Opening and Navigating through Doors: A Uniﬁed Framework for Human Service Robots

423

Handle Releasing

Trajectory Estimation

Trajectory Following

Handle Releasing

Move Back to Door

(a)

Handle Releasing

Face the Door

Arm Extending

Door Pushing

Arm to Neutral Pose

(b)

Figure 8: Schematic code ﬂow for: (a) opening a pulling

door, and (b) opening a pushing door. The code ﬂows are

encoded as SMACH state machines, and they are fully inte-

grated in our software framework.

robustness in such a complicated scenario, since an

error in door type recognition could lead to hard-to-

manage situations or risks for the robot or the handle

and the door integrity.

3.7 Door Pulling

Figure 7 shows the entire ﬂow for opening a pulling

door, from the moment the robot must grasp the han-

dle to the one in which the door is open. Figure 8a

shows the corresponding code ﬂow.

When the robot stands in front of the door, and

before starting the door pulling phase, the application

stores the current robot position. These coordinates

will be used when the door is open, as the robot will

move back to the stored position to pass through the

door. The ﬁrst three images (Figure 7a, 7b and 7c)

are part of the door type understanding process de-

scribed in Section 3.6. In the latter phase, the robots

moves backward 5 cm to check whether the door is a

pulling one. In the afﬁrmative case, the robot moves

the handle back to its neutral position. A visual repre-

sentation is given in Figure 7d. This action emulates

typical human behavior, and it effectively reduces the

load on the robot wrist that does not need to hold the

handle down. At this point, the robot computes the

pulling trajectory as shown in the second block of Fig-

ure 8a. The ﬁnal trajectory is an arc-shaped sequence

of map coordinates that form an angle of 80 degrees

with respect to the door hinges. In this way, the door

is opened wide enough for the robot to pass through

it.

Because the HSR’s arm has less than six degrees-

of-freedom (DoF), we have to move the base and the

arm together, keeping the robot hand in a ﬁxed po-

sition. As a consequence, the door-to-robot distance

remains constant. In this way, we do not need to con-

tinuously check for collision between the robot and

the door. This situation is shown in Figure 7e. Once

the robot completes the trajectory, it releases the han-

dle, and it moves back in front of the door to continue

the navigation toward the ﬁnal goal. The robot posi-

tion saved in the ﬁrst state is used as a target position

to cross the door.

3.8 Door Pushing

Following Figure 4, if the robot detects that the door

cannot be pulled, it checks whether it can be pushed,

and, in this latter case, the pushing process starts. The

pushing door action ﬂow is detailed in Figure 8b. As

in the pulling door case, our robot attempts to push

the door to check the opening type. After the han-

dle releasing phase, the robot moves in front of the

door at a ﬁxed distance of 50 cm. Once this position

is reached, the robot ﬁrst extends its arm to reach the

door, which is already open a few centimeters after

pushing it to check its type. As the robot is going to

move forward, reaching the door is not strictly nec-

essary. At the same time, we also monitor the wrist

sensor to assure that no unexpected collision occurs.

During the pushing phase, the HSR moves forward,

and when the phase ﬁnishes, the robot is on the other

side of the door. The last action executed by the robot

before restarting the normal navigation, is to retract

its arm into its original and safer position.

To succeed in the pushing action, the handle posi-

tion is an important parameter. When unlatching the

handle, the robot faces it, but during the pushing ac-

tion, some collisions may occur. Since HSR is a left-

handed robot, the most unfavorable scenario is when

the handle is on the right side. A schematic top-view

of this situation is given in Figure 9. While pushing

the door, a collision check is performed in the robot

base to prevent HSR from hitting the door frame. If

a potential collision situation is detected, the robot is

moved slightly to the left with respect to the handle.

If a collision is detected, the “Error Recovery” state

stops the robot and moves it back to the beginning

of the pushing stage. These strategies were validated

empirically, and allowed for a safe and robust naviga-

tion through doors, as described in the next section.

4 EXPERIMENTAL ANALYSIS

We evaluated our uniﬁed framework by means of two

set of experiments. These experiments were designed

to verify two main aspects: 1) Our framework’s ro-

ICSOFT 2019 - 14th International Conference on Software Technologies

424

(a) (b)

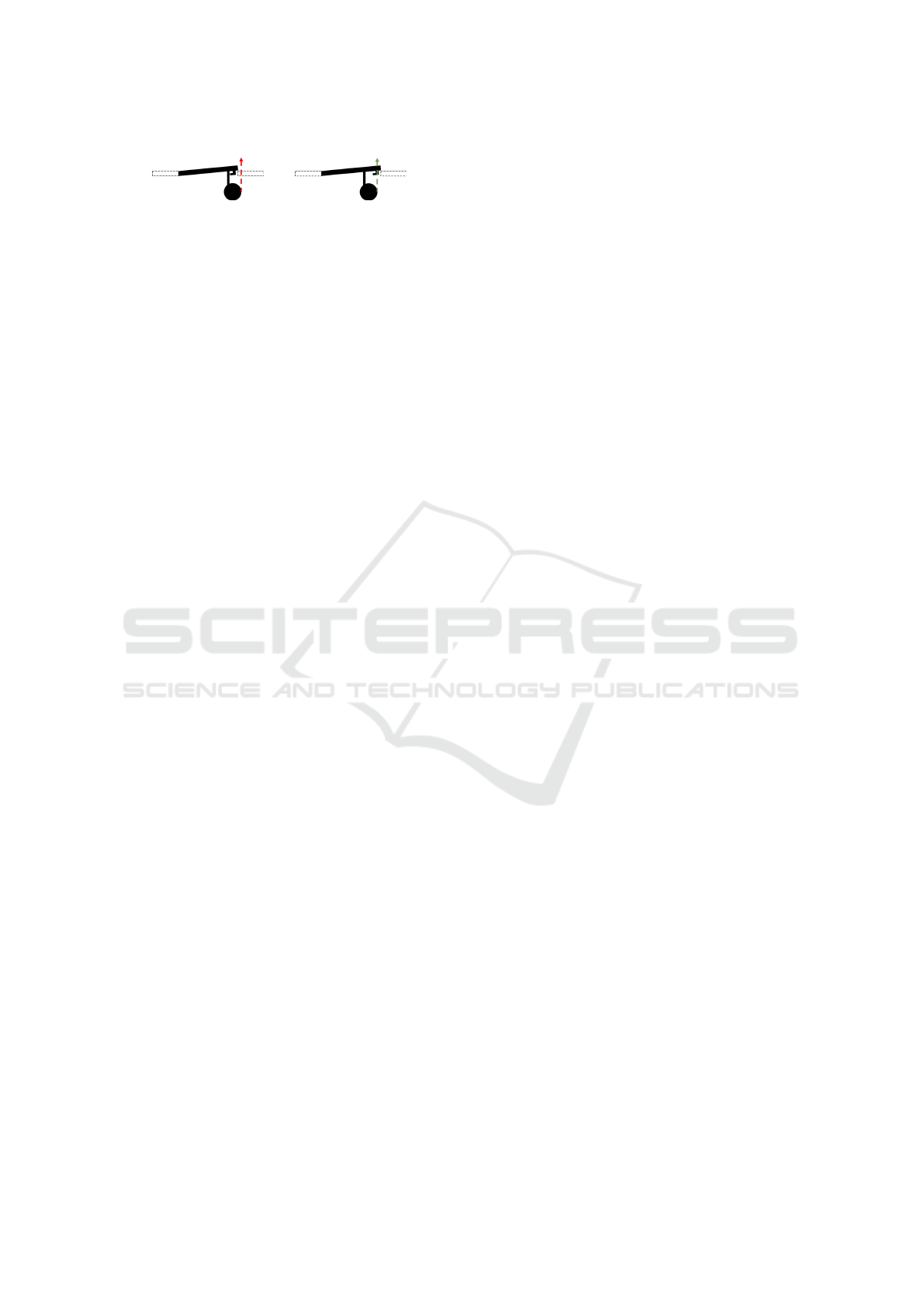

Figure 9: Passing through a pushing door: (a) HSR may

suffer a collision when opening a pushing door with a right

side handle. (b) To avoid hitting the door frame, the sensor

on the robot base is activated. If HSR detects a possible

collision, its position is slightly shifted to the left.

bustness in a real navigation scenario, and 2) The

quality of the entire door opening process with dif-

ferent doors, handles, materials, etc.

First, we evaluated the door opening process in

a realistic navigation scenario by using a simpliﬁed

version of the “Help Me Carry” task previously de-

scribed. In this task, the user instructs the robot to

fetch an object in a speciﬁc location in a different

room, and he awaits for the robot to return. We also

imposed way-points during navigation, i.e., we force

the robot to follow a different path on the way back.

To run this scenario, we arranged a house environ-

ment similar to the one in Figure 2. Initially, the HSR

robot is in a location within room R1. The robot is

supposed to reach room R4 by passing through doors

D1, D2, and D4. Then, it should go back to the initial

position by passing through doors D3 and D1. The

doors in this task have different characteristics. When

moving from R1 to R2, door D1 is a pushing door

with the handle on the left. Door D2 is open. when

moving from R5 to R4, and door D4 is a pulling door

with its handle on the left. On the way back, when

moving from R4 to R2, door D3 is a pulling door with

its handle on the left. Finally, when the robot moves

back from R2 to R1, D1 is still open. The robot de-

tected the doors during navigation, following a route

determined by the ROS path planner. Since the ex-

periment does not involve any obstacles, we did not

employed the way-points navigation approach. No-

tice that the door type and handle position affects the

door opening process in terms of the selected trajec-

tories and the ﬁnal success rate. In order to show the

robustness of our framework, the door and handle at-

tributes are unknown by the robot.

We commanded the robot to execute the task 50

times. In all cases, the robot reached R4 without nav-

igation errors, and it successfully detected and dis-

criminated between closed and opened doors. The

accuracy of the door and the handle detection in the

real scenario does not vary signiﬁcantly with respect

to the detection accuracy reported for our MIL-door

data-set. Whenever a handle was not initially recog-

nized, the error recovery procedure forced the robot

to move slightly forward, backwards, and laterally to

change the perspective until the recognition was suc-

cessful. This procedure provided a recognition suc-

cess rate up to 95%. In the remaining 5%, the er-

ror persisted so the higher hierarchical automata level

dealt with it. Moreover, even if initially the location

of the detected handle was not aligned perfectly, the

location was reﬁned when approaching the handle and

using depth images. Regarding the handle grasping,

every time the HSR could not hold the grip on a han-

dle, the error recovery procedure reactivated the de-

tection phase and the “door opening” phase restarted

from the beginning.

In light of these results, we designed a second ex-

periment with an emphasis on the handle grasping

sub-task. In this experiment, the HSR had to deal

with a variety of doors and handles, which differ in

terms of door type (pushing or pulling), handle po-

sition (left or right), and material (slippery or non-

slippery). We commanded the robot to move from

room R1 to room R2 while modifying the conﬁgu-

ration of D1. The robot starts in front of the door

ready to grasp the handle, and it stops after the door is

open (passing through is not required). As above, the

robot does not know the door and handle attributes.

We conducted 20 runs for each door and handle con-

ﬁguration. Notice that the door type inﬂuences the

robot trajectory, whereas the handle material inﬂu-

ences the quality of the handle grasp and its hold-

ing process. Moreover, some metallic handles may

cause noise in the depth image due to reﬂections. We

separate the door opening results for slippery handles

(metallic), and non-slippery handles (wood or plastic-

like material), and their location with respect to the

door (i.e., left or right). Similarly, we also consider

spring loaded doors, that is, doors that close by them-

selves after they are open. We do not evaluate open-

ing pushing spring loaded doors since, once the robot

arm releases the handle after the unlatching, the door

closes again before the HSR has the chance to push it.

Table 1 summarizes the results for this second ex-

periment. The handle localization using depth im-

ages proved to be robust with different handle shapes

and materials. After the handle grasping, our ap-

proach recognized in 100% of the cases the door type,

i.e., whether the HSR had to pull or push the door.

As the HSR grip did not have enough strength to

hold slippery handles (in particular, those in spring

loaded doors) the door opening did not always suc-

ceed. However, when an error arose, the robot was

able to retry the task by itself by following the error

recovery procedure previously described. The robot

asked for human help only in a total of 3 occasions.

This results are very promising for a practical appli-

cation, as the recovery procedure is able to rectify

Detecting, Opening and Navigating through Doors: A Uniﬁed Framework for Human Service Robots

425

errors in most cases. However, for the sake of fair-

ness, Table 1 considers runs as failed whenever an er-

ror arose, even if the robot recovered from the error

autonomously. Overall, we reached a 98% of success

rate for non-slippery handles, and 94% for slippery

metal-like handles. Notice that these results are inﬂu-

enced not only by the robot’s grasping ability, but also

by the handle detection under different types of light

reﬂection on the handle surface. Regarding pulling

spring loaded doors, holding the handle when open-

ing was quite challenging for the robot, specially in

the case of slippery handles. This is due to the limited

strength of the HSR’s grip. Moreover, handles on the

right side of pushing doors are more challenging due

to the reasons explained in Section 3.8.

Table 1: Results of our door opening approach. The ta-

ble presents the number of successes out of 20 opening at-

tempts, with 4 different handle types. T

: Slippery handle

on the door left side. T

: Slippery handle on the door right

side. T

: Non-slippery handle on the door left side. T

Non-slippery handle on the door right side.

Action Type

Handle Type

Pulling non-spring loaded door 16 18 18 19

Pulling spring loaded door 16 18 19 19

Pushing non-spring loaded door 20 18 20 17

5 CONCLUSIONS

In this paper we presented a uniﬁed framework for ap-

proaching, opening, and navigating through doors. To

the best of our knowledge, this is the ﬁrst attempt to

solving the door opening problem in a navigation sce-

nario. Our uniﬁed framework integrates an automata

model and its state machine hierarchy. This includes

techniques for error recovery, allowing for a robust

door opening and its implementation in an operational

system. We implemented our framework on a Toyota

HSR, which is a standard platform and, thus, it facil-

itates the reproducibility of our work. For door and

handle detection, we proposed a deep learning-based

method trained with our image dataset. For handle

grasping, door type checking, unlatching and open-

ing, we propose optimized techniques for HSR, but

extrapolable to similar off-the-shelf platforms. From

the software engineering point of view, this paper

covers the design, analysis and synthesis of such a

robotic system for real-world operation. We evaluated

our framework for navigation and door-opening ap-

proach in a challenging realistic scenario inspired by

Robocup 2018 tasks. We tested our platform against

different types of doors, and with different types of

handles and opening directions. Our results show the

robustness and ﬂexibility of our approach and its high

applicability by using a standard service robot. On the

other hand, robots lacking some of the HSR features

(e.g., a depth camera, a base sensor, a wrist torque

sensor) may not be able to implement our framework

without previously adapting the algorithms.

As future work, we plan to attempt recognizing

and opening a wider variety of doors. We will also ex-

tend our framework for recognizing and moving ob-

stacles during navigation. We believe this can fur-

ther improve the robustness and the ﬂexibility of our

framework against changes in the environment.

ACKNOWLEDGMENTS

We would like to thank Yusuke Kurose, Yujin Tang,

Jen-Yen Chang, James Borg, Takayoshi Takayanagi,

Yingy Wen and Reza Motallebi for their help imple-

menting this research. This work was partially sup-

ported by JST CREST Grant Number JPMJCR1403,

Japan. The authors have been part of the HSR devel-

oper community

, and they made use of HSR hard-

ware and software platforms.

REFERENCES

Andreopoulos, J. A. and Tsotsos, J. K. (2007). A frame-

work for door localization and door opening using a

robotic wheelchair for people living with mobility im-

pairments. In Robotics: Science and systems, Work-

shop: Robot manipulation: Sensing and adapting to

the real world, Atlanta.

Aude, E. P., Lopes, E. P., Aguiar, C. S., and Martins,

M. F. (2006). Door crossing and state identiﬁca-

tion using robotic vision. IFAC Proceedings Volumes,

39(15):659 – 664.

Burgard, W., Cremers, A. B., Fox, D., H

ahnel, D., Lake-

meyer, G., Schulz, D., Steiner, W., and Thrun, S.

(1998). The interactive museum tour-guide robot. In

Proc. Conference on Artiﬁcial Intelligence/Innovative

Applications of Artiﬁcial Intelligence, pages 11–18.

Chitta, S., Cohen, B., and Likhachev, M. (2010). Planning

for autonomous door opening with a mobile manip-

ulator. In International Conference on Robotics and

Automation, pages 1799–1806.

Dongwon, K., Ju-Hyun, K., Chang-Soon, H., and Gwi-Tae,

P. (2004). Mobile robot for door opening in a house.

In Knowledge-Based Intelligent Information and En-

gineering Systems, pages 596–602.

Fern

andez-Caram

es, C., Moreno, V., Curto, B., Rodr

ıguez-

Arag

on, J. F., and Serrano, F. (2014). A real-time

door detection system for domestic robotic navigation.

https://newsroom.toyota.co.jp/jp/detail/8709536

ICSOFT 2019 - 14th International Conference on Software Technologies

426

Journal of Intelligent & Robotic Systems, 76(1):119–

136.

Gray, S., Chitta, S., Kumar, V., and Likhachev, M. (2013).

A single planner for a composite task of approach-

ing, opening and navigating through non-spring and

spring-loaded doors. In Proc. IEEE International

Conference on Robotics and Automation, pages 3839–

3846.

Hernandez, K., Bacca, B., and Posso, B. (2017). Multi-goal

path planning autonomous system for picking up and

delivery tasks in mobile robotics. IEEE Latin America

Transactions, 15(2):232–238.

Jain, A. and Kemp, C. C. (2008). Behaviors for robust door

opening and doorway traversal with a force-sensing

mobile manipulator. In RSS Workshop on Robot Ma-

nipulation: Intelligence in Human Environments.

Johnson, M., Shrewsbury, B., Bertrand, S., Wu, T., Du-

ran, D., Floyd, M., Abeles, P., Stephen, D., Mertins,

N., Lesman, A., Carff, J., Rifenburgh, W., Kaveti, P.,

Straatman, W., Smith, J., Grifﬁoen, M., Layton, B.,

Boer, T., Koolen, T., Neuhaus, P., and Pratt, J. (2015).

Team ihmc’s lessons learned from the darpa robotics

challenge trials. J. Field Robot., 32(2):192–208.

Khatib, O. (1999). Mobile manipulation: The robotic assis-

tant. Robotics and Autonomous Systems, 26(2):175 –

183.

Kim, G., Chung, W., Kim, K.-R., Kim, M., Han, S., and

Shinn, R. (2004). The autonomous tour-guide robot

jinny. In IEEE/RSJ International Conference on In-

telligent Robots and Systems (IROS), volume 4, pages

3450–3455.

Kim, S., Cheong, H., Kim, D. H., and Park, S. (2011).

Context-based object recognition for door detec-

tion. In 15th International Conference on Advanced

Robotics (ICAR), pages 155–160.

Klingbeil, E., Saxena, A., and Ng, A. Y. (2010). Learning

to open new doors. In IEEE/RSJ International Confer-

ence on Intelligent Robots and Systems, pages 2751–

2757.

Kohlbrecher, S., von Stryk, O., Meyer, J., and Klingauf, U.

(2011). A ﬂexible and scalable slam system with full

3d motion estimation. In IEEE International Sympo-

sium on Safety, Security, and Rescue Robotics, pages

155–160.

Krotkov, E., Hackett, D., Jackel, L., Perschbacher, M., Pip-

pine, J., Strauss, J., Pratt, G., and Orlowski, C. (2017).

The darpa robotics challenge ﬁnals: Results and per-

spectives. J. Field Robot., 34(2):229–240.

Lim, J., Bae, H., Oh, J., Lee, I., Shim, I., Jung, H., Joe,

H.-M., Sim, O., Jung, T., Shin, S., Joo, K., Kim, M.,

Lee, K., Bok, Y., Choi, D.-G., Cho, B., Kim, S., Heo,

J., Kim, I., and Oh, J.-H. (2018). Robot system of

DRC-HUBO+ and control strategy of team KAIST in

DARPA robotics challenge ﬁnals, pages 27–69.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). SSD: Single shot

multibox detector. In European conference on com-

puter vision, pages 21–37.

Meeussen, W., Wise, M., Glaser, S., Chitta, S., McGann, C.,

Mihelich, P., Marder-Eppstein, E., Muja, M., Eruhi-

mov, V., Foote, T., Hsu, J. M., Rusu, R. B., Marthi,

B., Bradski, G. R., Konolige, K., Gerkey, B. P., and

Berger, E. (2010). Autonomous door opening and

plugging in with a personal robot. In IEEE Interna-

tional Conference on Robotics and Automation, pages

729–736.

Ott, C., B

auml, B., Borst, C., and Hirzinger, G. (2007).

Autonomous opening of a door with a mobile ma-

nipulator: A case study. IFAC Proceedings Volumes,

40(15):349–354.

Peterson, L., Austin, D., and Kragic, D. (2000). High-

level control of a mobile manipulator for door open-

ing. In Proceedings. IEEE/RSJ International Con-

ference on Intelligent Robots and Systems, volume 3,

pages 2333–2338.

Petrovskaya, A. and Ng, A. Y. (2007). Probabilistic mo-

bile manipulation in dynamic environments, with ap-

plication to opening doors. In Proceedings of the

20th International Joint Conference on Artiﬁcal Intel-

ligence, IJCAI’07, pages 2178–2184, San Francisco,

CA, USA. Morgan Kaufmann Publishers Inc.

Rhee, C., Chung, W., Kim, M., Shim, Y., and Lee, H.

(2004). Door opening control using the multi-ﬁngered

robotic hand for the indoor service robot. In Proc.

IEEE International Conference on Robotics and Au-

tomation, volume 4, pages 4011–4016.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bern-

stein, M., Berg, A. C., and Fei-Fei, L. (2015). Ima-

genet large scale visual recognition challenge. Int. J.

Comput. Vision, 115(3):211–252.

Rusu, R. B., Meeussen, W., Chitta, S., and Beetz, M.

(2009). Laser-based perception for door and handle

identiﬁcation. In 2009 International Conference on

Advanced Robotics, pages 1–8.

Shalaby, M. M., Salem, M. A., Khamis, A., and Melgani,

F. (2014). Geometric model for vision-based door de-

tection. In 9th International Conference on Computer

Engineering Systems, pages 41–46.

Thrun, S., Bennewitz, M., Burgard, W., Cremers, A. B.,

Dellaert, F., Fox, D., Hahnel, D., Rosenberg, C., Roy,

N., Schulte, J., and Schulz, D. (1999). Minerva: a

second-generation museum tour-guide robot. In Proc.

IEEE International Conference on Robotics and Au-

tomation, volume 3, pages 1999–2005.

Detecting, Opening and Navigating through Doors: A Uniﬁed Framework for Human Service Robots

427
