Road Operations Orchestration Enhanced with Long-short-term

Memory and Machine Learning (Position Paper)

Fuji Foo

, Poh Ju Peng

, Robert Kuo-Chung Lin

and Wenwey Hseush

Certis Group, Singapore

BigObject, Taiwan

Keywords: Complex Event Processing, In-memory Computing, Working Memory.

Abstract: Road traffic management has been a priority for urban city planners to mitigate urban traffic congestion. In

2018, the economic impact to US due to lost productivity of workers sitting in traffic, increased cost of

transporting goods through congested areas, and all of that wasted fuel amounted to US$87 billion, an average

of US$1,348 per driver. In land scare Singapore, congestion not only translates to economic impact, but also

strain to the infrastructure and city land use. While techniques for traffic prediction have existed for many

years, the research effort has mainly been focused on traffic prediction. The downstream impact on how city

administration should predict and react to incidents and/or events has not been widely discussed. In this paper,

we propose Artificial Intelligence enabled Complex Event Processing to only identify and predict incidents,

but also to enable a swift response through effective deployment of critical resources to ensure well-

coordinated recovery action before any incident develop into crisis.

1 INTRODUCTION

As a practitioner in Security and Enforcement

industry, situational awareness is critical to our daily

operations. The perception of environmental

elements and events with respect to time or space, the

comprehension of their meaning, and the projection

of the future state enables us to make informed

decision across a broad range of situations, ranging

from integrated security services for commercial

buildings, aviation security, to critical infrastructure

protection.

The proliferation of IoT sensors and smart devices

has enabled us with unprecedented amount of data

and we have applied Complex Event Processing (CEP)

aiming to identify meaningful events in real time and

respond accordingly with right actions in a control

and secured way. It often works well in the beginning

when scenarios are not that complex and event

patterns, either in normal or anomalous situations, are

predictable and easy to plan with in advance. Along

with the development of the applications, however,

the existing CEP solutions may become inadequate to

support the new business requirements for the

applications.

AI-enabled CEP is critical to detecting events

patterns and predicting trends or security threats in

real time for the road conditions. Two key issues that

prevent road operation orchestration from being well

managed as planned are (1) concept drift (Tsymbal,

2004) and (2) impractical labelling in real time.

Concept drift shows that the statistical properties of

the target variables evolve over time in an

unanticipated way. This leads to a situation where the

predictions become less accurate as time passes. Even

concept drift is detectable (Gama, et al., 2004; Gama,

et al., 2014) when it occurs, labelling is either

impractical in real time due to intensive labour

requirement or infeasible in reality for lack of

observable classification evidence.

Once a noteworthy sign or a meaningful event is

identified by an AI-enabled CEP, the successive

matter is to respond to a sequence of analytic

questions instinctively or interactively in order to

grasp the vital figures behind the detected patterns. It

is often necessary to recall the relevant events from

the past for reasoning and tracking down the cause of

a threat. Such a business requirement with capacity of

reasoning based on logic and evidence suggests that

recent events (i.e., hot data) as well as historical

events (i.e., cold data) must be properly stored and

Foo, F., Peng, P., Lin, R. and Hseush, W.

Road Operations Orchestration Enhanced with Long-short-term Memory and Machine Learning (Position Paper).

DOI: 10.5220/0007951603110316

In Proceedings of the 8th International Conference on Data Science, Technology and Applications (DATA 2019), pages 311-316

ISBN: 978-989-758-377-3

311

well managed in an in-memory database, ready to

answer ad-hoc queries in a near real-time manner.

The idea of this work is to resolve the problems

arisen from road operation orchestration by

developing a framework that supports operators,

managers and planners to achieve the following two

objectives:

1. Planned CEP: Support predictive complex event

analysis in real time.

2. Unplanned CEP: Support ad-hoc complex event

analysis and reasoning in near real time.

Planned CEP defines the scope of work that can

be planned in advance, either by machine learning or

programming. Unplanned CEP defined the work

dealing with unknown or unexpected situations,

which may require human interaction or an adaptive

approach to explore and learn potential solutions.

In order to address the needs for both planned

CEP and unplanned CEP, we adopt a model that

mimics short-term memory and long-term memory in

human memory system to maintain recent events and

historical events in timely order in two separate stores.

The short-term memory store manages an

efficient data structure of recent events within a fixed

time period t (e.g., say 24 hours). Any event that lives

longer than t will be immediately removed from the

store and eventually moved into the long-term

memory store, where events are organized, stored for

future reference and intermittently trained for future

inference.

The short-term memory store keeps and manages

events in two aspects: time and space (i.e., temporal-

spatial events). The store is not only aware of where

and when events happened, but also capable of

measuring and understanding all the geographic and

temporal relations (e.g., distance, range) among

events in the store.

While events are directed from the short-term

memory into the long-term memory store, they can be

configured to run through a learning processor (i.e.,

trainer in machine learning). During the process,

behavioural patterns with respect to certain contexts

are constantly learned and the trained models are then

stored as parts of the long-term memory for future use.

This approach is critical to future applications such as

a large group of patrol robots autonomously and co-

ordinately working in an airport or a shopping mall

for service and security purposes.

The long-term memory store keeps two types of

data, (a) entire event history and (b) trained patterns

or trained models. This store is analogous to

recognition memory, a subcategory of human long-

term explicit memory, with two distinct processes,

recollection and familiarity, sometimes referred to as

"remembering" and "knowing" (Medina, 2008),

respectively. Recollection is the retrieval of details of

events. In contrast, familiarity is the classification that

the events were previously learned, without

recollection of individual events. Recollection is a

slow, controlled search process in the memory store,

whereas familiarity is a fast, automatic process to

identify meaningful situations or predict drifting

trends.

With long-term memory store, the planned CEP is

the process of familiarity supported by ML-trained

models stored in the long-term memory store, while

the unplanned CEP is the process of recollection

supported by complex queries in database.

With short-term memory store, the planned CEP

can be implemented by SQL-like declarative

language together with geographic functions and

temporal functions to identify certain event patterns.

The unplanned CEP is supported with ad-hoc analytic

queries and a codeless data visualization tool for

exploring the unknown space of events.

2 BACKGROUND

We have applied Complex Event Processing in many

applications on the fields, where multiple real-world

event streams are captured and analysed in real time

in order to respond to threats or opportunities, and

further foresee potential trends or developing drifts.

Learning from many business scenarios, we have

compiled a classification of four CEP approaches as

shown in Figure 1. Our intention is to develop a CEP

framework and architecture that meets the various

business requirements.

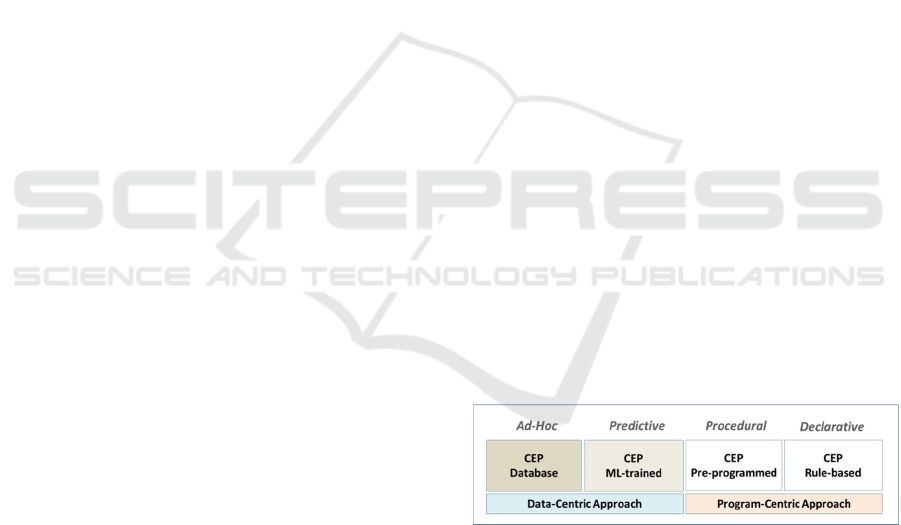

Figure 1: Four CEP Approaches.

1. Rule-based approach: A set of rules is pre-

defined to process the incoming events. The CEP

approach based on declarative rules (Anicic et al.,

2010) shows expressive enough to describe

various complex event patterns. In term of

programming complexity, code in declarative

and logic programming is often significantly

simpler and smaller than that in procedural

programming. The complex event language

proposed in (Wu, Diao & Rizvi, 2006) allows

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

312

query rules to filter and associate events and

transform the relevant events into higher-level

and meaningful events for comprehension.

2. Pre-programmed approach: The logic of CEP is

written in a programming framework using a

procedural language to process incoming event

streams. Several Examples include Apache

Storm, Apache Flink and Apache Spark

Streaming, etc. Apache Storm (Iqbal & Soomro,

2015) is a distributed real-time computational

system, where an application is designed as

a “topology”, a directed acyclic graph (DAG)

with spouts and bolts as vertices. Directed edges

on the graph are data streams from one node to

another. Together, a DAG serves as a data

transformation pipeline. Apache Flink (Carbone

et al., 2015). is a framework and distributed

processing engine for stateful computations

over data streams. Flink is a universal dataflow

engine designed to perform both streaming and

batch analytics. The framework supports a CEP

API for Java and Scala. Apache Spark Streaming

(Zaharia et al., 2016) uses Spark Core's fast

scheduling capability to perform streaming

analytics. It processes data in mini-batches and

performs transformations on those mini-batches

of data.

3. Pre-trained approach: Incoming events are

classified by a pre-trained ML (Machine-

Learning) model. It can serve as a predictive

analytics (Fülöp et al., 2012) where events are

prevented before they occur. However, concept

drifting (Li, Wu, & Hu, 2010; Wu, Li, & Hu,

2012) is a key challenge for many existing

systems, where models need to be re-trained

every time when a new concept happens. Most

methods used for drift detection assume the

availability of class labels immediately after a

data sample arrives. Nevertheless, it is unrealistic

(Kim & Park, 2017) to assume acquisition of all

labels when processing data streams, as labelling

costs are high.

4. Database approach: Incoming events are

captured and analyzed while referencing to the

recent or historical events stored previously in a

database. The system designed by (Gyllstrom et

al., 2006) contains a MySQL database to support

querying over historical data and to allow query

results from the stream processor to be joined

with pre-loaded data. DejaVu system, using

MySQL database as well (Dindar, Fischer, &

Tatbul, 2011), provides declarative pattern

matching query language over current and

archived event streams and offers new

capabilities such as identifying causal

relationships among complex events across

multiple time scales. This approach includes

SQLStream and ParStream. SQLstream is a

SQL-based, real-time analytics platform for

streaming data. ParStream (Hummel, 2010) is

positioned for real-time analytics in the area of

IoT streaming data.

The first two approaches are program-centric,

where pre-defined programs or rules are used to

process incoming events, current or last few ones,

without maintaining the history of events in storage.

The last two are data-centric approaches, where

histories of events are captured and maintained in

storage. ML-trained CEP is the AI-enabled (machine

learning) approach that labels and trains models with

the stored event data in advance, and predictively

analyses incoming events in runtime. The database

CEP is an interactive analytics used on an ad hoc basis.

The database must be a time-series relational database

system that is capable of supporting complex queries

in an efficient way.

We are developing a flexible CEP framework,

which supports not only the ML-trained approach, but

also ad-hoc CEP and pre-programmed CEP

approaches since business requirements are changing

frequently and any pre-trained or pre-programmed

approaches may fail to respond to an incident due to

concept drift.

3 PROBLEMS AND

ASSUMPTIONS

In Security and Enforcement industry, we face

different challenges in many data-related applications

on the fields, where multiple real-world data streams

are captured and collected for analysis. Most data are

considered as streaming data, which has three

properties:

1. Non-stop data streams

2. Immutable data (fact data)

3. Hot value, where more recent data contains more

business values

Streaming data is live fact data, which is always

associated with time and a time-series database is

needed to maintain immediate, recent and historical

data in timely order. Example data sources in road

traffic monitoring are CCTV(closed-circuit television

camera), Lidar(device that measures distance and

amplitude to an object), etc.

There are some problems and challenges we are

facing on the fields as follows:

Road Operations Orchestration Enhanced with Long-short-term Memory and Machine Learning (Position Paper)

313

• Multi-sensory detection relating the real-time

occurrences of different events such as video

analytics from CCTV, seismic sensors and radar.

• Unusual situation detection against experience :

detect a situation where the average speed of

vehicles in a location for the last 10 minutes is 20

miles slower than that in the same location same

time segment for the last 10 weeks.

• Autonomous robot patrolling: identifying,

detecting and differentiating between unattended

objects, temporary and permanent fixtures in the

course of security rounds.

To design a powerful CEP system for the

problems in Security and Enforcement industry, some

assumptions are as follows:

• Labeling is difficult or impractical.

• Periodicity by week, month or year is assumed.

• Public places where group behaviors are

statistically similar in usual situations.

3.1 CEP Issues

Roth et al., 2010 suggested a list of observations for

existing CEP systems in the following areas:

1. temporary memory (i.e., no persistent state),

2. no sophisticated analytical data processing such

as forecasting, classification, clustering, etc.,

3. limited time window and aggregation, and

4. poor performance when calculating exact

answers for complex aggregate queries with huge

windows.

Since 2010, new data technologies, AI and

analytics tools have help to resolve and improve these

issues. Nowadays, our industrial experience shows

several areas waiting to be addressed.

1. Ad hoc and interactive streaming analytics is still

difficult. CEP is often planned in advance.

Programs or rules must be pre-defined, and

models needs to be trained in advance.

2. Traditional relational databases used in CEP do

not support large-volume data processing and

usually perform poorly for long-term historical

data.

3. An efficient time-series relational database is

expected to process hundreds of millions of

records on a commodity server in seconds. An in-

memory database can be used for this purpose.

4. A framework combining different CEP

approaches is important.

5. Applications in Security industry often require

the features related to computation of complex

aggregates with huge windows.

4 PROPOSED CEP

FRAMEWORK

A CEP framework is designed to support both

planned and unplanned CEP approaches. It consists

of three layers over three types of memory stores as

in Figure 2:

1. CEP: define the approach for CEP, either

database CEP or ML-trained CEP.

2. Analytics: define analytics on short-term

memory, which detects patterns of recent events,

or analytics over long-term memory store, which

predicts situations or explore event behaviours.

3. Database: define sensory memory store, short-

term memory store or long-term memory store.

Sensory memory is a memory buffer that only

keeps events instantly for on-the-fly streaming

process, without maintaining internal persistent

state. Short-term memory store is an in-memory

database that only keeps recent events, which

expire once staying longer than a pre-defined

time period and will be removed from the

database immediately. Long-term memory store

manages two types of data, (a) entire history of

events in details and (b) trained patterns or

models.

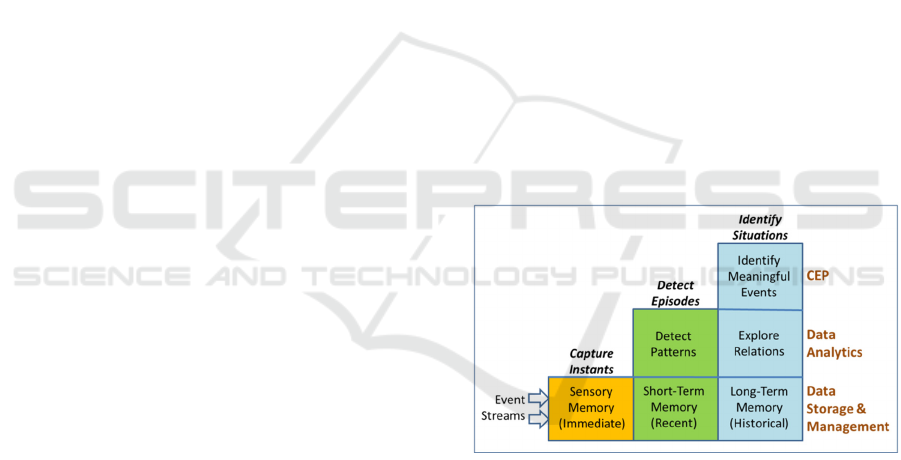

Figure 2: CEP Framework.

The system architecture that supports the CEP

framework is shown in Figure 3. This is a reliable

system architecture that consists of 6 modules:

1. Streaming data queue: To capture the incoming

events persistently before forwarding to the

streaming process. This module is critical to

reliable data collection while event streams flow

in non-stop. Check points are used to ensure

recoverability if case of system failure.

2. On-the-fly streaming process: The first stop to

process the current event or the last few events

without keep additional state information. For

example, check if the average speed of the last 5

vehicles is less than 5 KM per hour.

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

314

3. Short-term memory database: An in-memory

relational database to keep recent events. Queries

in SQL are processed for multi-dimensional

analysis.

4. Long-term memory database: An in-memory

data warehouse to keep the history of events.

5. ML trainer: Events stored in the short-term

memory database will be retrieved for labelling

and training.

6. Predictor: The AI-enabled process to predict

situation.

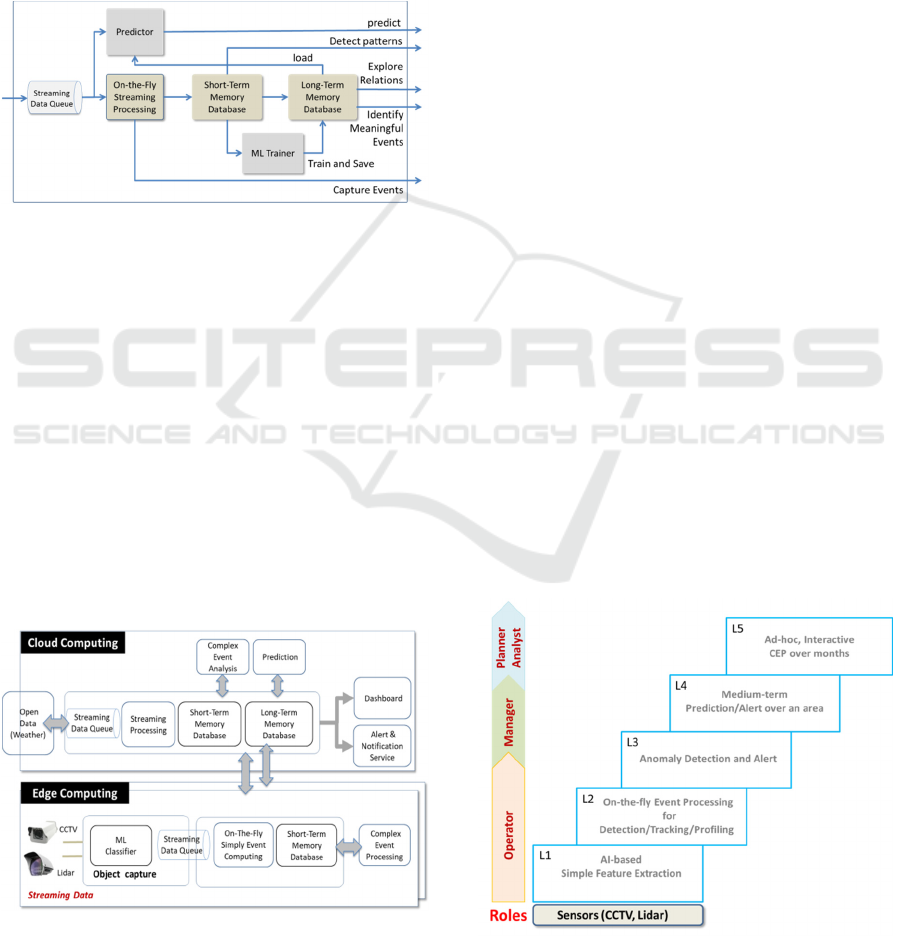

Figure 3: CEP Architecture.

5 ROAD TRAFFIC MONITORING

We have piloted a road traffic monitoring system with

CEP in various levels. The objective of the system is

to monitor traffic for major highways. The business

requirements for road traffic monitoring are listed as

follows:

• A swift response and coordinated recovery action

before any incident develops into a crisis;

• An effective oversight on real-time traffic flow

condition on roadways; and

• Sensors to measure traffic demand for

trending, analysis purposes for deployment of

critical resources.

Figure 4: Distributed CEP Architecture for Road Traffic

Monitoring.

Through a multi-faceted approach of applying a

range of ground sensors and collecting real-time

events, we were able to anticipate road traffic

conditions as well as detect traffic incidents and

violations. The pre-emptive approach enables

business continuity through better roadway

management with speeder responses and deployment

of road marshals and vehicle recovery to handle

traffic incidents that could paralyse downstream

operations.

The Road Traffic Monitoring CEP is deployed in

a distributed environment, where a cluster server is

located in the cloud and tens of edge nodes are located

in local edge devices, as shown in Figure 4. Edge

node is equipped with (a) a machine-learning

classifier (i.e., the predictor) to perform image-

processed object detection tasks, (b) an on-the-fly

processor for simple event computing and (3) a short-

term memory database. All local events are

forwarded to the cluster server, which has an

additional module, long-term memory database.

Besides the events collected from edge nodes, the

master node in the cloud also collects weather

information for prediction purpose.

Figure 5 shows a hierarchy of five analytics tasks

in the CEP system as the following (from bottom

level to the top level):

1. L1 (edge): Extract vehicle information (tracking

ID, location) for each frame from CCTV.

2. L2 (edge): Extract more information such as

speed about vehicles from multiple frames.

3. L3 (edge): Anomaly detection for stationary

vehicles.

4. L4 (cloud): Prediction for the traffic condition

for the next 30 minutes.

5. L5 (cloud): Ad Hoc CEP for interactive analytics

and dashboard.

Figure 5: Analytics Hierarchy for Road Traffic Monitoring.

Road Operations Orchestration Enhanced with Long-short-term Memory and Machine Learning (Position Paper)

315

6 CONCLUSIONS

To keep pace with an increasingly complex security

landscape, security and enforcement practitioners are

leveraging on information dominance as the force

multiplier. In order to achieve information dominance

to Deter, Detect, Deny, Delay and Defend, the ability

to identify an event, associate with a short-term

memory and capture in long-term memory for

referencing is critical.

Our work mentioned in this paper lays the

foundation for a highly flexible event processing

platform with interactive and predictive analytics to

support the dynamic security and enforcement

industry where requirements are changing rapidly,

and any pre-trained or pre-programmed approaches

may fail to respond to an incident. The long-short-

term memory provides the context to CEP in solving

sequence and time series related problems.

The potential application of the work can be

extended to unmanned protection of critical

infrastructure through IoT sensors and smart devices,

centralized management of digital twins through the

convergence of physical and digital environments and

orchestration of autonomous digital workforce such

as robots and drones. The exponential growth of data

from the sensors network and events requires a more

systematic and holistic approach to sense, analyse,

respond and learn.

REFERENCES

Anicic, D., Fodor, P., Rudolph, S., Stühmer, R., Stojanovic,

N., & Studer, R. (2010). A rule-based language for

complex event processing and reasoning. In

International Conference on Web Reasoning and Rule

Systems (pp. 42-57). Springer, Berlin, Heidelberg.

Carbone, P., Katsifodimos, A., Ewen, S., Markl, V., Haridi,

S., & Tzoumas, K. (2015). Apache flink: Stream and

batch processing in a single engine. Bulletin of the IEEE

Computer Society Technical Committee on Data

Engineering, 36(4).

Dindar, N., Fischer, P. M., & Tatbul, N. (2011). DejaVu: a

complex event processing system for pattern matching

over live and historical data streams. In Proceedings of

the 5th ACM international conference on Distributed

event-based system (pp. 399-400). ACM.

Fülöp, L. J., Beszédes, Á., Tóth, G., Demeter, H., Vidács,

L., & Farkas, L. (2012). Predictive complex event

processing: a conceptual framework for combining

complex event processing and predictive analytics. In

Proceedings of the Fifth Balkan Conference in

Informatics (pp. 26-31). ACM.

Gama, J., Medas, P., Castillo, G., & Rodrigues, P. (2004).

Learning with drift detection. In Brazilian symposium

on artificial intelligence (pp. 286-295). Springer, Berlin,

Heidelberg.

Gama, J., Žliobaitė, I., Bifet, A., Pechenizkiy, M., &

Bouchachia, A. (2014). A survey on concept drift

adaptation. ACM computing surveys (CSUR), 46(4), 44.

Gyllstrom, D., Wu, E., Chae, H. J., Diao, Y., Stahlberg, P.,

& Anderson, G. (2006). SASE: Complex event

processing over streams. arXiv preprint cs/0612128.

Hummel, M. (2010). ParStream–a parallel database on

GPUs. In GPU Technology Conference, San Jose

Convention Center, CA.

Iqbal, M. H., & Soomro, T. R. (2015). Big data analysis:

Apache storm perspective. International journal of

computer trends and technology, 19(1), 9-14.

Ji, Y. (2013). Database support for processing complex

aggregate queries over data streams. In Proceedings of

the Joint EDBT/ICDT 2013 Workshops (pp. 31-37).

ACM.

Kim, Y., & Park, C. H. (2017). An efficient concept drift

detection method for streaming data under limited

labeling. IEICE Transactions on Information and

systems, 100(10), 2537-2546.

Li, P., Wu, X., & Hu, X. (2010). Mining recurring concept

drifts with limited labeled streaming data. In

Proceedings of 2nd Asian Conference on Machine

Learning (pp. 241-252).

Margara, A., Cugola, G., & Tamburrelli, G. (2014, May).

Learning from the past: automated rule generation for

complex event processing. In Proceedings of the 8th

ACM International Conference on Distributed Event-

Based Systems (pp. 47-58). ACM.

Medina, J. J. (2008). The biology of recognition memory.

Psychiatric Times, 25(7), 13-15.

Roth, H., Schiefer, J., Obweger, H., & Rozsnyai, S. (2010,

May). Event data warehousing for complex event

processing. In 2010 Fourth International Conference

on Research Challenges in Information Science (RCIS)

(pp. 203-212). IEEE.

Tsymbal, A. (2004). The problem of concept drift:

definitions and related work.

Computer Science

Department, Trinity College Dublin, 106(2), 58.

Wu, E., Diao, Y., & Rizvi, S. (2006). High-performance

complex event processing over streams. In Proceedings

of the 2006 ACM SIGMOD international conference on

Management of data (pp. 407-418). ACM.

Wu, X., Li, P., & Hu, X. (2012). Learning from concept

drifting data streams with unlabelled data.

Neurocomputing, 92, 145-155.

Zaharia, M., Xin, R. S., Wendell, P., Das, T., Armbrust, M.,

Dave, A., & Ghodsi, A. (2016). Apache spark: a unified

engine for big data processing. Communications of the

ACM, 59(11), 56-65.

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

316
