Semi-Structured Data Model for Big Data (SS-DMBD)
Shady Hamouda
1,2
and Zurinahni Zainol
1
1
Universiti Sains Malaysia, Penang, Malaysia
2
Emirates College of Technology, Abu Dhabi, U.A.E.
Keywords: Semi-Structured Data, Document-oriented Database, Big Data, NoSQL.
Abstract: New business applications require flexibility in data model structure and must support the next generation of
web applications and handle complex data types. The performance of processing structured data through a
relational database has become incompatible with big data challenges. Nowadays, there is a need to deal
with semi-structured data with a flexible schema for different applications. Not only SQL (NoSQL) has
been presented to overcome the limitations of relational databases in terms of scale, performance, data
model, and distribution system. Also, NoSQL supports semi-structured data and can handle a huge amount
of data and provide flexibility in the data schema. But the data models of NoSQL systems are very complex,
as there are no tools available to represent a scheme for NoSQL databases. In addition, there is no standard
schema for data modelling of document-oriented databases. This study proposes a semi-structured data
model for big data (SS-DMBD) that is compatible with a document-oriented database, and also proposes an
algorithm for mapping the entity relationship (ER) model to SS-DMBD. A case study is used to evaluate the
SS-DMBD and its features. The results show that this model can address most features of semi-structured
data.
1 INTRODUCTION
Nowadays, business applications require databases
with the ability to support extreme scales and deal
with many data formats. Information technology in
the healthcare sector is shifting from structure-based
data to semi-structured (Wang et al., 2018). Assunção
et al. (2015) and Stanescu et al. (2016) discussed the
challenges of big data, such as how to deal with
increasing data volume and the need for a semi-
structured data type to store and handle large amounts
of data with a flexible schema.
Assunção et al. (2015) and Siddiqa et al. (2017)
discussed the problems of relational databases, which
are a challenge in big data handling: how to process
and integrate variety and velocity data. Therefore, the
Not only SQL (NoSQL) database has been presented
as new technology for designing a data model without
strict constraints (Wang et al., 2018). NoSQL is
capable of accepting all types of structured, semi-
structured, and unstructured data and has many
features such as a support-distributed system, a
flexible schema, and horizontal, scalable, and easy
replication (Storey and Song, 2017; Quattrone et al.,
2016). Moreover, NoSQL has a different data model
concept that is classified according to the storage and
retrieval of data, as each model has different ways of
designing, storing, and processing data (Storey and
Song, 2017). A document-oriented database is
designed to manage and store data in document
format and collections. A document’s contents are
encapsulated or encoded in a standard format such as
extensible markup language (XML), JavaScript
Object Notation (JSON), or Binary JavaScript Object
Notation (BJSON) for storing and retrieving the data
(Li et al., 2014). Each document has a unique primary
key. Also, a document can include different data
types, such as complex data structure, nested objects,
arrays, and embedded documents (Zhao et al., 2013).
On the other hand, semi-structured data is
emerging as one of the best models for handling large
amounts of data. Hashem and Ranc (2016) noted that
NoSQL distribution supports a schema that will give
flexibility in handling and processing semi-structured
data.
A semi-structured data format can store data in
XML, JSON, or BJSON. Moreover, a document-
oriented database stores data in a semi-structured
format using the key-value concept. The value of a
key can be any data type that gives the database
flexibility to store any kind of data (Zhao et al.,
2013).
348
Hamouda, S. and Zainol, Z.
Semi-Structured Data Model for Big Data (SS-DMBD).
DOI: 10.5220/0007957603480356
In Proceedings of the 8th International Conference on Data Science, Technology and Applications (DATA 2019), pages 348-356
ISBN: 978-989-758-377-3
Copyright
c
2019 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
However, there is a lack of semi-structured data
models with flexible schemas (Assunção et al.,
2015, Mazumdar et al., 2019). These issues and
challenges must be addressed by researchers when
designing a method or algorithm to retrieve
information from a large amount of data (Storey and
Song, 2017). Therefore, this study focuses on the
design of a semi-structured data model for big data.
The remainder of this paper is structured as
follows: the next section reviews existing semi-
structured data models; it is followed by the
proposed model and algorithm, and presentation of
the case study. Finally, the proposed model is
evaluated and conclusions are drawn.
2 MODELS OF
SEMI-STRUCTURED DATA
A semi-structured data model is used to store
different types of data without a formal structure
(Strohbach et al., 2016). Numerous properties must
be addressed to handle semi-structured data, such as
no strict structure, no strict participation/instances,
hierarchical structure, non-hierarchical structure,
ordering, irregular structure of data, disjunction,
self-evolving, mixed content, abstraction, explicit
separation of structure and content, partial
relationship/participation, heterogeneity, n-array
relationships, inheritance, reuse potential,
constraints, functional dependencies, symmetric
relationships, and recursive relationships (Ganguly
and Sarkar, 2012). These properties are evaluated in
terms of semi-structured data models in Table 1.
Ganguly and Sarkar (2012) found that none of
these models can address all of the properties and
requirements of the semi-structured data model. The
GOOSSDM model can handle most semi-structured
requirements, but the integration of semantic web
technologies is still problematic with all of these
models.
Hashem and Ranc (2016) and Yusof and Man
(2017) found that JSON is more compact than XML
for semi-structured data because XML has many
rules and great complexity in representing a semi-
structured data format. JSON is a serialization
format, which has schema-less data with many data
types, such as string, number, list and array, and
nested structure (Florescu and Fourny, 2013). The
features of JSON include easy preparation, string
array analysis, and suitability for semi-structured
data and a cloud database (Mathew and Kumar,
2015). Therefore, JSON plays an important role in
representing semi-structured data in a NoSQL
database, as it is lightweight and flexible in dealing
with formatted, semi-structured data (Storey and
Song, 2017).
Table 1: Evaluation of the semantic properties of semi-structured conceptual models (Ganguly and Sarkar, 2012).
Model
Property
ERX
ORA-
SS
XER
EReX
XUML
XSEM
GOOSSDM
No strict structure
-
No strict participation/instances
-
Hierarchical structure
Non-hierarchical structure
P
X
P
Ordering
P
Irregular structure of data
X
X
Disjunction
X
X
Self-evolving
X
X
Mixed content
X
Abstraction
X
Explicit separation of structure and content
Partial relationship/participation
Heterogeneous
N-array relationship
Inheritance
Reuse potential
Constraints
Cardinality
ERX:Entity relational for XML;ORA-SS:object relationship attribute model for semi-structured data; XER:Extensible ER;
EReX:Entity relational extended to XML;XUML:Executable of Unified Modeling Language;XSEM:Conceptual model for
XML;GOOSSDM:Graph object-oriented semi-structured data model; =fully supported; X = not fully supported;
P=partially supported.
Semi-Structured Data Model for Big Data (SS-DMBD)
349
3 PROPOSAL: A
SEMI-STRUCTURED DATA
MODEL FOR BIG DATA
This study proposes a schema for a semi-structured
data model for big data (SS-DMBD) based on the
document-oriented data model. This schema is
focused on organizing data into semantic collections.
Some entities can be grouped into other collections,
and documents in the same collection may not have
the same fields. The order of the fields is not
necessary, and the content of a particular field may
differ across documents. The SS-DMBD transforms
the conceptual model to a logical model based on the
following features of the entity relationship ER
model: identifying all entities and attributes,
identifying the relationships between entities,
resolving all types of relationships, keys (primary,
foreign), constraint, and normalization.
3.1 SS-DMBD Components
Many components are required in designing a
database based on the data model, to contain the
logical and physical data model. This section
describes the main components in designing an SS-
DMBD:
i. Each strong entity is represented by a collection;
ii. Each weak entity is represented by an embedded
document in the strong collection;
iii. Each entity record represents a document;
iv. Each attribute is represented by key-value pairs
in which the key represents the attribute and the
value the data type of this attribute according to
the type of value;
v. The array data type is used to represent multiple
values or many documents; and
vi. Embedded and reference documents represent
the types of relationships between the
collections.
3.2 Features of SS-DMBD
The features of the ER model are used to outline a
database schema model. The SS-DMBD improves
upon the document-oriented schema of Bhogal and
Choksi) 2015 as follows.
3.2.1 Entities
The SS-DMBD database entities include:
Strong entities: A strong entity is a collection of
documents represented by a folded corner shape
with the entity name written on it.
Weak entities: A weak entity is a document
embedded in the strong entity, represented by a
folded corner inside the strong entity with the name
of the weak entity.
Hierarchical entities: A document is created for each
higher level entity with all of its attributes as key
values; then, the lower level entities with their
attributes are added as an array of documents
embedded in the high-level document.
3.2.2 Constraints
The document constraints are the following:
The primary key of the relational schema for each
entity is the same for this model. It uniquely
identifies each document. The primary key for the
document is identified by underlining the relevant
attribute.
A foreign key is indicated by adding the primary
key of the entity to another entity. The foreign key is
represented by a dashed underline of the relevant
attribute.
3.2.3 Relationships
The relationships of the document-oriented model
based on SS-DMBD are represented as follows:
i. One-to-One (1:1) Relationship: This can be
handled in two ways: using an embedded document
or using the reference document. If one side of the
relationship has datasets not exceeding 16 MB or
has less than tens of thousands/hundreds of
thousands/millions records, and there are no
relationships with other entities, then an embedded
document is used to handle this relationship. If more
relationships exist or both sides have datasets
including more than tens of thousands/hundreds of
thousands/millions of records, then this relationship
should be represented using the reference document.
The embedded document is represented by a
folded upper right corner and is marked with the
type of relationship.
The reference document is used to represent the
relationships between two collections and is
described by a line between them.
ii. 1:N Relationship: This relationship can be
described using the embedded document or
reference document depending on the size of
datasets for the N side. If N is small (i.e., less than
tens of thousands/hundreds of thousands/millions
records, based on the assumption that documents are
not large), the upper left corner of the embedded
DATA 2019 - 8th International Conference on Data Science, Technology and Applications
350
document is folded and marked with the type of the
relationship. If N is large (i.e., more than tens of
thousands/hundreds of thousands/millions of
records), then the relationship is described by the
reference document.
iii. M:M Relationship: This type of relationship can
be handled by creating two collections, then storing
a list of related documents with links to the other
collections as a list of array elements in other
documents and vice versa. It is represented using an
array of data type with the embedded documents.
Square brackets [ ] are used to identify the array, and
each element of the array is a document stored in the
field “relationship name or combination of both
collections’ names.
iv. Unary Relationship: A unary relationship is
described by normal key-value pairs in the
samedocument, and K is the name of the unary
relationship.
4 MAPPING ER SCHEMA TO
SS-DMBD
The components of ER schemas are entities,
attributes, and relationships. SS-DMBD uses E to
represent an entity, and a series of entities will be
Ei….En (i=1 to n). The number of attributes will be
represented by Aj….An (j=1 to n), and R is used to
represent the type of relationships (1:1 or 1:N or
M:M).
4.1 SS-DMBD Specifications
ER specifications are converted to the SS-DMBD
specifications as shown in Table 2.
Table 2: Specifications of SS-DMBD.
Database properties
ER model
SS-DMBD notion
Description
Entity (E)
Strong entity
C
Create a new collection
Weak entity
WC
Embed weak entity into a strong collection
Hierarchical
entities
HC{LC1,…,LCi}
HC: Higher collection
LC: lower collection
i: number of lower
collections
Create a document for all higher level entities with all the
attributes as key values. Add the lower level entities with their
attributes as an array of embedded documents for the high-
level document. HC{k1..kn, LC[{k1..kij}]……}
Attribute
Attributes
{K1,…,Ki}
The attributes of each entity are described using K; they are
listed in brackets as documents separated by commas.
Multi-valued
attribute
MV[K1,…,Ki ]
The multi-valued attribute is described by the name of this
attribute with an array data type, and Vi represents all of the
multi-values.
Relationships
Relationship
types
E
m
The embedded model applies between two entities.
R
f
The reference model applies between two entities.
Algorithm for mapping the ER schema to SS-DMBD
Input: ER schema
Output: SS-DMBD
1: BEGIN.
2: for each strong entity
3: create new collection C
i(i=1…n).
4: for each weak entity WC
i(i=1…n)
do
5: create embedded documents belonging in the strong entity (WC
i
E
m
C
i
).
6: end for.
7: for each multi-value attribute “MVi” do
8: store multi-values as array data type belonging in the strong entity MV
i(i=1…n)
[] Entity.
9: end for.
10: for each 1:1 relationship between two entities (Entity1 and Entity2) do
11: If Entity1 data set size is less than 16 MB or it has less than tens of thousands/hundreds of thousands/millions of
records and no other relationship with other entity.
12: Entity1 store as an embedded document into Entity2 (Entity 1 E
m
Entity 2).
13: else
Semi-Structured Data Model for Big Data (SS-DMBD)
351
14: apply reference document between Entity 1 and Entity 2 (Entity 1 R
f
Entity 2).
15: end if.
16: end for.
17: for each 1:N relationship between two entities (Entity 1 and Entity 2) do
18: if N data set size is less than 16 MB or it has less than tens of thousands/hundreds of thousands/millions of records
then
19: N side store as an embedded document into 1 side (Entity2
(N)
Entity
m
E Entity1
(1)
).
20: else
21: apply reference document between Entity1 and Entity2 ( Entity 1 R
f
Entity2)
22: end if.
23: end for.
24: for each M:M relationship between two entities (Entity1 and Entity2) do
25: for Entity1 side do
26: create array data type into an embedded document
store the primary key of Entity2 with other related attributes.
27: Update Entity1 with the embedded document of Entity2 (Entity2 :{[E
m
]} Entity1).
28: end for.
29: for E2 do
30: create array data type in an embedded document
31: store the primary key of Entity1 with other related attributes.
32: update Entity2 with the embedded document of Entity1 (Entity1 :{[Em]} Entity2).
33: end for.
34: end.

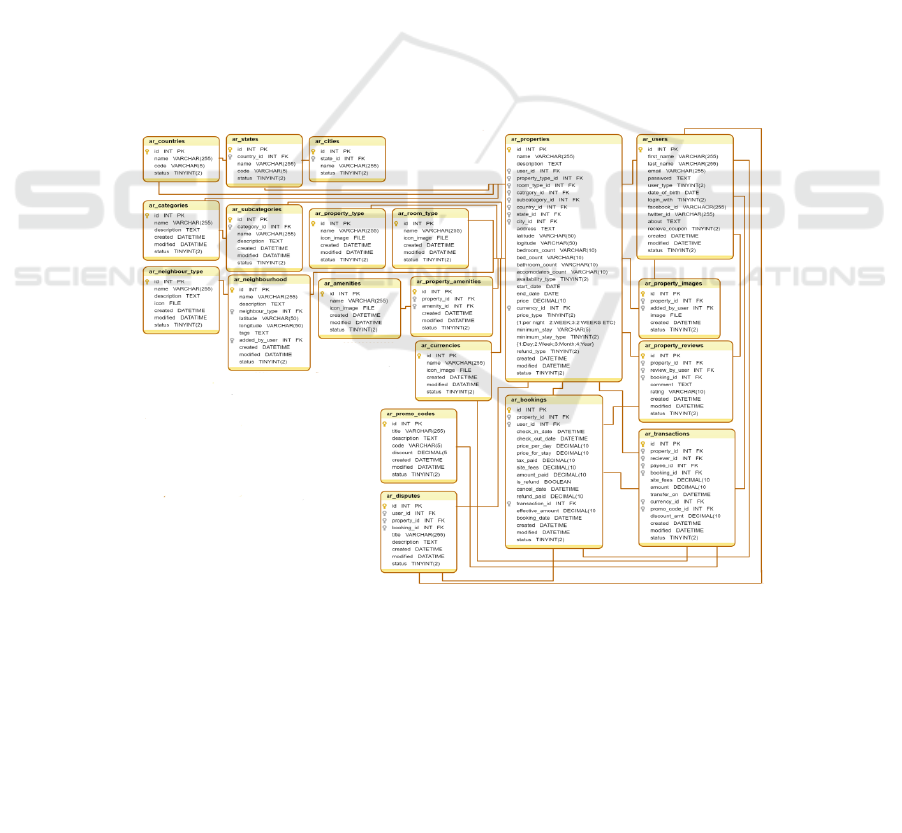

Figure 1: Airbnb schema in relational database (https://creately.com/app/?tempID=idbbu9op2#).
5 CASE STUDY: AIRBNB, INC.
Airbnb, Inc. is one of the most effective travel
accommodation and apartment-providing services
worldwide. According to Quattrone et al., (2016),
Airbnb need to changing their business requirements
from time to time.
5.1 Airbnb Schema in Relational
Database
Figure 1 presents a schema for the large company
Airbnb in a relational database.
DATA 2019 - 8th International Conference on Data Science, Technology and Applications
352
5.2 Airbnb Schema by SS-DMBD
A mapping algorithm was applied to map the Airbnb
schema from the relational database to SS-DMBD;
the output is shown in Figure 2.

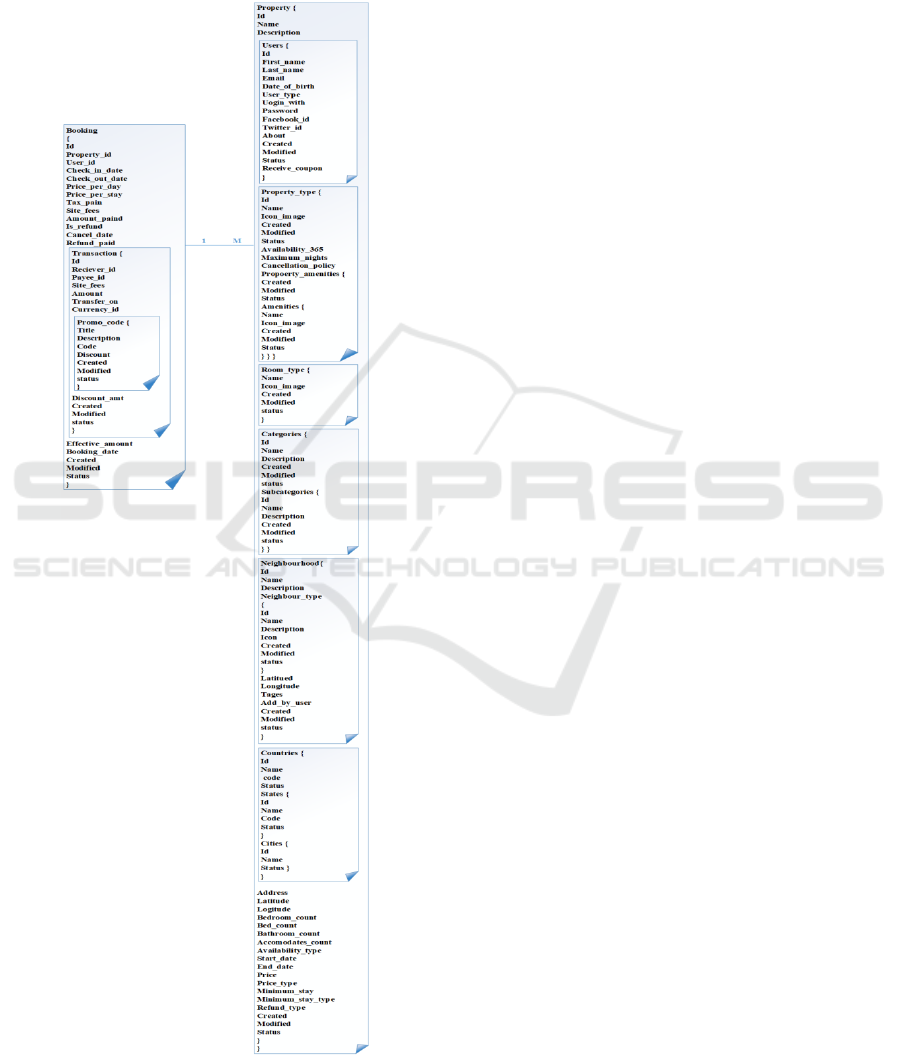

Figure 2: Airbnb schema by a semi-structured data model
for big data (SS-DMBD).
6 EVALUATION OF SS-DMBD
FEATURES WITH
SEMI-STRUCTURED
PROPERTIES
SS-DMBD covers most semantic features of semi-
structured data, as follows.
6.1 No Strict Structure
SS-DMBD has no strict formatting, which indicates
that similar attributes in each document are
irrelevant and new attributes can be added at any
time without any strict structure.
6.2 Hierarchical Structure
SS-DMBD can support tree data structures of
hierarchical relationships. The concept of
embedding a document into a collection considers
the hierarchical structure between two collections,
and each collection may have many embedded
documents.
6.3 Non-hierarchical Structure
The document of parent references stores each tree
node, and each tree node stores the ID of a reference
document. Thus, each collection may include many
references to other collections with no hierarchical
structure.
6.4 Ordering
The concept of the document-oriented database
model is a free schemathat is, the order of key
values in the document depends on how they are
inserted. Each document may have a different
ordering of fields.
6.5 Irregular Data Structure
SS-DMBD stores data in a semi-structured format
that is, data are stored as key values. The value of
the key can be any type of data, and pairs of key
values are stored in documents. Given that each
document has a flexible schema; data can be stored
in an irregular structure.
6.6 Disjunction
Disjunction is represented by an embedded
document. The main document ID is associated with
Semi-Structured Data Model for Big Data (SS-DMBD)
353
the embedded document’s ID, and the embedded ID
can access all the embedded fields.
6.7 Self-evolution
Self-evolution considers as the main concept of the
documents oriented model of because it does not have
a fixed schema. Therefore, each document has a self-
description, which allows each key to be self-
described.
6.8 Mixed Content
SS-DMBD allows each key to have different contents
in each document, and these contents can be blended
in the same document without a structure. The
concept of key values is to accept any kind of data
without constraint and without defining the type of
key, because the constraint of value will be
responsible for the application.
6.9 Abstraction
SS-DMBD hides the complexity of data. Given that
the content in each key is not important, a key can be
accessed without any details about the value type.
6.10 Explicit Separation of Structure and
Content
The logical structure of documents is represented in a
separate hierarchy by considering the content of the
key-value series.
6.11 Partial Relationship/Participation
In the data model of a document, a relationship can be
represented using reference and embedded documents
to identify the parent and child of each document. The
main collection includes the parent and embedded
documents (which are considered the children). The
reference model between collections represents
participation.
6.12 N-array Relationship
SS-DMBD represents the many-to-many relationship
and multi-value attributes in array values and makes
better use of this feature than previous models did.
Embedded and reference documents represent many-
to-many relationships.
6.13 Inheritance
SS-DMBD supports inheritance through the
embedded document. The main document can
describe the common properties, and the embedded
document can be represented by the sub-properties of
the main document data. Therefore, SS-DMBD can
describe inheritance.
6.14 Reuse Potential
The reference linking of the relationship between two
documents describes the reuse potential. For example,
the relationship between collections can be
represented by a reference document. Thus, SS-
DMBD can connect the collection with other
collections through the reference concept.
6.15 Constraints
SS-DMBD is a flexible schema, meaning it has no
constraints when dealing with different data types or
when documents may have different fields depending
on the system. Moreover, if a constraint needs to be
applied, it will be implemented by a programming
application.
6.16 Cardinality
An embedded document can represent the
relationships between the document and collections.
The reference document can represent the
relationships between the collections. SS-DMBD
supports cardinality features, such as the relational
database that keeps relationships between tables
through embedded and reference documents.
6.17 Functional Dependencies
The data are organized into key values. Each key is
used to store a value, which can be determined by the
key. Each document also has a primary key, which is
used to identify all document keys. Therefore, all
document fields are functionally dependent on the
primary key document.
6.18 Symmetric Relationship
Each value in the document can be related to the key,
and each key is symmetrically related to the value.
6.19 Recursive Relationship
This feature can be described through the
DATA 2019 - 8th International Conference on Data Science, Technology and Applications
354
relationships between documents. A unary
relationship is stored in the related collection, which
can be described as a recursive relationship.
6.20 Flexible Schema
This new feature is required for big data not covered
by any semi-structured models or a relational
database, and for new business requirements and
changes. In SS-DMBD, the schema can be changed
at any time. SS-DMBD allows adding any field in
any document without constraint and allows each
document to have different numbers of fields. It also
allows changing the relationships before or after
implementation.
6.21 Time Stamp
This feature is required for semi-structured data.
Real-time applications need a way to evolve with
time. Time-stamp data type can be better and more
efficient than date-time data type. SS-DMBD
provides time-stamp data for each document that it
supports.
To summarize, in a relational database, a new
field should be added to change its schema, but the
empty field will cause inefficiencies in performance.
SS-DMBD addresses this issue by allowing adding
or altering data in any structure without changing the
database schema. SS-DMBD allows the application
to use the required data and ignore unrequired data.
The flexible schema and time stamp are fully
supported by SS-DMBD, unlike previous semi-
structured models.
7 CONCLUSION
A semi-structured data model was designed to be
compatible with a document-oriented database.
Also, an algorithm was proposed to map the ER
model to SS-DMBD. This algorithm can be used to
convert any relational database schema to a
document-oriented database schema. Furthermore,
semi-structured data can be formatted in a document
in a way that is more useful than a table when a
large amount of data is available. The proposed
model provides features for the conceptual
representation of a document-oriented database. For
example, it presents a flexible schema by allowing
the application to change or update business
requirements over time, it allows collecting data of
different types from different sources, and it
represents relationships as embedded and reference
documents. The study can be extended to migrate a
relational database to a document-oriented database.
REFERENCES
Assunção, M. D., Calheiros, R. N., Bianchi, S., Netto, M.
A. & Buyya, R. 2015. Big Data Computing and
Clouds: Trends and Future Directions. Journal of
Parallel and Distributed Computing, 79, 3-15.
Bhogal, J. & Choksi, I. Handling Big Data Using NoSQL.
Advanced Information Networking and Applications
Workshops (WAINA), 2015 IEEE 29th International
Conference On, 2015. IEEE, 393-398.
Feng, W., Gu, P., Zhang, C. & Zhou, K. Transforming
UML Class Diagram Into Cassandra Data Model With
Annotations. 2015 IEEE International Conference on
Smart City/Socialcom/Sustaincom (SmartCity), 2015.
IEEE, 798-805.
Florescu, D. & Fourny, G. 2013. JSONiq: The History of a
Query Language. IEEE Internet Computing, 17, 86-
90.
Ganguly, R. & Sarkar, A. 2012. Evaluations of Conceptual
Models for Semi-Structured Database System.
International Journal of Computer Applications, 50.
Hashem, H. & Ranc, D. Evaluating NoSQL Document
Oriented Data Model. Future Internet of Things and
Cloud Workshops (FiCloudW), IEEE International
Conference on, 2016. IEEE, 51-56.
Li, X., Ma, Z. & Chen, H. QODM: A Query-Oriented
Data Modeling Approach for NoSQL Databases.
Advanced Research and Technology in Industry
Applications (WARTIA), 2014 IEEE Workshop on,
2014. IEEE, 338-345.
Mathew, A. B. & Kumar, S. M. Analysis of Data
Management and Query Handling in Social Networks
using NoSQL Databases. Advances in Computing,
Communications and Informatics (ICACCI), 2015
International Conference on, 2015. IEEE, 800-806.
Mazumdar, S., Seybold, D., Kritikos, K. & Verginadis, Y.
2019. A Survey on Data Storage and Placement
Methodologies for Cloud-Big Data Ecosystem.
Journal of Big Data, 6, 15.
Quattrone, G., Proserpio, D., Quercia, D., Capra, L. &
Musolesi, M. Who Benefits From The Sharing
Economy of Airbnb? Proceedings of the 25th
International Conference on World Wide Web, 2016.
International World Wide Web Conferences Steering
Committee, 1385-1394.
Siddiqa, A., Karim, A. & Gani, A. 2017. Big Data Storage
Technologies: A Survey. Frontiers of Information
Technology & Electronic Engineering, 18, 1040-1070.
Stanescu, L., Brezovan, M. & Burdescu, D. D. Automatic
Mapping of MySQL Databases to NoSQL MongoDB.
Computer Science and Information Systems
(FedCSIS), 2016 Federated Conference on, 2016.
IEEE, 837-840.
Storey, V. C. & Song, I.-Y. 2017. Big Data Technologies
and Management: What Conceptual Modeling Can
Semi-Structured Data Model for Big Data (SS-DMBD)
355
Do. Data & Knowledge Engineering, 108, 50-67.
Strohbach, M., Daubert, J., Ravkin, H. & Lischka, M.
2016. Big Data Storage. New Horizons for a Data-
driven Economy. Springer, Cham.
Wang, Y., Kung, L. & Byrd, T. A. 2018. Big Data
Analytics: Understanding its Capabilities and Potential
Benefits for Healthcare Organizations. Technological
Forecasting and Social Change, 126, 3-13.
Yusof, M. K. & Man, M. 2017. Efficiency of JSON for
Data Retrieval in Big Data. Indonesian Journal of
Electrical Engineering and Computer Science, 7, 250-
262.
Zhao, G., Huang, W., Liang, S. & Tang, Y. Modeling
Mongodb with Relational Model. Emerging Intelligent
Data and Web Technologies (EIDWT), 2013 Fourth
International Conference on, 2013. IEEE, 115-121.
DATA 2019 - 8th International Conference on Data Science, Technology and Applications
356
