Improving the Latency of Python-based Web Applications

António Esteves

and João Fernandes

Centro ALGORITMI, School of Engineering, University of Minho, Campus de Gualtar, Braga, Portugal

Keywords: Web Performance Optimization, Latency, Web Application, Django, Python.

Abstract:

This paper describes the process of optimizing the latency of Python-based Web applications. The case study

used to validate the optimizations is an article sharing system, which was developed in Django. Memcached,

Celery and Varnish enabled the implementation of additional performance optimizations. The latency of

operations was measured, before and after the application of the optimization techniques. The optimization

of the application was performed at various levels, including the transfer of content across the network and

the back-end services. HTTP caching, data compression and miniﬁcation techniques, as well as static content

replication using Content Delivery Networks, were used. Partial update of the application’s pages on the front-

end and asynchronous processing techniques were applied. The database utilization was optimized by creating

indexes and by taking advantage of a NoSQL solution. Memory caching strategies, with distinct granularities,

were implemented to store templates and application objects. Furthermore, asynchronous task queues were

used to perform some costly operations. All of the aforementioned techniques favorably contributed to the

Web application’s latency decrease. Since Django operates on the back-end, and optimizations must be

implemented at various levels, it was necessary to use other tools.

1 INTRODUCTION

According to published studies, regarding the effect

a Web application’s response time has on the user’s

experience, 47% of the users expect the pages to

be loaded in two seconds or less and 40% will

abandon the site if it takes more than three seconds

to load (Anastasios, 2016). With the increasing

complexity of Web applications, optimizing its

response time (or latency) is crucial in many cases.

The concept of performance is wide. According to

(Meier et al., 2004), performance can be expressed in

terms of latency, throughput, scalability, and resource

utilization. Latency quantiﬁes the time required to

perform a particular operation. In Web applications,

the latency associated with a page request includes

both server latency, which is the time required to

process the client’s request, and the latency of the

network, which is the time spent in transferring the

request and response messages of the page. The

throughput describes the number of transactions

performed per unit time. Due to multithreading

strategies, this metric is not the inverse of latency.

Resource utilization refers to the consumption

of services, or infrastructures, such as memory,

https://orcid.org/0000-0003-3694-820X

processor, disk, and network. Scalability is the ability

of a system to process higher loads, allowing an

increase in the number of users or operations without

signiﬁcantly degrading performance.

In this paper, we discuss several latency

optimization techniques that were applied on a

Web application development. Optimization of the

application performance took place at several levels,

including the transfer of content across the network

and the back-end services. The optimization of the

content transfer involved the use of techniques aimed

at reducing the number or size of HTTP messages,

such as HTTP caching (Grigorik, 2017), information

compression and miniﬁcation (Google, 2017), as

well as static content replication using Content

Delivery Networks (CDNs) (Fielding et al., 1999).

In addition, asynchronous processing techniques and

partial updating of application pages on the front-end

were applied. On the server side, the database was

optimized by creating indexes (Connolly and Begg,

2005) and taking advantage of a NoSQL solution

(Smith, 2013). Authors in (Holovaty and Kaplan-

Moss, 2009) recommend the use of in-memory

caching strategies, which have been implemented

with distinct granularities to store templates and

objects generated by the application. In addition,

Esteves, A. and Fernandes, J.

Improving the Latency of Python-based Web Applications.

DOI: 10.5220/0007959401930201

In Proceedings of the 15th International Conference on Web Information Systems and Technologies (WEBIST 2019), pages 193-201

ISBN: 978-989-758-386-5

193

we used asynchronous task queues to improve the

user experience in some scenarios (Greenfeld and

Greenfeld, 2017) (Arcos, 2016).

The paper is organized as follows. Section 2

presents the related work and section 3 refers

the technologies used to the develop the Web

application that will be presented later on. In

section 4 is introduced our case study: the

Sharticle Web application. Section 5 details

the performance optimization techniques, which

allowed decreasing the latency of several Sharticle

operations. Section 6 presents the results obtained

with the optimizations made on Sharticle. Finally,

in section 7 are pointed out some conclusions and

topics for future developments.

2 RELATED WORK

According to (Subrayen et al., 2013) the major goal

of improving Web pages’ performance is to minimize

the delay, perceived by the user, between the moment

he/she clicks on a link and the page is displayed.

This is a user-centric approach to Web performance

optimization (WPO), the same followed by our work.

To reduce the perceived delay, they reduced the time

the browser takes to fetch a given resource, decreased

the number of requests, optimized the rendering

speed, and made the loading time appear shorter. The

paper presents the optimization techniques but not the

gain obtained with their application.

In (Manchanda, 2013) the author analyzed seven

techniques to reduce the average user response time

for the Moodle Learning Management System. A

performance analysis of Moodle was performed using

Apache JMeter. Among the front-end optimizations

documented are reducing the number and size of

HTTP requests, minimizing DNS lookups (Grigorik,

2013), using HTTP compression, reducing the

response header size by deactivating the ETags,

and reducing the response time with AJAX. The

maximum reduction in user response time was 98%,

achieved with hardware optimizations.

Authors of (Horat and Arencibia, 2009) present

Web optimizations such as reducing the number

of HTTP requests, using CDNs, using expires

header, compressing plain text resources, deactivating

ETags, avoiding HTTP redirections, sending partially

generated pages, reducing the number of DOM

elements and iframes, reducing the cookies size,

using domains without cookies for static components,

placing styles and scripts correctly, avoiding CSS

expressions, using GET requests whenever possible,

externalizing all static content, minifying styles and

scripts, downloading components before they are

requested, and selecting the most compact image

formats. The work doesn’t report the application of

the techniques, just analyzes Moodle to verify if it is

"compliant" with them.

In (Ossa et al., 2012), latency is considered

the main Web performance metric. This work

is grounded on studies that demonstrate that Web

prefetching is an effective technique to reduce latency.

Web prefetching was split in two main components:

a predictor engine and a prefetching engine. The

predictor is located at the Web server and the

prefetcher is at the client. Prefetching improved page

latency from 39% to 52%.

In (Shivakumar and Suresh, 2017) it is discussed

the key aspects of pro-active quality in Web

applications, including identiﬁcation of the key

indicators of quality problems, methods to achieve

the quality at the source, tools for continuous

integration, and monitoring of QoS. WPO techniques

were classiﬁed in 8 categories. The application of

the techniques was not validated with quantitative

measures.

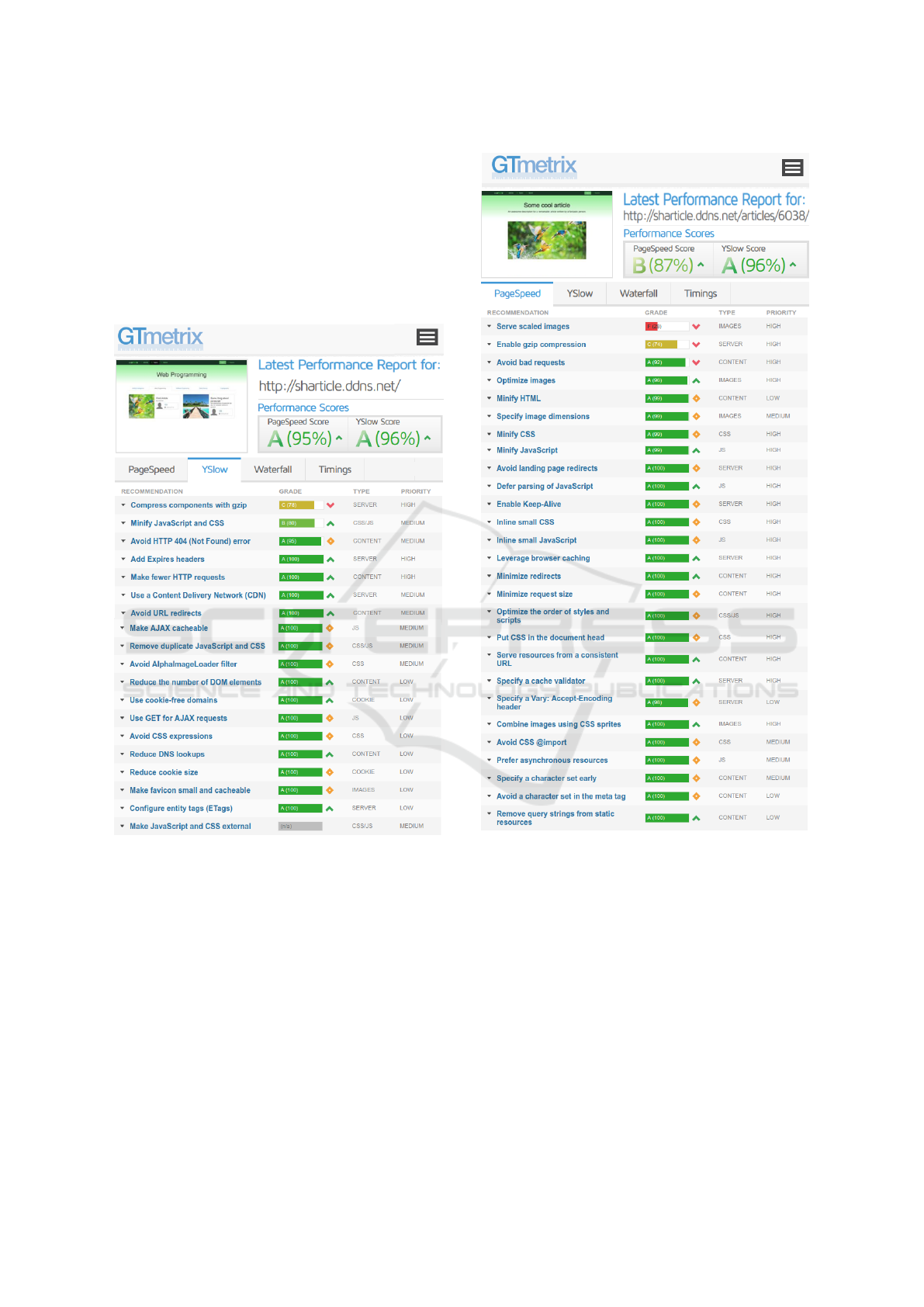

(Anastasios, 2016) evaluates how WebPageTest,

GTmetrix, PageSpeed Insights, Blackﬁre, and Google

Analytics can be used to identify which parts of a

Web application must be improved to accelerate page

rendering. The author also analyzed a signiﬁcant set

of front-end and back-end optimization techniques.

Despite the detailed and fairly comprehensive

explanation of the different optimizations, the author

presents few results.

Since front-end tasks contribute on average for

80-90 % of the time it takes to get a response from

a Website, work in (Cao et al., 2017) focuses on

ﬁve front-end optimizations. Authors present the

optimizations but don’t validate their implementation.

In (Cerny and Donahoo, 2010a; Cerny and

Donahoo, 2010b) it is used a debugging Web proxy

to evaluate and improve page load times, identifying

the load time and characteristics of the various

page resources. After identifying the resources

with the largest impact on page load time, several

optimizations can be applied. The number and

coverage of the applied optimization strategies are

very incomplete.

3 TECHNOLOGIES

This section summarizes the main technologies that

supported the Web application development and

optimization. Django is a full-stack Python-based

Web development framework that provides solutions

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

194

for all levels of the application stack. Django

uses the MTV architectural pattern, which comprises

models, templates, and views. The models form the

data access layer, containing its representation and

validation rules. The views make up the business

logic layer, being responsible for deﬁning which data

will be presented to the users, rely on templates

for rendering the content. Templates establish

the presentation layer, since they deﬁne the visual

structure of the content, receiving the data from the

views and rendering it according to established rules.

In contrast to traditional Web servers, which use

several threads to serve customer requests, NGINX

Web server has an event-driven architecture that is

more scalable than alternative solutions, enabling the

simultaneous processing of thousands of requests.

This Web server also has a set of characteristics that

allow to improve the performance of applications,

namely load balancing, fault tolerance, caching and

resources compression.

NoSQL solutions are ﬂexible since they allow

variable-structure data. The best cache solutions

utilize key-value NoSQL databases to store the data

in memory, as in the Memcached and Redis solutions.

The Memcached technology was used in order to

implement caching strategies at various levels on the

server side. Redis is a more ﬂexible alternative that

can also be used as broker in the implementation of

asynchronous task queues.

Varnish is a reverse proxy, placed between the

Web server and the network, that caches the responses

returned by the application. In most cases, reverse

proxies are used to decrease the latency associated

with the retrieval of Web content. If Varnish has an

appropriate response in its cache, it returns it directly

to the client. Otherwise, it contacts the Web server

in order to obtain a response to the client. Varnish

is an alternative to using Django and Memcached for

caching templates on the server side.

The Celery asynchronous task queue technology

was selected in the present work. Other alternatives

were Huey and Django Q. Commonly, an

asynchronous task queue requires a broker to

store the tasks. Brokers may be implemented with

in-memory key-value databases. A broker can be

seen as a simple message queue without consumers.

Examples of available brokers are Redis, Disque,

and RabbitMQ. Celery supports task scheduling, the

possibility of working synchronously, ﬂexibility, and

can be integrated with brokers.

4 SHARTICLE APPLICATION

The Web application developed to validate the

optimization techniques is an article sharing system,

similar to Medium. Users can register themselves

in the application, and gain access to wider

functionalities. Sharticle includes features such

as writing, publishing, consulting, and commenting

articles, as well as searching articles by topic or

title. An article consists of a title, a topic, some

tags, and content that may contain text and images.

The application was developed with Django and the

other technologies introduced in the previous section.

Figure 1 presents the architecture of Sharticle.

On the server side, the architecture uses in-memory

caching technologies (Memcached), asynchronous

task queues (Celery), and a reverse proxy (Varnish).

At the network level, a CDN is used to serve static

content.

5 IMPROVING SHARTICLE

LATENCY

In order to reduce the latency of the operations,

several optimization techniques were applied,

including database indexes, a NoSQL solution,

in-memory caching, asynchronous task queues,

multi-level paging, HTTP compression and caching,

miniﬁcation, combination and correct placement of

scripts and styles, dynamic inlining, post-onload

download, data validation and rendering on the

front-end, and CDNs (Souders, 2007).

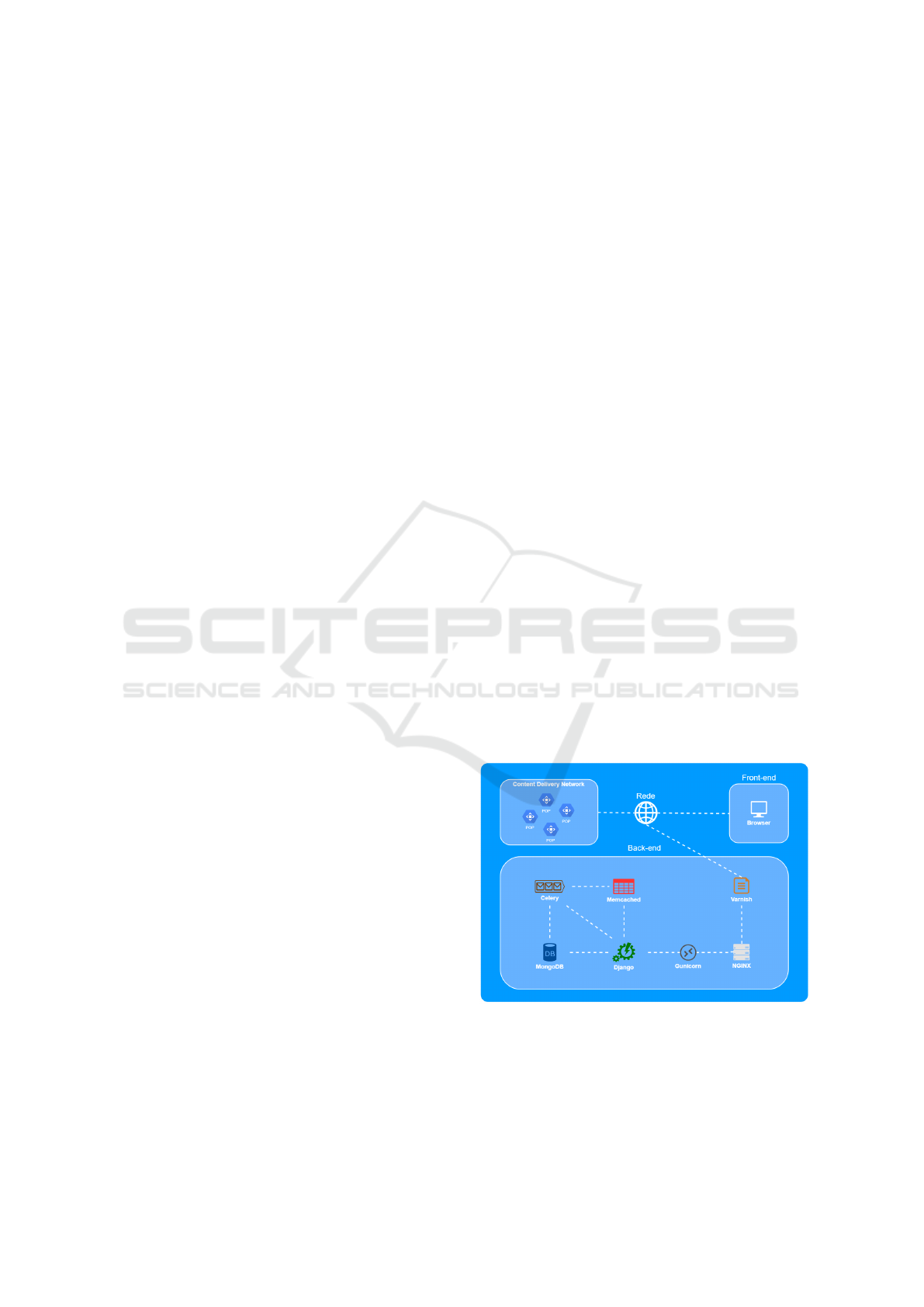

Figure 1: Architecture of Sharticle Web application.

5.1 Cached Sessions

To speedup reading and writing the users session data,

it was decided to keep such data in memory, therefore

Improving the Latency of Python-based Web Applications

195

eliminating unnecessary accesses to the database

and increasing the efﬁciency of login and logout

operations. To achieve this goal, Memcached was used

and it was necessary to appropriately conﬁgure the

Django project so that the application could interact

with Memcached.

5.2 HTTP Caching

Two HTTP caching strategies were used, namely

caching with explicit time and conditional caching

with Last-Modified headers. Conditional caching

allows us to signiﬁcantly reduce the size of a response

if the content that is stored in an HTTP cache is still

valid. In Sharticle, the pages used to view and

edit the user proﬁle are dynamic. Therefore, these

pages are served along with Last-Modified headers,

to enable the clients reuse their copies. Similarly,

pages containing the lists of articles belonging to a

particular user are also subject to conditional caching,

varying according to the actions of creating, deleting

and publishing articles. Additionally, pages used to

edit the drafts of articles, which vary with the update

frequency, also have Last-Modified headers. This

strategy only proves to be favorable if calculating the

last modiﬁcation date of the resource is faster than

generating a response that contains the resource itself.

Regarding HTTP caching with explicit time, it is

important to select a suitable time for the validity

of the resources. Although this technique is better

suited for static resources, it can be used in dynamic

pages. The published articles view pages are dynamic

because they contain, in addition to the content of

the corresponding article, the information of the

respective author. However, one can perform HTTP

caching of these pages for some time, eventually

reaching consistency after expiring the resource

copies. In addition, such pages also include user

session data in the navigation bar. In order to reuse

the copies of these pages among clients, and adapt

them to each user session, it was necessary to render

the session data in the application front-end. For this

purpose, cookies that include such session data were

used by a script that populates the navigation bar after

loading the page from the server or a cache. Similarly,

HTTP caching with explicit validity was also applied

to the pages used to search articles by topic, which are

also rendered progressively with cookies.

5.3 Database Indexes

In order to speedup database selection operations

indexes should be used. Selecting user information,

based on its user name, integrates the process of

constructing several pages of the application. This

way an index was created on the attribute that

corresponds to the user name, which contributed for

decreasing the latency of such operation. Similarly,

indexes were also created on the attributes that

correspond to the identiﬁer and author of an article.

These attributes are used by several operations to

select articles. To accelerate searching articles by

keyword, a textual index was created on the attributes

that correspond to the title and description of the

articles.

5.4 Bulk Operations

Database bulk operations are more performant

than a sequence of several independent operations.

Publishing an article involves the association of a

variable number of tags to the corresponding article.

To improve the performance of this operation, one can

perform a bulk operation that adds all tags in a single

query. Although the latency of this operation depends

on the number of tags, it increases much less when

we execute a bulk operation than in the alternative

scenario.

5.5 NoSQL Database

To publish an article, we have to associate a set of

tags with this article. In a relational paradigm, one

would have to resort to an additional table to store

such tags, which would be separated into different

registers. Alternatively, by using the MongoDB

NoSQL database one can deﬁne the article data

model as a container of its own tags. Updating

a single database record is signiﬁcantly faster than

inserting multiple records. In contrast to what

happens in a relational paradigm, the execution time

associated with the tag insertion remains constant and

independent on the number tags.

5.6 Dynamic Inlining and Post-onload

Download

Even though scripts and styles are external resources

to Web pages, obtaining such pages can beneﬁt from

using inline scripts and styles. This accelerates the

transfer and rendering of such content. The dynamic

inlining technique allows to decide whether (i) the

responses returned to the clients should include the

scripts and styles inlined on the pages, or (ii) they

should contain only references to external resources,

which should be served separately.

We implemented dynamic inlining on the

registration page. It was necessary to select the styles

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

196

for the correct presentation of the page, to extract

them from the respective ﬁles and to place them in an

HTML <style> tag. In addition, it was necessary to

implement application code for the view that serves

this page, in order to determine if the client request

has a cookie and to decide the appropriate response

to return to the client, i.e., whether to use internal

style sheets or references to external style sheets.

Post-onload Download allows the reuse of

resources that were transferred inline, along with the

required page, thus not being cached. After rendering

the page on the client side, in subsequent requests

the external resources can be downloaded and cached.

To implement Post-onload Download, it was used a

script that, after loading the page, transfers the scripts

and styles present in external ﬁles, so that they can be

placed in the browser cache and reused in the future.

5.7 Validating Forms in the Front-end

For data consistency and security reasons, form

validation is typically performed on the back-end.

To eliminate the computational burden on the server

and to accelerate form validation, it must also be

performed on the front-end. This technique was

implemented on the registration page, by adding a

script that veriﬁes if both passwords in a registration

form are equal. Validation on the front-end does not

offer any performance advantage when the submitted

forms are valid. However, when there is an

irregularity in the form, it is advantageous to report

such error to the user when he tries to submit the form.

This eliminates a server request.

5.8 Asynchronous Operations and

Partial Update of Web Pages

Operations such as deleting drafts or published

articles do not require reloading the Web page

completely. The page that contains the user published

and draft articles is dynamic. The server returns a

page with a common skeleton, which includes only

the required list. Later, if the user wants to view

the other list of articles, it will be transferred from

the server, using AJAX technology, and rendered in

the client browser using JavaScript. This eliminates

reloading the page completely and rendering the base

skeleton again, when the client switches between lists.

Any operation that does not require a complete page

reload can be performed asynchronously. So the

user can continue interacting with the page while the

required operation is being processed. Therefore,

deleting an article was implemented asynchronously,

with an AJAX request to the server followed by the

page update on the client side.

5.9 Pagination

Sometimes the number of items that result from

processing the user request is so extensive that

it is impractical to build and return a response

that includes the complete set. In these cases,

the technique of data pagination must be used.

Pagination operates on several levels, from selecting

the information from the database, through building

the corresponding response and transferring it over

the network, to rendering the data on the client device.

5.10 Asynchronous Task Queues

Asynchronous tasks queues allow to perform certain

operations asynchronously, without the application

being blocked waiting for the execution result.

Registering a new user in the application involves

sending a conﬁrmation e-mail, which is a relatively

time-consuming process. To mitigate performance

issues associated with the synchronous execution

of e-mail delivery, and to be able to return the

registration conﬁrmation page to the user as quickly

as possible, the asynchronous processing mechanism

was used. Upon submitting a registration form, the

application creates and orders the execution of an

asynchronous task that will be responsible for sending

the conﬁrmation e-mail, returning immediately the

delay function of Celery was used to run tasks

asynchronously.

5.11 In-memory Caching

There are several situations where the content

displayed on a page results from the execution

of actions that produce dynamic results, such as

retrieving information from a database. To reduce the

time required to get this information, it is convenient

to store it temporarily in a cache memory to speed up

the processing of subsequent requests. However, it is

necessary to deﬁne a maximum time during which the

data can be reused, since its state can vary, generating

inconsistencies between the source and the cache.

In certain situations, the cache must be populated

proactively and not as a result of client requests,

since the ﬁrst request will be penalized by the need

to populate the cache. The solution is to use

asynchronous task queues, executing a task at a given

frequency to populate the in-memory cache with

information from database. In-memory caching, with

Improving the Latency of Python-based Web Applications

197

a periodic task, allowed us to decrease the latency

of the process that generates the pages with articles

searched by topic.

5.12 Combining and Placing Scripts

and Styles

It is often preferable to combine resources of the

same type, because so clients only have to transfer

once each type of resource. Using external and

combined scripts and styles, the clients can reuse

them among distinct pages. The scripts and styles

used in the application are provided as external

resources and include Cache-Control or Expires

headers, to allow them to be stored in the proxy cache

or in client browser. When the styles used in the

different pages of the application are combined in a

single ﬁle conﬂicts arise, which need to be eliminated.

Thus, to suppress internal stylesheets it was necessary

to perform its re-factorization. Similarly, the scripts

deﬁned in HTML pages were removed and replaced

in external and reusable ﬁles.

To render the application pages in the client’s

browser progressively, it is convenient to refer the

external stylesheets at the top of the pages (<head>

section). Instead, the scripts must be referenced at the

end of HTML pages (<body> section), to allow faster

rendering. Placing scripts in other parts of the page

could cause them to be transferred early, temporarily

blocking the renderization.

5.13 Scripts and Styles Miniﬁcation

All scripts and styles were miniﬁed with the Minify

tool. Removing unnecessary characters, as well as

the comments on the original code, contributes to

decrease the latency associated with their transfer.

Miniﬁcation must occur before the ﬁles are deployed

to the server. Miniﬁcation can be more or less rigid.

It is possible to change the names of the functions and

variables, using names with fewer characters.

5.14 HTTP Compression

To further reduce the latency of HTTP responses, we

have used the compression technique, which allows

us to reduce the size of the transferred content.

Compression can be performed at the application

level, using the Django compression tool. In this

case, it is only necessary to include a reference to the

GZipMiddleware class in the MIDDLEWARE variable

of the Django project conﬁguration ﬁle. Another

alternative is to use the capabilities of the Nginx Web

server, through the presence of the directive gzip

on; in its conﬁguration ﬁle. In any case, HTTP

responses will now include the Content-Encoding

HTTP header, parameterized with the value gzip.

This technique proves to be advantageous since the

time involved in compression and decompression is

lower than the reduction in latency pages’ transfer.

5.15 Server-side Template Caching

In some cases, server-side template caching

completely eliminates operations such as database

accesses and template rendering. All pages that are

targeted for HTTP caching must also be stored on

the server side, to avoid they need to be recalculated.

One of the main solutions for template caching on

the server is a reverse proxy, such as Varnish. All

requests made to the application go ﬁrst through

Varnish and, if the appropriate response in its cache,

Varnish returns it directly to the client. Otherwise,

Varnish contacts the Web server to obtain a response

for the client.

By default, Varnish does not cache pages whose

requests or responses have cookies. To enable the

return of the pages stored in cache, it was necessary to

remove all the cookies present in the client requests.

For this purpose, code was added to the vcl_recv

routine, which is executed by Varnish immediately

after parsing each request and before checking the

existence of a cached response. This code removes

the cookies from all page requests whose URL is not

declared in the test of the if statement included in the

vcl_recv routine. Deleting cookies allows Varnish

to return the responses, rather than contacting the

application server. When the Varnish receives a

request whose URL is declared in the if statement

test, cookies remain unchanged and the request is

forwarded to the application server in order to get the

corresponding response.

5.16 Content Delivery Networks

CDNs create replicas of the Web applications

static content in different locations, putting the

content closer to the target users and decreasing its

transference time. We used the Hostry CDN service,

which conﬁguration includes information about the

address and URL of the static resources server. On

the origin server side, it is also necessary to rename

the references to static resources in the HTML pages.

The new location will be a URL provided by the CDN

service, followed by the resource name. In Django,

the deﬁnition of the location of static resources is

done through the variable STATIC_ROOT.

Only the styles and scripts created speciﬁcally

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

198

for the developed application, as well as the

images submitted by the users, are served by

the conﬁgured CDN. Furthermore, the styles and

scripts of third parties, namely bootstrap.min.js,

bootstrap.min.css and jquery.min.js, are

served by speciﬁc CDNs.

6 RESULTS

Table 1 shows that the pagination technique when

applied to database accesses allows a signiﬁcant

decrease of the data retrieval latency. Additionally,

it highlights the beneﬁts of storing data in memory,

in which case the latency can be reduced almost 50

times, in contrast with accessing database. Table 2

documents the difference in latency veriﬁed with the

application of the pagination technique at the network

level. When we reduce the content size 10 times, we

get a 5-fold reduction in the latency of the download.

Table 1: Memory vs. database access time.

Source Operation Latency (ms)

Database

Retrieve 500 articles 51.77

Retrieve 50 articles 14.78

Memory Retrieve 50 articles 0.3

Table 2: Inﬂuence of network pagination on latency (s).

Network

Operation Slow 3G Fast 3G

Download a 1.2 MB page 26 7

Download a 120 KB page 5 1.2

Table 3 shows the latency values associated with

the insertion in the database of a variable number of

article tags. Regarding the relational paradigm, it can

be veriﬁed that bulk operations provide much faster

response times than individual insertions. The latency

increases with the number of tags, but this trend is

much more pronounced when inserted one by one.

Furthermore, the table shows that NoSQL allows to

maintain the response time independent of the number

of records inserted in the database.

Table 3: Latency of database operations (ms).

Number of tags

1 3 6 12

Individual insertion 5.2 29.6 33.1 63.9

Bulk insertion 5.2 7.9 8.3 10.6

NoSQL 5.3 5.5 5.4 5.5

Table 4 presents the latency associated with

content retrieval, highlighting the beneﬁts of using

HTTP caching. While the transfer time of several

application pages depends on its size, obtaining

any page from the browser cache takes only 5

ms approximately, which is much faster than any

download made from the application server.

Table 4: Inﬂuence of HTTP caching on latency.

Source Page Size Latency

Network

Articles by topic 122 KB 5.03 s

User proﬁle page 13 KB 2.54 s

Article page 11 KB 2.29 s

Search page 3.5 KB 2.08 s

B. cache Any page Variable 5 ms

Table 5 contains the latency for ﬁve operations,

highlighting the advantages of applying other

performance optimization techniques. Storing session

data in-memory allows to reduce 40 times the

latency of the logout operation. Sending registration

conﬁrmation emails asynchronously reduces latency

1700 times. The time required to select a user proﬁle

data from the database, based on his/her username,

is 14 times lower when an index is used on the

corresponding attribute. HTTP compression allowed

us to reduce the latency associated with downloading

a 122 KB page to half of the original time. Finally, the

CDN made it possible to reduce the download time of

a 217 KB image by 10 times.

Table 5: Latency of diverse operations.

Latency (ms)

Technique Operation NonOpt Opt

In-memory

sessions

Logout 123 3

Async task Send an e-mail 1700 1

DB indexes Get user data 55 4

HTTP

compression

Download a

122K page

4490

(122K)

2120

(5.2K)

CDN Get a 217K

image from

Washington

1110 106

Tests were carried out with the GTmetrix

performance analysis tool, which grades the website

pages according to their load speed and performance

best practices, having obtained high grades for several

application pages. The performance score provided

by GTmetrix is determined by running both Google

PageSpeed Insights tool and Yahoo YSlow. The

homepage, which lists the articles of a speciﬁc topic,

got 95% and 96% scores (ﬁgure 2). The article page

got 87% and 96% scores (ﬁgure 3). A score of 90

and above is considered fast, 50 to 90 is considered

average, and below 50 is considered to be slow.

Improving the Latency of Python-based Web Applications

199

GTmetrix also provides recommendations regarding

performance optimization. For example, the images

served by the application should be scaled, in order to

reduce the network trafﬁc associated with its transfer.

Furthermore, the static components of the application,

such as scripts, styles and images, should also be

subject to HTTP compression and caching. Beyond

these aspects, we can conﬁrm in ﬁgures 2 and 3 that

the application is highly optimized.

Figure 2: YSlow and PageSpeed scores for the homepage.

7 CONCLUSIONS

There is a conﬂict among the quality attributes

considered during Web applications development.

For example, database indexes have a positive impact

on the latency of reading the associated data, but it

inﬂuences negatively the insert and update operations.

Therefore, a higher priority should be given to the

operation that is intended to perform best.

The Django framework supports building high-

performance applications, providing a number of

tools to accelerate the execution of operations.

Figure 3: PageSpeed and YSlow scores for article page.

Some examples are HTTP compression of the pages

returned by the application, handling HTTP caching,

caching user session data in memory, and caching the

generated pages. Since it is a full-stack framework,

Django is not globally as fast as other Python

frameworks. NoSQL solutions are not natively

supported by the framework. An alternative is

the Djongo technology, which has limitations in

performing certain operations. For example, it is not

possible to execute textual search queries with a OR-

clause, i.e., a logical disjunction.

The HTTP protocol has evolved over time. The

latest HTTP/2 version exhibits several optimizations,

making it unnecessary to implement some of the

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

200

described optimizations. Server push is an HTTP/2

mechanism that enables sending proactively Web

resources without requiring an explicit request. This

mechanism eliminates the necessity to implement

certain performance enhancement techniques, such

as combining features of the same type and inlining

styles in the home page. The remaining optimizations

that were discussed are not affected by the new

version of the HTTP protocol and should continue to

be applied.

In the future, more performance optimization

techniques can be explored, as well as other

performance metrics besides latency, such as

throughput and resource utilization. Regarding

databases, there are mechanisms, such as sharding,

whose objective is sharing the information among

multiple partitions, as well as data replication, which

implies the existence of several copies of the same

information. These techniques allow to spread

the database access load across several processing

nodes, reducing resource utilization per node and

possibly increasing throughput and decreasing the

system’s response time. It is also possible to replicate

the application servers, taking advantage of load

balancing mechanisms, which aim to distribute

client requests across multiple server nodes. On the

client side, there are technologies such as Service

Worker, which is a service placed in the browser and

acts as a proxy, intercepting HTTP requests, and can

serve responses from its cache. This technology gives

users the ability to use certain parts of the application

while being ofﬂine, eliminating the need to contact

the server and decreasing the latency associated with

obtaining certain content.

ACKNOWLEDGMENT

This work has been supported by FCT – Fundação

para a Ciência e Tecnologia within the Project Scope:

UID/CEC/00319/2019.

REFERENCES

Anastasios, D. (2016). Website Performance Analysis and

Optimization. Master’s thesis, Harokopio University,

Greece.

Arcos, D. (2016). Efﬁcient django. EuroPython.

Cao, B., Shi, M., and Li, C. (2017). The solution

of web font-end performance optimization. In

10th International Congress on Image and Signal

Processing. IEEE.

Cerny, T. and Donahoo, M. (2010a). Evaluation and

optimization of web application performance under

varying network conditions. In Modelling and

Simulation of Systems conference.

Cerny, T. and Donahoo, M. (2010b). Performance

optimization for enterprise web applications through

remote client simulation. In 7th EUROSIM Congress

on Modelling and Simulation.

Connolly, T. and Begg, C. (2005). Database Systems: A

Practical Approach to Design, Implementation and

Management. Addison Wesley.

Fielding, R., Gettys, J., and Berners-Lee, T. (1999).

Hypertext transfer protocol - http/1.1. RFC 2616.

Google (2017). Google page speed insights and rules.

developers.google.com/speed/docs/insights/rules.

Consultado em 19/10/2017.

Greenfeld, D. R. and Greenfeld, A. R. (2017). Two Scoops

of Django 1.11. Two Scoops Press.

Grigorik, I. (2013). High Performance Browser

Networking. O’Reilly.

Grigorik, I. (2017). Web fundamentals:

Optimizing content efﬁciency.

https://developers.google.com/web/fundamentals/-

performance/optimizing-content-efﬁciency/.

Consultado em 19/10/2017.

Holovaty, A. and Kaplan-Moss, J. (2009). The Deﬁnitive

Guide to Django: Web Development Done Right.

Apress.

Horat, D. and Arencibia, A. (2009). Web applications: A

proposal to improve response time and its application

to moodle. In Computer Aided Systems Theory

(EUROCAST), pages 218–225. Springer.

Manchanda, P. (2013). Analysis of Optimization

Techniques to Improve User Response Time of

Web Applications and Their Implementation for

MOODLE. In International Conference on Advances

in Information Technology, pages 150–161. Springer.

Meier, J., Vasireddy, S., Babbar, A., and Mackman, A.

(2004). Improving .net application performance

and scalability. https://msdn.microsoft.com/en-

us/library/ff647781.aspx (accessed in 12/oct/2017).

Ossa, B., Sahuquillo, J., Pont, A., and Gil, J. (2012). Key

factors in web latency savings in an experimental

prefetching system. Journal of Intelligent Information

Systems, 39:187–207.

Shivakumar, S. and Suresh, P. (2017). An analysis

of techniques and quality assessment for Web

performance optimization. Indian Journal of

Computer Science and Engineering, 8(2):61–69.

Smith, P. (2013). Professional Website Performance:

Optimizing the Front End and the Back End. John

Wiley and Sons, Inc.

Souders, S. (2007). High Performance Websites. O’Reilly.

Subrayen, B., Elangovan, G., Muthusamy, V., and

Anantharajan, A. (2013). A Case Study for Improving

the Performance of Web Application. International

Journal of Web Technology, 02(01):17–20.

Improving the Latency of Python-based Web Applications

201
