Java Web Services: A Performance Analysis

Pedro Costa e Silva

and Jorge Bernardino

1,2 a

Polytechnic of Coimbra – ISEC, Rua Pedro Nunes, Quinta da Nora, 3030-199 Coimbra, Portugal

CISUC - Centre of Informatics and Systems of University of Coimbra, Pinhal de Marrocos, 3030-290 Coimbra, Portugal

Keywords: Web Services, Soap, Rest, Performance, SOA.

Abstract: Service-oriented architecture (SOA) is being increasingly used by developers both in web applications and in

mobile applications. Within web services there are two main implementations: SOAP communication

protocol and REST. This work presents a comparative study of performance between these two types of web

services, SOAP versus REST, as well as analyses factors that may affect the efficiency of applications that

are based on this architecture. In this experimental evaluation we used an application deployed in a Wildfly

server and then used the JMeter test tool to launch requests in different numbers of threads and calls. Contrary

to the more general idea that REST web services are significantly faster than SOAP, our results show that

REST web services are 1% faster than SOAP. As this programming paradigm is increasingly used in a

growing number of client and server applications, we conclude that the REST implementation is more

efficient for systems which have to respond to less calls but have more requests in a connection.

1 INTRODUCTION

Service Oriented Architecture (SOA) is a software

development model for distributed application

components that incorporates, among other elements,

access control, data mapping, and security features.

SOA has two main functions. The first is to create a

broad architecture model that defines the objectives

of the applications that communicate with it and their

approaches that will help meet those goals. The

second function is to define particular

implementation specifications, usually linked to the

formal specifications of Web Services Description

Language (WSDL) and Simple Object Access

Protocol (SOAP).

For decades, software development has required

the use of modular functional elements that perform a

particular function at various places within the same

application. With application integration operations

and the trend of component sharing among resource

pools, distributed client-server architectures, and

database connections, companies needed a way to

adapt their procedures-based development model to

the use of remote and distributed components. Simple

models such as Remote Procedure Call (RPC) were a

start in the right direction, but the RPC did not have

https://orcid.org/0000-0001-9660-2011

the data security and independence features required

for truly open and distributed operations.

The solution to this problem was to redefine the old

operating model in a new, broader and clearer

architecture of services that could be delivered to an

application using fully distributed software

components. The architecture that involved these

services in mechanisms to support full open-source

security and management was called a service-

oriented architecture, or SOA.

Initially, SOA implementations were based on

available RPC and Object-Broker technologies in the

early 2000s. But this architecture was quickly split

into two implementations. The first branch is the Web

Services (WS) field, which represents a highly

organized and formal management of procedures and

remote components. The second is the

representational state transfer field (REST), which

represents the use of a technology strand that accesses

remotely hosted components.

The SOA WS model uses the WSDL to bind to

interfaces with services and SOAP to define

procedure or component APIs. The principles of WS

were used to connect applications through a "business

service bus" (BSB), which helped companies

570

Silva, P. and Bernardino, J.

Java Web Services: A Performance Analysis.

DOI: 10.5220/0007979205700576

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 570-576

ISBN: 978-989-758-379-7

integrate them into their applications, ensure their

efficiency and improve their data management.

The SOA WS model never reached the adoption

levels that its proponents had predicted; in fact, it

collided with another model of remote components

based on the Internet “language”, the REST. RESTful

application program interfaces (APIs) offered less

overhead and were easy to understand

There are many commercial and open source tools

available for testing web services. To test the

performance of the implemented services we will use

JMeter tool, one of the most used and documented.

This tool will help you measure service quality and

network performance in real time. The comparison is

performed based on response time and usability

(Radhakrishna and Nachamai, 2018).

In this work two web services were created, one

using the SOAP implementation and the other REST.

These web services are implemented on an

application server (Wildfly) to which requests are

made through the JMeter application. With the data

obtained in the requests made by the test program

(average order time, minimum order time, maximum

order time and standard deviation), we evaluated the

performance of each service by varying the number

of threads (calls to the application server) or by

varying the number of sequential requests on the

same call. In this work we conclude that for several

sequential requests in a single thread the REST

architecture is more efficient.

The remainder of this paper is structured as

follows. In section 2, we analyse the current state of

art regarding web services and SOA architecture.

Section 3 presents the methodology used and section

4 presents the results of the experimental evaluation.

Section 5 discusses the results obtained and their

implications. Finally, section 6 presents the

conclusions and some future work.

2 RELATED WORK

Becker et al., (2009) compare two types of web

services (SOAP and REST). This study presents a

business network of manufacturers and service

providers in the electronic area, for the

implementation of a service-oriented architecture

(SOA). For each of the types of web services

analysed, a project with SOA architecture was

developed and evaluated in relation to the previously

defined set of requirements.

In the study by Belqasmi et al. (Belqasmi et al.,

2012 a comparison of two web interfaces (a SOAP-

based web service and a REST-based service) of

multimedia conference applications is made. The

results obtained in this study showed that SOAP-

based request processing in a mobile environment can

take 10 times longer and consume 8 times more

memory than equivalent REST-based requests.

Tihomirovs and Grabis, 2016 summarize in their

study the main advantages and disadvantages of

REST and SOAP interfaces using evaluation of

software metrics. Several metrics were analysed,

namely cost, effort required for implementation or

execution, efficiency, maintenance, etc.

Analysing the results, the researchers concluded

that it is not possible to clearly identify the best

approach to ensure data communication, and each

project should be evaluated individually. Each

protocol (SOAP and REST) has its advantages and

disadvantages. However, it was possible to identify

the main characteristics to choose the best approach.

If the project requires great scalability, compatibility

and performance the best option is to choose a REST

service.

The complexity of the implementation, the

execution speed, the consumed memory resources

and the performance are better in the REST services

when compared to the SOAP protocols. If the project

requires mobile availability, REST is also the best

choice.

If the project requires security, reliability and easy

maintenance on the client side, the best choice will be

the SOAP protocol. SOAP also has an advantage over

REST if the project needs to process data

asynchronously.

In the study by Malik et al. (Malik and Kim, 2017)

a comparison of REST and SOAP interfaces is made

in terms of ease of use, deployment and resource

utilization. The objective of his study was to compare

the two services through the projection of home

networks based on the architectural styles of SOAP

and REST.

In the study by Potti et al. (Potti, et al., 2012) a

performance comparison of two service

implementations (one based on SOAP and one based

on REST) is made. SOAP and REST-based web

services have been created that perform Create, Read,

Update, and Delete (CRUD) operations on a database

and retrieve local files. The authors used response

times and file transfer rate metrics to compare the

performance of both services. The results of this study

reveal that, on average, the REST service performs

better than the SOAP service, however not all the

results were statistically conclusive. Through their

study they concluded that the development of services

using SOAP is easier since there is a greater support.

Java Web Services: A Performance Analysis

571

The development of services using REST was

considered more difficult due to the need for high

knowledge about the http protocol and the lack of

support.

Mumbaikar et al. (Mumbaikar and Padiya, 2013)

present in their study a comparison of the

performance of SOAP and REST services based on

different metrics of mobile applications and

multimedia conferencing. The results of this research

showed that REST services perform better than

SOAP services.

In the study by Castillo et al. (Castillo et al., 2011)

a high-level comparison is made between SOAP and

REST. The results obtained show a significant time

difference between REST and SOAP

implementations. Although both are suitable for

parallel systems development, SOAP

implementations are heavier than REST

implementations because XML increases the

"translation" time of messages.

Wagh and Thool (2012) in their study make a

detailed comparison between two frameworks used to

provide web services through SOAP and REST and

also address their problems and challenges. The

comparison made can help in deciding which

framework best suits wireless environments and

which best responds to the needs of continuously

accessing mobile web services from devices with

limited resources.

In the work developed by Radhakrishna et al.

(Radhakrishna and Nachamai, 2018) Two tools are

described to test web services performance based on

response times. In order to do this analysis, two test

automation tools, JMeter and SoapUI, were analysed

and the response times in each tool were analysed.

The comparative study of the tools is done by

performing an operation with different numbers of

threads. The main difference in our study is that this

paper explicitly measures the difference of

performance (time to response) and only use a test

tool (Jmeter) to avoid errors from application´s

overhead.

3 METHODOLOGY

In order to verify the performance of the two types of

services, a computer with an Intel Core i7-8550U @

1.8Ghz processor with 16 Gb of Ram was used, a

Windows 10 64-bit operating system (version 1803

build 17134.523) where two projects were created in

Java 10 (version "10.0.1" 2018-04-17 with Java (TM)

SE Runtime Environment 18.3 (build 10.0.1 + 10)

and Java HotSpot (TM) 64-Bit Server VM 18.3 (build

10.0.1+ 10, mixed mode) in the IDE (Integrated

Development Environment) Eclipse (Version IDE for

Enterprise Java Developers Version 2018-12 (4.10.0)

and Build id 20181214-0600.). In order to facilitate

the construction of the deploy artefacts, we use

Apache Maven (version 3.5.2) as a build tool since it

is one of the most popular and used among java

developers. To launch the requests, we used Jmeter

(version 5.0 r1890935).

Two files were created, one for the REST web

service project and one for the SOAP web service

project.

For the construction of the REST endpoint was used

the implementation of Oracle, Jersey version 1.19.4.

In the construction of the SOAP endpoint we used the

standard 2.0 implementation of JAX-WS in version

2.1.3 (Java API for standardized XML web services

to create and consume SOAP services). The

implementation used was that of Oracle, as well as for

the REST service.

To test web services a service has been

implemented that returns the first n prime numbers.

The request to the web service should indicate an

integer, for example five, and the answer will indicate

the first five prime numbers in the format: "FIRST 5

numbers: 2 3 5 7 11". For this purpose, a Java method

was created which was also used in both

implementations of the service. So, in the REST

service the class responsible was as follows.

importjavax.ws.rs.GET;

importjavax.ws.rs.Path;

importjavax.ws.rs.PathParam;

importjavax.ws.rs.Produces;

importjavax.ws.rs.core.MediaType;

@Path("/prime")

publicclassRestWSPerformance{

@Path("/{number}")

@GET

@Produces(MediaType.TEXT_PLAIN)

publicStringGetPrimes(@PathParam("number")Str

ingnumber){

…JAVAcodethatreturnsastringwiththefirst

nprimenumbers

}

}



The Web.xml file is the default deployment

descriptor for the web application that the service is

part of. In it are declared the filters and servlets used

by the service. On the Java EE platform, the servlet

listening for SOAP calls is the WSServlet that is part

of the JAX-WS reference. The file developed for the

SOAP project is shown below.

ICSOFT 2019 - 14th International Conference on Software Technologies

572

<?xmlversion="1.0"encoding="UTF‐8"?>

<web‐app

xmlns:xsi="http://www.w3.org/2001/XMLSchema‐

instance"

xmlns="http://java.sun.com/xml/ns/javaee"

xsi:schemaLocation="http://java.sun.com/xml/ns/j

avaeehttp://java.sun.com/xml/ns/javaee/web‐

app_3_0.xsd"version="3.0">

<display‐name>SoapWSPerf</display‐name>

<listener>

<listener‐

class>com.sun.xml.ws.transport.http.servlet.WSSe

rvletContextListener</listener‐class>

</listener>

<servlet>

<servlet‐name>SoapWSPerf</servlet‐name>

<servlet‐

class>com.sun.xml.ws.transport.http.servlet.WSSe

rvlet

</servlet‐class> 

</servlet>

<servlet‐mapping>

<servlet‐name>SoapWSPerf</servlet‐name>

<url‐pattern>/soapwsperf</url‐pattern>

</servlet‐mapping>

</web‐app>

Another important file in the implementation of a

WS SOAP is sun-jaxb.xml. This file provides details

about endpoints when JAX-WS Web services are

deployed to servlet containers, such as Wildfly. This

file is placed in the WEB-INF directory and contains

the endpoint name, implementation class, URL

pattern, and other additional information. The sun-

jaxb.xml file used in the SOAP project was as

follows.

<?xmlversion="1.0"encoding="UTF‐8"?>

<endpoints

xmlns='http://java.sun.com/xml/ns/jax‐

ws/ri/runtime'version='2.0'>

<endpointname='soapwsperf'

implementation='pt.isec.si.SoapWSPerf'

url‐pattern='/prime'/>

</endpoints>

As for the REST project the web.xml file used was

as follows.

<?xmlversion="1.0"encoding="UTF‐8"?>

<web‐app

xmlns:xsi="http://www.w3.org/2001/XMLSchema‐

instance"

xmlns="http://xmlns.jcp.org/xml/ns/javaee"

xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/

javaeehttp://xmlns.jcp.org/xml/ns/javaee/web‐

app_4_0.xsd"version="4.0">

<display‐name>RestWSPerformance</display‐name>

<servlet>

<servlet‐name>RestWSPerformance</servlet‐name>

<servlet‐class>

com.sun.jersey.spi.container.servlet.ServletCont

ainer</servlet‐class>

<load‐on‐startup>1</load‐on‐startup>

</servlet>

<servlet‐mapping>

<servlet‐name>RestWSPerformance</servlet‐name>

<url‐pattern>/restwsperformance/*</url‐pattern>

</servlet‐mapping>

</web‐app>



Both services were implemented on Wildfly

application server version 15.0.1.Final. To test the

performance of both services the JMeter tool was

used.

4 RESULTS

The comparison of web services is based on the

analysis of the times observed during the execution of

each operation. Each web service operation is

invoked by a certain number of threads. For each data

set (different thread numbers, different order numbers

per thread, different response sizes) the average,

maximum and minimum execution times of a request

/ response sequence are calculated. In each of the data

sets we also measured the times in an individual

execution of each web service and also the joint

execution times (concurrent REST and SOAP

requests).

The requests to the services indicated that the

latter should respond by calculating the first 100,000

prime numbers. These values were decided, based on

the load experiments, in order to have significant

values, since if the service requested fewer prime

numbers, the response was made too fast (in the order

of 0 to 3 ms). Thus, it is only with this amount that

the server response time allowed to obtain data of

sufficient size to allow performance analysis.

Another important aspect was the choice of the

total number of requests to keep the data consistent.

After the tests carried out, it was concluded that 40

requests were a reasonable number of tests once we

increased that number, and due to the typical timeout

value for a response in Wildfly, the response time was

exceeded and we would get errors in the calls services

to be tested. After these values have been fixed, we

have decided to divide the data into 3 distinct groups

according to the number of threads (server

connections) and requests per connection. For a better

understanding the analysed datasets are described in

Table 1.

Java Web Services: A Performance Analysis

573

Table 1: Description of the data sets used.

The time were obtained through the JMeter tool

and the different services were tested for each one of

the referred data sets. For each dataset, three

measurements were taken. One for SOAP requests,

one for RESTs and one for both simultaneously. The

observed results are described in Tables 2 and 3.

Table 2: Time observed in requests by service (10 threads

with for 4 requests).

Table 3: Time observed in simultaneous requests (10

threads with for 4 requests).

In Table 2 and Table 3 the observed values for the

execution of the different web services are registered,

for a request of the first 100,000 prime numbers.

There were 40 requests divided by 10 threads with 4

requests each, and for individual and simultaneous

execution respectively. The observation of results

allows to conclude that, for requests made separately

(only REST requests, or only SOAP requests), the

average execution time is lower for REST web

services than for SOAP, however the minimum value

was observed for a SOAP request. When executed

simultaneously, lower and lower average times were

observed in SOAP web services, compared to REST

requests, however the observed standard deviation is

much higher which indicates that there is a greater

dispersion of the sample data.

Table 4: Time observed in requests by service (40 threads

with for 1 requests).

Table 5: Time observed in simultaneous requests (40

threads with for 1 requests).

When ordering in 40 threads (Table 4 and Table

5) with only one order in each one, it can be seen that

the differences between the averages are practically

nil. However, it is also observed that in individual

requests the standard deviation of REST requests is

less than the standard deviation of SOAP requests,

which indicates that the data dispersion is smaller. On

the other hand, in concurrent requests, the opposite is

observed, a lower standard deviation for SOAP

requests, which indicates that the dispersion of

sample data is smaller than in REST requests.

To complete the tests, we re-measure the values

this time by sending two requests per thread in 20

threads. The values were those recorded in Table 6

and 7.

Table 6: Time observed in requests by service (20 threads

with for 2 requests).

Table 7: Time observed in simultaneous requests (20

threads with for 2 requests).

From the analysis of Table 6 and Table 7 it can

be observed that for individual requests, all registered

values were lower in REST requests than in SOAP

requests. In the simultaneous requests, the average

and the maximum value observed were smaller in the

REST requests, being only the smallest minimum

value in the SOAP requests. In both cases, the

standard deviation is lower in REST requests, which

means that sample dispersion is lower in these

requests than in SOAP requests.

By analyzing the chart in figure 1 we can see

that for asynchronous requests with fewer threads and

more requests per thread the average response times

of REST services are less than the average times for

SOAP services. When the number of threads (value =

20) is increased, the difference between the mean

Prime

Numbers

Total

requests

#threads

#requests

perthread

100000 40 10 4

100000 40 40 1

100000 40 20 2

WS #requests

Average

(ms)

Min(ms) Max(ms)

St

deviation

REST 40 29794 2759

31121 932.62

SOA P 40 29903 27430 31704 1166.15

WS #requests

Average

(ms)

Min(ms) Max(ms)

St

deviation

REST 40 60704 53409 68194 3935.13

SOA P 40 60007 49572 70297 5264.34

WS #requests

Average

(ms)

Min(ms) Max(ms)

St

deviation

REST 40 12255

97697 129197 7786.56

SOA P 40 119883 9069

126885 9229.43

WS #requests

Average

(ms)

Min(ms) Max(ms)

St

deviation

REST 40 262956 193942 276924 20846.69

SOA P 40 262904 205439 277604 18349.01

WS #requests

Average

(ms)

Min(ms) Max(ms)

St

deviation

REST 40 59954 50627 64452 3317.32

SOA P 40 62651 53524 68204 3981.41

WS #requests

Average

(ms)

Min(ms) Max(ms)

St

deviation

REST 40 121045 99986 135177 9529.92

SOA P 40 121743 94213 135822 10703.33

ICSOFT 2019 - 14th International Conference on Software Technologies

574

response times is no longer significant, even though

the REST service values remain lower. When the

number of threads increases even more (value = 40),

the observed trend reverses, since, although not very

noticeable, the average response times of the SOAP

service are lower than the REST service times.

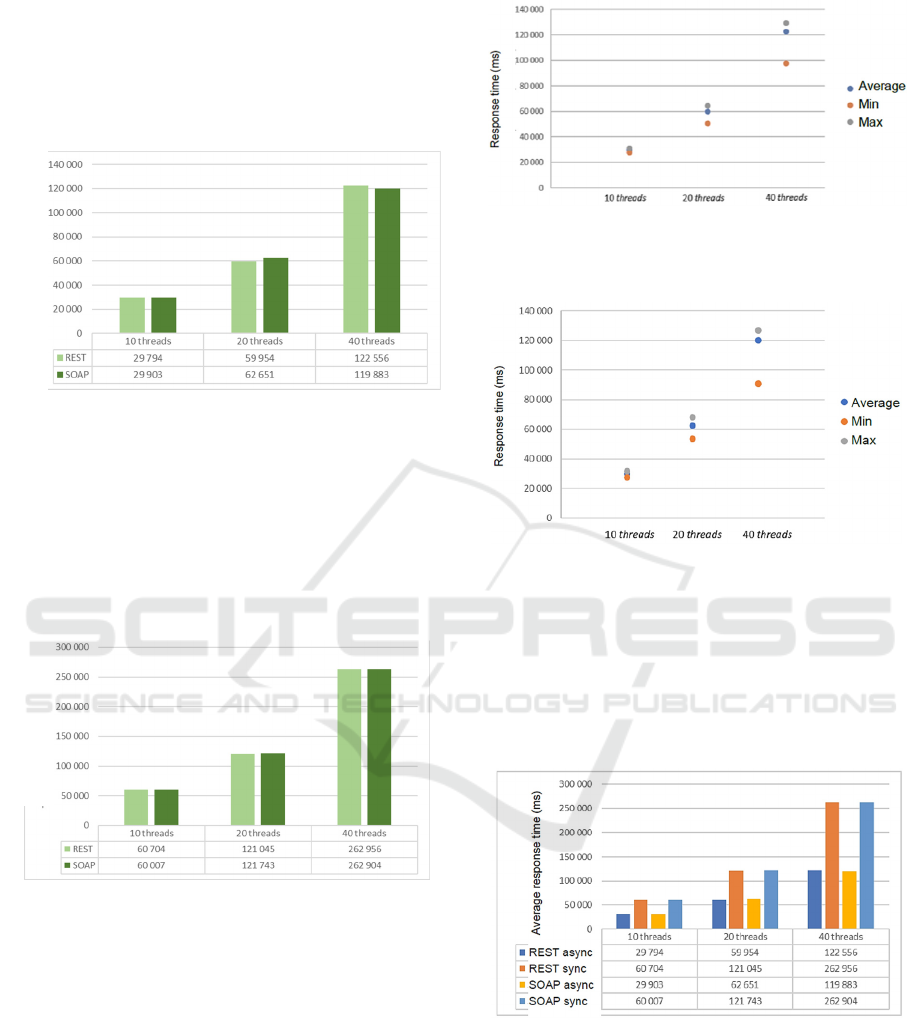

Figure 1: Comparative chart of the mean values for

asynchronous requests.

Unlike asynchronous requests, when the

concurrent request values are observed, only with 20

threads the average time of the REST service is less

than the average time of the SOAP service. For an

execution with 10 or 40 threads, the average time of

the SOAP service, although notorious, is less than the

average time observed in REST requests.

Figure 2: Comparative chart of the mean values for

simultaneous requests.

When executing REST requests isolated from

SOAP requests, it is verified (Figure 3 and Figure 4)

that for a smaller number of threads (value = 10) the

difference between the mean, minimum and

maximum values is practically imperceptible. As the

number of threads increases, the difference between

these values is also increasing. It is important to note

that the difference between the two cases (SOAP

requests and REST requests and 20 and 40 threads) is

greater than the difference to the maximum value.

Figure 3: Comparative chart representing the average,

minimum and maximum times of REST requests when

executed separately.

Figure 4: Comparative chart representing the average,

minimum and maximum times of SOAP requests when

executed separately.

From the analysis of the graph of Figure 5 it is

possible to conclude that for both web services the

average execution time for asynchronous requests is

much lower when compared to concurrent requests

for the same number of threads.

Figure 5: Summary chart of average order execution times.

5 DISCUSSION

In the individual 10- and 20-threaded tests the REST

implementation is 1% faster than SOAP, however, if

we increase the number of threads (in our case 40),

SOAP becomes 1% faster. This apparent performance

Avera

e res

onse time

(

)

Average response time (ms)

Java Web Services: A Performance Analysis

575

gain from the SOAP implementation may be linked

to the server's internal latency, since 40 requests are

made for 1 second, only on a server connection.

In the concurrent tests, that is, when the SOAP

and REST requests were sent to the server at the same

time by Jmeter, the results were not conclusive, since

SOAP was faster with 20 threads and REST with 10

and 40 threads. Here the results can be explained by

the way Wildfly treats requests to the server and

internally forwards them to the intended service,

since the two services are available, the results may

have been tainted by internal rules of order

forwarding for web services many different. Still,

REST remains 1% faster.

In order to better gauge the results, we can also

verify that as the requests per thread increased, the

dispersion of data accompanies this same difference,

so there is a greater difference between the values of

the maximum and minimum response time. This is

confirmed by the values of the standard deviation that

are significantly larger in the 40 threaded assays.

6 CONCLUSIONS AND FUTURE

WORK

This paper quantifies a pre-established idea that

REST type services are faster than SOAP because of

the "machinery" they bring on the server side. After a

series of trials, it was concluded that actually the

REST implementation is faster, but only at 1% than

SOAP. However, it has also been proved that, under

certain conditions, when many requests are made in a

single thread, SOAP is slightly (1%) more efficient.

The essays focused only on a web service that

returned a text and it would be interesting to approach

in another similar study, the use of more complex

objects in the services answers, for example through

Json or Xml more elaborated. The language used in

this article was Java but this work could also be

replicated in another language, for example .NET.

REFERENCES

Becker, J., Matzner, M., & Müller, O. (2009). Comparing

architectural styles for service-oriented architectures -

A REST vs. SOAP case study. Information Systems

Development: Towards a Service Provision Society,

207–215. https://doi.org/10.1007/b137171_22

Belqasmi, F., Singh, J., Bani Melhem, S. Y., & Glitho, R.

H. (2012). SOAP-based vs. RESTful web services: A

case study for multimedia conferencing. IEEE Internet

Computing, 16(4), 54–63. https://doi.org/10.1109/MIC.

2012.62

Castillo, P. A., Bernier, J. L., Arenas, M. G., Merelo, J. J.,

& Garcia-Sanchez, P. (2011). SOAP vs REST:

Comparing a master-slave GA implementation.

Retrieved from http://geneura.wordpress.com

Malik, S., & Kim, D. H. (2017). A comparison of RESTful

vs. SOAP web services in actuator networks.

International Conference on Ubiquitous and Future

Networks, ICUFN, 753–755. https://doi.org/10.1109/

ICUFN.2017.7993893

Mumbaikar, S., & Padiya, P. (2013). Web Services Based

On SOAP and REST Principles. International Journal

of Scientific and Research Publications, 3(5), 3–6.

Retrieved from www.ijsrp.org

Potti, P. P. K., Ahuja, S., Umapathy, K., & Prodanoff, Z.

(2012). Comparing Performance of Web Service

Interaction Styles: SOAP vs. REST. Proceedings of the

Conference on Information Systems Applied Research

ISSN, 2167, 1508. https://doi.org/http://dx.doi.org/10.

1016/j.plantsci.2009.07.009

Radhakrishna, S., & Nachamai, M. (2018). Performance

inquisition of web services using soap UI and JMeter.

2017 IEEE International Conference on Current

Trends in Advanced Computing, ICCTAC 2017, 2018–

Janua, 1–5. https://doi.org/10.1109/ICCTAC.2017.

8249993

Service-oriented architecture (SOA) news, help and

research - ComputerWeekly.com. (n.d.). Retrieved

January 12, 2019, from https://www.computerweekly.

com/resources/Service-oriented-architecture-SOA

Tihomirovs, J., & Grabis, J. (2016). Comparison of SOAP

and REST Based Web Services Using Software

Evaluation Metrics. Information Technology

and Management Science, 19(1), 92–97. https://doi.org/

10.1515/itms-2016-0017

Wagh, K., & Thool, R. (2012). A Comparative Study of

SOAP Vs REST Web Services Provisioning

Techniques for Mobile Host. Journal of Information

Engineering and Applications, 2(5), 12–16. Retrieved

from www.iiste.org

ICSOFT 2019 - 14th International Conference on Software Technologies

576
