The Web Computer and Its Operating System:

A New Approach for Creating Web Applications

Sergejs Kozlovi

Institute of Mathematics and Computer Science, University of Latvia, Raina blvd. 29, LV-1459, Riga, Latvia

Keywords: Web Computer, Web Applications, Web Application Operating System, webAppOS, Web Application

Platform.

Abstract:

Web applications require not only more sophisticated infrastructure than traditional single-PC applications,

but also a different way of thinking, where network-speciﬁc aspects have to be considered. In this paper, we

introduce the web computer concept, which factors out network-related issues and provides an illusion of a

single computer with directly attached CPUs, memory, and I/O devices. By assuming the web computer and

its open operating system (webAppOS) as a target platform for web applications, developers can preserve the

same level of thinking as when developing classical desktop applications. With this approach, which corre-

sponds to the physiology of the human brain, web applications can be created faster. Besides, the proposed

web computer speciﬁcation can be viewed as a standardized environment (a Java Virtual Machine analog) for

web applications.

1 INTRODUCTION

When computers were big, and programs were small,

programmers lived according to the assumption that a

single computer (C) will be operated by a single user

(U) and will be used to execute one program (P) at a

time. We call it the three-singles assumption. From

the times of Ada Lovelace and Charles Babbage, this

assumption continued to be true when the Turing/Post

machine was deﬁned in 1930-ties, and later, when the

Harvard and von Neumann architectures appeared in

1940-ties. Today, with the broad availability of the In-

ternet and the presence of modern hardware and oper-

ating systems capable of handling multiple users and

being able to run thousands of concurrent tasks, the

assumption is not true anymore. Nevertheless, when

creating standalone desktop applications (i.e., having

C as a premise), programmers still rely on the same

thinking as in the three-singles assumption, since the

OS factors out user management (U) and multitasking

(P). That allows programmers to concentrate on their

primary tasks, which has a positive impact on pro-

ductivity, since the human brain is not capable of real

multitasking, as recent neuroscience research reveals.

If we consider web applications, the single-

computer part (C) of the assumption becomes unsat-

https://orcid.org/0000-0002-7085-383X

isﬁed, and the OS is not able to ensure it.

There-

fore, developers of web applications have to adjust

their thinking to consider multiple network nodes,

where the resources (CPUs, memory, and I/O devices)

are physically separated. Besides, different network

nodes can have different environments (e.g., different

CPU architectures, operating systems, or sets of at-

tached devices), which adds to the complexity.

To facilitate the development of web applications,

numerous excellent platforms have been developed,

each having its own set of features and requirements.

Such platforms usually factor out network-speciﬁc is-

sues (such as user management, scalability, and secu-

rity) and provide a convenient way to share data be-

tween network nodes. The webAppOS platform, pro-

posed in this paper, is a step further – it brings the full

three-singles assumption for web application devel-

opers by providing an illusion of a single computer.

This approach has the following beneﬁts:

• Psychological. It is easier for the human brain to

think about one target computer instead of multi-

ple network nodes.

The reason is simple: the OS is responsible only for di-

rectly attached resources (CPU, memory, and I/O devices).

In both von Neumann and Harvard architectures, the net-

work is represented by an I/O device (a network interface

controller, NIC); thus, the scope of the OS is limited to one

particular network node with an attached NIC.

Kozlovi

cs, S.

The Web Computer and Its Operating System: A New Approach for Creating Web Applications.

DOI: 10.5220/0008053800460057

In Proceedings of the 15th International Conference on Web Information Systems and Technologies (WEBIST 2019), pages 46-57

ISBN: 978-989-758-386-5































 

!"









Figure 1: The main parts of the web computer architecture.

• Technical. webAppOS provides common grounds

for web applications and services by factoring out

technical issues in the same sense as Java Virtual

Machine does so for classical applications.

• Supervisory. Being open-source, webAppOS fa-

cilitates the development of web applications that

could be installed on a private server, thus, elimi-

nating the risks of broken service URLs, sudden

API changes, discontinued services, backdoors,

and losing control on data (Stallman, 2010).

We start by deﬁning the web computer concept,

which brings the single computer illusion to the dis-

tributed web environment. In Section 3, we intro-

duce webAppOS – the web computer “operating sys-

tem”, which makes the single-computer illusion real.

Section 4 mentions particular implementation details.

Then the Related Work section compares the pro-

posed architecture to existing approaches for devel-

oping web applications. Finally, we discuss some

webAppOS beneﬁts, outline further research direc-

tions, and conclude the paper.

2 THE WEB COMPUTER

ARCHITECTURE

The web computer is an abstraction that factors out

network-speciﬁc aspects and gives the developers of

web applications the illusion of a single target com-

puter with directly attached components. Like in clas-

sical computer architectures, the web computer has

memory, processors, and I/O devices (see Figure 1).

2.1 Web Computer Memory

In the web computer, data memory differs from in-

struction memory (code memory), thus, resembling

the Harvard architecture. The data memory is auto-

matically synchronized between all involved network

nodes (such as the client and the server), providing

an illusion of a directly attached shared memory unit

(RAM analog). Code is stored, executed, and sent via

the network (when necessary) by means of existing

classical technologies, e.g., via the <script> tag. We

use the terms web memory and the code space for

data memory and code memory, respectively.

Some of the arguments in favor of such Harvard-

based design are:

• security considerations; we cannot trust the client

in the web environment due to possible code in-

jection attacks; since data are separated from the

code, it is impossible for the client to inject code

via the shared data memory (Andrews and Whit-

taker, 2006);

• different network nodes may have different exe-

cution environments; thus, code intended for one

node can be meaningless for the other (e.g., the

server can execute PHP, Java, and Python code,

while the client runs JavaScript and WebAssem-

bly code);

• web memory should not be wasted for code (data

synchronization requires server-side RAM, which

is a limited resource that has to be disseminated

thrifty between all connected users);

The Web Computer and Its Operating System: A New Approach for Creating Web Applications

• by relying on existing technologies for the code

space, we do not need to “reinvent the wheel”.

Web Memory.

The main design choice regarding storing data in web

memory is to represent data as a model (a graph-like

structure), not as an array of bytes. A similar ap-

proach is used by Java Virtual Machine, where mem-

ory is represented by connected objects. The argu-

ments in favor of such design choice are:

• Models and metamodels are easy formalized (e.g.,

by utilizing MOF or ECore), thus, making it pos-

sible to deﬁne a formal and platform-independent

web memory speciﬁcation (Steinberg et al., 2008;

Object Management Group, 2011b).

• Models are close to OOP. Web memory objects

can even be mapped the corresponding structures

of the chosen OOP-style language in an ORM

like way (Anuja, 2007; Ambler, 2019).

• Additional features such as memory consistency

checks, reﬂection, and the granular undo/redo

mechanism can be implemented on models (Ko-

zlovics et al., 2011).

• The graph-like structure is more suitable for syn-

chronization via the network: OOP-style mem-

ory objects can be created on different endpoints

independently and then be merged, while the

array-based web memory would require central-

ized management to avoid collisions during block

allocation.

Because of synchronization overhead, web memory

should be considered a limited resource, which is not

intended to store large amounts of data.

Web mem-

ory should be treated as a classical RAM analog for

storing data currently in use, while larger data sets can

be stored in web I/O devices (deﬁned in Section 2.3).

The Code Space.

The web computer architecture permits usage of ar-

bitrary technologies within the code space. However,

to be able to invoke code in a uniform way, some for-

malization is needed. We assume that code is orga-

nized into actions. An action is a self-contained code

fragment (e.g., a set of classes or modules with re-

solved dependencies), which implements certain use-

ful functionality and has a speciﬁc entry point. En-

try points are usually functions formatted according to

certain conventions. Actions are identiﬁed by unique

Object-relational mapping

Compare that to Microsoft Ofﬁce 365, which imposes the

5 MiB limit to ﬁles being edited online.

human-readable names, which map to the correspond-

ing entry points. To avoid code injection attacks, all

legitime server-side actions must be registered, and

the corresponding action code has to be validated that

it will not harm the server. Only registered actions

will be called at the server-side.

We coin the term

web call to denote a particular invocation of an ac-

tion. We use the term calling conventions to indicate

a way how the arguments are passed to an action, and

how the value is returned. Currently, two calling con-

ventions are supported: 1) passing the argument as

an object via web memory (the return value, if any,

is also stored somewhere in web memory) and 2) the

argument and the return value are encoded as JSON

objects (stringiﬁed in some cases).

To make a web call, the action name, the argument

(according to the calling conventions) as well as other

technical information (such as the connected user ID)

has to be speciﬁed.

All web calls are invoked in a

standardized way, regardless of where the underlying

action code is located. Thus, we say that web calls are

implementation-agnostic, meaning that even if the

implementation of an action is changed (e.g., moved

from the server to the client and completely rewrit-

ten), all web calls to that action will remain valid as

soon as the calling conventions and arguments match

both the old and new implementations.

If the action code does not require an authenti-

cated user session, the action is called public (private,

otherwise). If the action code does not require access

to web memory, the action is called static (non-static,

otherwise). In the current speciﬁcation, all non-static

actions must also be private, since only authenticated

users are allowed to access web memory.

Web memory can be compared to the global vari-

able scope. It is accessible from all non-static actions

in the given code space. All internal variables (regard-

less of their actual programming language-speciﬁc

scope) used when implementing actions are consid-

ered local variables, — other actions are not able to

access them.

While web memory is not allowed to contain code,

it can reference registered actions by their names;

thus, these referenced actions can be eventually ex-

We do not impose the same restriction on the client-side

code since the user can get around this restriction easily.

This technical information can be collected and ﬁlled au-

tomatically in most cases.

To boost the execution of certain inter-connected actions,

some environment-speciﬁc local cache can be introduced.

Web calls of such coupled actions will be optimized to take

advantage of the cache. However, the actions must also

work correctly without the cache; thus, their common state

should be stored by other means, e.g., in web memory or

in some external shared database.

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

ecuted via web calls. Such name-based code refer-

ences replace code pointers used in classical computer

architectures.

2.2 Web Processors

Web-processors are server-side and client-side soft-

ware units (not hardware units; therefore, there is

no bijection with real processor cores) being able to

launch code. We use the term instruction set to de-

note a set of hardware and software requirements that

may be imposed by the code. Some examples are:

• a particular OS + processor architecture, e.g.,

“GNU/Linux-x64” or “Win32”;

• a particular OS with preinstalled services, regard-

less of the processor architecture, e.g., “Ubuntu

19.04” (both Intel and ARM targets satisfy this

requirement);

• some higher-level technology (e.g., PHP, Java,

Python, .NET, JavaScript, WebAssembly, etc.);

• presence of certain software or hardware (e.g., a

printer).

By including/excluding version number and other re-

quirements, different variations of instruction sets

may appear, leading to the hierarchy of instruction

sets. The hierarchy is based on the “subclass of” rela-

tion between instruction sets deﬁned as follows:

an instruction set J is a subclass of instruc-

tion set I, iff code requiring environment I can

be executed also within environment J.

Each web processor supports one or more instruction

sets. By convention, a web processor implementing

some particular instruction set should support also

its superclasses (e.g., if “Client-Side JavaScript 6”

is supported, “JavaScript 6” and “JavaScript” should

also be supported).

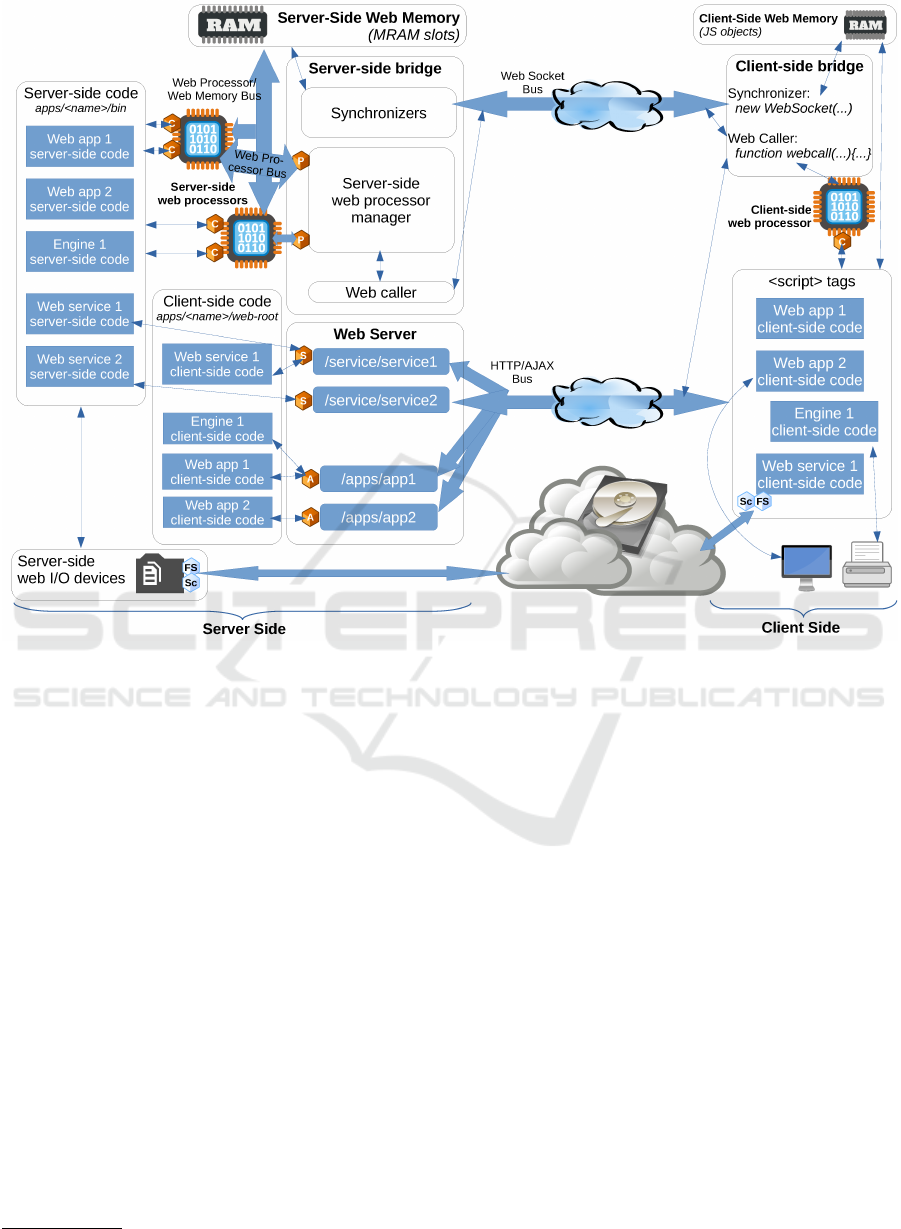

There can be multiple web processors, each hav-

ing its own list of supported instruction sets. In the

classical client-server approach, the following web

processors are normally present:

• at least one server-side web processor with several

instruction sets supported out-of-the-box (e.g, for

launching PHP, Java, and Python code); server-

side web processors can switch between executing

actions launched by different connected users;

• at the client side, there is usually one web

processor being able to execute JavaScript and

WebAssembly code within the browser window

(other client-side technologies such as Flash, Java

applets, and ActiveX can also be supported as sep-

arate instruction sets); each connected user has a

dedicated client-side web processor.

Web processors running on additional servers (“re-

mote web processors”) can also be added, when nec-

essary (i.e., when some code requires different CPU

architecture or operating system).

From the developer’s point of view, the web com-

puter resembles a multiprocessor system, where web

processors share the same data memory but have sep-

arate arithmetic and logic units (ALUs). However,

the developer does not need to think about which

web processor will be used to execute the given web

call — that is managed seamlessly by webAppOS,

resembling how the traditional OS manages multiple

concurrent threads on a multiprocessor architecture.

2.3 Web I/O Devices

We use the input/output device metaphor to denote

data sources and receivers other than web memory.

We call them web I/O devices. Examples of such

devices are the server-side ﬁle system and databases

as well as external cloud storage. Speciﬁc graphical

presentations within the browser window as well as

client-side devices (such as printers) are also consid-

ered web I/O devices.

Web I/O devices can be accessed from the code

via some web I/O device-speciﬁc API. While it is im-

possible to know and support in advance all possible

web I/O devices, some of them are standardized in

webAppOS by deﬁning common APIs. One example

is File System API, which not only provides access

to user home directories located at the server side but

also can be used to access external storage (e.g., cloud

drives) mounted into the ﬁle system. Another exam-

ple is Desktop API for accessing the web-based desk-

top analog inside the web browser. The API can be

used to display predeﬁned dialog windows or to show

the list of installed web applications and launch them

in new browser windows.

3 THE WEB COMPUTER OS

When dealing with real hardware resources, pro-

grammers rely on the OS API. Similarly, develop-

ers of web applications for the web computer rely

on webAppOS, — an operating system analog, which

provides access to web memory, web processors, and

standardized web I/O devices via a set of predeﬁned

APIs.

3.1 webAppOS Web Applications

We deﬁne a webAppOS web application as a pair

(UI, A), where UI is a set of code artifacts that ensure

The Web Computer and Its Operating System: A New Approach for Creating Web Applications

communication with the end user, and A is a set of

registered actions that can be invoked via web calls.

Communication with the End User.

Like in classical applications, all possible user com-

munication ways can be split into two groups: graph-

ical and console. In graphical webAppOS ap-

plications, visual content is delivered via HTTP

using some existing technique, e.g., as static

HTML/CSS/JavaScript ﬁles or via server-side code

generator (e.g., PHP). In console web applications,

bi-directional web sockets are used for communi-

cation, where an additional graphical terminal-like

web application has to be launched to display the

corresponding input/output streams. To support

all different ways of communication with the end

user, webAppOS relies on application adapters.

For instance, there can be an adapter serving plain

HTML/CSS/JavaScript ﬁles, an adapter with the PHP

interpreter, an adapter for console web applications,

etc.

Actions.

Actions of a webAppOS application are implemented

as classical code using existing technology stacks.

The set of actions of a web application can contain

server-side and client-side code as well as code re-

quiring exotic instruction sets, which must be pro-

vided by remote web processors running on additional

servers with speciﬁc environments installed. To sup-

port various platforms (e.g., desktop and mobile web

browsers, or different processor architectures), multi-

ple implementations of the same action can be created

so that webAppOS can choose the implementation

depending on the platform (thus, webAppOS bene-

ﬁts from the fact that web calls are implementation-

agnostic).

Actions of a webAppOS application can:

• access web memory (non-static actions only);

• make web calls to invoke other actions (in an

implementation-agnostic way);

• access standardized web I/O devices (such as the

user’s home directory within the ﬁle system, if the

user has been authenticated);

• access other (non-standardized from the

webAppOS point of view) devices in a platform-

speciﬁc way;

• perform other computational tasks, etc.

Speciﬁc APIs, available for different environments,

are provided by webAppOS to support the ﬁrst three

tasks above.

Some web applications do not need to access web

memory. For instance, the login app, which displays

the login and password input ﬁelds, must be static,

since unauthenticated users will not be allowed to ac-

cess web memory. Such web applications can make

web calls only to static actions.

3.2 webAppOS Projects

Let us consider a webAppOS application requiring

web memory. Multiple users can be working with

that application, and each user can access the applica-

tion in different contexts (e.g., editing different docu-

ments). We use the term project to denote each such

context. Projects in webAppOS resemble processes

in traditional operating systems. However, there is

a distinction: in projects, the code is normally idle

and is executed only when web calls are made, but

traditional OS processes are normally running but

can sleep to wait for some signal. Like traditional

operating systems isolate memory of different pro-

cesses, webAppOS isolates web memory of different

projects. We use the term slot to denote a web mem-

ory instance used by a particular project.

3.3 webAppOS Libraries

A webAppOS library is a set of registered actions

that can be shared between different web applications.

Data, however, are project-speciﬁc and stored within

the corresponding project web memory slot. Thus,

libraries are similar to dynamic libraries (DLLs) in

traditional operating systems.

Libraries are useful for

• factoring out common actions;

• providing multiple implementations for graphical

presentations or other platform-speciﬁc services

that can vary depending on the platform. By fac-

toring out platform-speciﬁc aspects into libraries,

web applications can be developed in a platform-

independent way, where particular implementa-

tions for library web calls are chosen at runtime.

3.4 webAppOS Services

A webAppOS service is a module that provides use-

ful functionality to applications but is invisible to

end users. In most cases, services do not pro-

vide the user interface

, but provide some web-based

API that can be accessed programmatically (HTTP

REST/AJAX or as non-HTTP service such as mail

service). Since there can be different ways to launch

services, webAppOS relies on service adapters. For

Some technical user interface for developers and adminis-

trators can be provided, though.

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

instance, one adapter can launch services imple-

mented as Java servlets, while some other adapter can

launch Docker containers.

Services can make web calls and use webAppOS

API to access web I/O devices or web memory slots

of running projects, but some access validation has

to be implemented for that. A service example is

webAppOS webDAV service, which provides access

to the ﬁle system via the webDAV protocol. The

service relies on the webAppOS File System API

and requires users to provide their credentials (lo-

gin+password) to be able to access their home direc-

tories.

3.5 Scopes and Authentication

We use the term scope to denote a resource (or a set

of resources) that can be accessed only by authenti-

cated users. Each scope has a name deﬁned by the

resource provider. For instance, Google deﬁnes mul-

tiple scopes such as “proﬁle”

and “spreadsheets”

;

webAppOS also deﬁnes certain scopes, e.g., “login”,

which can be used to access user’s home ﬁle system

and make private web calls.

Before accessing a resource, the scope must be au-

thenticated. A universal API (the Scopes API) is pro-

vided by webAppOS for that. The Scopes API re-

lies on vendor-speciﬁc scopes drivers (such as the

“google scopes” driver), which perform authentica-

tion and receive access tokens (keys). Since authoriz-

ing scopes requires user’s intervention at the client-

side, the Scopes API is available only at the client-

side. Once the token is obtained, it is usually stored

in some known place at the client side, at the server

side, or at both sides (depending on the driver), and

can be used by webAppOS applications, services, and

web I/O devices to access the resource.

3.6 Drivers

Scopes drivers can contain also drivers for certain I/O

devices (web I/O device drivers). For example, the

Google scopes driver can be shipped with a web I/O

device driver implementing the webAppOS File Sys-

tem API for Google Drive. Some drivers are bundled

with webAppOS, others are provided by third-parties.

Drivers for web I/O devices implementing stan-

dardized APIs can be used by webAppOS to extend

its capabilities. For instance, by using ﬁle system

drivers, webAppOS can mount remote ﬁle systems as

subdirectories in the webAppOS ﬁle system. Thus,

https://www.googleapis.com/auth/userinfo.proﬁle

https://www.googleapis.com/auth/spreadsheets

whenever webAppOS File System API is called (di-

rectly or via the webDAV service), the mounted direc-

tory will be accessible as any other native directory.

3.7 webAppOS Execution

Environments

Typically, webAppOS runs as a web server software,

and users access it from client browsers. We say

then that webAppOS runs in the web environment.

By bundling the web server and a web browser com-

ponent into a single desktop application, webAppOS

web applications can be launched as standalone desk-

top applications (desktop environment). If graphical

presentations are re-designed (re-written) to ﬁt into a

smaller screen with support for touch events, we can

talk about the mobile environment.

As a special use case, webAppOS can be used

to develop lightweight applications that do not re-

quire any webAppOS server-side code, but can rely

on client-side API and client-side drivers to access

third-party cloud services. We call such applications

serverless. They must meet the following criteria:

• they have to be deployed as plain

HTML/CSS/JavaScript ﬁles, which can be

served by the simplest web server or launched

from a local directory;

• they may not rely on webAppOS server-side API,

but can use client-side API and client-side web

calls;

• to access third-party scopes, they must rely on

client-side tokens only.

We can think of webAppOS execution environments

as of different targets for web applications, where all

targets can share the same code (perhaps, with slight

variations that can be factored out by webAppOS).

Thus, webAppOS can be compared to Java Virtual

Machine that can execute the same Java bytecode in

different environments (with some platform-speciﬁc

variations factored out by the VM).

4 IMPLEMENTATION

Figure 2 depicts the implementation of webAppOS,

split into components (details are provided further in

this section). All components are original, but some

of them rely on third-party libraries (e.g., drivers for

accessing third-party resources). The server-side part

uses Java as the primary language, while the client-

side part uses JavaScript. Using Java at the server

side is reasonable since Java does not suffer from

The Web Computer and Its Operating System: A New Approach for Creating Web Applications

Figure 2: Implementation of the web computer architecture. Buses are depicted by thick arrows. Small cubes denote drivers

and adapters (“P” and “C” for web processor and web call adapters, “S” and “A” for service and application adapters, “Sc”

and “FS” for scopes and ﬁle system drivers).

popular security breaches based on stack overﬂow or

char* overﬂow. Server-side drivers and adapters also

have to be implemented in Java, but they can invoke

non-Java code via JNI or inter-process communica-

tion. Similarly, client-side drivers and adapters must

be implemented in JavaScript, but they can call non-

JavaScript code (e.g., WebAssembly or Flash).

4.1 Web Memory

Web memory has been implemented via the model

repository AR, which uses an efﬁcient encoding of

models (Kozlovi

cs, 2018; Kozlovi

cs, 2019). The

models are stored in memory-mapped ﬁles, thus,

making it easier to share web memory with server-

side web processors. The encoding of models is suit-

able for direct synchronization via web sockets. AR

can be accessed via universal Repository Access API,

RAAPI

, from Java as well as from native code (via

a cross-platform dynamic library).

http://webappos.org/dev/raapi/

4.2 Web Processors

Server-side and remote web processors are launched

as separate OS processes via corresponding web pro-

cessor adapters. The idea of launching web pro-

cessors as separate OS processes has the following

important beneﬁt: if the code that is being executed

within a web processor crashes, the process can be re-

launched without affecting other web processors and

web server software. Furthermore, if code freezes (or

takes too long to execute), webAppOS can forcefully

terminate the web processor and then relaunch it for

executing other code. However, upon web processor

termination, the corresponding web memory slot has

to be invalidated (this resembles an ordinary applica-

tion crash when data from RAM are being lost).

Each user runs the default client-side web proces-

sor implemented in JavaScript. Both server-side and

client-side web processors rely on web call adapters,

which correspond to available instruction sets. Each

web call adapter is able to execute code designed for

the supported instruction set and to pass arguments to

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

the action entry point according to some calling con-

ventions. When a web call is made, the following in-

formation is analyzed and passed to the appropriate

web processor and then to the appropriate web call

adapter:

• the action name;

• the action declaration consisting of the instruction

set, code location, calling conventions as well as

other technical information (such as whether the

web call is static and/or private);

• the passed argument(s) according to the calling

conventions of that action.

4.3 The Code Space

The code space is represented by the apps directory,

located or mounted at the server side. Each subdi-

rectory corresponds to some webAppOS application

or service containing both server-side and client-side

code. Server-side code (if any) is usually located in

the bin sub-subdirectory. Traditional technologies are

used for such code (e.g., Java code is stored in .class

or .jar ﬁles). Client-side code (if any) is usually stored

in the web-root sub-subdirectory, which is automat-

ically mapped to the corresponding web application

or web service URL (e.g., “/apps/myapp”) accessible

from the web browser. To map applications and ser-

vices to URLs, webAppOS relies on application and

service adapters.

To support load balancing, the same code space

can be shared between multiple webAppOS instances

using classical technologies, e.g., via a network ﬁle

system or by directory replication. A similar ap-

proach can be used to share webAppOS ﬁle system

containing users’ home directories.

4.4 Web I/O Devices

For predeﬁned web I/O devices webAppOS provides

Java and JavaScript APIs. The same APIs can be used

to access third-party devices of the same type. For

example, webAppOS File System API can be used to

access various cloud drives in the same way as the

home ﬁle system. Remote ﬁle systems can even be

mounted within the home ﬁle system.

However, before accessing any third-party web

I/O device (predeﬁned or exotic), the scopes driver

has to be loaded and the corresponding scope re-

quested via the Scopes API. After the scope has been

authenticated and access tokens obtained, webAppOS

and applications can use remote resources via cor-

responding web I/O device APIs (predeﬁned or ex-

otic), which should be implemented in web I/O device

drivers bundled with the scopes driver.

Scopes drivers are implemented as webAppOS

services, which usually contain both client-side code

(e.g., for displaying the third-party authentication

window) and server-side code (e.g., for validating

and storing access tokens) as well as drivers code.

For serverfull mode, only server-side web I/O device

drivers are required. To support the serverless mode

as well, the scopes driver should provide also an inde-

pendent client-side implementation of device drivers.

4.5 Bridges

The client and the server, each has a module called a

bridge, which is responsible for synchronizing web

memory, managing web processors at the given net-

work node

, and processing web calls. When one

side makes a web call that has to be executed at

the other side, the bridges communicate on how and

where to execute code. The server-side and client-

side bridges can be compared to the north and south

bridges in the traditional motherboard layout, where

different devices can be attached to different bridges,

but there is a communication channel between the

bridges.

4.6 Buses

Besides the main components, there are also sev-

eral communication channels for transferring data be-

tween them. While some channels are implemented

as simple function calls, others (which we call buses)

require sending data between different OS processes

or between different network nodes. There are the

following main buses in webAppOS:

• HTTP/AJAX Bus is used to deliver client-side

code and user interface (HTML/CSS/JavaScript)

from the server to the client browser; provides ac-

cess to webAppOS web services or their adminis-

trative settings;

• Web Socket Bus ensures web memory synchro-

nization and forwards web calls when they

have to be executed on the other node; this

is the main communication channel between

webAppOS bridges;

• Web Processor/Web Memory Bus is used to ac-

cess web memory slots from server-side web pro-

cessors (which are separate OS processes); imple-

mented via memory-mapped ﬁles;

• Web Processor Bus is a communication channel

between the bridge and server-side and remote

Currently, the client-side bridge has only one web proces-

sor; thus, a web processor manager is not needed there.

The Web Computer and Its Operating System: A New Approach for Creating Web Applications

web processors; implemented via Java RMI (Pitt

and McNiff, 2001).

5 RELATED WORK

The idea of providing an operating system-like en-

vironment for the web is not new (Lawton, 2008).

Web desktops are desktop-like environments in a web

browser window. Sometimes they are called web OS-

es; however, they resemble window managers, not

full operating systems. As of 2019, many have been

discontinued (e.g., eyeOS, ZeroPC). Others such as

Os.js

, WebDesktop.biz

, and AaronOS

are alive,

but not widely used. The proposed webAppOS comes

with a preinstalled Desktop application, which acts as

a window manager. However, alternative launchers of

web applications are also possible (e.g., via a menu

button showing the icons of the installed applications,

like implemented in Microsoft Ofﬁce365 or Google

Docs).

While web desktops are not popular today, devel-

opers focus on creating rich HTML-based pages and

single-page web applications. Since HTML was ini-

tially designed for static documents, numerous frame-

works appeared, which add dynamics to HTML. The

main goal is to support single-page applications at the

client side (running in the browser) via a set of use-

ful libraries, templating mechanism, and certain de-

sign patterns. Examples include AngularJS

(and

its successor Angular2+

), Dojo Toolkit

(and its

successor Dojo2

), React

(for building UI), Au-

relia

, Ember

, Vue

, and Backbone.js

. Classi-

cal libraries such as jQuery

and jQueryUI

, Boos-

trap

, and D3

can also be mentioned. However,

from webAppOS point of view, all these frameworks

are just client-side libraries, which can be used to im-

plement actions at the client side. Although client-

https://www.os-js.org/

http://webdesktop.biz/

https://aaron-os-mineandcraft12.c9.io/aosBeta.php

https://angularjs.org/

https://angular.io/

https://dojotoolkit.org/

https://dojo.io/

https://reactjs.org/

https://aurelia.io/

https://emberjs.com/

https://vuejs.org/

https://backbonejs.org/

https://jquery.com/

https://jqueryui.com/

https://getbootstrap.com/

https://d3js.org/

side technologies mentioned above are mainly target-

ing JavaScript, some support TypeScript. Java pro-

grams can also be cross-compiled to JavaScript by

Google Web Toolkit, GWT

. The Blazor

toolkit

allows developers to write web applications in C#,

which can be then compiled to WebAssembly, which

is now supported by most modern browsers.

There are numerous web application frameworks

(including ASP.NET

, JavaServer Faces

, etc.) that

are good for business-oriented form-based web appli-

cations. However, each such framework is tied to par-

ticular speciﬁc technologies, and certain framework-

speciﬁc knowledge is required to create web appli-

cations based on the chosen framework. In con-

trast, our web computer architecture does not im-

pose environment-speciﬁc restrictions on web appli-

cations. Developers can continue to use familiar tech-

nologies. The only exception is webAppOS itself,

where drivers and other system modules have to im-

plement certain Java or JavaScript APIs (but their in-

ternal implementation is not restricted).

Node.js

provides JavaScript environment out-

side the web browser; thus, JavaScript code can

be launched at the server side, providing the same

language environment for both the client and the

server. Unlike Node.js, webAppOS does not enforce

JavaScript, neither impose the asynchronous execu-

tion to applications; it relies on web processors in-

stead, where computation-heavy actions (which can

be synchronous) can be executed in parallel using vir-

tually any programming language. However, Node.js

has many beneﬁts such as an excellent community,

many useful libraries, and a package manager. Thus,

Node.js can be launched as a web processor within

webAppOS.

Meteor

is a Node.js-based framework for the

rapid creation of web applications in JavaScript with

automatic client-server synchronization. Perhaps, it is

the closest webAppOS sibling. However, Meteor uses

a NoSQL database MongoDB, which is optimized for

fast queries, but not for fast writes, thus, making a

bottleneck, when used to simulate a read-write RAM

analog. Furthermore, Meteor requires explicit data

listeners and is tied to JavaScript. Regarding scala-

bility, Meteor is tailored to the commercial Galaxy

cloud. The proposed webAppOS is an open-source

project aiming to support different clouds and various

existing web services.

http://www.gwtproject.org/

https://blazor.net/

https://dotnet.microsoft.com/apps/aspnet

http://www.javaserverfaces.org/

https://nodejs.org/

https://www.meteor.com/

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

Google Apps Script

is a platform for developing

web applications intended to be run in a web browser.

Google Apps Script integrates with Google services.

However, if we need certain server-side computation

or database, we need to create a web service or some

API for that.

Google Chrome OS

pursues a different goal – to

make a browser act as an operating system, thus, mak-

ing the software dependent on a particular browser.

In contrast, webAppOS will support different web

browsers, different server-side operating systems as

well as different cloud services.

CloudRail Uniﬁed APIs

was a commercial ini-

tiative (with a free community version) for provid-

ing universal APIs for cloud services such as storage,

messaging, payments, etc. Unfortunately, support for

CloudRail APIs was discontinued on March 1, 2019.

Since CloudRail APIs align to webAppOS web I/O

device APIs, webAppOS drivers implementing simi-

lar uniﬁed APIs can eventually be developed.

CORBA is a set of standards proposed by OMG

for enabling interoperability between diverse pro-

gramming languages and operating systems (Object

Management Group, 2011a). Originated in 1991, it

was an excellent idea to implement web services via

distributed objects. However, CORBA implementa-

tions proved to be heavyweight and slow. Although

still available, it is considered deprecated (CORBA

has been even removed from Java11). Thus, to sup-

port inter-process communication, webAppOS relies

on a more lightweight Java RMI protocol for mak-

ing calls between the server-side bridge and web

processors (Pitt and McNiff, 2001). To synchro-

nize web memory, webAppOS relies on web sockets,

which use lower resources than CORBA or traditional

REST/AJAX requests.

An interesting approach for bringing traditional

desktop applications to the web is via cloud plat-

forms such as RollApp and AlwaysOnPC

. Each

connected user runs their own copy of some classi-

cal application at the server side, but application win-

dows are being forwarded to the web browser imple-

menting the X server (or its alternative). A similar

approach is used in open-source Gnome Broadway

and xpra

. Commercial Citrix Virtual Apps

(for-

https://www.google.com/script/start/

https://www.google.com/chromebook/

https://cloudrail.com/

https://www.rollapp.com,

http://www.alwaysonpc.com/

https://developer.gnome.org/gtk3/stable/gtk-broadway.

html

https://xpra.org

https://www.citrix.com/products/

merly XenApp and XenDesktop) provide access to

Windows, Linux, and SaaS applications in a way sim-

ilar to Microsoft Remote Desktop. Technically, the

approach of forwarding a remote window can be im-

plemented in webAppOS by assigning to each con-

nected user a server-side web processor running the

given desktop application. Web memory can be used

to exchange information on how to connect to the X

server running within a web browser. Input and out-

put streams of console applications can be forwarded

to the web browser in a similar way. However, with

such a forwarding-based approach, each web proces-

sor will be reserved for the whole user session, not

just one web call.

Since web memory is represented by a model,

which, in essence, is a graph, it can be easily mapped

to linked data and semantic web technologies such as

RDF and OWL (W3C, 2014b; W3C, 2014a; W3C,

2004; W3C, 2012). We can even introduce spe-

ciﬁc web processors implementing semantic reason-

ers, which can be considered speciﬁc instruction sets

(Corno and Farinetti, 2012).

Electron

is a convenient framework for devel-

oping cross-platform desktop applications by utiliz-

ing web technologies. Electron comes with a bundled

web browser and a set of APIs for accessing native OS

functionality. Electron resembles how webAppOS

is intended to support multiple target environments

(web, desktop, and mobile). However, webAppOS

does not restrict the developers to use JavaScript, –

virtually any technology available for the target plat-

form can be used.

Although some approaches to bring the classi-

cal single-PC thinking to the process of developing

web applications have been published, they required

program re-structuring (Matthews et al., 2004). In

webAppOS, existing technologies and even existing

code can be re-used. The only requirement is that the

code has to follow the calling conventions of the cor-

responding web call adapter.

To summarize, while there are excellent technolo-

gies that can solve particular tasks occurring during

the development of web applications, no project is

aimed to provide a centralized infrastructure to tie

all these technologies into one ecosystem. Currently,

this resembles how GNU had excellent software but

lacked the OS kernel. Initially, GNU aimed to adopt

the Hurd kernel, but Linux proved to be more viable

(Tozzi, 2017). Perhaps, webAppOS can eventually

become “a kernel” (or a Java Virtual Machine analog)

for web technologies. However, we have to admit that

to earn the market, signiﬁcant efforts from the open-

citrix-virtual-apps-and-desktops/

https://electronjs.org/

The Web Computer and Its Operating System: A New Approach for Creating Web Applications

source community as well as collaboration with cloud

service companies are required.

6 BENEFITS

One of the main beneﬁts of webAppOS is the pres-

ence of automatically and transparently synchronized

web memory. Web memory acts as a shared data

model between the client and the server. The pres-

ence of such a model is essential for single-page

applications, SPAa, where the DOM has to be up-

dated when the model changes (Takada, 2013). SPAs

built upon webAppOS can also access standardized

web I/O devices (either bundled within webAppOS

or third-party) in a uniform way. Serverless SPAs

can also beneﬁt from using webAppOS: they can

use webAppOS serverless drivers for accessing third-

party resources via uniﬁed client-side webAppOS

APIs.

Another signiﬁcant webAppOS beneﬁt is the abil-

ity to invoke code via web calls in an implementation-

agnostic way. The developers do not need to be aware

of where the code is located and how it will be ex-

ecuted: the process is managed by webAppOS and

its bridges. Thus, the code implementing a particular

web call can be moved or re-written, without alter-

ing the main web application. The performance slow-

down of code running within webAppOS is minimal.

The slowdown occurs only when the code accesses

web memory due to triggered synchronization. How-

ever, the overhead is minimal since data are synchro-

nized without re-encoding, and the synchronizer is

launched in a separate thread, thus, allowing the main

thread to continue independently on the synchroniza-

tion process.

This differs from CORBA and similar

technologies, where communication between network

nodes requires serialization, deserialization, and (usu-

ally) the full roundtrip (Object Management Group,

2011a).

Alan Kay, a Computer Science pioneer, once said

that the web browser is, in essence, a mini-operating

system. We would say that webAppOS is a super-

structure over both, the server-side OS and the client-

side web browser (the “mini-OS”). Such a superstruc-

ture makes the web computer illusion possible. Phys-

ical locations of the code and memory are hidden be-

yond webAppOS APIs. With webAppOS, developers

can continue to use familiar technologies for writing

code, but they do not have to think about the network.

The only noticeable delay can be observed between sub-

sequent web calls executed in different network nodes

since web memory changes have to be physically prop-

agated from the ﬁrst to the second node.

This is a strong psychological advantage since de-

velopers can stay within the three-singles assumption

and create web applications at the same speed as when

creating desktop applications. Existing standalone

applications can also be easily converted to web ap-

plications by following these simple steps: deﬁning

a set of actions for invoking them via web calls, re-

designing GUI using browser technologies, and ad-

justing webAppOS conﬁguration.

7 CONCLUSION

The paper provided insight into webAppOS, a plat-

form that ensures the three-singles assumption for de-

velopers of web applications and services. The pro-

posed platform factors out almost all web-speciﬁc as-

pects; therefore, developers can assume they are writ-

ing applications for a single PC, with single memory

and multiple processors attached directly. Network

communication, user authentication, automatic acqui-

sition of SSL certiﬁcates and their renewal via the

ACME protocol, access to user’s home directory at

the remote ﬁle system (where ﬁles can be downloaded

from/uploaded to), and other features, are provided by

webAppOS automatically, thus, simplifying the sys-

tem administrator’s work. From the end-user experi-

ence, webAppOS resembles Google Drive, Microsoft

OneDrive, and Apple’s iCloud, but in webAppOS,

third-party web applications can be installed as well.

The webAppOS sources and the demo are avail-

able at webappos.org. The full speciﬁcation is avail-

able at webappos.org/theory, and the API documenta-

tion can be found at webappos.org/doc.

We are working on migrating our desktop-based

ontology editor OWLGrEd to the web environment by

using webAppOS (http://owlgred.lumii.lv, (Barzdins

et al., 2010)). We are also planning to migrate the

data analysis tool Data Galaxies to webAppOS. These

tools are intended to prove the feasibility of the ap-

proach.

Currently, webAppOS has been implemented for

the web platform. We are planning to release the

webAppOS distribution for the desktop environment

soon, where the “write once, run everywhere” princi-

ple will be respected.

Although the current webAppOS speciﬁcation has

been developed with scalability in mind, a standard-

ized set of APIs has to be published for that, certain

design choices have to be made, and support for ex-

isting cloud services (such as Amazon EC2, Google

Cloud, and OpenStack) has to be provided. In addi-

tion, we have to pay more attention to privacy issues

and low requirements. These are topics for further re-

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

search.

ACKNOWLEDGMENTS

The work has been supported by Euro-

pean Regional Development Fund within

the project #1.1.1.2/16/I/001, application

#1.1.1.2/VIAA/1/16/214 “Model-Based Web Ap-

plication Infrastructure with Cloud Technology

Support”.

REFERENCES

Ambler, S. (2002–2019). Mapping objects to relational

databases: O/R mapping in detail. http://www.

agiledata.org/essays/mappingObjects.html.

Andrews, M. and Whittaker, J. A. (2006). How to Break

Web Software: Functional and Security Testing of Web

Applications and Web Services. Addison-Wesley Pro-

fessional.

Anuja, K. (2007). Object Relational Mapping. PhD thesis,

Cochin University of Science and Technology.

Barzdins, J., Barzdins, G., Cerans, K., Liepins, R., and

Sprogis, A. (2010). OWLGrEd: a UML style graphi-

cal notation and editor for OWL 2. In Proceedings of

OWLED 2010.

Corno, F. and Farinetti, L. (2012). Logic and reasoning in

the semantic web (part II – OWL). Materials for the

“1LHVIU - Semantic Web: Technologies, Tools, Ap-

plications” course at Politecnico di Torino, Diparti-

mento di Automatica e Informatica. http://elite.polito.

it/ﬁles/courses/01LHV/2012/7-OWLreasoning.pdf.

Kozlovics, S., Rencis, E., Rikacovs, S., and Cerans, K.

(2011). A kernel-level UNDO/REDO mechanism for

the Transformation-Driven Architecture. In Proceed-

ings of the 2011 conference on Databases and Infor-

mation Systems VI: Selected Papers from the Ninth In-

ternational Baltic Conference, DB&IS 2010, volume

224 of Frontiers in Artiﬁcial Intelligence and Appli-

cations, pages 80–93, Amsterdam, The Netherlands.

IOS Press.

Kozlovi

cs, S. (2018). Efﬁcient model repository for web

applications. In Proceedings of the 13th Interna-

tional Baltic Conference on Databases and Informa-

tion Systems (Baltic DB&IS 2018), volume 838 of

CCIS. Springer Nature Switzerland.

Kozlovi

cs, S. (2019). Fast model repository as memory for

web applications. Databases and Information Systems

X, 315:176–191.

Lawton, G. (2008). Moving the os to the web. Computer,

41(3):16–19.

Matthews, J., Findler, R. B., Graunke, P., Krishnamurthi, S.,

and Felleisen, M. (2004). Automatically restructuring

programs for the web. Automated Software Engineer-

ing, 11(4):337–364.

Object Management Group (1991–2011a). Common Object

Request Broker Architecture. http://www.corba.org/.

Object Management Group (2011b). OMG Meta Object

Facility (MOF) Core Speciﬁcation Version 2.4.1.

Pitt, E. and McNiff, K. (2001). Java.Rmi: The Remote

Method Invocation Guide. Addison-Wesley Longman

Publishing Co., Inc., Boston, MA, USA.

Stallman, R. (2010). Who does that server re-

ally serve? http://www.bostonreview.net/

richard-stallman-free-software-DRM.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2008). EMF: Eclipse Modeling Framework, 2nd

Edition. Addison-Wesley.

Takada, M. (2013). Single page apps in depth. http:

//singlepageappbook.com/.

Tozzi, C. (2017). For Fun and Proﬁt: A History of the

Free and Open Source Software Revolution. The MIT

Press.

W3C (2004). OWL Web Ontology Language reference.

http://www.w3.org/TR/owl-ref/.

W3C (2012). OWL 2 Web Ontology Language document

overview (second edition). http://www.w3.org/TR/

owl2-overview/.

W3C (2014a). RDF Vocabulary Description Language 1.0:

RDF Schema. http://www.w3.org/TR/rdf-schema/.

W3C (2014b). Resource Description Framework. http://

www.w3.org/RDF/.

The Web Computer and Its Operating System: A New Approach for Creating Web Applications
