Validation and Recommendation Engine

from Service Architecture and Ontology

Daniel Mercier

1 a

and Anthony Ruto

Autodesk Research, 661 University Ave, Toronto, ON, Canada

Autodesk Research, 17 Broadwick St., Soho, London, U.K.

Keywords: Validation, Recommendation, Service Architecture, Ontology, Object-oriented, Domain Engineering.

Abstract:

The Cloud has emerged as a common platform for data convergence. Structured data, unstructured, serialized,

or even chunks of data in various formats are now being transferred, processed, and exchanged by a multitude

of services. New applications, service-oriented, rely heavily on the managing of these ﬂows of data. The

situation is such, that the perspective is changing, placing data at the center. In this context, end-users must

rely on new derivative services to validate these ﬂows of information; and expect from these services accurate

feedback and some degree of intelligent recommendations. In this article, we introduce a new validation and

recommendation engine encapsulated in a service, backed by ontology and a knowledge structure based on

reusable components for fast integration and increased resilience.

1 INTRODUCTION

The transition from desktop applications to cloud-

based applications is changing the way we approach

software engineering. Applications which were his-

torically designed to contain all the necessary func-

tional requirements, from display to data handling

and processing, now deployed on the cloud are be-

ing transformed into assemblies of functions encapsu-

lated into easily deployable services sometimes called

micro-services due to their small size. With the

reduced load on the applications, access moved to

lightweight or web-based front-end applications con-

nected to a processing back-end. This transition from

a monolithic architecture to a cloud back-end of in-

terconnected services placed an emphasis on commu-

nications and drove the industry to transform its ap-

proach to data. We are reaching a point where data is

now driving executions. This data integration (Hohpe

and Woolf, 2004) requires strong data consistency

and good control over ﬂows between services (Kim

et al., 2010). Naturally, validation is central to main-

taining consistency. Validation is applied for secu-

rity reasons such as in ﬁrewalls when the data crosses

trust boundaries (Aljawarneh et al., 2010); or sim-

ply to check whether the data fulﬁlls the requirements

placed by a target application. In this ever-changing

https://orcid.org/0000-0003-1239-9728

and highly distributed environment, applications built

from service-oriented architecture (SOA) relies on

new derivative services or agents to account for all

non-core functions. Data validation naturally falls un-

der this category. During our study of the research

ﬁeld, we identiﬁed that while in the last few years,

there are consistent efforts towards validating service

architecture and service workﬂow (Faiez et al., 2017),

we also found a somewhat limited presence in the seg-

ment of generic content validation. This observation

became more noticeable when looking for combina-

tion of semantic web technologies to the validation of

data.

1.1 Validation

This work focuses on the architecture of a service for

the validation of data. Validation for statistical pur-

poses as stated by the European Union (ESS hand-

book, 2018) differentiates validation methods by the

chosen principals that are used to separate validation

rules. It introduces validation levels as derived from

a business perspective pertaining to a domain where

each validation level is veriﬁed by a set of rules ap-

plied to the given data. The present work is structured

to embody these considerations.

266

Mercier, D. and Ruto, A.

Validation and Recommendation Engine from Service Architecture and Ontology.

DOI: 10.5220/0008070602660273

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 266-273

ISBN: 978-989-758-382-7

1.2 Environment

The proposed validation service is typically located

between a front-end application and a computing

Cloud back-end composed from an aggregation of

independent and potentially interconnected services.

The primary purpose of the service is to verify the

data sent by the front-end to the back-end to pre-

vent failed back-end executions that could be costly

to the end-user. For example, simulation solvers

and graphic rendering engines require complex back-

end processing that can run for hours, days or even

months. An objective of the service is also to pro-

vide a ﬂuid experience. The service does so by run-

ning validation and veriﬁcation over the received data

while it is being generated. For this reason, validation

as expressed in this work embodies the two concepts

of validation and veriﬁcation. The service response

is a validation report and a set of recommendations

to improve the quality of the data towards more sta-

ble and optimized back-end executions. The service

core knowledge structure is a combination of domain

engineering and Semantic Web technologies.

1.3 Domain Engineering

Domain engineering was introduced in software en-

gineering to promote the identiﬁcation of domains for

the reuse of software assets. The necessity for a con-

cept of domains is essential for validation in a service-

oriented architecture (Zdun and Dustdar, 2006) where

each service has a dedicated purpose and set of con-

tent required to operate. As an example, a service may

transform computer aided designs into meshes, an-

other may process material data from their raw form

to their process speciﬁc equivalent. Each of these

services acts as an independent and reusable domain

with independent validations. Feature modeling, a do-

main engineering technique (Kim, 2006), adds an ad-

ditional layer of granularity by introducing the con-

cept of domain feature. When properly implemented,

the combination of domain engineering and feature

modeling lowers content creation time by leveraging

commonalities and increases resilience through the

reuse of domain and feature assets. This work uses

domain engineering for segmenting and structuring

the validation knowledge.

1.4 Ontology and Semantic Web

This work uses ontology for the storage of the vali-

dation knowledge. An ontology is a well-structured

and rigorous organization of knowledge with tree of

classes, class inheritance, and class relationships. It

is a natural construct to store domains and domain

features. The technology was historically tied to

the Semantic Web, an extension of the World Wide

Web, and equally designed to allow data to be shared

and reused across application, enterprise, and com-

munity boundaries. Several approaches proved the

value of design patterns to generate reusable domain

ontologies (Musen, 2004) and the implementation

of these domain ontologies to determine problem-

solving strategies (Gil and Melz, 1996). When

combined with model-driven design (Strme

cki et al.,

2016) or feature modeling (Wang et al., 2007), the on-

tology adds the beneﬁts of formal semantic and rea-

soning capabilities over its structure. The integration

of an ontology in software development is sometimes

seen as a challenge (Baset and Stoffel, 2018). De-

spite the initial low adoption, the technology gained

traction in speciﬁc industries such as in bio-medical

and beneﬁted from the recent interest in artiﬁcial in-

telligence and machine learning. Semantic Web tech-

nologies is also often used for the validation of sys-

tem models (Shanks et al., 2003; Kezadri and Pantel,

2010) and workﬂow (Khouri and Digiampietri, 2018).

1.5 Objectives

The merit in this work’s approach lies in the com-

bining of technologies. The validation knowledge is

structured using domain engineering to facilitate the

reuse of domain features, while the storage is done

through ontology. The proposed validation service of-

fers from the combining of ontology and Cloud com-

puting, a wide range of validation mechanisms.

The service is expected to:

• Validate the data received from the front-end ap-

plication either in a partial or complete form,

• Generate the necessary information to guide the

user to ﬁnd and correct invalid entries,

• Provide recommendations on how to improve the

data,

• Form predetermined ﬂow of validations using de-

pendencies between domain features,

Section 2 covers the composition of the knowl-

edge structure and the validation mechanisms. Sec-

tion 3 addresses the various aspects of the service

workﬂow. Section 4 covers an overview of related

works. Finally, in section 5, we discuss future explo-

rations before the conclusions.

Validation and Recommendation Engine from Service Architecture and Ontology

267

2 ARCHITECTURE

The proposed service is designed as a stateless service

for cloud deployment. Its knowledge base is stored re-

motely and synchronized locally to allow scalability.

It has a user interface for knowledge acquisition, user-

access control to segment operations, and exposes a

REST interface for communications with the front-

end application.

2.1 User Roles

The service has four user roles. The ﬁrst role is the

user. It refers to the front-end application that sends

data within a given scope and receives in return a

validation report with recommendations. The sec-

ond role is the subject-matter expert who is in charge

of creating the material required to validate the data.

The third role is the administrator who controls the

deployment and stable operations of the application.

The administrator has extended access to the knowl-

edge base and service activities. The administrator

manages the user base and the deployment of service

plugins. The last role is the execution-engine expert

who creates for the service, the necessary plugin(s)

to compose and execute validation rules from code

logic.

2.2 Communications and Data Format

The proposed service has a Representational State

Transfer(REST) interface (Fielding, 2000). A typi-

cal request to a REST interface is formulated with

a payload formatted in either HTML, XML, JSON,

or some other format, and elicits a response with a

similarly formatted payload. The service implements

the JavaScript Object Notation or JSON, a lightweight

semi-structured data-interchange format. The format

is popular in system communications, in the conﬁg-

uration of systems and applications, as well as for

the storage of structured objects. The format offers a

conveniently short list of data types for single values

with null, boolean, number, and string; and two types

of complex constructs with arrays, and objects. The

JSON format has an associated schema format to de-

scribe and validate the structure of JSON documents.

For example, the service uses JSON schema to vali-

date the types of the received data. The service also

uses JSON schema during knowledge acquisition to

map the expected JSON values to feature attributes.

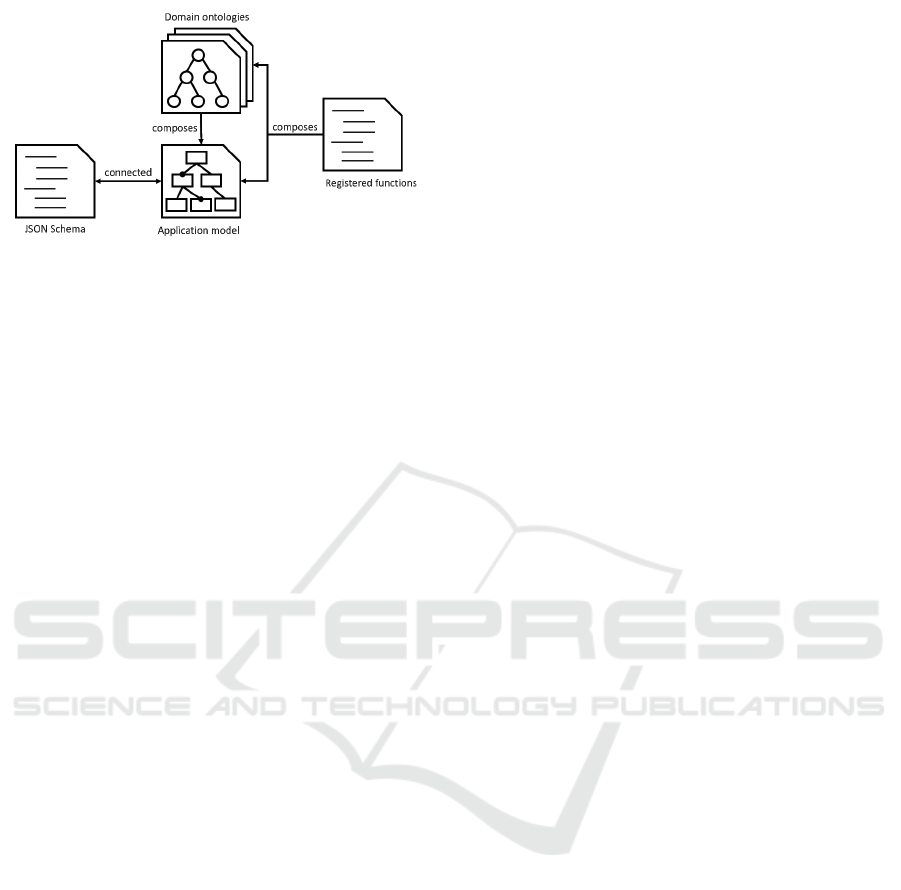

2.3 Knowledge Base

The structure of the knowledge base is a combina-

tion of two constructs. One for domains to contain

the reusable assets, and one to contain application

speciﬁcs and connect to the reusable assets.

2.3.1 Domains

Domains are stored as independent ontologies with

unique namespaces. The domain features are repre-

sented by ontology classes. As an example of do-

main segmentation, a structural simulation solver re-

quires a geometry, one of its domains. The geometry

has a mesh composed of nodes and elements. While

the geometry is the domain, the mesh, nodes and ele-

ments can be considered as domain features. As fea-

ture classes, they each have a series of individual at-

tributes. For example, axial coordinates are attributes

of a node. From the feature attributes, the subject-

matter expert can create the validation rules. An ex-

ample of simple validation rule for a node could be the

checking of whether its coordinates are beyond a par-

ticular location. Another part of knowledge acquisi-

tion is the mapping of feature attributes to the speciﬁc

JSON values expected in the data sent by the front-

end application as illustrated by ﬁg 1. This mapping

process is manual. Once the knowledge acquisition is

complete and during validation, the mapping between

schema and attributes is used to inject the received

data into instances of feature classes and the valida-

tion rules are then executed for each feature class over

the instance of that class.

Figure 1: JSON and knowledge structure.

2.3.2 Application Model

The second type of construct is the application model.

It is also stored in an independent ontology but con-

tains all the necessary validation material to validate

the data coming from a speciﬁc application. The ap-

plication model combines reusable domain assets and

application speciﬁc features. The application model

contains two distinct types of feature classes in addi-

tional to the domain features. The ﬁrst type is the pri-

mary application class that serves as a root and con-

nects all other features. The primary application class

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

268

is automatically created upon the creation of an appli-

cation model. The second type is the list class to rep-

resent JSON arrays. The presence of arrays inside the

JSON content inﬂuences the matching between JSON

values and feature attributes. If a feature attribute is

matched to a value inside an array, another attribute

from the same feature class can only be matched to a

value inside the same array or a value underneath that

array in the schema tree. For this reason, every time

an attribute is selected for a feature class from within

an array, a list class is automatically associated as a

parent to the feature class. This presence of list class

has the advantage of grouping feature classes within

the application model.

2.3.3 Feature Dependencies

The knowledge structure allows dependency between

feature classes towards a sequential activation. This

system of dependencies creates a natural ﬂow of fea-

ture validations. Features may be dependent between

each other within the same domain such as a mesh

is dependent on its nodes and elements, but depen-

dencies may also go beyond domains, in which case

the information is stored inside the application model.

There are two methods to create dependencies. One

through the isDependentOn relationship, the other is

by using data as a trigger on feature attributes. Be-

cause the activation of child classes may be condi-

tional on values generated by parent classes, the ser-

vice offers the possible enrichment of the original data

with newly processed values. By doing so, the avail-

able data naturally grows with the ﬂow of validations.

2.4 Validation Mechanisms

An essential part of our approach is the combina-

tion of two complementary types of validation mech-

anisms:

• Descriptive Logic(DL). A DL rule is embedded as

class axiom directly inside an ontology and com-

plement the ontology tree of classes and relation-

ships to determine its coherence and consistence

using a reasoner.

• Code Logic(CL). A CL rule is a script, or a piece

of code written in a procedural language. The lan-

guage provides the necessary functions to process

class attributes and return an outcome to the vali-

dation.

Each technique approaches validation differently.

While the Descriptive Logic follows an Open-World

Assumption (OWA) where lack of knowledge of a fact

does not immediately imply knowledge of the nega-

tion of a fact, Code Logic follows a Closed-World

Assumption (CWA) where every attribute is assumed

to be known or the rule cannot be validated. As each

validation rule act independently, the combination of

the two approaches constitutes a powerful and unique

validation ecosystem.

2.4.1 Descriptive Logic

Descriptive logic is a family of knowledge representa-

tion languages for authoring ontologies. An efﬁcient

and scalable reasoners such as the Pellet or the Her-

miT (Motik et al., 2009) reasoners for the Ontology

Web Language(OWL) (W3C, 2004) are natural com-

plements to this formal framework to infer logical co-

herence and content consistency. The service offers

two layers of descriptive logic. The ﬁrst layer is at the

domain-level and the second at the application-level.

If the DL rule is bound to the domain namespace, the

rule is embedded within the associated domain. If

the DL rule connects multiple namespaces, the rule is

embedded instead within the application model. One

challenge with Descriptive Logic stands in the rich-

ness of the ontology. We observed that given freedom

over the creation of relationships. The taxonomy can

quickly grow and lead to the emergence of duplicates

with distinct semantic names. The presence of these

duplicates both dilutes the capability for feature reuse

and generates confusion during content creation. For

this reason, we decided to restrict the list of common

relationships. This approach made rule creation from

descriptive logic much simpler.

2.4.2 Code Logic

Validation rules created from Code Logic are small

fragments of procedural code that consume feature at-

tributes as inputs and return the validation outcome

as output. The implementation of Code Logic inside

the service provides a versatile environment to trans-

form attributes. The challenge with Code Logic is to

offer a rich language and an extended library of pro-

cessing functions. This is where the service takes full

advantage of cloud computing and service-meshes to

execute code. Fig 2 illustrates the ﬁnal relationships

between entities of the knowledge structure after the

introduction of functions.

2.5 Execution-engine Plugin

When it comes to executing validation rules from

code logic, the service uses a plugin model to expand

its capabilities. The plugin(s) controls the edition

and execution of validation rules from Code Logic.

The plugin implementation is the responsibility of the

Validation and Recommendation Engine from Service Architecture and Ontology

269

Figure 2: Overall knowledge structure.

execution-engine expert. The objective of the plu-

gin(s) is to provide a controlled environment, ﬂexi-

bility over the procedural language, scope of avail-

able functions as well as the execution platform. Due

to their extreme versatility, our approach focused on

leveraging service-mesh managers.

2.5.1 Service-mesh

The growth of cloud technologies has seen a rise

in efﬁcient tools to support service-oriented archi-

tectures. Container technologies such as Docker

or the lightweight headless technology such as AWS

Lambda

, introduced a new and effective environ-

ment for fast development and encapsulation of small-

sized services or micro-services. A whole ecosys-

tem was quickly developed to complement these tech-

nologies with complex platforms for application de-

ployment, scaling, and management of ﬂeets of ser-

vices. The most recent efforts are pushing towards

the emergence of service mesh managers where a ser-

vice mesh is a predeﬁned workﬂow of service exe-

cutions. These service mesh managers offer easily

conﬁgurable, low latency, and high volume layers

of network-based inter-processes based on applica-

tion programming interfaces (APIs). They ensure co-

ordinated, fast, reliable, and secure communications

between services. Service-mesh managers consume

existing platform technologies for service discovery,

load balancing, encryption, observability, traceability,

authentication and authorization, and the support of

circuit breaker patterns.

2.5.2 Plugin Features

A standard plugin must expose a rich language with a

set of logical, conditional, and loop operators along

with a list of advanced processing functions. To

be effective, the plugin must also be able to assist

with the composition of procedural code and vali-

date the generated code. For these reasons, plugin

speciﬁcations were design to be simple but still allow

rule execution-engine experts freedom over the plugin

composition. A plugin must:

• Run on the same instance as the service,

• Use gRPC or Google Remote Procedural Call to

communicate,

• Expose a common set of four gRPC interfaces,

• Implement in its procedural language, three stan-

dard functions.

The service consumes four common gRPC inter-

face from the plugin. The ﬁrst three functions are con-

sumed during knowledge acquisition. The last one is

consumed during validation.

• The ﬁrst interface provides standard information

about the plugin such as the name, version, date

of creation, and description.

• The second interface returns the registry of ad-

vanced functions for data processing. The infor-

mation serves as a reference on functions and is

displayed in a dedicated window inside the user-

interface during knowledge acquisition.

• The third interface validates the code during rule

edition, acts as an auto-complete feature, and re-

turns schema information describing the enrich-

ment of the original application data.

• The last interface executes the Code Logic for the

given attribute values. It executes the rule and re-

turns the outcome. The response contains the out-

come of the execution, recommendations, and the

values to enrich the original application data.

The plugin speciﬁcations also include three func-

tion signatures, common to all plugins that should be

made available during code edition:

• The ﬁrst one is the return function. This func-

tion call marks the ending(s) of a rule execution.

The function signature includes the returned state

and the message associated with the return state,

if any.

• The second one is the insert function. The com-

puted values passed by this function will be added

to the original application data upon successful

validation of the feature class.

• The third one is the log function. This function

signature has a message and a number to deﬁne

its importance. The message is considered by the

service as a recommendation and returned as such

along with the location of generation.

Finally, the plugin speciﬁcations emphasize that

the service only recognizes JSON types. When the

service sends data to the plugin interfaces, the values

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

270

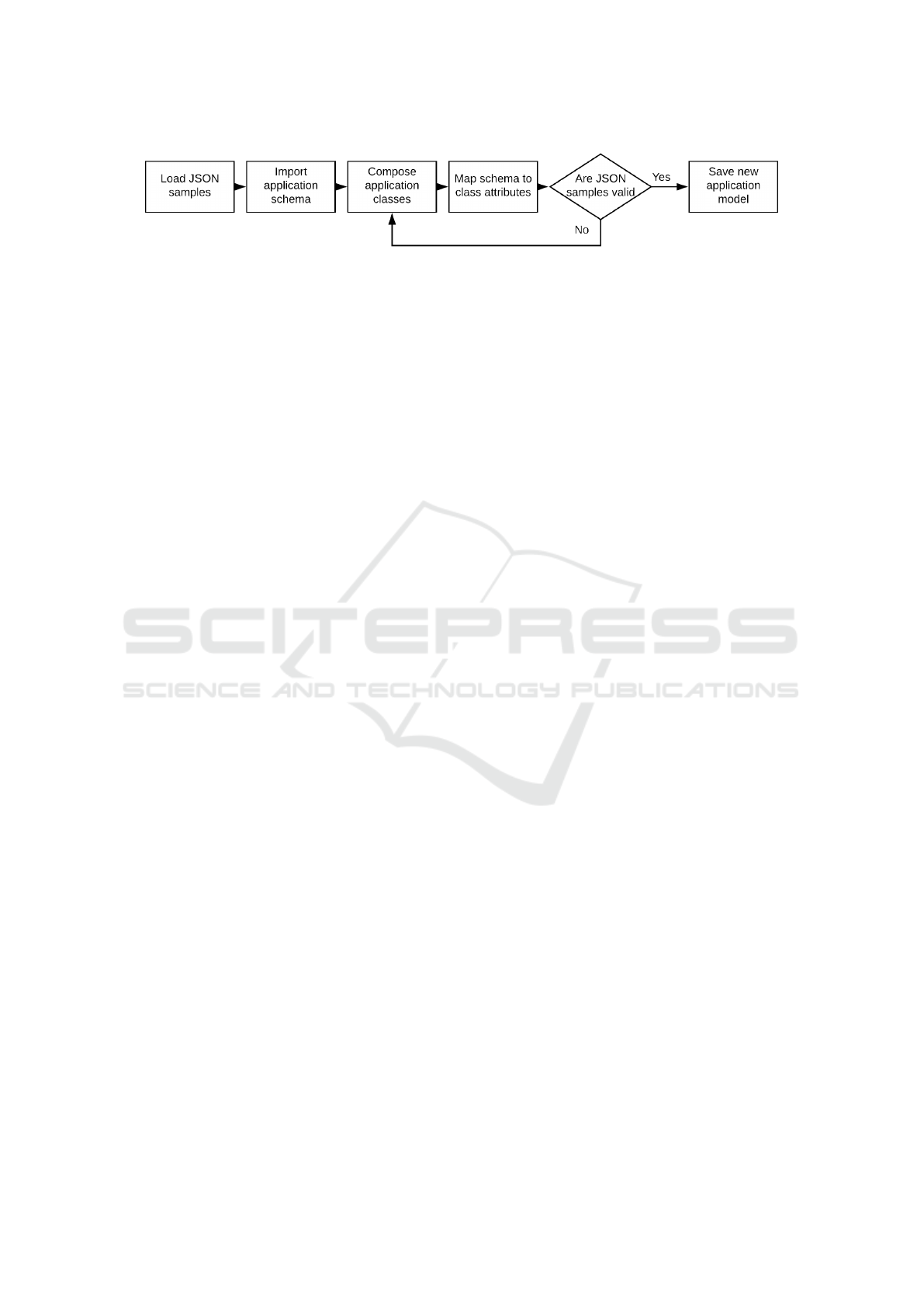

Figure 3: Test-driven workﬂow.

are always sent in a JSON format and as such encap-

sulated as string. The plugin must manage types and

type conversions.

3 SERVICE WORKFLOW

The proposed service validates from the knowledge

structure:

• Application model by running a reasoner over its

structure and embedded axioms,

• Feature attributes using standard properties (*),

• Feature rules composed from code logic.

(*) During the creation of feature class attributes,

the subject-matter expert has the choice to activate

standard properties, such as default values and simple

checks. These properties are type dependent. For

example, minimum and maximum are standard

properties for numbers, regular expressions for

strings, list of values for enumerations, and average

and standard deviation for sets of values.

The recommendations cover:

• Identiﬁcation of gaps within the list of feature

class attributes preventing activation of validation,

• Whenever a default was used to ﬁll a gap,

• Any message sent by rules composed from Code

Logic.

3.1 Knowledge Acquisition Workﬂow

The knowledge acquisition workﬂow takes its inspira-

tion from the concept of Test-Driven Design (TDD) in

software engineering. The method relies on test cases

to assist the subject-matter expert with the creation of

validation knowledge. The test cases are loaded be-

fore knowledge acquisition in the central repository

and associated to the target application model. These

test cases serve as a baseline over the behavior of the

front-end application and are used to validate an ap-

plication validation knowledge. The TDD workﬂow

as applied to this service is illustrated by ﬁg 3.

3.2 Validation Cycle

The validation cycle starts by a front-end application

sending a request to the service. The service expects

both a context and the data to validate as payload.

Once received, the service loads the necessary appli-

cation model. Feature class instances are added to the

application model from either the received data or by

using default values, if any, for the missing attributes.

The service then starts an iterative cycle of valida-

tions over feature class instances. The reasoner is ﬁrst

run to checks coherence and consistence of the ontol-

ogy from Descriptive Logic. The service then goes

through the list of feature classes and checks the de-

pendency rules that control the activation of class val-

idation. If all the dependencies are fulﬁlled, the ser-

vice triggers the validation of the feature class. Once

all the validation rules have completed or gone be-

yond a timeout, the service collects and aggregates

the results for the feature class. At the end of an itera-

tion, the system checks for generated content, updates

the original application data and launches a new iter-

ation. The cycle continues until there is no more class

activation; at which points the service generates and

returns the ﬁnal validation report assembled from the

report of individual feature classes.

4 RELATED WORKS

There are several interesting works on validation.

Their approaches to validation takes many differ-

ent forms from simple comparison, to domain-

independent, to ontology-based validation such as the

present work.

One very early work with a lot of similarities, is

from Tu et al. (Tu et al., 1995) from the university

of Stanford and the original founders of the modern

and popular tool called Protege. One of their early

research projects was the development of an archi-

tecture to tackle problem-solving using small-grained

reusable components structured by ontology. The ar-

chitecture was splitting the problem-solving into three

layers of ontologies: a domain ontology, an applica-

Validation and Recommendation Engine from Service Architecture and Ontology

271

tion ontology, and a method ontology. The authors

emphasized the importance of representing domain

knowledge in formal domain ontologies to make the

active content reusable and shareable; and the impor-

tance of facilitating the edition and maintenance of

knowledge content. To this end, they developed a user

interface called MAITRE.

Aljawarneh et al. (Aljawarneh et al., 2010) devel-

oped a validation solution speciﬁcally designed sup-

plement standard ﬁrewall technologies to addresses

web vulnerabilities at the application level. The ser-

vice architecture takes advantages of RDFa annota-

tions embedded in XHTML web pages and extracts

the annotations to create an ontology in order to val-

idate the subsequent interactions between client and

servers using the created ontology. The service is

qualiﬁed as survivable as it stands, as the present

work, as a middle-ware service.

Da Cruz et al. (da Cruz and Faria, 2008) used an

ontology to generate a user interface. With the data

collected from the user-interface, the system instan-

tiates classes within the ontology and performs rea-

soning to validate the data. The approach is aligned

to this work as it derives an application model from a

general domain ontology.

Tanida et al. (Tanida et al., 2011) built a solution

to validate the trace of user interactions with a web-

applications built on AJAX, using a temporal logic

model.

Finally, the work of Gatti et al. (Gatti et al., 2012)

has also many similarities to the present work. It in-

troduces the concept of Data Analysis as a Service

(DAaaS) and describes the architecture of a scalable

service. The content is received in JSON, converted

to XML and processed. The validation involves exist-

ing grammar and rule-based schema languages. The

set of constraints is domain-independent. The vali-

dation process goes through a number of steps such

as checking syntax with XSD schema, and validating

semantic using the Schematron language. Upon com-

pletion, the service reports on the validation by list-

ing failed assertions along with the necessary infor-

mation to track and correct the failures. The architec-

ture emphasizes the service capabilities for data as-

sistance in a somewhat similar fashion as the present

work recommendations and providing information on

attributes to assist the user-interface.

5 DISCUSSION

A lot of effort has gone into the designing of the

user interface for knowledge acquisition. Some of

the initial observations were used to segment and sim-

plify the creation of the various entities composing the

knowledge structure. One feature that was central to

this effort was the auto-complete feature for the edi-

tion of validation rules, either from Descriptive Logic

or Code Logic.

On performance, the service is naturally depen-

dent on the complexity of the application model. One

of the future challenges will to assemble an efﬁcient

assessment and prediction engine over response times

to promote ﬂuid interactions between the front-end

application and the service.

Finally, we identiﬁed that the proposed service ar-

chitecture could be modulated to tackle different sit-

uations. The service while focused on data validation

is inherently a validated entry-point to Cloud compute

back-end services and could directly drive executions.

The same service architecture has also the potential

to be shrunk and dispersed into a wider, ﬁne grained,

scalable framework for data quality assessment.

6 CONCLUSIONS

The present work proposed a service architecture for

the purpose of validation and recommendation with a

coherent workﬂow, a well-deﬁned knowledge struc-

ture and a comprehensive range of validation mecha-

nisms. The novelty of the approach takes its root in re-

cent advances in Cloud technologies, service-oriented

architecture, domain engineering and a knowledge

structure backed by ontology. The proposed service is

critically positioned within modern cloud infrastruc-

tures; and proves to be a practical example of how

ontology can beneﬁt service-oriented architecture.

REFERENCES

Aljawarneh, S., Alkhateeb, F., and Al Maghayreh, E.

(2010). A semantic data validation service for web

applications. Journal of Theoretical and Applied Elec-

tronic Commerce Research, 5(1):39–55.

Baset, S. and Stoffel, K. (2018). Object-oriented model-

ing with ontologies around: A survey of existing ap-

proaches. International Journal of Software Engineer-

ing and Knowledge Engineering, 28(12):1775–1795.

da Cruz, A. M. R. and Faria, J. P. (2008). Automatic gener-

ation of interactive prototypes for domain model vali-

dation. In Third International Conference on Software

and Data Technologies, volume 2, pages 206–213. IN-

STICC, SciTePress.

ESS handbook (2018). Methodology for data validation.

Technical Report 2.0, European Statistical System.

Faiez, Z., Challita, S., and Merle, P. (2017). A model-

driven tool chain for occi. In 35th International Con-

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

272

ference on Cooperative Information Systems, pages 7–

26, Rhodes, Greece. Springer.

Fielding, R. T. (2000). Architectural Styles and the Design

of Network-based Software Architectures. PhD thesis,

University of California, Irvine.

Gatti, M., Herrmann, R., Loewenstern, D., Pinel, F., and

Shwartz, L. (2012). Domain-independent data valida-

tion and content assistance as a service. In 19th Inter-

national Conference on Web Services, pages 407–414.

IEEE.

Gil, Y. and Melz, E. (1996). Explicit representations of

problem-solving strategies to support knowledge ac-

quisition. In 13th National Conference on Artiﬁcial

Intelligence, pages 469–476, Portland, Oregon, USA.

Hohpe, G. and Woolf, B. (2004). Enterprise Integration

Patterns: Designing, Building, and Deploying Mes-

saging Solutions. The Addison-Wesley Signature Se-

ries. Prentice Hall.

Kezadri, M. and Pantel, M. (2010). First steps toward a

veriﬁcation and validation ontology. In International

Conference on Knowledge Engineering and Ontology

Development, volume 1, pages 440–444. INSTICC,

SciTePress.

Khouri, A. L. and Digiampietri, L. (2018). Combining arti-

ﬁcial intelligence, ontology, and frequency-based ap-

proaches to recommend activities in scientiﬁc work-

ﬂows. Revista de Inform

atica Te

orica e Aplicada,

25(1):39–47.

Kim, C. H. P. (2006). On the relationship between feature

models and ontologies. Master’s thesis, University of

Waterloo, Waterloo, ON, Canada.

Kim, J., Gil, Y., and Spraragen, M. (2010). Principles for

interactive acquisition and validation of workﬂows.

Journal of Experimental & Theoretical Artiﬁcial In-

telligence, 22(2):103–134.

Motik, B., Shearer, R., and Horrocks, I. (2009). Hyper-

tableau reasoning for description logics. Journal of

Artiﬁcial Intelligence Research, 36(1):165–228.

Musen, M. A. (2004). Ontology-oriented design and pro-

gramming. In Knowledge Engineering and Agent

Technology, pages 3–16. IOS Press.

Shanks, G., Tansley, E., and Weber, R. (2003). Using ontol-

ogy to validate conceptual models. Communications

of the ACM, 46(10):85–89.

Strme

cki, D., Magdaleni

c, I., and Kermek, D. (2016). An

overview on the use of ontologies in software engi-

neering. Journal of Computer Science, 12(12):597–

610.

Tanida, H., Fujita, M., Prasad, M., and Rajan, S. P.

(2011). Client-tier validation of dynamic web appli-

cations. In 6th International Conference on Software

and Database Technologies, volume 2, pages 86–95.

INSTICC, SciTePress.

Tu, S. W., Eriksson, H., Gennari, J., Shahar, Y., and

Musen, M. A. (1995). Ontology-based conﬁgura-

tion of problem-solving methods and generation of

knowledge-acquisition tools: Application of protege-

ii to protocol-based decision support. Artiﬁcial Intel-

ligence in Medicine, 7:257–289.

W3C (2004). Owl, web ontology language. www.w3.org/

TR/owl-features/. Last access 20th April 2019.

Wang, H. H., Li, Y. F., Sun, J., Zhang, H., and Pan, J.

(2007). Verifying feature models using owl. Journal

of Web Semantics, 5(2):117–129.

Zdun, U. and Dustdar, S. (2006). Model-driven and pattern-

based integration of process-driven soa models. Inter-

national Journal of Business Process Integration and

Management, 2:109–119.

Validation and Recommendation Engine from Service Architecture and Ontology

273
