DNN Based Cooperative Calibration for Master-Slave Multi-Camera

Network

Congcong Hua

, Shaozhuo Zhai

, and Yuehu Liu

Institute of Artificial Intelligence and Robotics, Xi’an Jiaotong University, No.28 Xianning West Road,Xi’an,Shanxi,China

Keywords: Master-slave camera system, PTZ camera, Cooperative calibration, Deep neural network.

Abstract: Master-slave camera systems, consisting of wide-field and pan-tilt-zoom (PTZ) camera, are widely applied

in surveillance. They can monitoring the wide scene, and the high-resolution details of interesting target can

be captured by PTZ camera. In order to achieve this function, the accurate cooperative calibration for these

system is a prerequisite. However, the nonlinear changing PTZ parameters (e.g. intrinsic and extrinsic) with

pan, tilt and zoom lead to inaccurate calibration by existing methods. What's more, the process of traditional

step-by-step calibration method makes accumulative error. In this paper, we provide a new end-to-end deep

neural network for cooperative calibration. This network establishes a mapping relationship between pix

coordinate in wide-field camera and control parameters of the PTZ camera. By this model, the control

parameters of the PTZ camera can be acquired without any complex camera calibration operation.

Experiments show that the proposed neural network has little calibration errors as compared to the ground

truth.

1 INTRODUCTION

In the field of large scene surveillance, there exists a

contradiction for a single camera between

monitoring the whole scene and the tiny interesting

object in the scene. These two requirements are

simultaneous needed for many situations, such as,

specific target monitoring in the park, the close-up

of a player in a football match, target monitoring of

military site. In order to cover the shortage of single

camera monitoring, the multi-camera system is

proposed. One of the famous camera system is

Master-Slave Network. This system consists of two

cameras: wide-field camera (wide camera) is static,

which aims to monitor the whole large scene and

detect the tiny interesting object; PTZ camera can

rotate and zoom, in order to tracking the detected

object (As is shown in Fig. 1), wide camera and

PTZ camera  construct a master-slave camera

system).

In the master-slave network research, the most

basic issue is the calibration. Multi-camera

calibration is to establish a mapping relationship

between cameras and the world coordinate, though

estimating the intrinsic and extrinsic parameters.

After the pixel coordinate system and the world

coordinate system is converted, multiple cameras

can get the same target.

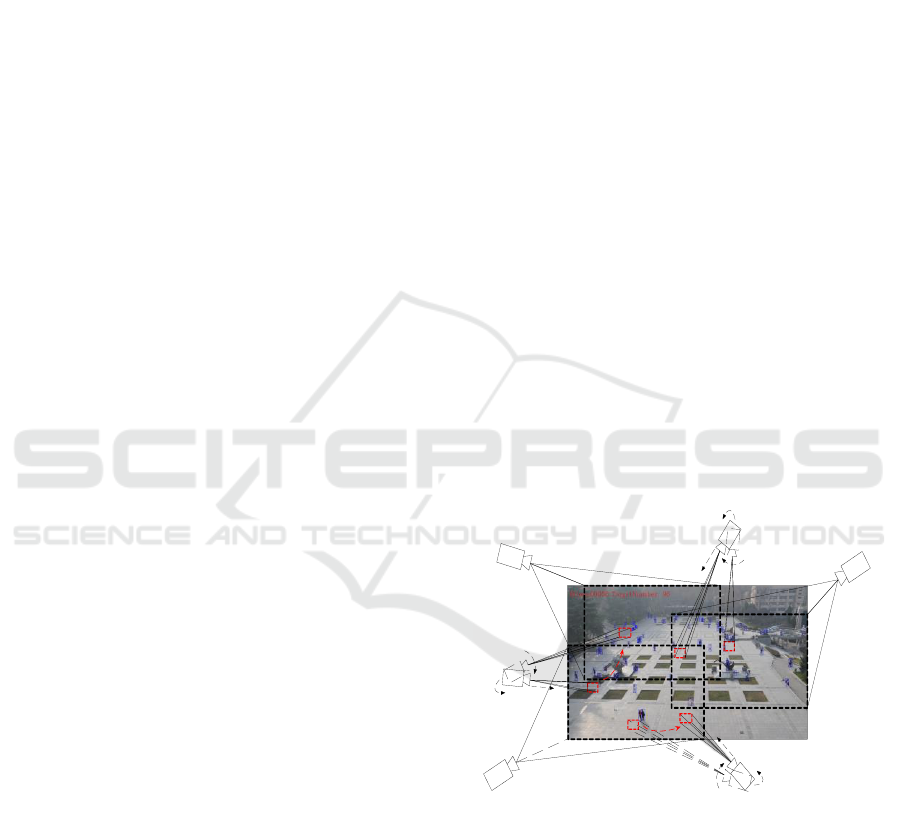

Figure 1: A Master-Slave Multi-Camera Network. The

wide camera monitors the entire scene and detects interest

targets, while the PTZ camera is controlled to dynamically

focus on the selected target and get its high-resolution

images. This paper is to calibration a Master-slave unit in

such multi-camera network system.

However, compared to establishing a mapping

relationship between camera pixel coordinate and a

world coordinate system, a PTZ camera is more

suitable to establish a mapping relationship between

Move

Pan

Tilt

Zoom

Fixedcamera1

PTZcamera1

Fixedcamera2

Fixedcamera3

Pan

Tilt

Zoom

PTZcamera2

Pan

Tilt

Zoom

PTZcamera3

Hua, C., Zhai, S. and Liu, Y.

DNN Based Cooperative Calibration for Master-Slave Multi-Camera Network.

DOI: 10.5220/0008096401710177

In Proceedings of the International Conference on Advances in Computer Technology, Information Science and Communications (CTISC 2019), pages 171-177

ISBN: 978-989-758-357-5

171

pixel coordinates and camera movement

magnification.

At present, most scholars have the same

understanding of the goal to camera calibration for

such system. That is, after the fixed camera detects a

target, the target will displayed in the center of PTZ

camera image view by controlling the camera

parameters.Therefore, after the PTZ camera

calculated the target location in world coordinate

system, it need to use the intrinsic parameter to

compute the camera control parameters. When the

camera turning and zooming, the intrinsic

parameters will dynamically changing. So, the

calculated camera control parameters value cannot

let the target displayed in the center of PTZ camera

image view.

But, if we establish a mapping relationship

between pixel coordinates and camera movement

magnification, we can solve the problem and

calculate the control parameters more accurate. We

called this calibration as cooperative-calibration.

In this paper, a 11-layer deep neural network

based cooperative-calibration method is proposed.

The mapping between the object coordinate in the

wide camera and PTZ control parameters can be

fitted by the neural network.

This method has the following contributions:

 The traditional calibration method based on

accurate mathematical model is cumbersome,

and there are many nonlinear disturbance

factors that affect the accuracy of 3D

reconstruction. Our method can solve the

nonlinear problem well.

 The benefits of neural network for camera

calibration is that it can quickly establish a

mapping between the pixel coordinate in wide-

field camera and PTZ control parameters.

There is no need for the pre-established model.

 Compared to establishing a map between

camera pixel coordinate and a world coordinate

system, our method can decreased the

calibration error.

The rest of this paper is organized as follows:

Sect. 2 introduces the current research status of the

camera cooperative-calibration. Sect. 3 defines our

research problems, and Sect. 4 describes the design

of the network structure. Experiment will be

conducted and analyzed in Sect. 5. We give our

conclusion in Sect. 6.

2 RELATED WORK

There exist many research works about the

parametric calibration method (Senior et al. 2005;

Jie et al. 2010; Kumar et al. 2009) and non-

parametric calibration method (Robinson 1994;

Turton et al. 1994; Cui and Yuan 2009; Jin and Zhou

2015) on master-slave system that consists of PTZ

and the wide-field camera.

The parametric calibration method: It is assumed

that there is a relationship between the camera

coordinate and the word coordinate system, which

can be expressed by intrinsic parameters and

extrinsic parameters. The PTZ camera mainly has

two imaging models: the pinhole imaging model and

the complex camera imaging model.

Pinhole model is a linear model, that means it

simplifies the camera kinematic model, and does not

solve the lens distortion.

Some simplifications can make the calibration

problems easier, but at the expense of accurate.

This simplifications are (1) collocation of the

optical center on the axes of pan and tilt, (2)

parallelism of the pan and tilt axes with the height (y)

and width (x) dimensions of the CCD, and (3) the

requested and realized angles of rotation match, or

the angle of rotation does not require calibration. Xu

(Xu, 2010) uses SIFT feature match method to

calibrate the two camera. Marchesotti(Marchesotti et

al., 2005) uses geometry-based pixel offset matching

based on the position of the two cameras. Hampapur

(Hampapur et al., 2003) uses shape-based head

detection to achieve target matching.

The advantage of complex model is that the

accuracy is much better, and it considered the

kinematic model. Jain (Jain et al.，2006) adopt a

general formulation that declared does not make

above simplifications. Horaud(Horaud et al., 2006)

solve for a general pan–tilt kinematic model and

develop a close-form solution for a simplified pan–

tilt model. They establish the link between the

epipolar geometry constraint and the kinematic

model constrains. Both the Pinhole model and the

complex model were affected when the camera

change zoom.

The non-parametric method: The main idea of

non-parametric calibration method is to obtain the

corresponding relationship between the

corresponding point in space and fitting image point

(such as the genetic algorithm or neural network).

As an intelligent optimization algorithm, neural

network has been successfully applied on camera

cooperative-calibration. The camera calibration

method based on neural network can effectively

CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications

172

overcome the measurement error (including

mathematical model error, image acquisition error,

optical system adjustment error and Camera

photosensitive element nonuniformity error).

A large number of scholars at home and abroad

carried out a camera calibration method based on

neural network. Among them, Jin(Jin et al., 2017)

used the 2D coordinates of the center of the circles

as the input sample set for training, and required the

3D position of the materials. Their system used two

High-speed camera to calibrated. Khosravi and Fazl-

Ersi (Khosravi and Fazl-Ersi, 2017) researched the

neural network function in a feed-forward network.

Their system was consist of a central PTZ camera

and two wide camera, they used the wide angle

cameras as its input, and computed the desired pan

and tilt values.

We proposed a 11-layer depth neural network

based cooperative-calibration method. This method

obtains the corresponding relation between pixel

coordinates and PTZ control parameters by

measuring the coordinates of the calibration objects

of the Self-identifying marker, and completes the

calibration of the camera.

3 PROBLEM FORMULATION

As is mentioned in Sect.1, the master-slave multi-

camera system consists of one wide-field camera

and PTZ camera. It means that, when the network

wants to capture a target, the two camera have to

cooperate. In a task, the wide-field camera monitors

the entire scene and detects interest targets, while the

PTZ camera is controlled to dynamically focus on

the selected target and get its high-resolution images.

After the object is detected in the wide-field camera,

the PTZ camera is controlled to point to the target.

Thus, in these systems, the cooperative calibration

is to find the mapping between image coordinate

point () and the control parameters (i.e. pan, tilt,

and zoom ratio). Since a target can be seen in the

PTZ camera with multiply group of control

parameters, the pixel coordinate of wide-field

camera corresponds to many control parameters of

PTZ cameras. Therefore, the deep neural network

fails to estimate this one-to-most relationship. This

paper adds two constraints to solve this problem,

Concretely, the pixel of wide-field camera

corresponds to one group of control parameter,

which can

 make the object locate in the centre of image.

 make the region of object occupy the whole

image.

Through this way, the deep neural network can

estimate this mapping. In addition, given the image





captured by wide-field camera, 



by PTZ, the

object 



in 



, the object 



in 



and the current

status 



of the PTZ camera, the control

parameters 



of PTZ camera can be estimated

by the neural network  to make the object in PTZ

camera and satisfy the two constraints. Therefore,

the problem can be formulated by





 





















(1)

4 DNN BASED COOPERATIVE

CALIBRATION METHOD

As it is mentioned in Sect.3, requiring the mapping

relation  can control PTZ camera accuracy. Thus it

can using the neural network to fit the mapping .

This section introduces from the network structure

and the training strategy, and analyse its rationality.

Fig.2 is the structure of the network.

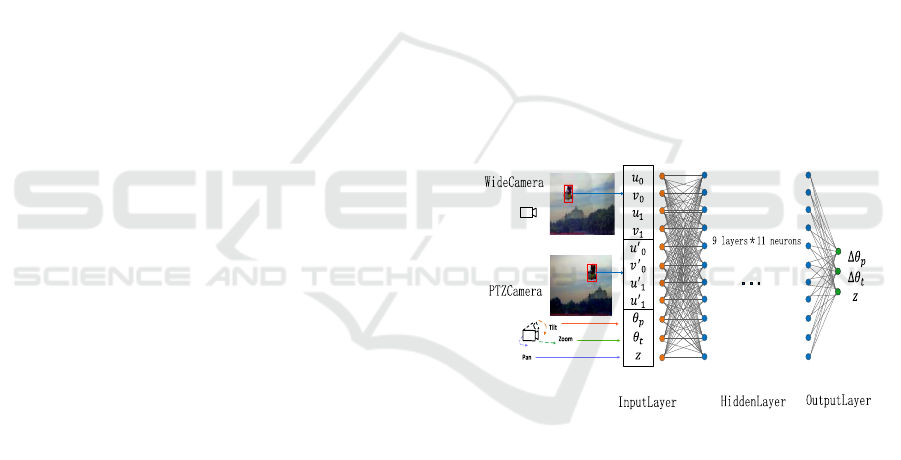

Figure 2: The structure of the neural network. The Input

layer have 11 neurons, and the hidden layer have 9 layers

with 11 neurons in each layer. The parameters of output

layer is 3.

4.1 The Design of Neural Network

4.1.1 Input Layer

This layer is to input the parameters to training the

model.

From the Eq.1 in Sect.3, when calculate , we

need to know the object point location from the two

camera image and the current status of PTZ camera.

Printing a boudingbox in the image can position

the target, and the boudingbox can be expressed by

four coordinates of coner points. If the boudingbox

DNN Based Cooperative Calibration for Master-Slave Multi-Camera Network

173

is a rule rectangle, it can be expressed by only two

points, top-left and lower-right corner. There will

have four points to express the target location in

wide camera and PTZ

camera:





















,























.

The PTZ camera is controlled by these three

parameters: pan field (



), tilt field(



) and zoom

ratio (  ). The first two parameters control the

orientation of PTZ camera, while zoom ratio

changes the focal length of the PTZ camera to adjust

its monitoring range. Thus these parameters can

describe the current state of the camera.

The neural numbers of input layer are determined

by the above parameters. So the neurons number of

input layer is 11.

4.1.2 Output Layer

This layer used to output the parameter that need to

required.

This model is designed to calculate the PTZ

control parameter when the camera controlled to

point to the target. Thus the output layer should have

3 neurons to output the PTZ control parameters (







, ) .

4.2 The Training Strategy

4.2.1 Training Function

This paper used TRAINBR function and mean

square error function  performance function to

train.

TRAINLM function is a Levenberg-marquardt

learning rule, which is used to compute the

derivative of network output error to the network

weight value. This algorithm has the fastest

convergence speed for the medium sized neural

network. Because it avoids the direct calculation of

the Hesse matrix, it reduces the amount of

calculation in training, but requires a large amount

of memory.

4.2.2 Learning Rate

The learning rate determines the amount of weight

changes in each iteration. Large learning rate may

lead to the instability of the system. And small

learning rate will lead to a long training time and a

slow convergence speed, but it can ensure that the

network error value does not jump out of the error

surface of the trough, and lead to a minimum error

value.

In general, we tendency to choose a small learning

rate to ensure the stability of the system. And the

learning rate is generally selected between 0.01 to

0.8. We selected 0.01.

4.2.3 Expected Error

When designing the network, the expected error

value should be determined by comparing the

performance of different values.

After a number of different expected error values

be trained in the network, we select 1e-5.

5 EXPERIMENTAL

EVALUATION

We describe the data collection methods and

experimental methods in this section.

5.1 Data Set

The process of camera cooperative-calibration

process in neural network is the process of collecting

samples.

In the data acquisition of large scene, we mainly

consider the collection method of the cooperative-

calibration target.

5.1.1 Target Calibration

We select a self-identifying marker as the

calibration target. Self-identifying marker array not

only has the checkerboard, but also contains the

unique identification code. So it is possible to

automatically establish the correspondence between

the points to the 3D coordinates on the cooperative-

calibration target and the 2D projection points on the

image. The cooperative-calibration can be done

simply, by photographing the Self-identifying

marker patterns of different angles, and without any

human intervention at all. The calibration efficiency

is very high that can deal with occlusion, large tilt

field, lens distortion and other circumstances.

By painting the marker as a red mark, it can

increase the color contrast of the markers in the

scene, and enlarge the recognition range of the tags.

Since we only need one target in the scene, we use a

single red self-identifying marker as target.

5.1.2 Target Distribution

An important problem of camera cooperative-

calibration is the calibration of depth. The target at

CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications

174

different distances on the same ray will be projected

in the same position on the camera. As a result, the

monocular camera cannot know whether the

imaging points belong to a distant point or a nearer

point. But they are projected on another camera in

different locations. The depth of the point can be

determined by observing the imaging points on the

two cameras. If we put the large size tag farther than

the small size marker, while adjustment the distance

appropriately. The two marks will show the same

pixel size on the two cameras.

Data sets of different depths can be collected on

the same ray by placing a number of different sizes

of markers. At different depths, the markers should

be evenly covered by the entire lens for data

collection. The distortion model must be considered

when the lens distortion is obvious. Camera

distortion in the edge of the camera is more obvious,

the target in the edge of the camera needs to be fully

collected. So we collect each position on the lens to

make the marker evenly covered on the lens.

When the wide-field camera collect a position, the

position of the marker in the PTZ lens should be

evenly distributed. One pixel coordinate on a wide-

field camera with different PTZ camera lens location

will corresponding to different PTZ control

parameters. These datas need to be training.

To sum up, we use a single red self-identification

mark as a target, and at different depths placing a

number of different sizes of tags. Collecting datas on

all parts of the camera lens evenly. At the same time,

when we collecting each location of the fixed

camera, we should collecting the different fields of

PTZ lens.

5.2 Experiment Setup

5.2.1 Hardware Equipment

In order to verify the feasibility and validity of the

method, a binocular stereo vision camera

cooperative-calibration experiment was carried out.

We construct a binocular stereo vision system: the

PTZ camera is EVI-D70P camera, its image is 768

*576, 18x (optical) *12x (digital), and focal length is

4.1-73.8mm. Another type is Microvision, fixed

camera used mv-em200c, the image resolution is

1600*1200.

5.2.2 Data Set

The dataset have 6260 groups, and the target used a

single red self-identification marker. 7 markers of

different sizes appeared in this dataset. And the

target Distribution on the camera lens evenly.

5.2.3 Evaluation Metrics

In the experiments, the evaluation metrics are mean

absolute error () of the pan and tilt parameters

value and mean relative error () of the zoom

parameters value, which are defined as follows:

 









 











(2)

 







  









(3)

Where 





denotes the groundtruth of PTZ

control parameters precalculated by triangulation. M

is the number of test points in a specific range. The

 and  is the evaluation metric to evaluate

the accuracy of experimental result.

5.3 Training Performance

Using the iterative network, 60 sets of data to test

the model and Fig.3 shows the predicted results of

the test data. We trained the network with 6200 sets

of data in the dataset as a training sample, and 60

sets of data as test samples to test the network. When

testing the network, compare the predicted results

with the actual data to adjust the network structure.

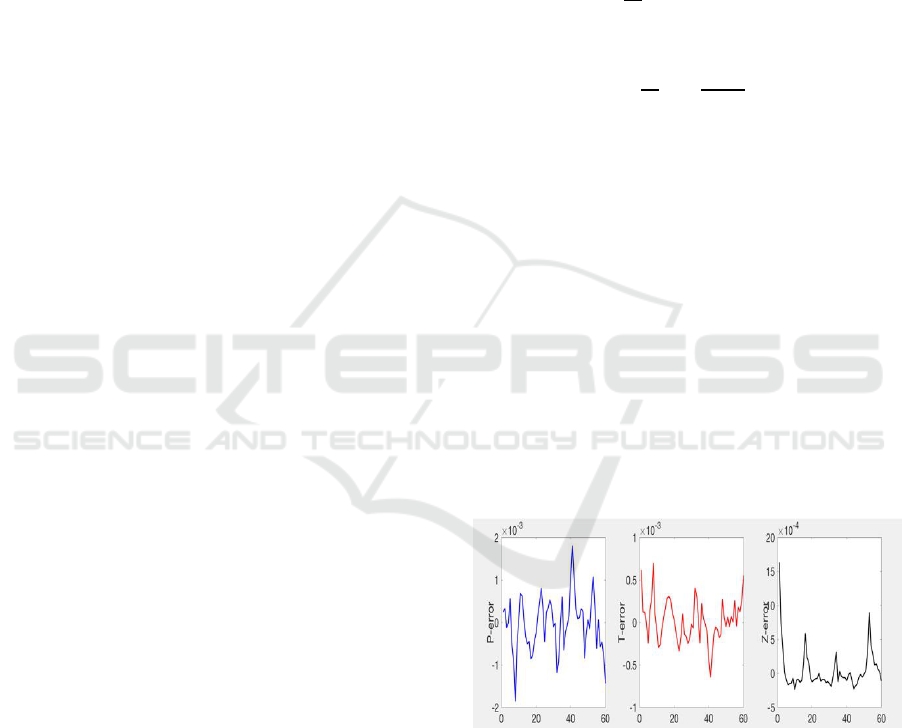

Figure 3: The error of three parameters. The horizontal

axis to be test data set number, and the error is parallel to

the vertical axis. Left: the absolute error of pan. Middle:

the error of tilt. Right: the relative error of zoom.

DNN Based Cooperative Calibration for Master-Slave Multi-Camera Network

175

Table 1: Cooprative-calibration test error of three

parameters.

No.

Absolute

pan

error()

Absolute

tilt error()

Relative zoom

error (%)

0.0002

0.6175





0.16

0.0003

0.1203





0.07

-0.0001

0.1207





0.04

-0.0000

0.0138





0.00

0.0006

0.2433





-0.01

-0.0005

0.1468





-0.02

-0.0009

0.2858





-0.01

-0.0019

0.6984





-0.01

-0.0005

0.0968





-0.01

0.0000

0.0761





-0.02

Mean

Error

0.0005

0.2440





0.035

Table1 shows the detailed error values of the first

10 groups. The pan and tilt used absolute error, and

the zoom value used relative error. From the test

results can be seen: in the P, T two directions, the

error is less than . In the Z direction, the error

is less than . The MAE is close to 0.0005 in

pan,  



 in tilt and MRE is 0.035% in

zoom. This precision can meet the general

measurement needs.

6 CONCLUSIONS

In this paper, a camera cooperative-calibration

method of the system that consist of a PTZ camera

and a wide camera was discussed. This method

based on depth neural network, and established a

mapping relationship between the marker

coordinates and the PTZ control parameters. Firstly,

the cooperative-calibration plane with a self-

identifying marker were placed in multiple positions

within the effective field of view. The images of the

cooperative-calibration plane in each position can be

captured by the system. Then, after image

processing, the 2D coordinates of the bounding-box

were used as the input sample set for training, and

with the PTZ camera control parameters to input.

The neural network was used to establish an implicit

vision model. By this model, PTZ adjustment

parameters can be acquired without any complex

camera calibration operation. Experiments showed

that the proposed scheme is feasible, which will

provide a good basis for further research.

REFERENCES

SENIOR, A. W., HAMPAPUR, A. & LU, M. Acquiring

Multi-Scale Images by Pan-Tilt-Zoom Control and

Automatic Multi-Camera Calibration. Application of

Computer Vision, Wacv/motions 051 Seventh IEEE

Workshops on, 2005.

JIE, Z., WAN, D. & YING, W. 2010. The Chameleon-

Like Vision System. Signal Processing Magazine

IEEE, 27, 91-101.

KUMAR, S., MICHELONI, C. & PICIARELLI, C. Stereo

Localization Using Dual PTZ Cameras. Computer

Analysis of Images & Patterns, International

Conference, Caip, Münster, Germany, September,

2009.

ROBINSON, M. A genetic algorithm approach to camera

calibration in 3D machine vision. IEEE Colloquium

on Genetic Algorithms in Image Processing & Vision,

1994.

TURTON, B. C. H., ARSLAN, T. & HORROCKS, D. H.

A hardware architecture for a parallel genetic

algorithm for image registration. IEEE Colloquium on

Genetic Algorithms in Image Processing & Vision,

1994.

CUI, A. & YUAN, Z. 2009. Self-adaptive neural network

for binocular camera calibration. Computer

Engineering & Applications, 45, 55-56.

JIN, W. & ZHOU, M. 2015. Study on calibration of

binocular stereovision based on BP neural network

with different layers. Optical Technique, 41, 72-75.

XU, Y. & SONG, D. 2010. Systems and algorithms for

autonomous and scalable crowd surveillance using

robotic PTZ cameras assisted by a wide-angle camera.

Autonomous Robots, 29, 53-66.

MARCHESOTTI, L., PIVA, S., TUROLLA, A.,

MINETTI, D. & REGAZZONI, C. S. Cooperative

multisensor system for real-time face detection and

tracking in uncontrolled conditions. Proc Spie 5685,

Image & Video Communications & Processing, 2005.

HAMPAPUR, A., PANKANTI, S., SENIOR, A., TIAN,

Y. L., BROWN, L. & BOLLE, R. Face cataloger:

multi-scale imaging for relating identity to location.

IEEE Conference on Advanced Video & Signal Based

Surveillance, 2003.

JAIN, A., KOPELL, D., KAKLIGIAN, K. & WANG, Y.

F. Using Stationary-Dynamic Camera Assemblies for

Wide-area Video Surveillance and Selective Attention.

IEEE Computer Society Conference on Computer

Vision & Pattern Recognition, 2006.

HORAUD, RADU, KNOSSOW, DAVID, MICHAELIS

& MARKUS 2006. Camera cooperation for achieving

CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications

176

visual attention. Machine Vision & Applications, 16,

1-2.

JIN, S., MA, Y., HAN, Y. & ZHU, X. Camera calibration

and its application of binocular stereo vision based on

artificial neural network. International Congress on

Image & Signal Processing, 2017.

KHOSRAVI, H. & FAZL-ERSI, E. Trackerbot: A robotic

surveillance system based on stereo-vision and

artificial neural networks. International Conference on

Robotics & Mechatronics, 2017.

DNN Based Cooperative Calibration for Master-Slave Multi-Camera Network

177
