3D Bounding Box Generative Adversarial Nets

Ping Kuang

and Haoshuang Wang

University Of Electronic Science And Technology Of China,Chengdu,China

Keywords: Generative Adversarial Networks, Deep Learning, 3D-GAN.

Abstract: Recently, Generative Adversarial Networks (GANs) gradually applied to the generation of 3D objects and

has achieved remarkable success, but at the same time, it also faces some problems, such as the training

instability, low-quality samples and mode collapse. We propose a novel framework, namely 3D Bounding

Box Generative Adversarial Network (3D-BBGAN), which can reduce the probability space of generation

by adding conditional information. According this way, we can get 3D objects with more detailed

geometries.

1 INTRODUCTION

The Generative Adversarial Network (GAN)

(Goodfellow, 2014) have achieved a great success in

generation of pictures. The some flaws in GAN’s

initial stage are generally remedied by the variations

of GAN. To solve the out-sync problem of generator

and discriminator network, (Arjovsky, 2017)

proposes Wasserstein GAN (WGAN) of clipping the

weights of the critic to restrict within a fixed interval

[-c, c]. Furthermore, (Gulrajani, 2017) provide the

WGAN with gradient penalty (WGAN-GP) to avoid

the possible pathological behavior of WGAN.

Otherwise, the initial GAN have no any prior

information, which leads that we couldn’t constrain

the generated results. The Conditional Generative

Adversarial Net (CGAN) (Mirza, 2014) creatively

adds the prior information into network by adding

conditions to both the generator and discriminator

network.

Recently, the appearance of 3D-GAN (Wu, 2016)

indicates that GAN begins to apply to the generation

of 3D objects. Compared with the 2D field, the

feature information of high-dimensional object is

more complex. It is easy to fall into the curse of

dimensionality. And it is a bit challenging for the

network structure and hardware performance to

learn more accurately the characteristic information

of high-dimensional objects. At present, the

accuracy of improving the 3D model is mainly to

improve the complexity of network architecture and

reduce the distribution space of 3D objects. (Smith,

2017) (3D-IWGAN) reduces the data space of the

original 3D-GAN from 64*64*64 to 32*32*32, at

the same time introduce into the WGAN-GP to

improve the stability of training.

Base on the methods known as 3D-IWGAN and

CGAN, here we propose a new idea to capture these

wider and more complicated distributions, which

attempt to introduce the prior information into the

network architecture. Unlike the CGAN directly

feeding same extra information into the both the

discriminator and generator as additional input layer,

while feeding the generator network the bounding

box information of 3D samples which can be

represented as double three-dimensional coordinates,

we are also feeding the discriminator the mask

information corresponding to bounding box. We call

our resulting shape model the 3D Bounding Box

Generative Adversarial Network (3DBBGAN).

We can demonstrate that our 3D-BBGAN have

following advantages:

– Compared with 3D-IWGAN, we can get a

more stable and faster procedure of convergence

testing on ModelNet10 Dataset (Wu, 2015)

– By adjusting the input coordinate information,

we can guide the size of generated object to some

extent.

Kuang, P. and Wang, H.

3D Bounding Box Generative Adversarial Nets.

DOI: 10.5220/0008096801170121

In Proceedings of the International Conference on Advances in Computer Technology, Information Science and Communications (CTISC 2019), pages 117-121

ISBN: 978-989-758-357-5

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

117

2 RELATED WORKS

2.1 Modelling and Synthesizing 3D

Shapes

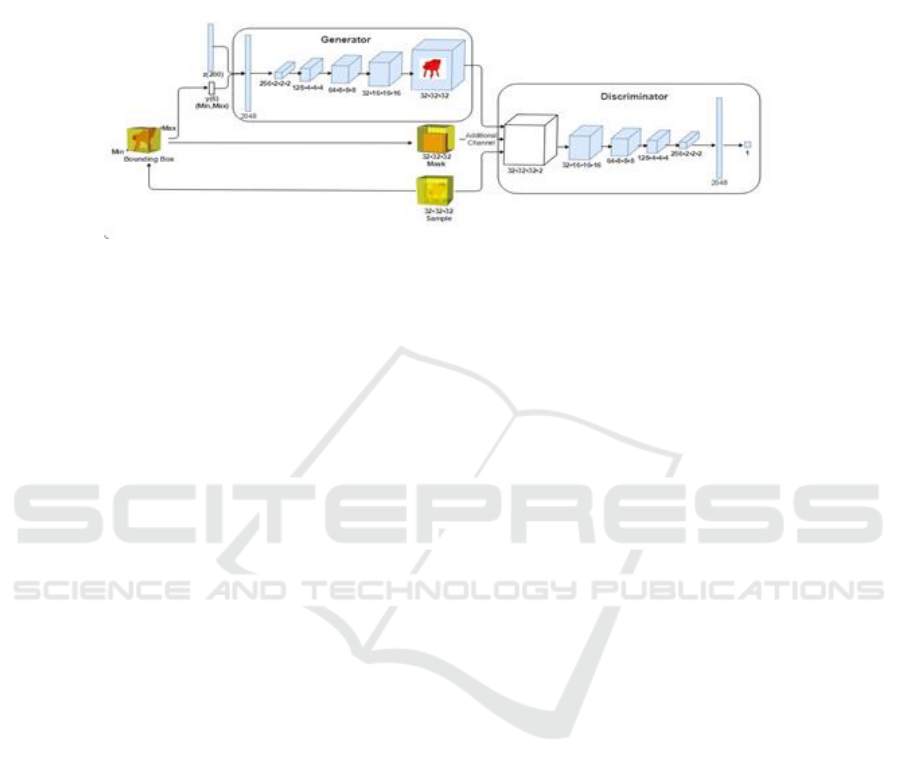

Figure 1: The architecture of 3D-BBGAN.

The generation and synthesizing of 3D object

models is a hot spot in computer graphics and vision

community. In the past few decades, the method of

3D object modeling and synthesis mainly realized by

the combination of primitives or simpler geometric

shapes, which exist in CAD model libraries

(Wu,2015),(Chang,2015), there is a lot of the

relevant literature (Tangelder,2004),

(Chaudhuri,2011),(Carison,1982) or through the way

of point cloud reconstruction(Alexa,2003) The

synthesized objects using these methods look

realistic, but it is time-consuming and high-cost. As

3D-GAN (Wu, 2016) is applied to the reconstruction

and generation of 3D objects, some researchers have

realized the potential of GAN in 3D filed. 3D-

IWGAN combines the 3D-GAN and WGAN-GP to

improve the stability of training and the effect of

synthesized object, (Wang,2017) named as 3d-ED-

GAN combines a 3D Encoder-Decoder GAN and a

Long-term Recurrent Convolutional Network

(Donahue,2015)(LRCN) to construction from

broken models result in complete and high-

resolution 3D objects, and (Yang,2017) proposes

3D-RecGAN approach to realize the construction

from a single 2.5D depth view in a complete 3D

objects. Get inspiration from CGAN, our 3D-

BBGAN introduces the prior knowledge into the

3D-GAN. We will testify that our model could

improve the efficiency of training.

3 PROPOSED MODELS

In this section we introduce our 3D-BBGAN

architecture for 3D objection generation. We first

get an introduction toward CGAN and WGAN-GP.

Then we display our model and explain how we

achieve control over the generated objects.

3.1 Conditional Adversarial Nets(CGAN)

Based the (Goodfellow, 2014) CGAN creatively

attempt to condition both the generator and

discriminator through same extra information y. The

information may be meaningless to humans, but the

generator and discriminator will learn automatically

the meaning of y. To generate verisimilar results, the

generator will build a mapping function from real

samples, at the same time the discriminator try to

distinguish the fake results, as if they are playing the

two-player min-max game with value function V (G,

D):













 



  













 

















  









(1)

The generator model G wants to captures the

data distribution, and the discriminative model D

tries to estimates the probability that a sample came

from the training data. Where z represents a prior

noise distribution.

CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications

118

3.2 WGAN with Gradient Penalty

(WGAN-GP)

(Arjovsky, 2017) (WGAN) argues that cross

entropy is not appropriate to measure the distance

of distributions with disjoint parts. Instead, the

wassertein distance is proposed to measure the

distance between the generated data and real data

distribution, theoretically solving the problem of

the training. In order to satisfy the lipschitz

continuity that wassertein distance needs, WGAN

clips the weights of the critic to lie within a fixed

interval

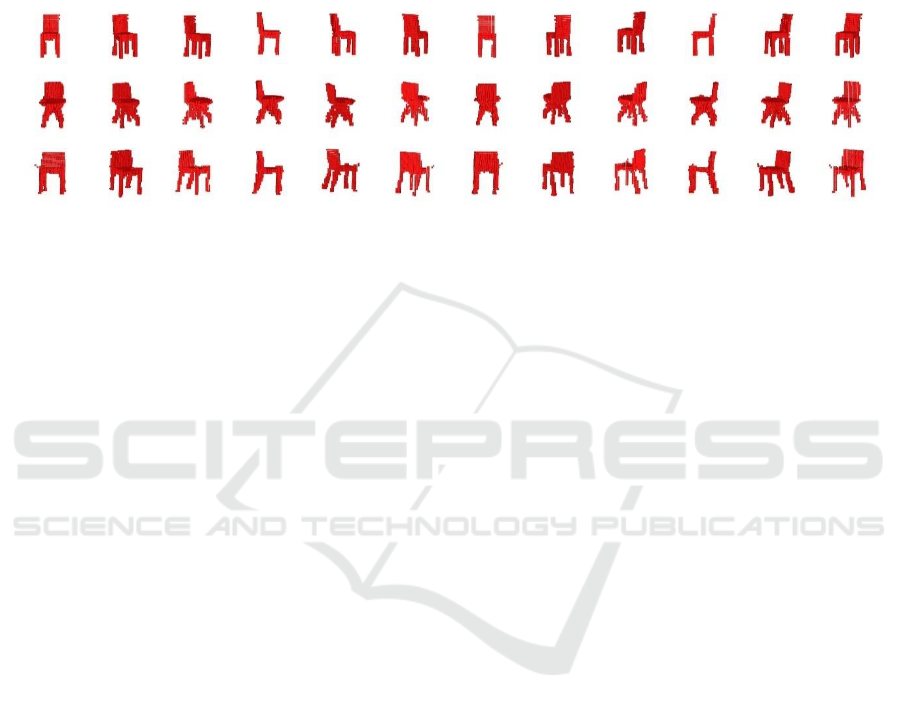

Figure 2: Objects generated by the 3D-BBGAN system trained on the ModelNet10 chair class in 12 orientations. Each row

of images come from a same generated object.

[c,c]. Determining the size of c is a tricky business.

If too large, it may cause gradient explosion. On the

contrary, it may cause gradient to

disappear.(Gulrajani,2017) proposes a more

appropriate method to enforcing the Lipschitz

constraint. It directly constrains the gradient norm of

the critic’s output with respect to its input to realize

a soft version of constraint with a penalty on the

gradient norm for random samples 



, where

randomly sampled from generator Pg and real data

distribution Pr. This results in the following loss

function:

 



































 󰒭







 













(2)

3.3 Our 3D Bounding Box Generative

Adversarial Net (3D-BBGAN)

Inspired by (Mirza, 2014), our 3D-BBGAN

architecture introduces the prior information into

original network architecture of 3D-IWGAN (Smith,

2017). As shown in 1, every real input is a

32×32×32 voxel space, but the sample could be

encircled at a more small area called Bounding Box.

The Bounding Box could be represented by double

coordinates (Min, Max) in a 3D space, which is

inputted into the generator G as additional

information y. Meanwhile, the every Bounding Box

corresponds to a single Mask, inside of the

Bounding Box are 1.0 and outside are 0.0, which is

fed into the discriminator D as additional input layer.

As for network structure, the generator G maps a

206-dimensional latent vector (z, y), randomly

sampled from a probability latent space, to a

32×32×32 cube, representing an object in 3D voxel

space. The discriminator D is fed the samples and

the corresponding mask information, outputing a

confidence value of whether an object model is real

or generated.

Following (Gulrajani, 2017), the loss function is

as follows:

 











 









































 󰒭







 













 (3)

where the Mask maps y. The 



is the mixed

distribution of mixing randomly interpolation of

generator distribution 



and data distribution 



4 EXPERIMENT

In this section, we evaluate our framework on

ModelNet10 Dataset (Wu, 2015). We first list 3D-

GAN, 3D-IWGAN and our generated results

separately. Then we introduce our training details.

Finally we show the frame how to control the size of

generate object.

4.1 3D Object Generation

For this experiment, we first train our 3D-BBGAN

for the highest complexity of chair and table class of

ModelNET10 dataset. Then on the all classes of

ModlNET10. We trained all experiments on 1080Ti

GPU. For generation, we get generated object from

the last tanh activation function of generator network,

3D Bounding Box Generative Adversarial Nets

119

and render the voxel of which the value exceed the

threshold 0.3.

Figure2 are generated by chair class of

ModelNet10, which shows that our 3DBBGAN

system has ability to generalize the object model of

high quality from the complex sample space. Figure

3 shows separately the generated samples of

3DGAN,3D-IWGAN and our 3D-BBGAN. These

samples are uniformly sampled and selected intact

results. The source code we tested was from the

github provided by (Gulrajani, 2017). Figure 4 are

generated by training on the entire class of

ModelNet10 dataset, which has bathtub, chair, bed,

desk, dresser, monitor, table, toilet, nightstand and

sofa class. Because our mask information

successfully limited

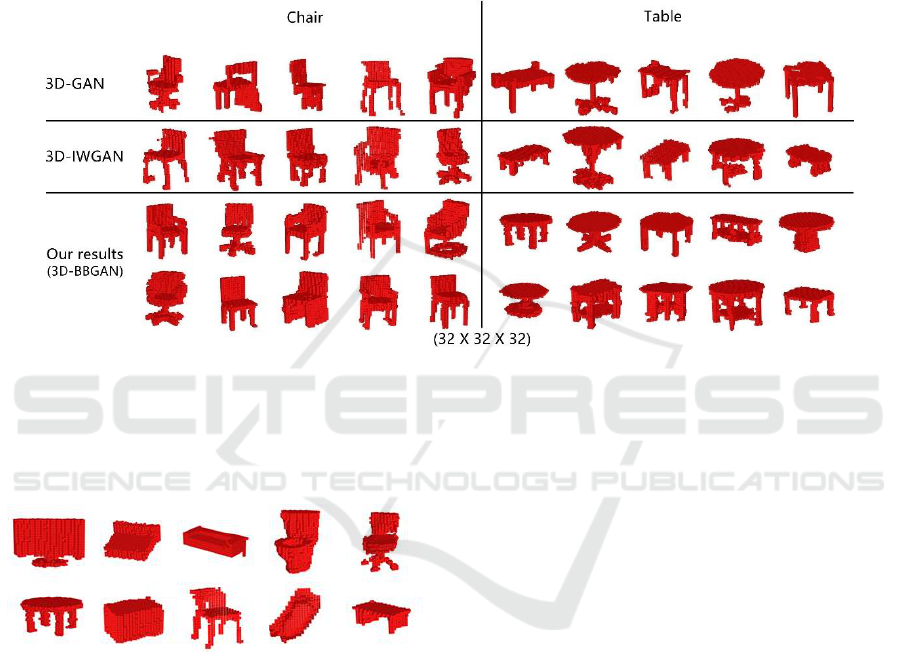

Figure 3: Objects generated by the 3D-GAN ,3D-IWGAN and our 3D-BBGAN models, trained separately on the single

chair or table class of ModelNet10 dataset. For comparison, the results are uniformly sampled to represent the

generalization ability of the model as much as possible.

the space of data distribution, the model

convergence speed was obviously improved.

Figure 4: Objects generated by our 3D-BBGAN model,

trained on the all ModelNet10 dataset. Each shape above

is derived from a different class as order: monitor, bed,

sofa, toilet, chair, table, dresser, nightstand, bathtub, desk.

The orientations have been altered for optimal viewing.

During the experiment, we found that the 3D-

GAN have come across the problem of mode

collapse. It’s generated types are more less than

others and always incomplete.

While comparing the synthesized objects of 3D-

IWGAN and 3D-BBGAN generated by same latent

vector z, our results can get more detailed

geometries and more complete styles. But we have

to admitted that there is no effective quantifiable

indicators to measure the effect of synthesized

objects.

4.2 Mask Information

Here we will show the effect of our model

controlling the size of 3D object. We provide the

generator with the length information of three sides

of the bounding box to guiding the generation of 3D

object. The length information can be converted into

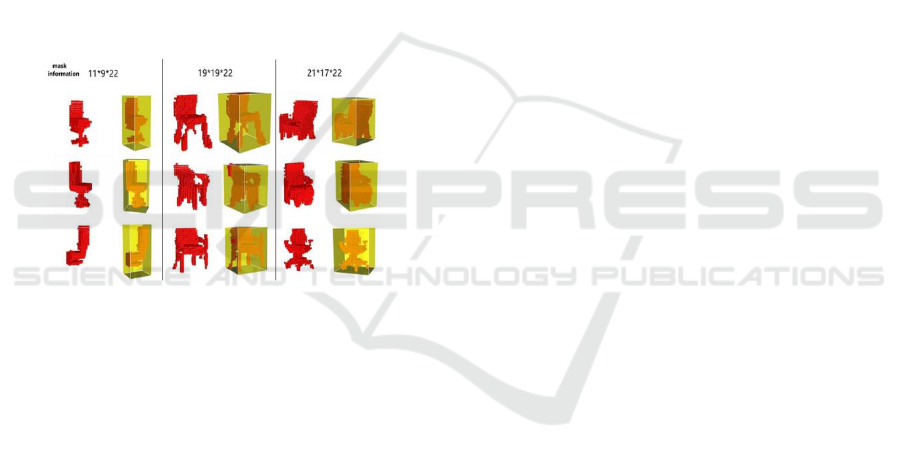

two coordinates. As Figure 5 shows, the 3D object

will be generated in the corresponding bounding box.

In fact, the specific generation effect of 3D object is

not always good. According our research, the

generation effect under bounding box.

Training samples should contain as many 3D

object models of various sizes as possible.

– While the mask information provided exist in the

training samples, the generated effect tends to be

better.

– Under extreme conditions like very short side

length, the mask information will lose its guiding

effect.

In a word, our 3D-BBGAN model has ability to

guide the size of the generate object by limiting the

CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications

120

generated area of the object through two three-

dimensional coordinates information.

5 CONCLUSIONS

In this work, we proposed 3D-BBGAN for 3D

object generation. We demonstrated that our models

are able to generate novel 3D objects with more

detailed geometries. Through the addition of the

conditional information to the generator and the

discriminator in the training process, we have

realized the effective limitation of the probability

space of the generated object. We effectively limit

the probability space of generation object to shorten

the training time and improve the generation effect

of 3D objects. And by adjusting the information we

add to the generator, we can direct the size of the

generated object. Next, we will try to add the

appropriate conditional information to guide the type

of the generated object.

Figure 5: Objects generated by the 3D-BBGAN system

trained on the ModelNet10 chair class. Here we list the

generate results of the three bounding box information.

The graph on the left of each column represents the

generated 3D Object, the right of each column shows the

render result with the correspond bounding box

information.

ACKNOWLEDGEMENTS

This work is supported by Sichuan Science and

Technology Program (2015GZ0358, 2016GFW0077,

2016GFW0116, 2018GZ0889) and Chengdu

Science and Technology Program (2018-YF05-

01138-GX).

REFERENCES

Alexa, M., Behr, J., Cohen-Or, D., Fleishman, S., Levin,

D., Silva, C.T.: Computing andrendering point set

surfaces. IEEE Transactions on visualization and

computer graphics 9(1), 3–15 (2003).

Arjovsky, M., Chintala, S., Bottou, L.: Wasserstein gan.

arXiv preprint arXiv:1701.07875 (2017).

Carlson, W.E.: An algorithm and data structure for 3d

object synthesis using surface patchintersections.

ACM SIGGRAPH Computer Graphics 16(3), 255–

263 (1982).

Chang, A.X., Funkhouser, T., Guibas, L., Hanrahan, P.,

Huang, Q., Li, Z., Savarese, S.,Savva, M., Song, S., Su,

H., et al.: Shapenet: An information-rich 3d model

repository. arXiv preprint arXiv:1512.03012 (2015).

Chaudhuri, S., Kalogerakis, E., Guibas, L., Koltun, V.:

Probabilistic reasoning for assemblybased 3d

modeling. In: ACM Transactions on Graphics (TOG).

vol. 30, p. 35. ACM (2011).

Donahue, J., Anne Hendricks, L., Guadarrama, S.,

Rohrbach, M., Venugopalan, S., Saenko,K., Darrell, T.:

Long-term recurrent convolutional networks for visual

recognition and description. In: Proceedings of the

IEEE conference on computer vision and pattern

recognition. pp. 2625–2634 (2015).

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville,A., Bengio, Y.:

Generative adversarial nets. In: Advances in neural

information processing systems. pp. 2672–2680 (2014)

Gulrajani, I., Ahmed, F., Arjovsky, M., Dumoulin, V.,

Courville, A.C.: Improved training ofwasserstein gans.

In: Advances in Neural Information Processing

Systems. pp. 5769–5779 (2017).

Mirza, M., Osindero, S.: Conditional generative

adversarial nets. arXiv preprint arXiv:1411.1784

(2014).

Smith, E., Meger, D.: Improved adversarial systems for 3d

object generation and reconstruction. arXiv preprint

arXiv:1707.09557 (2017).

Tangelder, J.W., Veltkamp, R.C.: A survey of content

based 3d shape retrieval methods. In:Shape Modeling

Applications, 2004. Proceedings. pp. 145–156. IEEE

(2004).

Wang, W., Huang, Q., You, S., Yang, C., Neumann, U.:

Shape inpainting using 3d generativeadversarial

network and recurrent convolutional networks. arXiv

preprint arXiv:1711.06375 (2017).

Wu, J., Zhang, C., Xue, T., Freeman, B., Tenenbaum, J.:

Learning a probabilistic latent spaceof object shapes

via 3d generative-adversarial modeling. In: Advances

in Neural Information Processing Systems. pp. 82–90

(2016).

Wu, Z., Song, S., Khosla, A., Yu, F., Zhang, L., Tang, X.,

Xiao, J.: 3d shapenets: A deeprepresentation for

volumetric shapes. In: Proceedings of the IEEE

conference on computer vision and pattern recognition.

pp. 1912–1920 (2015).

Yang, B., Wen, H., Wang, S., Clark, R., Markham, A.,

Trigoni, N.: 3d object reconstructionfrom a single

depth view with adversarial learning. arXiv preprint

arXiv:1708.07969 (2017).

3D Bounding Box Generative Adversarial Nets

121
