Security Using Dynamic Secret Based on Packet Loss Rate for

Wireless Sensor Networks

Jingwen Yu

, Jiechen Li

, Zhanwei Xuan

, Lei Wang

1,2

and Xiang Feng

1,2*

College of Computer Engineering & Applied Mathematics, Changsha University, Changsha 410001, China

Key Laboratory of Hunan Province for Internet of Things and Information Security, Xiangtan University, Xiangtan

411105, China

Keywords: multi-hop networks, end-to-end transmission, data packet loss, dynamic secret

Abstract: The transmission security of wireless sensor networks plays a vital role in the application of the wireless

sensor network. In order to protect these networks, many security protocols are proposed at this stage to

protect the security of routing and data transmission. While much of the previous transport mechanism

depends on the link layer encryption whose algorithms are not applied to end-to-end transmission. Thus

there is scope for further research on the security of source node to sink transmission, and a new method

that sink updates the key of the current group by calculating the packet loss rate and considering the local

retransmission of the link layer is proposed. Our method provides a supplemental mechanism for existing

transport protocols that even if an attacker eavesdrops the current key, the security is automatically

replenished, thereby enhancing the security of the transmission. Theoretical analysis and simulation

experiments show that the proposed method can guarantee the end-to-end transmission security, and it also

consumes less energy than the application of dynamic key update directly to end-to-end transmission.

1 INTRODUCTION

A wireless sensor network (WSN) is composed of a

large number of sensor nodes, which are powered by

batteries and consist of data collection processing,

sensing and short-range wireless communicating

components (Akyildiz, 2002). It has a wide range of

applications such as environmental monitoring,

medical care, military field and target tracking (Yick,

2008). In a wireless sensor network, the source node

communicates with the base station through multiple

hops nodes, which only act as the forwarding nodes.

Therefore, a node in a wireless multi-hop network

not only can act as a source node to collect data but

also can be an intermediate to forward data packets

from other nodes. Since the sensors operate in an

unattended, harsh or hostile environment and the

lack of physical protection make the wireless sensor

network vulnerable to attack or even physical

damage, it is very important to ensure the

communicating security of wireless sensor network

(Kavitha, 2010).

Wireless sensor network is deployed with a large

number of sensor nodes for data acquisition and

processing capacity. However, the network is

vulnerable to internal and external attacks because of

the lack of tamper-resistant and the insecurity of a

wireless communication channel. An attacker could

capture, eavesdrop, and modify the information

contained in the sensor node, even if injecting new

information. Thus, there must be some kind of

mechanism to deal with data transmission between

nodes (Singh, 2011).

The purpose of security services in WSNs is to

protect the information and resources from attacks.

At present, many methods based on cryptography

have been put forward to protect the security of

WSNs and it is significant to choose the appropriate

encrypted algorithm. A large number of researchers

utilize the public key encryption to protect the

wireless sensor network security (Gaubatz, 2004),

(Watro, 2004), (Wang, 2006). However, the public

key is characterized by high computational

complexity, slow generation and high energy

consumption. These methods are not suitable for a

WSN with low power, low energy and weak

computing power. Considering the above limitation

of using public key encryption in wireless sensor,

some improved methods based on the public key

algorithm were also proposed for protecting the

178

Yu, J., Li, J., Xuan, Z., Wang, L. and Feng, X.

Security Using Dynamic Secret Based on Packet Loss Rate for Wireless Sensor Networks.

DOI: 10.5220/0008097001780183

In Proceedings of the International Conference on Advances in Computer Technology, Information Science and Communications (CTISC 2019), pages 178-183

ISBN: 978-989-758-357-5

security of WSNs (Wander, 2005), (Gaubatz, 2005).

Since the limitation on computational capacity and

power consumption of the sensor nodes in a WSN,

many methods based on symmetric keys were took

into account to protect the security of WSNs (Liu,

2005), (Wang, 2008). For a WSN of N nodes in the

Pairwise mechanism, each node needs to establish

N-1 unique keys with all the other nodes in the

network and maintain those keys in their memory in

advance (Xiao, 2007). In addition, the sensor nodes

are resource-constrained and the huge overhead also

limits the applications of the above methods. Even if

these keys can be successfully set up in WSNs and

many studies have also demonstrated the safety of

communication between two nodes through the

encryption, it is difficult to guarantee the security of

a WSN if the key once cracked by the attacker.

Wireless communication contains a lot of potential

vulnerabilities and is usually mobile, and an attacker

can exploit these vulnerabilities to steal a key. It is

difficult to construct a flawless security mechanism

that can hold a secret forever, and a wireless user

can not realize that the key has been stolen. When it

is possible to steal the key, periodically update the

key do not help much. No matter whether the key

exchange uses symmetric or asymmetric encryption,

once the key is stolen, the subsequently key

exchanges become meaningless. Based on above

problems, the literature (Xiao, 2007), (Xiao, 2010)

proposed a method of updating the key dynamically

to protect the security of WSNs. This method not

only has the advantages of low computational

complexity but also solve many of the limitations of

wireless security. However, it mainly deals with

communication problems between two nodes which

dynamic secrets cannot be directly applied in multi-

hop network. Because the dynamic secret is updated

in real time based on the packets that the sink has

not retransmitted, the data is forwarded from the

source node through multiple nodes to the sink (the

forwarding process does not update the key). If

every two nodes update the key all based on the

retransmission of the packet, this is bound to

consume time and increase the computational

complexity. Furthermore, each node is likely to be a

source node and send data to the base station, thus it

is also not suitable for using in multi-hop networks

directly.

This paper presents a dynamic secret update

mechanism based on packet loss rate to ensure the

security of multi-hop network transmission. This

paper is different from previous research where it no

longer uses the physical layer channel model to

construct a perfect key for encryption, and turn our

attention to the link layer and transport layer. The

point is to combine the dynamic secret updates with

the existing security mechanisms. When a source

node communicates with the base station, it is

possible to determine whether the key is attacked

based on the packet loss rate. If the key is attacked,

the ongoing communication can generate a new

dynamic secret to gradually restore security. We

construct the secure mechanism which need to

constantly update the system secret based on the

transmission.

2 SCHEME OVERVIEW

Inspired by existing model based on dynamic secret

to protect security transmission of data frames in the

link layer(Xiao, 2010), we applied it to the end-to-

end data transmission in the wireless sensor network.

Sink counts the data packets received successfully

from source node within time t and calculates the

current packet loss rate p, then determines whether a

new secret key is generated by comparing the

current packet loss rate with the set threshold 



as to improve the security of the packet transmission

between the source node and sink.

The data collected by the sensor node is divided

into several groups, then each group is encrypted

independently and forwarded to the sink which can

decrypt and encrypt the packets according to the

corresponding secret key. Furthermore, data is not

encrypted or decrypted during the forwarding

process of multiple hops. A secret key, which is the

pairwise secret, is shared between the source node

and sink to keep the communication security.

2.1 Notations and Symbols

Each node in the network shares a secret key with

the base station. Apart from that, every packet

collected by sensor node has a packet id of itself.

The following notations are used to simplify

explanation in this paper:

: The serial number of the packet collected

by the source node (from    where  is the

threshold value that a node can store the

maximum number of packets).

: The number of packets in a group after

grouped by a source node.

: The category of each group of packets

after grouping by a source node.

: The new serial number of packets in each

group is renumbered from 1 after grouping by a

Security Using Dynamic Secret Based on Packet Loss Rate for Wireless Sensor Networks

179

source node (Where  ).

 : Sink calculates the packet loss rate at

time.





: The key for the 



update, the initial key

is







: The dynamic key is generated after the





update.





: A collection of packets received by sink

correctly (receiver)





: The source node (sender) receives a set

of acknowledgment information within the

specified time .

3 ALOGORITHM PHASES

3.1 Calculating the Packet Loss Rate

The structure of the loss process in a sensor network

is typically characterized by the packet loss rate. In

general, the end-to-end packet loss rate is the

percentage of the total number of packets that have

not been successfully received by sink for a period

of time and the total number of packets sent by the

source node. Literature (Olsén, 2003) proposed a

method of calculating the packet loss rate, which is

calculated as follows:

 













(1)

Where 



denotes 

that the number of ACK packets that are repeated

three times, 



denotes  that

the number of timeout packets and 



represent

 that the total number of

packets sent by the source node.

End-to-end transmission in a WSNs means that

packets are transmitted from the source node to sink.

If the packets have not successfully received by sink

within time t, the retransmission request should be

sent along the sink to the source node’s reverse

enhancement path. The required packet will be

retransmitted when the retransmission request

arrives at the source node. However, the end-to-end

transmission process is usually accompanied by

local retransmission of the link layer, since once a

node has found a packet missing, it will send the

retransmission request directly to the previous hop

node.

3.1.1 Local Retransmission

In the intermediate node forwarding process is

usually accompanied by local retransmission of the

link layer, each intermediate node has the space to

cache the current packet. As illustrated in the

following Figure 1, supposing a source node

transmits a set of ordered packets





 



   



 



, then, once a node has found a

packet missing at time 



, it will send the

retransmission request directly to the previous hop

node. According to the following steps:

loss

time

out time

msend

sender

receiver

msend

The attack

packet

2i2

mAck

2i1

mAck

receiver

sender

time

Figure 1: Local retransmission of the link layer.

Step1: The source node finds its neighbor node

by the base station and divides the packet into the

corresponding copies according to the number of

neighbor nodes.

Step2: Writing the corresponding group for

each packet, and the serial number of each group's

packet is renumbered from 1.

Step3: For the sake of convenience in writing,

the performance of packet developed into











where  denotes connective symbol and 

indicate the same group of packets. In the

transmission process, the neighbor node will detect

whether the packet has been lost.

When the intermediate forwarding nodes

discovers that the packet is lost, it sends a

retransmission request to the previous hop node. If

the packet is received by one or two retransmissions,

it is not considered to be packet loss. If the packet is

received by more than two retransmissions, it is

considered to be packet loss and the node no longer

sends the retransmission request.

3.1.2 End-To-End Retransmission

End-to-end transmission in a wireless sensor

network means that the packet is transmitted from

the source node to the sink, then sink sends the data

CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications

180

packet that needs to be retransmitted with the next

set of packets, renumbering it and sending it to the

neighbor node. Sink counts this type of packet loss

and calculate the packet loss rate after a source node

transmits a set of data. Comparing this packet loss

rate with the set threshold, if the packet loss rate is

greater than the set threshold, indicating that the

transmission of security risks and need to do a series

of measures to restore its security; if the packet loss

rate is less than the set threshold, indicating that the

transmission is relatively safe and the current key is

reliable.

3.2 Dynamic Secret Key Generation

3.2.1 Determine Whether the Key Needs to

be Updated

Sink calculates the packet loss rate for this group

after a source node transmits a set of data and

compares this packet loss rate 



with the set

threshold  . Where  represents the 



group of

packets sent by the source node to the sink node.

 



  indicating that the transmission of

security risks and need to update current key.

 



  noting that the transmission of this

group is reliable in the case of allowing a

certain packet loss, so there is no need to

update the current key.

Obviously, the number of updates which

proposed in this paper is less than that of Xiao

Sheng's proposal, thus reducing the amount of

computation and energy consumption accordingly.

3.2.2 Affiliations

Assuming that the initial key is 



and the current

key is 



(the 



updated key), the key is updated

to 



if it satisfied with the update condition

and the key generation process is as follows:





 



 



(2)





 



 



 



 



 



(3)





 



 



 



 



 





  



 



  







(4)

Where 



is the generated dynamic secret,

algorithm in the following sections will only

operate on the synchronized 



and 



. Therefore,

we unify the notion as   



 



respectively, 



 



  before communication

begins.

The packets received by the receiver belong

to 



that is 











 



;The sender receives

confirmation from the sink node within the

prescribed time, then 



 



(a): If the sink node calculates the packet loss

rate ρ = 0, there is no packet loss during the end-to-

end transmission and return the confirmation

message    .

Continue sending the next set of packets according

to the local retransmission step after the sender

receives the confirmation message within the

specified time,

(b): If ρ> 0, there is a packet loss. Assuming

that sink determine the information of the lost packet

is 



, then return confirmation information

  



to source node. Sender within a

specified time to receive confirmation information,

then the packet to be retransmitted



with the

next set of data packets sent synchronously and

repeat the local operation of the retransmission.

Definition 1:  data packet 



， 









、





   



 







  (5)

It is very difficult for the adversary to

reproduce  . Not only must she eavesdrop every

data packet, but also all of the acknowledgements

and retransmissions of link layer. Otherwise, even if

she can receive a data packet correctly, she cannot

identify whether this packet is an  or not.

Whenever the adversary is uncertain about , the

uncertainty is reflected in the dynamic secrets.

Furthermore, sink knows the packet loss rate of the

source node, and the intermediate node does not

know the packet loss rate between the source node

and sink. Above all, the packet loss rate is related to

the need to update the key, so even if intermediate

node has compromised, it cannot know how much

packet loss between sink and source node, thus do

not know whether the dynamic key in the

transmission has updated or not. Therefore, our

paper enhances the dynamic secret update

uncertainly and improves transmission security.

4 SECURITY ANALYSIS

4.1 Secure End-To-End Transmission

In order to ensure the authenticity and

confidentiality of packets that transmitted from

Security Using Dynamic Secret Based on Packet Loss Rate for Wireless Sensor Networks

181

source node to the base station, we proposed a

secure mechanism that dynamically update the

secret based on packet loss rate. Each source node in

the sensor network establishes an initial symmetric

key with the base station. We can randomly transmit

some packets to test whether the sensor network is

secure before the source node sends data packet to

the base station. If the sensor network is secure, the

required data packets begin to be transmitted. The

source node and sink will update the shared key

between them only the packet loss rate is greater

than the set threshold. An attacker would lose the

unrecoverable information If he/she could not

eavesdrop a transmitted packet at the beginning.

This means that the attacker cannot steal the key,

and the key is updated immediately if the

transmission is found to be insecure.

There are two advantages to prevent the attacker to

steal the key. On the one hand, the attacker does not

know which node need to send data to the base

station, and which node sent the eavesdropped

packet. Furthermore, the attacker need to determine

whether the transmitting packet is sent from the

node or through the node. On the other hand, packets

of the source node are distributed sent to the

neighbor nodes. The attacker cannot steal all the

packets sent from one source node at the same time

so that cannot steal key by eavesdropping the

packets.

4.2 Secure Point-To-Point Forwarding

The communication distance of the nodes in the a

WSN is limited, so the data packets transmitted by

the source node to the base station need to be

forwarded through the intermediate nodes. The

packet in the forwarding process cannot be

encrypted by the intermediate node and the

authenticity and confidentiality of these packets are

mainly verified by the dynamic key between the

source node and the base station.

Although the packets are not encrypted hop-by-

hop in the forwarding process, it also can guarantee

the transmission security because the packet will be

verified the integrity between any two nodes. If the

integrity of the packet is broken, the node will send a

retransmission request; If the same packet need to be

retransmitted more than twice between two nodes, it

will be discarded. The base station will request the

source node to retransmit the packets that were

actively discarded during the forwarding process.

5 EXPERIMENT

All simulation is performed using MATLAB, and

we make the following assumptions in order to

facilitate the comparison of experiments:

I. All packets are delivered without error or loss,

II. The end-to-end of our paper is equivalent to

the two nodes without considering the forwarding of

the intermediate nodes.

III. The number of packets transmitted by the

sender at the unit time is the same.

IV. The threshold for data packet update in the

experiment is 20, and the threshold for our method is

0.1. Furthermore, the experiment was repeated 100

times.

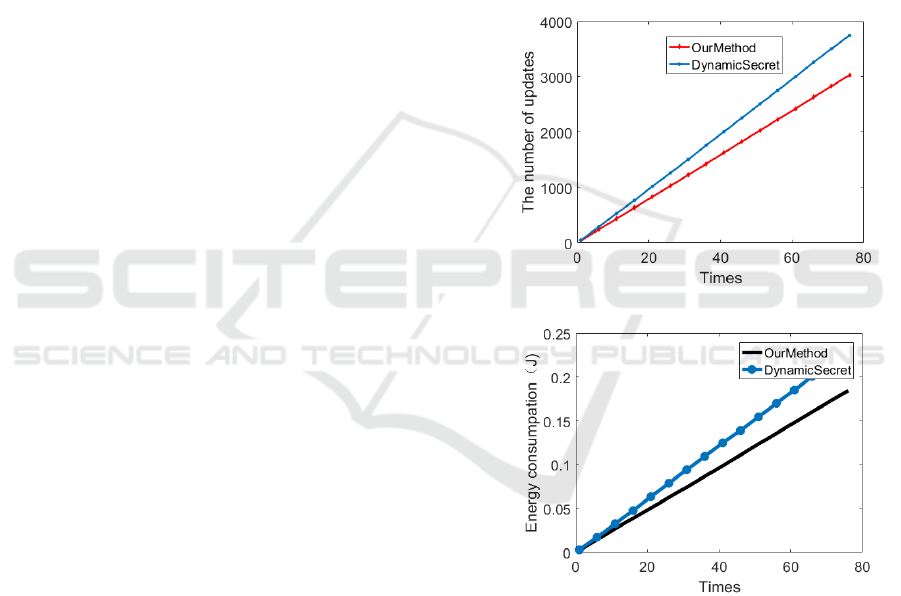

Figure 2: The number of updates.

Figure 3: Energy consumption.

Figure 2 compares the numbers of update

required to secure communication using our method

or dynamic secret. The numbers of update represent

the number of key updates after the arrival of the

lifetime of the networks. Figure 2 shows that it need

to be updated 392 times for our method and 493

times for dynamic secret at 10s. Our method requires

79 percent of the numbers of update needed by

dynamic secret and as times goes by, the number of

updates for his method grows faster than our

approach, showing immediate gains in security

overhead.

CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications

182

Figure 3 compares the energy consumption

required to secure communications using our

method or dynamic secret. Showing that it need to

consume 0.09 joule of energy for our method and

0.122 joule energy for dynamic secret at 40s. Our

method consumes 78 percent of energy by dynamic

secret. Figure 3 shows that our method consumes

less energy than dynamic secret in the case of

security.

Our method demonstrated the effectiveness of

its protocol, showing itself to be far more scalable

than dynamic secret. A clear trend is shown, in

which our method more slowly increases in the

numbers of updates and energy consumption

compared to dynamic secret.

6 CONCLUSIONS

A novel key update approach to enhance the

security of a multi-hop wireless sensor networks,

when eavesdropped by attacker. The primary

focus is to update the key dynamically based on

data packet loss rate that allows expedient,

reliable communication with confidentiality,

integrity and authenticity services. This model

accounts for the end-to-end retransmission and the

local retransmission of the link layer, which

improves the security of data packets transmission

in the multi-hop networks. Our solution is to

generate a series of hash values from the

communication process, and apply these hash

values to constantly update the key. The adversary

is uncertain about dynamic secret. Moreover, it

does not know whether the dynamic key in the

transmission has updated. As the transmission of

data packets goes on, communication security

keeping replenishing itself as if the wireless

communication system has powerful function to

resist attacks.

ACKNOWLEDGEMENTS

The authors thank the anonymous referees for

suggestions that helped improve the paper

substantially. The project is partly sponsored by the

National Natural Science Foundation of China

(No.61873221, No.61672447), the Natural Science

Foundation of Hunan Province (No.2018JJ4058,

No.2017JJ5036), Hunan province science and

technology project funds (No.2018TP1036), and the

CERNET Next Generation Internet Technology

Innovation Project (No.NGII20160305,

No.NGII20170109).

REFERENCES

Akyildiz I F., Su W., Sankarasubramaniam Y., et al., 2002

A survey on sensor networks[J]. IEEE

Communications magazine.

Yick J., Mukherjee B., Ghosal D., 2008. Wireless sensor

network survey[J]. Computer networks.

Kavitha T., Sridharan D., 2010. Security vulnerabilities in

wireless sensor networks: A survey[J]. Journal of

information Assurance and Security.

Singh S., Verma H K., 2011. Security for wireless sensor

network[J]. International Journal on Computer

Science and Engineering.

Gaubatz G., Kaps J P., Sunar B., 2004. Public Key

Cryptography in Sensor Networks--Revisited[C] ESAS.

Watro R., Kong D., Cuti S., et al., 2004. TinyPK: securing

sensor networks with public key technology[C]

Proceedings of the 2nd ACM workshop on Security of

ad hoc and sensor networks. ACM.

Wang Y., Attebury G., Ramamurthy B., 2006 A survey of

security issues in wireless sensor networks[J].

Wander A S., Gura N., Eberle H., et al., 2005. Energy

analysis of public-key cryptography for wireless

sensor networks[C]Pervasive Computing and

Communications, 2005. PerCom 2005. Third IEEE

International Conference on. IEEE.

Gaubatz G., Kaps J P., Ozturk E, et al., 2005. State of the

art in ultra-low power public key cryptography for

wireless sensor networks[C]//Pervasive Computing

and Communications Workshops, 2005. PerCom 2005

Workshops. Third IEEE International Conference on.

IEEE.

Liu D., Ning P., Li R., 2005. Establishing pairwise keys in

distributed sensor networks[J]. ACM Transactions on

Information and System Security (TISSEC).

Wang H., Sheng B., Tan C C., et al., 2008. Comparing

symmetric-key and public-key based security schemes

in sensor networks: A case study of user access

control[C]//Distributed Computing Systems, 2008.

ICDCS'08. The 28th International Conference on.

IEEE.

Xiao Y., Rayi V K., 2007. Sun B, et al. A survey of key

management schemes in wireless sensor networks[J].

Computer communications.

Xiao S., Gong W., 2010. Mobility can help: protect user

identity with dynamic credential[C]//Mobile Data

Management (MDM), 2010 Eleventh International

Conference on.

Xiao S., Gong W., 2010. Towsley D. Secure wireless

communication with dynamic secrets[C] INFOCOM,

2010 Proceedings IEEE.

Olsén J., 2003. On Packet Loss Rates used for TCP

Network Modeling[J]. Mathematical Statistics.

Security Using Dynamic Secret Based on Packet Loss Rate for Wireless Sensor Networks

183
