Evaluating RuleCore as Event Processing Network Model

Irina Astrova

, Arne Koschel

, Sebastian Kobert

, Jan Naumann

, Tobias Ruhe

and

Oleg Starodubtsev

Department of Software Science, School of IT, Tallinn University of Technology, Akadeemia tee 21, 12618 Tallinn, Estonia

Faculty IV, Department of Computer Science, Hannover University of Applied Sciences and Arts,

Ricklinger Stadtweg 120, 30459 Hannover, Germany

Keywords: Event Processing Network (EPN), Event Processing Network Model, RuleCore.

Abstract: Our work is motivated primarily by the lack of standardization in the area of Event Processing Network

(EPN) models. We identify general requirements for such models. These requirements encompass the

possibility to describe events in the real world, to establish temporal and causal relationships among the

events, to aggregate the events, to organize the events into a hierarchy, to categorize the events into simple

or complex, to create an EPN model in an easy and simple way and to use that model ad hoc. As the major

contribution, this paper applies the identified requirements to the RuleCore model.

1 INTRODUCTION

A typical database management system (DBMS),

e.g., a relational database is designed to store, query

and manipulate static data presented as rows and

columns. In contrast, a data stream management

system (DSMS) is used to process continuous feeds

of data in a way analogous to a DBMS. For

example, whereas relational databases use

Structured Query Language (SQL) to query and

manipulate static data, DSMSs use a modified form

of SQL, e.g., Event Processing Language (EPL) to

work more efficiently with real-time streaming data.

Event processing in a DSMS takes place on just

one stream of data. Complex event processing (CEP)

takes place on more than one stream of data, where

the streams may be of varying types. For example, a

CEP engine may combine processing of data streams

from one or more sensors with static data stored in a

relational database.

CEP, especially within smart grid solutions, can

be leveraged to promote safety and innovation in the

domain of portable micro CHPs (block power

plants) (Thomas, 2007). Smart grid solutions

specialize in providing high quality, smart grid

technologies and products to the marketplace that

improve the electrical distribution infrastructure. It is

essential to ensure error-free operation of block

power plants. This is where CEP can help.

2 MOTIVATION

It is a common theme that Internet of Things (IoT) is

all about data. But a variety of heterogeneous

sensors can exhibit a continuous stream of data,

which can represent thousands to millions of events

per second.

An event is “a significant change of state” or “a

happening of interest at a certain point in time in a

certain location” (Luckham, 2002). Event Processing

Networks (EPNs) can be seen as generalized

software systems that allow for the processing of

events. However, EPN models lack standardization.

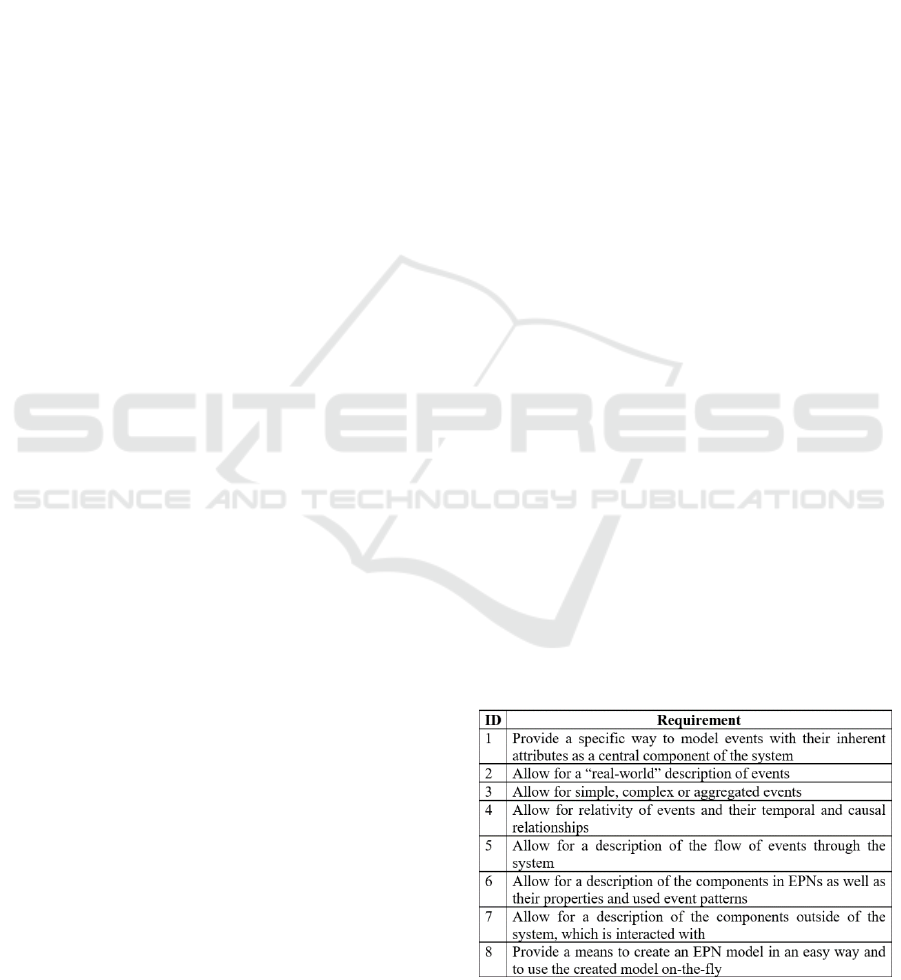

Table 1: Requirements for EPN models.

As an attempt to fill in a gap in this field, in our

previous work (Koschel et al., 2017), we identified

Astrova, I., Koschel, A., Kobert, S., Naumann, J., Ruhe, T. and Starodubtsev, O.

Evaluating RuleCore as Event Processing Network Model.

DOI: 10.5220/0008192302970300

In Proceedings of the 15th International Conference on Web Information Systems and Technologies (WEBIST 2019), pages 297-300

ISBN: 978-989-758-386-5

297

general requirements for EPN models (see Table 1).

These requirements help to analyze EPN models

with respect to their overall modelling and usage

capabilities. As such, the identified requirements

provide a valuable tool for comparison of different

EPN models. As an example of EPN model, we

considered RuleCore.

3 RULECORE

RuleCore is a CEP engine that is based on the

concept of loosely coupled, event-driven

components, which communicate with each other

indirectly using a publish/subscribe model. Data are

internally stored down in a relational database. This

allows for an offline analysis, visualization,

simulation and reporting of collected data using

traditional database tools.

3.1 Typical Application Areas

RuleCore is typically used in:

 Application monitoring;

 Equipment timing constraint;

 Route compliance;

 Fraud detection.

3.2 Architecture

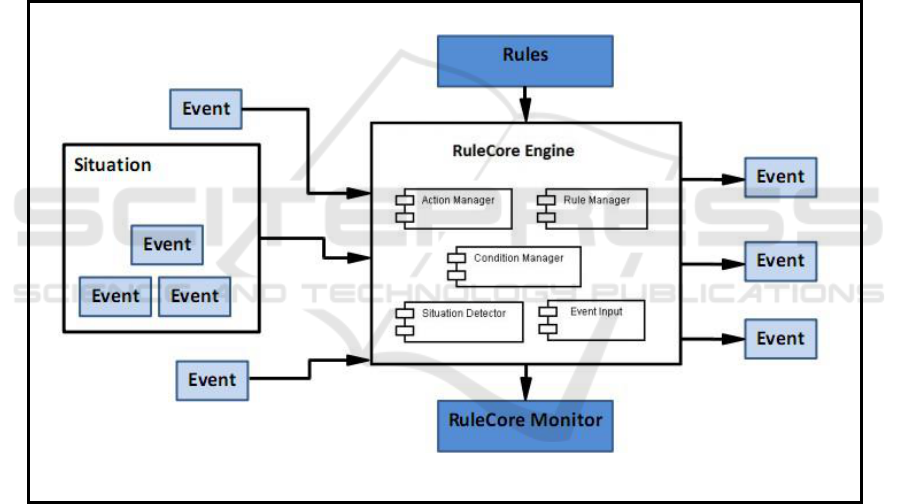

Figure 2 gives an overview of RuleCore

architecture, which generally looks like an EPN

model.

3.2.1 Event Model

An event model is formally specified using XML

Schema descriptions. XML itself is used for event

representations. All events have a common structure

with mandatory attributes, which are defined in the

root element. They have the following

characteristics:

 Events are immutable (meaning that they cannot

be modified after they have been created);

 Events have a globally unique id;

 Events have a type;

 Events happen at a given point in time indicated

by a time stamp;

 Events can be caused by other events;

 Events are processed as ordered streams.

3.2.2 Event Producers

Events are generated and published by an event

source immediately whenever some activity is

detected at the source. An event source is normally a

business system and is responsible for publishing

events and transferring them into RuleCore, possibly

using different kinds of technical infrastructure for

integration and event transport. Multiple event

sources can use multiple events channels to convey

the events in RuleCore.

3.2.3 Event Aggregation

A combination of events is specified using the

concept of situations. A situation is a formal

description of a combination of events as they

happen over time along with optional timing

restrictions.

3.2.4 Event Consumers

Event consumers consume events and remove them

from RuleCore.

3.2.5 Event Transport Protocols

Within RuleCore semantics and representation of

events are totally transport-independent. Rules are

evaluated exactly in the same way, independently of

the chosen event transport protocol.

3.2.6 Active Rules

Events can be either inbound or outbound. Events

sent into RuleCore are inbound and events destined

for delivery to systems outside RuleCore are

outbound. This difference is purely logical and is not

visible in the events as such. It is a feature of an

event depending on the context in which it is used.

RuleCore uses an approach based on active

rules. Each rule is basically an active event

processing entity reacting to specific combinations

of inbound events over time. When a specific

combination of events is found, an outbound

reaction event is published with a summary of those

events.

3.3 Event I/O Logical Model

The event I/O module can be seen as a bi-directional

pipeline, each pipe consisting of a chain of event

processing sub-steps or sub-components. Each

processing step filters, refines or enriches the event

before passing it on to the next step (see Figure 1).

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

298

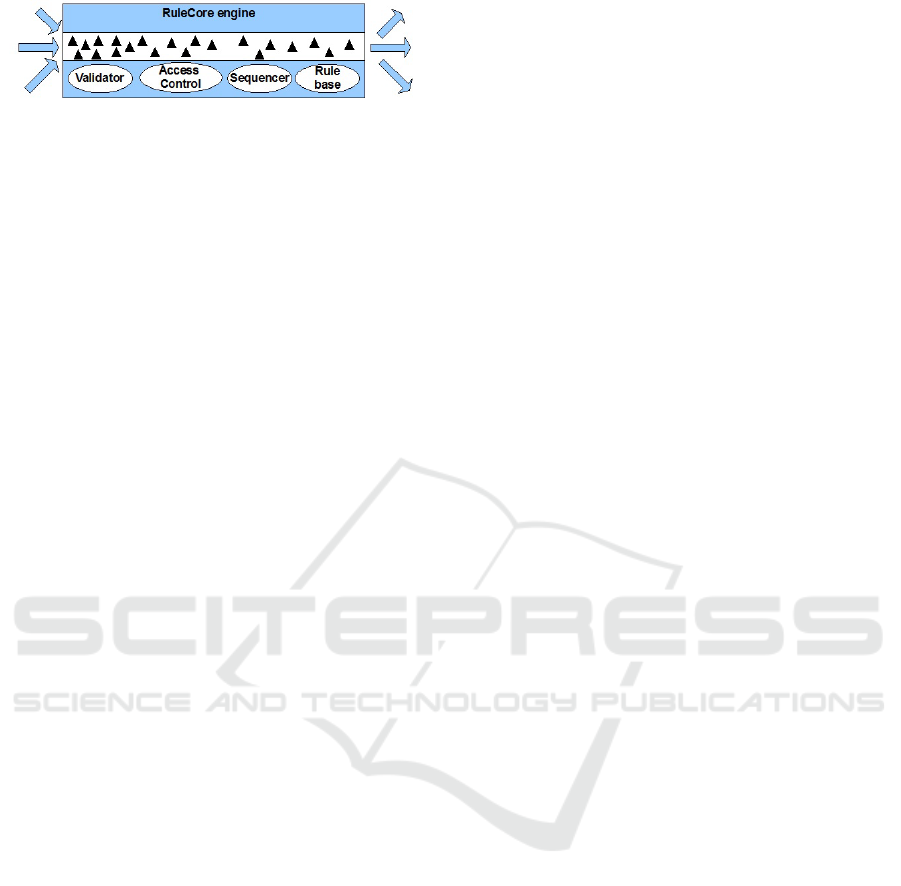

Figure 1: RuleCore I/O logical model.

3.3.1 Event Inputs

An event input receives all or a subset of the events

from one or more sources. Each event input is a

contributor to the inbound events stream.

3.3.2 Event Validator

An event validator makes basic format and syntax

checks on the inbound event messages. Events that

are well-formatted and parsable XMLs are

forwarded to the valid events stream. Events that fail

the checks are forwarded to the invalid events

stream instead.

3.3.3 Event Access Control

Received events are checked for having the correct

security token. The events that contain the correct

token are forwarded to the authorized events stream.

Events that fail the checks are sent to the access

error stream instead.

3.3.4 Event Sequencer

Operating inside a distributed and heterogeneous

environment usually implies the use of several

unsynchronized time sources and varying event

transmission times. As a result of this, events

arriving at the event I/O module will in nearly all

cases not be picked up in the same order as they

were originally emitted. RuleCore imposes one

unconditional requirement on the inbound event

stream, namely, that all events in the stream are

arranged in order by ascending time.

To allow for receiving events from

unsynchronized event sources, an event sequencer is

introduced. It makes sure the requirement of an

ordered event stream is fulfilled at all times by

putting the inbound events on hold for a certain

amount of time before releasing them to RuleCore.

The maximum amount of time for which the event is

put on hold is a configurable parameter, making it

easy to adapt the sequencing to the particular

operating environment.

Inbound events whose time stamp is older than

the maximum age are instantly rejected. Inbound

events with a time stamp in the future may or may

not be kept for sequencing – this is a configurable

option. The effect of using the event sequencer is

thus twofold: (1) events will be forwarded to

RuleCore in the order of ascending time; and (2)

events arriving at RuleCore will be delayed by the

predefined amount of time.

4 CONCLUSION

While in our previous work (Koschel et al., 2017,

Koschel et al., 2018) we applied the identified

requirements for EPN models to the EPiA model

(Etzion, Niblett, 2011) and the Business Event

Modeling Notation (BEMN) model (White, 2006),

in this paper we demonstrated the mapping of the

same requirements to the RuleCore model. In

particular, we examined RuleCore architecture and

modelling capabilities as well as its typical

application areas.

Our examination showed that RuleCore fully

meets Requirements 1, 3–6. For example, RuleCore

distinguishes between simple and complex (or

aggregated) events, which consist of multiple simple

events. Each event in RuleCore gets a time stamp

during their creation. Thanks to this stamp, temporal

relations among events and their order can be easily

identified. Furthermore, one can model events and

their inherent attributes on a high level, which

enables a real-world description of events, thereby

meeting Requirement 2. The typical application

scenarios for RuleCore showed this as well. In

addition, a large set of connectors for event

producers and consumers help to meet Requirement

7. However, some costs are caused by the overall

complexity of the engine, which makes it somehow

difficult to create an EPN model. As a result,

RuleCore meets Requirement 8 only partially.

ACKNOWLEDGEMENT

Irina Astrova’s work was supported by the Estonian

Ministry of Education and Research institutional

research grant IUT33-13.

REFERENCES

Luckham, D., 2002. The Power of Events, Addison

Wesley Pub Co Inc, USA.

Koschel, A., Astrova, I., Kobert, S., Naumann, J., Ruhe,

T., Starodubtsev, O., 2017. Towards Requirements for

Evaluating RuleCore as Event Processing Network Model

299

Event Processing Network Models. In Proc. 8th Intl.

Conf. on Information, Intelligence, Systems,

Applications (IISA), Larnaca, Cyprus. IEEE.

Koschel, A., Astrova, I., Kobert, S., Naumann, J., Ruhe,

T., Starodubtsev, O., 2018. On Requirements for

Event Processing Network Models Using Business

Event Modeling Notation. In Proc. 2018 Computing

Conf., SAI 2018 (London), Part 1, v. 858 of Advances

in Intelligent Systems and Computing, pp. 756-762.

Springer.

White, S., 2006. Process Modelling Notations and

Workflow Patterns. https://web.archive.org/web/

20100706013817/,

http://www.bpmn.org/Documents/Notations_and_Wor

kflow_Patterns.pdf [acc. 2019]

Etzion, O., Niblett, P., 2011. Event Processing in Action,

Manning, Stanford, CT 06901.

Thomas B., 2007. Mini-Blockheizkraftwerke (Mini-Block

Power Plants), Vogel, Würzburg, Germany.

Figure 2: RuleCore architecture and event flow.

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

300
