Parallel Efficient Data Loading

Ricardo Jiménez-Peris

, Francisco Ballesteros

, Ainhoa Azqueta

, Pavlos Kranas

Diego Burgos

and Patricio Martínez

LeanXcale, Campus de Montegancedo, Madrid, Spain

Universidad Rey Juan Carlos, Madrid, Spain

Universidad Politécnica de Madrid, Spain

Keywords: Loading, Extract-Transform-Load (ETL), Scalable Databases, NUMA Architectures, Database Appliance,

Scalable Transactional Management.

Abstract: In this paper we discuss how we architected and developed a parallel data loader for LeanXcale database. The

loader is characterized for its efficiency and parallelism. LeanXcale can scale up and scale out to very large

numbers and loading data in the traditional way it is not exploiting its full potential in terms of the loading

rate it can reach. For this reason, we have created a parallel loader that can reach the maximum insertion rate

LeanXcale can handle. LeanXcale also exhibits a dual interface, key-value and SQL, that has been exploited

by the parallel loader. Basically, the loading leverages the key-value API and results in a highly efficient

process that avoids the overhead of SQL processing. Finally, in order to guarantee the parallelism we have

developed a data sampler that samples data to generate a histogram of data distribution and use it to pre-split

the regions across LeanXcale instances to guarantee that all instances get an even amount of data during

loading, thus guaranteeing the peak processing loading capability of the deployment.

1 INTRODUCTION

In this paper we discuss the parallel data loader

architected and developed for the LeanXcale

database. This data loader was motivated by the

LeanXcale appliance being developed in cooperation

with Bull-Atos in the Bull Sequana in the context of

the CloudDBAppliance European project

(CloudDBAppliance 2019). The Bull Sequana is a

large parallel server than can reach 896 cores and 140

TB of main memory.

Extract-Transform-Load (ETL) process are

commonly used at all enterprises and they play a key

role in moving data across the different data

management systems being used within the

enterprise. One of the key performance issues is the

speed of loading of the destination database.

Loading data in LeanXcale appliance adopting the

traditional way, by means of a sequential thread, does

not actually exploit the potential of the platform, since

the thread doing the loading process become the

bottleneck. Despite the LeanXcale appliance is able

to load many millions of records per second, using a

single loading thread results is simply using a small

fraction of the insertion capacity of the appliance.

The loader addresses three key issues in the

loading process:

1. The parallelism of the loader process that is

required to exploit the full capacity of the

appliance.

2. The efficiency of the process. Loading data does

not have the same requirements as regular OLTP

processing, and these lower requirements can be

exploited to improve the efficiency of the process.

3. The parallelism on the database server side. In

order to fully exploit the parallelism on the server

side it is necessary to guarantee that all servers

will receive a fraction of the load.

The first point have been addressed by creating a

parallel loader that is multi-process and multi-

threaded. This enables to use as many machines and

cores as required to load data at the maximum rate

that the LeanXcale appliance can process.

The second item has been addressed by exploiting

the dual-interface provided by LeanXcale. The dual-

interface supports key-value and SQL APIs. Both

interfaces work over the same relational data. Since

ingesting data does not require SQL, the loader

leverages the key-value interface to save all the SQL

overhead to ingest the data.

Jiménez-Peris, R., Ballesteros, F., Azqueta, A., Kranas, P., Burgos, D. and Martínez, P.

Parallel Efﬁcient Data Loading.

DOI: 10.5220/0008318904650469

In Proceedings of the 8th International Conference on Data Science, Technology and Applications (DATA 2019), pages 465-469

ISBN: 978-989-758-377-3

465

The third bullet has been tackled by creating a

data sampler that creates a histogram of the data to

partition horizontally data across the servers before

the loading process starts in order to guarantee that all

servers will receive a similar amount of data, thus,

reaching the maximum capacity of the appliance.

2 LeanXcale ARCHITECTURE

2.1 Layers

LeanXcale (LeanXcale 2019) is an ultra-scalable

parallel & distributed database manager. It consists of

three layers: storage engine, transactional manager,

and query engine. The storage engine is actually a

parallel-distributed relational key-value data store.

The transactional manager is a parallel-distributed

system with several components. The query engine is

parallel-distributed as well and can scale both OLTP

(each instance handles a subset of the transactions)

and OLAP workloads (multiple instances cooperate

to execute a large analytical query).

2.2 KiVi Storage Manager

KiVi is a parallel-distributed storage manager. One of

its differential features is that it is optimized to run

efficiently on many-core and NUMA architectures

(Ricardo Jiménez-Peris, 2019). Basically, a different

KiVi server is deployed at each of the cores that are

dedicated to the storage layer.

Each table is horizontally partitioned into regions.

Each region comprises a range of primary keys. The

region is the distribution unit across servers. When a

row is inserted it will hit the server managing the

region where the row belongs (based on the primary

key range of the horizontal partition).

Client applications access LeanXcale database

through the SQL interface, via the JDBC driver.

Internally, KiVi is accessed by the query engine

subsystem. KiVi offers a key-value API. This API is

internally used by the query engine to interact with

the storage layer. However, this API is also available

to be used directly by client applications. In this way,

LeanXcale database offers a dual-interface, key-value

and SQL.

This dual interface has the advantage that

whenever it is convenient it becomes possible to

avoid the overhead of SQL processing by directly

accessing the key-value interface that is accesing the

same relational data as SQL.

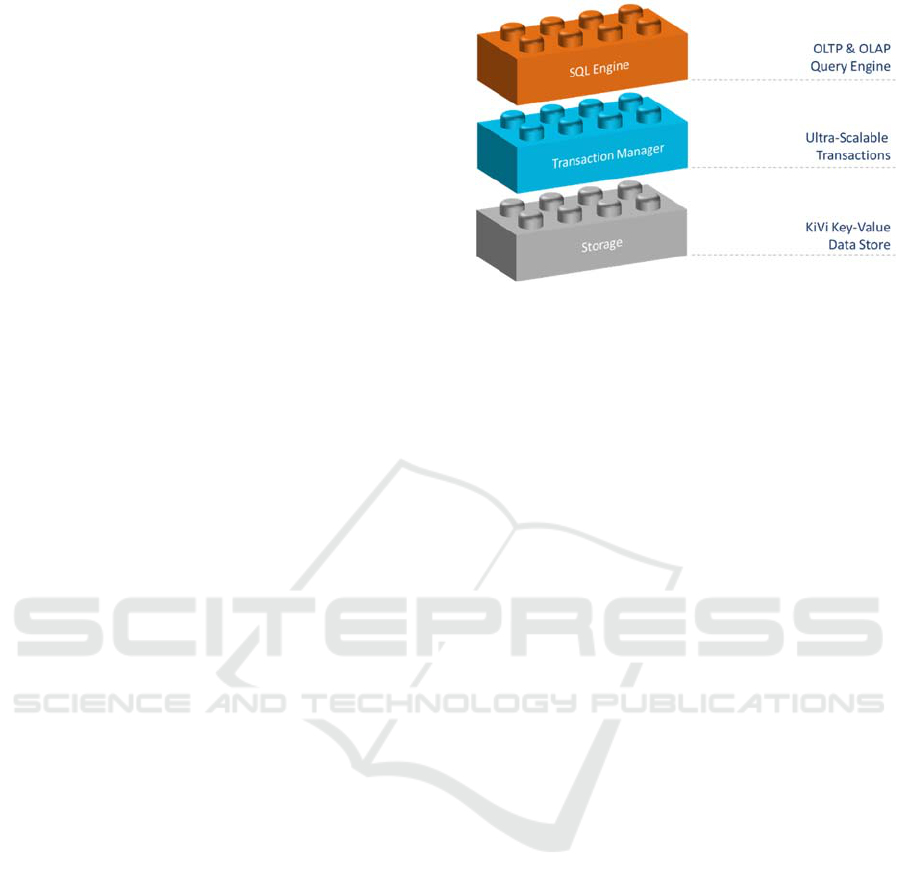

Figure 1: LeanXcale subsystems.

3 LeanXcale ARCHITECTURE

3.1 What Is LeanXcale Database

LeanXcale is an ultra-scalable operational Full SQL

Full ACID distributed database (Ozsu and Valduriez,

2014) with analytical capabilities. The database

system consists of three subsystems:

1. KiVi Storage Engine.

2. Transactional Engine.

3. SQL query Engine.

3.2 LeanXcale Subsystems

The operational database is a quite complex system in

terms of different kinds of components. The

operational database consists of a set of subsystems

namely: the Query Engine (QE), the Transactional

Manager (TM), the Storage Engine (SE) and the

Manager (MG). Some subsystems are homogeneous

and other heterogeneous.

Homogeneous subsystems have all instances of

the same kind of role. Heterogenous subsystems have

different roles. Each role can have a single instance

or multiple instances. The transactional manager has

the following roles: Commit Sequencer (CS),

Snapshot Server (SS), Conflict Managers (CMs) and

Loggers (LGs). The former two are mono-instance,

whilst the latter two are multi-instance. The Storage

Engine has two roles data server (DM) and meta-data

server (MS), both multiple instances. The query

engine is homogeneous and multi-instance. There is a

manager (MNG) that is single instance and single-

threaded. Many of these components can be

replicated to provide high availability, but their nature

does not change. Since replication it is an orthogonal

topic, we do not mention anymore.

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

466

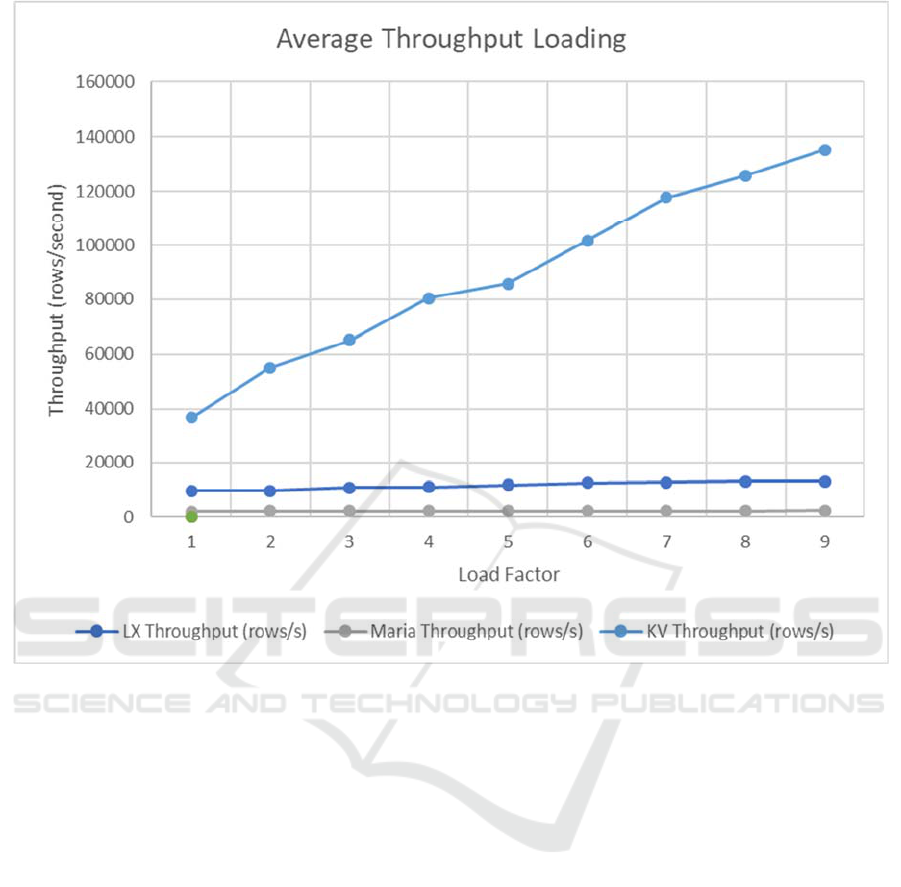

Figure 2: Loading Throughput.

4 THE PARALLEL LOADER

As aforementioned it does not matter how powerful

is a database or data store. Loading has to be done

carefully to attain its maximum loading capacity.

The first aspect to be taken into account is the

parallelism in the loader itself. Assume, there is a

database able to handle 1 million insertions per

second. Assume that the average latency of the

insertion at this maximum throughput is 1 ms. If the

loader is single threaded, it would do 1000 insertions

per second. Why? Because it is limited by the latency

of a single insertion that does not exploit the

parallelism in the database. To reach the maximum

throughput we will need 1,000 threads inserting data.

A single computer might not be enough to generate

this load what might require having the threads spread

across multiple processes running on different

computers.

This is why a loader should be parallel and this is

key for the speed of the loading process, that is, to

reach the maximum speed of loading.

However, the parallelism of the loader on the

client side it is not enough. Despite the database

server might be parallel or distributed, to reach its

maximum potential data should be split evenly across

the different server instances of the database server.

This partitioning of data across server instances is not

easy, especially because it has to guarantee balancing

across them.

This even partitioning requires to know about the

data distribution. Doing it accurately guarantees a

perfect split of data across servers. However, the

accurate splitting is too expensive. For this reason, we

have developed a data sampler. The data sampler

samples a subset of the data. The number of samples

that are needed depend on the dataset to be loaded.

We have run a number of experiments with different

dataset sizes, different number of regions and

different number of samples. We have measured the

resulting imbalance across regions. We have seen that

basically by multiplying by 10 the number of

samples, the inaccuracy can be reduced by around 3

times. For a dataset of up to 600 million rows, a sam-

Parallel Efﬁcient Data Loading

467

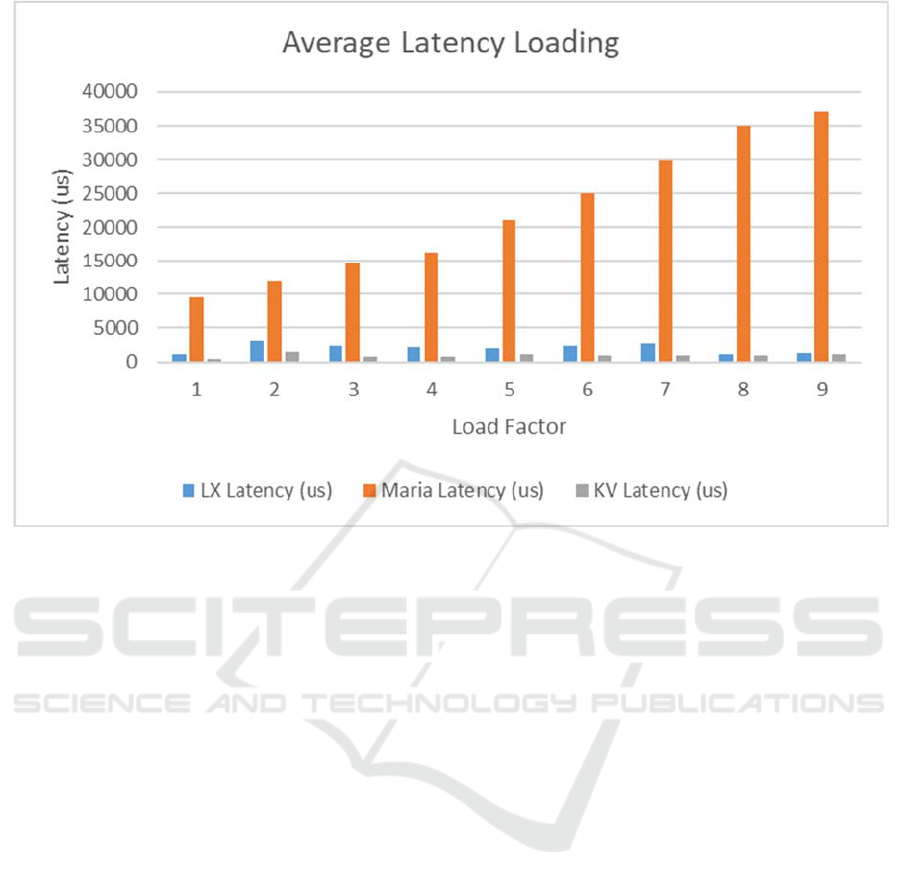

Figure 3.

ple of 10,000 rows provides a fairly good accuracy

(Azqueta-Alzuaz, 2017).

After running the sampling process over the

dataset to be loaded, then split points are set on the

table that establish how data will be horizontally

partitioned across the different servers.

5 EXPERIMENTAL

EVALUATION

We have evaluated the parallel loader with LeanXcale

database through its two interfaces, SQL and key-

value. We compare the results with the parallel

loading over a well-known open source database,

MariaDB.

The evaluation has been performed over an

INTEL quad computer with 8 GB of memory and 1

SSD.

The injection is made through the parallel loader

with a load factor. The bigger the load factor, the

higher the number of threads/processes in the parallel

loader ingesting data into the database.

The results are shown in Figure 1 and Figure 2.

Figure 1 shows the evolution of throughput for an

increasing loading factor. MariaDB was able to reach

a maximum of 2,628 rows/second. LeanXcale with

the SQL/JDBC interface (LX) was able to reach

13,062 rows/second that is almost 5 times higher

throughput. Interestingly the key-value interface

(KV) reached a throughput of 135,220 rows/second,

what means it was doing 10 times more than

LeanXcale through the SQL interface and more than

50 times what MariaDB was able to do.

Figure 2 shows the results for latency. MariaDB

has the poorest results, with a latency of 37 ms for the

highest throughput it achieved. LeanXcale SQL

interface was attained a latency of 1.3 ms under the

maximum throughput. While LeanXcale KiVi

interface had a latency of 1 ms for the maximum

throughput figure.

6 CONCLUSIONS

The more performant and the scalable a database, the

more careful it requires to perform the loading

process. Otherwise, most of its capacity will be

wasted.

In this paper, we have presented a parallel loader

that is able to exercise the maximum throughput of

LeanXcale database. It does so by having parallelism

on the loader multi-process and multi-threaded to be

able to inject data at the maximum rate that

LeanXcale database can handle.

Secondly, a sampler has been developed that ena-

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

468

bles to set a priori the split points of the tables to be

loaded to guarantee that the insertion load is

distributed evenly across all server instances of

LeanXcale.

Thirdly, the key-value of LeanXcale storage layer,

KiVi, it is exercised to avoid the overhead of SQL

processing.

A evaluation has been conducted and it has been

found that the LeanXcale key-value interface is able

to load data 10 times faster than the LeanXcale SQL

database. Interestingly, it was able to load data 50

times faster than MariaDB.

ACKNOWLEDGEMENTS

This work has been partially funded by the European

Commission under the H2020 project:

CloudDBAppliance – European Cloud In-Memory

Database Appliance with Predictable Performance

for Critical Applications. Project number: 732051.

REFERENCES

Ainhoa Azqueta-Alzuaz, M. P.-M.-P. (2017). Massive Data

Load on Distributed Database Systems over HBase.

CCGRID Proceedings.

Ricardo Jiménez-Peris, F. B. (2019). NUMA-Aware

Deployments for LeanXcale Database Appliance.

CLOSER Workshop.

Özsu, T., P. Valduriez. Distributed and Parallel Database

Systems. Computing Handbook, 3rd ed. 2014.

LeanXcale. http://leanxcale.com. 2019

CloudDBAppliance. https://clouddb.eu/ 2019.

Parallel Efﬁcient Data Loading

469
