Effective Remote Drone Control using Augmented Virtuality

Kamil Sedlmajer, Daniel Bambu

sek and V

ıt

ezslav Beran

Brno University of Technology, Faculty of Information Technology, Centre of Excellence IT4Innovations,

Bozetechova 1/2, Brno, 612 66, Czech Republic

Keywords:

Augmented Virtuality, UAV, Drone Piloting, Virtual Scene, Navigation Elements, First Person View, Third

Person View.

Abstract:

Since the remote drones control is mentally very demanding, supporting the pilot with both, ﬁrst person view

(FPV) and third person view (TPV) of the drone may help the pilot with orientation capability during the

mission. Therefore, we present a system that is based on augmented virtuality technology, where real data

from the drone are integrated into the virtual 3D environment model (video-stream, 3D structures, location

information). In our system, the pilot is mostly piloting the drone using FPV, but can whenever switch to TPV

in order to freely look around the situation of poor orientation. The proposed system also enables efﬁcient

mission planning, where the pilot can deﬁne 3D areas with different potential security risks or set naviga-

tion waypoints, which will be used during the mission to navigate in deﬁned zones and visualize the overall

situation in the virtual scene augmented by online real data.

1 INTRODUCTION

Nowadays, the use of unmanned aerial vehicles

(UAVs) extends to a wide range of areas, from res-

cue services and police forces to the commercial sec-

tor. Drones are used to monitor the quality of high

voltage structures, the development of infrastructure

outages, or to support complex interventions by res-

cue or police units. In all cases, the use of a drone

requires high skill and mental demand for the drone

operator.

Recent research let arise to various autonomous

modes, where the drones are able to perform a pre-

cisely predeﬁned mission independently and without

the need for operator intervention. Unfortunately, to-

day there is no problem in solving a wide range of

tasks with the autonomous capability of the drone,

but with the operator’s legal constraints. For this rea-

son, it is necessary to look for a different solution.

This article deals with solving this situation by link-

ing autonomous drone functions to operator control.

The article seeks to reduce the operator’s mental load

in controlling drone in action using semi-autonomous

drone functions.

Legal constraints today do not allow the full use

of autonomous drone functions. Similarly, existing

drone control solutions are now extremely burden-

some for the operator. Orientation in space, keeping

in safe zones, tracking key mission points, all of this

makes the operation of the drone operator quite chal-

lenging.

Based on the study of existing tools and published

results in the ﬁeld, supported by own drone control

experience, this work aims to deﬁne the key attributes

of attention to the drone’s operator and proposes a

range of visualization and interactive features to re-

duce the drone operator’s mental load, using aug-

mented virtuality.

The key elements, that this study builds on, are the

use of available topography maps, elevation maps, 3D

data and virtual objects to enhance mission navigation

clarity. The proposed solution combines existing data

sources into a 3D virtual scene, augmented by on-

line drone camera video-stream and other drone sen-

sor data, as well as user-deﬁned virtual objects such

as safe zone boundaries or key points of a planned

mission.

2 RELATED WORK

With an increasing popularity of drones, new effec-

tive methods for piloting them are emerging. Some

are concentrating solely on autonomous ﬂights with

autonomous obstacle avoidance algorithms (Gageik

et al., 2015) and (Devos et al., 2018), others are fo-

cusing on various user interfaces for manual drone

Sedlmajer, K., Bambušek, D. and Beran, V.

Effective Remote Drone Control using Augmented Virtuality.

DOI: 10.5220/0008349401770182

In Proceedings of the 3rd International Conference on Computer-Human Interaction Research and Applications (CHIRA 2019), pages 177-182

ISBN: 978-989-758-376-6

177

controlling, such as gesture-based, voice-based, or re-

mote controllers along with head-mounted displays

(HMD). Recently, there were some experiments for

controlling drones using brain-computer interfaces

(Nourmohammadi et al., 2018) and (Mamani and

Yanyachi, 2017). More common are attempts of di-

rect drone control using gestures, which are detected

with use of vision based methods from either drone

attached cameras (Fern

andez et al., 2016), (Natara-

jan et al., 2018) or from additional hand tracking

devices, such as the Leap Motion (Gubcsi and Zse-

drovits, 2018). Unfortunately, such approaches are

usable only for piloting the drone within a close dis-

tance rather than piloting it remotely. When piloting

the drone remotely, but still from a visible distance,

using some remote controller, it is often difﬁcult to

distinguish the drone’s front face, which causes high

workload on the operator. In order to lower this work-

load, Cho et al. introduced an egocentric drone con-

trol approach, which keeps the drone’s back face au-

tomatically rotating towards the operator, who is pi-

loting the drone from his/hers perspective (Cho et al.,

2017).

To enable the user to control the drone completely

remotely, without directly observing it, it is crucial to

provide the user some sort of vision from the drone

perspective. Currently, there are many commercially

available products that are able to transmit the image

from the drone attached camera into either the HMD,

handheld display or regular screen in order to provide

the ﬁrst person view (FPV) for the operator. However,

most of them only sends monocular video feed, which

is insufﬁcient in terms of perceiving distances, depths

and proportions inside the FPV. The solution to over-

come this problem has proved to be the attachment of

two cameras to the drone to enable the stereoscopic

vision inside the HMD (Smolyanskiy and Gonzalez-

Franco, 2017).

Using remote controllers require attention and de-

veloped skills during piloting. Replacing them with

wearable interfaces, such as exoskeleton suit with

smart glove, could enable a more natural and intu-

itive drone control, where the operator feels more im-

mersed (Rognon et al., 2018). Unfortunately, the op-

erator could still struggle with awareness of drone sur-

roundings that are out of drone camera’s ﬁeld of view

(FoV). There comes in place the idea of placing the

camera image into a virtual environment model, in or-

der to extend the limited FoV (Calhoun et al., 2005).

The image, along with the virtual model, can be aug-

mented with waypoints, danger zones or points of in-

terest. We believe that enabling the operator to when-

ever switch from the FPV into a third person view

(TPV), where he/she can see whole drone situated in

a virtual environment, should improve operator’s sit-

uation awareness and reduce the mental load.

3 PROPOSED INTERFACE

The main goal of this work is to design a visualiza-

tion system and navigation elements that will reduce

the operator’s mental strain when piloting the drone

over longer distances. We deﬁne the following key

attributes and how to resolve them:

1. Off-line and on-line spatial and sensory data fu-

sion.

2. Virtual cameras.

3. Navigation or security structures.

Operator orientation might be improved by the

TPV. The presented solution is based on virtual 3D

scene augmented by real on-line data registered and

visualized in the virtual scene (Augmented Virtuality).

The 3D scene is created from the available free map

data sources (topological, elevation). The 3D model

of the drone inserted to the scene is controlled (posi-

tion and orientation) by the data transmitted from the

real drone. A video-stream from the camera on the

drone is also rendered to the virtual scene. All com-

bined spatial data must be properly registered into a

local coordination frame. The pilot is then able to

control the drone as usual (FPV), but can also unlock

the camera and move to the TPV and see the drone

and its surroundings. The operator’s FoV is signiﬁ-

cantly expanded. This concept is depicted in the Fig-

ure 1.

The rendering of the video-stream to the vir-

tual scene can be realized in several different ways.

The ﬁrst is to project it into a huge virtual screen (see

Figure 1). The screen size depends on the FoV of

the physical camera with either a plane or a suitably

curved surface. The screen is moving at a ﬁxed dis-

tance from the drone and follows the drones’ position

and orientation. The other option is to project the im-

age directly onto objects in the scene. The usability of

the video projection onto virtual scene requires very

precise registration between the 3D virtual scene and

the drone.

Virtual cameras in the 3D scene provides the

user with ability to look into the scene from any view-

point and to manipulate the camera freely. E.g. the

operator can stop the drone in a safe position (safe dis-

tance from the obstacle) and move around the scene

by ﬂying with the virtual camera. When the virtual

camera is ﬁxed, the operator can switch back to con-

trol the drone and observe the scene from a new vir-

tual position.

CHIRA 2019 - 3rd International Conference on Computer-Human Interaction Research and Applications

178

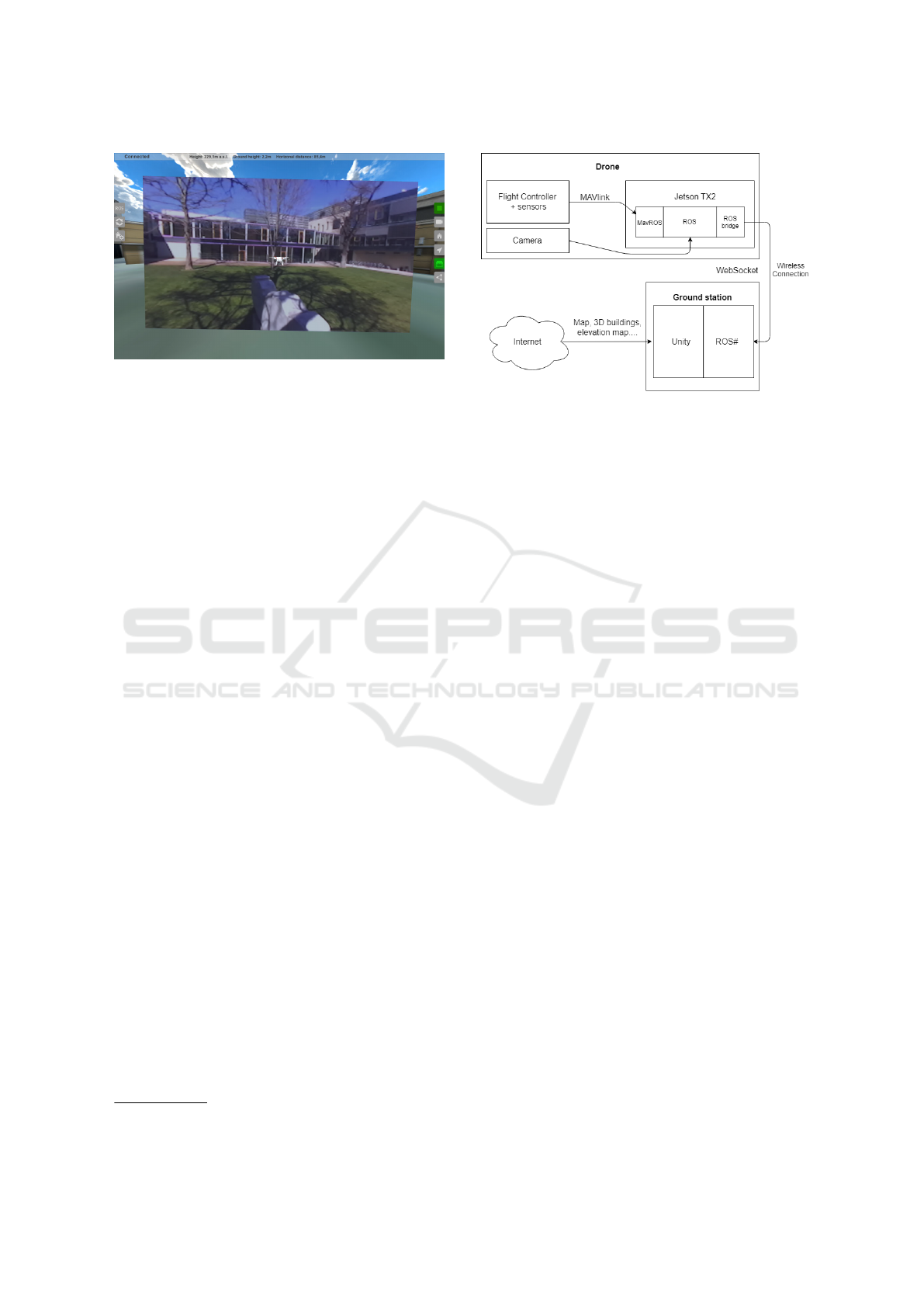

Figure 1: Concept of controlling the drone from the third

person view. The virtual screen (with the video feed) moves

at a certain distance in front of the drone and is synchro-

nized with the physical gimbal conﬁguration.

Another way to increase the safety of remote

drone control is visualization of other sensor data,

such as depth data, usually presented by 3D point

cloud, that samples outer surfaces of objects around.

This data signiﬁcantly reﬁne and complement the

world model created from off-line data and allow the

pilot to have a much better overview of the static

obstacles around the drone, such as trees, buildings,

cars, etc.

The use of augmented virtuality further provides

the operator with the ability to add navigation or se-

curity structures to the scene. One such element

may be virtual walls. These can deﬁne a space in

the scene, such as unauthorized entry or a safe zone.

Since such zones are often up to a certain height, dis-

playing them in 3D scene is far more perspicuous than

displaying them on a 2D map.

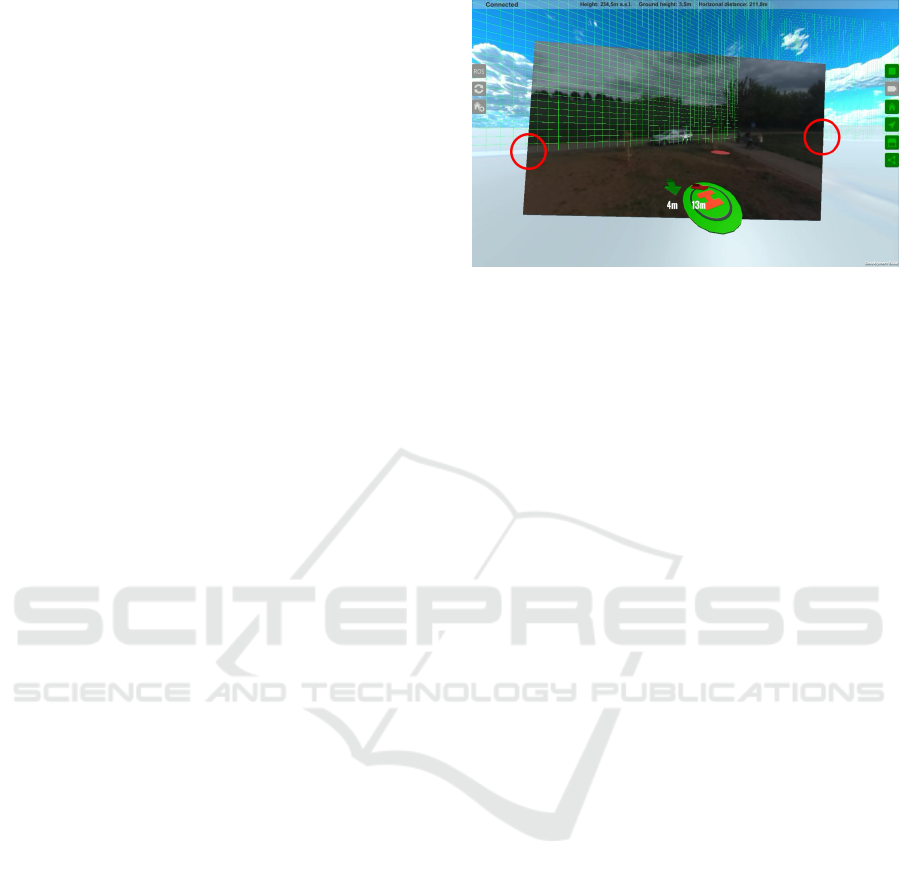

Another elements, e.g. for a ﬂight in a more com-

plex environment with a number of obstacles, are

navigation arrows that point to waypoints. As a re-

sult, the pilot will always know which direction to ﬂy

and the task is just to avoid the obstacles. These way-

poins can be placed not only on the ground, but also at

a speciﬁc height in the air. The application should also

be able to navigate back to the starting point and the

pilot should be able to display both navigation arrows

at once. One will point to the starting point, the other

to the current waypoint. In addition to the arrows, the

distance to a given point may also be displayed.

4 SYSTEM ARCHITECTURE

The testing application was developed using the Unity

game engine. For creating the 3D virtual envi-

ronment, we used the plugin MapBox

. The plu-

https://docs.mapbox.com/unity/maps/overview/

Figure 2: Communication between the drone and the

ground station. On the application side, the ROS# library

communicates with the drone via Rosbridge, where the data

are transmitted via the WebSocket protocol. The applica-

tion also automatically downloads maps, 3D buildings and

heightmaps from the Internet.

gin automatically loads the environment maps and

heightmaps in order to create the terrain in Unity.

MapBox also includes several map layers with 3D

building models, which are not perfect (rough build-

ing shapes, approximate heights, unrealistic textures

or fake rooftop shapes), but they are still sufﬁcient for

our proof of concept. For a better quality virtual en-

vironment, virtual objects and textures from Google

Maps, which are currently the best on the market,

could be used. However, Google does not provide

them to third parties yet.

For a successful combination of the virtual scene

with the real drone, it is necessary to transmit follow-

ing data from the drone into the ground station:

• Drone’s position (pair of coordinates in WSG84

format).

• Drone’s rotation (yaw – angle obtained from an

electronic compass on the drone; pitch and roll).

• Compressed drone-attached camera stream.

• Drone-attached camera rotation (in respect to the

drone).

• Other available sensor data (e.g. point cloud, bat-

tery status, ﬂight speed, ﬂight mode).

The method is based on 3D virtual scene model.

The 3D virtual data are integrated from existing data

sources and the coordination system is registered to

actual real drone position. The GPS drone coordi-

nates and orientation data is used for registration with

virtual 3D frame. The augmentation of the virtual 3D

scene is achieved by rendering the live video-stream

from the drone front camera to projection plane in

front of the virtual drone. The video latency is an im-

portant issue and highly inﬂuence the quality of the

Effective Remote Drone Control using Augmented Virtuality

179

interaction with the proposed system. The video la-

tency hardly depends on the quality of the WiFi sig-

nal, i.e. distance between the drone and the station.

The additional navigation UI elements, like mission

points, direction to next point or virtual walls, are ren-

dered into virtual scene and presented to the user. The

registration method might be improved by computer

vision techniques, but this step will be considered

later according to user tests, when the effect of rough

GPS and compass based registration and caused video

latency will be considered by professional pilots as an

important issue.

The communication protocol is dependent on the

drone manufacturer, drone’s control unit and used

software. In order to have customization possibil-

ities, we built our custom experimental drone (see

Figure 3), which comprises of the Pixhawk control

unit with PX4 Autopilot software, Nvidia Jetson TX2

with the Ubuntu OS, stereoscopic camera, GPS and

a compass. We chose the communication over WiFi

between the drone and the base station. WiFi com-

munication is limited in transmit distance, but has a

high data throughput. The PX4 Autopilot uses the

MAVlink communication protocol, which is trans-

ferred into the MavRos protocol of the ROS operating

system (running on the Nvidia Jetson) over the Ros-

bridge tool. The communication scheme is depicted

in the Figure 2. The system architecture is described

in more detail in (Sedlmajer, 2019).

5 RESULTS

A test application was created with the implementa-

tion of several basic elements described in the pre-

vious chapter; and several real drone tests were per-

formed. Since it was only an experimental platform

with a gimbal-free camera and connection to a ground

station via WiFi, which was limited in scope, it was

only possible to perform the testing with limited re-

strictions. In spite of this, it was possible to try out

a few basic use cases where the tests showed that the

concept works and it is possible to control the drone

with it. The application was built and tested on a lap-

top.

5.1 Test 1: Monitoring the Area Where

the Drone Must Not Fly

When using a drone, for example, in the service of the

police, it is often necessary to monitor an area (road,

demonstration area, etc.). However, the police must

also comply with the legal constraints, therefore their

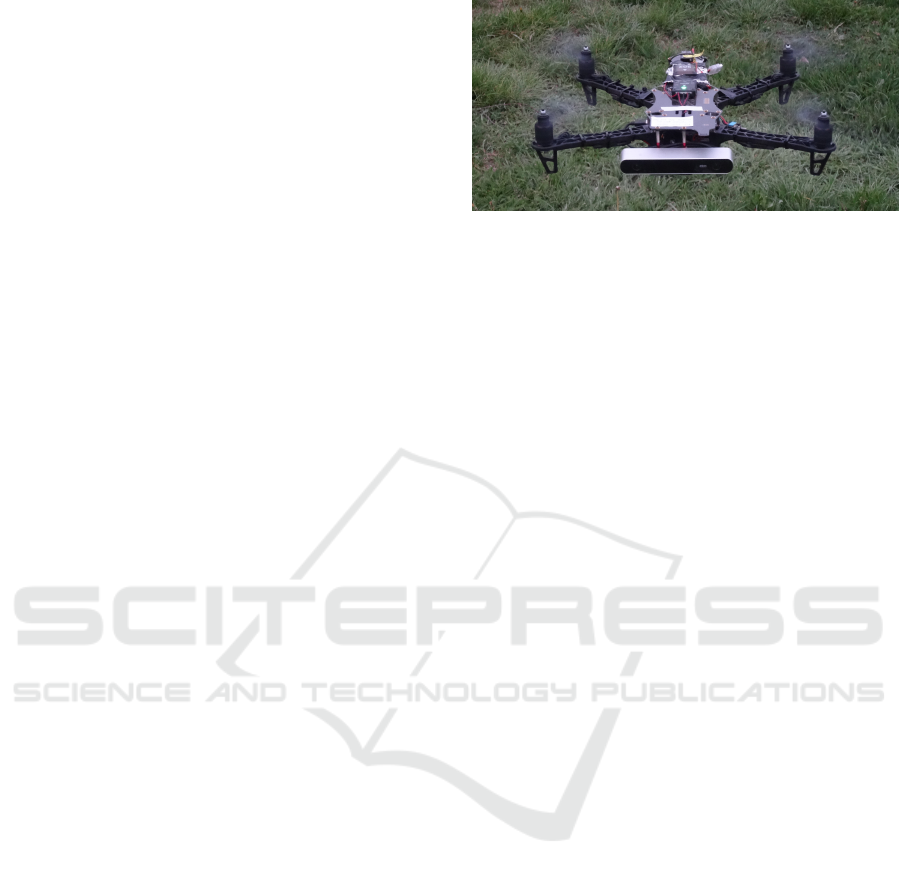

Figure 3: Test drone with Pixhawk control unit, ZED stereo-

scopic camera and Nvidia Jetson supercomputer, shot just

above ground.

drones must not be ﬂown, for example, near a high-

way or over a square full of people. If a pilot wants to

use the drone to track the area, but to keep it out of its

protective zone, he must constantly check where the

drone is.

The ﬁrst designed test ﬂight was supposed to

check whether adding virtual walls, representing bor-

ders of such areas, would help the pilot stay on their

edge while observing what is happening around.

Virtual transparent walls were very useful in this

test when ﬂying inside the area, because the pilot sees

clearly that he is approaching the border, or that he has

just ﬂown through it (see Figure 4). But the ﬂight at

the walls’ border proved surprisingly difﬁcult. When

ﬂying near these walls (about 5-8 m) it is really hard to

estimate their distance. Therefore, it would be useful

to hide them and display only the nearest part of the

border when the drone really approaches it. The sec-

ond option could be to gradually make the walls more

transparent if the drone moves away from them. Most

clearly, the part of the border that is closest to the

drone would shine, the distant parts would be com-

pletely hidden. So if the pilot saw a glowing grille in

front of him, he would know with absolute certainty

that the border is very close. The distance, at which

the boundary would appear, would be good to adjust

to the speed at which the drone is approaching it, so

that the pilot always has enough time to react, but at

the same time the boundary does not unnecessarily

interfere with the pilot’s vision.

Another problem was the blending of the virtual

wall with a virtual screen that was distracting and un-

pleasant. But even the proposed solution could at

least partially solve this problem, because only the

part of the boundary that is really needed at that mo-

ment would always be displayed.

CHIRA 2019 - 3rd International Conference on Computer-Human Interaction Research and Applications

180

5.2 Test 2: Exploration of a Distant

Object and Flight between

Obstacles

This test mimicked another fairly common task – ex-

ploring a more distant object (such as a house or a

parked car) that is too far away from the drone, caus-

ing the pilot to ﬂy closer to it. Here, the aim was to

test whether the application really could help to im-

prove the pilot’s spatial orientation during the ﬂight

to this location, the object being explored, and the re-

turn to the starting point. In this test, it was assumed

that the pilot knows the position of the object in ad-

vance and can create a waypoint on the object’s po-

sition and navigate to it. The second part of the test

was a low altitude ﬂight between obstacles, when it is

not possible to use an autonomous ﬂight, but the pi-

lot must manually get through a lot of obstacles (e.g.

trees) and not to lose the spatial orientation and di-

rection of the ﬂight even with no landmarks around.

It is not possible to use map data in this mode, be-

cause it is necessary to ﬂy using a video only in order

to watch obstacles carefully. Here, however, naviga-

tion arrows could help, because they keep the pilot in-

formed about the direction to the waypoint and back

to the starting point. This allows the pilot to accom-

plish the task faster.

When testing a remote object survey, an object

was placed on the ground at a distance of approxi-

mately 60 m from the starting point, and a waypoint

was created at that point. Between the starting point

and this point was an asphalt cycle path and several

rows of freshly planted young trees that created nat-

ural obstacles. Since there were only meadows and

low trees nearby, there were hardly any natural land-

marks. Orientation only by the poor quality video

stream was very demanding. However, during this

test, the navigation arrows, which performed perfectly

in their role, had greatly facilitated spatial orienta-

tion and signiﬁcantly helped to reduce cognitive stress

during driving. It was not necessary to search for nat-

ural landmarks, it was enough to observe nearby ob-

stacles, a navigation arrow and a gradually decreas-

ing distance to the destination. After a while, a target

point indicator appeared on the ground.

But at this stage, there was a problem, because the

target waypoint was constantly traveling the ground

a few meters in all directions from a relatively small

target. This was probably due to the inaccuracy of

GPS navigation. In an effort to circumvent the exam-

ined object and explore it from all sides, the constant

movement of this point and the confused rotation of

the arrow was very annoying and confusing. Surpris-

ingly, this subject was complicated.

Figure 4: Screen of the implemented application based on

augmented virtuality. The virtual environment model is

augmented with the data from the real drone – position and

orientation, which are used to render the virtual drone in

the scene; camera image that is aligned with the virtual en-

vironment model (marked with the red circles); and other

sensor data. This environment model can be enriched by

virtual walls (the green grille) that can mark restricted areas

or with a waypoints and direction arrows.

It was much easier to do the ﬂy around and survey

with the navigation arrow turned off, by video only.

At this point, it would probably be better if the nav-

igation elements were automatically hidden after ar-

riving close to the target and appeared again only if

the drone moved away from the target again.

On the other hand, the second arrow pointing to

the starting point could be used for orientation, as a

some sort of compass that makes clear how the drone

is being turned. In addition, for a pilot, a pointer to

the starting point is somewhat more natural than an

ordinary compass pointing to the north.

5.3 Discussion

Overall, the implemented application was relatively

pleasant to use and the fact that it was able to partially

compensate the absence of gimbal was positively ap-

preciated. Indeed, by moving the video according to

the current tilt of the drone, the objects on the video

were still displayed at approximately the same loca-

tion in the scene. Of course, the convenience of using

the application was reduced by controlling the cam-

era’s rotation with the arrow keys of the laptop key-

board. This convenience could be increased by con-

nection of VR glasses with head-tracker, which would

allow the pilot to naturally look around the scene.

On the other hand, the application did not work

very well at very low altitudes (up to 3 m), where the

ﬂight altitude and the distance from smaller objects

were very poorly estimated. However, this problem

also occurs in the ﬁrst person view (FPV). Surpris-

ingly, adding a drone model to the scene did not re-

Effective Remote Drone Control using Augmented Virtuality

181

duce the problem, but slightly increased it.

Quite surprisingly, the virtual screen with the cam-

era image was relatively well-connected to the virtual

scene most of the time, which even slightly exceeded

expectations, especially given that the test drone cer-

tainly did not have the most accurate sensors avail-

able. Professional drone data is likely to be even more

accurate.

The further development will be primarily focused

on solving problems that were discovered during test-

ing and on other designed ideas that were not imple-

mented (e.g. the visualization of other sensor data,

the point cloud, and the completion of area boundary

visualization). Then, VR glasses with a head-tracker,

which allows natural looking around the scene, will

be connected to the application. Another such thing

is to implement a free camera and test its capabilities.

6 CONCLUSIONS

The aim of this work was to improve pilot’s orienta-

tion and to reduce his mental load during the drone

remote control. Based on research and experience,

a system has been designed that is based on aug-

mented virtuality, where on-line data from drone sen-

sors (video-stream, ﬂight data, etc.) are integrated

into the virtual environment model. The 3D vir-

tual model consists of the data from external data

sources like topography maps, elevation maps and

3D building models. The model also includes the

user-speciﬁed planned mission information like way-

points, safe zone boundaries or ﬂight directions.

The system architecture is designed to be scalable

to communicate with multiple drones simultaneously.

This could be useful in situations where more pilots

are simultaneously carrying out a mission and have to

work together.

The preliminary user tests proved that the pro-

posed concept and technical implementation of the

entire system improves the operator’s orientation and

navigation skills and so reducing the mental load.

More user tests are planned in future work. The pro-

fessional pilots will test the system to reﬁne the con-

cept, to improve or include more UI elements and for

further development based on their needs.

ACKNOWLEDGEMENTS

The work was supported by Czech Ministry of Educa-

tion, Youth and Sports from the National Programme

of Sustainability (NPU II) project “IT4Innovations

excellence in science – LQ1602” and by Ministry of

the Interior of the Czech Republic project VRASSEO

(VI20172020068, Tools and methods for video and

image processing to improve effectivity of rescue and

security services operations).

REFERENCES

Calhoun, G., H. Draper, M., F Abernathy, M., Delgado, F.,

and Patzek, M. (2005). Synthetic vision system for

improving unmanned aerial vehicle operator situation

awareness. Proceedings of SPIE - The International

Society for Optical Engineering, 5802.

Cho, K., Cho, M., and Jeon, J. (2017). Fly a drone safely:

Evaluation of an embodied egocentric drone controller

interface. Interacting with Computers, 29(3):345–

354.

Devos, A., Ebeid, E., and Manoonpong, P. (2018). De-

velopment of autonomous drones for adaptive obsta-

cle avoidance in real world environments. In 2018

21st Euromicro Conference on Digital System Design

(DSD), pages 707–710.

Fern

andez, R. A. S., Sanchez-Lopez, J. L., Sampedro, C.,

Bavle, H., Molina, M., and Campoy, P. (2016). Nat-

ural user interfaces for human-drone multi-modal in-

teraction. In 2016 International Conference on Un-

manned Aircraft Systems (ICUAS), pages 1013–1022.

Gageik, N., Benz, P., and Montenegro, S. (2015). Obstacle

detection and collision avoidance for a uav with com-

plementary low-cost sensors. IEEE Access, 3:599–

609.

Gubcsi, G. and Zsedrovits, T. (2018). Ergonomic quad-

copter control using the leap motion controller.

In 2018 IEEE International Conference on Sens-

ing, Communication and Networking (SECON Work-

shops), pages 1–5.

Mamani, M. A. and Yanyachi, P. R. (2017). Design of com-

puter brain interface for ﬂight control of unmanned air

vehicle using cerebral signals through headset elec-

troencephalograph. In 2017 IEEE International Con-

ference on Aerospace and Signals (INCAS), pages 1–

Natarajan, K., Nguyen, T. D., and Mete, M. (2018). Hand

gesture controlled drones: An open source library.

In 2018 1st International Conference on Data Intel-

ligence and Security (ICDIS), pages 168–175.

Nourmohammadi, A., Jafari, M., and Zander, T. O. (2018).

A survey on unmanned aerial vehicle remote control

using brain–computer interface. IEEE Transactions

on Human-Machine Systems, 48(4):337–348.

Rognon, C., Mintchev, S., Dell’Agnola, F., Cherpillod,

A., Atienza, D., and Floreano, D. (2018). Fly-

jacket: An upper body soft exoskeleton for immersive

drone control. IEEE Robotics and Automation Letters,

3(3):2362–2369.

Sedlmajer, K. (2019). User interface for drone control using

augmented virtuality. Master’s thesis, Brno University

of Technology, Faculty of Information Technology.

Smolyanskiy, N. and Gonzalez-Franco, M. (2017). Stereo-

scopic ﬁrst person view system for drone navigation.

Frontiers in Robotics and AI, 4.

CHIRA 2019 - 3rd International Conference on Computer-Human Interaction Research and Applications

182
