A Flexible Schema for Document Oriented Database (SDOD)

Shady Hamouda

1,2

, Zurinahni Zainol

and Mohammed Anbar

Emirates College of Technology, Abu Dhabi, U.A.E.

School of Computer Sciences, Universiti Sains Malaysia, 11800 USM, Penang, Malaysia

National Advanced IPv6 Centre (NAv6), Universiti Sains Malaysia, 11800 USM, Penang, Malaysia

Keywords: Schema, Document-Oriented Database, NoSQL.

Abstract: Big data is emerging as one of the most important crucial issues in the modern world. Most studies mention

that a relational database cannot handle big data. This challenge has led to the presentation of the not only

structured query language (NoSQL) database as a new concept of database technology. NoSQL supports

large volumes of data by providing a mechanism for data storage, retrieval and more flexible than a

relational database. One of the most powerful types of NoSQL database is the document-oriented database.

Recently, many software developers are willing to migrate from using relational databases to NoSQL

database because of scalability, availability, and performance. The document-oriented database has

challenged as to how to obtain an appropriate schema for the document-oriented database. The existing

approach to migrate a relational database to a document-oriented database does not consider all the

properties of the former, especially on how to handle various types of relationships. This research proposed

a flexible schema for a document-oriented database (SDOD). This study evaluated the development of

agility based on the schema of a document-oriented database and query execution time. The evaluation

verifies the reliability of the proposed schema.

1 INTRODUCTION

The demand to migrate from a relational database to

a document-oriented database has increased because

of the complex structure of data and the different

data types (El Alami & Bahaj, 2016; Hanine et al.,

2016; Stanescu et al., 2017). Therefore, moving

from table to document will be more efficient. The

idea of migration from a relational database to a

document-oriented database is conducted by

migrating the data without loss or changing any

structure of the original database.

However, there are many challenges and

complex problem for design schema for NoSQL

database such as there are no tools or methodology

available to support a good schema (Mior et al.,

2017). Also, there is still a lack of strategies for

conceptually representing the data model for a

document-oriented database (Guimaraes et al.,

2015). Moreover, NoSQL databases offer many

challenges such as de-normalization is required for

high performance in NoSQL databases and

repositories documents (Mior, 2014).

According to Zhao et al. (2014), normalization

and de-normalization are some of the variables that

must be considered when designing a schema, as it

can measure the schema quality. Mehmood et al.

(2017), found the evaluation schema quality can be

determined through the performance of

normalization and de-normalization of the

documents.

The problem is that an RDBMS data model

based on the relational model, and has a fixed

schema with structured data, whereas the NoSQL

can have any data format (Yoon et al., 2016).

Moreover, there is no schema for a document-

oriented database can recognise table type,

document structure, and forming documents

(Kanade et al., 2014; Moore et al., 2014) due to the

various ways of storage, management and

implementation in NoSQL. Besides, Tauro et al.

(2012) and Liang et al. (2015) mentioned that the

relational database and NoSQL are different models,

which make difficulties to migrate data from the

relational model to the NoSQL models.

In fact, the data models of NoSQL systems are

very complex as there are no tools available to

represent a scheme for NoSQL databases (Mohan,

Hamouda, S., Zainol, Z. and Anbar, M.

A Flexible Schema for Document Oriented Database (SDOD).

DOI: 10.5220/0008353504130419

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 413-419

ISBN: 978-989-758-382-7

413

2013). According to Mohan (2013), there is no

standard schema represent the data modeling of the

document-oriented database. Therefore, designing a

schema and implementing the document-oriented

database for big data applications are needed

(Guimaraes et al., 2015; Ogunyadeka et al., 2016;

Storey & Song, 2017). Also, modeling and querying

data in a document-oriented database is important,

as, it describes the rules and function of the system

(Atzeni et al., 2016). Therefore, it is necessary to

define a schema for the underlying principles of a

document-oriented database.

However, Mior et al. (2017) finding, although

the schema of a document-oriented model is

flexible, it is still necessary when designing the

schema to decide whether data is normalizing or de-

normalizing it before applying to a document-

oriented database application. Moreover, González-

Aparicio et al. (2017) observe that the normalization

of the data model is one of the important research

issues and there are no standard principles of

normalization in the NoSQL database.

In addition, there is no any a variable method to

normalize or de-normalize data to define an

embedded and reference approach for handling the

various types of relationships (Guimaraes et al.,

2015, Khan and Mane, 2013, Hanine et al., 2016,

Mehmood et al., 2017). According to Mehmood et

al. (2017), normalization and de-normalization are

the two variables that must be considered when

designing a schema. These variables can affect the

performance and storage effectively as the databases

grow very quickly. Therefore, this paper overcomes

the issues presented above by designing a schema

for a document-oriented database.

2 THE PROPOSED SCHEMA FOR

DOCUMENT ORIENTED

DATABASE (SDOD)

SDOD improve the concepts and data model of the

document-oriented database which present in the

previous studies Arora and Aggarwal (2013); Atzeni

et al., (2016); Bhogal and Choksi (2015); Hashem

and Ranc (2016) by providing features and

specification to design schema for a document-

oriented database. This study aims to design a

schema for the document-oriented database based on

ER Model.

2.1 SDOD Specification

The SDOD normalize the data redundancy through

two concepts; first is embedded document de-

normalization the relationships by the store a

subdocument into super-document collections, and

second is reference document that can be used to

normalization the relationship through linked the

collections between each other’s using a foreign key.

The component of ER schema is entities,

attributes, and relationships. This research represents

entity by Collection (C) and, attributes represent by

use Key-value (K), and the type of relationships

(1:1), (1: N), and (M: M) is represented through

embedded and reference document. This section

converts ER specification to the SDOD specification

based on the following Table 1.

Table 1: Specification of SDOD.

ER Specification SDOD Specification Descriptions and conditions

Strong entity Strong Entity {} Each Strong entity is representing by a collection with two braces.

Weak entity

Strong Entity {Weak entity

{}}

The weak entity is described by using embedded document into strong

entity.

Hierarchical Entity

HigherCollection {k1.ki,lower

collection[{k1..kj}]}

The hierarchical entity is represented by the higher hierarchical entity with

all the related attributes and the lower collection store as embedded

documents.

Ordinary attribute {K1,…..,Ki}

The attributes of each entity are described by using K, which represents the

name of the attribute. These attributes are listed inside two braces with a

comma in between.

Composite attribute CA{ K1, …,Ki }

CA the name of the composite attribute

Ki  a set of attributes names listed into the document with a comma

between them

i  number of composite attributes

Multi-valued

attribute

MV[K1,…,Ki]

The multi-valued attribute is described by the name of this attribute with an

array data type and [K1..Ki] represents all of the multi-values.

Derived attribute K# The derived attribute is described by a hash after the attribute K.

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

414

Table 1: Specification of SDOD. (cont.)

ER Specification SDOD Specification Descriptions and conditions

Attribute of the

relationship

(K1,….,Ki) The attributes of relationships are added to relationship document.

Primary key K The primary key is represented by an underline of the attribute.

Foreign key

The foreign key is represented by a dashed line of the attribute.

Unary relationship K@

The unary relationship is described by adding @ after the attribute K and the

name of the relationship.

One-to-one

relationship (1:1)

Embedded document

The 1:1 relationship is representing by using embedded document into the

related collection.

Reference document

if more relationships exist or the dataset of one side will exceed 16 MB (as

the document size is 16 MB) , then this relationship should be represented by

using the reference document.

One-to-many

relationship (1:M)

Embedded document

The 1:M relationship is described through the embedded document or

reference document depending on the size of the many relationship side .

If the many relationship side is small if M dataset is not exceed 16 MB or

less than a tens of thousands/hundreds of thousands/ millions records, and

also, there is no any other relationship.

Thus, 1:M is represent through embedded document, this embedded

document store into the related document.

Reference document

If the dataset of the many relationship side is exceed 16 MB or more than

tens of thousands/hundreds of thousands/millions records.

The 1:M relationship is described as a reference between two entities

through foreign key.

Many-to-many

relationship (M:M)

Collection1 name [{K1,….

Ki},….., Collection2

name{K1,…. Ki}]

The M:M relationship describes the references between two entities. This

type of relationship is identified by creating two collections named:

Collection1 and Collection 2, and then storing the primary key of the related

collection of the document of Collection 1 inside the collection side of

Collection 2, and vice versa. If store the document of Collection 1 inside

Collection 2, then the name of the document root becomes Collection 1.

The principal concept of the NoSQL data model

involves storing data as pairs of key–value. The key

is considered as the field of a table in a relational

database, while the value associated with the key can

be any type of data structure. Unlike the case in the

relational database, all the field data should have the

same structure and may have a null value. Moreover,

this pair of key-value can be collected into a

document that can represent the field with the record

in the relational database.

Consequently, a set of related documents are

stored and represented by a collection, which

considers the table of the relational database. Each

document can be identifying by a unique key or can

be automatically created by the database. This ID

becomes an index for the document or can create

other indexes depending on the application

requirements to speed up the query process.

Relationships between the collections can be

identifying in two ways: embedded and reference

document.

In the embedded document, the document can

contain another document. This model can lead to

the de-normalization of the database. Reference

documents consider the relationships of the

relational database, which shows the relationships

between the collections and the foreign key. A

document-oriented database store data using key-

value concept into an organized document in which

each key is used to store a value and this value can

be identified by a key. This concept can be

represented by a JavaScript Object Notation (JSON)

object. A JSON is a lightweight language of the data

format used to store and exchange data and it

follows the concept of JavaScript language ((Bansel

& Chis, 2016). Moreover, JSON is a serialization

format, which has schema-less data with all kinds of

data type, such as string, number, list and array and

nested structure (Florescu & Fourny, 2013).

According to Soransso and Cavalcanti (2018),

the structures of the document are able to deal with

collections of heterogeneous documents. The

document in a collection is a self-describing

structure allows finding the intended data/content

through specific parts of these documents.

3 CASE STUDY: W3SCHOOL

SCHEMA

The case study is the schema of W3Schools Web

A Flexible Schema for Document Oriented Database (SDOD)

415

site (http://www.w3schools.com/). This schema has

characteristics that are completely different from

those typically used in most applications, such as

integration restrictions, relationships, and different

data types.

The W3school schema can be similar to other

businesses that have products with categories and

these products have suppliers and then offer these

products to customers for ordering and shipping.

Therefore, this schema is chosen to implements of

mapping from a relational database to a document-

oriented database through SDOD, and then evaluates

how SDOD can cover any new business

requirements when changing the schema.

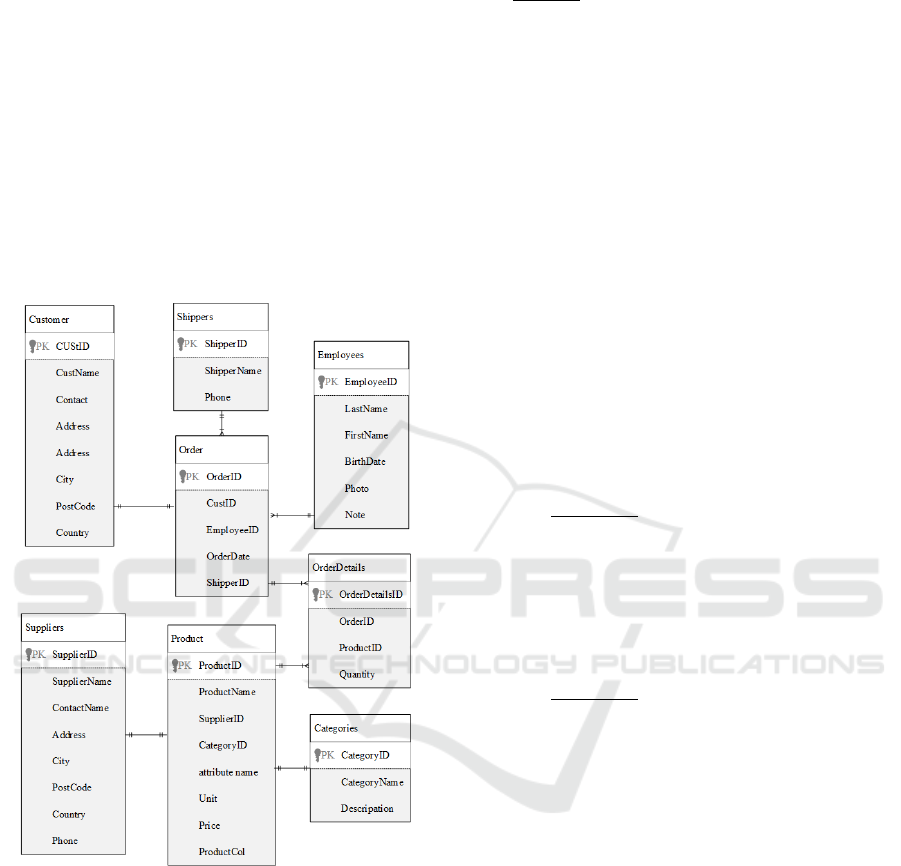

Figure 1: Entity relational schema for W3schools (Rocha

et al., 2015).

As we can see in the above schema, the product

has categories and suppliers, and the order has order

details and shipping to the customer through the

employees. Therefore, SDOD applied to map the

above schema Figure 1. It creates product collection

and store categories and suppliers as embedded

documents. Also, creates order collection and stores

the order details with shipping as embedded

documents. Moreover, these order and products can

be managing through the employee collection. The

SDOD of mapping the above schema can be as

shown following figure.

Order {

"OrderID" ,

"EmployeeID" ,

"OrderDate" ,

"OrderDetials" : {

"OrderDetailsID" ,

"ProductID" ,

"Quantity"

"Shippers" : {

"ShppierID",

"ShipperName",

"Phone"

"Customer" : {

"CustomerID",

"CustomerName",

"ContactName",

"Address",

"City",

"PostalCode",

"Country"

}

Employee {

"EmployeID",

"LastName",

"FistName",

"BirthDate",

"Photo",

"Notes"

}

Product {

"ProdcutID",

"ProductName",

"Unite",

"Price",

"ProdctsCol",

"Category" : {

"CategoryID",

"CategoryName",

"Descripation"

"Suppliers" : {

"SupplierID",

"SupplierName",

"ContactName",

"Address",

"City",

"PostCode",

"Country",

"Phone"

}

Figure 2: SDOD for W3schools.

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

416

4 EVALUATION DEVELOPMENT

OF AGILITY

Development agility refers to the capability to meet

and respond to the business change requirements

during the development process (Rathor et al.,

2016). Agile methodologies can enable

organizations to achieve flexibility in software

development for managing unpredictable and

changing conditions (Maruping et al., 2009) .

This section evaluates the development agility to

identify business change requirements using the

W3Schools schema in Figure 1. This schema has

characteristics that are completely different from

those typically used in most applications, such as

integration restrictions, relationships, and different

data types.

In a relational database, the new field should be

added to all table records to change its schema. By

contrast, an SDOD allows adding or changing data

for a specific document in any structure without

changing the database schema. An SDOD allows the

application to use the required data and ignore the

unrequited data.

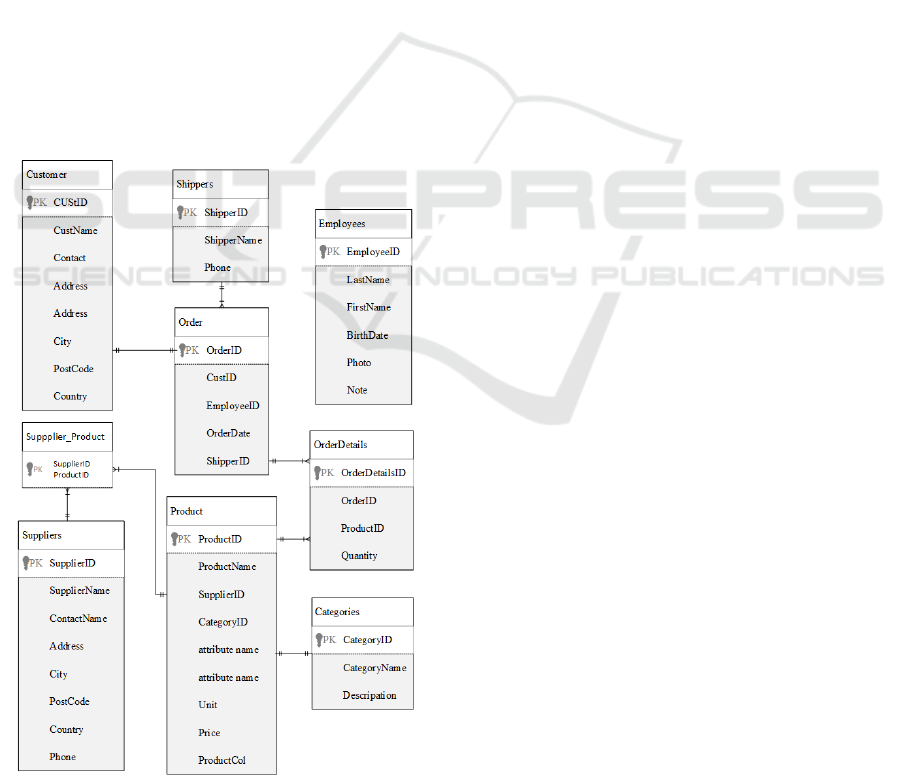

Figure 3: Schema after changing the relationship between

product and supplier.

In the W3schools schema in Figure 1, the

relationship between products and supplies is one to

one. If the W3schools schema needs to change the

business requirements by allowing one product to

have many supplies or each supplier to provide

many products, then this new requirement brings

difficulty in changing the database schema. To

incorporate this requirement in the relational

database, a new table should be added to allow the

product to have many suppliers as the current data.

The relational database schema will not allow the

same product to have many suppliers because it is

fixed and has change constraints.

The previous scenario indicates that the change

required will affect the database schema, query

level, and reporting level. Given that the database

schema needs to change, all queries related to

product and resource need to be redesigned and

recorded.

By contrast, an SDOD supports a flexible

schema with semi-structured data that can add or

change relationships between entities without effect.

In the previous case, the relationships between

products and suppliers can be changed without

affecting the schema because the product collection

stores the suppliers as embedded documents and lists

suppliers for each product. In an SDOD, mapping

one-to-one or one-to-many relationships can be

through the embedded documents. Therefore, this

schema will store the many supplies as embedded

documents into each product, as shown in Figure 2.

As we can see that the SDOD is flexible schema

and can support the new business requirements. The

evaluation of this paper is used to evaluate the

development agility of business requirements and

the result shows that the SDOD provide a flexible

schema. On the other hand, JSON is more compact

than XML for semi-structured data because XML

has many rules and complexity in representing a

semi-structured data format. Therefore, JSON plays

an important role in representing semi-structured

data in a NoSQL database, as it is lightweight and

uses flexible data to deal with formatted semi-

structured data and can be compatible with most

programming languages.

5 PERFORMANCE TEST OF

RELATIONAL DATABASE AND

DOCUMENT-ORIENTED

DATABASE BASED ON SDOD

This evaluation clarifies whether the proposed

A Flexible Schema for Document Oriented Database (SDOD)

417

method is statistically significant. The statistical

significance between the relational database and

document-oriented database is measure using T-test.

The T-test is used to compare the means from two

different groups of data and to determine any

significant difference between the means of two

groups that may be related in certain features. This

test measures the query execution time for the

relational database (Oracle) and document-oriented

database (MongoDB). This evaluation evaluates the

significance of Create, Retrieve, Update, Delete and

Join operations based on data migrations.

In Table 2, the first show the database operation

that used for this evaluation. The numbers that show

in the third and fourth columns are the times in

millisecond to execute each query for a relational

database (Oracle) and a document-oriented database

(MongoDB).

Table 2: Performance test of a relational database (Oracle)

and a document-oriented database (MongoDB).

Operation

Relational Database

(Oracle)

(Time in Millisecond)

Document-Oriented

Database (MonogDB)

(Time in Millisecond)

Select

2.226 0.003

1.826 0.002

2.376 0.001

0.182 0.002

0.171 0.099

Insert

16,900 2,444

18,210 5,326

Update

58,587 340

815 2

1,925 112

94,080 582

20,085 2,390

Delete

1,514 67

2,651 140

8,266 251

3,196 799

2,752 7

Join

1,969 210

647 3

1,028 102

1,780 155

As the above table shows, the same query was

run in MongoDB and Oracle, Therefore, this T-Test

is paired test (oracle,mongo, conf.level = 0.95,

vr.equal=FALSE, alternative="greater",

paired=TRUE).

The type of T-test is paired and the input data for

this test is Oracle and Mongo database. The T-value

is 2.101 in favor of mongo with 20 degrees of

freedom; also, the p-value which is the probability of

the result is 0.02426. In addition, the alternative

hypothesis is true, the difference in means is greater

than zero, and the percent confidence interval is 95.

The T-test shows that the mean difference in the

execution time between Oracle and MongoDB is

statistically significant (i.e., p-value is smaller than

0.05 for the confidence level of 0.95, p=0.024).

The T-test shows that the mean difference in the

execution time between Oracle

(mean(Oracle)=11162.47, sd (Oracle)= 23233.4) and

MongoDB (Mean(MongoDB)=615.72,

sd(MongoDB)= 1291.533) is statistically significant

(t(20)=2.101, p=0.02). In other words, based on the

performance test shown in Table 2, there is strong

evidence that MongoDB queries execute

significantly shorter (measured in milliseconds)

compared to Oracle.

6 CONCLUSION

This study successfully proposes a flexible schema

that can cover all data types and properties of a

document-oriented database. Besides, this study

overcomes the issues in handling the relationships in

a complex database by covering all types of

relationships to be compatible with a document-

oriented database. SDOD provide new feature such

as flexible schema by allows adding any field in any

documents without any constrains and allows each

document to have different numbers of fields. Thus,

it can be an efficient schema for a semi-structured

data with flexible schema that will keep up with the

new business requirements.

In addition, the document and embedded

document in semi-structured data are less

homogeneous than those in structured data,

therefore, it allows each key to have different

contents in each document, and these contents can

be blend in the same document without a structure.

The future work will proposed a schema for other

types of NoSQL models.

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

418

REFERENCE

Arora, Rupali, & Aggarwal, Rinkle Rani. (2013).

Modeling and querying data in mongodb.

International Journal of Scientific and Engineering

Research, 4(7).

Atzeni, Paolo, Bugiotti, Francesca, Cabibbo, Luca, &

Torlone, Riccardo. (2016). Data modeling in the

NoSQL world. Computer Standards & Interfaces.

Bansel, Aryan, & Chis, Adriana E. (2016). Cloud-Based

NoSQL Data Migration. Paper presented at the 2016

24th Euromicro International Conference on Parallel,

Distributed, and Network-Based Processing (PDP).

Bhogal, Jagdev, & Choksi, Imran. (2015). Handling big

data using NoSQL. Paper presented at the Advanced

Information Networking and Applications Workshops

(WAINA), 2015 IEEE 29th International Conference

on.

El Alami, Alae, & Bahaj, Mohamed. (2016). Migration of

a relational databases to NoSQL: The way forward.

Paper presented at the Multimedia Computing and

Systems (ICMCS), 2016 5th International Conference

on.

Florescu, Daniela, & Fourny, Ghislain. (2013). JSONiq:

The history of a query language. IEEE internet

computing, 17(5), 86-90.

Guimaraes, Valeria, Hondo, Fernanda, Almeida, Rodrigo,

Vera, Harley, Holanda, Maristela, Araujo, Aleteia, . . .

Lifschitz, Sergio. (2015). A study of genomic data

provenance in NoSQL document-oriented database

systems. Paper presented at the Bioinformatics and

Biomedicine (BIBM), 2015 IEEE International

Conference on.

Hanine, Mohamed, Bendarag, Abdesadik, & Boutkhoum,

Omar. (2016). Data Migration Methodology from

Relational to NoSQL Databases. World Academy of

Science, Engineering and Technology, International

Journal of Computer, Electrical, Automation, Control

and Information Engineering, 9(12), 2369-2373.

Hashem, Hadi, & Ranc, Daniel. (2016). Evaluating

NoSQL document oriented data model. Paper

presented at the Future Internet of Things and Cloud

Workshops (FiCloudW), IEEE International

Conference on.

Kanade, Anuradha, Gopal, Arpita, & Kanade, Shantanu.

(2014). A study of normalization and embedding in

MongoDB. Paper presented at the Advance Computing

Conference (IACC), 2014 IEEE International.

Maruping, Likoebe M, Venkatesh, Viswanath, & Agarwal,

Ritu. (2009). A control theory perspective on agile

methodology use and changing user requirements.

Information Systems Research, 20(3), 377-399.

Mior, Michael J. (2014). Automated schema design for

NoSQL databases. Paper presented at the Proceedings

of the 2014 SIGMOD PhD symposium.

Mohan, C. (2013). History repeats itself: sensible and

NonsenSQL aspects of the NoSQL hoopla. Paper

presented at the Proceedings of the 16th International

Conference on Extending Database Technology.

Moore, Philip, Qassem, Tarik, & Xhafa, Fatos. (2014).

'NoSQL'and Electronic Patient Record Systems:

Opportunities and Challenges. Paper presented at the

P2P, Parallel, Grid, Cloud and Internet Computing

(3PGCIC), 2014 Ninth International Conference on.

Ogunyadeka, Adewole, Younas, Muhammad, Zhu, Hong,

& Aldea, Arantza. (2016). A Multi-key Transactions

Model for NoSQL Cloud Database Systems. Paper

presented at the 2016 IEEE Second International

Conference on Big Data Computing Service and

Applications (BigDataService).

Rathor, Shekhar, Batra, Dinesh, & Xia, Weidong. (2016).

What Constitutes Software Development Agility?

Rocha, Leonardo, Vale, Fernando, Cirilo, Elder, Barbosa,

Dárlinton, & Mourão, Fernando. (2015). A

Framework for Migrating Relational Datasets to

NoSQL1. Procedia Computer Science, 51, 2593-2602.

Soransso, RASN, & Cavalcanti, Maria Cláudia. (2018).

Data modeling for analytical queries on document-

oriented DBMS. Paper presented at the Proceedings of

the 33rd Annual ACM Symposium on Applied

Computing.

Stanescu, Liana, Brezovan, Marius, & Burdescu, Dumitru

Dan. (2017). An Algorithm For Mapping The

Relational Databases To MongoDB--A Case Study.

International Journal of Computer Science &

Applications, 14(1).

Storey, Veda C, & Song, Il-Yeol. (2017). Big data

technologies and Management: What conceptual

modeling can do. Data & Knowledge Engineering,

108, 50-67.

Tauro, Clarence JM, Aravindh, S, & Shreeharsha, AB.

(2012). Comparative study of the new generation,

agile, scalable, high performance NOSQL databases.

International Journal of Computer Applications,

48(20), 1-4.

Yoon, Jongseong, Jeong, Doowon, Kang, Chul-hoon, &

Lee, Sangjin. (2016). Forensic investigation

framework for the document store NoSQL DBMS:

MongoDB as a case study. Digital Investigation, 17,

53-65.

A Flexible Schema for Document Oriented Database (SDOD)

419
