Development of Ontologies for Reasoning and Communication in

Multi-Agent Systems

Sebastian Törsleff, Constantin Hildebrandt and Alexander Fay

Institute of Automation Technology, Helmut-Schmidt University, Hamburg, Germany

Keywords: Ontology Development, Ontology Engineering, Model-driven Engineering, Multi-Agent Systems,

Cyber-physical Systems.

Abstract: In future cyber-physical systems, such as smart factories and energy grids, ontologies can serve as the enabler

for semantically precise communication as well as for knowledge representation and reasoning. Multi-agent

systems have shown to be a suitable software development paradigm for cyber-physical systems and may

well profit from harnessing ontologies in terms of reduced engineering effort and better interoperability. This

contribution presents a development methodology for ontologies that enable communication and reasoning in

Multi-Agent Systems for cyber-physical systems. The methodology is unique in addressing a set of

requirements specific to this application domain.

1 INTRODUCTION

Multi-agent systems (MASs) have the potential to

play a key role in enabling future cyber-physical

systems for smart factories and energy grids (Leitao

et al., 2016; Vrba et al., 2014). Major benefits of

MASs are modularity, flexibility and robustness.

Ontologies can provide value to MAS, in terms of

serving as the foundation for inter-agent

communication on the one hand (Souza et al., 2016),

and knowledge bases that agents can use for

reasoning on the other hand (Laclavik et al., 2006;

Subercaze and Maret, 2011).

A plethora of MAS-specific methodologies and

tools has been developed over the past decades

(Sturm and Shehory, 2014). The use of ontologies in

MAS has been partially adressed in previous work on

MAS methodologies (Freitas et al., 2015). However,

the methodological development and utilization of

ontologies for reasoning and communication in MAS

remains an open issue as the ontological needs in

industrial applications cannot be met with existing

ontologies or even existing standardards,

notwithstanding their lack of formalization (Hodges

et al., 2017). Therefore, the authors developed the

Ontologies for Reasoning and Communication in

Multi-Agent Systems methodology (OReCo). It is not

designed to act as a standalone MAS development

http://jade.tilab.com

approach. Instead it can be utilized within existing

methodologies that follow a model-driven

engineering approach, e.g. (Chella et al., 2004;

Garcia-Ojeda et al., 2008; Linnenberg and Fay,

2018). Key features of OReCo are the integration

model-driven engineering artefacts, the utilization of

existing ontologies to reduce engineering effort, and

the integration into the popular MAS development

environment JADE

. OReCo comprises two parts:

ontology development and ontology utilization. The

former is the subject of this paper. The latter deals

with actual implementation tasks related to the

utilization of developed ontologies in MASs and will

be the subject of a future publication by the authors.

Henceforth, for the sake of brevity, we refer to the

term “ontology” as a machine-readable

conceptualisation of domain knowledge implemented

in the OWL 2 Web Ontology Language

(OWL 2), or

more specifically the OWL 2 DL profile. Note, that

this deviates from prominent definitions of the term,

which do not imply a representation language or

degree of formality, e.g. (Uschold and Gruninger,

1996). Only in some cases we use the term “ontology

in the broadest sense” to refer to the full spectrum of

conceptualisations as defined in (Lassila and

McGuinness, 2001). Occasionally, we use the terms

“lightweight ontoloy” and “heavyweight ontology” to

differentiate between human-centred UML class

http://www.w3.org/TR/owl2-overview/

450

Törsleff, S., Hildebrandt, C. and Fay, A.

Development of Ontologies for Reasoning and Communication in Multi-Agent Systems.

DOI: 10.5220/0008355804500457

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 450-457

ISBN: 978-989-758-382-7

diagram representation and machine-readable

representation based on OWL 2 DL, respectively. The

communication and reasoning in MASs for cyber-

physical systems that are developed using model-

driven engineering methodologies will be referred to

as the “application domain” of the methodology from

here on. Specific desired solutions, e.g. a distribution

grid automation solution, we refer to as “use cases”.

Furthermore, a MAS developed for a specific use case

will be referred to as a “system under development”.

In an analogous manner, we use the term “ontology

under development” (also if multiple modular

ontologies are being developed at once).

The remainder of this paper is structured as

follows. In section 2 we present requirements

regarding the development of ontologies in the

application domain that have been gathered from

industry. Afterwards, in section 3, we provide an

analysis of related research and discuss in how far it

withstands the requirements we identified. The

methodology itself is presented in section 4 and

preliminary evaluation results regarding its

application in a smart energy grid-related research

project in section 5. Conclusions and an outlook on

future work of ours are provided in section 6.

2 REQUIREMENTS

The application domain outlined in the previous

section imposes a set of specific requirements which

a methodology, aiming to yield suitable ontologies,

has to satisfy. These requirements have been gathered

with involvement from industry partners in the

research project CrESt

(Collaborative Embedded

Systems), some of which originally were presented in

(Hildebrandt et al., 2018b), others were added in the

meantime.

R1 Systematic Requirements Elicitation:

Identifying requirements is the first step in ontology

development. As in software engineering in general,

requirements are a key determinant for successful

ontology development. Besides serving as the

foundation for designing and implementing an

ontology, structured requirements also facilitate

future reuse of the developed ontology. Therefore, the

methodology has to entail a systematic elicitation

process.

R2 Model-driven Engineering Artefact

Utilization: The methodology’s application domain

is the model-driven engineering of MASs. Thus,

diagrams that specify the message exchange and

https://crest.in.tum.de/

internal program logic of agents are available. These

are valuable artefacts with regard to the ontology

requirements and implicitly contain all intended uses

of the ontology under development. Accordingly, we

define the utilization of such artefacts as a

requirement.

R3 Ontology Modularity: Besides reusing existing

ontologies for a specific use case, it is desirable to

create ontologies that can be reused themselves.

Apart from systematic requirements documentation,

this goal can be achieved by modularizing the

ontology under development. The modularity also

facilitates the usage of distinct TBoxes for different

agents, thus keeping individual TBoxes lean.

Accordingly, ontology modularity represents another

requirement.

R4 Domain Expert Centricity: This requirement is

rooted in the fact that ontology experts usually do not

have the necessary knowledge to model the required

domain knowledge for a specific use case. Therefore,

domain experts who possess the necessary domain

knowledge have to take an active and central role in

ontology development.

R5 Intermediate Ontology Conceptualization:

While lightweight ontologies represented as UML

class diagrams are not as expressive as heavyweight

ontologies, they help to conceptualize domain

knowledge transparently. This facilitates the

integration of domain experts in ontology

development (see R4). For this reason, we define the

intermediate ontology conceptualization (with UML

class diagrams) as a requirement.

R6 Multi-stage Utilization of Existing Ontologies:

Domain conceptualization and ontology development

are time consuming tasks. In order to reduce the

engineering effort, it is hence advisable to make use

of existing ontologies (in the broadest sense)

whenever reasonable. This ranges from industry

standards as the basis for concept definitions to

integrating existing heavyweight ontologies. The

utilization of ontologies with varying degrees of

expressiveness requires their integration at different

stages of the development cycle.

R7 Defined Ontology Bridging Procedure: Aiming

for reusable, modular ontologies necessitates a

defined ontology bridging procedure to connect

ontologies as required by the system under

development.

Development of Ontologies for Reasoning and Communication in Multi-Agent Systems

451

3 STATE-OF-THE-ART

ANALYSIS

Existing ontology development methodologies can be

divided into three generations with increasing

sophistication and maturity (Simperl and Luczak-

Rösch, 2014). We limit our subsequent analysis to the

third generation, i.e. methodologies that emphasize

the collaborative nature of ontology development and

the involvement of non-ontology experts. Table 1

summarises the analysis of these methodologies with

regard to the requirements outlined in the previous

section.

DILIGENT is ontology expert-centric and focuses

community adaption of an initially-developed

ontology (Pinto et al., 2004). Another ontology

expert-centric methodology is HCOME (Vouros and

Kotis, 2006), which addresses the development of

“living ontologies” in the domain of knowledge-

intensive communities. In contrast, UPON Lite

integrates domain experts into the development (de

Nicola and Missikoff, 2016). Its drawback, however,

is its predominant use of tabular representations to

capture domain expert knowledge. R6 (Multi-stage

Utilization of Existing Ontologies) is only partially

satisfied by UPON Lite in that it recommends the

utilization of existing standards but does not address

their integration at multiple stages of the ontology

development. The innovation of the NeON

methodology lies in its emphasis of a “divide and

conquer” approach, in which the definition of

requirement subsets paves the way for developing and

utilizing ontology modules (de Figueroa Baonza,

2010). However, substantial domain expert

involvement is also missing in NeON.

OntologyMaturing in turn stresses domain expert

centricity and suggests capturing their knowledge

using lightweight ontologies, however it does not

satisfy, inter alia, the modularity requirement (Braun

et al., 2007). An approach that is based on established

methodologies from the software engineering domain

is given by SCIM (John et al., 2017), though it falls

short of addressing the integration of existing

ontologies at multiple stages of the development

cycle. The only approach that explicitly proposes the

utilization of UML diagrams for eliciting ontology

requirements has been presented in (Olszewska,

2015), though it is technically not a methodology and

also satisfies none of the other requirements.

Therefore, it is not included in Table 1.

As can be seen, there is no methodology available

that covers all or even the majority of the identified

requirements. This shortcoming was the basis for the

decision to develop a new ontology development

methodology.

Table 1: Requirements satisfaction of existing ontology

development methodologies.

DILIGENT

HCOME

UPON Lite

(X)

NeON

Ontology

Maturing

SCIM

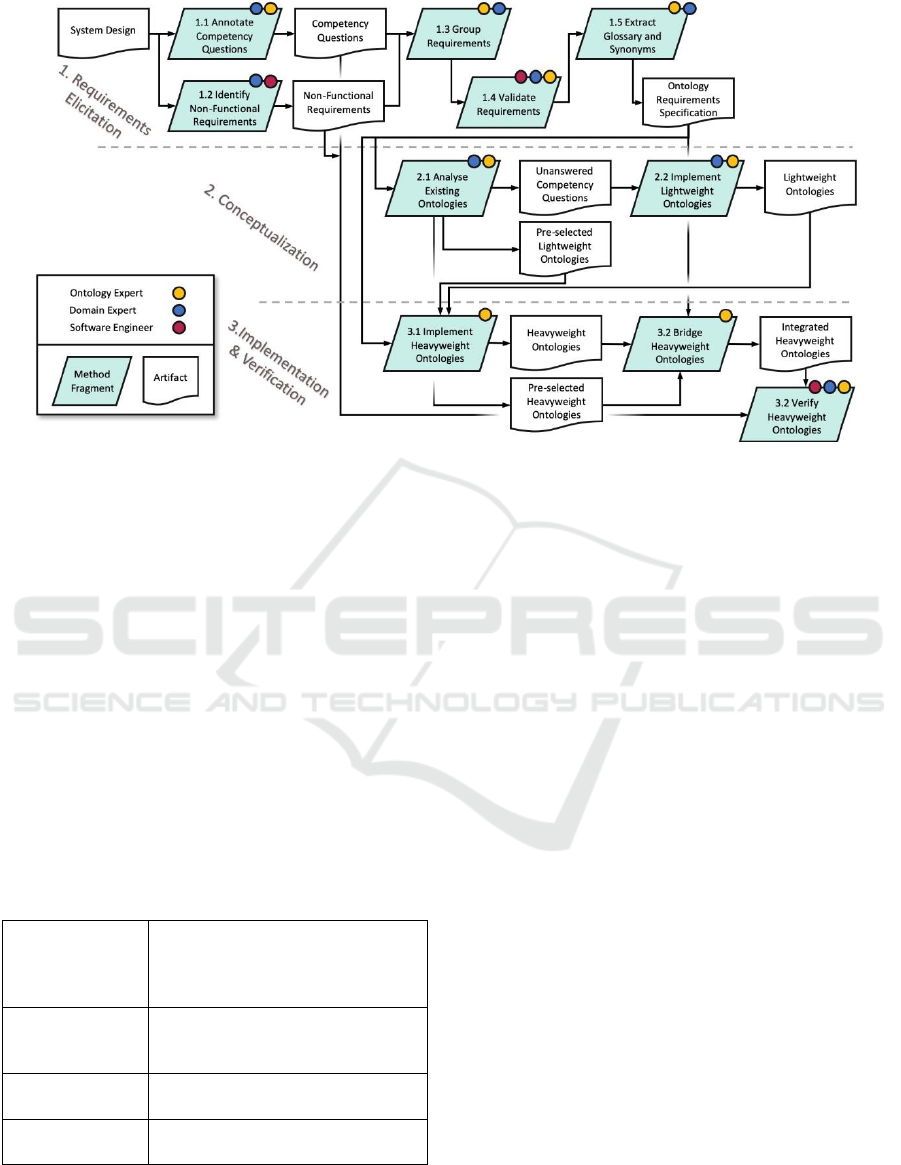

4 METHODOLOGY

As outlined in the introduction, the overall OReCo

methodology comprises two parts: ontology

development and ontology utilization. In this

contribution we focus on the ontology development

part, which is divided into three stages, each of which

comprising of multiple steps as depicted in Figure 1.

Indicated by the coloured dots, multiple roles are

involved in each step: the domain expert has deep

knowledge of the specific use case, was involved in

the design of the system under consideration and is

aware of relevant (de-facto) industry standards; the

software engineer is the end user of the ontology

insofar as utilizing it in the implementation of the

agents; the ontology expert is proficient in ontological

engineering and provides technical support.

The methodology presented hereafter builds on

previous publications of the authors (Hildebrandt et

al., 2018a, 2018b). While these publications were

rather generic in scope (covering, e.g., the

development of UML profiles), OReCo is limited to

the application domain as defined in section 1. This

allows omitting irrelevant steps of the generic

methodology and in turn emphasising aspects specific

to OReCo’s application domain.

OReCo employs a waterfall-like life-cycle model.

This is based on the rationale that the ontology’s

scope is determined by the design of the system under

development. That is, if the system design poses

specific requirements, the ontology has to satisfy

these requirements. An iterative-incremental

approach for the ontology development would thus be

inappropriate. This does of course not inhibit an

iterative-incremental approach being applied to the

overall system under development. In such cases,

multiple iterations of the OReCo methodology would

be driven by the enclosing development methodology

while itself remaining waterfall-like.

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

452

Figure 1: Overview of the OReCo methodology’s ontology development part.

Note, that OReCo does not prescribe a specific

OWL 2 profile. However, due to its wide tool support

and decidability (Hitzler et al., 2010), the OWL 2 DL

profile can be considered the default implementation

language for ontologies developed using OReCo.

4.1 Requirements Elicitation

The specification of ontology requirements is partly

based on the NeON methodology (Suárez-Figueroa et

al., 2009). Some of the tasks in the ontology

requirements specification according to NeON can be

omitted, since their results are the same for any use

case in OReCo’s application domain.

Table 2: Generic results of task 1-2 of the NeON Ontology

Requirements Specification for OReCo’s application

domain.

Purpose

Provide the foundation for

reasoning and communication in the

multi-agent system under

development

Scope

All classes and properties required

for communication and reasoning in

the system under development

Implementation

Language

Intermediate: UML class diagrams

Final: OWL

Intended End

Users

Software engineers (and, strictly

speaking, agents)

This holds for task 1 and 2, whose results are shown

in Table 2. Further tasks of the ontology requirements

specification according to NeON have been modified

to take into account specific needs of the application

domain and to improve overall validity with regard to

the requirements discussed in section 2.

Step 1.1. Annotate Competency Questions

processes artefacts from model-driven engineering,

i.e. the system design comprising UML diagrams

such as sequence diagrams (covering the message

exchange between agents) and activity diagrams

(covering the internal application logic of agents).

These diagrams are annotated with competency

questions (CQs) and answers using a custom UML

profile, which facilitates their automated export into

a tabular representation including a reference to the

respective agent. Strictly speaking, the annotation is

limited to informal CQs (Gruninger and Fox, 1995).

Later on, these informal CQs will be the basis for

formal SPARQL queries that are used for verification

once the ontology has been implemented. Note that

task 3 “Identify intended end uses” of the NeON

methodology has been omitted. This is due to the fact

that the intended uses are already given by the system

design.

Step 1.2 Identify Non-Functional Requirements

deals with aspects that are not covered by CQs, e.g. a

specific ontology naming convention or the

mandatory use of industrial standards. The latter

could result from the system design, e.g. if a agent

interacts with a technical system that requires the use

of a specific protocol. Non-functional requirements

are recorded in tabular format.

To lay the foundation for the reuse of existing

ontologies and the development of modular

ontologies, the requirements are clustered in step 1.3

Development of Ontologies for Reasoning and Communication in Multi-Agent Systems

453

Group Requirements. Useful groups are subdomains

such as technical properties of a battery storage or

generic concepts such as units of measure. Further

grouping may be performed in case of agents

requiring very specialized knowledge. Such groups,

by facilitating ontology segmentation, can help

reduce the TBox size (and thus inprove the reasoning

performance) of agents with distinct knowledge

bases. This step can also comprise the definition of a

group hierarchy, which determines the development

sequence in case the ontology under development is

composed of multiple interdependent ontologies.

Step 1.4 Validate Requirements serves to ensure

that the requirements are complete, consistent,

verifiable, understandable, unambiguous, concise and

modifiable. Guidance on how to evaluate these

criteria are provided in (Suárez-Figueroa et al., 2009).

An additional criterion is wether a requirement is

implementable, e.g.. if a CQ can be answered with an

ontology. This characteristic has been added since

non-ontology experts might add CQs that cannot be

covered by an ontology with reasonable effort. In case

of invalid requirements, step 1.1 and/or 1.2 of the

methodology have to be revisited (not depicted in

Figure 1). Note that the prioritization of requirements

as per the NeON methodology has been omitted. This

is based on the rationale that the ontology under

development serves as an enabler for reasoning and

communication in the system under development as

prescribed by the system design. This means that any

requirement that is not met by the ontology will have

negative repercussions with regard to the system

under development. Accordingly, it is assumed that

all requirements have equal priority. Potential

dependencies between ontology segments that

require a specific development sequence are

determined in step 1.3.

In step 1.5 Extract Glossary and Synonyms, the

foundation is laid for the subsequent analysis of

existing ontologies. The glossary comprises three

parts. The first part shows terms and frequency based

on the CQs, the second one based on the related

answers, and the third part identifies objects that can

be seen as instances of other classes. Additionally,

synonyms are recorded for each glossary term to

facilitate the survey of existing ontologies. The final

result of the requirements elicitation stage is an

Ontology Requirements Specification covering all

requirements for the ontology under development.

4.2 Conceptualization

The conceptualization stage begins with step 2.1

Analyse Existing Ontologies. In this step, the

ontology and domain experts first perform a survey to

identify suitable ontologies (in the broadest sense)

based on the glossary developed in step 1.5. This will

result in a pool of ontologies (in the broadest sense)

potentially ranging from plain dictionaries to

heavyweight ontologies. Ideally, the survey yields a

set of heavyweight ontologies that satisfy all

requirement (CQs and non-functional). In that case

one could jump straight to step 3.2 of the

methodology. The more realistic case, which we

assume henceforth, is the identification of both

lightweight and heavyweight ontologies, whereas

some CQs remain unanswered. These remaining CQs

will be processed in step 2.2 Implement Lightweight

Ontologies. Here, domain experts, supported by

ontology experts, conceptualize an ontology

addressing the remaining CQs as a UML class

diagram. We recommend performing this step with

the concept of so-called content ontology design

patterns in mind (Hitzler et al., 2016). These are small

modular and extendible ontologies which can be used

in multiple use cases. This approach is specifically

useful for industry standards that have a high

likelihood of being reused, but also in cases where

generic domain conceptualizations are useful. For

instance, consider a network topology ontology for

energy grids that can be extended for the domain gas,

electricity etc. Further orientation marks with regard

to the segmentation of the lightweight ontology

implementation task are given by the requirement

groups defined in step 1.3. Naturally, the pre-selected

lightweight ontologies need to be considered in this

step to avoid overlaps.

4.3 Implementation and Verification

The last stage of the development begins with step 3.1

Implement Heavyweight Ontologies. Inputs for this

step are the pre-selected and newly implemented

lightweight ontologies as well as the ontology

requirements specification. The latter provides

information not included in the lightweight

ontologies, e.g. naming conventions. The

groundwork for the implementation of content

ontology design patterns has been laid in step 2.2.

Thus, this step can be completed by sequential

transformation of each lightweight ontology into a

heavyweight ontology. Guidelines for the actual

modelling in OWL can be found in (Pinto et al.,

2004).

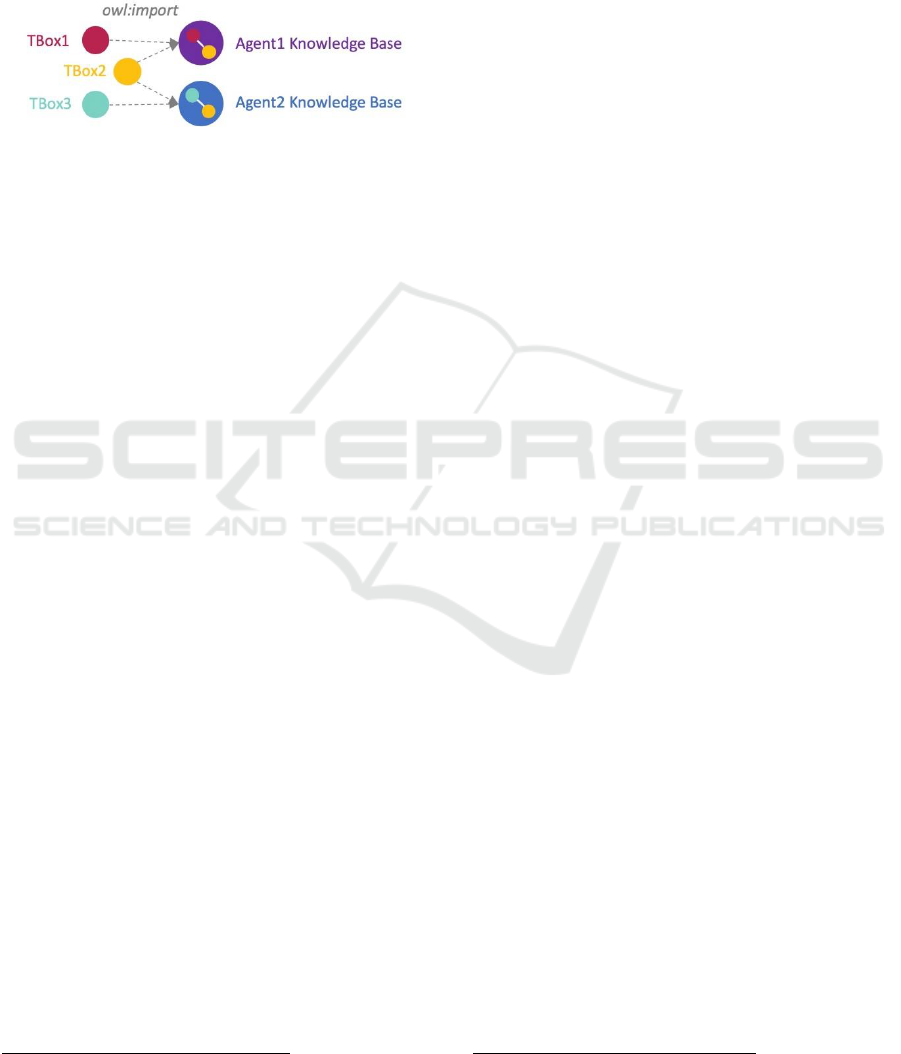

Figure 2 shows an exemplary scenario in which the

overall ontology under development comprises three

TBoxes that are being used by two distinct agents. In

this scenario, Agent1’s knowledge base imports

TBox1 and TBox2. Accordingly, “TBox bridges”, i.e.

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

454

TBox statements that connect existing TBoxes, are

required between TBox1 and TBox2 as well as

between TBox2 and TBox3. These statements are

symbolized by the white lines within the agent’s

knowledge bases. Technical alternatives and

guidance on how to bridge ontologies can be found in

(Hodges et al., 2017).

Figure 2: Exemplary utilization and bridging of TBoxes in

different agents.

Step 3.2 Bridge Heavyweight Ontologies deals with

integrating the resulting heavyweight ontologies. A

key determinant of this step is the utilization of these

ontologies by the agents, which is captured in the

ontology requirements specification.

Lastly, in step 3.3 Verify Heavyweight Ontologies

the developed heavyweight ontologies are verified.

First, a consistency check of the resulting ontology is

performed using a suitable reasoner, e.g. HermiT

. If

this is successful, SPARQL queries are defined for

the CQs identified earlier. The results of the query

need to be consistent with the respective answers of

each CQ in order for this step to succeed. Otherwise,

step 3.1 or 3.2 have to be revisited.

5 EVALUATION

This section deals with a preliminary evaluation of

the proposed methodology and its satisfaction of the

requirements presented in section 2. The use case for

the evaluation was a MAS-based low-voltage

distribution grid automation solution that had been

developed in Agent.HyGrid

, a research project

dealing with smart energy grids. UML diagrams

specifying the message exchange between agents and

their inter program logic, i.e. the system design,

formed the basis for the ontology development,

illustrating the satisfaction of requirement R2. It was

possible to group the identified CQs based on their

attribution to agents. For instance, one group

comprised CQs focussing the grid topology and was

only relevant to one agent, while another group

adressed the flexibility of distributed energy

resources, which multiple agents exchange

http://www.hermit-reasoner.com

information about. This provided the foundation for

the concurrent execution of subsequent

conceptualisations and underlines the methodology’s

satisfaction of R1. As no suitable ontology for

flexibilities could be identified by the domain experts

in step 2.1, they modelled a lightweight ontology

from scratch, based on the unanswered CQs (R4 and

R5). In contrast, the IEC 61970-501 standard was

identified as suitable for conceptualizing the grid

topology, which conveniently had been implemented

as a heavyweight ontology already (Schumilin et al.,

2017). After the lightweight ontology for flexibilities

had been implemented as a heavyweight ontology in

step 3.1, it was bridged with the grid topology

ontology in step 3.2 (R6 and R7). While the

flexibility ontology is now used by all agents, the grid

topology is only used by one agent, which

demonstrates the advantageuousness of the ontology

modularity support by our methodology (R3).

6 CONCLUSIONS AND

OUTLOOK

Ontologies have the potential to significantly reduce

the engineering effort required in MAS development.

OReCo is a methodology comprising two parts:

developing ontologies and utilizing ontologies for

reasoning and communication in MASs for cyber-

physical systems. In this contribution, we presented

the first part, which is unique in addressing

requirements specific to this application domain.

While providing significant value in its current state

already, additional research is required to improve

usability and reduce the required engineering effort

even further.

In this spirit, the authors are currently conducting

a systematic survey of existing ontologies in the smart

grid space. The results of this survey will serve as the

foundation for a software tool that supports ontology

and domain experts in the development process by

providing recommendations for reuse of existing

ontologies based on the glossary in step 2.1 Analyse

Existing Ontologies.

Further improvements to the methodology will

also result from ongoing and planned evaluation

activity in the context research projects dealing with

smart factories and energy grids.

http://www.agent-hygrid.net

Development of Ontologies for Reasoning and Communication in Multi-Agent Systems

455

ACKNOWLEDGEMENTS

The contribution presented in this paper was funded

by the German Federal Ministry of Education and

Research under grant number 01IS16043Q –

Collaborative Embedded Systems (CrESt).

REFERENCES

Braun, S., Schmidt, A., Walter, A., 2007. Ontology

Maturing: a Collaborative Web 2.0 Approach to

Ontology Engineering, in: Proceedings of the

Workshop on Social and Collaborative Construction of

Structured Knowledge (CKC 2007) at the 16th

International World Wide Web Conference

(WWW2007).

Chella, A., Cossentino, M., Sabatucci, L., 2004. Tools and

Patterns in Designing Multi-Agent Systems with

PASSI. WSEAS Trans. Commun. 3, 352–358.

de Figueroa Baonza, M. del C.S., 2010. NeOn Methodology

for Building Ontology Networks: Specification,

Scheduling and Reuse.

de Nicola, A., Missikoff, M., 2016. A lightweight

methodology for rapid ontology engineering. Commun.

ACM 59, 79–86. https://doi.org/10.1145/2818359

Freitas, A., Bordini, R.H., Meneguzzi, F., Vieira, R., 2015.

Towards integrating ontologies in multi-agent

programming platforms, in: Proceedings of the

IEEE/WIC/ACM International Joint Conference on

Web Intelligence and Intelligent Agent Technology

(WI-IAT 2015). IEEE, pp. 225–226. https://doi.org/

10.1109/WI-IAT.2015.207

Garcia-Ojeda, J.C., DeLoach, S.A., Robby, Oyenan, W.H.,

Valenzuela, J., 2008. O-MaSE: A Customizable

Approach to Developing Multiagent Development

Processes, in: Luck, M., Padgham, L. (Eds.), Agent-

Oriented Software Engineering VIII: 8th International

Workshop, AOSE 2007. Springer Berlin Heidelberg,

Berlin, Heidelberg. https://doi.org/10.1007/978-3-540-

79488-2_1

Gruninger, M., Fox, M.S., 1995. Methodology for the

Design and Evaluation of Ontologies, in: Workshop on

Basic Ontological Issues in Knowledge Sharing

(IJCAI’95).

Hildebrandt, C., Törsleff, S., Bandyszak, T., Caesar, B.,

Ludewig, A., Fay, A., 2018a. Ontology engineering for

collaborative embedded systems - Requirements and

initial approach. CEUR Workshop Proc. 2060, 57–66.

Hildebrandt, C., Törsleff, S., Caesar, B., Fay, A., 2018b.

Ontology Building for Cyber-Physical Systems : A

domain expert-centric approach, in: 14th IEEE

International Conference on Automation Science and

Engineering (IEEE CASE 2018).

Hitzler, P., Gangemi, A., Janowicz, K., Krisnadhi, A.A.,

Presutti, V., 2016. Ontology Engineering with

Ontology Design Patterns: Foundations and

Applications. IOS Press.

Hitzler, P., Krötzsch, M., Rudolph, S., 2010. Foundations

of Semantic Web Technologies. Chapman & Hall.

Hodges, J., García, K., Ray, S., 2017. Semantic

Development and Integration of Standards for

Adoption and Interoperability. Computer (Long.

Beach. Calif). 50, 26–36.

John, S., Shah, N., Stewart, C., Samlov, L., 2017. Software

Centric Innovative Methodology for Ontology

Development, in: Proceedings of the 9th International

Conference on Knowledge Engineering and Ontology

Development (KEOD 2017). pp. 139–146.

https://doi.org/10.5220/0006482901390146

Laclavik, M., Balogh, Z., Babik, M., Hluchy, L., 2006.

AgentOWL: Semantic Knowledge Model and Agent

Architecture. Comput. Informatics 25, 419–437.

Lassila, O., McGuinness, D.L., 2001. The Role of Frame-

Based Representation on the Semantic Web, Technical

Report KSL-01-02. https://doi.org/10.1177/0363

54659702500204

Leitao, P., Karnouskos, S., Ribeiro, L., Lee, J., Strasser, T.,

Colombo, A.W., 2016. Smart Agents in Industrial

Cyber – Physical Systems. Proc. IEEE 104, 1068–1101.

https://doi.org/10.1109/JPROC.2016.2521931

Linnenberg, T., Fay, A., 2018. Software Engineering for

Agent Based Energy Systems, in: 14th IEEE

International Conference on Automation Science.

Olszewska, I.J., 2015. UML Activity Diagrams for OWL

Ontology Building, in: Proceedings of the 7th

International Joint Conference on Knowledge

Discovery, Knowledge Engineering and Knowledge

Management (IC3K2015) - Volume 2: KEOD. pp. 370–

374. https://doi.org/10.5220/0005633103700374

Pinto, H.S., Staab, S., Tempich, C., 2004. DILIGENT:

Towards a fine-grained methodology for DIstributed,

Loosely-controlled and evolvInG Engineering of

oNTologies, in: Proceedings of the 16th European

Conference on Artificial Intelligence (ECAI’04).

Schumilin, A., Stucky, K.U., Sinn, F., Hagenmeyer, V.,

2017. Towards ontology-based network model

management and data integration for smart grids, in:

2017 Workshop on Modeling and Simulation of Cyber-

Physical Energy Systems (MSCPES).

https://doi.org/10.1109/MSCPES.2017.8064530

Simperl, E., Luczak-Rösch, M., 2014. Collaborative

ontology engineering: A survey. Knowl. Eng. Rev. 29,

101–131. https://doi.org/10.1017/S0269888913000192

Souza, M., Moreira, A., Vieira, R., Meyer, J.-J.C., 2016.

Integrating Ontology Negotiation and Agent

Communication, in: Tamma, V., Dragoni, M.,

Gonçalves, R., Ławrynowicz, A. (Eds.), Ontology

Engineering. Springer International Publishing, Cham,

pp. 56–68.

Sturm, A., Shehory, O., 2014. The Landscape of Agent-

Oriented Methodologies, in: Shehory, O., Sturm, A.

(Eds.), Agent-Oriented Software Engineering -

Reflections on Architectures, Methodologies,

Languages, and Frameworks. Springer-Verlag Berlin

Heidelberg, pp. 137–154. https://doi.org/10.1007/978-

3-642-54432-3

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

456

Suárez-Figueroa, M.C., Gómez-pérez, A., Villazón-

Terrazas, B., 2009. How to Write and Use the Ontology

Requirements Specification Document How to Write

and Use the Ontology Requirements, in: Meersman, R.,

Dillon, T., Herrero, P. (Eds.), On the Move to

Meaningful Internet Systems. Springer-Verlag, Berlin

Heidelberg, pp. 966–982. https://doi.org/10.1007/978-

3-642-05151-7

Subercaze, J., Maret, P., 2011. Programming Semantic

Agent for Distributed Knowledge Management, in:

Elci, A., Koné, M.T., Orgun, M.A. (Eds.), Semantic

Agent Systems - Foundations and Applications.

Springer-Verlag Berlin Heidelberg, pp. 47–65.

Uschold, M., Gruninger, M., 1996. Ontologies : Principles

, Methods and Applications. Knowl. Eng. Rev. 11, 93–

136. https://doi.org/10.1.1.111.5903

Vouros, G.A., Kotis, K., 2006. Human-centered ontology

engineering: The HCOME methodology. Knowl. Inf.

Syst. 10, 109–131. https://doi.org/10.1007/s10115-005-

0227-4

Vrba, P., Marik, V., Siano, P., Leitao, P., Zhabelova, G.,

Vyatkin, V., Strasser, T., 2014. A review of agent and

service-oriented concepts applied to intelligent energy

systems. IEEE Trans. Ind. Informatics 10, 1890–1903.

https://doi.org/10.1109/TII.2014.2326411

Development of Ontologies for Reasoning and Communication in Multi-Agent Systems

457
