Intellectual Execution Scheme of Iterative Computational Models based

on Symbiotic Interaction with Application for Urban Mobility Modelling

Mikhail Melnik

, Denis Nasonov

and Alexey Liniov

ITMO University, Saint-Petersburg, Russian Federation

Lobachevsky State University of Nizhni Novgorod, Nizhny Novgorod, Russia

Keywords:

Parallel Computation, Co-design, Scheduling, Supercomputer, Multi-agent Model.

Abstract:

In the modern world, with the growth of the volume of processed data arrays, the logic of solving problems also

becomes more complex. This leads more and more often to the need to use high-performance computational

clusters, such as supercomputers. Created multi-agent simulation applications require not only signiﬁcant

resources but often perform time-consuming complex scenarios, which signiﬁcantly affects the efﬁciency

of the executed process. However, there are various mechanisms for optimizing application execution for

different needs. Unfortunately, the speciﬁcity of multi-agent simulation does not allow the use of traditional

and modern algorithms due to the iteratively variable workload and limitations of a system software installed

on the supercomputers. In this paper, we propose a four-level scheme for organizing the symbiotic execution

(co-design) of multi-agent applications on supercomputers, as well as an effective two-level algorithm for

optimizing the ﬂow of the execution of an urban mobility simulation application. The algorithm is based on

evolutionary approach and machine learning techniques.

1 INTRODUCTION

Nowadays, computational modeling applications are

in demand in many areas of research, both science

and business. With the growth of the processed data

amount and the complexity of the solving tasks, there

is a need to use high-performance computing and one

of the most popular way is modern supercomputers

utilization. Among such tasks, multi-agent modeling

problems takes a separate place. Usually, simulated

agents cooperate in a commonly organized virtual en-

vironment, which can be divided into parts when the

executed scenario needs too many computational re-

sources and time. In this case, the computational pro-

cess is split between computational nodes into spatial

domains, and each region with its part of the agents is

processed independently, transferring changes at the

boundaries to other regions. In such a way of orga-

nization, there is a signiﬁcant number of peculiari-

ties that must be taken into account when develop-

ing models and scenarios. These peculiarities include

overhead costs arising from the interchanges of spa-

tial domains; unbalanced loading of each computa-

tional resource; speciﬁcs of approaches that perform

division of virtual environment into zones; compet-

ing for execution of several models at once, etc. To

ensure successful overcoming of these problems, var-

ious approaches are applied: a) implementation of the

logic of sustainable scalability and application per-

formance within the application’s internal part - pro-

vides only conditional overcoming of effective exe-

cution problems, because the application usually rep-

resent some models in the certain domain, as a rule,

optimization is not a professional competence of the

application’s author; b) performing optimization by

an external service - this option is rarely available

in high-performance computing environments, espe-

cially in supercomputers, where the planning mecha-

nism is often used to meet the needs of a live queue,

based on the greedy rules with several parameters

such as priorities and amount of required resources;

c) symbiotic execution (co-design) - using the logic

of mutually beneﬁcial cooperation of an application

package and infrastructure software, where the appli-

cation provides the infrastructure the ability to cus-

tomize and control the workload for each application

agents (region) during the calculation of a scenario.

The last approach is the most promising, especially

if the implementation is not a particular case for a

speciﬁc task, but a single generalized scheme appli-

cable for different areas with the minimum required

changes on the application side. In this article, we

Melnik, M., Nasonov, D. and Liniov, A.

Intellectual Execution Scheme of Iterative Computational Models based on Symbiotic Interaction with Application for Urban Mobility Modelling.

DOI: 10.5220/0008365602450251

In Proceedings of the 11th International Joint Conference on Computational Intelligence (IJCCI 2019), pages 245-251

ISBN: 978-989-758-384-1

245

propose a solution that divides the interaction logic

into four levels: model, environment and two system

levels. The model hidden internal logic of the appli-

cation, system levels correspond for scheduling and

control of execution process as well as resources allo-

cation, while the environment is used for simulation

by model and optimization by the system. During in-

vestigations, the hierarchical optimization algorithm

was created and experimentally studied on the appli-

cation of population mobility simulation in the city of

St. Petersburg.

2 RELATED WORKS

Many researchers developed algorithms and ap-

proaches to solve problems related to the organi-

zation of computations in supercomputing environ-

ments. These works aimed at various aspects of com-

putation processes. This includes methods for manag-

ing memory, storage, resource managers and sched-

ulers. Moreover, there are works aimed at studying

the effective use of speciﬁc hardware (GPU), ensur-

ing high reliability or scalability of computations and

improving the energy consumption.

For example, an algorithm for scheduling of het-

erogeneous GPU resources was developed in (Zim-

mer et al., 2018) in order to provide enhanced reli-

ability of execution. The main idea was to assign

more reliable and modern GPU for large tasks. Ex-

periments were carried out on Titan supercomputer,

where the number of GPU-oriented tasks has been in-

creased signiﬁcantly over the past 4 years.

For the qualitative reproduction of computation

process on supercomputers, (Martinasso et al., 2018)

developed a RM-Player. The difference to already ex-

isting models and simulators lies in the usage of the

same stack of technologies and resource managers.

This player allows user to conﬁgure system’s parame-

ters to adapt and improve computation processes. Ex-

periments were conducted on Piz Daint supercom-

puter. Another approaches to building a supercom-

puter simulator based on the Maui scheduler are being

studied in (Zitzlsberger et al., 2018).

Authors of (Malakar et al., 2018) explore ways

to efﬁciently organize parallel computations based on

partition of modelling domain according to architec-

ture of CPU. This study does not examine the internal

workload of partitions and their balancing.

An important criterion for effective computations

is the consideration of network structure and its band-

width. Authors of (Pollard et al., 2018) consider the

study of approaches to the organization of balancing

tasks in fat-tree networks. In (Smith et al., 2018) a

problem of analyzing forecasting tasks is studied, de-

pending on the network structure. This study also in-

cludes a routing scheme, allowing the user to reassign

tasks in order to avoid emergencies of overloaded hot-

spots.

An abstract infrastructure of a data center, which

implies scheduling and optimization mechanisms is

presented in (Andreadis et al., 2018). The abstract

infrastructure considers the complete workﬂow of

tasks’ computation process, painted in stages. Con-

ducted experiments used existing scheduling algo-

rithms associated with the developed structure.

Many works are focused on the problem of scal-

ing and problems related with that. In (Liu et al.,

2018) a scaling problem is solved by integration of

resources from external cloud clusters and by algo-

rithms for the transfer of data and computations be-

tween clusters. A model for estimating a bandwidth

of master nodes and corresponding tools for estimat-

ing the required amount of resources are presented in

(Kremer-Herman et al., 2018).

Authors of (Subedi et al., 2018) propose frame-

work Stacker for efﬁcient data transfer inside mul-

tiscale composite applications running in supercom-

puter environments. In particular, the work is aimed

at optimizing operations with RAM during the execu-

tion process of distributed applications at its various

stages.

Despite the wide range of researches related to

multiscale modeling and optimization of supercom-

puters, there is a lack of works related to the anal-

ysis and monitoring of internal logic of applications

to be taken into account in the optimization mecha-

nisms. Therefore, a development of methods that can

not only take into account speciﬁcs of applications,

but also inﬂuence the computation process is an ac-

tual direction for research.

3 PROBLEM STATEMENT

The main idea of this work is to effectively parti-

tion the modeling domain based on load prediction

in these areas and transferring data between them.

3.1 Problem Statement

A computational model has its execution environment

that is organized as a spatial or temporal computa-

tional grid G =< V, E >, where V = v

is a set of ver-

texes and E = e

j1, j2

is a set of edges between them.

Let W = w

be a workload for a current iteration,

where w

represents computational intensity on a ver-

tex v

. R = r

is a set of computational resources.

ECTA 2019 - 11th International Conference on Evolutionary Computation Theory and Applications

246

Performance of a resource is deﬁned in r

. We de-

ﬁne a schedule S = w

j,m

as an allocation of workload

elements w

across resources r

. Let deﬁne the cost

function for transfer from schedules S

and S

f (S

, S

) =

∑

j, j

(1)

where:

(

1, if j and j

are on different resources

0, otherwise

(2)

j, j

is a metadata that must be transferred from v

to v

, b

j, j

is a data transfer speed. The considered

function to estimate the modelling time during one

iteration:

T (S) = max

(

∑

j,m

∑

j, j

) (3)

Then, we can deﬁne a condition for transition be-

tween schedules:

f (S

, S

new

) < (T (S

− T (S

new

))θ (4)

where θ is a statistical depending value represents

the rate of changing of workload through vertexes of

computational grid.

3.2 Four-level Intellectual Execution

Scheme

An execution scheme for organizing computations is

developed based on the scheduling of partitions of a

modeling area. The scheme is based on a multi-agent

approach, where each intelligent agent is responsi-

ble for a speciﬁc area of modeling and provides its

own forecasts for the iteration time for its area. The

scheme is managed by a master agent. The master

agent performs scheduling by assign cells to intellec-

tual agents, and obtaining the developed performance

models from these agents. In the example of urban

modeling application, the master agent performs dy-

namic rescheduling to account changes in the dynam-

ics of population movement in the city.

The basis of developed scheme is a possibility of

integration into an application in order to obtain the

possibility of ﬂexible partitioning of a modeling area,

which is impossible with the standard implementation

of the application, where the modeling area is divided

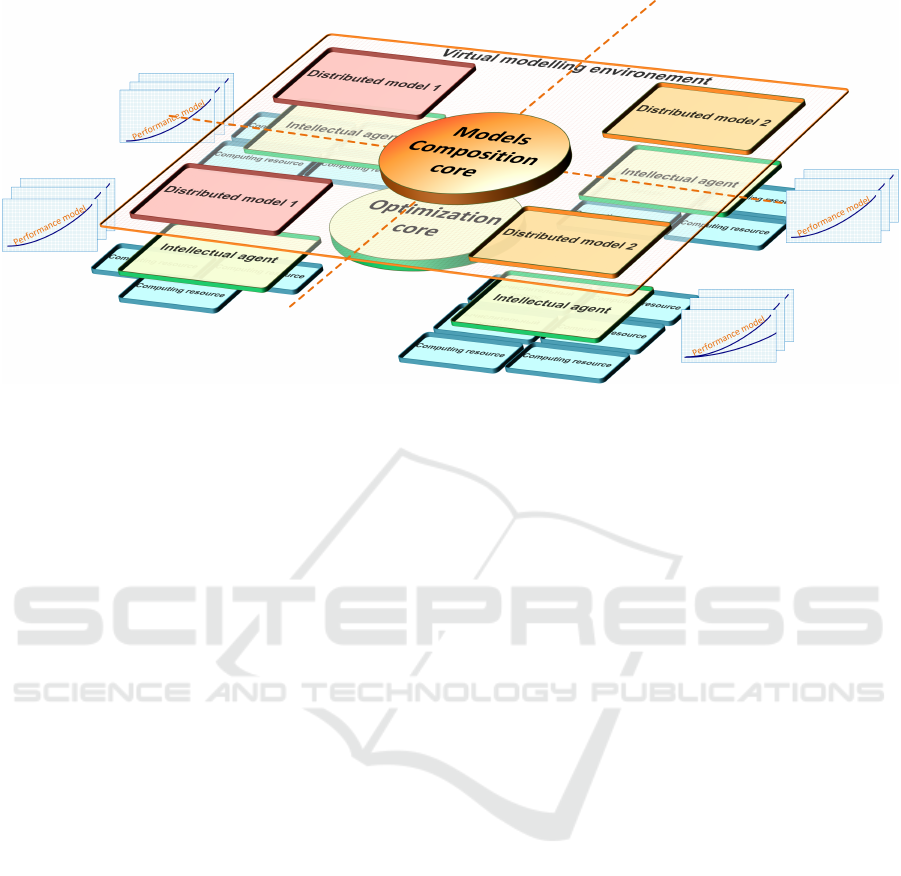

evenly into blocks. The scheme is shown in the Fig.

The ﬁrst level of the scheme is the composition

core of models that is responsible for managing the

launched models. The goal of this level is a seman-

tic analysis of the model to obtain the boundaries of

the modeling domain and deﬁne restrictions on how

the modeling domain can be divided into subregions

and thus form adapted distributed logic of application

models combined in a single workﬂow.

The result of the model analysis is a virtual mod-

elling environment for several competing or cooper-

ating models. Within the framework of the virtual en-

vironment, modeling areas are known, and tools for

proﬁling and monitoring of modeling process are pro-

vided. Also, at the level of the virtual modelling en-

vironment, the task of distributing application models

appears in the form necessary for the scheduler.

The third level is a distributed two-level intelli-

gent algorithm with a high-level central optimization

core and a multi-agent collaborative level of intellec-

tual agents. The optimization core performs the pro-

cess of optimizing the distribution of a simulation do-

main. Optimization is carried out on the basis of al-

location of regions of modeling domain to intellec-

tual agents. Intelligent agents build their performance

models on the designated areas of modeling and re-

turn their prediction results to the central core. The

forecast result included estimates of the simulation

time of the application being launched with the cur-

rent load and the amount of resources provided for the

calculations. The algorithm of optimization and dis-

tribution of modeling areas is based on a developed

genetic algorithm. The last level of the scheme is the

level of a computing environment.

For the execution scheme we can deﬁne a

partition-based model of computational process. Let

=< d

, x

> be an object from modelling logic

(for example, agent in term of multi-agent modelling

application) that should be processed at location x

=< S

, {a

} > is a partition of modelling area

which includes associated with it modelling objects.

A partition is a unit of scaling. e

is an envelope that

serves as data transferring between two connected

partitions and e

t+1

=< {a

t+1

}, p

t+1

The computation of one iteration of modelling

process requires to set two user-deﬁne functions m

and g

t+1

= m

, {e

}) (5)

t+1

= g

t+1

) (6)

< p

t+1

, {e

t+1

} >= f (m, g, p

, {e

}) (7)

where m

- compute function that implements the

logic of modelling on the set of agents, g

- a func-

tion that determines a new partition for an agent after

its movement. Function f aggregates all this infor-

mation and performs all required operations to form

a new modelling state, including data exchange be-

tween processes of a computational application.

Intellectual Execution Scheme of Iterative Computational Models based on Symbiotic Interaction with Application for Urban Mobility

Modelling

247

Figure 1: Four-level intellectual execution scheme.

4 IMPLEMENTATION

4.1 Urban Mobility Simulation

In this paper, we experimented on the task of or-

ganizing efﬁcient calculations for an application on

multiscale modeling of urban mobility of population.

The application is called City-Simulator and it im-

plements the Extreme Scaling computational pattern

(Alowayyed et al., 2019). The application is a multi-

agent model, where agents move along a modelling

area that corresponds to a city. The simulation area

is divided by a uniform grid into cells. Applications

running in distributed mode based on MPI and can

be launched on a supercomputer. Parallelization of

the application occurs due to the distribution of cells

in the simulation area across computing nodes. The

modelling time of one iteration is summed up from

agents modelling time and data transfer time between

computational nodes in cases when an agent moves

between cells assigned to different nodes. Agents

modelling time is deﬁned as the maximum modelling

time among all computing nodes and it depends on

the number of agents in this cell. Data transfer time is

determined by the maximum data exchange time be-

tween nodes. Proﬁling of this application with various

parameters was performed in (Nasonov et al., 2018)

The simulation scenario sets routes for all agents.

Due to the dynamics of their movement and possibly

clusters in certain areas (for example, in the center),

the problem of load balancing arises. To maintain the

efﬁciency of computations, it is necessary to reallo-

cate areas of modeling by resources as changes in the

load of cells. To estimate the computational load, it

is necessary to carry out modeling and forecasting of

this workload. For forecasting, it is necessary to take

into account both the rise and fall intervals of the cur-

rent load, and the characteristics of a speciﬁc mod-

eling area. Certain areas of the simulation area may

have features that affect the simulation time. Thus,

the prediction of the density of the load must be car-

ried out for each region separately.

In this work, we developed a wrapper for this

application, that allows arbitrary partitioning of the

modeling area and distributes the modeling process

among the supercomputer nodes. This wrapper is de-

veloped according to presented intellectual execution

scheme and was integrated with Lomonosov (Lom,

2019) and Lobachevskiy (Lob, 2019) supercomput-

ers.

4.2 Genetic Algorithm

A genetic algorithm was developed to distribute the

application modeling domain. The algorithm is in-

tegrated in our execution scheme and wrapper for su-

percomputers. The optimization problem corresponds

to the formulated partition model in 3.2, which is

presented in the form of the distribution of cells in

the simulation domain by computational resources,

which are supported by intelligent agents within the

scheme. The modeling area is deﬁned by a NxN grid,

and there are M intelligent agents. Each agent has a

set of computing resources.

The genotype of the developed algorithm is an ar-

ray of dimensions (m, c, d), where m is the number

of agents, c is a parameter - the number of centers

for each agent, and d is the dimension of the simu-

ECTA 2019 - 11th International Conference on Evolutionary Computation Theory and Applications

248

lation domain. The meaning of such a genotype is

the spread of a given number of centers in the mod-

elling area and assignment of cells to nearby centers

of corresponding intelligent agents. An example of a

genotype and its corresponding distribution is shown

in Fig. 2. Each color represents an allocated area for

speciﬁc agent.

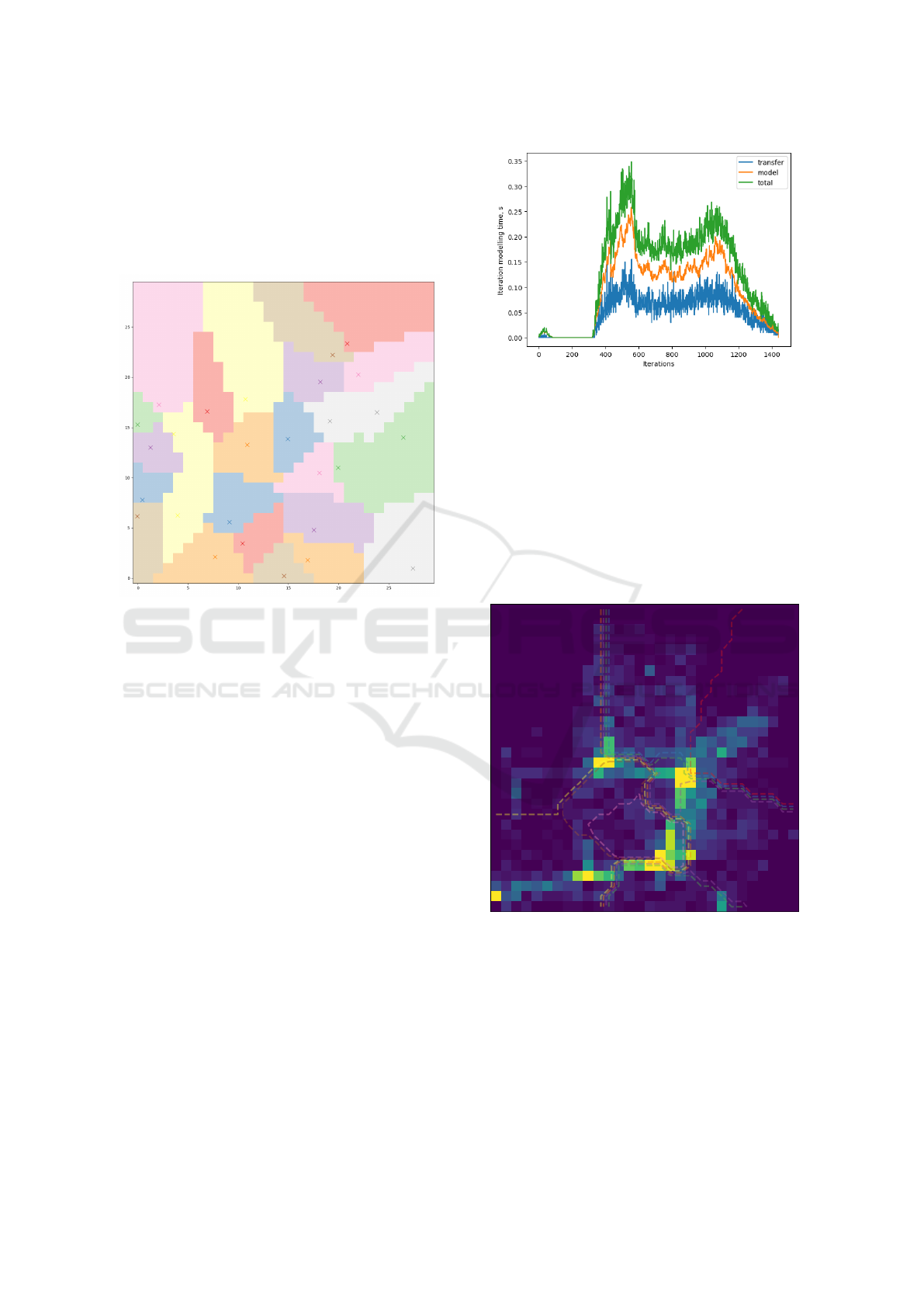

Figure 2: Example of genotype with marked centers.

The mutation operator moves randomly selected

centers by adding a normally distributed values. The

crossover is a two-pointed crossover, which selects

centers for agents from two parents. The selection is

performed by tournament with 3 participants. Each

individual presents a schedule. To estimate ﬁtness

function we launch a model that estimates modelling

time of application for speciﬁed period of time under

constructed schedules from individuals. It allows user

to perform forecast of the workload on a future itera-

tions for each intellectual agent. The ﬁtness function

summarizes the modelling times of all iterations in

accordance with the modelling time on each of the in-

telligent agents. Aggregated estimation of modelling

time is presented in Fig. 3.

5 EXPERIMENTAL STUDY

To conduct experimental studies, the scenario

with simulation of daily dynamics of people in

St.Petersburg was used. The speciﬁcs of this scenario

is that people move from sleeping area to center in the

morning and return to sleeping areas in the evening.

The length of one day modelling is 1440 iterations

(minutes). The goal of experiments is to optimize the

execution time of modelling process. This is achieved

Figure 3: Estimation of modelling time at each iteration.

by workload forecasting and scheduling by developed

GA.

The data for the scenario is a dataset with daily

logs of usage of public transport travel cards. Dataset

contains logs with 300,000 unique travel cards. The

workload of agents (heatmap from violet to yellow)

at one of iterations and divided areas (contour plots)

are presented in Fig. 4. From the Fig. 3 we can see

two peaks of workload. These peaks are related to

morning and evening rush-hours.

Figure 4: Agents workload and division of modelling area.

Five subsamples of 100,000 random cards were

sampled. One of the datasets was used for training

(for build schedules), and the others were used for

validation of received schedules. The simulated area

of the city was divided into a grid of 30x30 cells. In

relation to the scale of the city, the side of each cell

is approximately 0.7 km. With the developed scheme

and scenario of daily dynamic of city we conducted

several experiments for each sampled datasets:

Intellectual Execution Scheme of Iterative Computational Models based on Symbiotic Interaction with Application for Urban Mobility

Modelling

249

Table 1: Modelling time of urban mobility scenarios.

Scenario Basic Expert Dynamic 5 Dynamic 10 Forecast 5 Forecast 10

Main 307.9 299.5 175.3 159.5 146.0 137.4

Valid 1 307.6 298.7 172.9 158.4 147.2 138.9

Valid 2 310.1 296.4 176.0 158.7 147.8 136.1

Valid 3 308.2 301.0 173.4 156.1 146.5 137.4

Valid 4 306.8 297.8 170.7 157.9 146.1 135.9

Average 308.1 298.7 173.7 158.1 146.7 137.1

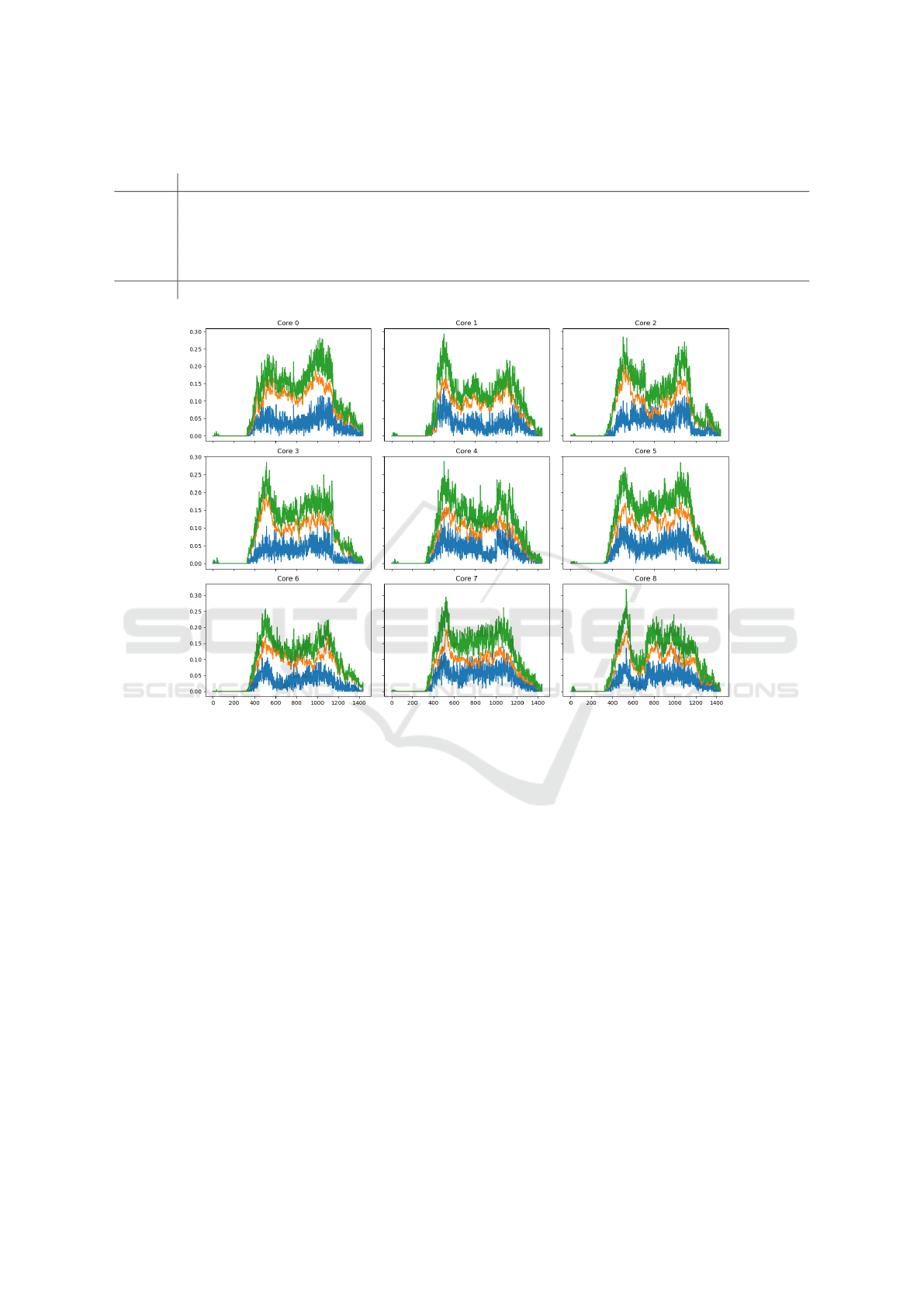

Figure 5: Results of workload distribution across intellectual agents by GA in Forecast 10 scenario.

1. Static - modelling area is divided into 9 equal par-

titions.

2. Expert - there are 3 schedules, that were deﬁned

by expert at iterations: 0, 550, 1050. These sched-

ules divide the modelling area according to daily

dynamic and rush-hours.

3. Dynam 5 - scheduling by GA every 288 iterations

(5 times) without forecasting.

4. Dynam 10 - scheduling by GA every 144 itera-

tions (10 times) without forecasting.

5. Forecast 5 - scheduling by GA every 288 itera-

tions with forecasting for the next scheduling in-

terval (developed execution scheme).

6. Forecast 10 - scheduling by GA every 144 itera-

tions with forecasting for the next scheduling in-

terval (developed execution scheme).

Schedules were build only in a case of Main sce-

nario. For experiments with validation scenario we

used according schedules. In all experiments we used

9 intellectual agents. This means that we can divide

our modelling area on 9 parts. Each part will be pro-

cessed on a speciﬁc computing resources according

to intellectual agents. These experiments were con-

ducted on Lomonosov supercomputer. Result of ex-

periments are shown in Table. 1. Values in the table

are presented in seconds and mean total modelling

time of scenario, which was scheduled by presented

scheduling approaches.

Results of experiments show that by using de-

fault uniform schedule, modelling time is 308.1s in

average. Schedules performed by expert reduce the

modelling time only on 9.4s. When we start to ap-

ply developed execution scheme and developed GA

but without a forecasting of future workload we re-

ceived average modelling times of 173.7s and 158.1s

for cases with 5 and 10 dynamic schedules accord-

ingly. The best results were obtained when we per-

formed a forecasting of workload for each intellec-

tual agent (Fig. 5). Experiments show that the more

often we perform rescheduling, the better our execu-

ECTA 2019 - 11th International Conference on Evolutionary Computation Theory and Applications

250

tion scheme adapts to changes in the model. The best

result 137.1s (10 times with forecasting) ) is 55.5%

faster than the one obtained with the basic scenario.

6 CONCLUSION

In this work, a symbiotic four-level scheme of the

organization of the computational process for multi-

agent simulation was proposed. The key feature of

interaction between the model and the system is con-

centrated in the virtual modeling environment, which

includes the application agents’ activities and opti-

mization results, formed by the planning and control

module. This module implements an algorithm with

the genetic optimization core and intelligent agents

for workload prediction. The obtained results show

the high efﬁciency of the proposed approach, as they

not only complete the set of test scenarios faster but

also increase the potential ability for scaling, by se-

lecting the right division areas of the space and reduc-

ing overhead costs. The results of experiments show

the efﬁciency of proposed execution scheme and GA

by the improvement of the modelling time in compar-

ison to the default schedule by 55%.

ACKNOWLEDGEMENTS

This research is ﬁnancially supported by The Russian

Foundation for Basic Research, Agreement #18-37-

00416.

REFERENCES

(2019). Lobachevskiy supercomputer. http://www.itmm.

unn.ru/ob-institute/oborudovanie/. Accessed: 2019-

06-10.

(2019). Lomonosov supercomputer. https://parallel.ru/

cluster/about. Accessed: 2019-06-10.

Alowayyed, S., Piontek, T., Suter, J. L., Hoenen, O., Groen,

D., Luk, O., Bosak, B., Kopta, P., Kurowski, K.,

Perks, O., et al. (2019). Patterns for high performance

multiscale computing. Future Generation Computer

Systems, 91:335–346.

Andreadis, G., Versluis, L., Mastenbroek, F., and Iosup,

A. (2018). A reference architecture for datacenter

scheduling: design, validation, and experiments. In

Proceedings of the International Conference for High

Performance Computing, Networking, Storage, and

Analysis, page 37. IEEE Press.

Kremer-Herman, N., Tovar, B., and Thain, D. (2018). A

lightweight model for right-sizing master-worker ap-

plications. In SC18: International Conference for

High Performance Computing, Networking, Storage

and Analysis, pages 504–516. IEEE.

Liu, F., Keahey, K., Riteau, P., and Weissman, J.

(2018). Dynamically negotiating capacity between

on-demand and batch clusters. In Proceedings of the

International Conference for High Performance Com-

puting, Networking, Storage, and Analysis, page 38.

IEEE Press.

Malakar, P., Munson, T., Knight, C., Vishwanath, V., and

Papka, M. E. (2018). Topology-aware space-shared

co-analysis of large-scale molecular dynamics simu-

lations. In SC18: International Conference for High

Performance Computing, Networking, Storage and

Analysis, pages 305–319. IEEE.

Martinasso, M., Gila, M., Bianco, M., Alam, S. R., McMur-

trie, C., and Schulthess, T. C. (2018). Rm-replay: a

high-ﬁdelity tuning, optimization and exploration tool

for resource management. In Proceedings of the In-

ternational Conference for High Performance Com-

puting, Networking, Storage, and Analysis, page 25.

IEEE Press.

Nasonov, D., Butakov, N., Melnik, M., Visheratin, A.,

Linev, A., Shvets, P., Sobolev, S., and Mukhina, K.

(2018). The multi-level adaptive approach for efﬁcient

execution of multi-scale distributed applications with

dynamic workload. In Russian Supercomputing Days,

pages 675–686. Springer.

Pollard, S. D., Jain, N., Herbein, S., and Bhatele, A. (2018).

Evaluation of an interference-free node allocation pol-

icy on fat-tree clusters. In Proceedings of the Interna-

tional Conference for High Performance Computing,

Networking, Storage, and Analysis, page 26. IEEE

Press.

Smith, S. A., Cromey, C. E., Lowenthal, D. K., Domke, J.,

Jain, N., Thiagarajan, J. J., and Bhatele, A. (2018).

Mitigating inter-job interference using adaptive ﬂow-

aware routing. In Proceedings of the International

Conference for High Performance Computing, Net-

working, Storage, and Analysis, page 27. IEEE Press.

Subedi, P., Davis, P., Duan, S., Klasky, S., Kolla, H.,

and Parashar, M. (2018). Stacker: an autonomic

data movement engine for extreme-scale data staging-

based in-situ workﬂows. In Proceedings of the In-

ternational Conference for High Performance Com-

puting, Networking, Storage, and Analysis, page 73.

IEEE Press.

Zimmer, C., Maxwell, D., McNally, S., Atchley, S., and

Vazhkudai, S. S. (2018). Gpu age-aware scheduling

to improve the reliability of leadership jobs on titan.

In Proceedings of the International Conference for

High Performance Computing, Networking, Storage,

and Analysis, page 7. IEEE Press.

Zitzlsberger, G., Jans

ık, B., and Martinovi

c, J. (2018). Fea-

sibility analysis of using the maui scheduler for job

simulation of large-scale pbs based clusters. IADIS

International Journal on Computer Science & Infor-

mation Systems, 13(2).

Intellectual Execution Scheme of Iterative Computational Models based on Symbiotic Interaction with Application for Urban Mobility

Modelling

251
