Learning Sequence Patterns in Knowledge Graph Triples to Predict

Inconsistencies

Mahmoud Elbattah

1,2

and Conor Ryan

Department of Computer Science and Information Systems, University of Limerick, Ireland

Laboratoire MIS, Université de Picardie Jules Verne, France

Keywords: Knowledge Graphs, Knowledgebase, Semantic Web, Machine Learning.

Abstract: The current trend towards the Semantic Web and Linked Data has resulted in an unprecedented volume of

data being continuously published on the Linked Open Data (LOD) cloud. Massive Knowledge Graphs (KGs)

are increasingly constructed and enriched based on large amounts of unstructured data. However, the data

quality of KGs can still suffer from a variety of inconsistencies, misinterpretations or incomplete information

as well. This study investigates the feasibility of utilising the subject-predicate-object (SPO) structure of KG

triples to detect possible inconsistencies. The key idea is hinged on using the Freebase-defined entity types

for extracting the unique SPO patterns in the KG. Using Machine learning, the problem of predicting

inconsistencies could be approached as a sequence classification task. The approach applicability was

experimented using a subset of the Freebase KG, which included about 6M triples. The experiments proved

promising results using Convnet and LSTM models for detecting inconsistent sequences.

1 INTRODUCTION

The vision of the Semantic Web is to allow for

storing, publishing, and querying knowledge in a

semantically structured form (Berners-Lee, Hendler,

and Lassila, 2001). To this end, a diversity of

technologies has been developed, which contributed

to facilitating the processing and integration of data

on the Web. Knowledge graphs (KGs) have come into

prominence particularly as one of the key instruments

to realise the Semantic Web.

KGs can be loosely defined as large networks of

entities, their semantic types, properties, and

relationships connecting entities (Kroetsch and

Weikum, 2015). At its inception, the Semantic Web

has promoted such a graph-based representation of

knowledge through the Resource Description

Framework (RDF) standards. The concept was

reinforced by Google in 2012, which utilised a vast

KG to process its web queries (Singhal, 2012). The

use of KG empowered rich semantics that could yield

a significant improvement in search results.

Other major companies (e.g. Facebook,

Microsoft) pursued the same path and created their

own KGs to enable semantic queries and smarter

delivery of data. For instance, Facebook provides a

KG that can inspect semantic relations among entities

(e.g. persons, places), which are all inter-linked in a

huge social graph.

Equally important, many large-scale KGs have

been made available thanks to the movement of

Linked Open Data (LOD) (Bizer, Heath, and Berners-

Lee, 2011). Examples include the DBpedia KG,

which consists of about 1.5B facts describing more

than 10M entities (Lehmann et al. 2015). Further

openly available KGs were introduced over past years

including Freebase, YAGO, Wikidata, and others. As

such, the use of KGs has now become a mainstream

for knowledge representation on the Web.

However, the data quality of KGs remains an

issue of ongoing investigation. KGs are largely

constructed by extracting contents using web

scarpers, or through crowdsourcing. Therefore, the

extracted knowledge could unavoidably contain

inconsistencies, misinterpretations, or incomplete

information. Moreover, data sources may include

conflicting data for the same exact entity. For

example, (Yasseri et al., 2014) analysed the top

controversial topics in 10 different language versions

of Wikipedia. Such controversial entities can lead to

inconsistencies in KGs as well.

In this respect, this study explores a Machine

Learning-based approach to detect possible

Elbattah, M. and Ryan, C.

Learning Triple Sequence Patterns in Knowledge Graphs to Predict Inconsistencies.

DOI: 10.5220/0008494604350441

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 435-441

ISBN: 978-989-758-382-7

435

inconsistencies within KGs. In particular, we

investigated the feasibility of learning the sequence

patterns of triples in terms of subject-predicate-object

(SPO). The approach presented deemed successful

for classifying triples including inconsistent SPO

patterns. Our experiments were conducted using a

large subset of Freebase data that comprised about

6M triples.

2 BACKGROUND AND RELATED

WORK

This section reviews the literature from a two-fold

perspective. Initially, the first part aims to get the

reader’s acquaintance with the quality aspects of KGs.

The review particularly explores how the consistency

of KGs was described in literature. Subsequently, we

present selective studies that introduced methods to

deal with consistency-related issues in KGs.

2.1 Quality Metrics of KGs

With ongoing initiatives for publishing data into the

Linked Data cloud, there has been a growing interest

in assessing the quality of KGs. Part of the efforts was

basically directed towards discussing the different

quality aspects of KGs (e.g. Zaveri et al., 2016;

Debattista et al. 2018; Färber et al. 2018). This section

briefly reviews representative studies in this regard.

Particular attention is placed on the consistency of

KGs, which is the focus of this study.

(Zaveri et al. 2016) defined three categories of KG

quality including: i) Accuracy, ii) Consistency, and

iii) Conciseness. The consistency category contained

several metrics such as misplaced classes or

properties, or misuse of predicates. Likewise, (Färber

et al., 2018) attempted to define a comprehensive set

of dimensions and criteria to evaluate the data quality

of KGs. The quality dimensions were organised into

four broad categories as follows: i) Intrinsic, ii)

Contextual, iii) Representational data quality, and iv)

Accessibility. The consistency of KGs was included

under the Intrinsic Category. In particular,

consistency-related criteria were given as follows:

 Check of schema restrictions during inserting

new statements.

 Consistency of statements against class

constraints.

 Consistency of statements against relation

constraints.

2.2 Refinement of KGs

Various methods were proposed for the validation

and refinement of the quality of KGs. In general, there

have been two main goals of KG refinement

including (Paulheim, 2017): i) Adding missing

knowledge to the graph, and ii) Identifying wrong

information in the graph. The review here is more

focused on studies that addressed the latter case.

One of the early efforts was the DeFacto (Deep

Fact Validation) method (Gerber et al., 2015). The

DeFacto approach was based on finding trustworthy

sources on the Web in order to validate KG triples.

This could be achieved by collecting and combining

evidence from webpages in several languages. In the

same manner, (Liu, d’Aquin, and Motta, 2017)

presented an approach for the automatic validation of

KG triples. Named as Triples Accuracy Assessment

(TAA), their approach works by finding a consensus

of matched triples from other KGs. A confidence

score can be calculated to indicate the correctness of

source triples.

Other studies attempted to use Machine Learning

to detect the quality deficiencies in KGs. In this

regard, association rule mining has been considered

as a suitable technique for discovering frequent

patterns within RDF triples. For instance, (Paulheim,

2012) used rule mining to find common patterns

between types, which can be applied to

knowledgebases. The approach was experimented on

DBpedia providing results at an accuracy of 85.6%.

Likewise, (Abedjan. and Naumann, 2013) proposed a

rule-based approach for improving the quality of RDF

datasets. Their approach can help avoid

inconsistencies through providing predicate

suggestions, and enrichment with missing facts.

Further studies continued to develop similar rule-

based approaches such as (Barati, Bai, and Liu,

2016), and others.

More recently, (Rico et al., 2018) developed a

classification model for predicting incorrect

mappings in DBpedia. Different classifiers were

experimented, and the highest accuracy (≈ 93%)

could be achieved using a Random Forest Model.

However, further potentials for using Machine

Learning may have not been explored in literature yet.

For instance, utilising the sequence-based nature of

triples for learning, which is the focus of this study.

Our approach is based on applying sequence

classification techniques to the SPO triples in KGs.

To the best of our knowledge, such approach has not

been applied before.

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

436

3 DATA DESCRIPTION

As mentioned earlier, the study’s approach was

experimented on the Freebase KG. The following

sections describe the dataset used along with a brief

review of the key features of Freebase.

3.1 Overview

Freebase was introduced as a huge knowledgebase of

cross-linked datasets. Freebase was initially launched

by Metaweb Technologies before it was acquired by

Google. The knowledgebase was constructed using a

wide diversity of structured data imported from

various sources such as Wikipedia, MusicBrainz and

WordNet (Bollacker, Cook, and Tufts, 2007).

In 2016, the Freebase KG has been merged with

Wikidata to form even a larger KG (Pellissier Tanon

et al., 2016). However, Freebase data is still freely

accessible through a downloadable dump (≈250 GB).

In this study, we used the reduced version (≈5GB),

which contain the basic identifying facts.

The reduced subset contained more than 20M

triples.

For further simplification, our dataset included

6M triples only. The triples spanned a variety of

domains, which are organised into broad categories

as: i) Science & Tech, ii) Arts & Entertainment, iii)

Sports, iv) Society, v) Products & Services, vi)

Transportation, vii) Time & Space, viii) Special

Interests, and ix) Commons. Table 1 gives summary

statistics of the dataset with respect to each category.

Table 1: Statistics of the dataset.

Freebase Cate

Count of Triples

#1 Arts & Entertainment 2,461,499

#2 Time & Space 1,483,723

#3 Societ

658,823

#4 Science & Tech. 578,895

#5 Products & Services 485,406

#6 Special Interests 178,605

#7 Transportation 116,071

#8 Sports 36,978

3.2 Freebase Knowledge Graph

Like the RDF model, the knowledge in Freebase is

represented as SPO triples, which collectively form a

huge KG. The KG contains millions of topics about

real-world entities including people, places and

things. A topic may refer to a physical entity (e.g.

Albert Einstein) or an abstract concept (e.g. Theory

of Relativity). Figure 1 illustrates a basic example of

triples in Freebase KG.

Furthermore, Freebase was thoroughly

architected around a well-structured schema. Entities

in the KG are mapped to abstract types. A type serves

as a conceptual container of properties commonly

needed for characterising a particular class of entities

(e.g. Author, Book, Location etc.). In this manner,

entities can be considered as instances of the schema

types.

The Freebase KG incorporates around 125M

entities, 4K types, and 7K predicates (Bollacker et al.

2008). Entities can be associated with any number of

types. As an example, Figure 2 demonstrates the

multi-typing of the famed British politician, Winston

Churchill. As it appears, Churchill can be described

as a type of Politician, Commander, Author, Nobel

Laureate, Visual Artist, and generally as a type of

Person. This presents a good example of how the

multi-faceted nature of real-world entities is

represented in the KG.

Figure 1: Representation of knowledge in Freebase.

Figure 2: Example of entity types in Freebase.

Learning Triple Sequence Patterns in Knowledge Graphs to Predict Inconsistencies

437

4 OUR APPROACH

The study was motivated by developing an approach

to help predict possible inconsistencies in KGs. In

essence, our approach is based on the premise that the

sequence-based patterns of SPO triples can

discriminate consistent statements against others.

Using Machine learning, the problem could be

approached as a binary classification task. The

following sections elaborates our approach and the

underlying key ideas.

4.1 Key Idea I: Extracting Unique SPO

Patterns in Knowledge Graph

The first challenge was to generalise the SPO patterns

existing in a huge KG. With millions of triples, the

learning process becomes very computationally

expensive, and prone to overfitting as well.

The key idea was to avail of the generic entity

types defined by Freebase in order to provide a

higher-level abstraction of the SPO triples. The

subject and object in each triple were mapped to one

or more of the entity types (e.g. Person, Author) as

explained before. For example, Figure 3 presents a set

of triples that include different subjects and objects.

However, they all can be conceptualised as a generic

sequence in terms of: <Person> <Born in>

<Location>. This can be the case for thousands or

millions of triples that represent the same sequence.

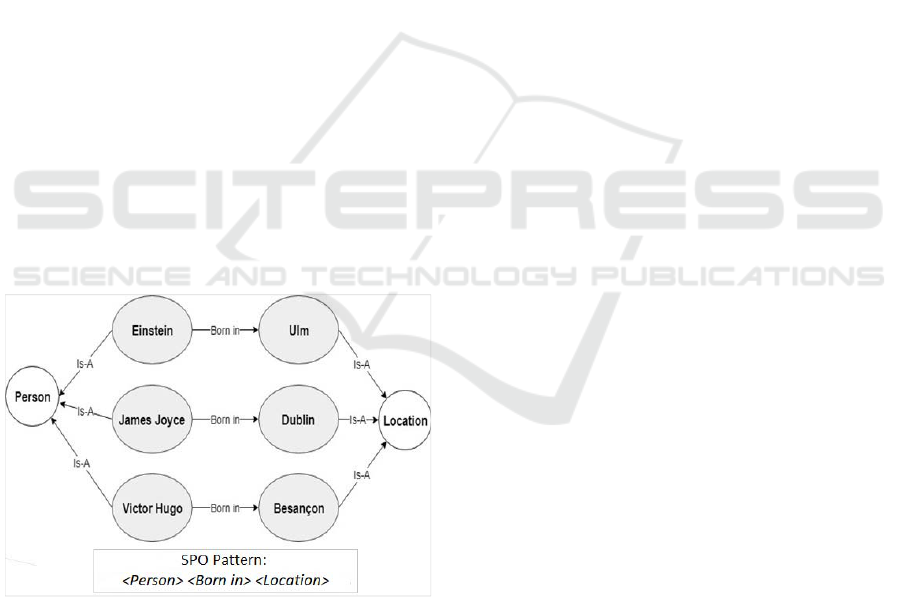

Figure 3: Example of extracting unique SPO patterns.

As such, the generic SPO statements can describe the

common behavioural patterns found in the KG, which

are likely to be consistent. Further, the problem

dimensionality could be significantly reduced by

decreasing the number of sequences under

consideration. Specifically, the dataset initially

contained 6M triples, while the unique patterns were

only about 124K. This contributed to making the

problem more amenable for Machine Learning.

4.2 Key Idea II: Generating Syntenic

False Patterns

One major limitation to developing a Machine

Learning-based approach was the unavailability of

wrong (i.e. inconsistent) examples. The triples

included in the KG were presumably considered as

correct. Even though inconsistent examples can likely

exist, they were not explicitly labelled.

In this regard, the second key idea was to generate

SPO patterns that can serve as synthetic samples of

inconsistent sequences. The generated patterns were

checked such that they did not exist within the set of

true patterns. For instance, a generated pattern could

be like: <Location> <Born in> <Person>.

A Long Short-Term Memory (LSTM) model was

used to generate the synthetic sequences. LSTM

models can perform as predictive and generative

models as well. They can learn data sequences (e.g.

time series, texts, audio), and then generate entirely

new plausible sequences. The LSTM was proposed

by (Hochreiter and Schmidhuber, 1997), which

proved very successful for tackling sequence-based

problems (e.g. Graves, Mohamed, and Hinton, 2013;

Oord et al., 2016; Gers, Eck, Schmidhuber, 2002).

Instead of neurons, LSTM networks include memory

cells, which have further components to deal with

sequence inputs. A cell can learn to recognise an input,

store it in the long-term state. The input can be

preserved and extracted whenever needed. (Géron,

2017) would be a good resource for a detailed

explanation of the LSTM mechanism, as this should

go beyond the scope and space of the study.

5 EXPERIMENTS

5.1 Computing Environment

We used the Data Science Virtual Machine (DSVM)

provided by the Azure platform. The DSVM greatly

facilitates compute-intensive tasks using GPU-

optimized VMs. The DSVMs are powered by the

NVIDIA Tesla K80 card and the Intel Xeon E5-2690

v3 processor.

In our case, the DSVM included double GPUs and

12 vCPUs with 112 GB RAM. All models were

trained using the same DSVM settings.

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

438

5.2 Data Preprocessing

A set of preprocessing procedures were applied in

order to make the sequences suitable for learning.

Initially, the first step was to transform the raw text

sequences into tokens or words. That process is called

tokenisation.

The Keras library (Chollet, 2015) provides a

convenient method for text tokenisation, which we

used for preprocessing the sequences. Using the

Tokenizer utility class, textual sequences could be

vectorised into a list of integer values. Each integer

was mapped to a value in a dictionary that encoded

the entire corpus, where keys in the dictionary

representing the vocabulary terms themselves.

The second step was to represent tokens as vectors,

by applying the so-called one-hot encoding. This is a

simple process that produces a vector of the length of

the vocabulary with an entry (i.e. one) for each word

in the corpus. In this way, each word would be given

a spot in the vocabulary, where the corresponding

index is set to one. Keras also provides easy-to-use

APIs for applying the one-hot encoding.

The final step was to use word embedding, which

is a vital procedure for making the sequences

amenable for Machine Learning. The one-hot

encoded vectors are very high-dimensional and

sparse. Embeddings are used to provide dense word

vectors of much lower dimensions of the encoded

representations.

Keras provides a special layer for the

implementation of word embeddings. The embedding

layer can be conceived as a dictionary that maps

integer indices into dense vectors (Chollet, 2017). It

takes integers as input, then it looks up these integers

in an internal dictionary, and it returns the associated

vectors. The embedding layer was used as the top

layer in the generative and classification models.

5.3 Generative Model

The generative model is a typical LSTM implantation,

which comprised a single layer of 100 cells. The

model was implemented using the Keras

CuDNNLSTM layer, which includes optimized

routines for GPU computation.

Figure 4 demonstrates the model loss in training

and validation over 20 epochs with 30% of the dataset

used for validation. Training the model took ≈17

minutes using the double-GPU VM. Eventually, the

model was used to generate about 98K new sequences

that did not exist in the original KG. The

implementation of the model is shared on our GitHub

repository (Elbattah, 2019).



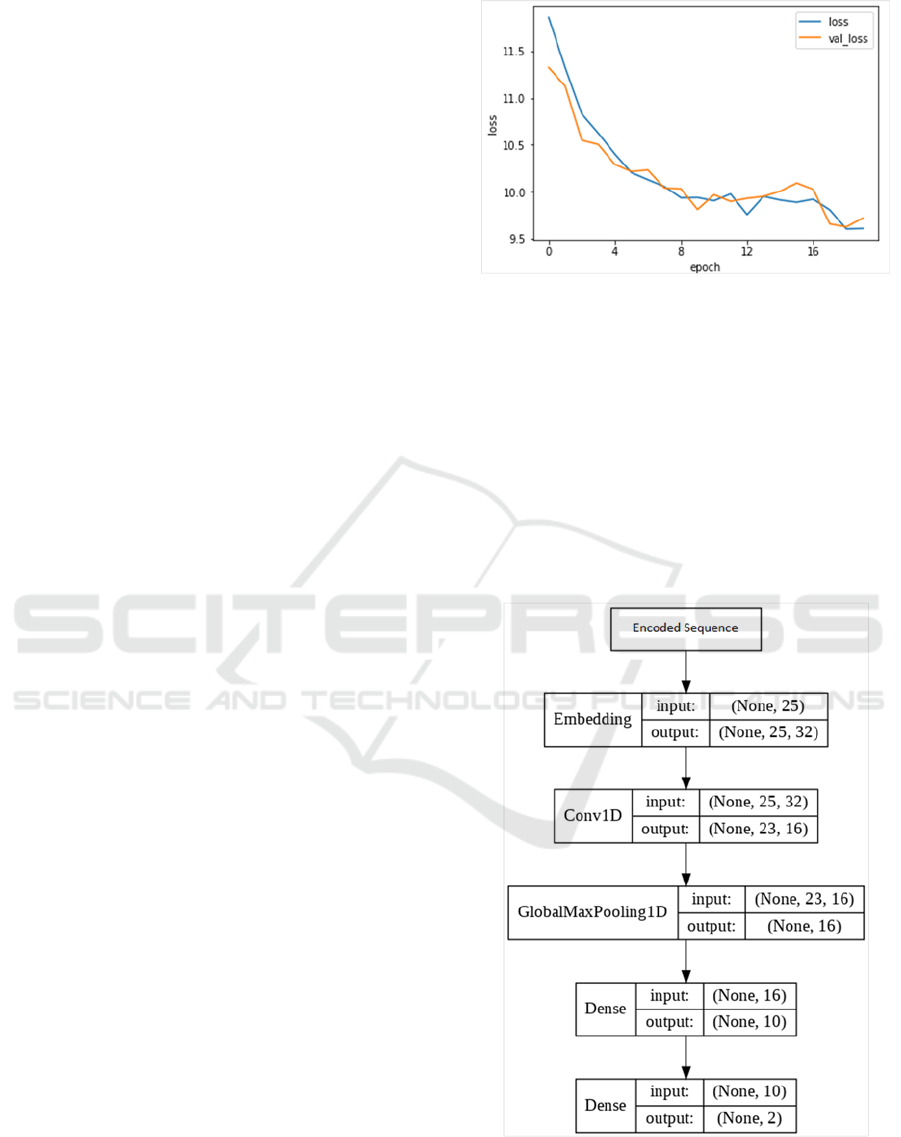

Figure 4: Generative model loss in training and validation

sets.

5.4 Classification Model

The final dataset contained more than 222K

sequences including the original triples along with the

synthetic samples. The classification model was

trained using LSTM and ConvNet models. The

architectures of the ConvNet and LSTM models are

given in Figure 5 and Figure 6 respectively. Both

models were trained using the same set of

hyperparameters (e.g. epochs=10, batch size=128).

Figure 5: Architecture of the ConvNet model.

Learning Triple Sequence Patterns in Knowledge Graphs to Predict Inconsistencies

439

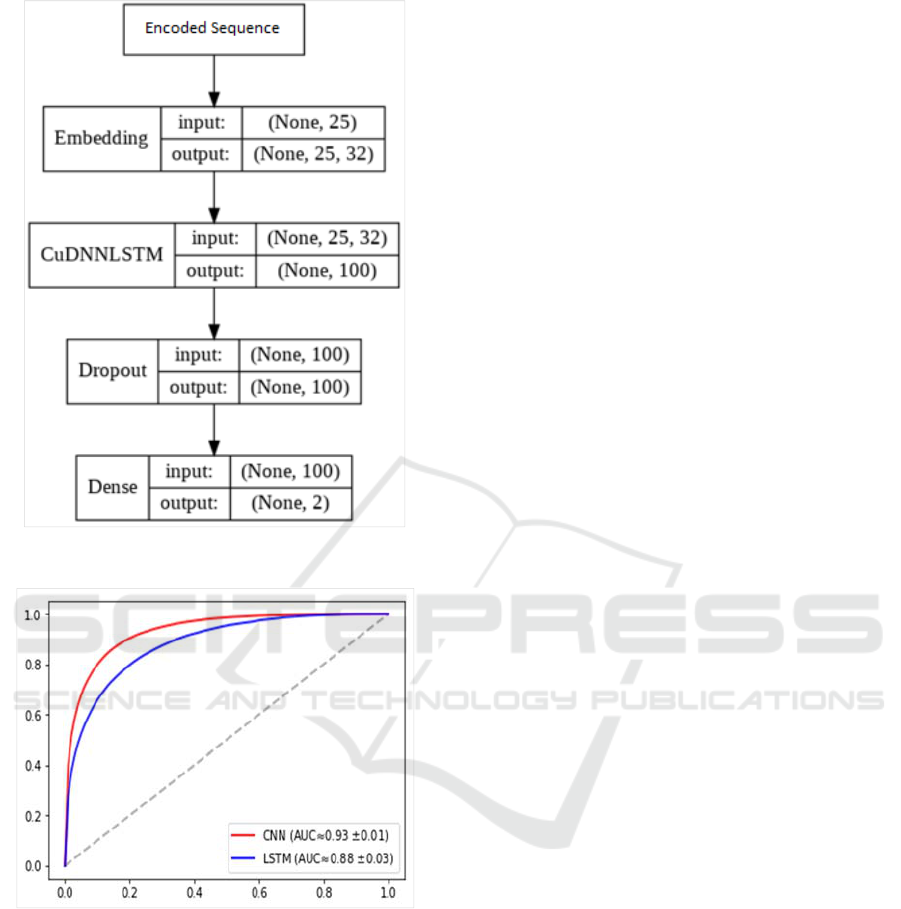

Figure 6: Architecture of the LSTM model.

Figure 7: ROC curves of the classification models.

The classification accuracy was analysed based on the

Receiver Operating Characteristics (ROC) curve. The

ROC curve plots the relationship between the true

positive rate and the false positive rate across a full

range of possible thresholds. Figure 7 plots the ROC

curves for the ConvNet and LSTM models. The

figure also shows the approximate value of the area

under the curve and its standard deviation over the 3-

fold cross-validation. At it appears, the ConvNet

model could achieve the highest accuracy (≈93.0%).

The implementations of both models are shared as

Jupyter Notebboks on our GitHub repository

(Elbattah, 2019).

6 CONCLUSIONS

The sequence-based representation of SPO triples can

serve as a basis for predicting inconsistencies in KGs.

The study presented the idea of utilising Freebase-

defined types to extract the unique SPO patterns in

the KG. Using Machine Learning, the problem of

detecting inconsistencies could be approached as a

sequence classification task. The validity of the

method was experimented using a subset of the

Freebase KG. The SPO-based sequences were used to

train a binary classification. High accuracy could be

achieved using ConvNet and LSTM models.

However, one key limitation of this work is that the

inconsistent patterns were based on synthetic samples

produced by a generative model.

REFERENCES

Abedjan, Z. and Naumann, F., 2013. Improving RDF data

through association rule mining. Datenbank-Spektrum,

13(2), pp.111-120.

Barati, M., Bai, Q. and Liu, Q., 2016. SWARM: an

approach for mining semantic association rules from

semantic web data. In Proceedings of the Pacific Rim

International Conference on Artificial Intelligence (pp.

30-43). Springer, Cham.

Berners-Lee, T., Hendler, J. and Lassila, O., 2001. The

semantic web. Scientific American, 284(5), pp.28-37.

Bizer, C., Heath, T. and Berners-Lee, T., 2011. Linked data:

The story so far. In Semantic Services, Interoperability

and Web Applications: Emerging Concepts (pp. 205-

227). IGI Global.

Bollacker, K., Cook, R. and Tufts, P., 2007. Freebase: A

shared database of structured general human

knowledge. In Proceedings of the 22nd national

Conference on Artificial intelligence (AAAI) - Volume

2, 207.

Bollacker, K., Evans, C., Paritosh, P., Sturge, T. and Taylor,

J., 2008, June. Freebase: a collaboratively created graph

database for structuring human knowledge. In

Proceedings of the 2008 ACM SIGMOD international

conference on Management of data (pp. 1247-1250).

ACM.

Chollet, F., 2015. Keras. https://github.com/fchollet/keras

Chollet, F., 2017. Deep learning with Python. Manning

Publications.

Debattista, J., Lange, C., Auer, S. and Cortis, D., 2018.

Evaluating the quality of the LOD cloud: An empirical

investigation. Semantic Web, , pp.1-43. IOS Press.

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

440

Elbattah, M., 2019. https://github.com/Mahmoud-

Elbattah/Learning_Triple_Sequences_in_Knowledge_

Graphs

Färber, M., Bartscherer, F., Menne, C. and Rettinger, A.,

2018. Linked data quality of DBpedia, Freebase,

OpenCyc, Wikidata, and YAGO. Semantic Web, 9(1),

pp.77-129. IOS Press

Gerber, D., Esteves, D., Lehmann, J., Bühmann, L.,

Usbeck, R., Ngomo, A.C.N. and Speck, R., 2015.

Defacto—temporal and multilingual deep fact

validation. Web Semantics: Science, Services and

Agents on the World Wide Web, 35, pp.85-101.

Elsevier.

Géron, A., 2017. Hands-on machine learning with Scikit-

Learn and TensorFlow: concepts, tools, and techniques

to build intelligent systems. pp.401-405. O'Reilly

Media, Inc.

Gers, F.A., Eck, D. and Schmidhuber, J., 2002. Applying

LSTM to time series predictable through time-window

approaches. In Neural Nets WIRN Vietri-01 (pp. 193-

200). Springer.

Graves, A., Mohamed, A.R. and Hinton, G., 2013, May.

Speech recognition with deep recurrent neural

networks. In Proceedings of the IEEE international

Conference on Acoustics, Speech and Signal

Processing (pp. 6645-6649). IEEE.

Hochreiter, S. and Schmidhuber, J., 1997. Long short-term

memory. Neural Computation, 9(8), pp.1735-1780.

MIT Press.

Kroetsch, M. and Weikum, G., 2015. Special issue on

knowledge graphs. Journal of Web Semantics. Elsevier.

Liu, S., d’Aquin, M. and Motta, E., 2017. Measuring

accuracy of triples in knowledge graphs. In Proceedings

of the International Conference on Language, Data and

Knowledge (pp. 343-357). Springer, Cham.

Lehmann, J., Isele, R., Jakob, M., Jentzsch, A.,

Kontokostas, D., Mendes, P.N., Hellmann, S., Morsey,

M., Van Kleef, P., Auer, S. and Bizer, C., 2015.

DBpedia–a large-scale, multilingual knowledge base

extracted from Wikipedia. Semantic Web, 6(2), pp.167-

195. IOS Press.

Oord, A.V.D., Dieleman, S., Zen, H., Simonyan, K.,

Vinyals, O., Graves, A., Kalchbrenner, N., Senior, A.

and Kavukcuoglu, K., 2016. Wavenet: A generative

model for raw audio. arXiv preprint arXiv:1609.03499.

Paulheim, H., 2012. Browsing linked open data with auto

complete. In Proceedings of the Semantic Web

Challenge, co-located with the 2012 ISWC Conference,

Springer.

Paulheim, H., 2017. Knowledge graph refinement: A

survey of approaches and evaluation methods. Semantic

Web, 8(3), pp.489-508. IOS Press.

Pellissier Tanon, T., Vrandečić, D., Schaffert, S., Steiner,

T. and Pintscher, L., 2016, April. From freebase to

wikidata: The great migration. In Proceedings of the

25th International Conference on World Wide Web (pp.

1419-1428).

Rico, M., Mihindukulasooriya, N., Kontokostas, D.,

Paulheim, H., Hellmann, S. and Gómez-Pérez, A.,

2018, April. Predicting incorrect mappings: a data-

driven approach applied to DBpedia. In Proceedings of

the 33rd Annual ACM Symposium on Applied

Computing (pp. 323-330). ACM.

Singhal, A. Introducing the knowledge graph: things, not

strings, May 16, 2012. URL: https://googleblog.blog

spot.de/2012/05/introducing-knowledge-graph-things-

not.html.

Yasseri, T., Spoerri, A., Graham, M. and Kertész, J., 2014.

The most controversial Topics in Wikipedia. Global

Wikipedia: International and Cross-Cultural Issues in

Online Collaboration (25).

Zaveri, A., Rula, A., Maurino, A., Pietrobon, R., Lehmann,

J. and Auer, S., 2016. Quality assessment for linked

data: A survey. Semantic Web, 7(1), pp.63-93. IOS

Press.

Learning Triple Sequence Patterns in Knowledge Graphs to Predict Inconsistencies

441
