AN INSTRUMENT CONTROL SYSTEM USING PREDICTIVE

MODELLING

Geoffrey Holmes and Dale Fletcher

University of Waikato, Department of Computer Science, Hamilton, New Zealand.

Keywords: Machine learning, control applications

Abstract: We describe a system for providing early warning of possible error to an operator in control of an

instrument providing results in batches from samples, for example, chemical elements found in soil or water

samples. The system has the potential to be used with any form of instrument that provides multiple results

for a given sample. The idea is to train models for each measurement, using historical data. The set of

trained models are then capable of making predictions on new data based on the values of the other

measurements. This approach has the potential to uncover previously unknown relationships between the

measurements. An example application has been constructed that highlights the difference of the actual

value for a measurement from its predicted value. The operator is provided with sliders to attenuate the

sensitivity of the measurement perhaps based on its importance or its known sensitivity.

1 INTRODUCTION

Machine learning is the driving force behind data-

driven modelling. This is in contrast to modelling an

application using a physical model (mathematical or

probabilistic) which is prescribed a priori and then

tested against actual data. This process is also

referred to as predictive modelling. Data-driven

modelling involves a number of steps following the

collection of data. These steps may involve the

removal of outliers, noise reduction, data

transformation and so on. Collectively they represent

a cleansing process which prepares the data for an

induction step where models are learnt directly from

the data.

In the physical modelling scenario domain

owledge can be added directly to the model. For

most machine learning techniques (except for

example those based on inductive logic

programming) such knowledge can only be

introduced at the cleansing stage.

Once a model has been induced it is tested

agai

nst new data and evaluated on some

performance criteria. If the model is transparent then

it can be examined as a reality check. This process

can, in fact, provide unexpected insights into the

data. Generally the process is iterative as insights or

poor performance can lead to changes in the earlier

processing steps.

By far the most common use of machine learning

control applications is in the field of robotics.

This is in part due to the close relationship between

the two subject areas but also reflects the ease with

which such applied projects can be carried out.

Commercial control applications in the literature are

somewhat rarer although there have been a number

of successes.

Any process control application involving the

settin

g of a complex array of mutually dependent

parameters is a target for machine learning.

Examples include controlling printing presses

(Evans and Fisher, 2002), the manufacture of

nuclear fuel pellets (Langley and Simon, 1995), and

the separation of oil and natural gas (Slocombe et al,

1986). In general, the technology is suited to

applications involving a large, possibly infinite,

source of stable data, that is, a source which does not

undergo major changes in format. It is also suited to

applications which preclude physical modelling due

to their inherent complexity. In such circumstances

it is possible to also consider hybrids, combinations

of physical and data-driven models.

This paper is organised as follows. Section 2

rovides a context in which the predictive modelling

is taking place. Section 3 describes the modelling

technique used in this paper. Section 4 gives an

overview of the architecture of the entire system,

which is web-based. We conclude in Section 5 with

292

Holmes G. and Fletcher D. (2004).

AN INSTRUMENT CONTROL SYSTEM USING PREDICTIVE MODELLING.

In Proceedings of the First International Conference on Informatics in Control, Automation and Robotics, pages 292-295

DOI: 10.5220/0001126602920295

 SciTePress

observations and ideas for future system

development.

2 EXPERIMENTAL DESIGN

In this paper we refer to the following experimental

setup. We suppose the existence of an instrument

capable of simultaneously measuring a number of

properties of some substance presented as a sample.

In machine learning, these measurements are

typically referred to as attributes of the sample.

Suppose further that the instrument is extremely

efficient in processing a sample and so the setup

enables the concatenation of samples into batches.

For a given sample of n measurements we seek a

model (for example, a linear regression) for each

measurement based on the remaining n-1

measurements.

The system is constructed in two phases. A

training phase where historical data is used to train

models for each measurement, and a prediction

phase where the measurement values for new

samples (not part of the training data) are predicted

using the trained models. This methodology is built

on the assumption that measurements are generally

stable when taken as a simultaneous group and that

the various measurements are therefore reliable

predictors of each other. Instability in particular

measurements will show up as a variance between

the actual value of the measurement and the

predicted value. If it is possible to view the trained

models then a further advantage of this approach is

that it may be possible to discover (in a data mining

sense) previously unknown correlations between

measurements. For example, one measurement may

be a perfect predictor for another and this

relationship may not have been known a priori.

3 MODEL TREES

As most instruments produce measurements as

floating point values some form of regression is

needed to produce models. The WEKA data mining

workbench (Witten and Frank, 2000) contains a

number of candidate regression methods. After

experimenting with several of these techniques we

decided to use model trees (Wang and Witten,

1997). The interior nodes of a model tree contain

tests that split the data on a particular value for a

The leaves of a model tree contain linear regression

functions modelling those examples that fall to the

leaf following the execution of the various tests in

the interior nodes of the tree. A typical model tree is

shown in Figure 1.

particular measurement. The algorithm attempts to

choose tests that “best” split the data into groups. A

test’s height in the tree is an indicator of how

important that measurement is in splitting the data.

ediction

ge number of measurements, which has

eful measurements

we used some of WEKA’s filtering capability to

remove irrelevant measurements, that is, those that

s of the

alert an operator

of potential measurement errors. Second, a

visualisation component to allow an operator to

interactively adjust the thresholds (which may have

an effect on the first component).

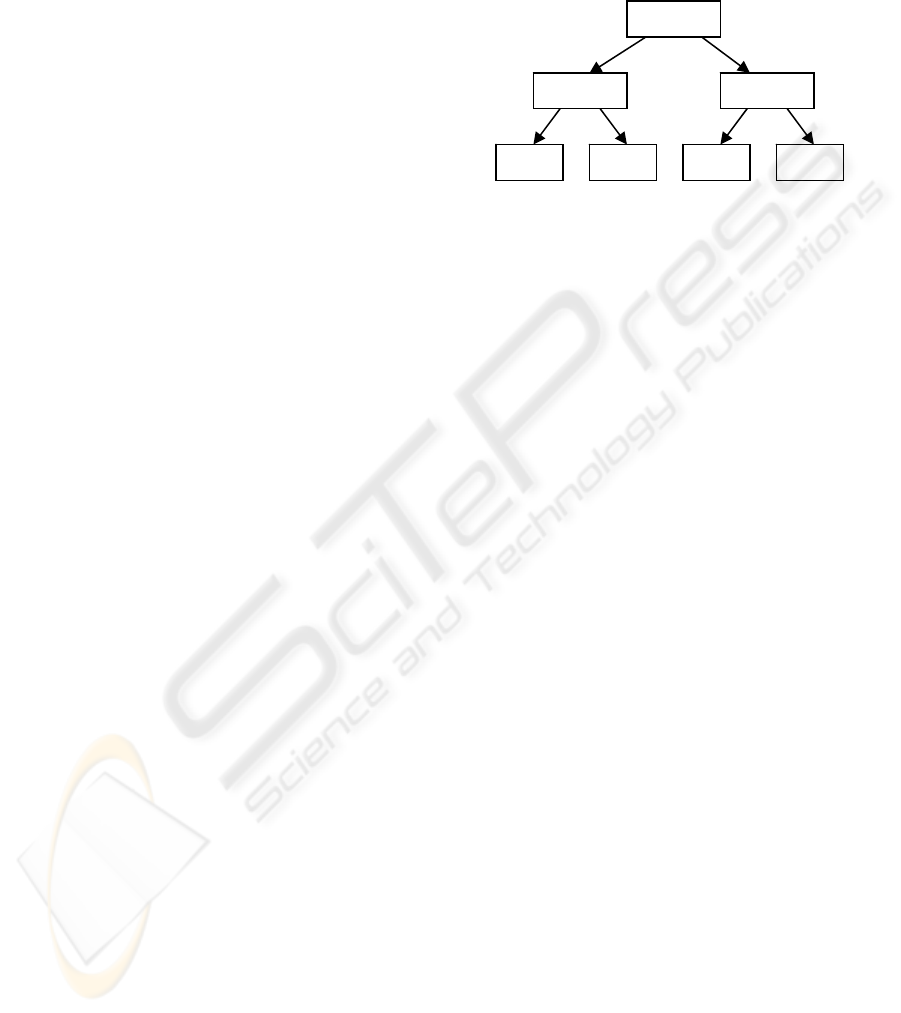

Figure 1: Sample model tree

We label the measurements m1, m2, and so on. The

model tree algorithm attempts to divide the training

data into groups and attaches to each group the

linear model that best fits that group of data (using

linear regression). The branches labelled t (for true)

are followed if the test is satisfied, otherwise the f

(for false) branch will be followed. Thus, the LM1

linear model will only apply to data points with m1

values less than 10 and m2 values greater than 5.

Once trained, this model can be used for pr

purposes as each untrained data sample will fall to

one of the linear models in the tree and receive a

prediction value from that model. Recall that a

model is constructed for each measurement.

In any practical system, the instrument may

produce a lar

implications for the system overall. Only a limited

amount of memory is available for modelling so not

necessarily all measurements can be or indeed need

be covered.

In order to find the set of us

do not appear in either the interior node

model trees or in the leaf nodes.

4 SYSTEM DESCRIPTION

The models described in Section 3 are only a part of

the overall system. The complete architecture is

shown in Figure 2. The system, which has been

designed to function as a web service, has two main

components. First, a component to

m1 < 10

m2 > 5 m4 < 2.6

LM1 LM2 LM4LM3

AN INSTRUMENT CONTROL SYSTEM USING PREDICTIVE MODELLING

293

A measurement comprises two components, an

identifier describing the measurement and a numeric

value. A completed batch of measurements is placed

into an XML stream and sent by the instrument

(more typically an instrumentation system) to a web

service on the web application server. The role of

the web application server is to manage

communication with the WEKA Prediction Engine

through the Java application server, and to return an

appropriate response back to the instrument for an

operator to action.

The measurements are re-packaged (the data

formats of the instrument and machine learning

components need to be aligned) and passed to the

WEKA Prediction Engine, which has pre-loaded

serialised models for each measurement from the

models database.

Because the instrument may be programmed to

produce only a subset of measurements, and new

measurements may come online at any time, it is

important that the system is designed to be able to

process any number and combination of

measurements. The architecture supports possible

changes in the instrumentation system through its

XML interfaces and database of models.

For each set of measurements in a batch, a

WEKA Instance is created, with measurement

identifiers as attributes. At this stage it is ensured

that the WEKA Instance created only includes those

measurements used by the models. Any

measurement (attribute) used by the models but not

present in the measurement set, is added to the

Instance, and set to have a missing value.

Missing values can cause difficulties, as

classifiers do not always treat them appropriately.

Many classifiers, for example, replace missing

values with a mean value and this can be grossly

incorrect for some measurements. Recall that we are

trying to predict a single measurement from linear

combinations of other measurements. If within the

linear combination there is a highly weighted

measurement for which the Instance contains a

missing value, then we do not generate a prediction

for that Instance. The system is designed to alert the

operator to potentially abnormal measurements. The

use of means for missing values is too unstable a

predictor and leads to setting larger tolerances on

measurements which in turn leads to a greater

likelihood of ignoring real errors.

The WEKA Prediction Engine produces

predicted values for each measurement, using

models previously trained on a large history of

measurements. For each individual measurement in

the set, the models database is searched to find a

model with matching identifier. If one is found, the

model’s classifyInstance method is called, passing

the created Instance as a parameter, to generate a

prediction for that measurement based on the

remaining measurements in that set. The resulting

prediction is added to an XML stream, which is

returned to the web application server once the batch

Java Application Serve

WEKA

Prediction Engine

Predictive

Models

Measurements

Predictions

Measurements

Thresholds

Web Application Server

Instrumentation System

Measurement

Prediction

Visualisation

Display

Response

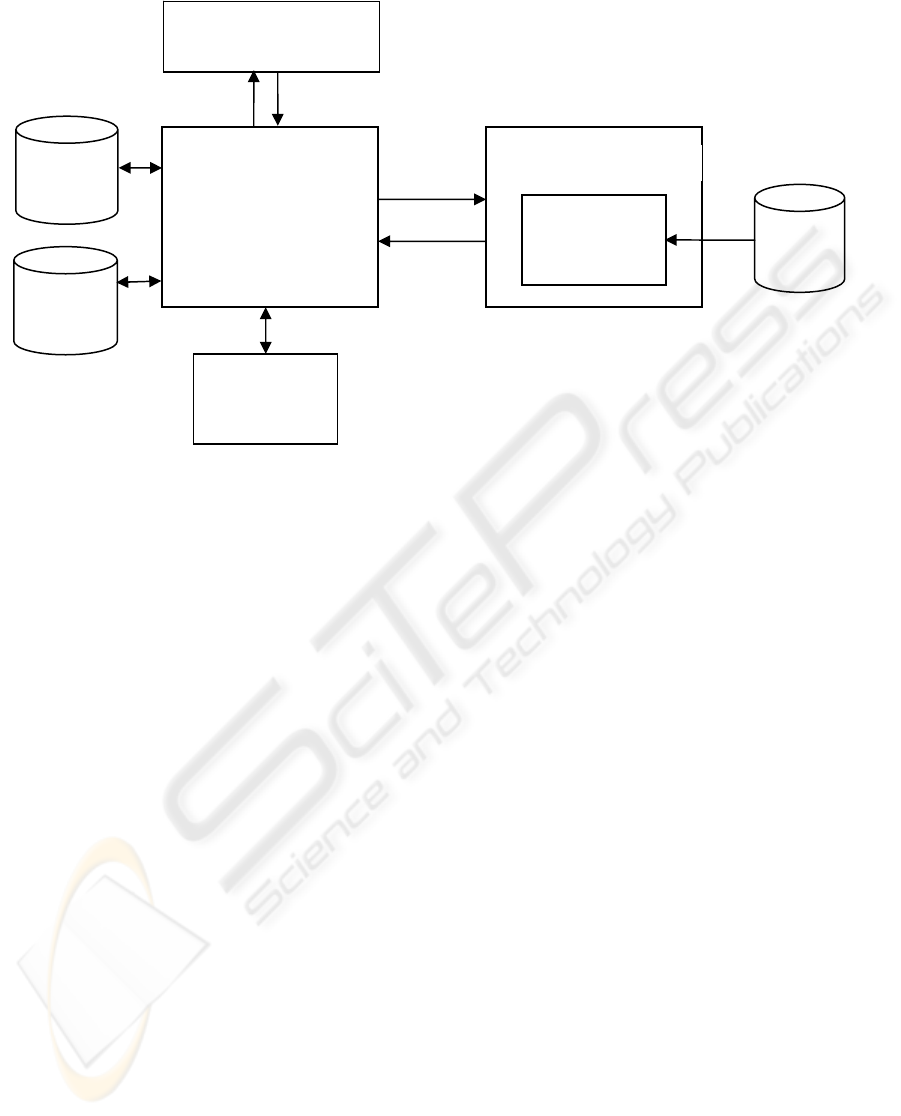

Figure 2: System Architecture

ICINCO 2004 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

294

has been processed. If no matching model is found

for the measurement identifier no action is taken,

and the next measurement is processed.

Once the batch has been processed, and the

resulting predictions returned, the web application

server compares the predictions against the

measurements. A database stores a set of thresholds

for each set of models, and for each measurement

identifier. Each measurement is compared to its

prediction (if one exists) to see if the difference is

greater than a threshold set using the prediction

visualisation interface. If so, an error is streamed to

be returned to the instrument. The measurement is

also compared against an absolute maximum and

minimum value expected. An error message is

streamed if the value is outside this range, even if

the difference between the prediction and

measurement values is within the threshold.

The Prediction Visualisation Display (Figure 2)

interface is used to fine-tune the thresholds. Selected

batches of measurements are coloured according to

their distance from the predicted values. The

threshold values can be adjusted, and the effect on

error detection visualised. The underlying predicted

values can be viewed by moving the mouse over a

measurement. This interface also enables different

model sets to be tested. New models can be added to

the models database, and chosen from the drop down

list-box. The current implementation builds a model

tree for each measurement but it is possible with this

architecture to use a variety of different predictive

models.

The flow of data for the Prediction Visualisation

Display is as described above, except the user

interface provides the measurements to be predicted

from a database of historical measurements. The

web application server builds a web page, colouring

measurements according to their distance from the

prediction values, and if they lie within expected

minimums and maximums. Caution is required when

interpreting results in this system. For example,

suppose the system colours a given measurement as

beyond the threshold from its prediction. This does

not necessarily imply that this measurement is

incorrect. The situation may be due to an incorrect

value for another measurement that is used to predict

the given measurement. Our emphasis is on alerting

errors, the operator has the task of finding out which

measurement(s) is causing the problem.

5 CONCLUSION AND FUTURE

WORK

We have described a system for alerting errors to

operators of an instrumentation system. The system

uses predictive models trained on historical data to

provide a baseline value for a measurement against

which an actual measurement value is compared.

A display tool is used to generate the thresholds

(margins of error) for the predictions, and visualise

their accuracy on historical data.

After a period of time it might be necessary to re-

train the models using the data that has become

available in the interim. The re-training process is

somewhat cumbersome but necessary for many

regression techniques because they are not usually

incremental.

A recent development in the field of data mining

is the idea of learning from data streams. A data

stream is generated from a large, potentially infinite,

data source. A learning algorithm capable of

learning models from a stream must be able to learn

models in a finite amount of memory by looking at

the data only once. These limitations support the

notion of incremental methods but not those that

grow indefinitely.

Finally, the model database contains serialised

model trees, which can be quite large. This may

limit the number of models that can fit into memory.

Further work is needed to explore other regression

algorithms that serialise smaller models.

REFERENCES

Evans, B., and Fisher, D. 2002. Using decision tree

induction to minimize process delays in the printing

industry. In W. Klosgen and J. Zytkow, editors,

Handbook of Data Mining and Knowledge Discovery,

Oxford University Press.

Langley, P., and Simon, H.A. 1995. Applications of

machine learning and rule induction. Communications

of the ACM, 38(11):54-64.

Slocombe, S., Moore, K., and Zelouf, M. 1986.

Engineering expert system applications. In Annual

Conference of the BCS Specialist Group on Expert

Systems.

Wang, Y. and Witten, I.H. 1997. Induction of model trees

for predicting continuous classes. In Proc. of the Poster

Papers of the European Conference on Machine

Learning. Prague: University of Economics, Faculty of

Informatics and Statistics.

Witten, I.H., and Frank, E.F. 2000. Data mining practical

machine learning tools and techniques with java

implementations. Morgan Kaufman, San Francisco.

AN INSTRUMENT CONTROL SYSTEM USING PREDICTIVE MODELLING

295
