A REAL TIME GESTURE RECOGNITION SYSTEM FOR MOBILE

ROBOTS

Vanderlei Bonato

, Adriano K. Sanches

, M.M. Fernandes

ao M. P. Cardoso

, E. D. V. Simoes

, Eduardo Marques

Institute of Mathematics and Computing Sciences, University of S

ao Paulo

ao Carlos, Brasil

University Metodista of Piracicaba - UNIMEP; Piracicaba, S

ao Paulo

Faculty of Sciences and Technology: University of Algarve

Campus de Gambelas 8000 117; Faro Portugal

Keywords:

Robotics, FPGA, SoC, Vision System, Gesture Recognition, RAM-Based Neural Network.

Abstract:

This paper presents a vision system to be embedded in a mobile robot, both of them implemented using recon-

ﬁgurable computing technology. The vision system captures gestures by means of a digital color camera, and

then performs some pre-processing steps in order to use the image as input to a RAM-based neural network.

The set of recognized gestures can be deﬁned using the system on-chip training capabilities. All the above

functionality has been implemented in a single FPGA chip. Experimental results have shown the system to

be robust, with enough performance to meet real-time constraints (30 fps), and also high efﬁciency in the

recognition process (true recognition rate of 99.57%).

1 INTRODUCTION

Mobile robots have been the central focus of many re-

search works in recent years, dealing with the uncer-

tainty associated with the environment and the data

received via sensors. In this context, machine learn-

ing and probabilistic models are important advances

able to deal with the computational complexity in-

volved (Thrun et al., 2000).

Specialized hardware is an attractive solution to im-

plement robots with real-time constrains. The use of

FPGAs (Field-Programmable Gate Arrays) is a ﬂexi-

ble alternative to implement complex models, as the

hardware functionality can be changed according to

the task to be executed (Oldﬁeld, 1995). It can also

be argued that FPGAs are able to execute image pro-

cessing algorithms with speed comparable to graph-

ics processing custom chips (Zemcik, 2002). How-

ever, designing and programming such a specialized

hardware can still be very complex, which has mo-

tivated us to propose a tool for the design of recon-

ﬁgurable robots (Gonc¸alves et al., 2001) (Gonc¸alves

et al., 2003). The approach needs modular hardware

units that are then allocated at the exact time they are

needed. The hardware generated is based on softcores

and special purpose RPUs (Reconﬁgurable Process-

ing Units), as seen in Figure 1. A softcore is a pro-

cessor core described in a hardware description lan-

guage. The software image to be executed might in-

clude invocations to RPU functionalities. The RPUs

are stored in a library of functional units (RPUs repos-

itory), and can be organized in a way that best suits

a given application. The RPUs can be manually de-

signed hardware units or architectures to implement

speciﬁc computational structures, obtained using an

architectural synthesis tool (Cardoso and Neto, 2003).

This paper presents the design and implementation

of an RPU for real time gestures recognition, which

can be used as a human-robot communication inter-

face. By doing so it is possible to interact with a robot

in a non-conventional way, which could be useful in

particular situations (e.g. robots designed to assist

disabled people). This gesture recognition unit will

be incorporated to the tool presented above, and could

be used not only to recognize gestures, but also as a

basis for other applications requiring image patterns

recognition. The structure of the main modules of the

robot currently being developed is shown in Figure 2,

along with the interactions among them. The vision

processing module corresponds to the RPU presented

in this paper.

This paper is organized as follows. Section 2 ex-

207

Bonato V., Sanches A., Fernandes M., Cardoso J., Simoes E. and Marques E. (2004).

A REAL TIME GESTURE RECOGNITION SYSTEM FOR MOBILE ROBOTS.

In Proceedings of the First International Conference on Informatics in Control, Automation and Robotics, pages 207-214

DOI: 10.5220/0001140202070214

 SciTePress

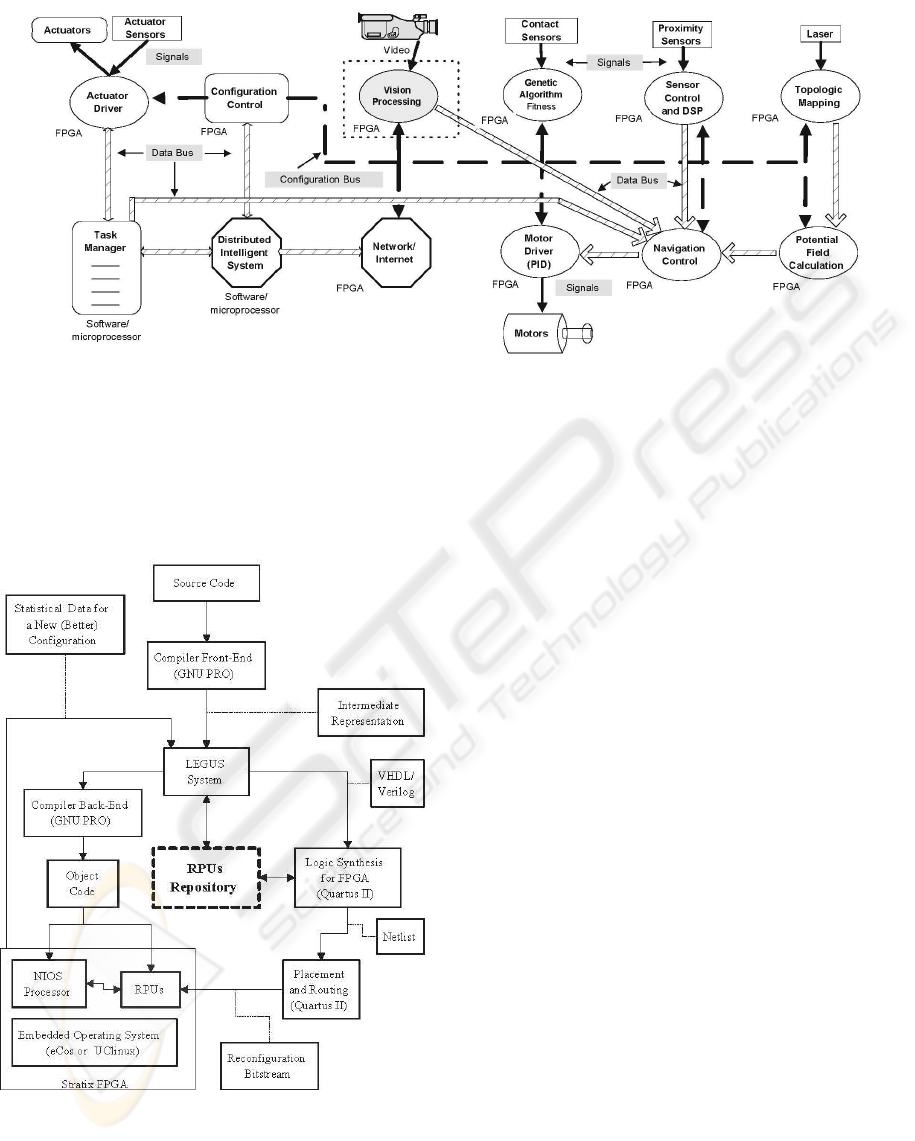

Figure 2: Integration of the vision system into the robot architecture

Figure 1: A tool for robot design

plains the robot vision system and its components.

Section 3 explains the neural network for gesture

recognition, and Section 4 shows the experimental re-

sults obtained. Finally, section 5 concludes this paper.

2 A ROBOT VISION SYSTEM

Computer vision systems for human-robot interaction

have evolved signiﬁcantly in the past decade. How-

ever, most of them are not robust yet, have low perfor-

mance, and so are not suitable to be used in embed-

ded systems with real time constraints (Turk, 2004).

Most of the previous work in this area delivers the

right functionality (Waldherr et al., 2000), but not as

an embedded device. The system presented in this

paper seeks to address this issue.

The structure of the vision system is shown in the

blocks diagram of Figure 3. The structure consists of

a pipeline of functional blocks for image processing

operations, which are executed in parallel. The sys-

tem is implemented as a SoC, which allows the ges-

tures recognition system to operate in real time. Each

of those blocks is responsible for an image process-

ing step, such as image capturing, RGB to HSI color

conversion, image segmentation, image ﬁltering and

compression, and ﬁnally the centering of the image.

These pre-processing steps are performed prior to the

actual neural network gesture recognition (shown in

section 3).

The integration of the vision system to the robot

is done by means of two communication buses: the

conﬁguration bus, used to conﬁgure FPGA structures,

and the data bus used to send the interpreted gestures

to the robot control module.

In the next subsections we describe in more details

ICINCO 2004 - ROBOTICS AND AUTOMATION

208

the image pre-processing steps of the vision system.

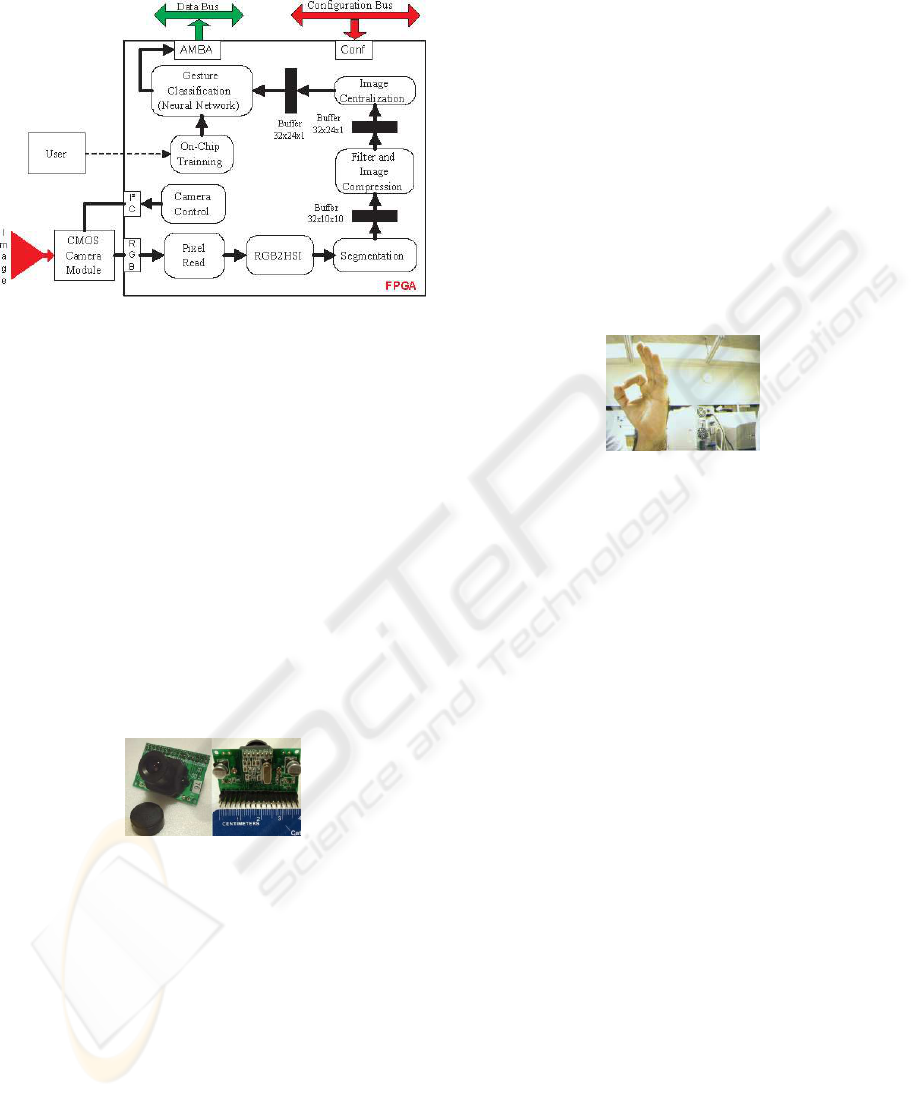

Figure 3: Vision system blocks diagram

2.1 Image Capturing

The images used by the gestures recognition system

are captured by a C3188A digital camera, which uses

an ov7620 CMOS image sensor (Electronics, 2004).

This kind of sensor integrates all the functionalities of

a digital camera in a single integrated circuit, allow-

ing for reduced size, low cost, and low power con-

sumption (Rowe, 2002). Those are important param-

eters for the design and implementation of mobile au-

tonomous robots. The camera is able to sustain a rate

of imagens equals to 30 frames per second (fps). The

resolution of gray shade images is 640x480 pixels,

while RGB color images have a resolution of 320x240

pixels. That camera is shown in Figure 4.

Figure 4: CMOS C3188A Camera - 1/3”

The camera conﬁguration is done through the im-

age sensor by using the communication protocol

C (Philips, 2003). The conﬁguration parameters are

stored in a register set, which can be read or written

through a communication port. Several parameters

can be conﬁgured, like fps rate, noise compensation,

and image saturation, among others. In our vision

system the conﬁguration is done via the Camera Con-

trol block (Figure 3).

2.2 Pixels Reading

The data sent by the camera are interpreted by the

Pixel Read block (Figure 3). The data are sent through

a 16-bit bus, containing information about the R,G,

and B values of each pixel, and also synchronization

signals. Based in these, the block reads the pixel and

associates its address to the image.

The R, G, B values and address of each pixel are

then sent to the following block of the system, which

converts the RGB color scheme into HSI. The inter-

pretation of pixels is performed in real time. As an

example, Figure 5 shows an RGB image represent-

ing the ”GO” gesture. This and other images pre-

sented have been generated by the FPGA hardware

implementation described in this paper. In order to

capture those images, an Ethernet based communica-

tion system between the system a PC has been imple-

mented. In addition to capturing images, the interface

also served as a debugging interface.

Figure 5: RGB (320x240 pixels)

2.3 RGB-HSI Conversion

In this operation the Red, Green, and Blue pixel

representation of the RGB scheme are changed into

the corresponding HSI representation, which uses the

Hue, Saturation, and Intensity componentes. This

method is frequently used in image processing sys-

tems because the HSI pixel components are indepen-

dent from each other (as opposed to RGB´s), and so

individual operations can be applied to them (Russ,

1995). In addition, the separation of the I component

makes the image less sensitive to brightness variations

of the working environment.

The RGB-HSI conversion can be considered a

complex operation in this domain (Gonzalez and

Woods, 1992). The complexity of the conversion is

due to a trigonometric function that is required to ob-

tain the H value (Equation 1). The implementation of

that function in FPGAs demands a signiﬁcant amount

o logical elements to implement the corresponding al-

gorithms. A simpliﬁed method to obtain the H com-

ponent from an RGB representation is presented by

Bajon apud Swenson (Swenson, 2002), as shown in

Equation 2. This Equation does not use any trigono-

metric function, and so is simpler to be implemented

in hardware. The I and S components can be obtained

through Equations 3 and 4, respectively, which are

also easily implemented in hardware. Figure 6 shows

the H, S, and I values (gray shades) for an RGB image

obtained with our vision system.

A REAL TIME GESTURE RECOGNITION SYSTEM FOR MOBILE ROBOTS

209

H = cos

−1





(r −

) −

(b −

) −

(g −

)

[(r −

)

+ (b −

)

+ (g −

)

]





(1)

H =











Acromathic if r = g = b

g−b

3(r+g−2b)

if b = min(r, g, b)

b−r

3(g+b−2r)

if r = min(r, g, b)

r−g

3(r+b−2g)

if g = min(r, g, b)

(2)

I =

r + g + b

(3)

S = 1 − 3 ∗ min[r, g, b] (4)

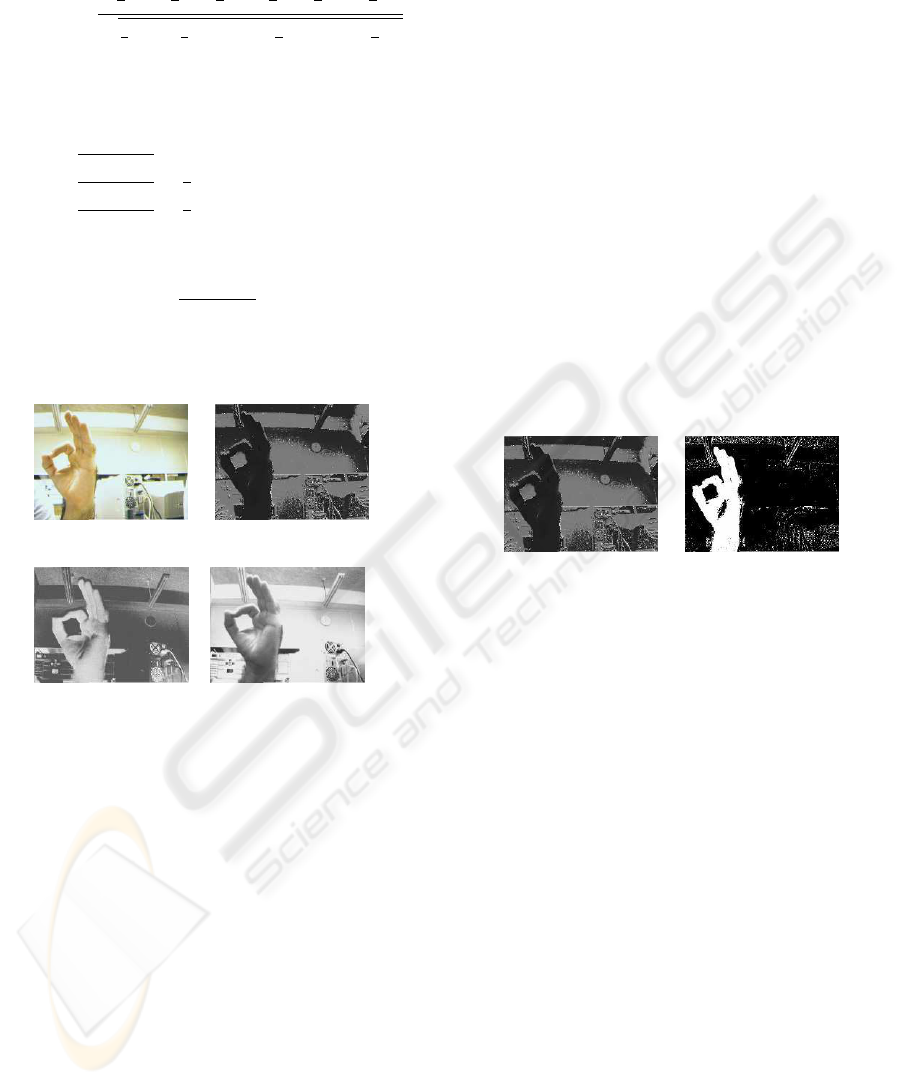

(a) RGB (b) H

Figure 6: RGB Image (a), Hue (b), Saturation (c), and In-

tensity (I) ; Resolution: 320x240 pixels

2.4 Image Segmentation

The Segmentation Block is responsible for the trans-

formation of a HSI image into a binary representa-

tion. A number of HSI segmentation techniques have

been proposed, being differentiated basically by the

way each technique relates the H, S, and I components

(ChiZhang, 2000) (Cummings et al., 2003). The vi-

sion system presented in this paper implements two

segmentation techniques, being the ﬁrst one based on

the value of the H component, and the second one

based on the H, S and I values. Both techniques use

Equation 5, with f(i,j) representing the values of H,

S, or I, and T1,T2 the inferior and superior thresh-

olds, respectively. These ones determine when a pixel

belongs to a region of interest, being constant values

empirically deﬁned. The results of this Equation are

binary values and they are attributed to the f(x,y) po-

sition on the segmented image, that correspond to the

f(i,j) position.

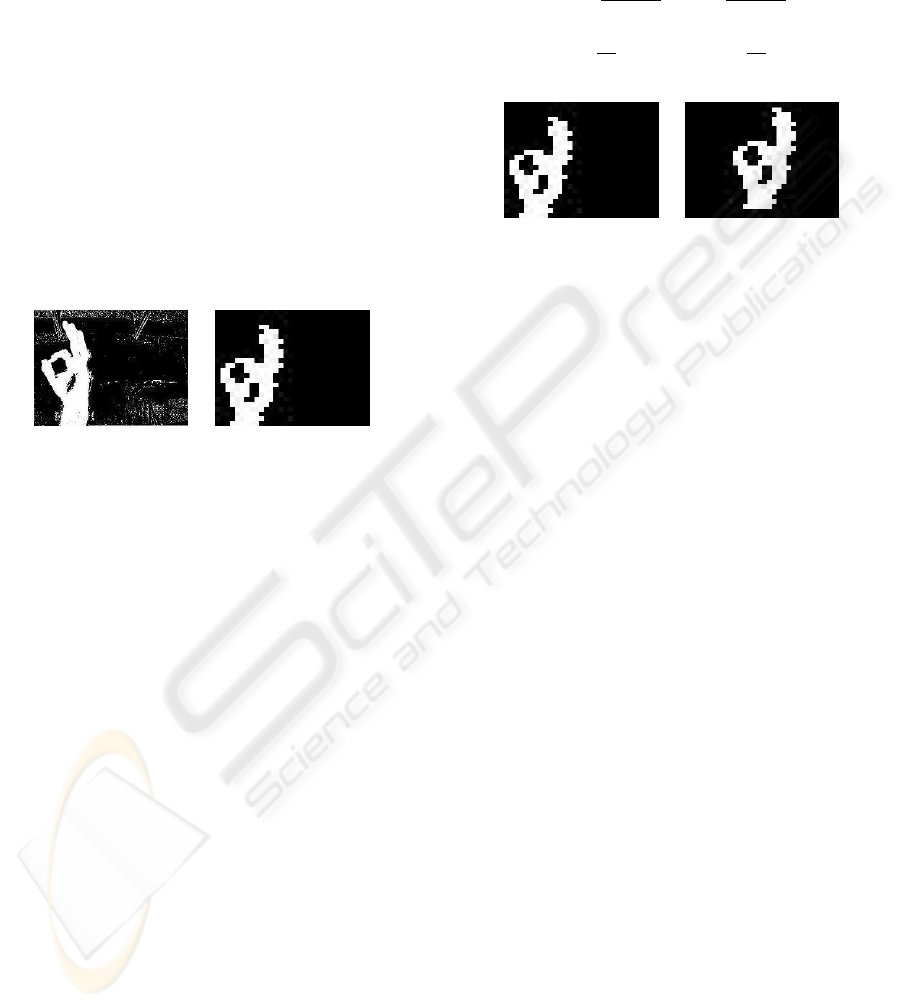

Using the ﬁrst technique, the result of Equation 5

are the pixels that constitute the segmentated image.

In the second technique, the pixels are obtained from

a logical AND operation applied to the H, S, and I

values resulting from Equation 5. In this work the

best results were obtained by using the ﬁrst technique,

therefore it is the one that has been adopted. It should

be noticed that the H component depends basically on

the skin color of the user interacting with the robot.

For this reason, gestures are obtained using the inter-

nal part of the hand, as this part of the body has only

small variations in color, which helps to avoid further

system calibrations. The results of a segmentation op-

eration based on the H value is shown in Figure 7.

f(x, y) =

1 if [T

<= f (i, j) <= T

]

0 otherwise

(5)

(a) H (b) Segmented

Figure 7: H Component (a) and Binary Image (b)

2.5 Image Filtering and Reduction

As already said, the image obtained from the segmen-

tation block is in binary format, with a resolution of

320x240 pixels, and having binary value equal to 1

for the hand region, and equal to 0 otherwise. How-

ever, it is still possible that some pixels are incor-

rectly identiﬁed, which is mainly due to noise. For

the removal or attenuation of those wrong pixels, a

ﬁlter is applied, based on information about the vicin-

ity of the pixel in analysis. In addition to the ﬁlter-

ing operation, the image resolution is changed from

320x240 to 32x24 pixels, in order to reduce the num-

ber of inputs to the neural network. In our systems

all of the image pixels are connected to the neural

network. Both functions described are implemented

through the functional block Filter and Image Com-

pression, which uses Equation 6. Given an image re-

gion by f(x+m,y+n), with 0 < m,n < 10, it is veriﬁed

if more than 60% of those pixels have binary value

equal to 1. If true, all that region is converted into

a single pixel having binary value 1. These parame-

ters have been determined from the analysis of sev-

eral simulation results. The operation serves not only

ICINCO 2004 - ROBOTICS AND AUTOMATION

210

to reduce the image, but also as a ﬁlter. This is so

because usually only that region (the hand) presents

more than 60% of pixels with binary value 1, and by

doing so the ”false” hand pixels can be eliminated.

For the noises removal, we have done some ex-

periments using morphologic operations, in this case

erosion followed by dilation, which characterize the

opening morphologic technique (Costa and Cesar Jr.,

2000). We have found that the results resemble those

obtained by using Equation 6. As a result, the open-

ing technique has not been adopted because it de-

mands more processing time, which can compromise

the overall system performance. An example of the

results of this functional block can be seen in Figure 8.

g(x, y) =

(

1 if

M−1

m=0

N−1

n=0

f(x + m, y + n)

≥ 60

0 otherwise

(6)

(a) (320x240) (b) (32x24)

Figure 8: Segmented image with noise (a) and Reduced

without noise (b)

2.6 Segmented Region Centring

The function of the Image Centralization block is to

translate the region containing the hand to the centre

of the image. This translation is important in order to

standardize its position, which helps to increase the

neural network efﬁciency rate. The operation is per-

formed by calculating the difference between the cen-

tre of mass of the hand region and the centre of the

image. The translation is done based on the result of

this computation. The centre of mass is obtained by

means of Equations 7, 8, and 9 (Gonzalez and Woods,

1992). The difference between both centres (hand and

image) is obtained by using Equation 10.

As seen in Equation 9, the centre of mass is calcu-

lated by dividing the sum of the X,Y coordinates by

the area of the region to be translated. The transla-

tion parameters are obtained by subtracting the X,Y

coordinates of the centre of mass from the X,Y co-

ordinates of the image centre (32/2 and 24/2, respec-

tively). The result of a translation operation can be

seen in Figure 9.

Area =

f(x, y) (7)

Coord

xf(x, y) Coord

yf(x, y)

(8)

Coord

Area

Coord

Area

(9)

Dif

− X

Dif

− Y

(10)

(a) (b)

Figure 9: Original image (a) and After translation (b)

3 NEURAL NETWORK FOR

GESTURES RECOGNITION

The gestures interpretation is accomplished through

a RAM-based neural network (n-tuple classiﬁer),

which is implemented in the FPGA. This is a

weightless neural network, operating on binary data

only, and so facilitating its implementation in hard-

ware (Austin, 1998). The gestures that are used to

command the robot’s actions are made by the user,

determining the following commands:

• Halt

• Go

• Go Back

• Left 90

• Left 45

• Right 90

• Right 45

These commands are shown in Figure 10, with im-

ages generated from our FPGA implementation. The

ﬁrst column exhibits the images obtained from the

camera, and the second one shows the correspond-

ing images supplied to the neural network, after the

pre-processing steps described in Section 2. Gestures

can be changed or added according to user require-

ments, using the system on-chip training capabilities.

Once the system is initialized, it waits for one of the

valid gestures to start executing a navigation com-

mand. When a gesture is recognized, the correspond-

ing action is performed until other valid gesture is de-

tected by the system.

A REAL TIME GESTURE RECOGNITION SYSTEM FOR MOBILE ROBOTS

211

(a) Halt (b) Halt

(e) Go Back (f) Go Back

(g) Right 90

(h) Right 90

(i) Left 90

(j) Left 90

(k) Right 45

(l) Right 45

(m) Left 45

(n) Left 45

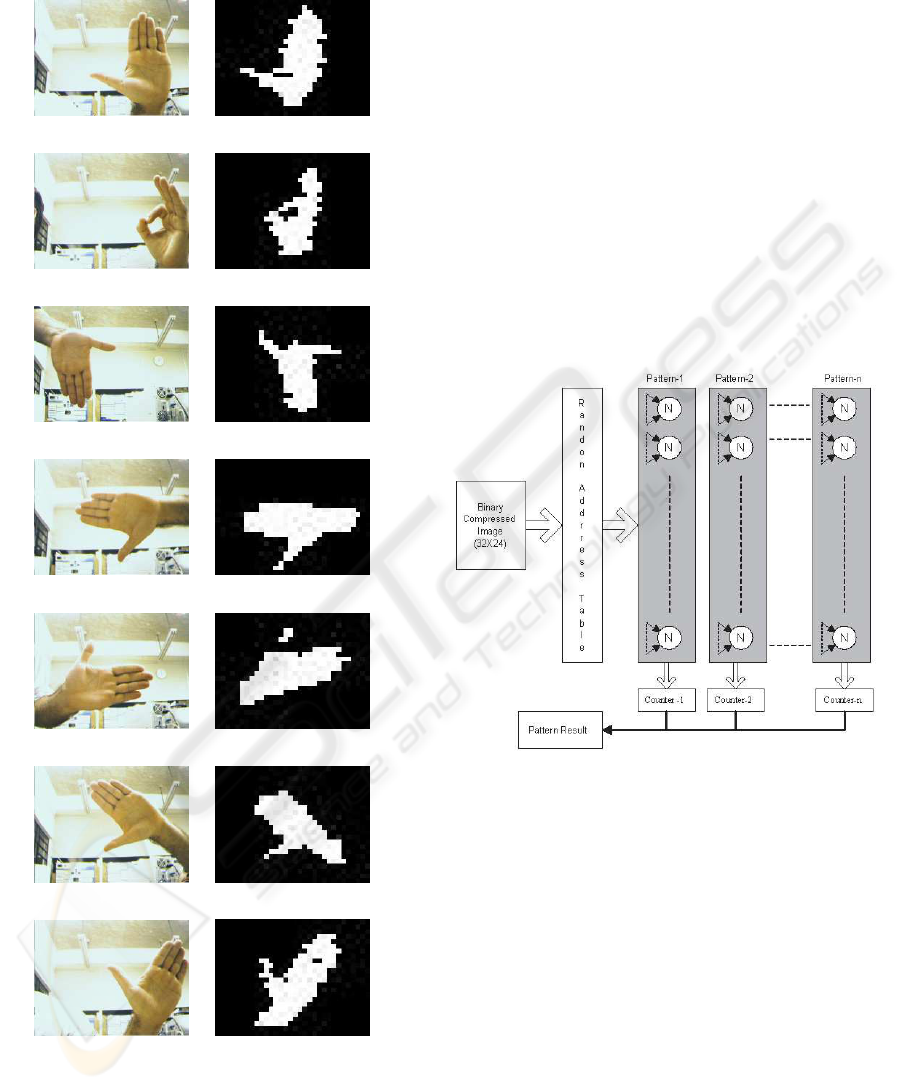

Figure 10: Gesture set recognizable by the robot: RGB in-

put images (a),(c),(e),(g),(i),(k),(m) and Corresponding im-

ages sent to the neural network (b),(d),(f),(h),(j),(l),(n)

The neural network used by our vision system is

implemented as the structure depicted in Figure 11.

It is composed by memory cells (neurons represented

by N) addressed by the input data. The input data is

in the form of a 768-bit vector (32x24 pixels), which

represents a gesture after the pre-processing stages.

For each pattern there are 96 neurons of 256 bits each

(8-input neurons), each of them addressed by 8 pixels

of the image. Pixels linked to the neurons input are

connected in random fashion by means of the Ran-

dom Address Table. During the training phase, a given

gesture is associated to a group of neurons, and all the

cells selected by the address generated from the pix-

els combination are set to a binary value 1. For each

gesture pattern there is an speciﬁc set of neurons. The

recognition is accomplished through the sum of all

neurons output signals counter, which is associated

to the corresponding pattern.

Figure 11: RAM-based neural network

4 EXPERIMENTAL RESULTS

This section presents some experimental results re-

lated to the vision system described in this paper, in

particular resources, performance and efﬁciency ﬁg-

ures. Before doing so, we present an overview of the

hardware and software resources employed.

The development of the system has been done

using Altera Quartus II V3.0, an EDA (Electronic

Design Automation) tool for FPGA development.

The hardware platform is composed of a Nios-

Stratix development board (Altera, 2004), featuring

an EP1S10F780C6 FPGA. This reconﬁgurable device

contains 10.570 logical elements, and 920 Kbits of

RAM memory.

ICINCO 2004 - ROBOTICS AND AUTOMATION

212

The data of Table 1 shows the resources required

for the FPGA implementation of the vision system.

This information was obtained from the compilation

reports supplied by the EDA tool. It should be noticed

that the neural network, in spite of being mainly com-

posed of memory cells, uses a signiﬁcant amount of

logical elements in comparison to other blocks of the

system. This is due to the implementation of an inter-

nal bus capable of supplying all the image input bits in

parallel, a crucial feature for the system performance.

All blocks of the system are able to process at least

30 frames per second, which is the maximum rate

supported by the camera. As only 27.94% of the

FPGA capacity is used, it should be possible to add

new image processing functions to the vision system,

if required by other applications.

Table 1: Resouces usage: RAM Memory (Mem), Logi-

cal Elements (LE), and fraction of Logical Elements used

(LE(%)); Base: EP1S10F780C6 FPGA

Blocks

Mem

(Kbits)

(%)

Camera Control 0 71 0.67

Pixel Read 0 84 0.79

RGB2HSI 0 684 6.47

Segmentation 0 33 0.31

Filter and Compression 5 252 2.38

Image Centralization 1 180 1.70

Neural Network 229 1650 15.61

Total 235 2.954 27.94

On the Table 2 is presented the performance results

archive for each blocks of the system. The RGB2HSI

block is the slowest (31.88 frames per second), be-

cause it needs implementing operation like division

and multiplication and a complex hardware is neces-

sary for compute these equations.

Table 2: Performance of the system blocks: Operation Fre-

quency (OF), Image Size(IS) or Number of Neuron (

**),

and Frames per Second (FS); Base: EP1S10F780C6 FPGA

Blocks

(MHz)

IS FS

Camera Control 269.11 - -

Pixel Read 422.12 320x240 1374

RGB2HSI 16.88 320x240 31

Segmentation 109.79 320x240 1429

Filter and

Compression 48.89 320x240 212


Centralization 18.50 32x24 3437

Neural Network 73.48 96

** 382708

The efﬁciency of the recognition process has been

evaluated in order to determine if the hit rate is satis-

factory. During the process, we have found that the

number of samples used during the training phase of

the neural network plays a signiﬁcant role in the ﬁnal

results.

To determine that 50 samples of each gesture are

enough, the values of the neural network counter for

each recognition operation were analyzed. The neural

network model used in this system allows the counter

to vary between 0 to 95, the greatest value determin-

ing the winner pattern of the recognition process. By

analyzing the difference between counters, it was con-

cluded that using less than 50 samples in the training

process results in small differences between the win-

ner pattern and the others. This clearly indicates a

low conﬁdence degree. On the other hand, using more

than 50 samples for training tends to saturate the neu-

ral network, as a large number of counters become

close to the maximum value. This also reduces the

conﬁdence degree.

Once deﬁned the number of samples for training,

the efﬁciency test was performed. The system was

trained to recognize 7 gestures, all of them repre-

sented by the internal part of hand, as seen in Sec-

tion 3. A total of 700 gestures were presented to the

system (100 of each type), where variation of the dis-

tance and inclination of the hand in front of the cam-

era was made to turn the system more reliable. For

each of them it was veriﬁed if the recognition was cor-

rect, wrong, or not possible. After several testing runs

it was concluded that 50 samples of each gesture are

enough to obtain 99.57% of hit rate. One of the main

reasons to achieve this efﬁciency level is the transla-

tion of a gesture to the centre of the image sent to the

neural network. The results of this analysis can be

seen in Table 3. The True Recognition column shows

the percentage of correct interpretation of the gesture,

while the False Recognition column shows the per-

centage of the gestures wrongly interpreted. Finally,

the column labed No Recognition shows the rate of

unrecognized gestures.

5 CONCLUSION

In this paper we have shown a real time gesture recog-

nition system for mobile robots, implemented as a

SoC using FPGA technology. The main task of the

system uses a RAM-based Neural Network to rec-

ognize seven gestures. The primary motivation for

the development of this vision system is its integra-

tion to a mobile robot intended to help people with

disabilities and requiring alternative communication

interfaces. The resulting system showed to be ro-

bust, allowing the high performance required for real-

time processing (30fps). This performance could

A REAL TIME GESTURE RECOGNITION SYSTEM FOR MOBILE ROBOTS

213

Table 3: Recognition rates for seven gestures: True Recog-

nition (TR), No Recognition (NR), and False Recognition

(FR)

Gestures TR (%)

Error (%)

NR FR

Halt 100 0 0

Go 100 0 0

Go Back 98 0 2

Right 90

100 0 0

Left 90

100 0 0

Right 45

99 0 1

Left 45

100 0 0

Total 99.57 0 0.43

only be achieved by means of parallel processing

of functional blocks, which allows operations to be

pipelined. The system efﬁciency is also high, with a

true recognition rate of 99.57% for the 7 gestures used

in the experimental analysis. These can be changed or

extended by means of the system on-chip training ca-

pabilities.

REFERENCES

Altera (2004). Nios Development Kit, Stratix Edition.

http://www.altera.com/products/devkits/altera/kit-

nios

1S10.html.

Austin, J. (1998). RAM-Based Neural Network. World Sci-

entiﬁc Publishing Co. Pte. Ltd., London.

Cardoso, J. M. P. and Neto, H. C. (2003). Compilation for

fpga-based reconﬁgurable hardware. IEEE Design &

Test of Computers Magazine, 20(2):65–75.

ChiZhang, P. W. (2000). A new method of color image seg-

mentation based on intensity and hue clustering. In

IEEE International Conference on Pattern Recogni-

tion - ICPR, volume 3, page 3617.

Costa, L. d. F. and Cesar Jr., R. M. (2000). Shape Analysis

and Classiﬁcation. Phillip A. Laplante, New York.

Cummings, R. E., Pouliquen, P., and M. Lewis, A. (2003).

A vision chip for color segmentation and pattern

matching. EURASIP JASP, pages 703–712.

Electronics, Q. (2004). http://www.quasarelectronics.com-

/c3188a.htm.

Gonc¸alves, R., Wolf, D. F., Rodrigues, M. I., Osorio, L. F.,

Moraes, P. A., Genu

ario, L. B., Teixeira, M. A.,

Ribeiro, A. A. L., Romero, R. A. F., and Marques,

E. (2001). Architect-r: A system for reconﬁgurable

robots design - an overview and initial results. In

VLSI-SOC’01, volume I, pages 60–64.

Gonc¸alves, R. A., Moraes, P. A., Cardoso, J. M. P., Wolf,

D. F., F. M. M., Romero, R. A. F., and Marques,

E. (2003). Architect-r: a system for reconﬁgurable

robots design. In Proceedings of the 2003 ACM sym-

posium on Applied computing. ACM Press New York,

NY, USA.

Gonzalez, R. C. and Woods, R. E. (1992). Digital Image

Processing. Addison-Wesley Company, New York.

Oldﬁeld, J. V. (1995). Field-programmable gate arrays:

reconﬁgurable logic for rapid prototyping and imple-

mentation of digital systems. John Wiley & Sons, Inc.

Philips (2003). The i2c-bus speciﬁcation.

http://www.semiconductors.philips.com/acrobat/litera-

ture9398/39340011.pdf.

Rowe, A. (2002). A low cost embedded color vision system.

IEEE Intelligent Robots and Systems - IROS.

Russ, J. C. (1995). The Image Processing Handbook. CRC

Press, Boca Raton, 2

edition.

Swenson, R. L. (2002). A real-time high performance uni-

versal colour transformation hardware system. PhD

thesis, University of Kent at Canterbury, Canterbury -

Kent.

Thrun, S., Schulte, J., and Rosenberg, C. (2000). Interaction

with mobile robots in public places. IEEE Intelligent

Systems, pages 7–11.

Turk, M. (2004). Computer vision in the interface. vol-

ume 47, pages 60–64. ACM Press New York, NY,

USA.

Waldherr, S., Romero, R., and Thrun, S. (2000). A ges-

ture based interface for human-robot interaction. Au-

tonomous Robots, 9(7):151–173.

Zemcik, P. (2002). Hardware acceleration of graphics and

imaging algorithms using fpgas. In Proceedings of the

18th spring conference on Computer graphics, pages

25–32. ACM Press New York, NY, USA.

ICINCO 2004 - ROBOTICS AND AUTOMATION

214
