DATA SECURITY CONSIDERATIONS IN MODERN AUTOMATION

NETWORKS

Mikko Salmenper

Tampere University of Technology, Institute of Automation and Control

P.O. Box 692, FIN-33101 Tampere, Finland

Jari Sepp

Tampere University of Technology, Institute of Automation and Control

P.O. Box 692, FIN-33101 Tampere, Finland

Keywords:

Data security, increasing complexity, automation services support systems, automation networks, security,

telecommunication networks.

Abstract:

The automation manufacturing business has reached its turning point and manufacturers are forced to create

new business areas. Their expertise about ﬁeld devices will be the source for future growth of automation

industry. This includes monitoring, maintenance, data analysis and process tuning which all require good

remoting capabilities in order to be successfully and cost efﬁciently applied as a service for production plants.

This trend builds new challenges for automation services support systems. They are forced to adapt into

global business model where customers utilise network connections from old modem lines into modern mo-

bile communication networks. ”Information is power” therefore securing production and other process related

information systems in modern automation networks is becoming a necessity. The resent headlines have

proven that automation systems are becoming more vulnerable with the inclusion of standard ofﬁce and Inter-

net technologies into the automation networks. The only way to meet the security challenges in a global scale

is to build the the connectivity using secure-by-desing methodology.

1 INTRODUCTION

The current trend for modern automation systems

is increased use of networking on all levels of

plant. Fieldbusses provide plant ﬂoor level network-

ing reaching to individual ﬁeld devices. Industrial

ethernet solutions integrate each ﬁeldbus island into

distributed and at the same time centrally controlled

automation system. Emerging solutions for auto-

mated monitoring and optimisation of ﬁeld devices,

process state and higher level functions such as en-

terprise resource management require more informa-

tion to be extracted directly and continuously from the

automation system. There is also increasing need to

be able to access all of this newly available informa-

tion remotely by for instance subcontractor providing

maintenance for ﬁeld devices or process optimisation.

The increasing complexity of the automation net-

works requires a new thinking in security related is-

sues. The mixed usage of intranet, extranet and inter-

net without the full understanding of the required se-

curity considerations often results in achieving head-

lines in local and more often global news. Data secu-

rity is requirement for prevention of information loss,

spying or improper use of automation system. The

saying ”Information is power” is clearly applicable to

automation related businesses.

The main security threat comes from the same

fact as the biggest beneﬁts, integration of different

services and systems via protocols common in to-

days Internet. This means that the security problems

common to Internet are also present in the automa-

tion networks. It means that most of the methods

used to provide data security in Internet are applica-

ble to automation environment. However, the End-

to-End security from ﬁeld device to automation ser-

vices support systems or end user cannot be found

in any available study although standardisation or-

ganisations have done considerable work on the area

(Webb and et. al., 2004).

This paper presents architecture of a modern au-

tomation network and studies possibilities to imple-

ment reasonable level of security in it. Common

threats to data security in Internet that can also be

applied to modern automation environment are also

brieﬂy discussed.

279

Salmenperä M. and Seppälä J. (2004).

DATA SECURITY CONSIDERATIONS IN MODERN AUTOMATION NETWORKS.

In Proceedings of the First International Conference on Informatics in Control, Automation and Robotics, pages 279-282

DOI: 10.5220/0001141602790282

 SciTePress

2 MODERN AUTOMATION

NETWORK STRUCTURE

Automation networks inside a plant are rapidly evolv-

ing. The increased data throughput capabilities of

ﬁeldbusses and the added intelligence in the ﬁeld de-

vices themselves provide a foundation on which a

new business model can be build. In this model the

plant outsources certain routine tasks that support pro-

duction e.g. plant maintenance or process optimiza-

tion. The new service providers who take on a respon-

sibility of particular task in several plants, even on a

global scale, base their business heavily on telecom-

munication. By remotely monitoring of automation

systems state and various other information systems

present at plants, they can optimize usage of materials

and personnel and consentrate know-how into service

centers.

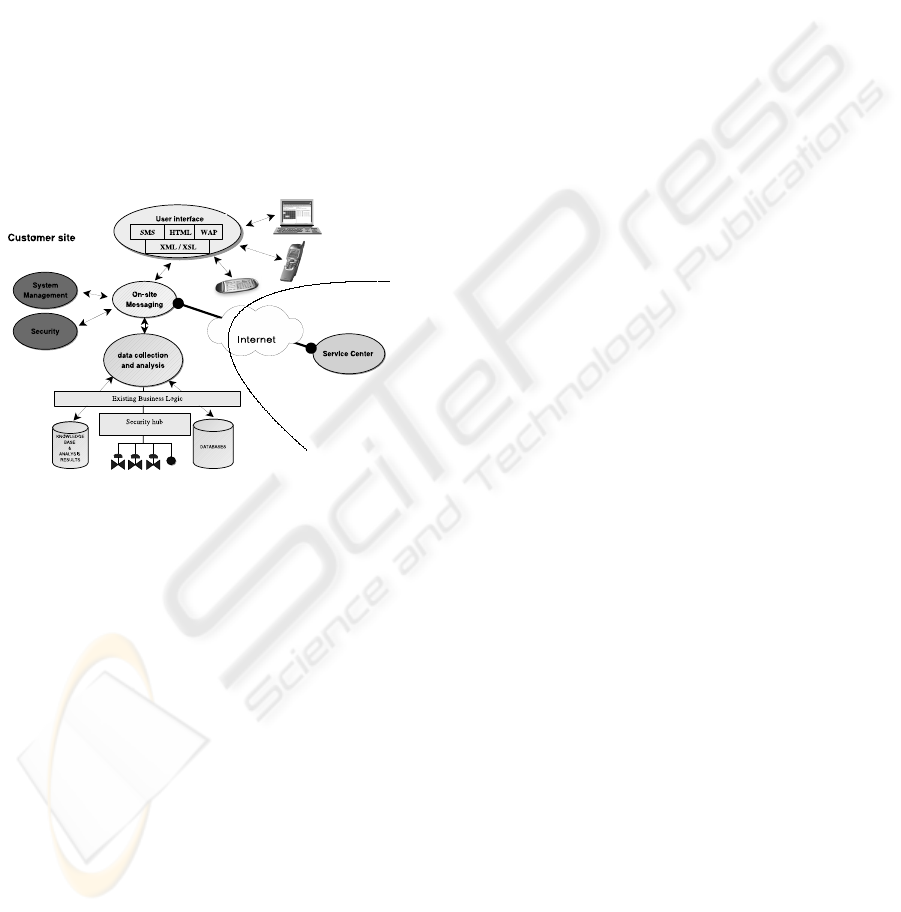

Figure 1: Automation services support system.

Modern automation network has three feature re-

quirements which are connectability, message trans-

fer reliability and loose connectivity. Connectability

means interfaces to the various systems. This can be

achieved by using messaging and messages within the

system that are based on open standards such as XML

and SOAP (Haavisto, 2001). The Second requirement

is message transfer reliability. All message chains in-

side, as well as to and from, the system must be re-

liable and traceable. There are message types that

must not be lost under any circumstances. The basis

of messaging reliability comes in the form of Mes-

sage Oriented Middleware (MOM) (Kero, 2004) or

products that offer similar functionality. The last but

not least requirement is loose connectivity. In modern

distributed automation environments customer sites

and service providers must not have permanent con-

nection dependencies. Also dynamic binding of ser-

vices must not occur i.e. you cannot use static IP ad-

dresses in any referencing to services as the address

spaces tend to change every now and then.

Figure 1 depicts a rough design of how monitoring

could be done. In 1 the service center is loosely con-

nected to the customer sites and MOM is used as a

backbone of all monitoring operations on the factory

and global scale. This kind of a common framework

is the essential part of the future automation network.

Security is not a feature requirement - it must be a

integrated part of the system (Nikunen et al., 2001).

The security is can be divided into three areas: inter-

nal, external and devices and services. The last on is

actually a subset of the internal security area but is

mentioned as separate because of the different nature

of the devices and services. The main purpose of the

implementation of security is to prevent any unautho-

rised or improper access to services and to provide

a trace both authorised and unauthorised accesses or

access attempts.

2.1 TRENDS IN NETWORKED

AUTOMATION

The evolving plant automation has resulted in multi-

protocol solutions. The Industrial Ethernet is spread-

ing although it has a major problem - it is not a

standard rather a collection of incompatible solutions.

This seems to be the trend in the ﬁeldbus area. How-

ever, there is also a trend to use an IP based moni-

toring in automation. Some manufacturers have al-

ready built switches which operate simultaneously as

a traditional ﬁeldbus device and as an IP enabled de-

vice. Since automation ﬁeld is much slower in adapt-

ing new technologies it can be safely stated that mul-

tiprotocol environments will be the solution for today

and for the next ﬁve to ten years.

The IP protocol is the source for the most of secu-

rity problems. The traditional automation protocols

are usually not routable and there is a lot less ready

made tools for making hacking programs. Without

any doubt the biggest problem come from the fact that

IP is the protocol for Internet. Anyone can easily ﬁnd

simple and effective tools for hacking into IP based

networks. However, since the IP is everywhere and

its importance is ever growing, a safe assumption is

that automation protocols - most of them anyway -

will be routed on top of the IP in the future.

Most of the automation speciﬁc protocols are also

such that there is no security at all. This is under-

standable since they were designed for use in closed

systems. This means that the security issues must be

dealt with on the IP level of the automation network.

The actual security problem is not running traditional

protocols on the top off the IP. The problem is bring-

ing the IP to the factories.

Business in manufacturing of the automation

equipment is not growing so the growth must be found

somewhere else. Since the common nominator of

many business areas is outsourcing the obvious new

ICINCO 2004 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

280

area for automation manufacturers is to sell their au-

tomation systems expertise. This consists of main-

tenance, diagnostics, analysis and tuning (Helanter

et al., 2004). There are usually a few experts on cer-

tain area and they are more and more mobile in global

scale. Also the customers with their subsidiaries op-

erate globally and are required to interconnect the of-

ﬁces and plants to enable more accurate business tun-

ing. This brings new challenges also to the automa-

tion services support systems (ASSS).

Automation services support system have to cope

with many different type of network connections. The

most challenging part are the mobile connections due

to their unreliable and nondeterministic nature. Al-

though the connection to plant is rarely implemented

with mobile technologies the devices or device grids

are becoming more and more mobile. The ability to

take the mobile equipment into remote diagnostics

services will be strong asset in the future. The mo-

bility however will bring a totally different problem

area to normally local area network (LAN) based au-

tomation.

3 SECURITY THREATS

There are several different types of security treats that

must be taken into account when considering the data

security of the automation network. Valid users them-

selves are the most common threat any computer sys-

tem has. Intentional or unintentional misuse of com-

puter systems occurs commonly in every day opera-

tion. The system must also be fortiﬁed against unau-

thorised or improper use. This means that each user

has strictly deﬁned role in the automation system,

and is only allowed to execute operation that corre-

spond to this role. Outside access, meaning access

from Internet, is also necessary to implement ﬂexi-

ble operating environment for subcontractors and ser-

vice providers participating in plants production and

upkeep. However this access must be very care-

fully evaluated and controlled as any unauthorised use

could lead into catastrophic consequences e.g. loss or

theft of valuable information, process malfunction or

worse. Computer viruses create a whole new type of

data security threat. They can compromise even the

best of security, by executing code that allows unau-

thorised access by some third party. The complete

security analysis in networked automation is beyond

this paper. More complete study of the are can be

found in (Nikunen, 2001).

4 FEASIBLE SOLUTIONS –

PERVASIVE-UBIQUITOUS

SECURITY

Security design in automation network requires above

all careful thinking. The challenges come from vari-

ous, mostly quite old, ﬁeld devices. Users and mod-

ern intelligent devices are usually not a problem since

they have the necessary computing power and inter-

faces.

Layered security architecture is the obvious choice.

This causes some overlapping security in some parts

but ensures that also the least capable devices are pro-

vided reasonable security. This also provides extra

security, if one layer is breached the second layer will

hold at least long enough that no important informa-

tion is lost. In practice this means securing data in

message level (OSI model: application layer) as well

as in TCP/UDP and IP levels (OSI model: transport

and network layers). Message level security with tra-

ditional ﬁeld devices requires deployment of security

hubs. The main function of these hubs is, in addition

to converting oldish protocols to IP based routable

protocols, is to include the security into the commu-

nication by securing the messages. This implemen-

tation will bring in extra costs but reduces the total

cost compared to renewing all ﬁeld devices into more

capable ones.

Solution to reasonable security can be achieved by

existing technologies. It is tools and ready made so-

lutions that lacking at the moment. Basis of almost

any security mechanism is identity. Without identify-

ing all entities participating in operation of a system,

we cannot enforce security. In its simplest this means

that we must know who the user, service or device is

in order to be able to make proper authorisation deci-

sions, encryption key selection and proper logging of

events occurring in the system.

Logging of security events is necessary because of

several reasons. It can be used to detect improper use

of the system by authorised personnel before secu-

rity or system operation is compromised. Logging

can also be used to track unauthorised use. The sys-

tem can then be reinforced against this particularat-

tack if necessary. This enables evolving security as

new threat are detected. In case of security is ever

breached, security logs can be used to determine crit-

icality of the breach. In fact without logging it may

well be impossible to ever detect some of the most

severe security breaches.

Encryption and signing of data is basic tool for data

security. Encryption protects data against unautho-

rised access and eavesdropping. Signing on the other

hand guarantees that the sender is who he claims to

be. Both of these methods rely on encryptions keys to

achieve their purpose. However they require a feasi-

DATA SECURITY CONSIDERATIONS IN MODERN AUTOMATION NETWORKS

281

ble solution to distribution of these keys. Public key

infrastructure PKI (Difﬁe and Hellman, 1976) is an

example of such a key distribution method.

PKI in itself is just an architecture, not an imple-

mentation. X509 is probably the most notorious and

widely used implementation of PKI principles. How-

ever it has rather complex and several times extended

speciﬁcation containing a lot of unnecessary features

for modern automation network. There is an other

PKI based speciﬁcation, namely Simple Public Key

Infrastructure SPKI (Ellison and et al., 1999). SPKI

provides an effective and ﬂexible way to implement

access control. Example implementation of SPKI

in automation network is introduced in (Salmenper

2000). When compared to X.509 based certiﬁcates

SPKI is more light weight and simpler authentication

and authorisation mechanisms.

XML has made easier to transfer information from

one system to another. Still, as in may cases before,

security issues were not included in design from the

start. XML in the beginning was just a base on which

to build applications. W3.org with help of many other

organisations and companies has improved the secu-

rity by introducing XML Security (W3.org, 2001a)

and XML Signature (W3.org, 2001b) frameworks.

These has enabled building of open secure remote

procedure calls and messaging. Good example of

combination of these is Secure Web Services (IBM,

2002). However, these do not solve the problem of

key management which still remains mostly a propri-

etary implementation.

5 CONCLUSION

Despite of security threats and unsolved problem with

feasible solution for AAA problem networked au-

tomation by support services can be achieved even

with current technology. The requirements in short

are 1) common sense and 2) inclusion of secure think-

ing in automation network design.

Mobility will bring new challenges to automation

services support systems. The unreliable nature of

mobile link in both access and security areas must

be taken into account in the design of communica-

tion. Only secure-by-design is sufﬁcient enough for

mobile environments. Enforcement of best practices

and policies are requirement for minimising the unre-

liable human factor.

Successful implementation of security is always

based on standards. Standards deﬁne common termi-

nology and enables change of tools if nessessary. Use

of open formats are the key to inclusion of all ﬁeld

devices into the automation service support system.

XML based messages and Message Orienter Middle-

ware are building blocks for modern automation sys-

tem and they form a framework that can be applied

inside factories and scale well to global analysis and

maintenance service applications.

REFERENCES

Difﬁe, W. and Hellman, M. (1976). New directions of cryp-

tography. In IEEE Transactions of Information The-

ory, pages 644– 654.

Ellison, C. and et al. (1999). SPKI re-

quirements, rfc2692 and rfc2693.

http://search.ietf.org/rfc/rfc269[2—3].txt; accessed

February 27, 2004.

Haavisto, H. (2001). .NET messaging techniques in con-

dition monitoring network. Master’s thesis, Tampere

University of Techonology, Automation Department.

In Finnish.

Helanter

a, H., Salmenper

a, M., and Koivisto, H. (2004).

Implementing MATLAB

° based analysis services in

global condition monitoring system. Submitted for

ICINCO 2004.

IBM (2002). Web services secu-

rity (WS-Security). http://www-

106.ibm.com/developerworks/webservices/library/ws-

secure/; accessed February 27, 2004.

Kero, J. (2004). Advanced messaging in enterprise scale

maintenance system. Master’s thesis, Tampere Uni-

versity of Techonology, Automation Department.

Nikunen, J. (2001). Security considerations on wide area

networking industrial solutions. Master’s thesis, Tam-

pere University of Techonology, Automation Depart-

ment.

Nikunen, J., Salmenper

a, M., and Koivisto, H. (2001).

Global condition monitoring network. Automa-

tion2001.

Salmenper

a, M. (2000). E-speak in enterprise scale con-

dition monitoring network. Master’s thesis, Tampere

University of Techonology, Automation Department.

W3.org (2001a). XML Encryption.

http://www.w3.org/Encryption/;accessed Febru-

ary 27, 2004.

W3.org (2001b). XML Signature.

http://www.w3.org/Signature/;accessed February

27, 2004.

Webb, B. and et. al. (2004). Integrating electronic security

into the manufacturing and control systems environ-

ment. Technical Report ISA-TR99.00.02-2004, The

Instrumentation, Systems, and Automation Society.

ICINCO 2004 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

282
