FROM PETRI NETS TO EXECUTABLE SYSTEMS: AN

ENVIRONMENT FOR CODE GENERATION AND ANALYSIS

ao Paulo Barros

1,2∗

, Lu

ıs Gomes

, Rui Pais

1,2

, and Rui Dias

Universidade Nova de Lisboa / UNINOVA, Portugal

Instituto Polit

ecnico de Beja, Escola Superior de Tecnologia e Gest

ao, Portugal

Keywords:

Petri nets, modularisation, code generation, executable models, veriﬁcation, domain speciﬁc languages.

Abstract:

There is an increased awareness regarding the importance of executable system’s speciﬁcations, in particular,

graphical speciﬁcations. Although most Petri nets variants are recognised as a versatile formalism, with an

intuitive graphical speciﬁcations and a precise semantics, most Petri nets tools limit themselves to graphical

editing and some type of simulation, system analysis, or both. This paper presents a new development envi-

ronment based on Petri nets. This environment enables the use of ad-hoc Petri net classes as domain speciﬁc

languages and allows the net models compositions and evolution through a set of orthogonal and generic mod-

iﬁcation operations. It also generates ANSI C code (easily extendable to other executable code) amenable to

be implemented in general-purpose hardware platforms, without sophisticated resources available. Addition-

ally, one major environment feature is the use of the same generated executable code, both for simulation and

for analysis purposes.

1 INTRODUCTION

Already in 1992, a paper by David Harel (Harel,

1992), proclaimed the advantages of model exe-

cutability (simulation) and code generation, as a way

to ﬁght system complexity. And, especially since

OMG’s MDA initiative (OMG, 2003a), the impor-

tance of modelling environments allowing model ex-

ecution and code generation is widely acknowledged

(OMG, 2003b).

In spite of this increased awareness regarding the

importance of executable system speciﬁcations and,

in particular, graphical speciﬁcations, most Petri nets

tools limit themselves to graphical editing, some type

of simulation, system analysis, or both. Code genera-

tion is much more difﬁcult to ﬁnd. In the reference

Petri net tools database (Petri Nets Tool Database,

2004), from a total of 51 Petri nets tools, only 3

mention code generation: the SIPN-Editor, a pro-

gramming tool for PLC programmers, generates IL

programs; the CPN/Tools mentions code generation

but only for simulation purposes; the SYROCO tool

generates C++ code from a very high-level Petri net

based language supporting very signiﬁcant extensions

to Petri nets, e.g., inheritance, and dynamic instantia-

tion. This paper presents a development environment

∗

Work partially supported by a PRODEP III grant (Con-

curso 2/5.3/ PRODEP/2001, ref. 188.011/01).

for system development based on Petri nets. It can

be deﬁned as an environment for system development

based on executable, and implementable, generic

Petri net models, with strong support for model struc-

turing and model modiﬁcation. By generic Petri net

models we mean that the support for new Petri net

syntax or semantics can easily be added to the envi-

ronment.

The paper makes a brief presentation of the pro-

posed development environment, namely its architec-

ture, its behaviour, and its two main system tools: the

PnEditor and the PnGenerator. Finally, the paper

summarises the system’s innovations.

2 THE DEVELOPMENT

ENVIRONMENT

The development environment is based on two tools:

1. A graphical editor (named PnEditor) supporting

any Petri net model deﬁned in the Petri net Markup

Language (PNML) (J

ungel et al., 2000; Billington

et al., 2003)

. It also supports hierarchical structur-

ing and a set of modiﬁcation operations.

As all our models will correspond to some Petri net

type, the used format is the PNML. The PNML is an emerg-

ing standard for a Petri net interchange format. It is based

464

Paulo Barros J., Gomes L., Pais R. and Dias R. (2004).

FROM PETRI NETS TO EXECUTABLE SYSTEMS: AN ENVIRONMENT FOR CODE GENERATION AND ANALYSIS.

In Proceedings of the First International Conference on Informatics in Control, Automation and Robotics, pages 464-467

DOI: 10.5220/0001142104640467

 SciTePress

2. A code generator tool (named PnGenerator) that is

able to generate ANSI C code (and is easily extend-

able to other languages) for net execution. The gen-

erated code is amenable to be executed in hardware

with limited resources. Besides, the same gener-

ated code can be used to simulation and veriﬁcation

purposes.

A high-level view of the environment, explained

along this section, is presented in Fig. 1.

Typically, the user interacts with the PnEditor. The

editor allows the user to generate Petri net models

based on a previously read Petri net type deﬁnition

(PNTD). This is a XML ﬁle deﬁning the Petri net type

to be used. More speciﬁcally, it deﬁnes the set of tex-

tual annotations than can be associated to each net el-

ement. The editor conﬁgures itself based on the read

PNTD: only the net elements deﬁned in the PNTD are

made available in the graphical editing commands.

The editor is also able to generate a non-

hierarchical speciﬁcation from a hierarchical model

being edited. We call this version, the ﬂat model. This

means that we view the hierarchical model as a graph-

ical convenience. On one hand, this has the advan-

tages of a modular speciﬁcation, namely readability,

modularity, and reusability. On the other hand, the

reduction to a ﬂat model guarantees that the gener-

ated Petri net can easily remain closer to well-studied

Petri nets for which numerous veriﬁcation possibili-

ties exist (e.g. elementary net systems (Rozenberg,

1987), free-choice nets (Desel and Esparza, 1995),

and Place/Transition nets (Desel and Reisig, 1998)).

The PnGenerator reads ﬂat net speciﬁcations and

generates ANSI C code capable of executing the

model (the executable model). It can also generate

interface code that is linked to the executable code.

This allows the use of the same executable code also

for simulation and analysis tasks.

The simulation is, typically, carried out by the in-

teraction of the PnEditor and PnGenerator tools:

1. the PnEditor sends (by ﬁle) upon user request, an

initial ﬂat Petri net;

2. the PnGenerator identiﬁes the possible next steps

and returns that information to the PnEditor in the

form of several possible evolutions for the given ﬂat

net.

3. the user chooses one of the possible execution steps

4. the PnEditor asks the PnGenerator to executes the

speciﬁed step

5. the PnGenerator returns the modiﬁed model ele-

ments to the PnEditor

6. the PnEditor updates the model

on XML and is part of the ongoing effort for a High-level

Petri net ISO standard (Petri nets Standard, 2004).

Additionally, given a ﬂat model, the PnGenerator is

able to generate automatic simulations (without user

intervention) logging them in text ﬁles.

Finally, given a ﬂat model, the PnGenerator is also

able to generate the respective state graph and to use

it for analysis purposes, namely, deadlock detection

and reachability analysis.

The environment architecture also makes evident a

clear independence between modelling and code gen-

eration tasks. The creation of graphical models and

the deﬁnition of Petri net types can, thus, easily evolve

independently from the code generation and simula-

tion tasks. This makes the environment more open as

it will allow both tools to be used outside of the initial

foreseen close cooperation: other tools can totally, or

partially, replace or complement, the existent ones.

2.1 The PnEditor

The PnEditor is a typical Petri net graphical editor

with three main additional characteristics: (1) the use

of the emergent standard for Petri net model inter-

change; (2) the support for model modiﬁcation op-

erations; (3) the interaction with the PnGenerator for

simulation and veriﬁcation tasks. Additionally, the

PnEditor is able to generate non-hierarchical (ﬂat)

models from hierarchical ones.

The PnEditor relies on the Eclipse open source

project (Eclipse, 2004) mainly due to the availabil-

ity of a suitable framework, named Graphical Editing

Framework (GEF), for the development of graphical

editors (GEF, 2004).

The PnEditor also allows the speciﬁcation of net

modiﬁcations through the use of textual expressions.

These textual expressions correspond to a simple al-

gebra around a set of operations on net instances,

places, and transitions. Net instances are elements of

net vectors. Given a net model N , a net vector of net

models N is a list of n instances of N nets, denoted

N[1 . . . n] where each net instance is denoted N [n].

All net components of a net instance N[i] have their

denotations sufﬁxed by N [i]. For example, place p

in a net instance S[2], becomes S[2].p

. This allows

a convenient way to refer to several distinct node in-

stances of a given net (Gomes et al., 2002; Gomes and

Barros, 2003; Barros and Gomes, 2004a).

The net instances and the respective places and

transitions, can be modiﬁed by a small set of oper-

ations deﬁned elsewhere (Barros and Gomes, 2004a),

namely net addition and net subtraction. The net

modiﬁcation operations can be applied at any time

some model modiﬁcation is needed. Yet, net addition

can also be used in a structured way as the underly-

ing support for the hierarchical structuring of the net

model (Gomes and Barros, 2003) and for a particular

type of transition fusion, named synchronous group,

useful for object-oriented design (Barros and Gomes,

FROM PETRI NETS TO EXECUTABLE SYSTEMS: AN ENVIRONMENT FOR CODE GENERATION AND

ANALYSIS

465

Platform Specific Executor

Executable

model

Input

Interface

Output

Interface

Hardware specific platform

flat net

(total)

flat net

(dynamic

part)

PnEditor

PnGenerator

user

Compiler

Generated Code

Simulator

Executable

model

Simulation

Interface

PNTD

flat net

...

PNML

Hierarchical

net

...

Analyser

Executable

model

Analysis

Interface

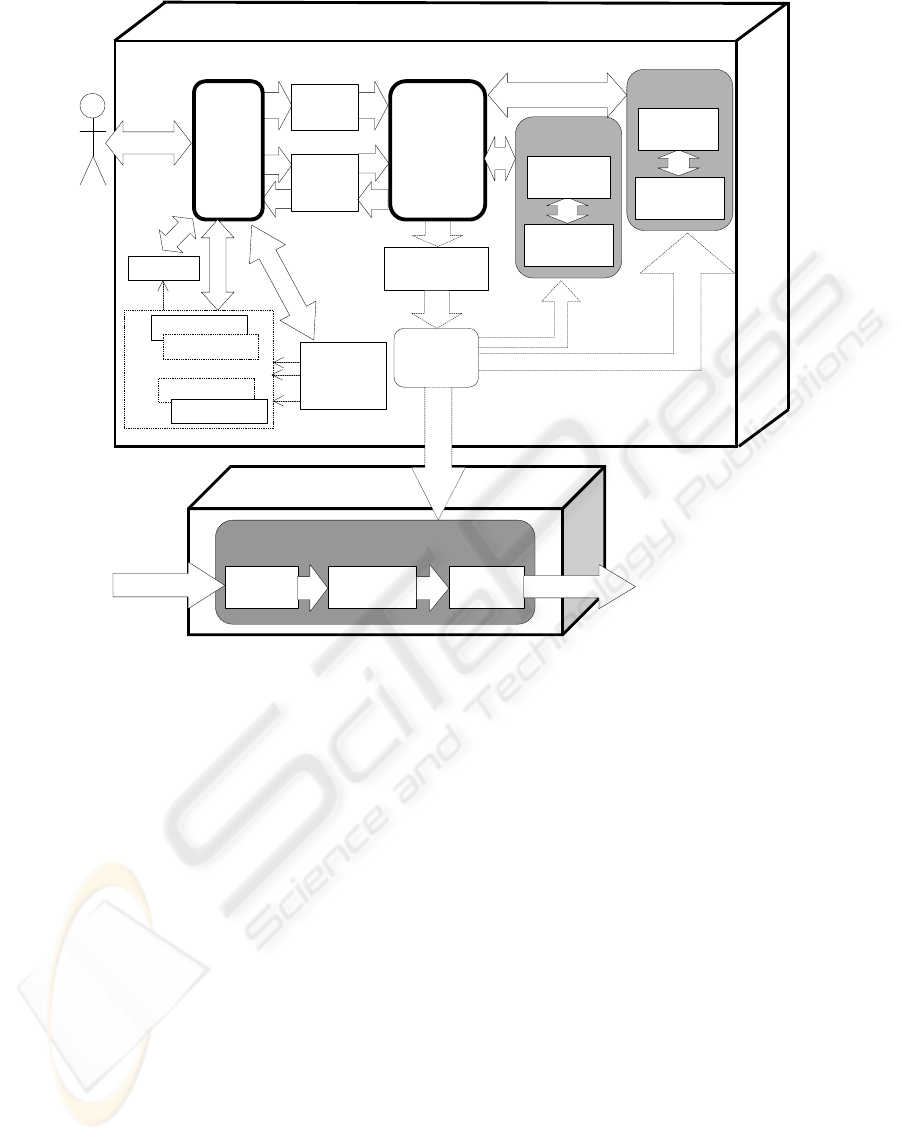

Figure 1: The development environment architecture.

2004b). Net subtraction allows the undo of a previous

net addition operation.

2.2 The PnGenerator

Generically, we can view the PnGenerator tool as al-

lowing the developer to execute compiled Petri nets

models. This execution has three variants depending

on the use we want to give to the model execution.

Those variants correspond to the following function-

alities:

Code generation The Petri net model is read from

a text ﬁle (in PNML) format and executable code

(e.g. ANSI C) is generated. When compiled, this

code, is able to execute the Petri net.

Simulation This corresponds to the previously de-

scribed interaction between the PnEditor (the user)

and the PnGenerator.

Veriﬁcation The veriﬁcation uses the same code as

the simulation in order to produce the associated

state space. It is sufﬁcient to generate additional

code stubs allowing the interface between the exe-

cutable code and the user.

Compared to the usual interpreted model execution,

the model compilation allows smaller footprints and

better performance for the executable code. This re-

sults from the signiﬁcant optimisations that can be

done at compile time: for example, if the net class

allows priorities in transitions, but they are not used

in the model, then the generated code will not even

contain code testing their occurrence or value. And

the same is true for other similar cases.

Just like all model execution related knowledge,

the Petri net class semantics is hard-coded in the Pn-

Generator. Basically, for each new Petri net class to be

supported, one new class needs to be added to each of

three packages: (1) ”Speciﬁc Petri nets classes Read”,

to read the speciﬁc data in the PNML ﬁle; (2) ”Gener-

ate Speciﬁc Petri net Static Code” to specify the gen-

eration of code for the Petri net structure in the desired

output executable language (e.g. ANSI C); (3) ”Gen-

erate Speciﬁc Petri net Dynamic Code” to specify the

generation of code for the Petri net execution in the

desired output executable language. Note that distinct

dynamic behaviours can be speciﬁed for a given Petri

net class.

ICINCO 2004 - ROBOTICS AND AUTOMATION

466

3 CONCLUSIONS AND FUTURE

WORK

Here, we highlight the main characteristics which,

when taken together, make the presented environment

innovative:

Handling of multiple Petri nets formats The

PnEditor is able to conﬁgure itself accordingly to

a given Petri net type (deﬁned accordingly to the

PNML emergent standard). In this way the editor

can be used to create models given in distinct Petri

nets based languages, with varying degrees of

platform independence. In summary, the PnEditor

is able to deﬁne and use multiple Petri nets as

domain speciﬁc languages.

Model structuring As the support is independent

from the respective net class, the PnEditor allows

hierarchical structuring of any Petri net model. Ad-

ditionally, a special type of transition fusion en-

ables the use of High-level Petri nets for Object-

oriented design.

Flexible model modiﬁcations The deﬁnition of a set

of textually speciﬁable model modiﬁcation opera-

tions (represented by algebraic expressions) com-

plements the graphical nature of the Petri nets with

a compact notations for the speciﬁcation of very

large models. This also allows higher levels of

modularisation.

Versatile Model Compilation The environment

supports the compilation of the designed models

and the use of the resulting executable code

not only for simulation purposes but also for

veriﬁcation and ﬁnal implementation in a suitable

hardware platform.

Generation of Platform Speciﬁc code The Pn-

Generator generates ANSI C code and the ad-hoc

code stubs allowing the execution of the models in

speciﬁc hardware or software platforms.

The environment was tested using elementary Petri

nets for a manufacturing system model and using

Place/Transition nets for a parking lot access con-

troller. Finally, code generation will be extended

to include hardware description languages, namely

VHDL.

REFERENCES

Barros, J. and Gomes, L. (2004a). Net model composition

and modiﬁcation by net operations: a pragmatic ap-

proach. In Proceedings of the 2

IEEE International

Conference on Industrial Informatics (INDIN’04). (to

appear).

Barros, J. and Gomes, L. (2004b). On the use of coloured

Petri nets for object oriented design. In Michelis, G.,

D. and Diaz, M., editors, Lecture Notes in Computer

Science; , 25

International Conference on Applica-

tion and Theory of Petri Nets 2004. Springer. (to ap-

pear).

Billington, J., Christensen, S., van Hee, K., Kindler, E.,

Kummer, O., Petrucci, L., Post, R., Stehno, C., and

Weber, M. (2003). The Petri net markup language:

Concepts, technology, and tools. In van der Aalst, W.

and Best, E., editors, Proceeding of the 24

Interna-

tional Conference on Application and Theory of Petri

Nets, volume 2679 of LNCS, pages 483–505, Eind-

hoven, Holland. Springer-Verlag.

Desel, J. and Esparza, J. (1995). Free choice Petri nets.

Cambridge University Press.

Desel, J. and Reisig, W. (1998). Place/transition Petri nets.

Lecture Notes in Computer Science: Lectures on Petri

Nets I: Basic Models, 1491:122–173.

Eclipse (2004). Eclipse.org. http://www.eclipse.

org.

GEF (2004). Graphical editing framework. http://

www.eclipse.org/gef/.

Gomes, L. and Barros, J. (2003). On structuring mecha-

nisms for Petri nets based system design. In Proceed-

ings of the 2003 IEEE Conference on Emerging Tech-

nologies and Factory Automation (ETFA 2003), pages

431–438. IEEE Catalog Number: 03TH8696.

Gomes, L., Barros, J., and Costa, A. (2002). Petri net model

node structuring techniques for embedded system de-

sign. In Proceedings of the 5

Portuguese Conference

on Automatic Control (CONTROLO’2002), Aveiro,

Portugal. Associac¸

ao Portuguesa de Controlo Auto-

matico (APCA).

Harel, D. (1992). Biting the silver bullet: Toward a brighter

future for system development. Computer, 25(1):8–

20.

ungel, M., Kindler, E., and Weber, M. (2000). The Petri

net markup language. In Phillipi, S., editor, Workshop

Algorithmen und Werkzeuge fr Petrinetze.

OMG (1997-2003a). OMG Model Driven Architecture.

http://www.omg.org/mda.

OMG (1997-2003b). Presentations and papers. http://

www.omg.org/mda/presentations.htm.

Petri nets Standard (2004). Petri nets standard.

http://www.daimi.au.dk/PetriNets/

standardisation/.

Petri Nets Tool Database (2004). Petri nets tool database.

http://www.daimi.au.dk/PetriNets/

tools/db.html.

Rozenberg, G. (1987). Behaviour of elementary net sys-

tems. In Advances in Petri nets 1986, part I on Petri

nets: central models and their properties, pages 60–

94. Springer-Verlag.

FROM PETRI NETS TO EXECUTABLE SYSTEMS: AN ENVIRONMENT FOR CODE GENERATION AND

ANALYSIS

467
