AUTONOMOUS NAVIGATION ROBOTIC SYSTEM TO

RECOGNIZE IRREGULAR PATTERNS

Danny Dos Santos, Rafael Peñalver and Wílmer Pereira

Grupo de Investigación en Inteligencia Artificial y Robótica, Universidad Católica Andrés Bello,

Urb. Montalbán, Caracas, Venezuela

Keywords: Autonomous Mobile Robots, Learning Algorithms, Artificial intelligence.

Abstract: This paper presents an approximation of navigation problem under unknown environment using

reinforcement learning. The motivation is to represent a robot that can move in a world with streets and

intersections. Each intersection has a different quantity of streets (irregular blocks). The selected algorithms

were Q-Learning and Value Iteration. The robot was programmed only with Q-Learning and we developed

a simulation with both of them. This simulation allows making comparisons in order to determinate in

which situation each algorithm is appropriate.

1 SYNOPSIS

This paper presents a particular application for

unknown environment using two techniques of

reinforcement learning. These algorithms allow an

autonomous agent or robot, to reach a goal by

learning the environment. In our case, the world is

formed by blocks of irregular geometric forms. The

robot does not know a priori the world but he learns

to identify it. The robot only knows previously the

location of the goal, given in terms of coordinates (x,

y).

The reinforcement learning algorithm selected

for the robot was Q-Learning. This algorithm

consists on rewarding or penalizing each possible

action that the robot executes when it interacts with

their environment. This interaction allows the agent,

based on sensor inputs, chooses an action to be

carried out in the world. Besides, given a policy, the

robot is able to reach a goal, learning by trying and

testing.

The simulation was developed using Q-Learning

and Value Iteration in order to test these algorithms

in different worlds. It allows comparing them under

different situations, either changing the form of the

blocks of the world, or changing the position of the

goal.

The robot was built with a Lego Mindstorm 2.0

kit with two light sensors and one rotation sensor.

The selected language for robot application was Java

under Lejos platform and the simulation was

developed in Visual Basic.

2 REINFORCEMENT LEARNING

The reinforcement learning uses recompenses and

penalizations when the agent executes an action in

order to reach the goal. The learned behavior

contains the robot's implicit world model. By using

reinforcement learning it is not needed to have

examples to build and to validate the behavior (like

supervised learning). The behavior is synthesized

using a scalar (reinforcement) as the only source of

information. This information allows evaluate the

action. The agent receives positive, negative or null

reinforcements according situations and action

selected. There is not separation between the

learning phase and the using phase.

In this work, the world is inaccessible a priori to

the robot (it must learn the world), recompenses are

received in any state or situation, and the robot is a

passive apprentice (it does not alter the world).

2.1 The reinforcement and value

functions

In reinforcement learning must be defined a

reinforcement function. This is a function of the

future reinforcements that the agent searches to

maximize. In other words, a relationship exists

between the couple state/action with the

reinforcements. After carrying out an action in a

state, the agent will receive some reinforcement

(reward) given as a scalar value. This reinforcement

defines the value function. The agent learns how to

maximize the sum of the received reinforcements

295

Dos Santos D., Peñalver R. and Pereira W. (2004).

AUTONOMOUS NAVIGATION ROBOTIC SYSTEM TO RECOGNIZE IRREGULAR PATTERNS.

In Proceedings of the First International Conference on Informatics in Control, Automation and Robotics, pages 295-301

DOI: 10.5220/0001145902950301

 SciTePress

when begins from an initial state and proceeds to a

terminal state.

The value function is based on a field of the

mathematics called dynamic programming. To

explain it, some notations is needed: V(x

) is an

approximation of the function value in x

state;  is

the discount factor in the range of [0,1] that causes

that the immediate reinforcement has more

importance than the future reinforcement and

r(x

) is

the reinforcement in this state. The value of the state x

follow a policy that is the sum of the reinforcements

when it begins of the state x

and carrying out good

actions until a terminal state is reached. A simple

relationship exists between the values of the

successive states x

and x

t+1

expressed by the

Bellman equation (1):

V(x

) = r(x

) + V(x

t+1

) (1)

The process of the learning is the process to find

a solution for the equation (1) for all the states x

through the space of states.

2.2 Value Iteration

One can find an approximation to optimal value

function evaluating for all possible state since x

. In

equation (2), u is the action performed in state x

and

cause a transition to state x

t+1

and r(x

,u) is the

reinforcement received when performing action u in

state x

V(x

) = max

(r(x

,u) + V(x

t+1

)) (2)

The figure 1 illustrates this process.

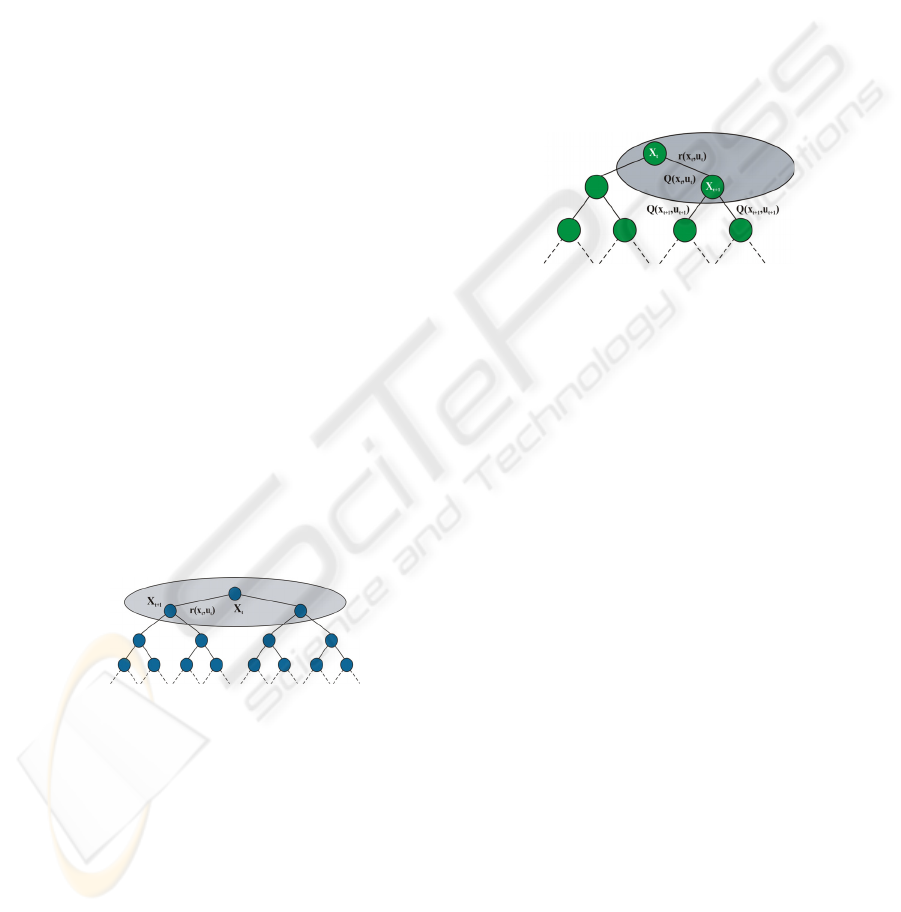

Figure 1: Tree of states for Value Iteration

The previous figure describes how update the

value in x

. Specifically, there are two possible

actions in the state x

, and each one of these actions

directs to different states successors x

t+1

. To update

in Value Iteration, it should find the action that

returns the maximum value (BFS algorithm). The

only way to achieve this is by executing an action

and calculating the sum of the received

reinforcement and the approximate value of the state

successor x

2.3 Q-Learning

Q-Learning is another extension to the traditional

dynamic programming that solves the problem more

simply. Q-Learning differs from Value Iteration in

that it does not require in a given state each action be

performed and the expected values of the successor

state be calculated. While Value Iteration executes

BFS, Q-Learning takes a single step sample. It only

needs to be the maximum value in the new state to

have all the necessary information to revise the

prediction associated with the executed action. Q-

Learning does not require to calculate on all the

possible successor states. This process is

demonstrated in figure 2:

Figure 2: Tree of States vs. Actions

In Q-Learning each situation-action has a value

(called Q-value). In each state, there is a Q-value

associated with each action (a matrix). The

definition of the Q-value is the sum of the received

reinforcements when the action is executed

following a policy.

The Q-value of a state should approximate the

maximum Q-value in the given state. In this case, it

is easy to derive the equivalent of the Bellman

equation (3) for Q-Learning:

Q(x

) = r(x

)+ γ max

ut+1

(Q(x

t+1

)) (3)

2.3.1 Q-Learning Algorithm

In this application, the algorithm was modified

including ß factor. β represents the learning rate and

it should be bigger than 0. The algorithm steps are:

1. Initialization of the robot's memory: for all the

situation-action couples, the Q-values are zero. It

also could be initialized with random values.

2. repeat

a. x is the situation of the world.

b. The evaluation function selects the action to be

executed: x = Max(Q(x,u'))

where u' represents any possible action. The

selection process depends on the distance to the

goal.

ICINCO 2004 - ROBOTICS AND AUTOMATION

296

c. The robot executes the action u in the world. Be

r the recompense (r can be 0) associated with

the execution of that action in the world.

d. Updates the robot's memory:

t+1

(x,u) = Q

(x,u) + ß (r + γ max(Q

(x', u')) - Q

(x,u))

where x' is the new situation after having been

executed the action in the situation x, u'

represents any possible action.

This algorithm was implemented in Java: LejOS

(Lego Java Operating System) and is executed by

the robot when it navigates in the world.

3 APPLICATION DEVELOPPED

3.1 Design

It should be convenient to design and to prove

different types of physic structures for the

autonomous entity (robot), in order to define and to

build the environment and finally to adjust the

algorithms Q-Learning and Value Iteration.

3.1.1 Robot Design

The accuracy of the movements and the turns are

important, since the robot should make turns on his

owns axis and movements along the streets or roads.

If errors are present in the turn, the robot takes a

wrong road, harming in a significant way the

execution of the algorithm.

Due to the inaccuracy in the movement, we used

a dual differential drive, such as it shown in the

figure 3.

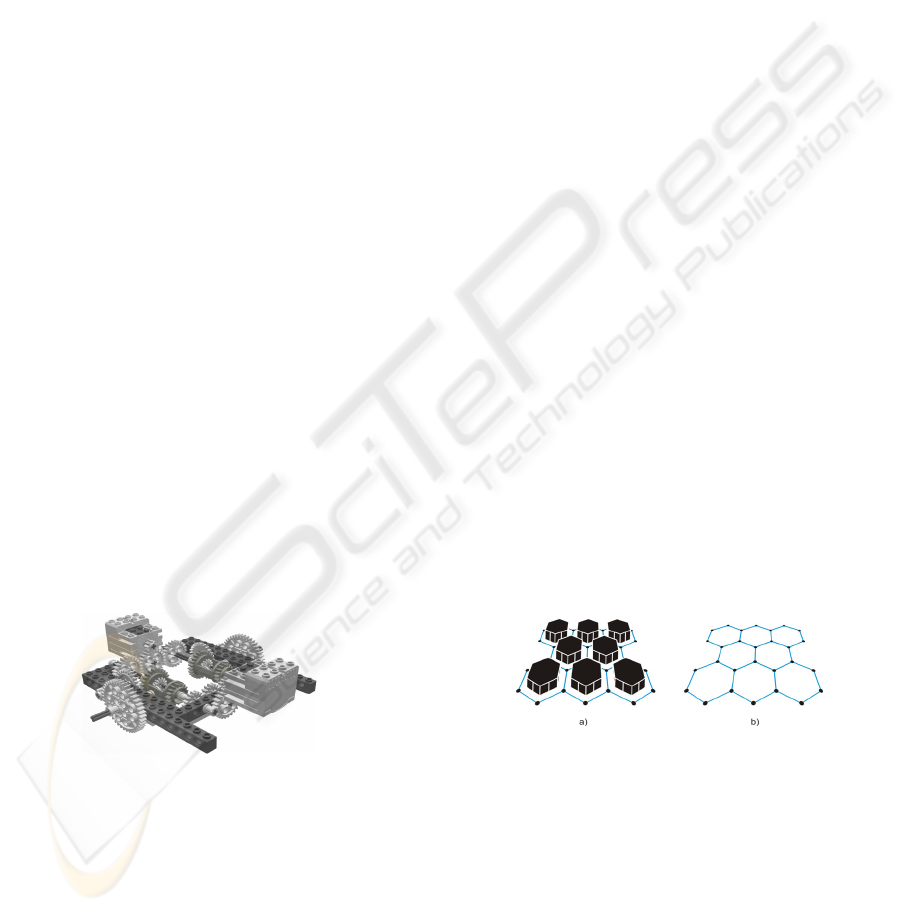

Figure 3: Transmission system with dual differential

drive

In this system, a motor takes charge of moving

the robot straight line (forward or back), while the

second motor takes charge of carrying out the turns

(toward the left or toward the right), and one of the

motors should only work at the same time, both

cannot work at the same time. The advantage of

using this system resides in that both wheels work to

the same speed maintaining a uniform movement.

After we made the decision of using two wheels

behind and a stabilizer piece in front of the robot.

This piece acts as a ski, minimizing the close contact

with the floor and achieving a stable movement as

much in the turns as in the right movements.

In order to capture the events of the environment,

a study was made to define what kind of sensors

would be used for such an end. Initially it was

planned to use three ultrasonic sensors, placed one in

the robot's front part, and the other ones two in the

lateral sides of the same one. However, serious

inconveniences arose since with the sensors the

readings, in many cases, they didn't reflect the real

situation, for example, when it happens a

phenomenon called speculate reflection.

It was adopted two sensor of light under the

robot pointing toward the floor and a rotation sensor.

This solves part of the problems mentioned

previously, as the recognition of roads and

intersections. The sensor of light maintains adjusted

the robot to the road because that, if the road is of a

certain color, for example blue, and then it detects

another color, for example white, is adjusted to

follow the road. The rotation sensor allows to know

how many degrees the robot has rotated, being an

important element for the robot's navigation. It could

obtain an error of ±10º.

Finally the last sensor of light was placed

pointing to the floor in the robot's front part, which

allows to detect in a quick and simple way how

many roads are in each intersection.

3.1.2 Environment

With the elimination of the sonar, we decided to

eliminate the walls and to identify background, roads

and intersections with the white, blue and black

color, respectively.

Figure 4: World types. a) With walls. b) Without walls

3.1.3 Q-Learning adaptation

Firstly, it is necessary to learn how to arrive to a

specific point of the map from a beginning point. In

each intersection it should be decided among a series

of roads, some move away the robot of the goal,

other brings near it and some even maintain the same

distance from the goal. If an action in that state

brings near the robot of the goal, this action it should

be rewarded, while if the robot goes away, the action

AUTONOMOUS NAVIGATION ROBOTIC SYSTEM TO RECOGNIZE IRREGULAR PATTERNS

297

should be penalized. The autonomous entity should

learn how to arrive to its destination choosing the

actions that offer a bigger recompense.

Q-Learning requires to elaborate a matrix

(mainly called Q-Matrix) of actions against states.

The actions in this case are: rotate a specific angle

and to move straight . The figure 5 shows some of

the possible actions that the robot can take in an

intersection with three ways:

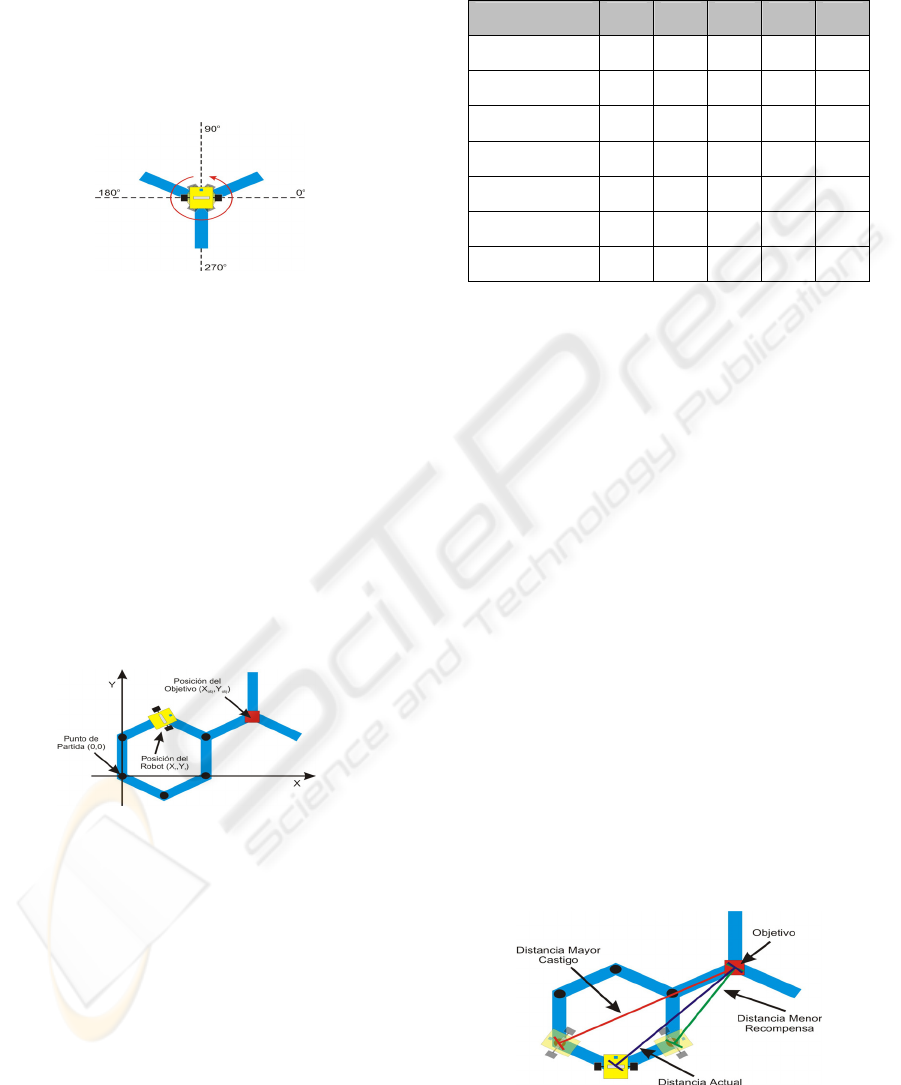

Figure 5: Actions that the robot can carry out in an

intersection type

In the Q-Matrix, these actions are denominated

by the value of the angle that should be rotated.

The states represent situations that can happen in

the robot's interaction with the world and they can be

directly the values read by the sensors, combinations

or derived abstractions of the readings of the sensors

or robot's internal representations.

The proposed design of states was one where the

robot built a coordinated system where the origin is

the starting point (Figure 6) and the coordinates of

the goal are already fixed and known previously by

the robot. Using these references, and trigonometric

calculations, the distance is calculated between the

robot and the goal or objective.

Figure 6: System of coordinates used by the robot

It is also necessary to know where is the robot

with respect to the goal (if it is above, below, to the

right or to the left of the goal). To obtain that

information, the coordinates of the goal are

subtracted with the robot's coordinates, for example,

if the subtraction of the abscissas and the coordinates

are negative, the robot is above and to the left of the

goal. The combinations between the quadrants and

the differences among the distances from the robot

to the goal define seven states.

The Q-Matrix (table 1) was built using the states

mentioned previously, and they took the actions as

the angles from 0° up to 360° numbered of 10 in 10

(rotation sensor precision), that is to say, 0°, 10°,

20°, etc. The lines are the states and the columns are

the actions.

Table 1. Q-matrix

State\Action 0 10 ....... 350 360

0 0,48 1 ....... 0,93 0,23

1 0,70 0,60 ....... 0,67 0,37

2 0,97 0,45 ....... 0,23 0,87

3 0,65 0,74 ....... 0,62 0,34

4 0,10 0,76 ....... 0,34 0,73

5 0,29 0,56 ....... 0,89 0,66

6 0,69 0,77 ....... 0,83 0,65

Each state has associated a series of angles that

represent the possible actions. For example, if the

robot arrived to an intersection that brought near it to

the objective and it is in the quadrant 3, the state that

represents this action is the state 5. Once identified

the state, determines the action that it will take

looking for the biggest value in the line for that state.

In the table 1, it can be appreciated that the

maximum value for the state 5 corresponds to the

angle of 350° for what the action that the robot will

take will be the one of rotating up to 350° to move

later on straight line until the next intersection.

These value used to determine the maximum, Q-

values, represent the utility of a couple (state/action).

Once done this and coming to the following

intersection, the robot identifies the state again. It

calculates the recompense of the action taken in the

previous state. A positive recompense takes place

when the robot executes an action that brings near it

to the goal, rewarding it. While a negative

recompense takes place when instead of coming

closer to the goal this goes away, for what the

executed action is penalized (figure 7). With the

calculated recompense, the Q-value is updated

(value in the Q-Matrix) corresponding to the couple

(previous state-action) modifying the values that can

affect to future decisions for that state.

Figure 7: Rewards of the possible actions that the

robot can take

ICINCO 2004 - ROBOTICS AND AUTOMATION

298

3.2 Tests

In this last phase was carried out successive tests for

the detection of error. The robot's acting was

observed in the environment and the behavior of the

algorithm Q-learning applied for the navigation.

Nevertheless, the principal objective in this

phase is to establish the comparisons among Value

Iteration and Q-Learning, using the simulation. It is

important to mention that a iteration begins with the

robot in the starting point and it concludes when this

arrives to the goal. Each run can have associated a

finite number of iterations.

With regard to the simulation, the algorithms Q-

Learning and Value Iteration, one could observe the

behavior of each one in an ideal world. In this way,

we can carry out comparisons between both

algorithms, avoiding the problems with the

inaccurate of the sensors. Also, modifications can be

made in certain parts of the algorithms, without

altering the logic of them.

Test 1

There was carried out a run of 20 iterations,

maintaining the goal fixes, with each one of the two

algorithms to see how it was the learning curve in

both cases. The obtained graph was the following

one:

0 5 10 15 20 25

Iter aciones

Q-Lear ning Value Iter ation

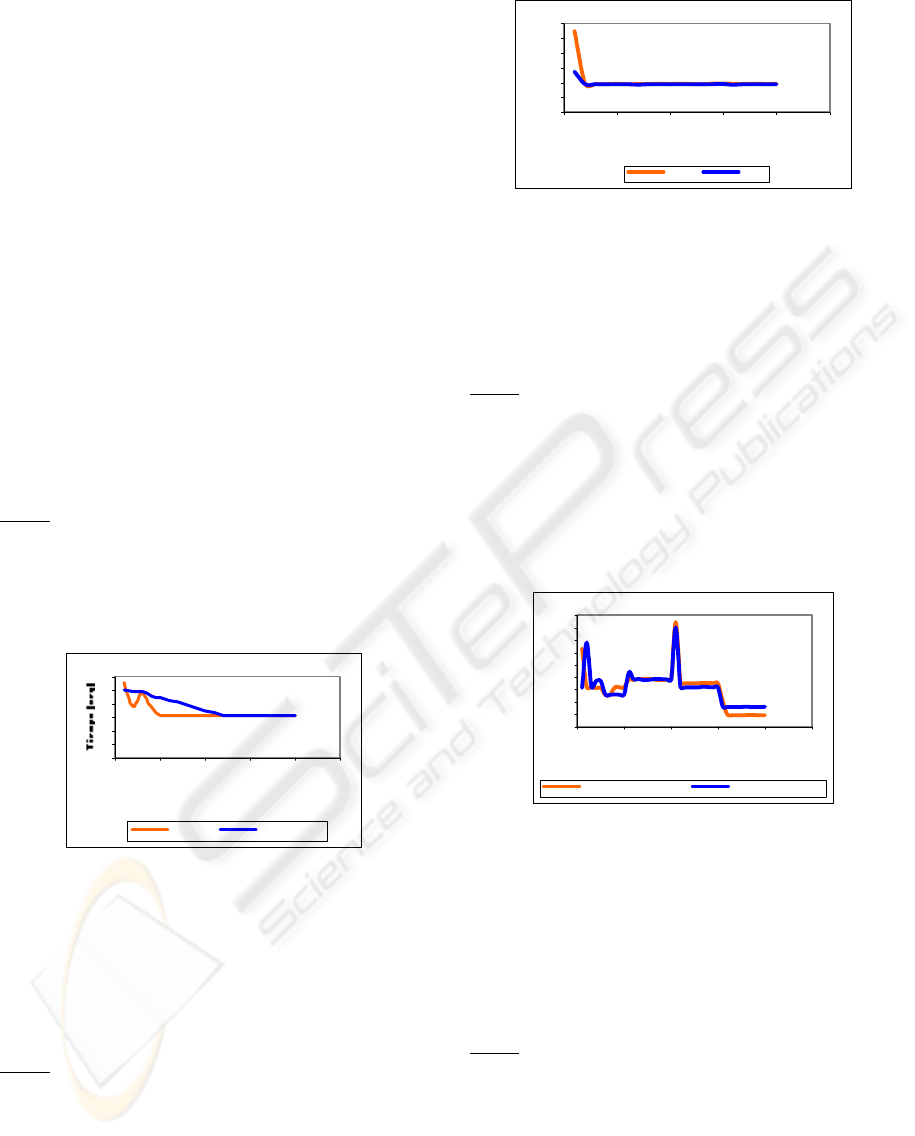

Figure 8: Learning curves of Q-Learning and Value

Iteration

Here one can observe that Q-Learning converges

in quicker way than Value Iteration, that is to say, it

takes less learning time to arrive to the goal. Even

though Value Iteration takes more time to learn, both

of them find efficiently the goal with the movement

policy.

Test 2

Since the Q-Matrix can be initialized with

random values or with values in zero, they were

carried out two runs where one of them was

initialized with random values and the other one

with zeros. The result was the following one:

0 5 10 15 20 25

Iteraciones

Tiempo (seg)

Aleatorio Ceros

Figure 9: Learning curves of Q-Learning

You can infer of this graph that don't care values

with which the Q-Matrix is initialized, since always

it will converge in a similar way. The only thing that

could change is the time that takes in learning how

to arrive to the goal in the first iterations.

Test 3

Were carried out 2 runs of the Q-Learning

algorithm of 40 iterations each one, changing the

position of the goal after each 10 iterations and

maintaining it fixed during those 10 iterations. For

the first run we worked with the matrix initialized

with random values and for the second run the

matrix was initialized with zeros. The resulting

graph was the following one:

0 1020304050

Iteraciones

Tiempo (seg)

Q-Learning (Matriz Aleatoria) Q-Learning(Matriz Cero)

Figure 10: Learning curve of Q-Learning varying goal

Here we can observe that the behavior of Q-

Learning for both cases is similar, they are able to

almost establish the same time of arrival to the goal.

The peaks represent the point where the goal was

changed position and due to this, the algorithm takes

more time for the learning when trying to adapt to

the new change.

Test 4

Were carried out 2 runs of 40 iterations each one,

changing the position of the goal each 10 iterations.

For the first run we worked with the Q-Learning

algorithm and for second one, the algorithm Value

Iteration. The resulting graph was the following:

AUTONOMOUS NAVIGATION ROBOTIC SYSTEM TO RECOGNIZE IRREGULAR PATTERNS

299

0 1020304050

Iter aciones

Q-Lear ni ng Value Iteration

Figure 11: Learning curves of Q-Learning and Value

Iteration varying goal

As you can observe, Q-Learning adapts to the

changes in a quick way and like the previous graph.

However, Value Iteration, once had concluded the

learning of the route to the goal, when it change, the

new time that takes is equivalent at the time that

took in arriving to the position previous of the goal

plus the time that needs learn how to arrive to the

new position of the goal.

It is important to notice that Value Iteration, keep

the route in a state’s graph. It is affected critically if

it is forced to go by a node or intersection already

visited. Each intersection has assigned an action that

was been of the previous learning, what causes to

take the same road every time that arrives to that

state. It does not carried out the learning process for

that intersection, retarding the arrival to the new

position of the goal.

Test 5

Due to the previously exposed problem for the

Value Iteration algorithm and for the time that takes

learning how to arrive to the new goal. It was

decided to make a modification that consisted on

eliminating the condition of learning end, that is to

say that is carried out the learning process in each

node or visited intersection. For this case it were also

carried out 2 runs changing the position goal, of 20

iterations each one, using for the first one the Q-

Learning algorithm and for second one the Value

Iteration algorithm. The resulting graph is shown

0 1020304050

I ter aci ones

Q-Lear ni ng Value Iteration

Figure 12: Learning curves of Q-Learning and Value

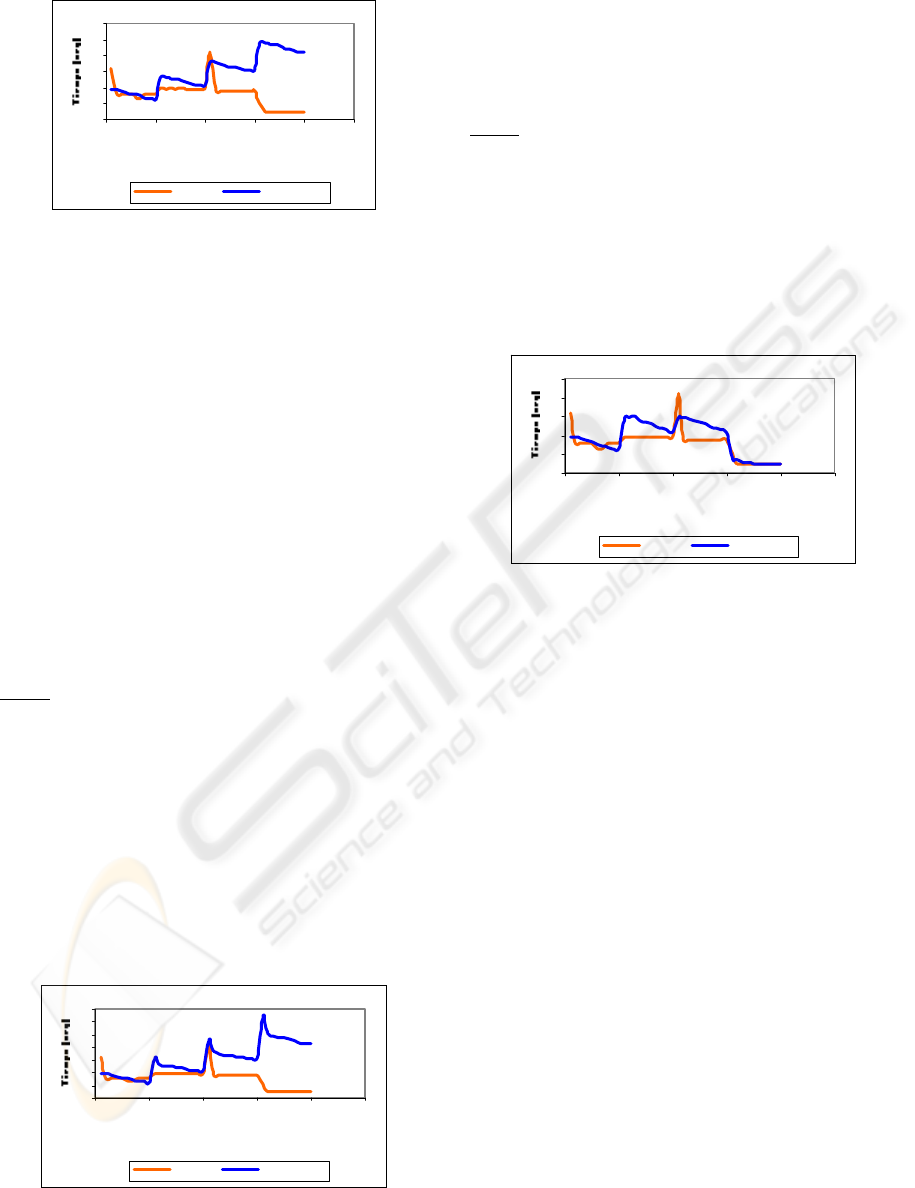

Iteration modified varying goal

We observed that there was not a significant

change in the behavior of Value Iteration, because it

follows the same behavior patterns of the previous

case, only that the learning was made in all moment,

in each intersection visited or not visited.

Test 6

Lastly, there was carried out a second

modification in the Value Iteration algorithm that

consisted in reinitialize the graph every time that the

position of the goal was changed, maintaining the

condition of learning end. Were also carried out 2

runs of 20 iterations each one, changing the position

of the goal and using for the first run the algorithm

Q-Learning and for second one the algorithm Value

Iteration.

0 1020304050

I ter aci ones

Q-Lear ni ng Value Iteration

Figure 13: Learning curves of Q-Learning and Value

Iteration modified varying goal

For this case, the algorithm Valued Iteration

adapted better to the changes of position of the goal,

but that in comparison with Q-Learning, it continues

taking more time of learning than the one used by Q-

Learning. The disadvantage of this is that no longer

keeps its knowledge if the robot should travel the

world again.

It is necessary to highlight that the Value

Iteration algorithm always search the shortest route,

while Q-Learning only tries to arrive to the goal

according to a policy of movements product of the

learning. Occasionally, Value Iteration visited less

intersections than those visited by Q-Learning

4 CONCLUSIONS

Along this work, we studied different aspects of the

artificial intelligence applied to the area of the

learning, specifically the reinforcement learning.

They allow solve a great variety of problems where

learning is an important factor to search a solution.

The use of the kit Lego MindStorm, with LejOS,

was appropriate for the construction of the robot's

prototype, because it allows build easy and quickly a

great variety of adaptive robots' models to diverse

problems. However, a disadvantage of the kit is the

ICINCO 2004 - ROBOTICS AND AUTOMATION

300

quantity of inputs or sensors that has the robot. It

allows connect only three sensors at the same time,

limiting the functionality of the robots and the

complexity of the program that is implemented.

Also, it possesses a limited memory (32Kb), what do

not allow implement very extensive programs. Also,

the firmware, occupies space in the memory,

diminishing even more the capacity to store user's

programs.

The navigation problem to find a goal is possible

to solve using a reinforcement learning algorithm.

Other types of learning techniques exist, as the

evolutionary learning that involves the use of genetic

algorithms and that can be used to solve navigation

problems. These algorithms are slow and they only

allow approximate to sub-optimal solution, without

any guarantee of the convergence to the best

solution. They do not operate on real time execution,

being a restrictive factor for the implementation of

this type of problem.

Value Iteration, as Q-Learning, is based on the

principle of the dynamic programming, which allows

carry out an effective learning through recompenses

and penalizations. The advantage of using Value

Iteration is that the found solution tends to be, in

most of the cases, better than the solution found with

Q-Learning.

The main disadvantage of the Value Iteration

algorithm is that it only can be applied in action-state

schemes where an action taken in a given state, leads

the same successor state. If the goal changes

position, the algorithm takes much more time, since

all the roads that have been taken and then learned

by the robot, these will always be taken even still

when the goal is located in some other point.

With regard to Q-Learning, the main advantages

of using this algorithm are that if the goal changes

position, Q-Learning adjusts its learning efficiently,

being able to always arrive to the goal. Besides if the

Q-Matrix is initialized with random values, the robot

can experience other roads that enlarge his learning.

This is because the algorithm looks always for the

maximum Q-value for all possible actions in a state.

Finally, the learning curve tends to converge in

quicker way that Value Iteration, although in a less

uniform way.

The main disadvantage of using Q-learning is

that the solution found is not always the best one,

although it tends to be very near of it.

In this point one could wonder under what

conditions one of these two reinforcement learning

algorithms should be chosen? The answer comes

given depending on the situation. If the time to

arrive to the goal is not a problem, you can apply

Value Iteration, otherwise Q-Learning is the best

option. However, for both cases, the route that finds

Value Iteration is similar to the route that finds with

Q-Learning, varying very little with respect to the

other one.

When programs are designed based on

reinforcement learning algorithms, it is necessary to

define and to design in a detailed way the states,

actions and the reward policy, since these factors

play a very important role in the operation of the

algorithm. If some of these factors flaw, the acting of

the algorithms can be seriously affected, or worse, it

could not arrive to any solution.

REFERENCES

Bagnall, B. 2002, CORE Lego MindstormsTM

Programming. Edit. Prentice Hall PTR. New York,

United States of America.

Ferrari, G., Gombos, A. Hilmer, S., Stuber, J., Porter, M.,

Waldinger, J. and Laverde, D. 2002, Programming

Lego MindstormsTM with Java. Edit. Sysgress.

United States America.

Russel, S. and Norvig, P. 1996, Artificial Intelligence A

modern approach. First edition. Edit. Prentice Hall,

1996.

Carrasquero Z., Oscar H. and McMaster F., Eduardo 2002,

Design and a robot's construction with the module

RCX 1.0 for not predetermined worlds (Thesis of

Engineer in Computer, Catholic University Andrés

Bello).

Bagnall, Bryan 2001, LejOS: Java for the RCX. [web page

on-line] Consulted in 10/5/2003 Available in

http://lejos.sourceforge.net /.

Dartmouth College Computer Science Department (2001).

Robbery-Rats Locomotion: Dual Differential Drive.

[web page on-line] Consulted in 20/5/2003 Available

http://www.cs.dartmouth.edu/~robotlab/robotlab/cour

ses/cs54-2001s/dualdiff.html

Gross M., Stephan V. and Boehme J. 1996, Sensory based

robot navigation using self-organizing networks and

Q-Learning. [document on-line] Consulted in

12/9/2003 Available in

http://citeseer.nj.nec.com/gross96sensorybased.htm

Mance E. Harmon and Stephanie S. Harmon (s.f.).

Reinforcement Learning: A Tutorial. [ document on-

line] Consulted in 20/9/2003 Available in

http://www.nada.kth.se/kurser/kth/2D1432/2003/rltut

orial.pdf.

Touzet, Claude F. 1999, Neural Networks and Q-Learning

for Robotics. [document on-line] Consulted in

3/9/2003 Available in

http://avalon.epm.ornl.gov/~touzetc/Publi/Touzet_IJC

NN_Tut.pdf.

Zou Yi, Ho Yeong Khing, Chua Chin Seng and Zhou Xiao

Wei 2003, Evidence method in ultrasonic sensor

coalition for mobile robots. [document on-line]

Consulted in 10/8/2003 Available in

http://www.duke.edu/~yz21/research/YZ_IASTED-

MIC2000.pdf.

AUTONOMOUS NAVIGATION ROBOTIC SYSTEM TO RECOGNIZE IRREGULAR PATTERNS

301
