Global Path Planning Based on Neural Network and

Genetic Algorithm in A Static Environment

Huahua Chen, Xin Du, Weikang Gu

Department of Information Science and Electronics Engineering, Zhejiang University,

310027 Hangzhou, China

Abstract. Mobile robot global path planning in a static environment is an im-

portant

problem all along. The paper proposes a method of global path planning

based on neural network and genetic algorithm. The neural network model of

environmental information in the workspace for a robot is constructed. Using

this model, the relationship between a collision avoidance path and the output

of the model is established. Then the two-dimensional coding for the via-points

of path is converted to one-dimensional one and the fitness of the collision

avoidance path and that of the shortest distance are fused to a fitness function.

The simulation results show that the proposed method is correct and effective.

1 Introduction

The path planning problem of a mobile robot can be stated as: given a start location, a

goal location, and a set of obstacles distributed in a workspace: find a safe and effi-

cient path for the robot. Thus the robot can go from the start location to the goal loca-

tion without colliding with any obstacles along the path. In addition to the fundamen-

tal problem, we might also seek to optimize the plan in some way, say to minimize

time required or distance traveled[1][2][3][4].

The popular methods are the visibility graph algorithm

and the artificial potential

field algorithm. However, the former is lack of flexibility and the latter is prone to

suffer from difficulties with local minima[5][6][7].Genetic algorithm is multi-search

algorithm based on the principles of natural genetics and natural selection[8].The

major advantages of genetic algorithm are that they provide a robust search in com-

plex spaces and are usually computationally less expensive when compared to other

search algorithms. Genetic algorithm searches from a population of points and is less

likely to be trapped in a local optimum. Many results exist in the literature which

show the better application of genetic algorithm in robot path planning[9][10][11].

Autonomous navigation, in general, assum

es an environment with known and un-

known obstacles. It includes global path planning algorithms to plan the robot’s path

among the known obstacles, as well as local path planning for real time obstacle-

avoidance[3][4].There is a very important problem about how to plan an optimal path

in a static environment which is called static path planning and has a wide range of

applications[12].In this paper, a new technique based on the concepts of neural net-

work and genetic algorithm is proposed.

Chen H., Du X. and Gu W. (2004).

Global Path Planning Based on Neural Network and Genetic Algorithm in A Static Environment.

In Proceedings of the First International Workshop on Artiﬁcial Neural Networks: Data Preparation Techniques and Application Development, pages

32-40

DOI: 10.5220/0001150700320040

 SciTePress

In Section 2, we construct a neural network model of environmental information in

the workspace for a robot and establish the relationship between a collision avoidance

path and the output of the model using this model. Section 3 converts the two-

dimensional via-points of path to one-dimensional one and fuses the fitness of both

the collision avoidance path and the shortest distance to a simple fitness function.

Section 4 presents the computer simulation about a robot path planning problem.

Section 5 is the conclusion.

2 Environment Modeling by Neural Network

Firstly, we suppose the workspace for the robot coincides with conditions below:

(1)the robot moves in a limited two-dimensional space.

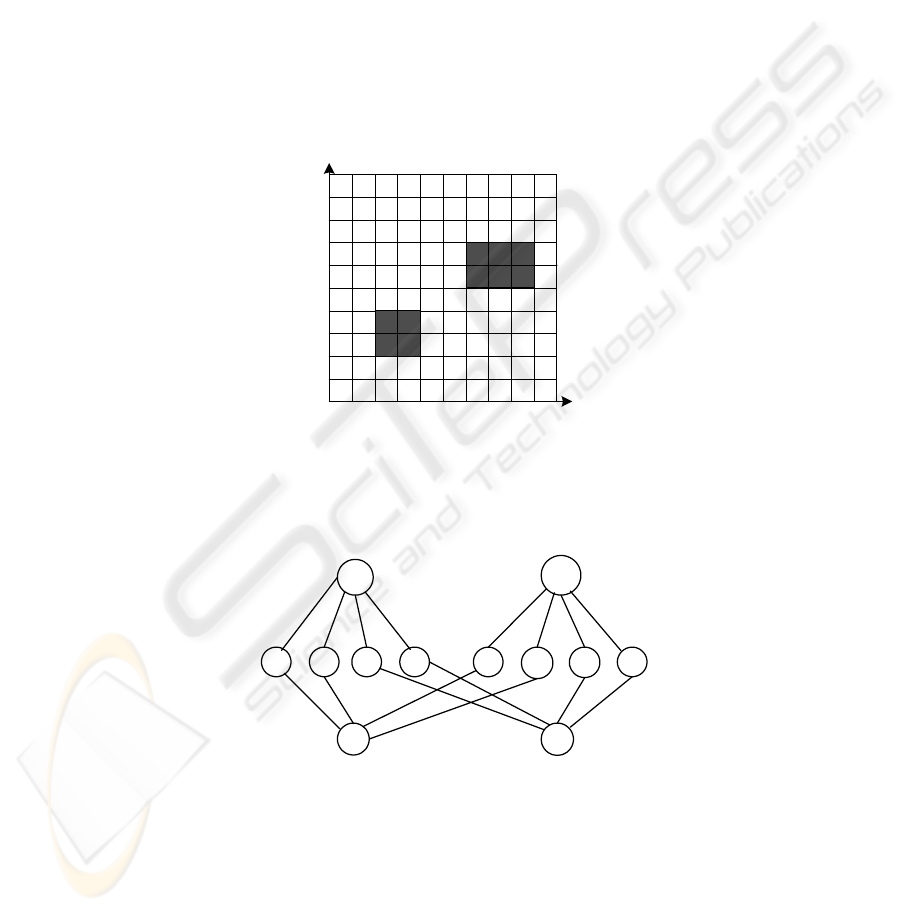

Fig. 1. The workspace for a robot

-3.5

-2

-6

-5

11 1 1

11 11

-1

-3.5

Fig. 2. The neural network for the environment

(2)the robot can be considered as a particle if the boundary of each obstacle is extend

the half size of the robot’s maximal dimension in length or width direction.

(3)the obstacles in the workspace can be described as convex polygons.

Without loss of generality, suppose the workspace for a robot is shown in Fig. 1,

and the shadowed parts represent the obstacles. According to [13], the environment

can be described by the neural network shown in Fig. 2 which can be represented by

equations (1).

()

IMmT

Mm Mm

Mm xm i ym i Mm

CfT

OfI

IwXwY

⎫

⎪

⎬

⎪

=++

⎪

⎭

∑

(1)

where

: the outputs of the nodes of the top layer

: the input of the nodes of the top layer

: the threshold of the nodes of the top layer

: the output of the mth node of the medium layer

: the input of the mth node of the medium layer

: the threshold of the mth node

xm ym

ww,

: the weights from the input layer to the medium layer

() 1(1 )

fx e

−

=+ : the excited function

): a random point in the workspace

The output of the neural network model of each point in the workspace is 0 or 1.

When C

=1 (k=1,2) it implies that (X

) is in the kth obstacle region otherwise it

doesn’t.

If the radius of the robot could be ignored, the robot can be regarded as a particle.

When the robot arrives (X

) whose output of the neural network model is C

(k=1,2), it collides with the kth obstacle in the workspace. On the contrary, it doesn’t.

Thus the collision avoidance path can be described as the path in which each (X

)

whose output of the neural network model is C

=0 (k=1,2).

In Fig. 1, the workspace is made of two obstacles and the neural network model is

simple. If more than two obstacles in the workspace, the model will be complex cor-

respondingly. It is described in Fig. 3.

...

Xi Yi

∑

st obst acl e

nd obst acl e

th obstacle

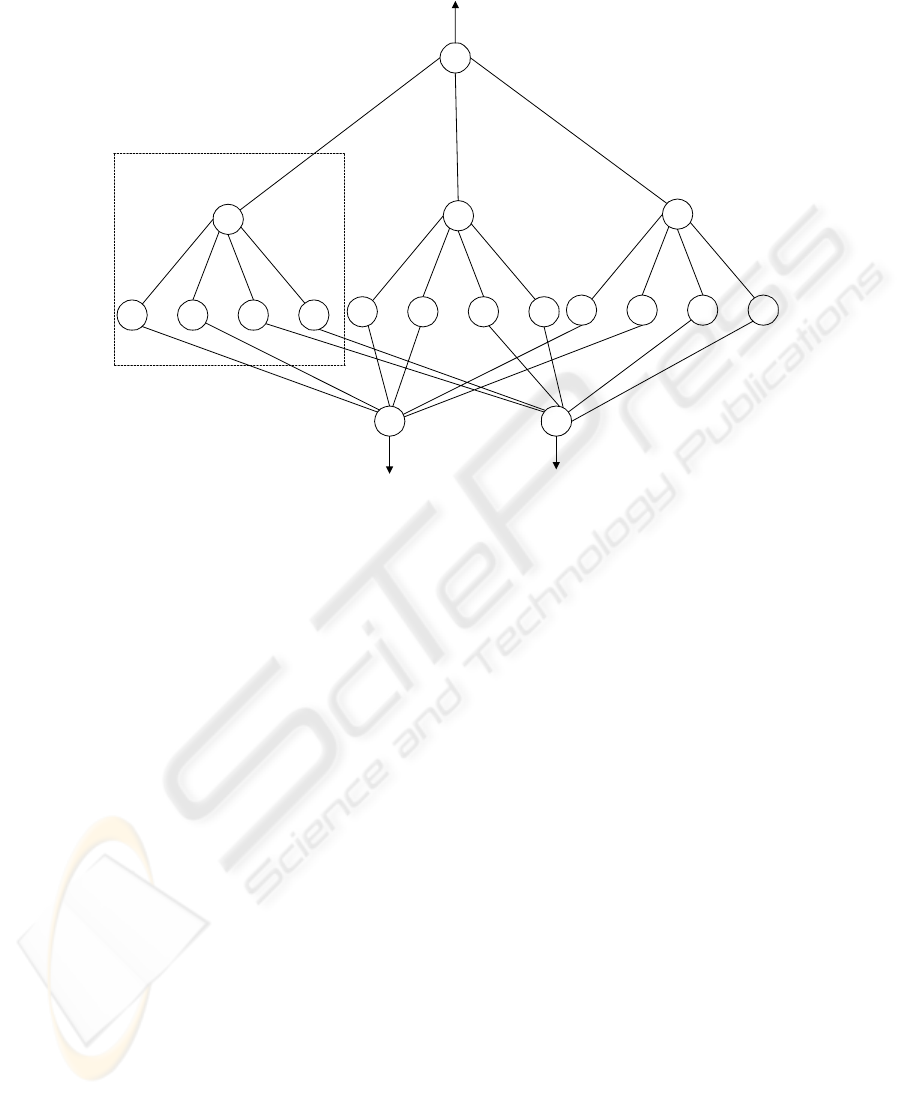

Fig. 3. The neural network for the multi-obstacle environment

3 Path Planning Based on Genetic Algorithm

3.1 Path Coding

In genetic searching algorithm, the coding technique is important in that the length of

binary strings, from the parameter sets made of the via-points of a path , as well as the

size of search space determines the computational time for a given fitness function.

We devise a simple coding technique to shorten the length of the binary string by

projecting the two-dimensional data to one- dimensional ones as shown in Fig. 4. The

aim of the algorithm is to determine the node points (x

) (i=1,2,…,n) that consti-

tutes the start to the goal position. In order to reduce the length of the string, we

convert the workspace XOY, in which each node point of path is two-dimensional, to

a new coordinate space xo’y, whose x axis is the line determined by the start and the

goal position, in which each node point of path is one-dimensional. Then the set of

the node points x

is located in the equal distance along the x axis. Therefore, y

be-

comes the search space for each via-point of the robot path and the via-point candi-

dates are specified by the one-dimensional data.

The coding is done in float type and its structure is shown in Fig. 5.

st ar t

goal

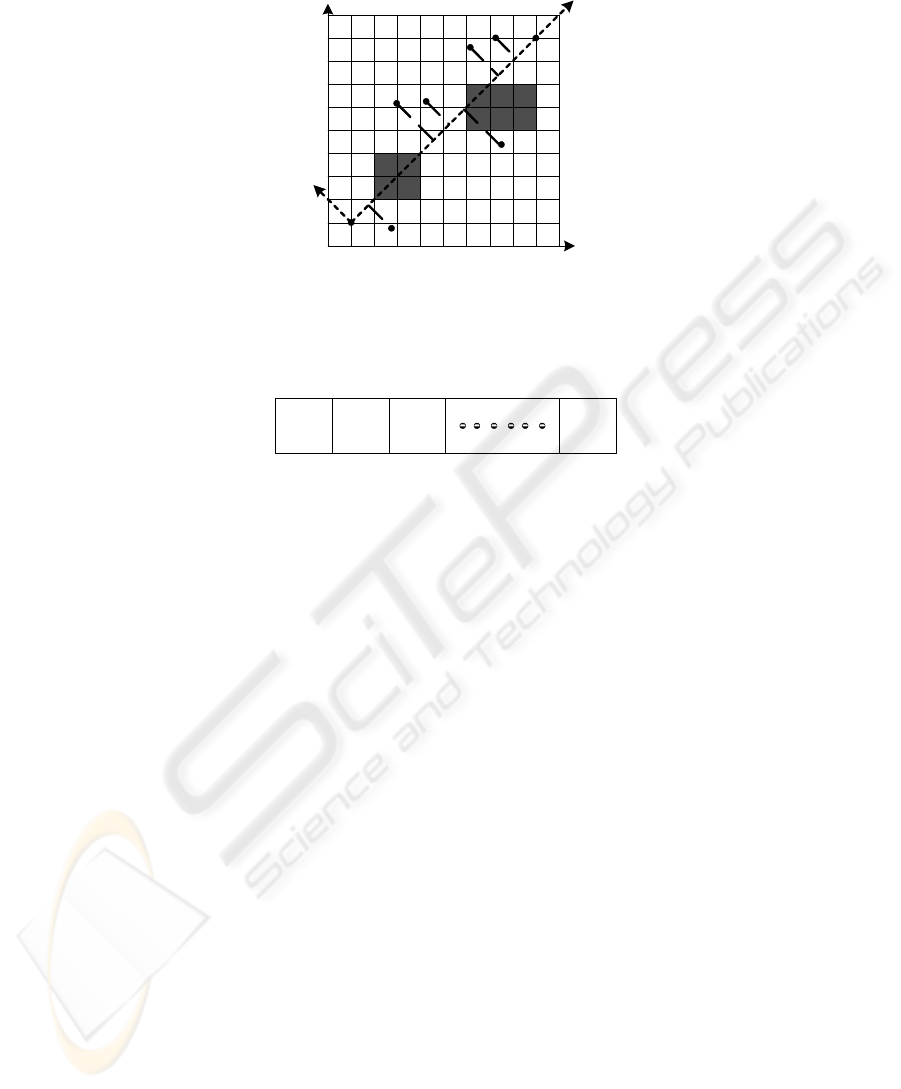

Fig. 4. Projecting of search space. XOY is workspace and xo’y is the converted coordinate

space

Fig. 5. The coding structure

3.2 Fitness Function

The fitness function is an important factor to the convergence and the stability of

genetic algorithm. The path planning should be satisfied with collision avoidance and

the shortest distance. The summation of each evaluation function weight is a typical

method to construct the fitness function[11][14], but it is prone to instable and its

weight coefficients are difficult to tune and determine for they are variable as the path

and the obstacles change. So when we construct the fitness function, the number of

evaluation functions is as small as possible. On the other hand, the two evaluation

functions, collision avoidance and the shortest distance, must be fused in a fitness

function.

Collision avoidance is essential to path planning and make the mobile robot travel

in the workspace safely. Collision avoidance can be depicted as:

(1)each via-point y

is not in the any obstacle, whose fitness value is fit11;

(2)each section y

i+1

does not intersect the any obstacle, whose fitness value is

fit12.

Suppose the workspace for the robot is shown in Fig. 4, the via-point y

can not be

in the obstacle regions. Combined with the output of the neural network model, the

fitness function of collision avoidance fit1 can be described as the equation (2).

11112

it fit fit

(2)

10(

if C k

fit

others

⎧

⎨

⎩

1,2)

∑

y y obstacle

fit

others

⎧

⎨

⎩

where i is the ith point in the path. The equation (2) implies that the path is collision

avoidance if the fitness value of the each via-point in the path is 1 otherwise is 0.

In addition to collision avoidance, the path can be optimized for minimum distance

and its fitness function fit2 can be described as the equation (3).

2( )(

ii ii

)

it x x y y

−

=−+−

∑

(3)

Thus the final fitness function is constructed as the equation (4). This not only

makes computation simple but also overcomes the disadvantage of the instability

from the summation of evaluation function weights.

it fit fit

(4)

3.3 Genetic Operations Definition

Initial population is generated by choosing the node points randomly, in the lines

through the set x

, x

,…,x

and perpendicular to the x axis in the workspace. The size

of the population indicates the number of the path in the workspace. The larger size

produces the more accurate path and the global optimum is likely to find, but compu-

tation time is longer correspondingly. In general, the size of the population is between

[20,100], in this paper it is 30.

Selection or reproduction: It is a process in which individual strings are copied into

the next population according to their fitness, i.e., the “better” strings survive to re-

produce and the less highly fit strings “die”. Fitness of a string is determined by the

objective function which is to be optimized. There are several different methods for

determining how effectively a given string “competes” in the reproduction process. In

this paper, Monte Carlo method is used. Besides, the individual smallest fitness value

in the next generation is replaced by the individual highest fitness value in the previ-

ous one in order to make the optimal individual undestoyed during the evolutionary

process.

Crossover: The above operation can find the optimum in the existing population

but can’t produce the individuals that are different to the previous ones. Then cross-

over can do this by swapping characters according to some probability to create new

strings so that “better “ ones can be produced. The probability determines the fre-

quency of crossover. The higher frequency gets the higher speed to the optimum, but

it is probable to converge before the optimum arises. In general, the probability is

between [0.4,0.9].In the proposed algorithm, one-point crossover is done and the

crossover position and the number of points are generated randomly.

Mutation: The Reproduction and the crossover can find the optimum in the exist-

ing character arrays, but sometimes fail to produce new characters that make the

problem found the best solution for premature convergence. The mutation changes

the characters in an individual string with a very small probability between

[0.001,0.4]. Mutation brings in new possibilities for improvements and takes care of

some of the lost information during crossover and reproduction. Then the fitness

values of the new population’s strings are evaluated. To mutate an individual, zero

mean white Gaussian noise is added to y

4 Simulation Results

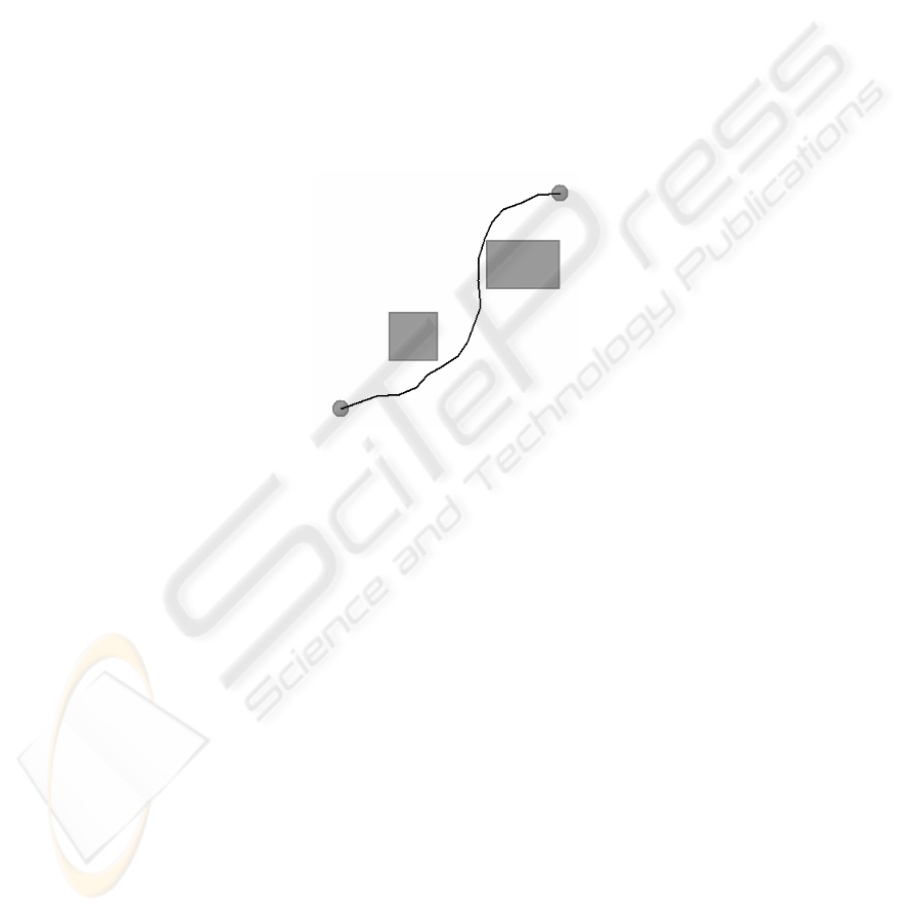

Fig. 6. Simulation results of the global path planning for Fig.4

To show how the algorithm proposed in this paper works, suppose that the number of

initial population is 30, the crossover probability is 0.65, the mutation probability is

0.25, and maximal offspring generation is 1000. In this case, the final answer is

showed in Fig. 6. Obstacles, start and goal position are marked as rectangles and

circles respectively.

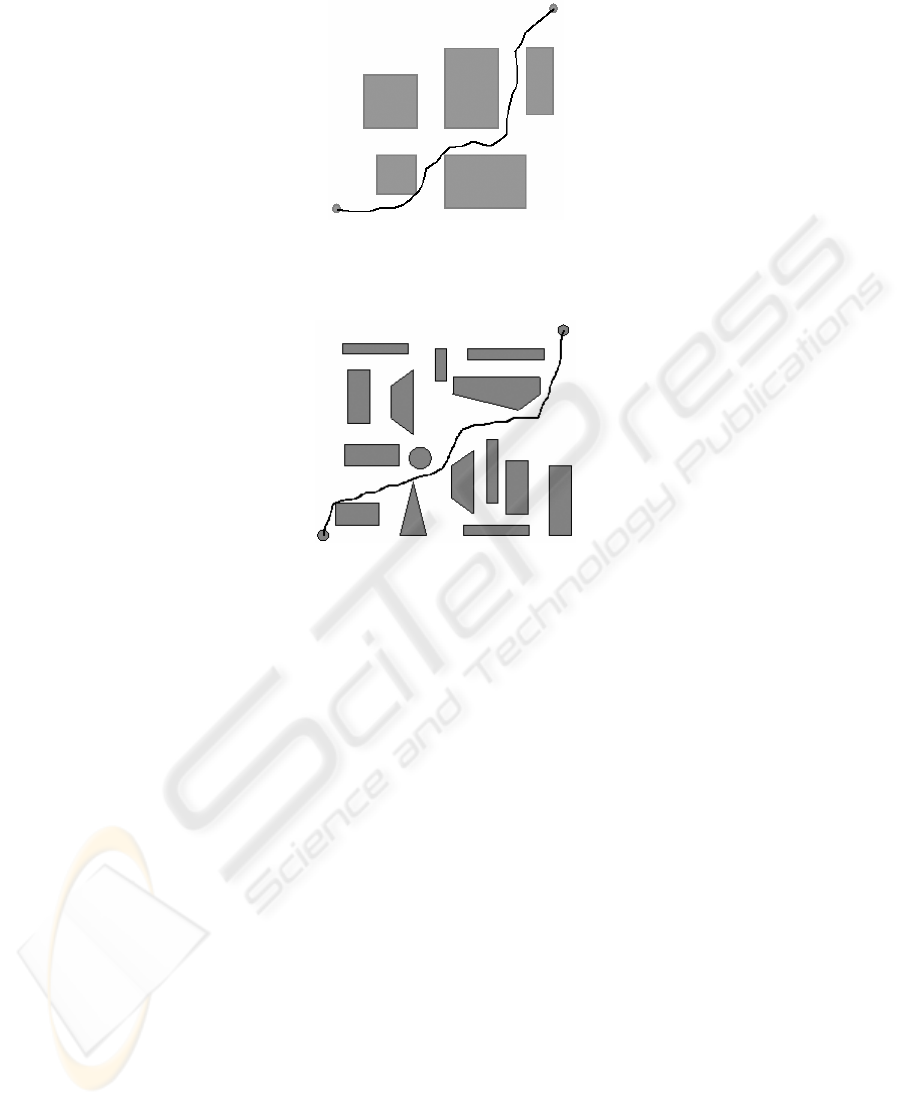

Besides, we give two further examples under multi-obstacle environment, and the

results are showed in Fig. 7 and Fig. 8. In Fig. 7, the simple environment is made of

five obstacles and they are depicted as rectangles. In section 2, we suppose the obsta-

cles are convex polygons. In Fig. 8, the complicated environment is made of many

obstacles and they are indicated as different shape, but all of them can be imple-

mented using the model shown in Fig. 3 by properly extending the size of obstacles.

Fig. 6,7 and 8 show that the robot can go from the start to the goal position without

colliding with any obstacle in a static environment. The experiment results which

demonstrate successful usage of the proposed global path planning algorithm are

correct and effective.

Fig. 7. Simulation results of the global path planning for multi-obstacle simple environment

Fig. 8. Simulation results of the global path planning for multi-obstacle complicated environ-

ment

5 Conclusion

In this paper, a global path planning algorithm based on neural network and genetic

algorithm is proposed for mobile robot navigation in a static environment. Computer

simulation and experimental results are given to show the feasibility of the proposed

algorithm.

References

1. Wu, K. H., Chen, C. H., Lee, J. D.: Genetic-based Adaptive Fuzzy Controller for Robot Path

Planning. Proceedings of the Fifth IEEE International Conference on Fuzzy Systems,Vol.3.

(1996) 1687 –1692

2. Sadati, N., Taheri, J.: Genetic Algorithm in Robot Path Planning Problem in Crisp and

Fuzzified Environments. IEEE International Conference on Industrial Technology, Vol.1.

(2002) 175 –180

3. Ramakrishnan, R., Zein-Sabatto S.: Multiple Path Planning for A Group of Mobile Robots in

a 3D Environment Using Genetic Algorithms. Proceedings of IEEE SoutheastCon, (2001)

65 –71

4. Ramakrishnan, R., Zein-Sabatto S.: Multiple Path Planning for A Group of Mobile Robots in

a 2D Environment Using Genetic Algorithms. Proceedings of IEEE SoutheastCon, (2002)

359–363

5. Alexopoulos, C., Griffin, P. M. : Path Planning for a Mobile Robot. IEEE Transactions on

Systems, Man and Cybernetics, Vol.22. (1992) 318 –322

6. Chen, L., Liu, D. Y.: An Efficient Algorithm for Finding a Collision-Free Path Among Poly-

hedral

Obstacles. Journal of Robotics Systems, Vol.7. (1990) 129 –137

7. Borenstein, J., Koren Y.: Real-Time Obstacle Avoidance for Manipulators and Mobile Ro-

bots. IEEE Transactions on Systems, Man and Cybernetics, Vol.19. (1989) 1179 –1187

8. Goldberg, D. E.: Genetic Algorithm in Search, Optimization and Machine Learning. Assion-

Wesley Publishing Company, Inc.(1989)

9. Khoogar, A. R., Parker, J. K.: Obstacle Avoidance of Redundant Manipulators Using Ge-

netic Algorithms. Proceedings IEEE International Conference on Robotics and Automation,

Vol.1. (1991) 317 –320

10.Ram, A., Arkin, R., Boone, G.: Using Genetic Algorithms to Learn Reactive Control Pa-

rameters for Autonomous Robotic Navgation. Adaptive Behavior, Vol.2. (1994) 277 –305

11.Noboru, N., Hideo,T.: Path Planning of Agricultural Mobile Robot by Neural Network and

Genetic Algorithm. Computers and Electronics in Agriculture, Vol.18. (1997) 187 –204

12.Wang ,C., Soh, Y. C., Wang,H.: A Hierarchical Genetic Algorithm for Path Planning in A

Static Environment with Obstacles. IEEE Canadian Conference on Electrical and Computer

Engineering, Vol.7. (2002) 1652 –1657

13.Zhu, Y., Chang, J., Wang, S.: A New Path-planning Algorithm for Mobile Robot Based on

Neural Network. IEEE Region tenth Conference on Computers, Communications, Control

and Power Engineering, Vol.13. (2002) 1570 –1573

14.Woonggie, H., Seungmin, B., Taeyong, K.: Genetic Algorithm Based Path Planning and

Dynamic Obstacle Avoidance of Mobile Robots. IEEE International Conference on Compu-

tational Cybernetics and Simulation,

Vol.3. (1997) 2747 –2751
