A RUN TIME ENVIRONMENT EXTENSION FOR

PERSONALIZED WEB SERVICES

Julia Gross, Joachim Zeiss, Sandford Bessler

FTW (Telecommunications Research Centre Vienna), Donau-City-Str. 1, Vienna 1220, Austria

Keywords: Web services, web services platform, OSA, Parlay X, profiling, UML design

Abstract: This paper considers the web service environment for Telco applications, as defined recently by the Parlay-

X Working Gro

up within the Parlay organisation. These services include messaging, location, payment, call

control, presence, group management, etc. and open the way to rapid service creation and integration with

internet applications. However, some vital issues for the telecommunications industry such as the secure

user access to a service and its personalization have not been addressed yet sufficiently. The Web Services

Run Time Environment Extension (WSRTE) presented in this paper is a light, vendor-independent frame-

work that facilitates the creation of personalized web services by combining security and profiling func-

tions.

1 INTRODUCTION

Nowadays web services start to find a use in all con-

ceivable branches of industry for whose operation

distributed computing is vital. It is especially true for

the telecommunications field where web services

technology is currently getting adopted and telecom

web services are being created. However, the web

services technology is not yet completely mature and

some aspects, vital for telecom services creation,

have not been addressed yet sufficiently. Specifi-

cally, we consider the secure user access to a service

and its personalization, two crucial requirements. To

our knowledge, the interaction of security and profil-

ing functions has not been so far treated in the litera-

ture. Often, access data and user profiling data are

kept separated in different storages/databases. This

is due to structural diversity of the security mecha-

nisms and proprietary nature of organizing user data.

We show that the user credentials obtained from the

authentication process are used for user profile

lookup, leading to a flexible model that relieves a

system from ambiguity and necessity of user creden-

tials mapping.

The proposed web services runtime environment

tension (WSRTE) should rely on the security

standards supported by the web services platform

(for example WS-Security (OASIS Standard

200401, 2004)), and thereby service providers and

users are not forced to using a certain security

mechanism, since many web services platforms pro-

vide multitude of diverse security mechanisms and

allow plugging proprietary ones (see Manes 2003,

O’Neill 2003, IBM Corp., Microsoft Corp., 2002,

PC Magazine, 2002 for security mechanisms over-

view).

Telecom providers have to offer personalized

serv

ices in which the user related data is stored by

the service and precisely customizes it. It is hard to

overestimate the value of personalized services in

the telecom branch. However, there is yet another

type of data necessary for the service operation.

Web services, just as any other kind of distributed

systems, rely on various configuration and startup

data for communication with the software infrastruc-

ture they are a part of (Alonso, G., et al., 2004). Di-

verse system and services addresses, names, proper-

ties, etc. are needed for that purpose. All this infor-

mation should be managed centrally in a system

profile (Newcomer, E., 2004).

The idea of a profiling database is not new and is

rther developed in 3GPP under Generic User Pro-

file (GUP) (3GPP TS 23.240, 2003). In fact the ma-

jority of providers already possesses user and service

databases and expects to use them when deploying

new (web) services. A goal in our design is there-

fore to keep the web services platform independent

of the profile database. The result of our work is

generic enough to port it from one web services plat-

form to another without having to change a single

line of the web service code.

251

Gross J., Zeiss J. and Bessler S. (2004).

A RUN TIME ENVIRONMENT EXTENSION FOR PERSONALIZED WEB SERVICES.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 251-256

DOI: 10.5220/0001383902510256

 SciTePress

Other than in the IT world, the most important

Services in the Telecom have been standardized in

form of Web Services APIs by the Parlay Group

under the name Parlay-X. These are open interfaces

between network operators and service providers

specified in UML or WSDL (Parlay X Working

Group, 2003) and used for call control, messaging,

content based charging, location, presence, etc. An

open issue is currently the so called WS Framework,

an entity that mediates between the web service pro-

vider and a web service. The solution, we present in

the next sections, implements those parts of the WS

Framework dealing with authentication, access (au-

thorization) and service personalization.

The rest of the paper is organized as follows:

section 2 presents the architecture and design of a

generic web service personalization solution. After a

telecom specific example in section 3, we conclude

and give further research directions.

2 SYSTEM ARCHITECTURE AND

DESIGN

2.1 High level overview

As mentioned above, the WSRTE is a light frame-

work with extensible architecture that can be

plugged into a web services platform. WSRTE

mainly enables web services profiling taking advan-

tage of a security framework provided by a web ser-

vices platform. Thus, WSRTE can be seen as an

abstraction layer between a web service and a given

web services platform implementation that enables

the retrieval of profile data necessary for the web

service operation.

The birds view shows a 3-tier architecture tai-

lored to the needs of web services which require

profiling and security features. The client can be any

application capable of talking SOAP

In Telecom environments we see a number of

platforms for services using, for example, CORBA

technology (ETSI ES 202 915-3, 2003). If we want

to build new Web Services on top of these legacy

systems, we come out necessarily to a similar archi-

tecture to that depicted in Figure 1.

The client sends a SOAP request to a given ser-

vice URL. In our case, a web services platform is

listening to requests for this URL. The request is

intercepted by the WSRTE that extracts and ab-

stracts relevant context information for the web ser-

vice. After interception, the request reaches the web

service implementation. At this point the implemen-

tation accesses the WSRTE to obtain the context

data related to the requesting user, the service itself

or the system/software infrastructure. The runtime

environment interacts with a database and returns

this information to the requesting service via ab-

stracted profiles. For that purpose, the WSRTE ob-

jects mediate between the web services platform and

database implementation (SQL database, for exam-

ple).

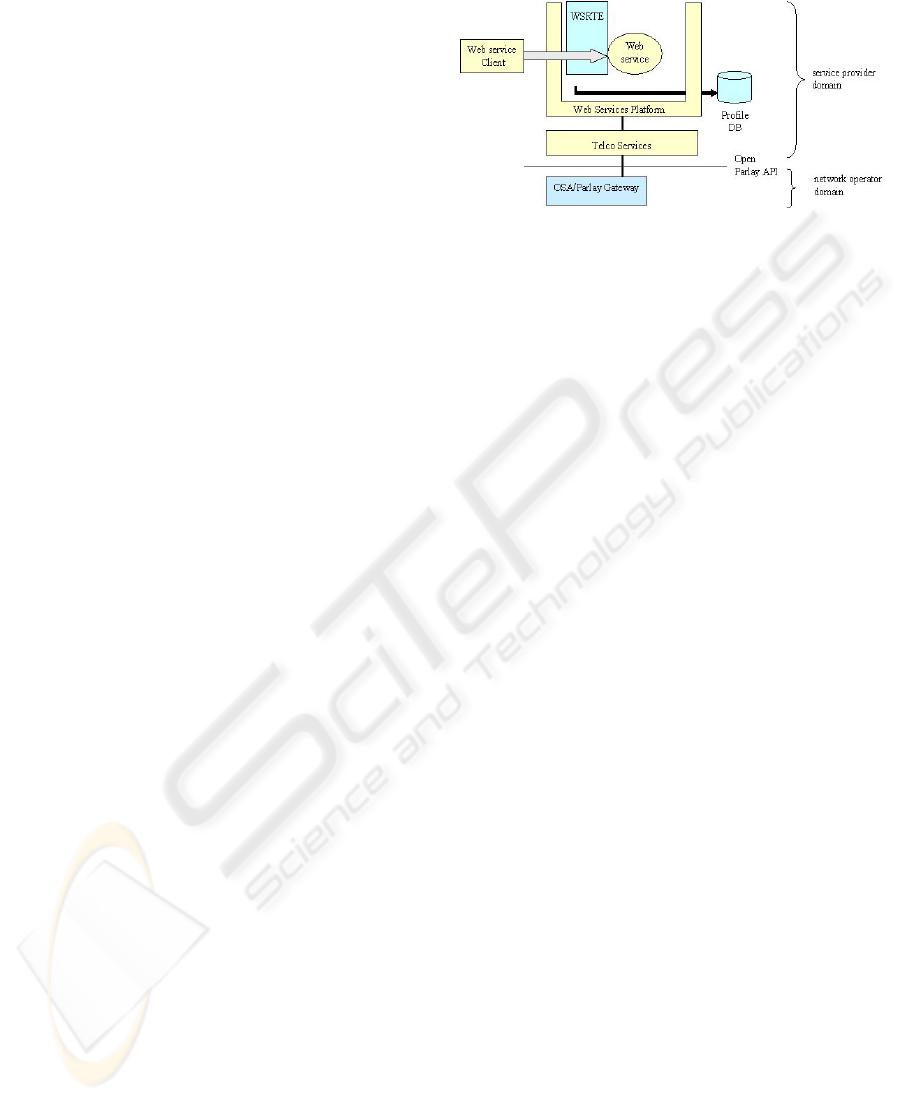

Figure 1: Architecture Overview.

The novelty of the presented architecture is in

the fact that WSRTE is vendor independent, i.e. can

be ported to any web services platform that allows

plugging modules for additional SOAP message

processing (most of the current products do) and

supports Java. In our case we plugged WSRTE into

the WASP platform from Systinet (Systinet Corp.,

2004).

WSRTE is web service transparent in sense that

once the web service code has been written there

will be no further changes to it when porting the web

service to another web services platform implemen-

tation.

Another feature of WSRTE architecture is that it

is profiling database independent, i.e. any profiling

database structure can be used with WSRTE, includ-

ing flat files, etc.

All of these issues will be explained in greater

detail later in this chapter.

2.2 Design of Runtime environment

extension

To enable the WSRTE flexibility and vendor inde-

pendence, the entities have been grouped in three

categories (see Fig. 2):

1. Classes and interfaces provided by web services

platform (e.g. WASP) being used by WSRTE

and enabling plug-in functionality (packages

org.systinet.wasp.webservice and org.idoox on

Fig. 2

2. Classes implemented by WSRTE to fulfil web

services platform specific tasks (package

at.ftw.wasp on Fig.2)

3. Classes and interfaces implemented by WSRTE

that are platform independent. A web service

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

252

implementation is interacting with these classes

and interfaces only to guarantee product inde-

pendent realization of a web service (package

at.ftw.profiling on Fig. 2)

WSRTE is plugged in WASP by means of a

HeaderProcessorImpl class implementing

WASP HeaderProcessor interface that serves

message interception purposes. The WASP server

offers the opportunity to define header processors

for each deployed service. These header processors

are being called on every request to the related ser-

vice ahead of calling the service implementation but

after security framework did its job.

As initial access point to the WSRTE, a web ser-

vice implementation creates an object of Con-

textFactory type. This class is simply wrapping

the actual platform dependent implementation of a

ContextFactory. In addition to the Con-

textFactoryOperations implementation, it

provides the method bindFactoryImpl which is

called by the WaspContextFactory at creation

time. This allows different factory implementations

to be loaded at program runtime. The web service

implementation will not notice if it is using a WASP

related, AXIS related or any other specific imple-

mentation of a ContextFactory. Due to this

mechanism the web services platform specifics re-

main hidden to a web service implementation.

The WaspContextFactory is created at

WASP start up and has the task to provide actual

implementations of identity and profile query ob-

jects to the web service implementation. As the web

service sees these objects via WSRTE Identity-

Query and ProfileQuery interfaces, it is un-

aware of the actual profiling database structure and

doesn't have to perform any security framework spe-

cific actions to obtain the user’s credentials. These

operations are performed by ProfileQueryImpl

and WaspIdentityQueryImpl respectively.

With such a design we achieve WSRTE portabil-

ity and ability to use any profiling database:

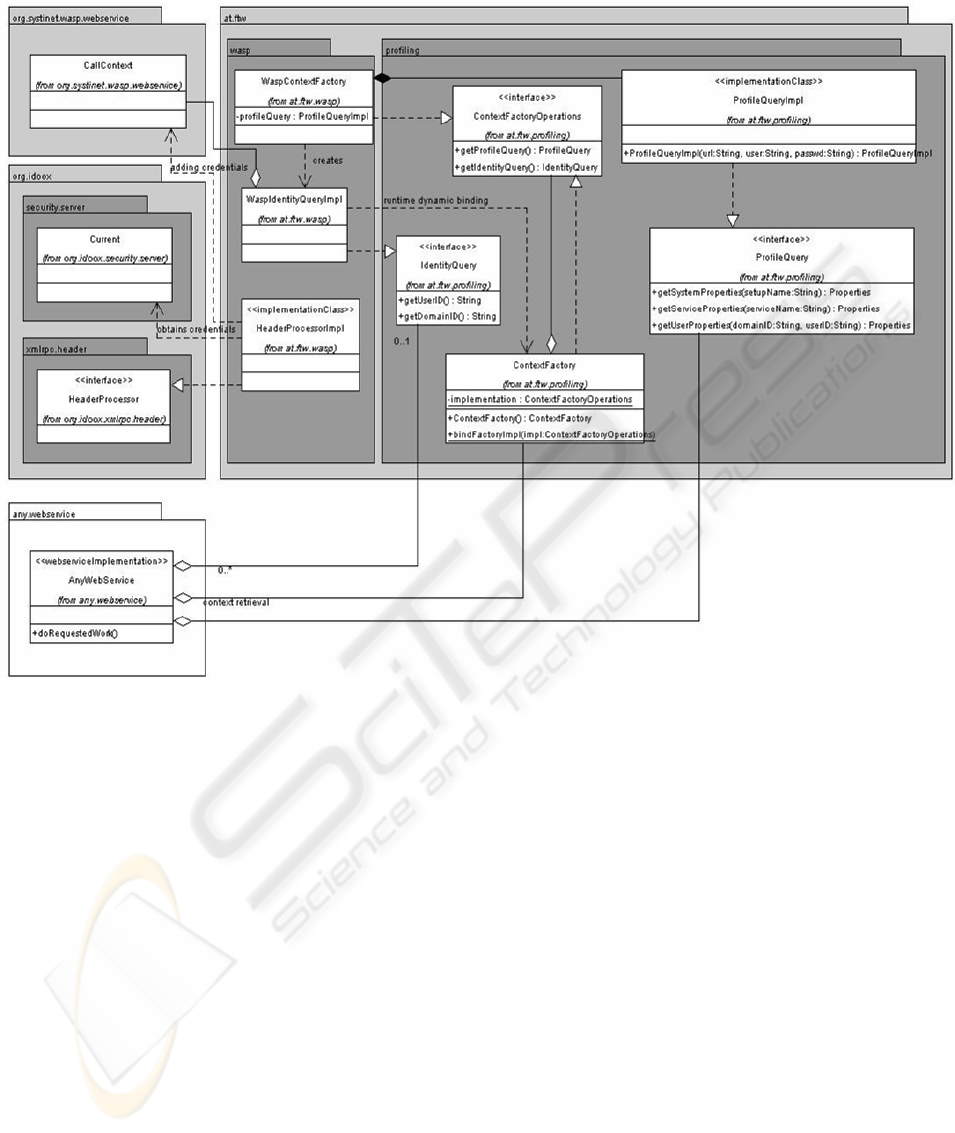

Figure 2: UML Class Diagram.

• to port WSRTE to another web services plat-

form, only the classes from the second category

in the list above have to be replaced by classes

meeting the new platform requirements. Since

the separation between actual implementation

and presentation to a web service is kept clean,

A RUN TIME ENVIRONMENT EXTENSION FOR PERSONALIZED WEB SERVICES

253

the web service implementation will not be af-

fected by such a change.

• to use another database structure, only a new

ProfileQueryImpl class implementing

ProfileQuery interface needs to be written.

This action will not influence the web service

code.

2.3 Processing a SOAP request

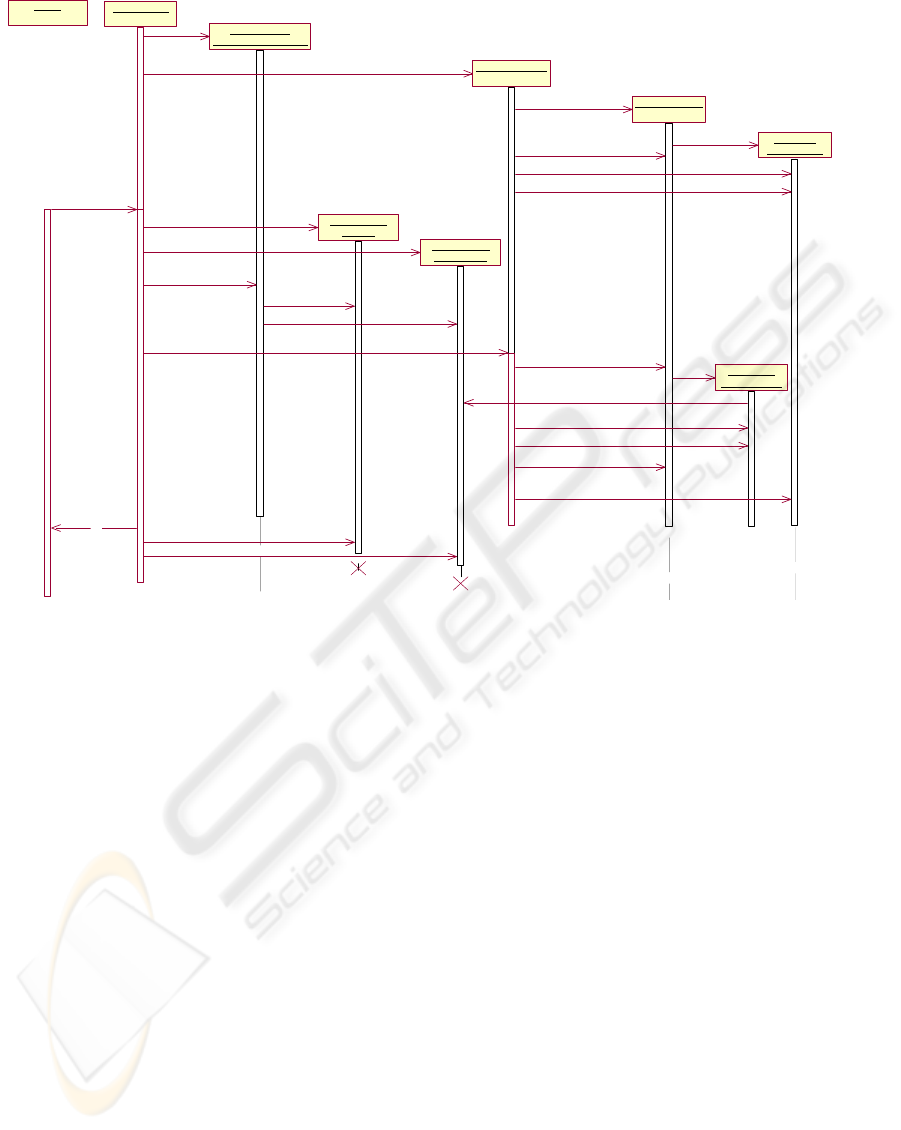

The sequence diagram under Fig. 3 shows the typi-

cal interaction of a web client with a web service. It

gives details on request processing and interactions

between the platform (in our case WASP), the

WSRTE and the web service implementation.

1. Deployment: On deploying the service onto the

WASP platform, a new HeaderProces-

sorImpl object is created and associated to

the web service. If the web service is required to

be preloaded, WASP creates an instance of its

implementation class. The web services con-

structor will typically create a ContextFac-

tory and obtain a ProfileQuery object to

retrieve system and service profiles.

2. Processing incoming request: The WASP

server performs security tasks. If not preloaded,

the web service implementation is at this time

instantiated as described above. The WASP

server creates a Current and a CallCon-

text object for this single request. After that,

the HeaderProcessor is being called. It

gets the user credentials from the Current object

and stores them in the CallContext object as

userID and domain ID.

Figure 3: Sequence Diagram.

Client

Wasp Server

ftwProcessor:

HeaderProcessorImpl

thisRequest:

Current

thisRequest:

CallContext

AnyWebService

ContextFactory

profileQ:

ProfileQuery

identityQ:

IdentityQuery

deploy: new()

create instance of deploy ed web serv ice: new()

create factory for this

WS instance: new()

create static

member: new()

get profile DB proxy:

default action

retrieve system setup: getSystemProperties(setupName)

retrieve service properties: getServiceProperties(serviceName)

invoke WS:SOAP

Request

create instance for requested

thread: new()

create instance for request thread new()

WS specific processing:

ProcessInput

getIDs:

getReceivedCredentials

add domainID & userID: put(credentials)

call method addressed by SOAP request: doRequestedWork()

get ID proxy: getIdentityQuery()

new()

obtain domainID & userID: credentials: = get()

get domainID for profile query: domainID:= getDomainID()

get userID for profile query. userID:= getUserID()

get profile DB proxy: getProfileQuery()

retrieve user profile: userProps:= getUserProperties(domainID, userID)

WS invoke: SOAP

respo nse

request thread goes away: destroy()

3. Web Service invocation: After invoking the

header processor, the WASP server invokes the

requested method on the web service implemen-

tation. Inside this method call, the web service

obtains an IdentityQuery object using the

ContextFactory. The ContextFactory

implementation will in turn create an Identi-

tyQuery object for each call of getIdentity-

Query. This is required, as the CallContext

object accessed by the IdentityQuery only

exists while processing this single request.

Therefore, on creation of the Identity-

Query object, it asks the CallContext ob-

ject for user ID and Domain ID. Those two IDs

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

254

have been set on IdentityQuery by the

HeaderProcessor implementation and are

delivered when the web service calls getUserID

or getDomainID on it. The web service obtains

the user profile by calling getUserProperties on

the ProfileQuery object. The web service

implementation may now proceed with the

processing of the request.

4. Response sending: The result of the method

call on the web service implementation is

packed into a SOAP response by the web ser-

vice and sent back to the client. CallContext

and Current objects are destroyed. Note that

callback and network event support is left to the

application servers capabilities. It might be con-

ceivable, however, to integrate this functionality

into the WSRTE to support dynamic reconfigu-

ration or work flow mechanisms.

2.4 Profile Management

This section discusses design topics related to profile

management as such, in particular the representation

of profile data in a relational database.

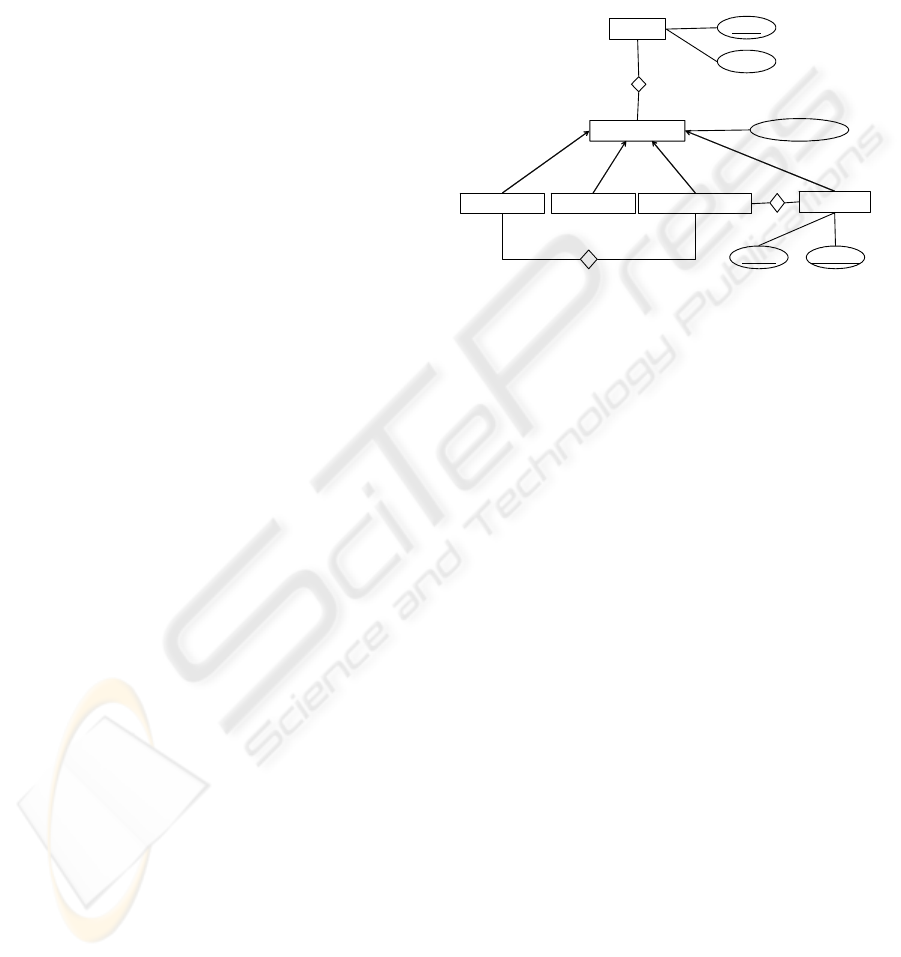

In Figure 4 we show the entity relationship dia-

gram of our profiling database. The structure intro-

duced here is not only useful for the WSRTE but

also a generic solution for storing profiles of any

kind. As the profile query mechanism design uses

the proxy pattern, any existing database structure,

flat files, etc. could be chosen to implement data

storage.

We distinguish between four different profile

types:

• System profiles contain information related to

the server on which the application is running.

The information is common to all services and

users, for example the class path, execution

path.

• Service profiles contain information relevant to

a particular service, for example a JDBC URL

or service IDs. This data is common to all users

using this service.

• User profiles describe information belonging to

the user and independent of the service. A

phone number or an e-mail address could go

here. It is information of a particular user com-

mon to all services the user is requesting.

• Service-user profiles are related to a particular

service and a particular user. The range of tele-

phone numbers to which the user is allowed to

dial out using a 3

party call service is an ex-

ample for that.

Those four categories are represented by corre-

sponding tables (see Figure 4). They all inherit from

table PropertyOwner that contains the owner de-

scription and provides the unique property owner

ID. Finally, table Property contains the actual profile

attributes.

To access the profile system, a user and profile

administration client has been developed.

Property

Service

profile

System

profile

Service

User

profile

User

profile

Name

Value

DomainID

UserID

Property Owner

Ownerdescription

Figure 4: Profile System: Entity Relationship diagram.

3 A TELECOM 3RD PARTY CALL

SERVICE EXAMPLE

In this section we show a telecom application using

a Parlay X (Parlay X Working Group, 2003) service

implemented with the WSRTE extensions, taking

advantage of service security and personalization

support. Parlay-X services specifications are sets of

APIs, standardized by the Parlay Group. They have

a high level abstraction and map to low level Parlay

APIs such as messaging, mobility, call control or

charging. Parlay X services are supposed to be se-

cure and customisable. While fulfilling these re-

quirements we still treat a Parlay X service as being

nothing else but a web service. This means that all

tasks related to security and profiling, former treated

by a Parlay Framework (F/W) (ETSI ES 202 915-3,

2003), will now be offered by the web services plat-

form together with our runtime environment. The

advantage of this model is that those tasks are per-

formed basing on a combination of existing WS

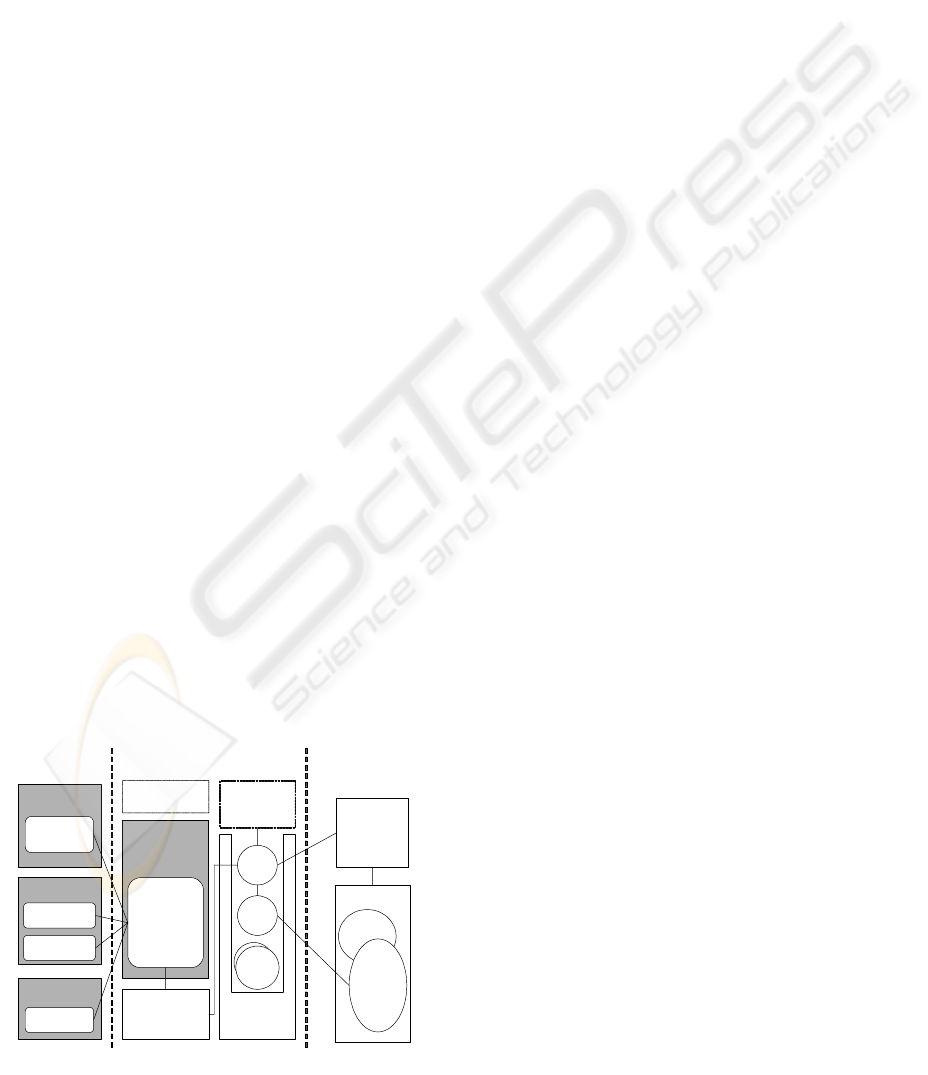

standards. In Figure 5, a number of different SOAP

clients are able to access the Parlay X service im-

plementation (Systinet Corp., 2004, Apache Soft-

ware Foundation, 2004). When implementing Parlay

X services, extensive support for CORBA and client

side implementation towards a Parlay framework

and Parlay is required. The web service implementa-

tion are kept separate from the tasks that require

CORBA interactions, thus the web service itself is

deployed in a web services platform, whereas the

CORBA related tasks are implemented as CORBA

A RUN TIME ENVIRONMENT EXTENSION FOR PERSONALIZED WEB SERVICES

255

components and reside in their own container

(CORBA components, CCM). The web service im-

plementation delegates CORBA related tasks to a

proxy component which authenticates the service at

the Parlay Framework and mediates between the

web service and the basic CORBA service (call

setup in this case). In addition, the proxy object can

handle connections to different Frameworks inside

or outside the web services domain.

The Click2Call (C2C) application uses the so-

called 3

Parlay X 3

Party Call Service and takes

advantage of the proposed profiling system.

The Click2Call application could be incorpo-

rated into a real-estate purchase/rent web site. The

end user browses the site, views photos and reads

description of some houses and if he is interested he

pushes the button to activate the C2C application

and connect to an estate broker for discussing further

details.

The service subscription process is expected to

be done offline and is not discussed here. At service

subscription, the user is assigned a service and user

profiles by the WSRTE administration tool. Follow-

ing a request, the service access rights are checked

by the web services platform. Which security

mechanism should be applied for the client-service

communication is a part of the service contract.

The user logs in from the welcome page. For a

call we need two addresses – of the caller and the

callee. In our case, the own address is stored in the

User Profile and is looked up by the service with the

help of WSRTE after the authentication process.

Moreover, the service can perform an authorization

check for the called user by looking up the Service-

User Profile for this user, and for example, deny

international calls in the PSTN. The System Profile

in this example contains the address of the Naming

Service which leads to the address of the underlying

FW Proxy component. Therefore, one could move

the underlying network level service infrastructure,

modify an entry in System Profile for the Parlay X

Party Call Service and continue using the latter

without having to restart the web services platform

or re-deploy the Parlay X service.

4 CONCLUSIONS AND FURTHER

RESEARCH

We have shown in this work how one can extend an

existing web service platform to support profiling

for users and services. We discussed as well archi-

tectural considerations for embedding the web ser-

vice layer in a telecom service infrastructure.

When working with the prototype, we found out

that parts of the profiles (System Profiles) are used

simply to find and access other services. In the fu-

ture, service discovery, service inter-working (ag-

gregation, orchestration) and reconfiguration is go-

ing to play a major role and should be done dynami-

cally. One way to do it, is to perform the interaction

between web services via connection proxies, which

would be dynamically configured by a connection

manager. Connection reconfiguration and service

discovery would be transparent to the web service.

REFERENCES

Alonso, G., et al., 2004. Web Services. Concepts, Architec-

tures and Applications. Springer-Verlag Berlin Hei-

delberg.

Apache Software Foundation, 2004. Apache web services

project Axis, http://ws.apache.org/axis/index.html

ETSI ES 202 915-3, 2003. Parlay/OSA Framework API,

http://www.parlay.org

IBM Corp., Microsoft Corp., 2002. Security in a Web

Services World: A proposed Architecture and Road-

map, http://www-

106.ibm.com/developerworks/webservices/library/ws-

secmap/

Manes, A., T., 2003. Web Services. A Manager’s guide.

Addison-Wesley

Newcomer, E., 2004. Context, Coordinators, and Transac-

tions – The Importance of WS-CAF,

http://www.webservices.org/index.php/article/view/12

97/

OASIS Standard 200401, 2004. Web Services Security;

SOAP Message Security 1.0, http://docs.oasis-

open.org/wss/2004/01/oasis-200401-wss-soap-

message-security-1.0

O’Neill, M., et al., 2003. Web Services Security. McGraw-

Hill/Osborne

Parlay X Working Group, 2003. Parlay-X Web Services

Specification, http://www.parlay.org/specs/index.asp

PC Magazine, October 2002. Securing Web Services,

Systinet Corp., 2004. WASP Server for Java,

http://www.systinet.com/doc/wasp_jserver/

3GPP TS 23.240, 2003. Generic User Profile (GUP) re-

quirements; Architecture.

Figure 5: Telecom service collaboration dia

F/W

Client Users

Middleware

Parlay Gateway

WebService:

P/X

party

call

SCS

other…

Generic

Call

Control

Service

CCM

F/W

proxy

call

setup

WASP

CORBA

Name service

UDDI

Tomcat/AXIS

click2call.jsp

.NET

click2call.exe

click2call.aspx

WASP client

com-

ponents

click2call.jar

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

256
