INTERWORKING BETWEEN THE RSW CONTROL CRITERIA

AND SIP STANDARD

O. Abouabdalla & R. Sureswaran

School of Computer Sciences, Universiti Sains Malaysia, Penang, Malaysia

Keywords: Multimedia Conferencing System (MCS), Session Initiation Protocol (SIP), RSW to SIP Protocol (R2SP).

Abstract: Various standards organizations have considered signaling for voice and video over IP from different

approaches. There are currently more than one standard for signaling and control of Internet telephone calls.

Some of them, which widely used are RSW control protocol and the IETF Session Initiation Protocol (SIP).

Both protocols provide comparable functionality using different mechanisms and provide similar quality of

service. Although there are numerous industry debates about the merits of the two protocols, the truth is that

both of them, along with other complementary protocols, are necessary to provide universal access and to

support IP-based enhanced services. Both protocols have been widely deployed, so interworking between

RSW and SIP is essential to ensure full end-to-end connectivity. Because of the inherent differences

between RSW and SIP, accommodation must be made to allow interworking between the two protocols.

The work reported in this paper proposes a communication translation protocol to bridge the RSW control

protocol and SIP control protocol. This communication translation protocol has to provide a set of rules to

enable communications between the RSW control criteria and SIP standards. The communication

translation entity defined can be called translator server.

1 INTRODUCTION

In recent years the use of distributed computer

network systems has been increased in many areas

of industry, government and academia. The use of

computer-based communication applications is

becoming more and more important. Video

conferencing is hardly a novel concept, with strong

interest in the use of video to enhance remote

collaboration. Many studies have found that groups

are more effective or efficient at solving problems

and making decisions when they are connected

through a video and audio link compared to when

they use only an audio link (Gale, 1990).

The idea of video conferencing debuted in the

1920s (Schooler, 1996). AT&T introduced its

PicturePhone at the World Fair in the 1960s and has

continued to promise a teleconferencing revolution

(Snell, 1994). Clearly, the mission of conferencing

and collaborative computing is not only to bring

individuals together in space and time, but also to

make groups more effective at their work.

Today’s multimedia conferencing systems are

powerful tools that can revolutionise the way we

collaborate in most of our life fields. When people

become used to multimedia conferencing for

communications with colleagues in their workplaces

they will want to include persons from other

locations (business or home) in such conferences. As

the conferences become larger, the need for flexible

presentation control and multimedia combining will

become more pressing.

There are many systems used to conduct

meetings in a virtual manner to discuss or share

ideas, or even to make cheap phone calls. One of the

protocols used is the RSW control protocol, which is

used in the development of the Multimedia

Conferencing System called MCS (Sureswaran and

Abouabdalla, 1999; Abouabdalla and Sureswaran,

2000). Another protocol called SIP or Session

Initiation Protocol (Handley et al., 1999) is also

widely used these days for initiating an interactive

user session that involves multimedia elements such

as video, voice, chat, gaming, and virtual reality.

2 WHAT IS RSW CONTROL

PROTOCOL

The RSW Control Criteria (Sureswaran, 1996;

Sureswaran et al., 1997; Sureswaran, 1998) was

236

Abouabdalla O. and Sureswaran R. (2004).

INTERWORKING BETWEEN THE RSW CONTROL CRITERIA AND SIP STANDARD.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 236-242

DOI: 10.5220/0001384502360242

 SciTePress

designed based on how an actual conference is

conducted around a meeting table. The RSW

Control Criteria is used to address the following two

issues with multimedia conferencing:

- The confusion generated when everyone tries to

speak at the same time.

- The tremendous amount of network traffic

generated by all these participating sites.

It creates a system of order for conferences. The

varieties of options proposed within the RSW

Control Criteria are:

1- Equal Privileges: all conference sites have an

equal opportunity of becoming active sites.

2- First come first serve: assignment of active site

status to sites following the order of requests coming

in.

3- First come first serve, with time-out: as in

option 2 above but with each active site being

allowed a certain maximum time limit.

4- Organizer Main site: gives the privilege of

choosing the active site to the site that organizes the

conference.

5- Restricted Active sites: the organizing site can

restrict the sites allowed to participate in the

conference.

6- Restricted active sites, upgradeable observer

sites: the same as option 5, but with the additional

ability to upgrade observer sites to active sites in

real-time.

Any one or a combination of these options can

be used to control a conference as long as no

contradictions arise. In general, a conference is made

up of a conference chairman, participants and

observers. The conference chairman is the organizer

of the conference, while other conference members

can be participants or observers.

2.1 RSW history

RSW control protocol has its origins in late 1993 as

a control mechanism for multimedia conferencing. It

was designed by the Network Research Group in

school of computer sciences – University Sciences

Malaysia (USM). The first completely working

system developed based on RSW was Multimedia

Conferencing System MCS version 3.0, which

developed on 1996. After that developing MCS

version 4.0 on late 1997 extended MCS further. On

the beginning of 2003 MCS version 5 was released

as beta.

3 WHAT IS SIP CONTROL

PROTOCOL

Session Initiation Protocol (SIP) is an application-

layer control (signaling) protocol for creating,

modifying, and terminating sessions with one or

more participants. These sessions include Internet

telephone calls, multimedia distribution, and

multimedia conferences (Malim, 2002).

SIP invitations used to create sessions carry

session descriptions that allow participants to agree

on a set of compatible media types. SIP makes use

of elements called proxy servers to help route

requests to the user's current location, authenticate

and authorize users for services, implement provider

call-routing policies, and provide features to users.

SIP also provides a registration function that allows

users to upload their current locations for use by

proxy servers. SIP runs on top of several different

transport protocols (Grobel, 2002).

3.1 SIP history

SIP has its origins in late 1996 as a component of the

“Mbone” set of utilities and protocols. The Mbone,

or multicast backbone, was an experimental

multicast network overlaid on top of the public

Internet. It was used for distribution of multimedia

content, including talks and seminars, broadcasts of

space shuttle launches, and IETF (Internet

Engineering Task Force) meetings. One of its

essential components was a mechanism for inviting

users to listen in on an ongoing or future multimedia

session on the Internet. Basically - a session

initiation protocol. Thus SIP was born (Rosenberg

and Shockey, 2000).

As an Mbone tool (and as a product of the

IETF), SIP was designed with certain assumptions in

mind. First was scalability: Since users could reside

anywhere on the Internet, the protocol needed to

work wide-area from day one. Users could be

invited to lots of sessions, so the protocol needed to

scale in both directions. A second assumption was

component reuse: Rather than inventing new

protocol tools, those already developed within the

IETF would be used. That included things like

MIME, URLs, and SDP (already used for other

protocols, such as SAP). This resulted in a protocol

that integrated well with other IP applications (such

as web and e-mail).

Despite its historical strengths, SIP saw

relatively slow progress throughout 1996 and 1997.

That's about when interest in Internet telephony

began to take off. People began to see SIP as a

technology that would also work for VoIP, not just

Mbone sessions. The result was an intensified effort

towards completing the specification in late 1998,

and completion by the end of the year. It received

official approval as an RFC (Request for Comments,

the official term for an IETF standard) in February

1999, and issuance of an RFC number, 2543, in

March.

INTERWORKING BETWEEN THE RSW CONTROL CRITERIA AND SIP STANDARD

237

From there, industry acceptance of SIP grew

exponentially. Its scalability, extensibility, and -

most important - flexibility appealed to service

providers and vendors who had needs that a

vertically integrated protocol, such as H.323, could

not address. Throughout 1999 and into 2000, it saw

adoption by most major vendors, and

announcements of networks by service providers.

On June 2002 IETF published SIP most recent

version, RFC 3261 (Morrissey, 2003).

4 PROPOSED COMMUNICATION

TRANSLATION PROTOCOL

(R2SP)

It is based on the two control protocols discussed

above that we propose a communication translation

protocol to bridge the RSW control protocol and SIP

control protocol. This communication protocol will

perform the functions of a ‘translator’ so that any

MCS client user can communicate with SIP client

(SIP soft phone or SIP IP phone) user. Since MCS is

build based on RSW, we used it as the base for our

translation protocol.

4.1 Interworking between RSW and

SIP

Interworking between RSW and SIP is based on

MCS version 4.0 and SIP version 2.0. The goal of

interworking between RSW and SIP requires

transparent support of signaling and session

description between the SIP and MCS entities. The

server provides this translation of RSW-SIP is called

the translation server (R2SP). The translation server

(R2SP) that will allow interworking between the

MCS and SIP network can be architected in a variety

of ways, which are co-existence with SIP server, or

without SIP server. In this paper we discuss the

system without existence of SIP server.

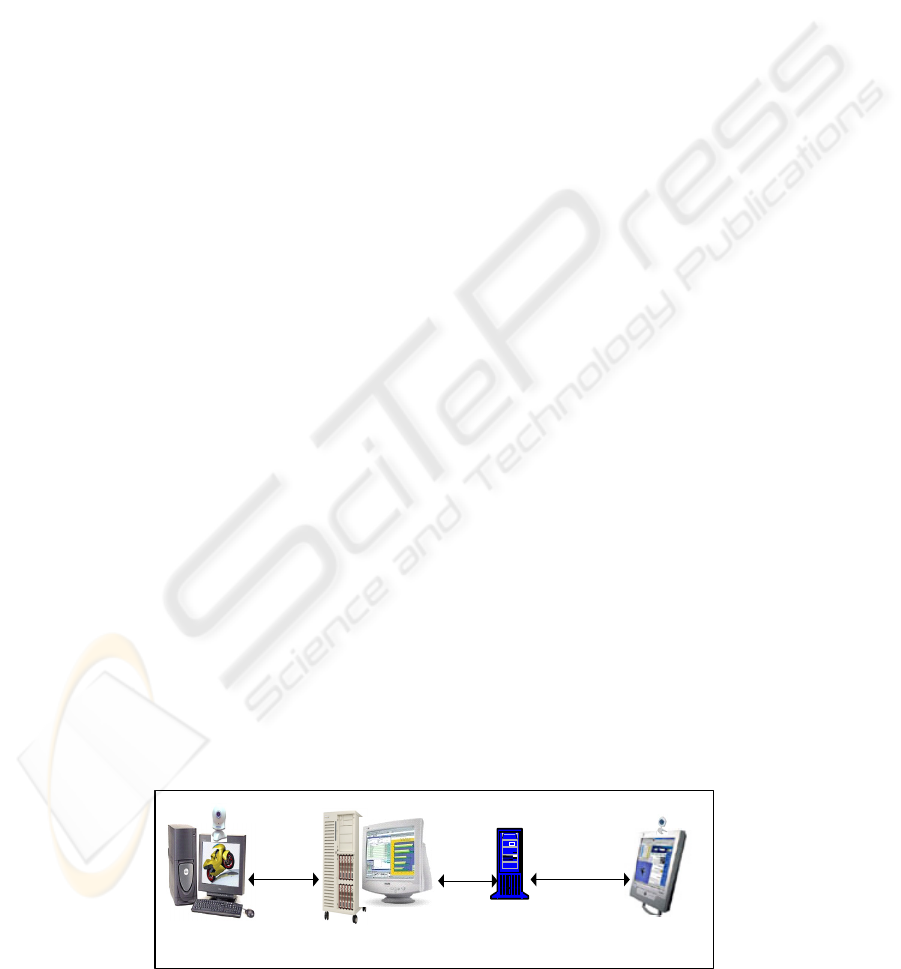

Interworking between MCS and SIP may

involve in the following entities:

- MCS Server: The MCS server is an entity on

the network that performs the functions of a

controller to a conference. It provides users a

platform to register/login to participate in

conferences. It also provides other services such

as multicast address assignments and providing

damage control when links break.

- MCS Client: A MCS client is an endpoint on

the network, which provides the real-time, two-

way or multiple way communications with

another MCS clients. This communication

consists of control, indications, audio, video

and/or data between the MCS clients.

- Translation Server (R2SP): It allows

interworking between MCS and SIP networks.

The MCS side of the R2SP is the part of the

R2SP that terminates and originates MCS

signaling from and to the MCS network

respectively. The SIP side of the R2SP is the

part of the R2SP that terminates and originates

SIP signaling from and to the SIP network

respectively.

- SIP User Agent (UA): A logical entity that can

act as both SIP user agent client, and SIP user

agent server.

The R2SP supports the address resolution

schemes of both MCS and SIP. It registers itself to

the MCS server. When the R2SP receives signaling

messages from MCS server, it performs the

necessary translation and sends the corresponding

equivalent messages to the SIP entity on the SIP side

of the R2SP and vice versa. The R2SP provides

signaling translation for all phases of a call or a

conference. The R2SP has a table of reference for

lookup to resolve MCS and SIP addresses. Fig. 1

shows the internetworking configuration of the

system.

R2SP may contain the functions like Call

sequence mapping, Address resolution, Terminal

Capability transaction, Opening and closing of

media channels, Mapping media algorithms for

MCS and SIP network, Call resource reservation and

release, Ability to provide the state of a call, Call

state machine, Mid Call signal processing, Service

Interoperability Logic, and media processing.

Figure 1: Interworking between MCS and SIP

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

238

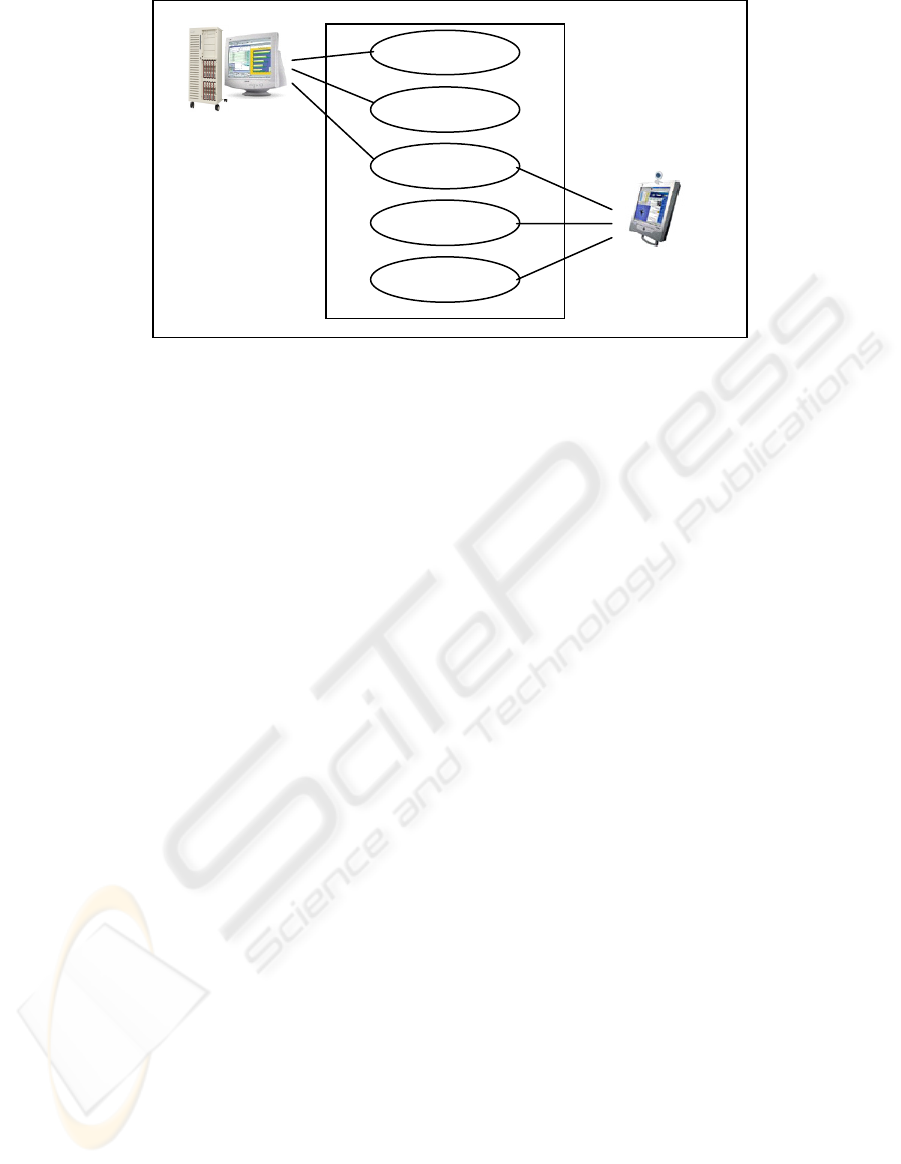

Figure 2: R2SP Use Case Diagram

R2SP maintains conference message sequence on

both sides in such a way that neither MCS client nor

SIP UA is aware of the R2SP presence. The R2SP

provides seamless interworking between the

conference flows of the two protocols. The

messages that do not have match on the other side

should be terminated on the R2SP, and R2SP takes

the necessary action on them. The messages and

parameters, which do not have direct mapping on

the other side, are to be generated by the R2SP with

default parameters in most cases. The R2SP

conforms to the conference signaling procedures

recommended for the MCS side independent of the

SIP side. Also, the R2SP conforms to the call

signaling procedures recommended for the SIP side

independent of the MCS side.

4.2 System Module

In MCS, there are two types of registration. MCS

server should register it-self to other MCS servers

(since R2SP works as MCS server it should register

to other MCS servers), the second type of

registration is the process by which an MCS client

address. Registration will occur before any

conferences are attempted. The MCS server will

respond with either a confirmation or a reject

message. In SIP, the REGISTER request allows a

client to let a proxy or redirect server know its

current address. In this case, the R2SP will have the

look-up tables for SIP address resolution, since SIP

users register to it.

In general, the R2SP will contain the functions

needed to establish and tear-down the conference

such as: opening and closing of media channels,

mapping media algorithms for MCS and SIP

network, call resource reservation and release,

ability to provide the state of a call or conference

information and mid call or conference signal

processing. Media processing within the R2SP will

be minimal. It is assumed that the same transport

protocols (e.g., RTP, TCP, UDP, etc.) will be used

in both MCS and SIP networks for carrying media.

Interworking between MCS and SIP may

involve in two types of Endpoints: MCS clients and

SIP User Agents (UA). Other entities may include

MCS-SIP translation server (R2SP) and MCS

server.

4.3 System Components Analysis

We analyze the function modules of each one of the

system components. Fig. 2 shows use case diagram

for R2SP. Since R2SP is an entity of interworking

function for message translation between MCS and

SIP, it should include all necessary modules in MCS

server and SIP EP. R2SP should also contain the

message-mapping module for call signaling

translation, and keep the state of call setup.

R2SP has the login (registration) admission

control module to serve for registration from other

MCS servers. The R2SP contains the module for

forwarding conference setup and control messages.

It also contains the module for forwarding media.

For SIP side, R2SP contains registration module for

SIP EP registration and address resolution, and

session initiation module to forward session

initiation messages.

4.4 Call setup translation

Three pieces of information are needed for

establishing a call between two end points, namely

the signaling destination address, local and remote

media capabilities, and local and remote media

transport addresses at which the endpoint can

MCS Server

SIP Endpoint

(Registration)

Conference

Control

Media

R2SP

Registration

(SIP)

Session Initiation

(SIP)

INTERWORKING BETWEEN THE RSW CONTROL CRITERIA AND SIP STANDARD

239

receive the media packets. In MCS, this information

is spread over different stages of the call setup,

while SIP conveys it in an INVITE message and its

response. Translating a SIP call to MCS call is

straightforward. The R2SP gets all the information

in the SIP INVITE message and split it across

multiple stages of the MCS call establishment.

However, in the reverse direction, from MCS to SIP,

the different stages of MCS call establishment have

to be merged into a single SIP INVITE message.

When SIP EP initiates a call it send an INVITE

message to R2SP which includes the address of the

invited person. This address is in a form

xyz@domain. R2SP when receive the message it

split it into two parts, user name and domain name,

search for the domain name in its server table and

then send NOTIFY indication which contains

invited user name to desired MCS server.

When MCS client want to start a conference it

will send USER_LIST request to its MCS server,

which forward it to R2SP. R2SP send back the user

list, MCS client then send create message to its MCS

server, which then send NOTIFY indication to

R2SP. R2SP once receive the NOTIFY indication it

will combine the information and send INVITE

request to desired SIP EP.

R2SP must also map session descriptions

between the two signaling protocols. MCS Version

4.0 uses a wavelet codec by default for video, and it

uses the 8 bit 11kHz PCM for audio. SIP can, in

principle, use any session description format. In

practice, however, SDP (Handley and Jacobson,

1998) is used exclusively. SDP lists media types and

the supported encodings for each. Thus, a MCS

media capability can be easily described in SIP.

R2SP will use SDP to send media capability to SIP

EP and includes audio/video codecs and port number

in the SDP.

4.5 Connection establishment and call

ending

Once the user knows that the destination is reachable

via the R2SP, the connection is established. A point-

to-point call from Ali to Sara needs three crucial

pieces of information, namely the logical destination

address (A) of Sara, the media transport address (T)

at which each of the users is ready to receive media

packets (RTP/RTCP) and a description of the media

capabilities (M) of the parties. Ali should know A, T

and M of Sara while Sara needs to know Ali’s T and

M. The difficulty in translating between SIP and

MCS arises because A, M, and T are all contained in

the SIP INVITE request and its response, while

MCS may spread this information among several

messages.

R2SP uses A, M and T for establishing a

conference with MCS. The responses from the MCS

side are collated and forwarded to the SIP side. The

R2SP may get the media capabilities of the SIP user

agent using the SIP OPTIONS message. Media

capabilities of the MCS terminal are fixed. Once the

logical channels are established from the R2SP to

the MCS server, the R2SP knows M and T and can

place a SIP call by sending an INVITE.

Fig. 3 shows a session setup example. In this

example Ali from SIP client want to establish a call

with Sara from MCS network. First Ali has to send

R2SP (r2sp.usm.my) once receive it, it will add new

record to its users table with Ali’s information and

then send back 200 OK response to Ali’s SIP client

(F2). If a registration could not be done, an error

response would have been sent instead of the 200

OK. On the other hand Sara should register to its

MCS server by sending LOGIN message to

mcs.nrg.usm.my server (F1a) and wait for the

LOGIN_OK response message from the server

(F2a).

Ali after registration sends INVITE request to

r2sp.usm.my (F3). The INVITE request contains a

number of header fields. The ones present in an

INVITE include a unique identifier for the call, the

destination address, Ali's address, and information

about the type of session that Ali wishes to establish

with Sara. When r2sp.usm.my receive this request, it

looks through its servers table to find

mcs.nrg.usm.my information then sends NOTIFY

message to it, with Sara as an invited user (F4),

which then forward the NOTIFY message to Sara’s

MCS client (F6). At the same time r2sp.usm.my

sends 100 Trying to Ali’s SIP client (F5), to indicate

that the INVITE has been received and that R2SP is

working on his behalf to route the INVITE to the

destination.

When Sara receive the NOTIFY message, and

find out that he invited to a conference, he will send

JOIN message to mcs.nrg.usm.my server (F7), which

then forward the JOIN message to r2sp.usm.my (F8).

When r2sp.usm.my receive the JOIN message, it will

send 180 Ringing response to Ali’s SIP client (F9).

At the same time Sara’s MCS client will send REQ-

ACTIVE message to mcs.nrg.usm.my server (F10),

which then forward the message to r2sp.usm.my

(F11). When r2sp.usm.my receive the REQ-

ACTIVE message, it will send 200 OK response to

Ali’s SIP client (F12), which indicate that Sara agree

to call establishment and ready for media

transaction.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

240

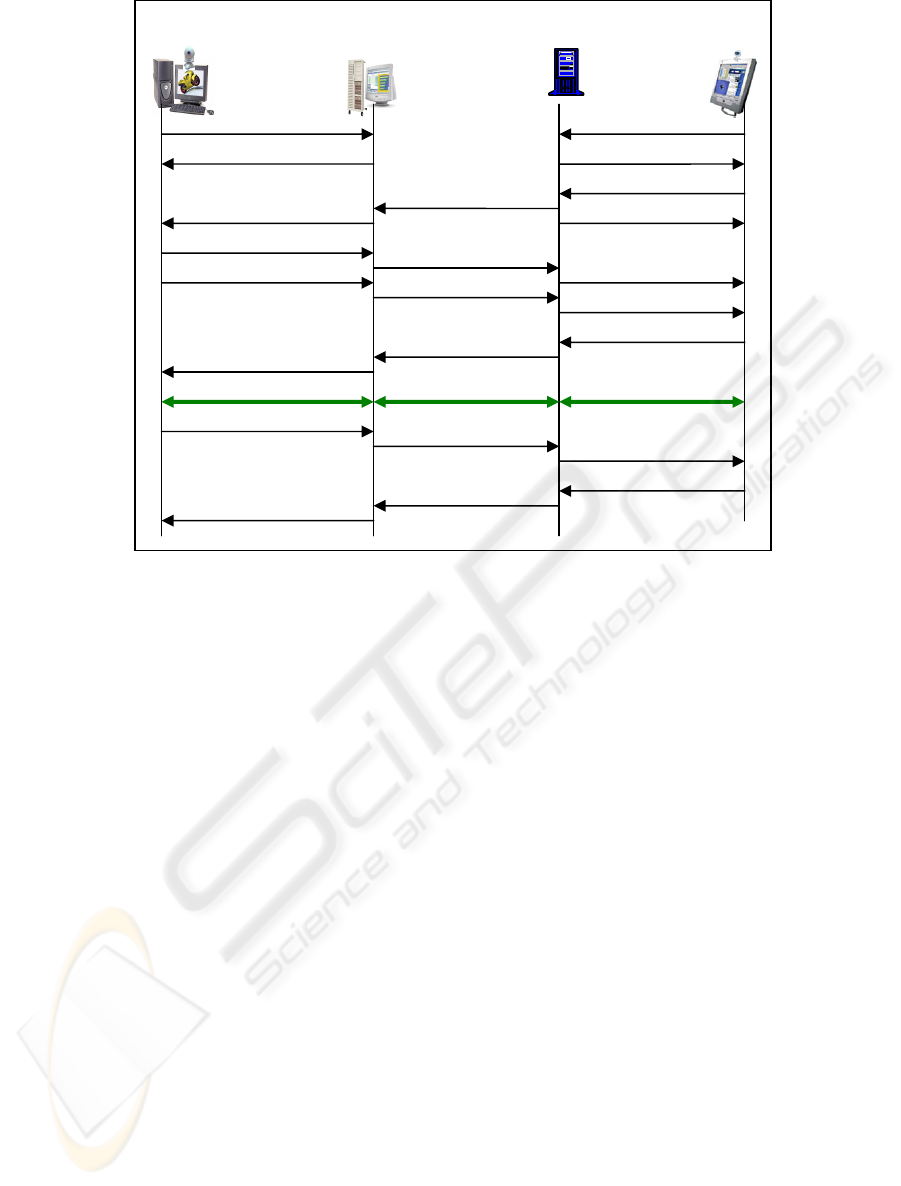

Figure 3: SIP to MCS session setup example

At this point Ali’s SIP client will send

acknowledgement message ACK to r2sp.usm.my

(F13), which when receive the ACK request, sends

CONF_INFO message to mcs.nrg.usm.my server

(F14). The mcs.nrg.usm.my server, then forward the

CONF_INFO message to Sara’s MCS client (F15).

Ali and Sara's media session has now begun, and

they send media packets using the format to which

they agreed in the exchange of SDP between R2SP

and Ali’s SIP client. They usually use MCS version

4.0 UDP 7600 port as default for audio and UDP

7601 port as default for video. At the end of the call

(conference), Sara disconnects (hangs up) first and

generates a LOGOUT message to its MCS server

(F16), which then forward the message to

r2sp.usm.my (F17). When r2sp.usm.my receive the

LOGOUT message it generates BYE message to

Ali’s SIP client (F18). Ali confirms receipt of the

BYE with a 200 OK response (F19), which

terminates the session in the SIP side. To terminate

the session in the MCS side, r2sp.usm.my sends

CONF_INFO message to mcs.nrg.usm.my server

(F20) which contains conference end indication and

free all call (conference) resources. The

mcs.nrg.usm.my server, then forward the

CONF_INFO message to Sara’s MCS client (F21).

5 CONCLUSION

The work in this paper has thus provided modeled

and verified translation protocol of interworking

between MCS and SIP. From our work, we conclude

that the fact of our design for the system of

interworking between MCS and SIP is good by

using SDL, which is proved as a simple and very

efficient method to verify and validate protocols.

We have verified most of the successful

scenarios and some of the failure scenarios. Besides,

we use ObjectGeode to help the verification of

dynamic behavior of our system model. Finally, we

identified that the advanced feature of the

communication translation protocol and advanced

service based on MCS-SIP system is a hot research

topic and being currently investigated.

Further research work to enhance the translation

protocol is at least in the following two areas:

(a) Since our design is based on MCS version 4.0,

and MCS version 5.0 is out, R2SP can be

expanded to support the new version of MCS as

well as support any new SIP version.

(b) Integrate the different models into a single, but

much larger system. For example we can

integrate H.323 or MGCP models and MCS-SIP

Interworking system model into larger system to

find more useful property.

Finally, our model can be also a starting point to

begin the research of 3GPP network since SIP has

JOIN F8

BYE F18

Media Session

ACK F13

200

K F12

200

K F2

180 Rin

OGOU

T F16

NOTIFY F4

INVITE F3

Sara’s

MCS Clien

Ali’s

SIP Clien

mcs.nrg.usm.my

MCS serve

r2sp.usm.my

R2SP

NOTIFY F6

JOIN F7

-ACTIVE F10

-A

E F11

CONF-INFO F14

NF-INF

F15

Media Session Media Session

OGOU

T F17

200

K F19

CONF-INFO F20

NF-INF

F21

IN-

K F2a

INTERWORKING BETWEEN THE RSW CONTROL CRITERIA AND SIP STANDARD

241

been defined as signaling protocol in next generation

network architecture.

REFERENCES

Abouabdalla, O. and Sureswaran, R. (2000). A Server

Algorithm to Manage Distributed Network Entities for

Multimedia Conferencing System. In Proceedings of

IWS (Internet Workshop on Asia Pacific Advanced

Network and its Applications). Tsukuba, Japan. Feb

2000. pp. 141-146.

Gale S. (1990). Human aspects of interactive multimedia

communication. Interaction with Computers.

Grobel, I. (2002). SIP is a key part in multimedia sessions.

Network World. Framingham. Aug 2002, Vol. 19, Iss.

32, pp. 35.

Handley, M. and Jacobson, V. (1998). SDP: session

description protocol. Request for Comments

(Proposed Standard) 2327. Internet Engineering Task

Force. Apr 1998.

Handley, M., Schulzrinne, H., Schooler, E. and

Rosenberg, J. (1999). SIP: Session Initiation Protocol.

Request for Comments (Proposed Standard) 2543,

Internet Engineering Task Force, March 1999.

Malim, G. (2002). Opportunity Knocks. Communications

International. London. Jul 2002, pp. 16.

Morrissey, P. (2003). It's time to take a look at SIP.

Network Computing. Manhasset. Apr 2003, Vol. 14,

Iss. 7, pp. 76-79.

Rosenberg, J.D. and Shockey, R. (2000). The Session

Initiation Protocol (SIP): A Key Component for

Internet Telephony. Computer Telephony. June 2000.

Schooler, E.M. (1996). Conferencing and collaborative

computing. Multimedia Systems. Vol. 4, pp. 210-225.

Snell, M. (1994). Picture this: videoconferencing. IEEE

Computer. Vol. 27, pp. 8-10.

Sureswaran, R. (1996). A Reflector Based System to

Support the RSW Multimedia Conferencing Control

Criteria. IASTED International Conference on

Networks, Orlando, January 1996.

Sureswaran, R., Subramanian, R.K., Guyennet, H. and

Trehel, M. (1997). Using the RSW Control Criteria To

Create A Distributed Environment for Multimedia

Conferencing. In Proceedings of REDECs ’97.

Penang, Malaysia. 27-29 November 1997.

Sureswaran, R. (1998). A Distributed Architecture to

support Multimedia Applications Over the Internet

and Corporate Intranets. In Proceedings of

SEACOMM ’98. Penang, Malaysia. 12-14 August

1998.

Sureswaran, R. and Aboudallah, O. (1999). A Server

Recovery Procedures to Manage Distributed Network

Entities for Multimedia Conferencing System. In

Proceeding of World Engineering Congress (WEC99),

University Putra Malaysia, Kuala Lumpur. July 1999.

pp. 81-85.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

242
