GSM AND GPRS PERFORMANCE OF IPSEC DATA

COMMUNICATION

Gianluigi Me, Giuseppe F. Italiano

Dipartimento di Informatica, Sistemi e Produzione,Roma,Italy

Paolo Spagnoletti

CeRSI, LUISS “Guido Carli” University,via Tommasini 1, Roma,Italy

Keywords: Mobile application, Security

Abstract: Cellular Internet services must grapple with the added security threats posed by the radio transmission, open

to eavesdroppin

g. Furthermore, the combination of always-on connectivity and an interface to the public

Internet means high speed data services has to cope with the same security issues that can be found in the

wired environment.Confidentiality of GSM/GPRS communications has been provided only in BS-

ME/GGSN-ME by COMP128/GEA+ algorithms, whose strength is often not believed adequate for

corporate/governmental requirements. Furthermore, A5/1 and A5/2 algorithms have been recently attacked

with real time ciphertext only cryptanalysis by Barkan, Biham and Keller. To provide an adequate level of

security, it is often argued to employ IPSec over the GSM/GPRS framework. We provide experimental

evidences that IPSec is a viable solution to provide the desired level of security. In particular, the overhead

generated is tolerable where high sensitive/critical communications take place. We expect that our findings

could help better understanding how securing a deployed GSM/GPRS network which

corporate/governmental infrastructures can rely on and what performances can be expected by using IPsec

over these media.

1 INTRODUCTION

Wireless technology is widespread in today's

communication networks, mainly due to its facility

of deployment and management. However, many

security concerns about wireless infrastructures have

been raised in recent years. In particular, there has

been a serious consciousness of the weaknesses of

GSM and GPRS, among other wireless technologies.

Important works on this area are by Barkan et al. 0,

iryukov et al. 0, Briceno et al. 0 and Ekhdal et al.

0, whose pose serious threats to GSM/GPRS, with

high-cost/easy to use systems. Furthermore GSM is

the most widely used cellular technology, with more

than 787.5 million customers in over 191 countries.

All these facts make these two technologies highly

secure and untrustable for who has to

communicate with confidentiality and suggested us

to propose a secure architecture for

people/corporate/government with security

requirements. In this paper, we analyze the overhead

introduced to secure GSM/GPRS communication. In

particular, we investigate the performance of the

IPSec protocol employed to secure communication

over GSM/GPRS. We show with experimental

results that for a wide range of parameters, the

overhead introduced by the IPSec is limited. Hence,

we experimentally argue that the adoption of the

IPSec suite is a viable solution to secure public

GPRS network infrastructure.

The remainder of the paper is organized as follows:

irstly a security background, where we briefly

highlight the security features and the threats to

which the GSM/GPRS is subject to. Then, we detail

our security architecture implementation, focusing

on relevant IPSEC countermeasures to GSM/GPRS

threats. Finally we develop our consideration on

IPSec encryption over GSM/GPRS. In particular, we

will illustrate the methodology adopted to perform

the measurement and the result of our analysis,

based on a wide range of experiment that have been

carried out, varying different, sensitive parameters

Me G., F. Italiano G. and Spagnoletti P. (2004).

GSM AND GPRS PERFORMANCE OF IPSEC DATA COMMUNICATION .

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 3-11

DOI: 10.5220/0001384600030011

 SciTePress

of interest of the IPSec suite and the type of traffic

secured.

2 GSM/GPRS STANDARD

SECURITY

The Global System for Mobile Communications

(GSM) (Figure 1) security was designed with three

constraints in mind 0: α) Concern of granting too

much security and so bringing export problems upon

GSM; β) GSM did not have to be resistant to active

attacks where the attacker interferes with the

operation of the system, perhaps masquerading as a

system entity; and γ) The trust between operators for

the security operation should be minimized. The use

of air interface at the transmission media allows a

number of potential threats from eavesdropping. As

stated by 0, it was soon apparent in the threat

analysis that the weakest part of the system was the

radio path, as this can be easily intercepted. In fact,

there was no attempt to provide security on the fixed

network part of GSM.

The General Packet Radio Service (GPRS) is a

GSM-based service which provides mobile users

with true packet access to data network. GPRS uses

a packet-mode technique to transfer high-speed and

low-speed data and signaling in an efficient manner

0. Security in GPRS is largely based on the GSM

system security function. The main entities involved

are the SGSN (Serving GPRS Support Node),

GGSN (Gateway GPRS Support Node), AuC

(Authentication Center) and HLR (Home Location

functionality as in GSM. The SGSN and GGSN both

take care of authentication (Figure 1). The main

functions related to GPRS device (MS) are

authentication and encryption.

The authentication in GSM systems happens in

VLR (Visitor Location Register) or HLR 0, through

an Authentication Key (Ki) 0 stored in the AuC of

the home PLMN (Public Land Mobile Network),

using A3 (0, 0) algorithm. The operators may be free

to design their own A3 algorithm.

Nearly every GSM operator in the world uses an

algorithm called COMP128 for both A3

(authentication) and A8 (key generation) algorithms

0. The GPRS authentication procedure is handled in

the same way as in GSM with the distinction that the

procedures are executed in the SGSN. In some

cases, the SGSN requests the pairs for a MS from

the HLR/AuC corresponding to the IMSI of the MS.

The GSM voice calls are encrypted using a family of

algorithms collectively called A5. A5/0 uses no

encryption. A5/1 is the "standard"-export limited

encryption algorithm, while A5/2 is the "export"

(weakened) algorithm. A5/3 is a new algorithm

based on the UMTS/WCDMA algorithm Kasumi 0.

In GPRS network the ciphering scope is different: in

GSM the scope is between BTS (Base Transceiver

Station) and MS, in GPRS the scope is from the

SGSN to the MS. The GPRS ciphering, performed at

the LLC layer, is done with a family of algorithms:

GEA0 (none), GEA1 (export), GEA2 (normal

strength) and GEA3 (new, and effectively the same

as A5/3).

2.1 GSM/GPRS authentication

algorithms vulnerabilities.

The protocol is simple, however, there are some

vulnerabilities posed by its use. Namely, the TMSIs

(Temporary Mobile Subscriber Identity) are

generated based on the previous TMSI, therefore a

missed synchronization in the TMSIs may require

the IMSI to be used to set up it again, wherein the

IMSI is sent in plaintext to the VLR, exposing its

true identity. Also, there is no mechanism to prevent

reply attacks. Once the session key Kc is

compromised, by playing back the RAND, and the

SRES, an intruder can impersonate the VLR since

the protocol does not support network

authentication.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

Furthermore,

- Wagner and Goldberg announced in April 1998

that they had cracked COMP128 who had a

weakness which would allow complete knowledge

of Ki if around 160000 chosen RAND-SRES pairs

could be collected (chosen plaintext attack). There

are active attacks that can be used to obtain these

pairs.

- The quickest attack would be to steal the user’s

mobile phone, remove the SIM and connect it to a

phone emulator that can be used to send 160 000

chosen RAND to the SIM and receive the SRES.

SIM tend to have relatively slow clock speeds and it

can therefore take up to 10 hours to obtain the

160000 pairs (with faster SIM, it would take 2 and a

half hours).

- Retrieving the key from the SIM: the security of

the whole GSM/GPRS security model is based on

the secret Ki. If this key is compromised the whole

account is compromised. Once the attacker is able to

retrieve the Ki, he can not only listen to the

subscribers calls, but also place calls billed to the

original subscriber's account, because he can now

impersonate the legitimate subscriber.

- Another method is to perform man in the middle

attacks. Using a false BTS to send the RAND over

the air interface, the rate at which pairs can be

collected is slower and would take a number of days;

however the attacker does not need physical

possession of the SIM. After these efforts, the

attacker has the Ki and can masquerade as the user

and run calls on his bill, and also determine the Kc

for the user’s calls and therefore eavesdrop upon

them 0;

- Cloning attack to A3 is further presented in 0.

The following attacks represent threats for

authentication in GPRS:

- Spoofed Create PDP (Packet Data Protocol)

Context Request: GTP (GPRS Tunnelling Protocol)

inherently provides no authentication for the SGSNs

and GGSNs themselves. This means that given the

appropriate information of a subscriber, an attacker

with access to the GRX (GPRS Roaming Exchange),

another operator attached to the GRX, or a malicious

insider can potentially create their own bogus SGSN

and create a GTP tunnel to the GGSN of a

subscriber. They can then pretend to be the

legitimate subscriber when they are not. This can

result in an operator providing illegitimate Internet

access or possibly unauthorized access to the

network of a corporate customer;

Figure 1

- Spoofed Update PDP Context Request: An attacker

can use their own SGSN or a compromised SGSN to

send an Update PDP Context Request to an SGSN,

which is handling an existing GTP session. The

attacker can then insert their own SGSN into the

GTP session and hijack the data connection of the

subscriber.

2.2 GSM/GPRS confidentiality

algorithms vulnerabilities

The confidentiality of the GSM architecture is not

completely sound. In the following we highlight a

few security flows that have been published in

literature. Our aim is not to discuss the GSM

architecture nor its cryptographic flaws, but only

showing that the native confidentiality it provides is

weak, thus justifying the adoption on another

independent security layer, as IPSec is. Furthermore,

the security of the GSM confidentiality is based on

the security through obscurity paradigm, debatable

choice and usually leads, sooner or later, to system

compromising 0.In the following paragraphs, we

overview the main known attacks, paying the best

attention to 0:

- Brute-force attack against A5. A real-time brute-

force attack against the GSM security system is not

feasible, since the time complexity is far too big, but

with the distributed computer systems we can

drastically reduce the time required;

- Divide-and-conquer attack against A5 – a divide-

and-conquer attack is based on a known-plain-text

GSM AND GPRS PERFORMANCE OF IPSEC DATA COMMUNICATION

attack and can dramatically reduce the complexity

(up to 2^9 – 2^14) 0;

- The only attack on an algorithm that has been

confirmed to be A5/1 was that by Biryukov and

Shamir, later improved by Wagner. The technique

used is known as is time-memory trade off 0;

- Accessing the operator's signaling network: the

airwaves between the MS and the BTS are not the

only vulnerable point in the GSM system. The

transmissions are encrypted only between the MS

and the BTS. After the BTS, the traffic is transmitted

in plain text within the operator’s network. If the

attacker can access the operator's signaling network,

he will be able to listen to everything that is

transmitted, including the actual phone call as well

as the RAND, SRES and Kc;

- Real time cryptanalysis: the very new result,

faced by our proposal architecture for data

communication, comes from 0. The coding

introduces known linear relationships between the

bits to be encrypted; so even though the attacker

might not know the values of particular input bits,

they know that certain groups of them XOR to 0. So,

taking the same groups of encrypted bits and

XORing them reveals the corresponding XOR of the

keystream bits. This is the fundamental problem that

allows the attacks to work without any knowledge at

all of what is being encrypted, which is what they

mean by "ciphertext only". The important thing

about the active attacks is that the attacker can

confuse a mobile into doing what it wants the mobile

to do. At the limit, if the attacker has intercepted the

random challenge sent to a particular mobile and has

recorded all the traffic, whether it is GSM voice or

GPRS data, they can later send the same random

challenge to the mobile and tell it to use A5/2 to

communicate. When the mobile responds, they

recover the key, and it's the same key that will

decrypt the recorded stuff, whatever it was

encrypted with.

2.3 How IPSec matches security

requirements

In previous paragraphs we have shown the

cryptographic vulnerabilities of GSM/GPRS. In this

mobile environment we have identified the

following requirements, not appropriately covered

by GSM/GPRS: (Ra) Protecting sensitive

information: assuring the confidentiality and

integrity of communications; (Rb) Access Control

and Authorization; (Rc) Upper IP layer system

availability, to guarantee the best communication

media DoS robusteness . Furthermore, we intend to

address these specific threats considering that, in the

GSM/GPRS framework, performing traffic analysis

pose more concerns due to the fact that digital IP

based traffic carries source and destination IP

addresses in cleartext.

Furthermore, α) this system doesn’t face

communication parties localization tracing problem,

because inherently coupled with GSM/GPRS link

layer; β) DoS attacks to GSM/GPRS link layer are

out of the requirements scope of this paper.

Our IPSec based architecture matches these

requirements as follows:

Ra) Confidentiality of 3DES, the algorithm used in

this architecture, is definitively better than A5.

Furthermore it’s possible to choose the preferred

encryption algorithm in the IPSec suite, e.g. AES.

Integrity is performed by HMAC-MD5 (keyed hash)

function.

Rb) Authentication is performed combining IPSec

preshared-keys (device authentication) and One

Time Password (user authentication). This further

layer has been needed because preshared key

authentication creates a master key that is less secure

because of absence of Perfect Forward Secrecy.

Rc) This requirement is matched by using IKE

(Internet Key Exchange) in main mode, not

aggressive 0.

3 ARCHITECTURAL OVERVIEW

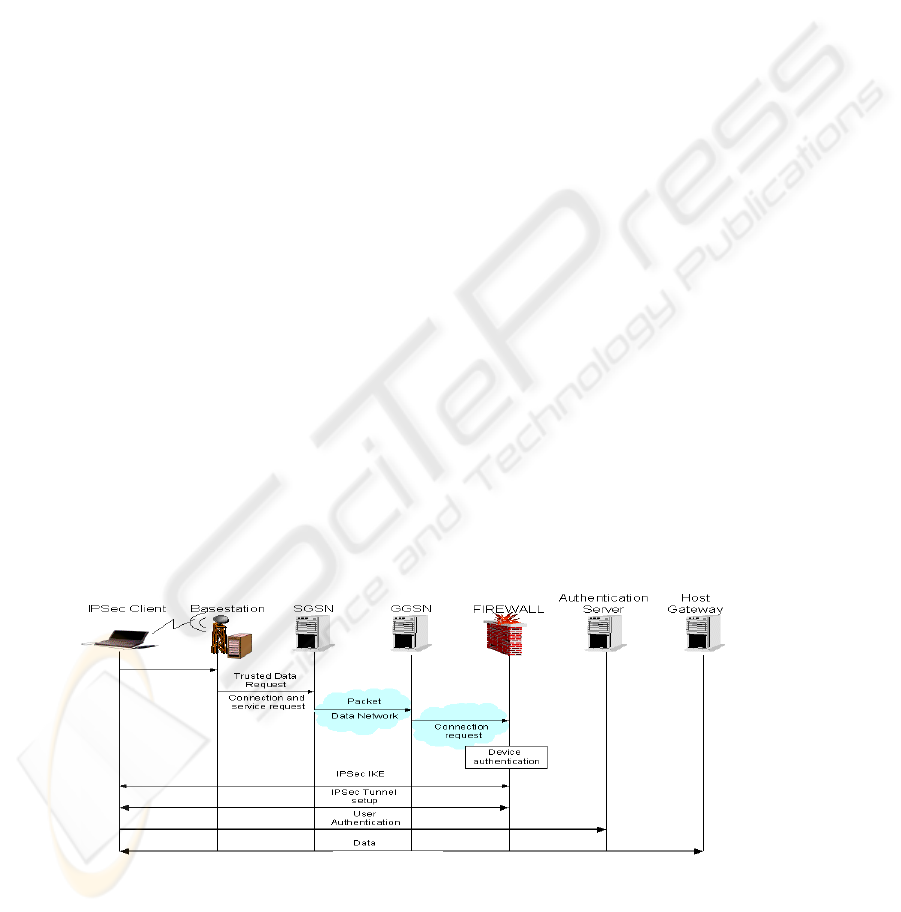

As shown in Figure 2, we used a laptop connected to

a Merlin 3+1 GPRS phone (3 downlink, 1 uplink

channels) through a serial PPP (point-to point) link

to act as a GPRS mobile terminal. We tested this

architecture in an operational environment, with an

Italian mobile carrier. The firewall acts as VPN

concentrator in the architecture, thus establishing an

IPSec tunnel (end to end) between the mobile

terminal and the firewall inside the laboratory LAN.

The sniffer has been placed on a switch connected to

the firewall external interface, the firewall internal

interface, the authentication and the application

server and the router connected by a 2 Mbps E1 with

the carrier, observing all the packets exchanged

between nodes of the architecture.

In the service provider’s backbone network the

support of GPRS is done adding two new network

elements: the Serving GPRS Support Node (SGSN)

and the Gateway GPRS Support Node (GGSN).

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

3.1 Security general overview

The information exchange has been shown in Figure

2. User, after providing three usual pieces of

information (User Name, Password, APN) to log

into mobile carrier GPRS networks, starts the IPSec

tunnel setup phase with the system. An encrypted

tunnel mode is adopted, where the IP information

and the data are encrypted with a new IP address

created and mapped to the IPSEC endpoints. This

solution provides the overall highest data privacy 0.

After IPSEC device authentication and encrypted

channel establishment, user authentication follows,

to guarantee the identity of the person using the

IPSEC node. This is because an encrypted session is

established between the two devices in different

locations. The user authentication mechanism gives

the access to origin server application, thus

preventing the attacker from accessing the system

just stealing the mobile device. The system

presented in this paper adopts an authentication

schema based on strong two factor, token based

schema, requiring two elements to verify an user

identity: a physical element in user possession (a

hardware keyfob) and a code that only the token

owner knows (PIN code).

Furthermore, the static IP address adopted enables a

greater level of security on the VPN, since the server

can recognize the IP addresses of the clients. A

device attempting to connect with an IP address

unrecognized by the server would be denied access.

NAT, economical further security level, seems a

viable solution to the limited number of IP addresses

available, by allowing the use of an unregistered IP

addresses within the organization.

3.2 Architecture and set-up

Our architectural framework is synthetically detailed

in Figure 2. It encompasses the following

components:

-Wireless mobile client; provided with a COTS

wireless mobile laptop running an application with

transaction features (BITS IPSec-Telnet over GPRS

capability) that provide the set up of an IPSEC ESP

tunnel, strong-encrypted user authentication, host

access via Telnet capabilities.

-Firewall/Proxy, adopting the following standards:

IETF IPSec Standard, IETF IKE Standard

(ISAKMP/OAKLEY) and NAT. The following

services are thus available: Security Association and

Key Manager, Policy Storage Service Provider,

Policy Relay Service Provider, Internet Key

Exchange Service Provider, and IPSec Engine. The

authentication relies on the Diffie-Hellman

algorithm, used with “pre-shared” keys, Diffie

Hellman Group Oakley Default Group 1. The

negotiation algorithm is DES-CBC with an explicit

Initialization Vector 0 with authenticator HMAC-

MD5-96 0;

-Authentication server; authenticates the users

requiring to connect to the Host gateway;

-Host gateway, provides the results of the query to

the Host, where application data resides, in a Telnet

format;

For these measurements the MTU was set to 1500.

When the connection is established, each end set the

MSS to 1460 bytes with a window size of 16384

bytes

Figure 2

GSM AND GPRS PERFORMANCE OF IPSEC DATA COMMUNICATION

4 MEASUREMENTS

METHODOLOGY AND

SETTINGS

We analysed general statistics of the transformation

made by IPSec, focusing on datagram sizes, basic

step for an eavesdropper trying perform statistical

cryptanalysis. The following considerations define

the test environment:

- Bandwidth variation, changes of the bandwidth

available for a connection throughout its lifetime,

can represent a major acute problem. In fact, a

number of factors may cause the connection’s

bandwidth variation. Change in the number or

activity volume of other connections sharing the

same bandwidth resource (e.g. the same time slot/s

in GPRS networks), the narrowing/widening of the

total bandwidth dedicated to data users (e.g. the

start/end of voice calls in GPRS networks), and

radio-link optimisations due to SNR changes are

significant factors in bandwidth breathing. Failing to

properly respond to those changes will result in the

transport protocol either under utilizing the scarce

wireless bandwidth or overflowing the network. A

possible solution for these problems is presented in

0. Because of bandwidth variation our analysis is

performed in the same low-traffic hours.

- The reliability in stationary connections is

adequate, but the reliability in moving connections,

with the same parameters is very poor. Therefore,

the reliability of moving connections may create

huge problems, if a distributed application cannot

cope properly with disconnections or long pauses.

This problem hardly relies on GSM/GPRS mobile

operator capabilities. For this reason, presented

measurements were performed with good to

excellent signal coverage, since this threshold is the

lowest boundary to enable the transaction, as we

further investigate in next paragraph. An isolated,

fixed test site was set-up to minimize influence from

competing Internet traffic taking into account the

needs of detailed measurements within lower

protocol layers.

In general, in good radio signal quality environment,

GPRS provides satisfactory throughput 0. The

throughput and round-trip time in stationary

connections were stable.

With respect of presented test environment fixed

conditions, the analysis has been performed just

once.

4.1 Methodology

Basing on GPRS network performance, we are

interested in examining the performance of IPSEC

over GPRS, evaluating performance and security

strength and weaknesses of this solution, inspecting

only the Ethernet traffic from two observation points

located at the two sides of the firewall (encrypted

and clear text).

The measurements refer to entire IP datagram length

from LAN and GPRS side: in this architecture, we

remark that IPSec works only on LAN IP payload,

the LAN IP header is discarded and substituted with

the firewall IP header. We did not perform any

measurement on air link and we did not change TCP

parameters (e.g. RTO, MSS, Congestion Window,

SACK) during our measurements. After a general

overview of traffic, we isolated traffic, keyed by

state, on different channels (GPRS up/down link,

LAN up/down link).

The keyed states refer to:

IKE exchange: directly inspectable by sniffing.

Here, the main mode accomplish the establishment

of ISAKMP SA, performed by IKE and DOI: a

secure and authenticated communication channel

(IKE SA) and authenticated keys used to provide

confidentiality, message integrity, and message

source authentication to the IKE communications

between UDP exchanging packets on well-known

port 500;

Device authentication: Then IPSec SA are

established, and other protocol SAs can be

negotiated; this phase starts on first ESP packet

exchanged and we assume that finishes when the last

but one ESP packet before we inspect on LAN

traffic the first user authentication string. This

assumption is correct as long as no Firewall -

Authentication server interaction acts before the last

but one ESP packet.

User authentication starts at next packet and

finishes when the firewall delivers to the mobile user

the ESP packets carrying the initial application form

provided by the Host gateway. This form, triggering

the application query, certifies that the user has been

authenticated;

Transaction starts at next packet until the end;

Then we mapped this traffic segments on 4 different

channels: the GPRS and LAN uplink and downlink

as stated in Figure 3.

4.2 Measurements

The goal of our analysis was to compare protocol

efficiency in data transfer using a telnet session

encrypted with IPSEC on a GSM and a GPRS

channel in terms of:

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

Up link: external length - internal length

40 50 60 70 80 90 100 110

internal length (bytes)

overhead (bytes)

Down: external length - internal length

0 500 1000 1500

internal length (bytes)

overhead (bytes)

GSM/GPRS UP link: overhead

100

120

140

160

40 70 100 130

internal lenght (byt es)

Figure 4a Figure 4b

Figure 4c

- overhead and datagram fragmentation;

- time and costs.

Correspondently to all phases of session flow, IP

datagram length matches in GSM/GPRS. This first

straightforward result confirms the best expected

forecast, due to independence of IP layer to the LLC

(apart from some spurious “IKE

INFORMATIONAL” datagrams). In fact, no re-

transmission happened.

We made two complete connection from a MS using

GSM and GPRS at the physical layer and we

analysed IP datagrams exchanged between MT and

External Firewall (EF) and between Internal

Firewall (IF) and the Authentication Server (AS)

dividing a complete transaction in three phases:

- device authentication (up-link and down-link);

- user authentication (up-link and down-link);

- telnet transaction (up-link and down-link).

The third phase was performed by executing a

macro to eliminate the man latency in the editing

phase of fields.

4.3 Overhead and fragmentation

The overhead analysis demonstrates that:

- the maximum length of an IP datagram in the

wireless path is 608 bytes;

- the maximum length of an IP datagram in the LAN

path is 1061 bytes, due to the MTU of internal

network;

- the overhead change with the length of datagrams;

- the behaviour in the GSM and GPRS case is

exactly the same.

During the transaction phase the host gateway sends

clear text packets to the internal firewall which

performs the encryption retransmitting the packet

over the wireless path to the mobile device (LAN

and wireless down link). The encrypted packets

leaving the firewall present an overhead due to the

application of cryptographic algorithm performed by

IPSec. The inverse happens to the encrypted packets

transmitted by the mobile device.

We measured the discussed overhead in the two

cases: up and down link. Because of difference

between the MTU of LAN and GSM/GPRS paths,

the first case (up link) is more simple than the down

link case. In fact, the firewall receive, from the

wireless link, always datagrams smaller than 608

bytes and after the decryption, it forwards clear text

datagrams to the host gateway. In this case the IPSec

overhead is represented on Figure 4a where Y axis

measure the overhead corresponding to the internal

datagram length specified on the X axis. The

overhead range is 50-62 bytes, we will discuss later

about the function linking overhead and internal

length. In the down link case, for the fragmented

datagrams (internal length>608 bytes), we define the

average overhead:

GSM AND GPRS PERFORMANCE OF IPSEC DATA COMMUNICATION

L= sum of fragmented datagrams length

l= sum of internal datagram leng h t

N= number of external fragment

NlL

/)(

∑∑

−

Figure 4b, shows how the average overhead is in the

range 50-60 bytes for small datagrams (less than 608

bytes) and about 70 bytes for larger datagrams.

Moreover, also in this case, there is an overhead

variation for different values of internal datagram

length and there are no significant differences

between the GSM and the GPRS case.

To understand the relationship between overhead

and datagram length we can observe from a different

point of view what happens in the up link case.

Figure 4c shows that the length of encrypted

datagrams belongs to a discrete set of values. In

particular, as the internal packet length increases, the

length of external datagram assumes discrete set of

increasing values. The reason of this behavior is the

padding introduced by the encryption algorithm,

useful to obfuscate statistical cryptanalysis.

How stated in 0, padding in an ESP packet is

optional and the sender may add 0-255 bytes of

padding. Padding is required when an encryption

algorithm is employed that requires the plaintext to

be a multiple of some number of bytes, or,

irrespective of encryption algorithm requirements, to

ensure that the resulting ciphertext terminates on a

4-byte boundary. Padding may be used to conceal

the actual length of the payload, in support of

(partial) traffic flow confidentiality. In this case, the

inclusion of such additional padding has adverse

bandwidth implications.

4.4 Time and costs

We have already introduced some aspect about the

time analysis and the difficult in performing a valid

set of tests to compare the performances of GSM

and GPRS links. In fact the bandwidth variation, the

signal strength and the number of users

simultaneously connected, made the transmission

rate of GPRS variable between 0 and the maximum

rate. Moreover, the performances of interactive

traffic in the particular case of the link configuration

phase of PPP increase the latency slowing the first

phase of a GSM connection 0. With the performed

analysis we have focused only on datagram length

measurement to be sure that the results are

independent from the factors discussed above.

Moreover also in the presented case we observed

that the GPRS was faster than GSM a part a delay in

the “authentication device” phase, due to an IKE

informational packet present in the GPRS case. The

overhead introduced by encryption afflicts costs,

with respect to bytes exchanged (GPRS) and

connection time (GSM) of session flow. In fact, the

above measurement shows that the overhead,

varying in the 50-80 bytes range for each datagram,

afflicts the traffic as follows:

- up link case: datagrams, containing mainly queries

data, are doubled (small packets not longer than 70

bytes);

- down link case: datagrams containing application

layer responses fragments (3270 format), are

increased of 7-12% (datagram longer than 600

bytes).

We argue an average increment of traffic and costs,

in the GPRS case, approximately of 10%.

Further studies can take into account GPRS

bandwidth variation and the relationship with IPSEC

performance in term of time and cost, with different

session application (e.g., FTP, HTTP) and

authentication and encryption protocols.

5 CONCLUSIONS

In this paper we have showed how the IPSec suite

can be effectively applied to secure GSM/GPRS

communications. The level of reliability in

GSM/GPRS communications that this result can

induce the deployment of large scale GPRS

networks, as well as the adoption of public network

GPRS-based, in critical governmental/private

infrastructure. In particular, we have showed the

effectiveness of the IPSec, proving that the overhead

generated is tolerable under a wide set of

parameters. The only limitation, posed by mobile

operator capabilities, relies on GPRS connection

reliability while roaming.

As for further research directions, we are interested

in techniques to reduce the burst overhead generated

by the set up IPSec-secured GPRS communications

and to further study IPSEC connection reliability

while roaming in GPRS environment. Moreover, we

are addressing the possibility to employ the IPSec

suite to secure peer to peer, ad hoc networks.

REFERENCES

Barkan, Biham and Keller, "Instant Ciphertext-Only

Cryptanalysis of GSM Encrypted Communication",

Proceedings Crypto 2003"

http://www.cs.technion.ac.il/users/wwwb/cgi-bin/tr-

get.cgi/2003/CS/CS-2003-05.ps.gz, 2003.

Biryukov A, Shamir A, Wagner D., “Real time

cryptanalysis of A5/1 on a PC”, Fast Software

Encryption. 7

International Workshop, FSE 2000.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

Proceedings (LNCSVol.1978). Springer-Verlag. 2001,

pp.1-18. Berlin, Germany

Briceno, Goldberg, Wagner, “GSM Cloning”,

http://www.isaac.cs.berkeley.edu/isaac/gsm-faq.html,

1998

Ekdahl, P. Johansson, T. “Another attack on A5/1”, IEEE

International Symposium on Information Theory -

Proceedings 2001. p 160 (IEEE cat. n 01CH37252)

Brookson , GSM (and PCN) Security and Encryption,

1994, http://www.brookson.com/gsm/gsmdoc.htm.

M. Walker and T. Wright, Security. In F. Hillebrand,

editor, GSM and UMTS: The Creation of Global

Mobile Communication, pp. 385-406, John Wiley &

Sons, New York, 2002.

R. J. “Bud” Bates, GPRS, McGraw Hill TELECOM, 2002.

Jörg Eberspächer and Hans-Jörg Vögel. GSM switching,

services and Protocols. John Wiley and Sons, 1999.

Garg, Vijay K. Principles and applications of GSM. Upper

Saddle River (NJ) Prentice Hall PTR, 1999

ETS 300 534. Digital Cellular Telecommunication System

(Phase 2); Security Related Network Functions. ETSI,

August 1997.

ETSI TS 100 929. Digital Cellular Telecommunication

System (Phase 2); Security related network functions.

ETSI, November 1999.

Lauri Pesonen, GSM Interception,

http://www.dia.unisa.it/ads.dir/corsosecurity/www/CO

RSO-9900/a5/Netsec/netsec.html#chap1, Nov1999,

Bruce Schneier, Applied Cryptography: Protocols,

Algorithms, and Source Code in C, 2nd Edition,

Wiley, 1995

N. Doraswamy and D. Harkins, “IPSec: The New Security

Standard for the Internet, Intranets, and VPN”, PH

PTR, 1999.

O. Shaham, S. Aviran, E. Simony, Y. Shapira, “Rate

Control for Advanced Wireless Networks” ,

http://www.wisdom.weizmann.ac.il/~odedsh/

M.Meyer, TCP Performance over GPRS, In Proc. of IEEE

WCNC, 1999,

http://www.cs.helsinki.fi/u/gurtov/reiner/wcnc99.pdf

RFC 2406

R. Ludwig and B. Rathonyi, Link Layer Enhancement for

TCP/IP over GSM, Proceedings of the IEEE

INFOCOM ’99, April, pp. 415-422.

GSM AND GPRS PERFORMANCE OF IPSEC DATA COMMUNICATION
