MOBILITY SUPPORT AND SOFT HANDOVER PROTOCOL FOR

IP-NETWORKS

Jukka Mäkelä, Timo Hämäläinen

University of Jyväskylä, Department of Mathematical Information Technology, P.O. Box 35, FIN-40100 Jyväskylä,

FINLAND

Gábor Fekete, Jorma Narikka, Anna-Maija Virkki

Jyväskylä Polytechnic, School of Information Technology, Piippukatu 2, FIN-40100 Jyväskylä, FINLAND

Keywords: Handover, routing, wireless communications, mobility.

Abstract: In this paper, a handover mechanism that offers soft handover support between two different IP subnets for

mobile clients is introduced. This handover is a part of a whole mobility support protocol consisting of

several components. The handover is based on a protocol that introduces new methods for updating the

location of mobile nodes. The handover is designed to cause no or minimal packet loss and be fast. It uses

two different interfaces for achieving it.

1 INTRODUCTION

The number of mobile devices used has been

increased in the past few years and they are expected

to be widely used in the near future. The evolution

of mobile devices has increased the use of IP based

applications through wireless links. The normal

routing mechanisms cannot meet the requirements of

mobility and new protocols for handling the

movement of mobile devices are needed. At present

IPv4 is the most commonly used protocol in IP

networks and Mobile IPv4 (Perkins C., 2002) is the

introduced protocol to handle mobility in those

networks. IPv6 is already introduced to be the next

generation of IP and Mobile IPv6 (Johnson D.,

2003), (Perkins and Johnson, 1996), Hierarchical

Mobile IPv6 (HMIPv6) (Soliman et al., 2004),

(Castelluccia, 2000) and (Castelluccia, 1998) are

proposals of techniques to handle mobility in IPv6

networks.

When moving between two access routers which

reside in different subnets a mechanism called

handover is needed and the time this handover needs

to happen should be minimized. The location of the

mobile node is also required to know because it

won’t locate anymore in its home network during its

movement. In mobile IP the location of a mobile

node is known at least by one of the routers in the

home network. This router is acting as a home agent

for the mobile node. In Mobile IP it is needed to

send the binding update messages to the home agent

when doing the handover for updating the mobile

node's location. The distance between the home

agent and the mobile node can be quite far and the

time needed for the updating might increase because

of this distance. There has been a lot of research

about handover to handle the movement. It is

proposed that the mobile node can update the

information first with the access routers to increase

the speed of the handover (Perkins and Johnson,

1996). The same kind of mechanism is also used in

the handover mechanism introduced in this paper.

The current IETF draft about fast handover (Koodli,

2003) develops the idea further so that handover

latency could be minimized and the handover would

be more beneficial and efficient. In (Sulander, 2004)

a flow based method is introduced to decrease the

handover time. In that method the data flow is

directed to the mobile node from the first crossover

router during the update mechanism.

A proposed extension, Hierarchical Mobile IPv6

(HMIPv6) to Mobile IPv6, introduces a new local

home agent called mobility anchor point (MAP).

The MAP is supposed to be closer to the mobile

node than to its original home agent. The mobile

node can do the updating first with this local MAP

121

Mäkelä J., Hämäläinen T., Fekete G., Narikka J. and Virkki A. (2004).

MOBILITY SUPPORT AND SOFT HANDOVER PROTOCOL FOR IP-NETWORKS.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 121-126

DOI: 10.5220/0001385401210126

 SciTePress

and after that with its own home agent. So the

signaling latency during the handover can be

reduced. Mechanisms where the mobile node can

receive packets during signaling the update are also

introduced. However, these protocols still cannot

meet the requirements for applications, which are

delay sensitive, such as voice, especially in macro

mobility management (Vivaldi et al., 2003).

In this paper, we present a handover mechanism

based on the idea presented in (Mäkelä, 2003),

(Fekete, 2003). The brief description of the whole

protocol functionality with new ideas of routing is

going to be published in (Mäkelä et al., 2004). This

presented protocol has a handover mechanism,

which achieves soft handover. The idea is based on

the fact that mobile node have several possible

Layer 2 technologies available (network interface

cards) when doing a vertical handover for IP based

connection (e.g. WLAN and GPRS). When a mobile

node has at least two interfaces for two different

technologies the interfaces can be used

simultaneously during the handover. The handover

is made only between the access routers. The mobile

node does not have to register its new location with

the HA all the time. This handover is based on the

idea that introduces mechanisms, similar to routing

protocols, for updating the location of mobile nodes.

The basic idea is that every router that takes part in

the routing must know the current location of the

mobile node. The use of these mechanisms offers

ways to increase the speed of the handover and

offers a way to accomplish soft handover.

2 NEW ROUTING PROTOCOL

The idea about handling the movement in IP-

networks called DRiWE (Dynamic Routing in

Wireless Environment) protocol (Mäkelä, 2003),

(Fekete, 2003) introduces the mechanisms for

handling the problems of routing for the mobile

devices. The protocol considers only the

mechanisms to handle the OSI Layer 3 movements.

The main idea of the protocol is that the routing

decisions take place only in routers. Those routers,

which participate in routing data flows for the

mobile node, know the location of the mobile node.

The routers use host specified information about

mobile nodes in their routing tables besides the

normal network based routing information. The

protocol also introduces mechanisms to avoid the

gratuitous growth of the routing tables. The routing

table's growth is controlled by allowing the dropping

of the routing information of the mobile node and

getting it by a dedicated mechanism if needed. The

protocol also includes an advertising mechanism so

that routers can propagate the information about the

location of mobile nodes to other routers.

To achieve soft handover, the mobile node uses

two interfaces and communicates with both access

routers (AR1 and AR2, in Fig. 1) at the same time

during the handover. The connection to the new

access router (AR2, in Fig.1) is formed before the

old connection breaks. During the handover, the

mobile node accepts incoming packets from both of

its interfaces. Therefore, there is no need to stop the

data flow at any time. The decision when the

handover should happen is not concerned and is the

one interesting topic for further research, see

Chapter 6. Both interfaces are used only during the

handover so that the current connection is used until

the new connection is totally established and ready

for the data flow. For solving all problems the

protocol still needs more research. (Mäkelä et al.,

2004).

3 HANDOVER

The handover mechanism must be supported by the

access routers, mobile nodes and also by the

intermediate routers between access routers. The

correspondent node that communicates with the

mobile node does not need any support for the

protocol or for the handover mechanism. The

intermediate routers need to support it because of the

behaviour of the introduced update mechanism.

In the example scenario in Figure 1, the mobile

node is attached to AR1 and it’s moving to the

AR2's access network. When the mobile node is

going to connect to the other access network it has to

complete a Layer 3 handover for enabling the IP

traffic. For enabling the connection in the foreign

network the mobile node needs a temporary IP-

address (care-of address) from the new access router

(AR2, in Fig. 1). The care-of address query takes

place through the current access router (AR1, in Fig.

1).

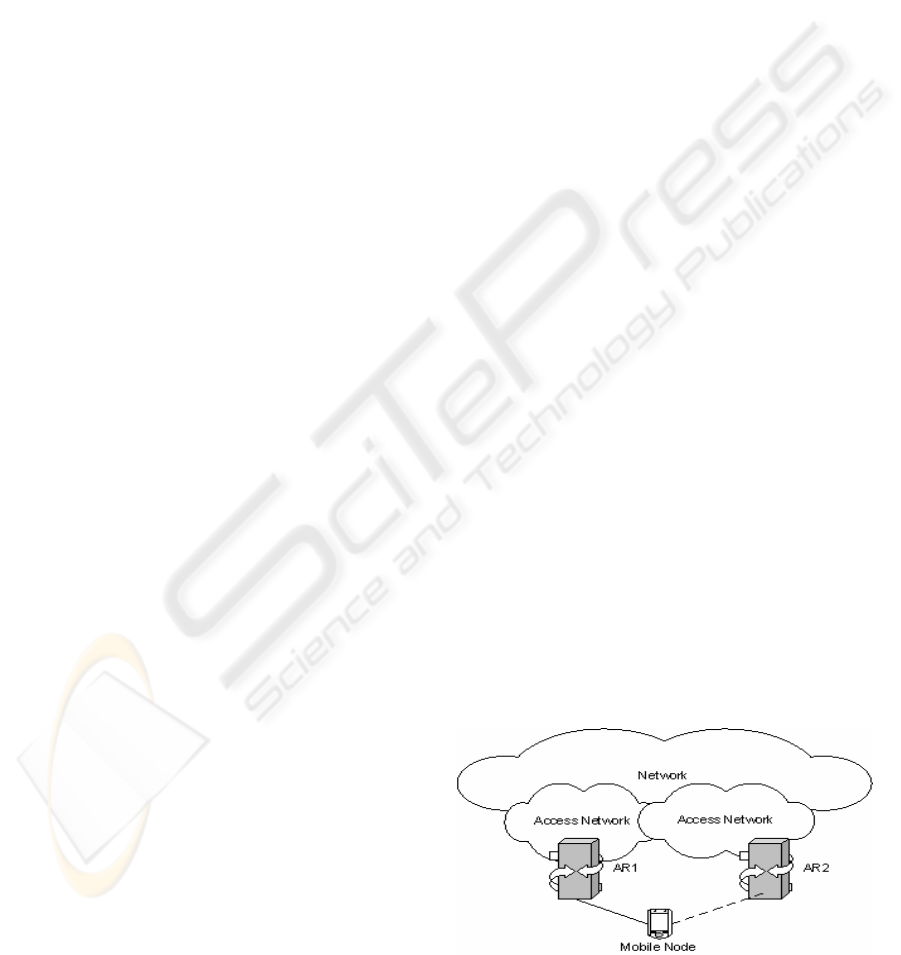

Figure 1: The handover.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

122

For enabling the use of the HoA (the Home

Address) of the mobile node as a source address for

the outgoing packets tunneling is used between the

mobile node and the access router. The packets go

tunneled to the access router by using the care-of

address as the source and the IP address of the

access router as the destination for the tunnel (outer)

packet. The access router decapsulates the packet

and sends the original packet to the destination with

source address being that of the mobile node's HoA.

Packets destined to the mobile node are routed to

their destination by using the HoA as the destination

and will be routed to the current access router. The

access router knows all the mobile nodes that are

currently attached to its network and will deliver the

packets to them.

After the mobile node is correctly attached to the

access network of the new access router (AR2, in

Fig. 1) the updating of the new location of the

mobile node at the previous access router (AR1, in

Fig. 1) starts. When the previous access router (AR1,

in Fig. 1) gets the information about the new

location of the mobile node it starts to forward

packets destined to the mobile node to the new

access router (AR2, in Fig. 1). After the successful

update of the location between access routers the

mobile node changes its default outgoing route to go

through the tunnel towards the new access router

(AR2, in Fig. 1) and the handover has successfully

finished. Figure 2 presents the needed messages for

getting the care-of address (CoA) an updating the

location in a successful handover.

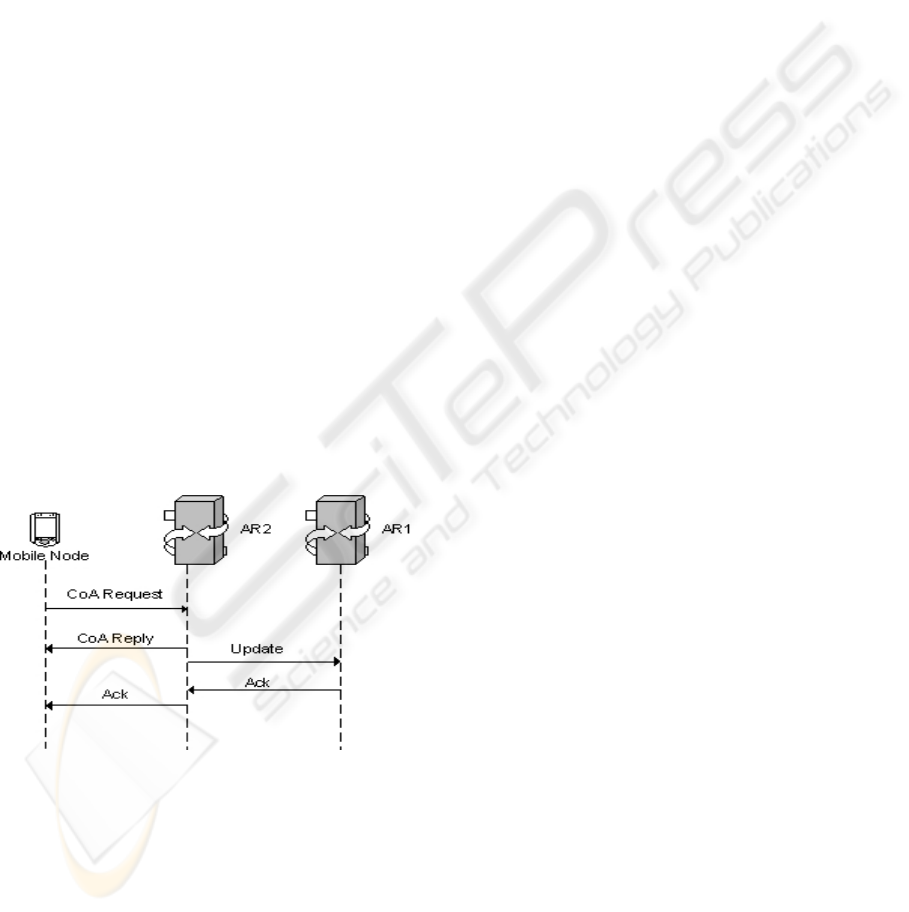

Figure 2: Handover messaging.

The DRiWE protocol introduces a mechanism

for keeping the connections up between mobile

nodes and access routers even when there are no

packets to send or receive. It is done by the

exchanging of timely Keep-Alive messages. The

mechanism gives the information about link breaks

to the mobile node. Without this, when there are

packets to send, the broken connection may not be

detected for quite a long time e.g. when using UDP.

The mobile node can also be prepared for situations

when it is ping ponging between two access routers

or needs to use the older connection again especially

when the current connection is lost and the older

connection is still available. The use of this

mechanism should be very carefully chosen not to

cause extra traffic to the network or extra power

consumption to the mobile node when trying to keep

the interfaces up.

3.1 Update mechanism

The behavior of the mechanism used to update the

location of the mobile node between access routers

needs the update message to be handled at every

router between the access routers. This is necessary

because those intermediate routers have to update

their information about the location of the mobile

node accordingly. Other solution for sending the

update messages is to use tunneling between the old

and new access routers to forward the packets

between them (AR1 and AR2, in Fig. 1). The

DRiWE protocol introduces mechanisms, which

allow routers to acquire the location of mobile nodes

when needed to track down its current position for

routing purposes.

The Update message is sent to the next router on

the route to the destination (AR1, in Fig. 1). The first

intermediate router adds the HoA of the mobile node

included in the message to its routing table and the

next hop will be the router from which this message

was received. Every intermediate router between the

access routers will do the same. When the update

message reaches its destination (AR1, in Fig. 1) this

access router changes its routing table and starts

forwarding the packets to the mobile node through

the new access router (AR2, in Fig. 1).

The update message is also acknowledged to the

sender and to the mobile node. If the sender (AR2,

in Fig. 1) doesn’t get the acknowledgement it sends

the info about erroneous updating to the mobile node

and the recovery mechanism will be started. The

recovery mechanism is for recovering the location

information in the affected routers back to the form

it was before the update. The recovery works like

the update mechanism but will be started also from

both access routers (AR1 and AR2, in Fig. 1). So

the recovery will propagate from both directions and

will recover the situation back even when there is a

link break between the access routers.

MOBILITY SUPPORT AND SOFT HANDOVER PROTOCOL FOR IP-NETWORKS

123

4 IMPLEMENTATION

A proof-of-concept version of the protocol has been

implemented under Linux fully in user space. The

implementation covers the entire fast handover

mechanism and is based on IPv4. The

implementation works with IPv4 but at this stage it

is easy to port it to IPv6 since it does not use any IP

specific things except for IP addresses.

The software was tested in a small Ethernet test

network consisting of four routers, a workstation

working as the MN and another as the CN. During

the tests no TCP connections were lost between the

MN and the CN while handing over, even when the

handover failed (the update recovery mechanism

corrected the paths).

This early draft implementation showed that the

idea is workable. Even though no comparisons were

made to other protocols, such as MIPv6, in the sense

of practical testing but a theoretical comparison can

be seen in the next chapter.

5 COMPARISON TO OTHER

PROTOCOLS

The DRiWE protocol was designed with tools

existing for user space protocol implementation and

because of this there are some shortcomings which

could be solved by redesigning the protocol to work

more tightly in Layer 3 (now only routing table and

interface address modifications are done using

netlink sockets and ioctl calls in Linux).

MIPv6 is known (thought) to not being able to

satisfy seamless handovers due to the procedures it

has to accomplish during its handover phase.

Besides Duplicate Address Detection (DAD) and

authorizations, it needs to send BU messages to each

of its CNs in order to update their knowledge of the

actual location of MNs. Until the CNs are not

updated they continue sending packets to the old

CoA of the MN, thus resulting in possible packet

losses if that CoA is not used by the MN any longer

(e.g. it has only one interface). Plus, the MN has to

during a handover only one Update message is sent

out from the new AR to the old AR. This allows the

MN to be accessible at the new AR immediately. It

is because it can be assumed that it was reachable at

the old AR and what the Update message did was

that it updated the routing information of the old AR

to forward packets for the MN towards the new AR.

Because of the update mechanism of the DRiWE

handover, the MN may not be accessible on the best

path from a CN. In MIPv6 it is accessible because

every CN knows the CoA of the MN, so they can

send packets to it using the best path (according to

their and subsequent router's routing tables). In

DRiWE, traffic is not routed to the MN by its CoA

but by its HoA. It means that after a handover the

MN is accessible through its old AR (and the routers

between the old AR and the new AR, because they

became updated by the update mechanism). For the

MN to be accessible on optimised routes it is

necessary to update the routers that store information

about its previous (or older) location. For this a

routing protocol can be used which is initiated by the

MN through its current AR. A simple and fast

routing protocol could do the job (like RIP).

In MIPv6 the HA is acting as a Proxy for

Neighbour Discovery messages destined to the MN.

It is used to make the local nodes in the home

network to send packets destined to the MN to the

HA's MAC address instead. The same mechanism is

also needed for DRiWE for the same reason.

Timers for bindings in CNs and HAs are used by

MIPv6 to drop unused bindings from their binding

caches. In DRiWE, routers can drop unused routing

table entries that correspond to MNs. It can be done

either when the routing table size reaches a certain

size or by maintaining a timer for unused entries (or

both). Although, there are Keep-Alive messages

exchanged between MNs and ARs to keep alive MN

registrations. If the MN does not get Keep-Alive

messages from the current AR for a specific amount

of time it tries to change its AR back to the previous

one. It is possible because the MN keeps alive its

registration to the previous AR.

MIPv6 supports the discovering of the HA by a

MN by means of Dynamic Home Agent Address

Discovery (DHAAD). This mechanism can be used

to DRiWE too.

The Home Address Destination Option

(HoADO) is used by MIPv6 to avoid using

tunneling of packets from the MN to CNs. If

tunneling were used then the destination address in

both the inner and outer IP headers would be the

same, thus resulting in wasting bytes. For traffic

from CNs to MNs the type 2 routing header is used.

In DRiWE tunneling is used to send packets from

the MN to CNs. The current implementation of the

protocol uses a tunnel between the MN and the AR

when sending packets to CNs outside the visited

network. It means that these packets will have the

MN's HoA as their source when reaching the CN.

There is an issue when sending packets to CNs in

the visited network, because in that case the MN

would send them using its CoA as the source address

even though the CN might be waiting for a packet

from the HoA of the MN (in the case when the CN

wants to talk to the MN at its HoA). Therefore, it is

assumed that CNs should not use the CoA of the

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

124

MN, what's more, they should not even know it.

There is no really need for a CN to send packets to

the MN using its CoA in DRiWE. The CoA is

considered to be known only by the respective

access router and the MN. Another assumption is

that all the packets sent by the MN have the HoA as

the source (they go through the tunnel between the

MN and the access router) and the MN is allowed to

use its CoA for communication only with the access

router. This way CNs always talk to the MN at its

HoA.

In MIPv6 this is solved by manipulating packets

in Layer 3 of the network stack and using HoADO

and the type 2 routing header. Resulting in all the

packets sent to CNs with bindings being seen at their

destination as coming from the HoA of the MN. But

when a CN has no binding for the MN it is not clear

in MIPv6 which address will be used by the MN

when sending packets to this CN (e.g for long term

UDP connections established inside the visited

network).

In FMIPv6 for the protocol to work there must

be a router in the currently visited network that may

work as a proxy for the MN. This proxy router is

used to tunnel packets arriving to the MN's CoA in

its network to the new AR in the new visited

network. As mentioned in Chapter 3, the update

mechanism can be implemented by using tunneling

between the old AR and the new AR, thus making

the old AR to tunnel packets destined to the MN's

HoA to the new AR. This mechanism is more or less

equal to the FMIPv6 way. Both protocols have to

tear off the tunnel after some time. FMIPv6 when

the MN has finished with updating the CNs, and

DRiWE after the normal update mechanism

(modifying/adding location information of the MN

in the old AR and the routers towards the new AR).

The MIPv6 L3 handover starts after the MN has

detected movement (already moved) to a new

network (by receiving Routing Advertisements with

unknown prefixes). For a DRiWE-handover to start

the MN has to know the IP address of the AR

beforehand. The same applies to FMIPv6.

MIPv6 by default supports MNs with one

interface. DRiWE needs at least two interfaces of the

same type. These two interfaces must be of the same

type to provide smooth handover (one is used while

the other is being configured). FMIPv6 also supports

one interface by default, although to receive L2

information about the new AR while still connected

to the old one it may need a second interface.

DRiWE implements fast and smooth handovers.

Fast means that the handover needs less signalling

than handovers for MIPv6, and smooth means that

no or minimal number of packets get lost during the

handover thanks to the use of multiple interfaces.

Even though the handover is faster than of MIPv6's,

the routes for reaching the MN after a handover may

not be the optimal ones. For this an additional

location advertisement is necessary (MN routing

advertisement). In MIPv6 CNs have knowledge

about the exact location of MNs by BU messages. In

DRiWE, the knowledge in routers about MNs may

not be direct. This is caused by the way the MN's

location is updated during handovers. That is, to

provide routers with exact location information of a

MN, the MN has to advertise its location (MN

routing advertisement). This advertisement can be

matched with the sending of BU messages in

MIPv6.

FMIPv6 provides fast handover for MIPv6 by

reducing the necessary number of signalling during

the handover process until the MN regains IP

connectivity at the new AR. But after the fast

handover the MN needs to send BU messages to

CNs in order to use optimised routes. Therefore, it

has a similar kind handover style as DRiWE. It has

two phases, the first phase is to provide fast

establishment of IP connectivity and the next is to

“build “ optimised routes to the MN. Even though

the second phase of FMIPv6's handover may be

faster in large networks (with lots of routers) then

that of DRiWE's, DRiWE may need less signalling

in small networks with lots of CNs.

In FMIPv6, when the new AR receives the

Handover Initiate (HI) message from the old AR, it

starts to defend the new CoA of the MN until the

MN arrives at the new network. The same kind of

mechanism is needed in DRiWE for the same

purposes as for FMIPv6. That is, to defend the new

CoA from being used by another node in the

network of the new AR until the MN arrives there.

This defending means that the new AR must work as

a proxy for neighbour discoveries for the MN for the

new CoA.

Security was not designed into DRiWE yet,

though it is obviously needed. For example only

authenticated MNs must be allowed to register to

ARs and to instruct them to start e.g. the update

mechanism. For protocol messages sent between

ARs and routers the same security considerations

may apply as for normal routing protocols.

6 CONCLUSION AND FUTURE

WORK

By the current design of the DRiWE protocol it can

be seen that it may be useful in small networks

where fast handover is necessary for MNs and the

number of CNs the MN is communicating with is

high. The maximum size of the networks in which

the protocol could be used depends on the

MOBILITY SUPPORT AND SOFT HANDOVER PROTOCOL FOR IP-NETWORKS

125

advertisement method of location information of

MNs, which part of the protocol needs further

research.

Even though there are a few issues remained to

solve, the protocol is usable and the issues can be

dealt with by moving some of the protocol

mechanisms to lower layers (e.g. Layer 3).

Further research is needed to incorporate

movement detection. There are several projects

working in this interesting area, because it is needed

by all the mobility support protocols as well (e.g.

MIPv6).

It is also planned to make the protocol able to

intelligently choose between various available

access technologies (which also involves handover),

that is to support vertical handover.

REFERENCES

Castelluccia C., 2000. HMIPv6: A Hierarchical Mobile

IPv6 Proposal, ACM Mobile Computing and

Communications Review, vol.4, no.1, January 2000,

Pages 48-59.

Castelluccia C., 1998. A Hierarchical Mobility

Management Scheme for IPv6. Proceedings of the

Third IEEE Symposium on Computers and

Communications 1998 (ISCC ’98), 30 June-2 July

1998, Page(s): 305-309.

Fekete G., 2003. The implementation of the DRiWE

Mobility Support Protocol. Bachelor’s Thesis,

Jyväskylä Polytechnic.

Johnson D., Perkins C. and Arkko J., 2003. Mobility

Support in IPv6. IETF draft, work in progress.

Koodli R., 2003. Fast Handovers for Mobile IPv6. IETF

draft, work in progress.

Mäkelä J., 2003. Dynamic routing for the wireless devices

in IP-networks. Master’s Thesis, University of

Jyväskylä, in finnish. 2003.

Mäkelä J., Fekete G., Narikka J., Hämäläinen T., Virkki

A-M.,2004. Soft handover and routing mechanisms for

mobile devices. To be published in The 15th IEEE

International Symposium on Personal, Indoor and

Mobile Radio Communications, September 2004,

Barcelona, Spain.

Perkins C., 2002. IP Mobility Support for IPv4, IETF RFC

3344, August 2002.

Perkins C. and Johnson D., 1996. Mobility support in

IPv6. Proceedings of the Second Annual International

Conference on Mobile Computing and Networking

(MobiCom’96), Rye, New York, USA, November 1996.

Soliman H., Castelluccia C., El-Malki K., Bellier L., 2004.

Hierarchical Mobile IPv6 mobility management

(HMIPv6). IETF draft, work in progress.

Sulander M., Hämäläinen T., Viinikainen A., Puttonen J.,

2004. Flow-Based Fast Handover Method for Mobile

IPv6 Network. Proceedings of the 59

Semi Annual

Vehicular Technology Conference Spring 2004.

Vivaldi I., Ali B.M., Habaebi H., Prakash V., Sali A.,

2003. Routing scheme for macro mobility

handover in hierarchical mobile IPv6 network.

Proceedings of the 4th National Conference on

Telecommunication Technology 2003 (NCTT

2003), 14-15 Jan. 2003, Page(s): 88-92.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

126
