SPUR: A SECURED PROTOCOL FOR UMTS REGISTRATION
Manel ABDELKADER and Noureddine BOUDRIGA
National Digital Certification Agency
3 bis rue d’Angleterre, Tunis RP 1000,Tunisia
Keywords:
UMTS Release5, Registration, Authentication, IMS Security , SIP Security, Security Associations
Abstract:
This paper presents a new scheme for mobile identification and registration in UMTS networks. Our approach
attempts to alleviate different limitations observed with the current solutions (such as the 3GPP). It guarantees
the protection of the data transmitted on the SIP messages during the registration procedure. Our method
provides the authentication of the main entities involved in the registration procedure. It develops a mechanism
for the management of relating security associations.
1 INTRODUCTION
Recently, the development of the Universal Mo-
bile Telecommunications System (UMTS) architec-
ture has known great evolutions as it can be noticed
with the 3GPP specifications (Kaaranen et al., 2001).
Since its release 5, the UMTS network has emerged
to an all IP network leading to the introduction of
new protocols and procedures (TS 23.228, 2003; TS
22.228, 2002). Among the most important subjects
that have been discussed for the all IP network, one
can find the problem of how to overcome the different
threats applicable to the UMTS networks (TS 33.900,
2000; TS 33.120, 2000; TS 21.133, 2001).
The registration procedure of a mobile to a ser-
vice provided by a UMTS network represents one of
the critical phases that should be protected. During
this phase, there is no fixed definition of the mecha-
nism that allows to protect the integrity, confidential-
ity and authentication of the Signaling Initiation Pro-
tocol (SIP) messages involved with the Internet Multi-
media Subsystem Authentication and Key Agreement
(IMS AKA) process (TS 33.203, 2002; TS 24.229,
2002; Rosenberg et al., 2003).
Different proposals have been presented to provide
registration ((S3-000689, 2000) and (S3z000010,
2000)). Authors of (S3-000689, 2000) have proposed
that the Proxy Call Session Control Function (PC-
SCF) performs the IMS AKA with the Mobile Sta-
tion (MS) and terminates integrity and confidentiality
protection of the SIP messages transmitted by MS.
However, the protection of the remaining segments
of the communication toward the Serving CSCF (SC-
SCF) is based on the network domain features us-
ing Internet Protocol Security (IPsec). Therefore,
the SCSCF may not be able to authenticate users at
the service level. Authors of (S3z000010, 2000), on
the other hand, have proposed that authentication and
re-authentication procedures should be made by the
Home Subscriber Server (HSS) using AKA process.
The integrity and the confidentiality keys are then
transmitted to the SCSCF and the PCSCF to insure
the protection of the SIP messages. The main draw-
back of this approach is the important load added to
the HSS. The 3GPP scheme allows to overcome some
drawbacks of the previous two proposals by moving
the authentication process to the SCSCF.
The IMS AKA (TS 33.203, 2002) presents itself
other lacks of security, which include for example the
following facts: (1) it transmits (in clear) the mobile
private data; (2) it does not provide the authentica-
tion of the serving network to the user; and (3) it al-
lows the SCSCF to attribute the user private keys to
the PCSCF, which reduces the user’s level of security.
Limitations can be at the origin of different attacks
such as masquerading and man in the middle.
In this paper, we propose a secured registration pro-
cedure, called SPUR scheme, in all IP UMTS net-
works that overcomes the previous mentioned limi-
tations. We will mainly focus on the registration of a
mobile to a service and provide protection schemes of
the data transmitted on the SIP messages. Our method
8
Abdelkader M. and Boudriga N. (2004).
SPUR: A SECURED PROTOCOL FOR UMTS REGISTRATION.
In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 8-16
DOI: 10.5220/0001386800080016
Copyright
c
 SciTePress

is independent from the security mechanisms adopted
in the lower layers. We also develop in this paper a
proposition for a secured management of the security
associations that we define for need of protecting the
communication between the mobile and the IMS.
The remaining part of this paper is organized as fol-
lows: Section 2 develops the SPUR scheme and de-
scribes all its steps. It also presents a procedure for re-
registration. Section 3 adapts the concept of security
association to protect the security elements needed for
the execution of SPUR. A secured model for security
associations management is also defined. Section 4
analyzes SPUR’s features and compares it to 3GPP.
Section 5 develops a SPUR simulation, where the ef-
fects of message size on the error probability and the
additional flow between nodes are estimated. Section
6 gives the conclusion of this paper.
2 THE SECURED PROTOCOL
FOR UMTS REGISTRATION
The secured protocol for UMTS registration (SPUR)
is designed to increase the security level of the regis-
tration process in the UMTS networks. It adds differ-
ent security measures to the registration protocol as
adopted by the 3GPP. It includes two procedures: the
initial registration and the re-registration procedures.
The following subsections develop these procedures.
2.1 Terms and notations
Nodes of the IMS subsystem contribute to the accom-
plishment of SPUR. However, for sake of simplifica-
tion, the most important entities involved with SPUR
are the following:
• The PCSCF: The Proxy Call Session Control Func-
tion behaves like a proxy. It accepts the MS requests,
serves them internally or transfers them. In the case of
registration, the PCSCF transfers the SIP REGISTER
request of a user to an I-CSCF according to the home
network domain name of the MS(TS 24.229, 2002).
• The ICSCF: The Interrogating Call Session Control
Function is the contact point within an operator’s net-
work for all connections related to subscribers of this
network. In the case of registration, upon the receipt
of SIP REGISTER request, the ICSCF gets the ad-
dress of the SCSCF from the HSS(TS 24.229, 2002).
• The SCSCF: The Serving Call Session Control
Function acts as a SIP registrar. It provides services
to the MS and controls the sessions of the users(TS
24.229, 2002).
• The HSS: The Home Subscriber Server is the mas-
ter database for users containing their subscription re-
lated information(TS 23.228, 2003).
The terms used in the sequel by SPUR scheme are the
following:
• IMPI, IMPU:the private and public identity of a
user.
• K
P X
, k
pX
:the public key and the private key of X.
• Cert
X
, Cert
HP
, Cert
HS
: the relative identity
Certificate of X and of the PCSCF delivered by the
HSS, and the attribute Certificate of the SCSCF de-
livered by the HSS.
• ID
X
: the identifier of X(could be an IPv6 address).
• AK: authentication key shared between MS and
HSS(TS 33.102, 2000).
• K
si
: the session key established between the PC-
SCF and the MS.
• req
i
, res
i
: challenge and response used between the
MS and the PCSCF during the establishment of K
si
.
• AV
i
: the authentication vector number i of a user as
defined in(TS 33.102, 2000).
2.2 The Secured Registration
Protocol
The registration procedure is initiated by a mobile
when it wants to access a service, for the first time.
The deployment of SPUR scheme supposes the satis-
faction of the following assumptions:
• Every mobile MS possesses an identity certificate
delivered by its home network.
• Every node of the Internet multimedia subsystem
has an identity certificate. This includes the PCSCF,
ICSCF, HSS, and SCSCF.
• The different Certification Authorities (CA) serving
the function of publishing certificates of the above
mentioned entities are linked to a Bridge Certification
Authority (BCA)(Hastings and Polk, 2000) to ensure
cross-certification.
• The signaling protocol used between the nodes of
the IMS is assumed to be the SIP-EAP-TLS.
The registration protocol (as depicted by Figure 1) is
a 15-step procedure defined as follows:
Step1. Mobile MS signs its private identity with its
private key (k
pMS
) and encrypts it with the public
key of its HSS (K
P HSS
). After that, the MS sends
message M
1
to the related proxy PCSCF
M
1
= {E = [(IMP I)
−
k
pMS
]
−
K
P HSS
, Cert
MS
, Cert
HSS
, IM P U}
(where (-)_k stems for the encryption function using
key k). MS can obtain the address of the PCSCF from
the Gateway GPRS Support Node after the success of
a PDP ATTACH process (TS 23.060, 2002).
SPUR: A SECURED PROTOCOL FOR UMTS REGISTRATION
9

mutual authentication
TLS
mutual authentication
TLS
mutual authentication
TLS
mutual authentication
TLS
M1
M2
M3
M4
M5
M7
rM5
rM6
rM6’
M8
M9
M10
M11
M12
M13
M14
M15
M16
M17
M18
MS PCSCF ICSCF SCSCFHSS

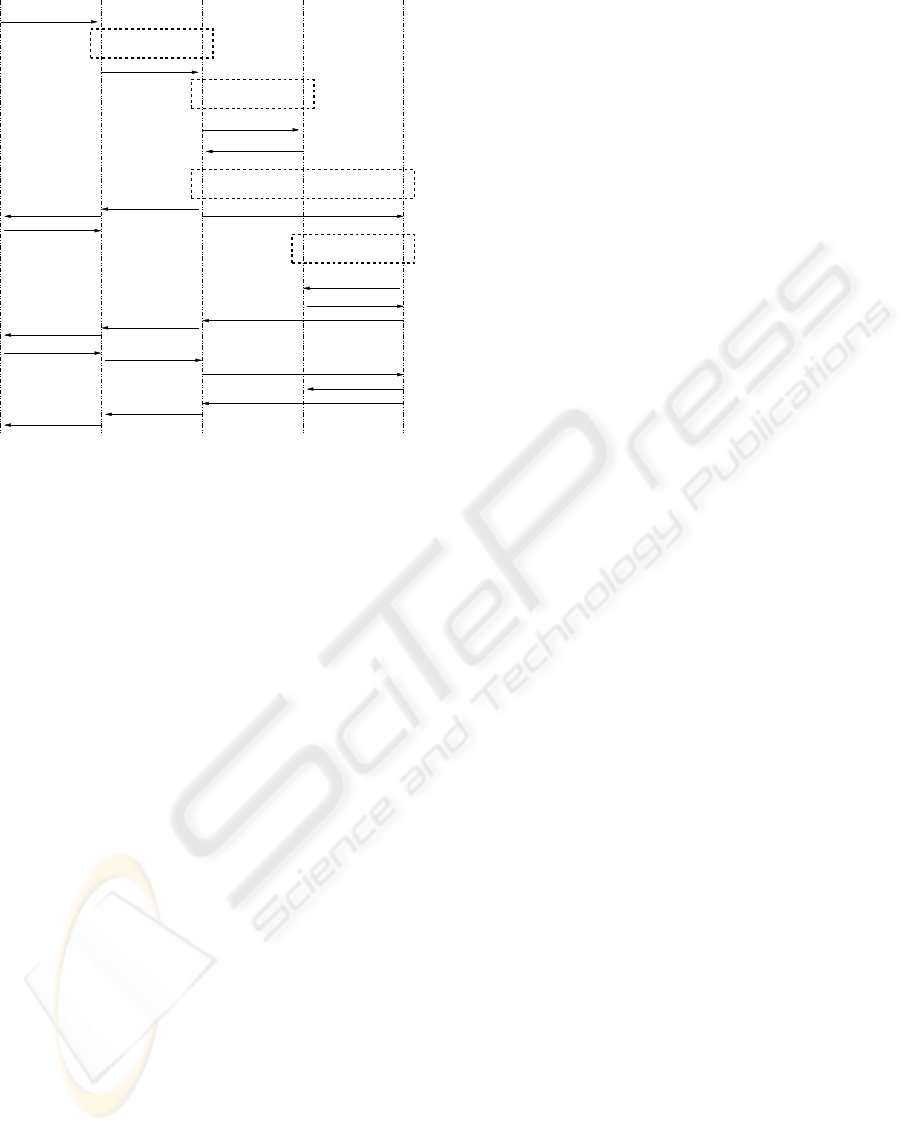

Figure 1: SPUR Architecture
Step 2. Upon receipt of M
1
, the PCSCF checks the
identity of the mobile home network to deduce the ad-
dress of the ICSCF. Then, it initiates a secured session
with the ICSCF based on TLS protocol. This pro-
cess needs mutual certificates verification. Then, the
Bridge Certification Authority (BCA) intervenes. The
main purpose of the assumption on BCA is to facili-
tate the certificate verification process and to ensure
inter-operability between the different operators.
Step 3. After the mutual authentication phase and the
share of a symmetric session key, the PCSCF sends
a message M
2
containing the information sent by the
MS to the ICSCF.
Step 4. The ICSCF extracts the address of the HSS
relative to MS from message M
2
. Then, it initiates a
secured session with this HSS based on TLS protocol.
After that, the ICSCF retransmits to the HSS a mes-
sage M
3
that includes the MS’s information and the
certificate of the current PCSCF.
Step 5. The HSS decrypts part E of message
M
1
and verifies the signature of MS. Next, the
HSS checks the private identity of MS and checks
whether MS has the rights to accede the requested
service. In the positive case, the HSS determines
the address of the suitable SCSCF that is able
to provide the service. On an other hand, the
HSS verifies the validity of the PCSCF certificate
and generates an identity certificate Cert
HP
=
(K
P P CSCF
, ID
P CSCF
, δCert
HP
)
−
k
pHSS
that
will be transmitted to MS to verify the identity of
the PCSCF. Variable δCert
HP
defines the validity
period of the certificate that we assume relatively
short in order to avoid the verification of certificate
revocation list at the MS level for this type of
certificates. Cert
HP
is then sent to the ICSCF.
Step 6. On receipt, the ICSCF transmits certifi-
cate Cert
HP
and the public identity of MS to the
PCSCF in message rM
5
. rM
5
constitutes an im-
plicit acknowledgment to the PCSCF, indicating that
the identity of MS has been verified and that it
should keep the connection until the accomplishment
of the registration process. In the same time, the
ICSCF establishes a secured session with the SC-
SCF based on the TLS protocol. Then, the ICSCF
transmits message M
5
to the SCSCF which includes
{E, Cert
MS
, Cert
HSS
, IM P U}.
Step 7. The PCSCF computes a symmetric session
key K
si
and signs it with private key k
pP CSCF
and
encrypts it with public key of MS K
P MS
. Next, the
PCSCF sends the E
0
= [(K
si
)
−
k
pP CSCF
]
−
K
P MS
,
a challenge req
i
and the certificate Cert
HP
delivered
by the HSS to the MS in message rM
6
.
Step 8. MS verifies the signature of the HSS on
Cert
HP
. It decrypts E
0
and verifies the signature of
the PCSCF on the session key K
si
. In the case of ver-
ification success, MS stores the session key to be used
in its communications with the PCSCF. Furthermore,
MS computes the response res
i
= (req
i
)
−
K
si
and
sends it to the PCSCF in the message rM
0
6
.
Step 9. When the SCSCF receives the message M
5
,
it extracts the address of the HSS, initiates a secured
session with it based on the TLS protocol. Then, the
SCSCF sends E = [(IMP I)
−
k
pMS
]
−
K
P HSS
and
the certificate Cert
MS
of the mobile.
Step 10. The HSS verifies the validity of mobile MS
certificate and its private identity.
Step 11. The HSS extracts the authentication vec-
tors relating MS. The structure and contents of these
vectors are identical to those defined by the 3GPP
in the IMS AKA (TS 33.203, 2002). The HSS ex-
tracts the different public identities of MS in order to
give them to the SCSCF, to be used in the case where
the same MS requests another access to a different
service provided by the same SCSCF during the pe-
riod of validity of the active registration. Then the
vectors and the public identities are signed with the
private key k
pHSS
of the HSS and encrypted with
the public key of the SCSCF. The HSS generates
an attribute certificate in which it signs that the cur-
rent SCSCF will offer the asked service to the MS
Cert
HS
= (ID
SCSCF
,service,δCert
HS
)
−
k
pHSS
,
where δCert
HS
is the validity period of the certifi-
cate, which is defined by the HSS in order to avoid
the use of CRLs for MS. However, It should fulfill
the following condition in order to guarantee service
continuity:
δCert
HS
< δCert
HP
.
Step 12. The HSS sends the message M
8
= {E” =
({AV
i
, {IM P U}}
−
k
pHSS
)
−
K
P SCSCF
, Cert
HS
}to
ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS
10

the SCSCF. Moreover, it updates the mobile infor-
mation (location, current request for registration,
SCSCF concerned) and it is supposed to wait the
end of the registration request to lunch the charging
procedure.
Step 13. On the receipt of message M
8
, the SCSCF
decrypts E” and verifies the HSS signature. Then,
the SCSCF selects a vector AV
i
, extracts the values
of RAN D
i
and AUT N
i
, which are sent with the
Cert
HS
to the mobile MS.
Step 14. MS verifies the attribute certificate Cert
HS
and the freshness of the sequence number present in
the AUT N
i
. Next, it computes the response RES
i
,
the integrity key IK
i
and the confidentiality key CK
i
.
Then, MS sends the response RES
i
to the SCSCF.
Step 15. The SCSCF verifies the correspondence of
RES
i
and the value XRES
i
present in the AV
i
. On
success, the SCSCF sends a flag M
15
to inform the
HSS. It also sends a positive acknowledgment to the
MS containing the period of time after which the mo-
bile should proceed to a re-registration. This period
is defined as T − dt and is sent protected with the
integrity key IK
i
and the confidentiality key CK
i
.
2.3 The Re-registration Protocol
When a mobile wants to extend an active registration,
it proceeds as shown in Figure 2. For this, it attempts
to perform the following steps:
• The MS sends its public identity and the last com-
puted RES
i
, for the current registration, protected
with the integrity key IK
i
to the SCSCF.
• When receiving this message, the SCSCF choses a
new authentication vector AV
j
and sends the corre-
sponding RAN D
j
and AUT N
j
to the MS.
• The MS computes the value RES
j
and the new
integrity and confidentiality keys (IK
j
and CK
j
).
Then, it sends the RES
j
to the SCSCF.
• After the verification process, the SCSCF starts the
use of the new keys (IK
j
and CK
j
) and sends in an
acknowledgment message to the MS the lifetime of
the new registration.
MS
SCSCF
R1:
(IMPU,RESi)_IKi
R2
(IMPU, RANDj,AUTNj)_IKi
R3:
(IMPU, RESj)
R4:
(ACK, {(T-dt)_IKj)_CKj

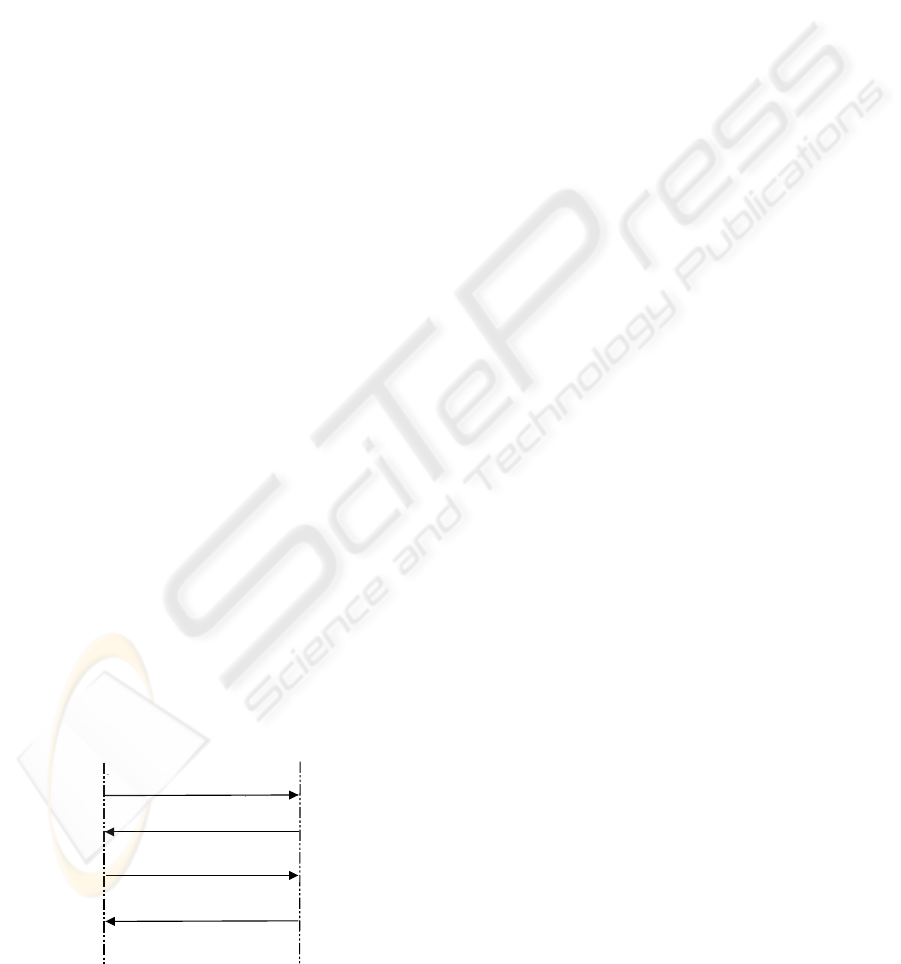

Figure 2: The re-registration procedure
3 MANAGING SECURITY
ASSOCIATION IN UMTS
ENVIRONMENT
In 3GPP, security associations (SA) were only defined
between mobiles and the PCSCF (TS 33.203, 2002).
The setup of these SAs is done during the registration
process. A SA includes the following five major at-
tributes: (1) a uniquely defined identifier of the SA;
(2) the destination and the source address or identi-
fier; (3) the authentication, integrity and encryption
algorithms; (4) the keys lengths; and (5) the finite SA
lifetime.
We have found that this kind of SAs cannot be
adopted as they are, since PCSCF has no longer the
same responsibilities as those defined in (TS 33.203,
2002). Our aim in this section is to provide an adapta-
tion of this paradigm to provide a good management
process and better security of the exchanged elements.
3.1 Defining security associations
Since the integrity and confidentiality keys would not
be sent to the PCSCF, new SAs should be defined be-
tween the MS and the SCSCF. Other SAs should take
place between the MS and the PCSCF. These associ-
ations allow the definition of security agreements be-
tween the different communicating entities.
Managing SAs between MS and PCSCF. SAs
ensure the establishment of the security mode al-
lowing the access to the IP network. In fact, they
would guarantee confidentiality and integrity of the
exchanged data between the MS and the PCSCF. The
associations are characterized by the following as-
pects:
• the identifier of the mobile is no longer its pri-
vate identity IM P I. It will be replaced by the public
identity (IMP U ) and the IP Address of the mobile,
• the keys defined between the PCSCF and the MS
are symmetric session keys (and no longer the in-
tegrity and the confidentiality keys).
The setup of SAs starts when the mobile sends its
first request for registration. In fact, message M
1
in-
cludes the necessary information to negotiate security
parameters between the MS and the PCSCF and to
authenticate MS. Those information specify the iden-
tity of the mobile, its supported algorithms, and its
identity certificate. Upon receiving message M
1
, the
PCSCF verifies the security mechanisms presented by
the MS. Then, it waits for message rM
5
to authenti-
cate MS. This message implies the result of the check
of the validity of the identity certificate of the mobile
as well as its private identity in the HSS. In addition,
the PCSCF receives its temporary identity certificate
delivered by the HSS and the current valid Certificate
Revocation List (CRL). The two certificates allow the
SPUR: A SECURED PROTOCOL FOR UMTS REGISTRATION
11

PCSCF to set up the lifetime of the SA. Therefore,
the lifetime of SA should be smaller than the validity
period of both Cert
HP
and the CRL. Otherwise, SA
would be invalid when one of the two certificates be-
comes invalid. In this case, a request for a certificate
renewal or a new CRL should be sent.
After the determination of the SA lifetime, the
PCSCF computes a symmetric key, signs it and en-
crypts it with the public key of the MS. Then it
sends message rM
6
to the MS in which it defines the
SAs. rM
6
would include the chosen security mecha-
nisms, the certificate Cert
HP
, the lifetime of the SA
and the symmetric session key. To ensure the secu-
rity of the SA, the two latter parameters should be
sent signed and encrypted. In addition, the PCSCF
sends a request req
i
to MS. When receiving rM
6
, the
MS authenticates the PCSCF with the verification of
Cert
HP
. Then, it stores the parameters of the SA to
be used on the following messages. Furthermore, MS
computes the response res
i
and sends it to the PCSCF
to accomplish the SA setup procedure.
Managing SAs between MS and SCSCF. To pro-
vide an end to end security between the MS and the
SCSCF, new SA should be established between these
two entities. The definition of these SAs allows the
protection of all kinds of access to the services in-
dependently of the access network. Even if there is
a security weakness on the communication links, the
SCSCF could verify, and no longer delegate, the in-
tegrity and confidentiality of the messages sent by
MS. In this case, SAs are defined between the MS,
which is defined by its public identity IM P U and
by its IP address, and the SCSCF defined by its IP
address. The selection of the security mechanisms
(e.g., authentication, integrity and confidentiality) to
be used/declared in SAs is done during the registra-
tion process. In fact, the MS sends with message M
1
the lists of its supported security mechanisms, the in-
dex of its security association, its identity certificate
and its root certificate. Based on M
1
, the SCSCF de-
termines the mechanisms that it would deploy. Then,
it authenticates the MS through the verification of its
private identity and its identity certificate in the rel-
ative HSS. After that, the SCSCF use the CRL and
the validity period of the Cert
HS
to deduce the life-
time of the security association such as it will have the
smallest value. Next, the SCSCF chooses an authenti-
cation vector AV
i
and extracts RAN D
i
and AUT N
i
.
These parameters would allow the MS to compute the
integrity and the confidentiality keys IK
i
and CK
i
.
Finally, the SCSCF sends the previous indicated pa-
rameters to the MS in message M
9
. On the other side,
the MS would verify the freshness of the message and
the identity of the SCSCF. Then, it computes RES
i
,
IK
i
and CK
i
. Next, the response of the MS (using
message M
12
) will confirm the choices indicated in
the SA.
To resume, one can note that the keys and the pa-
rameters defined in each security association are those
existing in the authentication vectors delivered by the
HSS to the SCSCF. Therefore, every authentication
vector contributes to the definition of a security asso-
ciation. The lifetime of the SAs defined both in the
MS and in the SCSCF are specified to be longer than
the lifetime of the registration. Thus, the request for
re-registration is protected by the security association
yet established. After the definition of the two SAs,
the next sub-section will consider the mechanisms of
protection of the SA databases.
3.2 The protection of the security
associations
The security associations previously defined are
stored in specific data bases (SADB). The protection
of these databases needs in addition to a secured hard
storage an enforcement of some appropriate protec-
tion. Thus, we propose the definition of two types of
SADBs:
• the first contains the list of SAs established at a
defined moment. It can include SAs established be-
tween the MS and the SCSCF:
SA# Source
Address
Destination
Address
Encryption
algo
Auth
Algo
Integrity
Algo
Ptr# rule#
• the second contains the security policies defined be-
tween the different operators (e. g. between the SC-
SCF and the HSS).
Rule# Source Ad-
dress
Destination
Address
Encryption
algo
Authentication
algo
Integrity Algo
The use of these databases ensures more protec-
tion of the SAs, since there is a continuous verifica-
tion of the conformity of a security association to the
rules defined between two different operators. Fur-
thermore, this approach can offer security as a quality
of service given to the subscribers according to the
agreements defined between the HSS and the SCSCF.
4 SPUR ANALYSIS
In this section, the most important SPUR provisions
are quoted. Furthermore, a comparison between the
security mechanisms defined respectively in the 3GPP
protocol and the SPUR is presented.
ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS
12

4.1 Security provisions
SPUR scheme presents different security provisions.
More precisely, one can state the following:
• SPUR guarantees the protection of the integrity and
confidentiality of the transmitted data between the dif-
ferent entities of the IMS at the SIP layer. It ensures
two types of security mechanisms. The first is based
on the use of TLS between the nodes of the IMS in-
cluding PCSCF, SCSCF, ICSCF and HSS. The second
uses the different SAs established between the MS,
PCSCF, and SCSCF. So that every kind of transaction
between the different participants in a communication
is highly protected.
• SPUR allows the MS to authenticate the SCSCF and
the PCSCF in addition to the home network. This is
ensured by the use of certificates delivered by the HSS
to each node. The MS can verify each time the signa-
ture of the HSS on the identities of the two nodes. If
the verification is successful, the MS is sure that the
HSS had authenticated the PCSCF and the SCSCF.
• SPUR provides end-to-end security for the private
data of the MS. In fact, the use of SAs between the MS
and the SCSCF allows to the server as well as to the
MS to be sure that the integrity and the confidentiality
of the exchanged data are protected during the validity
of the security association.
• SPUR is independent from the protocols used in the
lower layers, since all the presented mechanisms are
implemented in the SIP messages without a need for
lower protocols layers.
• SPUR exploits (or integrates) the 3GPP registration
procedure. In fact, we have not changed the authen-
tication vectors defined by the GPP standards. How-
ever, we have added other mechanisms to enforce the
security of the exchanged data.
4.2 Comparing SPUR to 3GPP
protocol
SPUR presents many enhancements comparing to
the different propositions for UMTS registration.
Siemens proposal has different drawbacks (S3-
000689, 2000). First, there is no kind of authen-
tication between the MS and the SCSCF. The MS
only authenticates the HSS. This approach can induce
different attacks such as masquerading and man in
the middle attacks. Furthermore, the protection fea-
tures used between the nodes of the IMS are based on
the security mechanisms defined at the network layer.
This means that the absence or the weakness of the
security protocols implemented at the network layer
could lead to an unprotected transmission of the pri-
vate user data. This presents an important threat to the
user security and does not respect the 3GPP require-
ments on SIP.
On an other hand, Ericsson proposal does not
present a practical solution (S3z000010, 2000). In
fact, it adds significant loads to the HSS, which must
insure authentication and re-authentication each time
a mobile accesses the IMS. Also, the performance of
the HSS would decrease when sending the challenge
and waiting for a response. Another drawback is re-
lated to the complexity of the re-authentication pro-
cedure, which is invoked by the HSS and induces the
retransmission of the new integrity and confidentiality
keys to the SCSCF and PCSCF.
3GPP has defined an other registration protocol that
overcomes many drawbacks defined in previous pro-
posals. It insures the authentication of the MS to
the SCSCF, which receives the authentication vectors
from the HSS. However, the PCSCF terminates the
integrity and confidentiality protection using the ap-
propriate keys defined by the authentication vectors.
3GPP protocol has also some drawbacks. First, the
MS does not identify the SCSCF. Second, the private
identity of the MS is clearly transmitted in the SIP
layer for each authentication or re-authentication pro-
cedure. Third, the integrity and confidentiality keys
of the user are transmitted from the SCSCF to the PC-
SCF using the network layer security mechanisms.
The following table summarizes the security en-
hancements provided by the SPUR scheme in com-
parison with the 3GPP registration procedure. The
table shows in particular that SPUR provides at least
six additional security services including SIP authen-
tication and confidentiality.
Table 1: Comparison of the security provisions of the 3GPP
and the SPUR
Criteria 3GPP SPUR
SIP Authentication 1 1
SIP Confidentiality 0 1
SIP Integrity 0 1
IMPI Confidentiality 0 1
Establishment of the IK and
the CK
1 1
Key Freshness 1 1
Serving Network Authenti-
cation
0 1
Certification use 0 1
Key Session Definition 0 1
5 SPUR SIMULATIONS
5.1 Simulation Environment
In this subsection, the impact of the addition of new
processing in the IMS nodes is studied. Particularly,
SPUR: A SECURED PROTOCOL FOR UMTS REGISTRATION
13

we will focus on the influence of the changing size of
the signaling messages respectively on the error prob-
ability and on the data flows exchanged between the
different nodes.
The simulation model we use is based on the stud-
ies defined in(Kist and Harris, 2002; Handlay et al.,
1999). We have applied SPUR on four nodes which
represents the MS, the PCSCF, the ICSCF and the SC-
SCF. The arrival process to IMS nodes is the Pois-
son process with a mean arrival rate of 1 session
per second. IMS nodes have also a negative expo-
nential service times with means of 20ms. We con-
sider that the original size of a SIP message is vary-
ing between 170 bytes and 500 bytes(Rosenberg et
al., 2003)(Sweeny et al., 2003). Also, cases where
the additional size increased per each node is vari-
able between 50 bytes and 200 bytes according to the
type of the processing are studied. The first simu-
lation considers the error probability defined for the
transmitted messages depending on the Error Bit Rate
(BER) and the size of messages. The error probabil-
ity of a message is defined using the binomial dis-
tribution P
E
(M) =
X
8M
k=1
BER
k
(1 − BER)
8M−k
where M is the size in bytes and k is the number
of corrupted bits. The second study determines the
additional flow defined on the links between the dif-
ferent nodes. Let’s define n as the number of the
links and l
i
as the link on which the flow is calcu-
lated. The flow defined in one direction on link li is
F (l
i
) = M (l
i
)(1 +
P
n
m=l
i
P
E
(m)
m
Y
j=l
i
(1 − P
E
(j))
).
5.2 Analysis of the numerical results
We present in this subsection the results obtained by
the execution of the previous model.
• Error probability
The following figures present the impact of the aug-
mentation of the size of the messages on the error
probability. Two cases are studied: the first consid-
ers the high error bit rates (shown in Figure 3) while
the second presents the variation of the error proba-
bility for low values of BER (Figure 4). We notice
that for low values of BER, the error probability is
almost linear. Hence, to have reasonable error proba-
bilities (i.g., less than 10
−3
) the values of BER should
be chosen lower than 10
−6
. However, if BER≥ 10
−5
,
the error probability takes important values and grows
exponentially toward the maximum probability even
for small sizes.
Thus, we can conclude that we should choose the
constraint (BER <10
−5
) to have an acceptable error
probability, and so have less message retransmission
between the nodes.
• Additional Flow
The changing size of the transmitted messages in-
duces additional flow between the network nodes, es-
pecially when the BER is not the same on the dif-

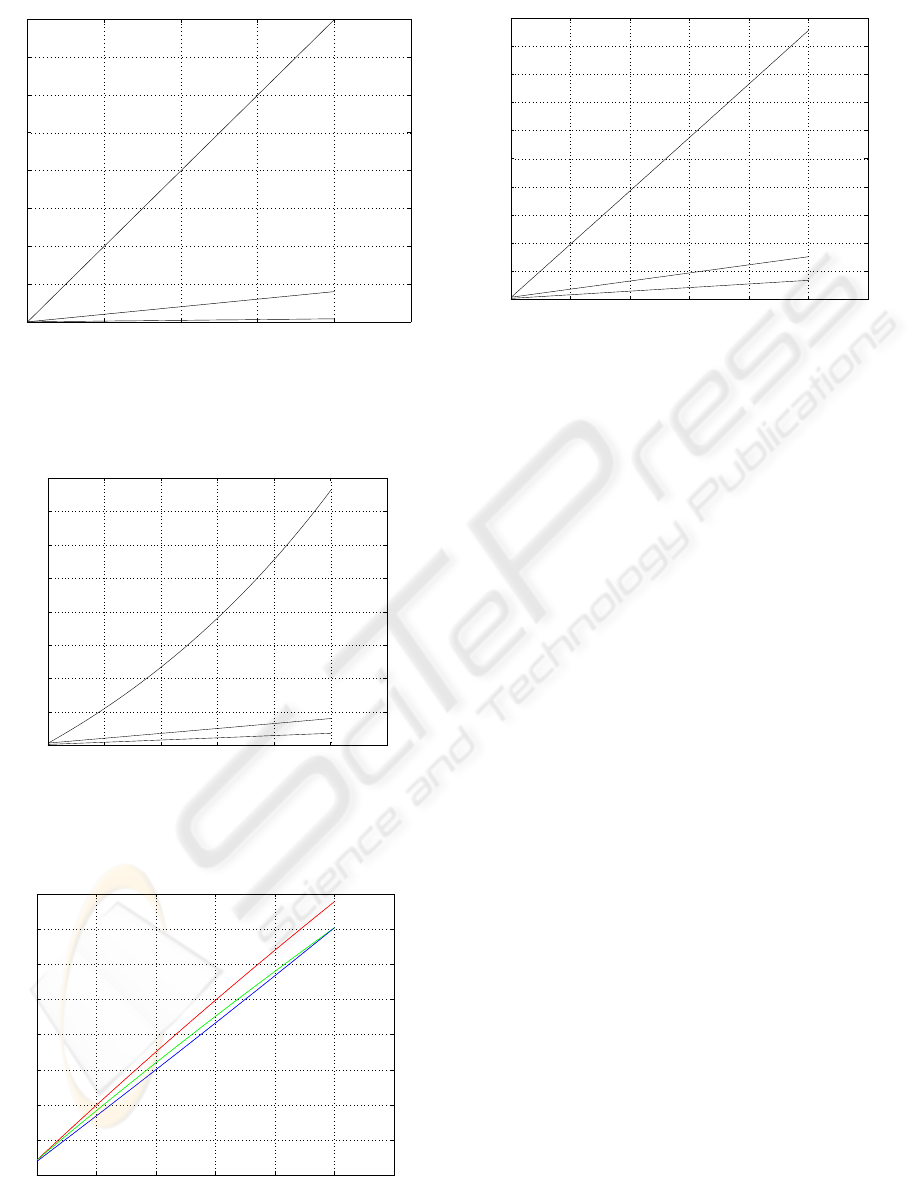

ferent links. In the following figures, three cases are
considered: The first case considers the BER on the
links between the nodes has high values (Figure 5).
The second considers the same BER on all links (Fig-
ure 6), and the last addresses the case where BER has
small values between links (Figure 7)e
The first figure shows the case where the radio link
has a great value of BER. We can notice here that the
additional flow on the link can reach 180% of the ini-
tial flow size which is unacceptable on the radio link
since it adds unacceptable amounts of interference.
In the second case, we study the case where the
BER is the same on all the links. This situation is not
usually true since the radio link presents always the
highest BER. Nevertheless, we notice that for a BER
= 10
−6
, the additional flow overheat has a maximum
value of 8% .
The last studied case considers low values of BERs.
We notice in this case that the additional flow does not
take important values. It can be induced that the use
of SPUR with low BERs on the links between the dif-
ferent nodes does not add high flows. The previous
results demonstrate that the use of SPUR does not in-
troduce large loads if the BER values are well chosen.
0 500 1000 1500 2000 2500
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
Size of the messages ( byte)
Error probability
Error probability evolution versus the augmentation of the lenght of the messages
BER=10
−
3
BER=10
−
4
BER=10
−
5
BER=10
−
6

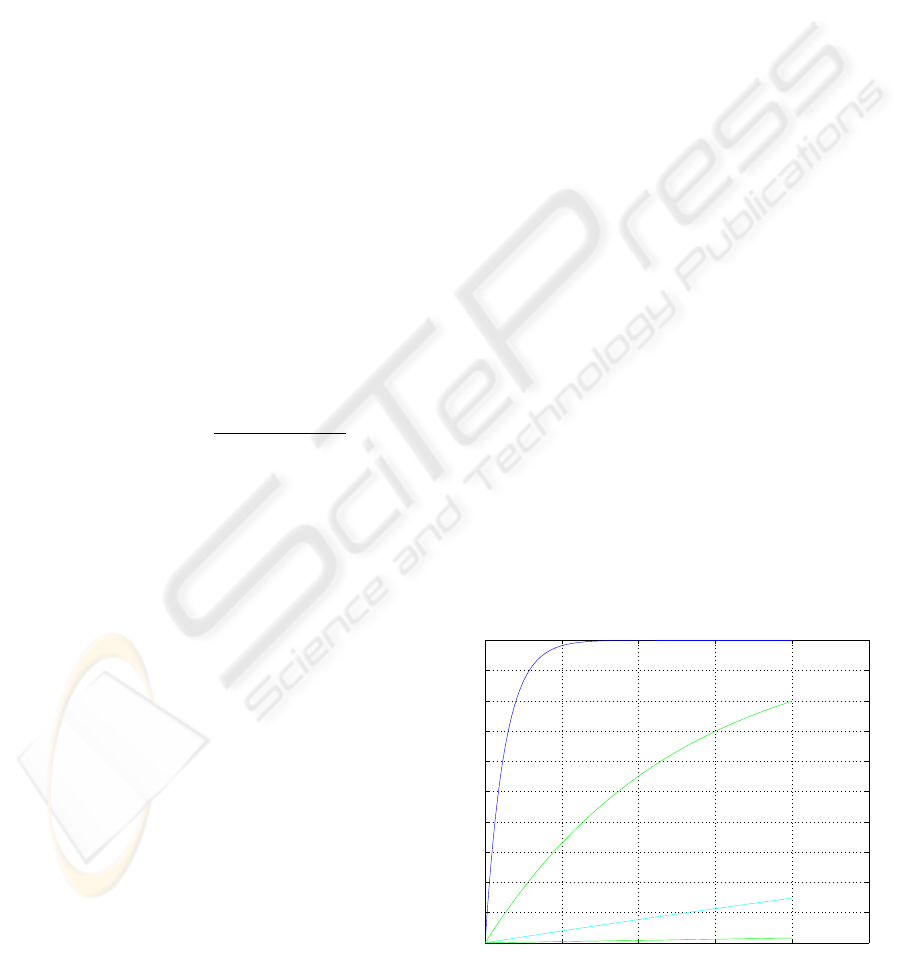

Figure 3: Error Probability in the case of high BER
ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS
14

0 500 1000 1500 2000 2500
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
x 10
−3
Size of the message ( byte)
Error probability
Error probability evolution versus the augmentation of the lenght of the messages
BER=10
−
7
BER=10
−
8
BER=10
−
9
Figure 4: Error Probability in the case of low BER
0 200 400 600 800 1000 1200
0
20
40
60
80
100
120
140
160
Size of the message (en byte)
additional flow percentage
N1(10
−
4)
N2 (10
−
5)
N3 (10
−
6)
Figure 5: Additional flow for high BER
0 200 400 600 800 1000 1200
0
1
2
3
4
5
6
7
8
message size(en byte)
additional flow percentage
additional flow versus message size
N1(10
−
6)
N3(10
−
6)
N2(10
−
6)
Figure 6: Additional flow for equal BER
0 200 400 600 800 1000 1200
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
message size ( byte)
Additional flow percentege
additional flow versus message size
N1(10
−
6)
N2(10
−
7)
N3(10
−
8)
Figure 7: Additional flow for low BER
6 CONCLUSION
In this paper, we have presented a secure registration
protocol for UMTS all IP networks. This protocol
has added new security measures that provide mutual
authentication, integrity and confidentiality between
all entities involved in a communication process. In
addition, it provides an end-to-end security service for
the mobile privacy.
SPUR scheme is an extensible protocol that can de-
fine a comprehensive platform to integrate next gener-
ation networks (NGN), assuming that they are based
on SIP-like protocols. The integration would as-
sume that a bridge architecture of certification is made
available in a way that any certificate provided can be
checked efficiently.
REFERENCES
Kaaranen, H., Ahtiainen, A., Laitinen, L. , Naghian, S.
,Niemi, V. , (2001). UMTS Networks : Architecture,
Mobility and Services, Weily, England,
TS 23.228 : IP Multimedia subsystem Stage 2. Retrieved
March 3, 2003, from http ://www.3gpp.org
TS 22.228 : Service Requirements for the IP Multi-
media Core Network. Retrieved June 6,2002, from
http ://www.3gpp.org
TS 33.900 : A Guide to 3rd Generation Security. Retrieved
January 1, 2000, from http ://www.3gpp.org
TS 33.120 : UMTS Security principals and objectives. Re-
trieved May 5, 2000, from http ://www.3gpp.org
TS 21.133 : Threats and attacks in UMTS, Retrieved De-
cember 12, 2001, from http ://www.3gpp.org
TS 33.203 : Access Security for IP-based services. Retrie-
ved March 3, 2002, from http ://www.3gpp.org
SPUR: A SECURED PROTOCOL FOR UMTS REGISTRATION
15

TS 24.229 IP Multimedia Call Control Protocol based on
SIP and SDP, V5.4.0 Retrieved March 3, 2002, from
http ://www.3gpp.org
Rosenberg, J. , Schulzrinne, H. , Camarillo, A., Johnston,
G., Peterson, R., Sparks, J., Handley, M., . Schooler,
E„ (2002). RFC 3261 : SIP. Session InitiationProto-
col Retrieved August 8, 2003, from IETF web site :
http ://www.ietf.org/rfc/rfc3261.txt
3GPP TSG SA WG3 Security, S3-000689 : Access secu-
rity for IP-based services . Retrieved November 11,
2000, from www.3gpp.org/ftp/tsg_sa/WG3_Security/
2001_meetings/TSGS3_17_Gothenberg/Docs/PDF
3GPP TSG SA WG3 Security, S3z000010. 2000. Au-
thentication and protection mechanisms for IM
CN SS ; Retrieved November 11, 2000, from
www.3gpp.org/ftp/tsg_sa/WG3_Security/ 2001_mee-
tings/TSGS3_17_Gothenberg/Docs/PDF
TS 33.102 : 3G Security, Security Architecture, Retrieved
September 9, 2000, from http ://www.3gpp.org
Hastings N.E. , Polk W. T. (2000), Bridge Cer-
tification Authorities : Connecting B2B
Public Key Infrastructures. Retrived from
csrc.nist.gov/pki/documents/B2B-article.pdf
TS 23.060 : General Packet Radio Service ; Ser-
vice Description. Retrieved March 3, 2002, from
http ://www.3gpp.org
Kist, A. , and Harris, R.J.,(2002). A Simple Model for Cal-
culating SIP Signaling Flows in 3GPP IP Multimedia
Subsystems, Lecture Notes in Computer Science, 924-
935
Handlay, M. , Schulzrinne, H., Schooler, E., and Rosenburg,
J. D. , (1999). RFC 2543 : SIP : Session Initiation
Protocol . Retrieved March 3, 2003, from IETF web
site : http ://www.ietf.org/rfc/rfc3261.txt
Sweeny, J., Kenneally, V., Pesch, D., Purcell, G, (2003). Ef-
ficient SIP based Presence and IM services with SIP
message Compression in IST OPIUM. Retrieved Sep-
tember 9, 2003, from http ://www.ist-opium.org/
ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS
16
