EFFICIENT PROXY SERVER CACHING USING WEB USAGE

MINING TECHNIQUE ON WEB LOGS

For Improving Hit Rate And Response Time

Dr. A K. Ramani

Department. of Computer Science & Engineering,D.A.V.V. , Indore

Sanjay Silakar, Parul Saxena

Department of Computer Science & Engineering, S.A.T.I . , Vidisha

Keywords: World Wide Web(WWW),Proxy Cache

Abstract: This paper presents a vertical application of web usage mining: efficient web caching for improving the

response time , for the internet users ,specially due to increase in number of users of e-commerce on the

internet Introducing efficient web caching algorithms that employ predictive models of web requests; the

general idea is to extend the cache replacement policies of proxy servers by making it sensible to web

access models extracted from web log data using web usage mining. The development of an efficient web

caching architecture, capable of adapting its behaviour on the basis of the access patterns of the

users/clients. Such usage patterns ,or models are extracted from the historical access data recorded in log

files by means of data mining techniques known as web usage mining. The approach that has been studied

in the present work is based on sequential patterns technique. In the present work a prototypical system has

been designed and developed, which supports web usage mining and simulation of the web caching

algorithm. The experimental results of the new algorithm developed for cache replacement technique show

substantial improvement over LRU-based cache replacement technique, in terms of Hit Rate and Response

Time.

1 INTRODUCTION

The World Wide Web (WWW) continues to grow at

an astounding rate in both the sheer volume of traffic

and the size and complexity of Web sites as the

increase in usage specially due to electronic

commerce. The continuous increase in demand for

information services in the internet is showing signs

of strain. While the internet is highly distributed

system, individual data objects most often have only

a single source. Host computers and network links

can easily become overloaded when a large number

of users access very popular data. Proxy-caching is

currently a popular way to reduce network band

wid

th, server load and to improve response time to

the user.

Web Usage Mining implies that data mining

tech

niques are applied to the data from the World

Wide Web (WWW) where the data emerges from

the web server log files. The Web Usage Mining is

aimed at discovering regularities and patterns hidden

in web data, and patterns in the structure and content

of web resources, as well as in the way web

resources are accessed and used. Such usage

patterns, or models, are extracted from the historical

access data recorded in log files, by means of data

mining techniques. A particular Web Usage Mining

technique and the development of an efficient web

caching architecture, capable of adapting its

behaviour on the basis of the access patterns of the

clients/users is studied in the present work.

177

K. Ramani A., Silakari S. and Saxena P. (2004).

EFFICIENT PROXY SERVER CACHING USING WEB USAGE MINING TECHNIQUE ON WEB LOGS - For Improving Hit Rate And Response Time .

In Proceedings of the First International Conference on E-Business and Telecommunication Networ ks, pages 177-182

DOI: 10.5220/0001390601770182

 SciTePress

2 EFFICIENT WEB CACHING

2.1 Web Caching

Web caching inherits several techniques and issues

from caching in processor memory and file systems.

However, the peculiarities of the web give rise to a

number of novel issues which call for adequate

solutions.(Pitkow,1994)(Brain,2002)(Duane,1995).

Caches can be deployed in different ways, which

can be classified depending on where the cache is

located within the network. The spectrum of

possibilities ranges from caches close to the client

(browser caching, proxy server caching) to caches

close to the origin server (web server caching).

Proxy server caching provides an interface between

many clients and many servers. The effectiveness of

proxy caching relies on common accesses of many

users to a same set of objects. Even closer to the

client we find the browser caches, which perform

caching on a per user basis using the local file

system. However, since they are not shared, they

only help the single user activity. Web server

caching provides an interface between a single web

server and all of its users. It reduces the number of

requests the server must handle, and then helps load

balancing, scalability and availability.

2.2 Web Cache Replacement

strategies

The cache replacement strategy decides which

objects will remain in cache and which are evicted to

make space for new objects. The choice of this

strategy has an effect on the network bandwidth

demand and object hit rate of the cache (which is

related to page load time).

Caching algorithms are characterized by their

replacement strategy, which mainly consists of

ordering objects in cache accordingly to some

parameters (the arrival order, the request frequency,

the object size, and compositions of them): objects

are evicted according to such an order.

Various cache replacement strategies have been

described and analyzed since processor memory

caching was first invented .Such as FIFO – First In

First Out Strategy (order by arrival time).LFU –

Least Frequently Used Strategy (order inversely to

number of requests). LRU - Least Recently Used

Strategy (order by last request time). One of the

most popular replacement strategies is the Least

Recently Used (LRU) strategy, which evicts the

object that has not been accessed for the longest

time. This strategy works well when there is a high

temporal locality of reference in the workload -that

is, when most recently referenced objects are most

likely to be referenced again in the near future

.SLRU - (order inversely to ∆T . Size , ∆T being

the number of requests since the last request to the

object). LRU-K-The LRU-K replacement strategy

considers both frequency and recency of reference

when selecting an object for replacement. LRU-

MIN- (when the cache has to make room for an

object of size S, first it tries to do it by evicting

objects of size S or greater in LRU order; if that

fails, it tries with objects of size S/2 or more, then

S/4 or more and so on).

To summarize, an ideal cache replacement

policy should be able to accurately determine future

popularity of documents and choose how to use its

limited space in the most advantageous way. In the

real world, we develop heuristics to approximate this

ideal behaviour.

2.3 Measures of Efficiency

The most popular measure of cache efficiency is hit

rate. This is the number of times that objects in the

cache are re-referenced. A hit rate of 70% indicates

that seven of every 10 requests to the cache found

the object being requested. Another important

measure of web cache efficiency is byte hit rate.

This is the number of bytes returned directly

from the cache as a fraction of the total bytes

accessed. This measure is not often used in classical

cache studies because the objects (cache lines) are of

constant size.

However, web objects vary greatly in size, from

a few bytes to millions. Byte hit rate is of particular

interest because the external network bandwidth is a

limited resource (sometimes scarce, often

expensive). A byte hit rate of 30% indicates that 3 of

10 bytes requested by clients were returned from the

cache; and conversely 70% of all bytes had to be

retrieved across the external network link.

Other measures of cache efficiency include the

cache server CPU or I/O system utilization, which

are driven by the cache server’s implementation.

Average object retrieval latency (or page load time)

is a measure of interest to end users and others.

3 WEB USAGE MINING

3.1 Data Preparation For Web Usage

Mining

Web Usage mining is the application of data mining

techniques to discover usage patterns, or models,

extracted from the web log data

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

178

(Robert,1999)(Karuna,1999). There are several

preprocessing tasks that must be performed prior to

applying data mining algorithms to the data

collected from server logs (Robert,1999). Various

data preparation techniques are used to identify

unique users and user sessions.

3.2 Web Usage Mining Techniques

3.2.1 Association Rules

In the web usage mining ,association rules are used

to find out which pages are frequently visited

together (J.Han,2000)(Rakesh,1994). An association

rule is usually presented as an expression of the

form: A B[S,C], where A and B are set of items, S

is the support of the rules ,defined as the rate of

transactions containing all items in A and all items

in B ;C is the confidence of the rule, defined as the

ratio of S with the rate of transactions containing A.

A rule such as res1 res2, informally means that if

res1 appears in a user session, res2 too is expected to

appear in the same session, though possibly in

reverse order and not consecutively.

3.2.2 Sequential Patterns

The temporal correlation among items in user

transactions are discovered (J.Han,2000). Unlike

Association rules ,sequential patterns take into

account the time component. Consider a user

session as a time-ordered sequence of requested

resources. Given a database of user sessions, a

sequential pattern is an expression of the form

res

……….. res

[S], where res

(I ∈(1.., n})

is a resource; S is the support of the sequential

pattern, defined as the percentage of user sessions

containing the subsequence res

res

2,…….

res

n..

frequent sequential patterns, i.e. we only consider

patterns with a support greater than a given

minimum threshold.

3.2.3 Clustering

Clustering is a technique to group together a set of

items having similar characteristics (J.Han,2000).In

the Web Usage domain, there are two kinds of

interesting clusters to be discovered : usage clusters

and page clusters.

3.2.4 Classification

Classification is the task of mapping a data item into

one of several predefined classes (J.Han,2000). In

the Web domain, one is interested in developing a

profile of users belonging to a particular class or

category.

4 PROPOSED STRATEGY

The idea is to extend the LRU-Least Recently Used

cache replacement strategy adopted by proxy servers

by making it sensible to web access models,

extracted from web log data. The present study

introduces a way to construct efficient web caching

algorithm that employ predictive model of web

requests. The goal of the algorithm is to maximise

the so-called efficiency (i.e. Hit Rate), namely the

percentage of requested web entities that are

retrieved directly in cache, without requesting them

back to the origin servers as well as minimising the

Response Time.

The general idea is motivated by the following

observation. The LRU-Least Recently Used cache

replacement strategy (evicts from cache the least

recently used entities) is based on the assumption

that the requests that occurred in the recent past will

likely occur in the near future too. LRU is effective

in particular, when requests are characterized by

temporal locality (like the case of web requests).

Now, the more information we can extract from the

history of recent requests, the more informed cache

replacement strategies can be devised. This is a clear

indication to mine the web log data for access

models which may be employed to the above

purpose.

4.1 Evaluation Criteria’s Used In The

Model

Our study focused primarily on (object) Hit Rate,

Response Time and Cache size.

HIT RATE: It is the ratio of request fulfilled by the

cache and then not handled by the origin server. The

hit rate is the percentage of all requests that can be

satisfied by searching the cache for a copy of the

requested object.

RESPONSE TIME: The time that an end user wait

‘s for retrieving a resource. It is the time taken to

fulfil the request.

CACHE SIZE: It is the size of cache i.e. the

number of URL’s( requests) that can be stored in a

cache.

4.2 Web Usage Mining Technique

Used

4.2.1 Web Access Sequential Pattern

A web access pattern is a sequential pattern in a

large set of pieces of web logs which is pursued

frequently by users. Web access sequential patterns

EFFICIENT PROXY SERVER CACHING USING WEB USAGE MINING TECHNIQUE ON WEB LOGS - For

Improving Hit Rate And Response Time

179

are mined using sequential pattern web usage mining

technique.

Sequential pattern mining discovers frequent

patterns in a sequence database. Given a sequence

database where each sequence is a list of transaction

ordered by transaction time and each transaction

consists of a set of items, all sequential patterns are

found out with a user specified minimum support,

where support is the number of data sequences that

contain the pattern.

A concise and highly compressed tree structure

is used that handles the sequences and an efficient

mining algorithm is used for mining the complete (

non redundant) web sequential access patterns from

large set of pieces of web logs.

4.3 Cache Replacement Strategy Used

LRU - Least Recently Used Strategy (order by last

request time). One of the most popular replacement

strategies is the Least Recently Used (LRU)

strategy, which evicts the object that has not been

accessed for the longest time. This strategy works

well when there is a high temporal locality of

reference in the workload -that is, when most

recently referenced objects are most likely to be

referenced again in the near future. The LRU

strategy is implemented using a doubly linked list

ordered by last access time. Addition and removal of

objects from the list is done in O(1) (constant) time

by accessing only the head (or tail) of the list. It

evicts the object that has not been accessed for the

longest time. Objects are added to the head of the list

and removed from the tail of the list in constant

time. Updates can also be accomplished in constant

time by moving objects to the head of the list when

they are referenced.

4.4 Model For Efficient Web Caching

LRU - Least Recently Used Strategy orders by last

request time in which, with each reference to an

object, the cache is updated in constant time by

moving objects to the head of the list when they are

referenced and removed from the tail of the list.

First of all, a set of web access sequential

patterns is extracted from the past log data obtained

from web log files at the proxy server. Now

considering the new request. If resource A is

requested and A,B is in the set of previously

extracted web access sequential patterns then it is

predicted that the resource B will be requested soon.

Thus if B is already in cache, then its eviction

should be delayed which is accomplished by

assigning to B the priority it would have if it was

requested immediately after A.

4.4.1 Reference Model

1. Web access sequential patterns are generated,

using history log file data of fixed time

interval, as input.

2. Cache is implemented using LRU- Least

Recently Used Strategy.

3. For a requested entity, if the cache contains the

entity then the entity is returned to the client this

case is considered as a Hit.

4. If requested entity is not in the cache it is

considered as a Miss and the entity is retrieved

from the server and pushed into the cache and

the request is fulfilled.

5. If the inclusion of the requested entity in the

cache, makes the cache exceed its maximum

size then entities are evicted from the cache

according to the LRU- Least Recently Used

Strategy.

6. Now considering the Web Access Sequential

Patterns generated, next request is predicted,

depending upon the present request from the

Web Access Sequential Patterns and cache is

updated according to the predicted request using

the LRU- Least Recently Used Strategy.

Updating cache using the above mentioned

strategy is being termed as Extended LRU- Least

Recently Used Strategy.

5 CACHE PERFORMANCE

ANALYSIS

The effect of measures of efficiency are analysed.

The three efficiency measures which are used for

analysis of cache performance are Hit Rate,

Response time and Cache size. The cache

performance is measured and compared by

generating graphs.

5.1 Analysis Of Effect On Efficiency

(Relative Hit Rate Of The Normal

And Extended Lru- Least

Recently Used Strategy)

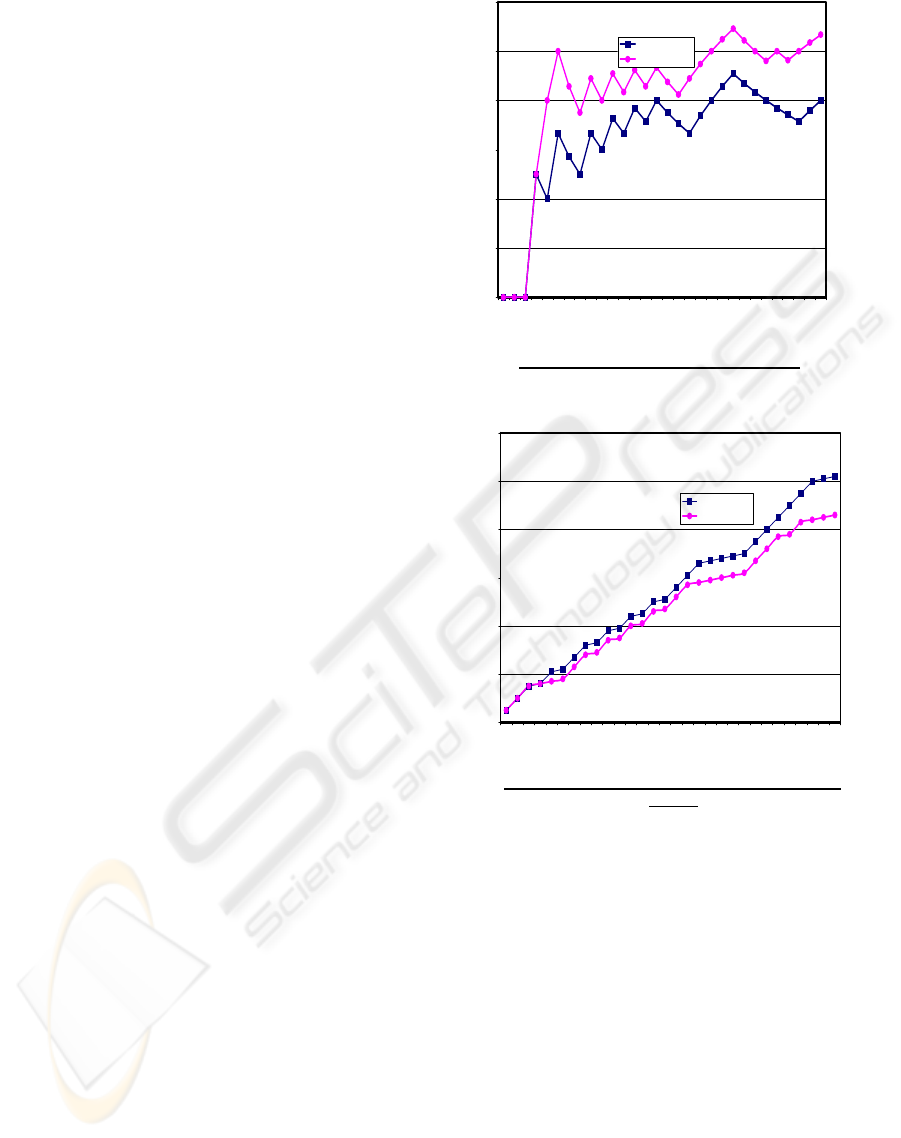

The Figure 1 shows the object Hit Rate for both,

Normal LRU- Least Recently Used Strategy and

Extended LRU- Least Recently Used Strategy

against the Total number of Requests. As predicted

by the reference model the Extended LRU- Least

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

180

Recently Used Strategy showed significant increase

in cache performance (Hit Rate) over , Normal

LRU- Least Recently Used Strategy.

Relative Efficiency of the LRU & Extended LRU Strategy

123456789101112131415161718192021222324252627282930

Total Requests

Efficiency in%

Noramal LRU

Extended LRU

5.2 Analysis Of Effect On Response

Time

The graphical representation in Figure 2 exhibits the

variation in Response Time of Normal LRU- Least

Recently Used Strategy and Extended LRU- Least

Recently Used Strategy, against the Total number of

Requests. The curves show that there is significant

decrease in Response Time in case of Extended

LRU- Least Recently Used Strategy.

5.3 Analysis Of Effect On Efficiency

(Relative Hit Rate Of The Normal

And Extended Lru (Least

Recently Used Strategy))

depending on Cache size

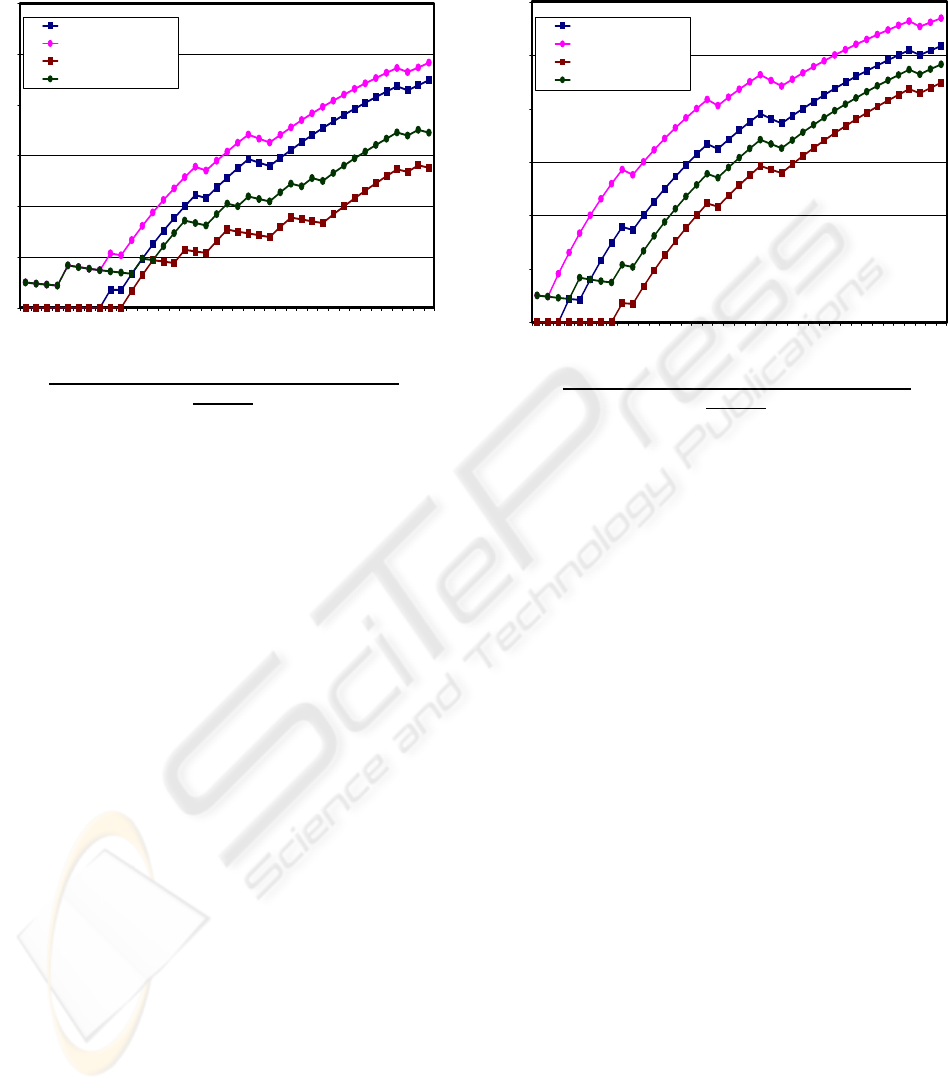

The Figure 3 & 4 presents the effect of Cache size

on Efficiency. The graph compares the effect on

efficiency with various cache sizes against the Total

number of Requests for both Normal LRU- Least

Recently Used Strategy and Extended LRU- Least

Recently Used Strategy

6 CONCLUSIONS

The performance figures of the developed method,

compared with LRU strategy indicate substantial

increase in the hit rate and response time. The cache

replacement strategy choice can have a marked

effect on the object Hit Rate and Response Time of a

proxy cache.

All in all, efficiency of the Web caching

strategies lies in the capability of tuning the cache

replacement strategy according to the recent history

of request extracted from the Web Log data. Any

strategy that may be efficient may suffer due to

changes in Web Usage Patterns.

However there is definitely room for

improvement, and the result of the implementation is

encouraging. First and foremost direction for future

work is to implement the proposed model on live

proxy server, as well as a combination of different

web usage mining techniques may be used for

mining the Web Log file data.

Figure1

Relative Respone Time Analysis of the Noramal LRU & Extended LR

Starategy

100

120

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

Total Requests

Res

onse Time

Noramal LRU

Extended LRU

Figure 2

EFFICIENT PROXY SERVER CACHING USING WEB USAGE MINING TECHNIQUE ON WEB LOGS - For

Improving Hit Rate And Response Time

181

Figure 3

REFERENCES

J. Han and M. Kamber.,2000 .Data Mining:

Concepts andTechniques. Morgan Kaufmann,

San Mateo, CA.

Rakesh Agrawal and Ramakrishnan Srikant 1994. Fast

Algorithms for Mining Association Rules. In Proc. of

the 20th Int'l Conference on Very Large Databases,

Santiago, Chile, September 1994.

Robert Cooley, Bamshad Mobasher, Jaideep Srivastava

1999.Data preparation for mining World Wide Web

browsing patterns.

Pitkow and M. Recker, 1994. “A Simple Yet Robust

Caching Algorithm Based on Dynamic Access

Patterns,” GVU Technical Report No. VU-GIT-94-

39; also Proc. Second Int’l World Wide Conf.,

Chicago.

Jan Kerkhofs,Prof Dr. Koen Vanhoof,Danny

Pannemans,2001.Web Usage Mining on Proxy

Servers:A Case Study, Limburg University Center .

Brian D. Davison 2002.The Design and Evaluation of

Web Prefetching and Caching Techniques.

Duane Wessels 1995. Intelligent Caching For World Wide

Web Objects.

Robert Cooley, Bamshad Mobasher, Jaideep Srivastava

1997. Grouping Web page references into transactions

for mining World Wide Web browsing patterns.

Relative Efficiency of the LRU & Extended LRU strategy for different

cache sizes

1 2 3 4 5 6 7 8 9101112131415161718192021222324252627282930313233343536373839

Total Request

Nora mal LRU(Cache size=15)

Extended LRU(Cache size=15)

Nora mal LRU(Cache size=5)

Extended LRU(Cache size=5)

Relative Efficiency of the LRU & Extended LRU strategy for different

cache sizes

Total Request

Efficienc

in %

Nora mal LRU(Cache size=20)

Extended LRU(Cache size=20)

Nora mal LRU(Cache size=10)

Extended LRU(Cache size=10)

Figure 4

Andrei Z . Broder, Marc Najork, Janet L. Wiener.

Efficient URL Caching for World Wide Web

Crawling.

Karuna P Joshi , Anupam Joshi, Yelena Yesha , Raghu

Krishnapuram 1999.Warehousing and Mining Web

Logs.

Efficienc

in %

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

182
