SECURE WEB BROWSING OVER LONG-DELAY BROADBAND

NETWORKS

Recommendations for Web Browsers

Doug Dillon

Assistant Vice President, Software Engineering, Hughes Network Systems

11717 Exploration Lane, Germantown, MD 20876, USA

Gurjit Singh Butalia Pawan Kumar Joshi

Hughes Software Systems, Electronic City, Plot 31, Sector 1

Gurgoan -122015, Haryana, India

Hughes Sortware Systems, 27 Gandhi Sadan

Mandir Marg, New Delhi -110001, India

Keywords: Satellite Broadband, Secure Web Browsing, Performance Analysis, HTTPS, Web Browser, SSL, TLS

Abstract: Current browser implementations provide less than desirable secure web page response time over

geosynchronous satellite and other long delay broadband networks (e.g., intercontinental access across the

Internet). This document defines the issues and recommends a set of enhancements that improve response

time without compromising security. These enhancements are shown, by analysis, to provide more than a

50% response time reduction for a typical secure web page.

1 INTRODUCTION

Security is important on the Internet. Secure Web

Browsing, in the form of the HTTP protocol running

over an Secure Sockets Layer (SSL) transport (A.

Frier, 1996) has proved to be the key enabling

technology for E-Commerce on the Internet

(Thomas, 2000) and is becoming the preferred

method for secure remote access to enterprise

Intranets. The SSL protocol was introduced by

Netscape and has been standardized by the Internet

Engineering Task Force (IETF) under the name

Transport Layer Security (TLS) (Jungmaier, 2002).

The security provided by use of the HTTP

protocol running over SSL transport (HTTP/SSL)

comes at the cost of reduced performance. Most

research and commercial product development

aimed at reducing the performance impact has been

focused on reducing web server processing

requirements (Apostolopoulos, 2000).

The response time performance cost of

HTTP/SSL has not received similar scrutiny. This

paper demonstrates how current browser

implementations of HTTP/SSL amplify the latency

inherent in broadband networks, how this impact is

felt for secure web page retrieval across networks

employing either transcontinental or satellite links

and provides recommendations for reducing the

response time impact.

2 LONG-DELAY NETWORKS

Table 1 shows typical round-trip times over various

broadband networks as measured by the authors.

Consumer and enterprise satellite networks, such as

the Hughes Network Systems Inc. DIRECWAY

service and the Starband consumer Internet access

service, utilize demand assignment to increase the

effective capacity of a satellite transponder. This

introduces a second satellite round trip, which

results in an overall typical round-trip time of 1300

msec.

As can be seen from the table, intercontinental

Internet access round-trip time is often an order of

magnitude higher than intercity, round-trip time

even when no satellite links are involved.

For each of these networks, an end-user

transaction that involves a single round trip provides

acceptable response time for most applications.

Table

1:Measured Round-Trip Times Over Broadband Networks

160

Dillon D., Singh Butalia G. and Kumar Joshi P. (2004).

SECURE WEB BROWSING OVER LONG-DELAY BROADBAND NETWORKS - Recommendations for Web Browsers.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 160-168

DOI: 10.5220/0001391901600168

 SciTePress

Table 1:Measured Round-Trip Times Over Broadband

Networks

The sections that follow analyze the number of

round-trips required to retrieve a typical secure web

page.

3 HTTP/SSL TRANSACTIONS

Apart from any optimizations, the HTTP or Secure

Sockets Layer (HTTPS) protocol used for secure

web browsing allows a web browser to retrieve a

URL after four or five round-trip transactions as

illustrated in figure 1. DNS lookup is required for

the first retrieval of a URL from a website and,

depending on where the DNS server is located

within the network and the contents of its cache,

may not require the response time impact of a full

round trip.

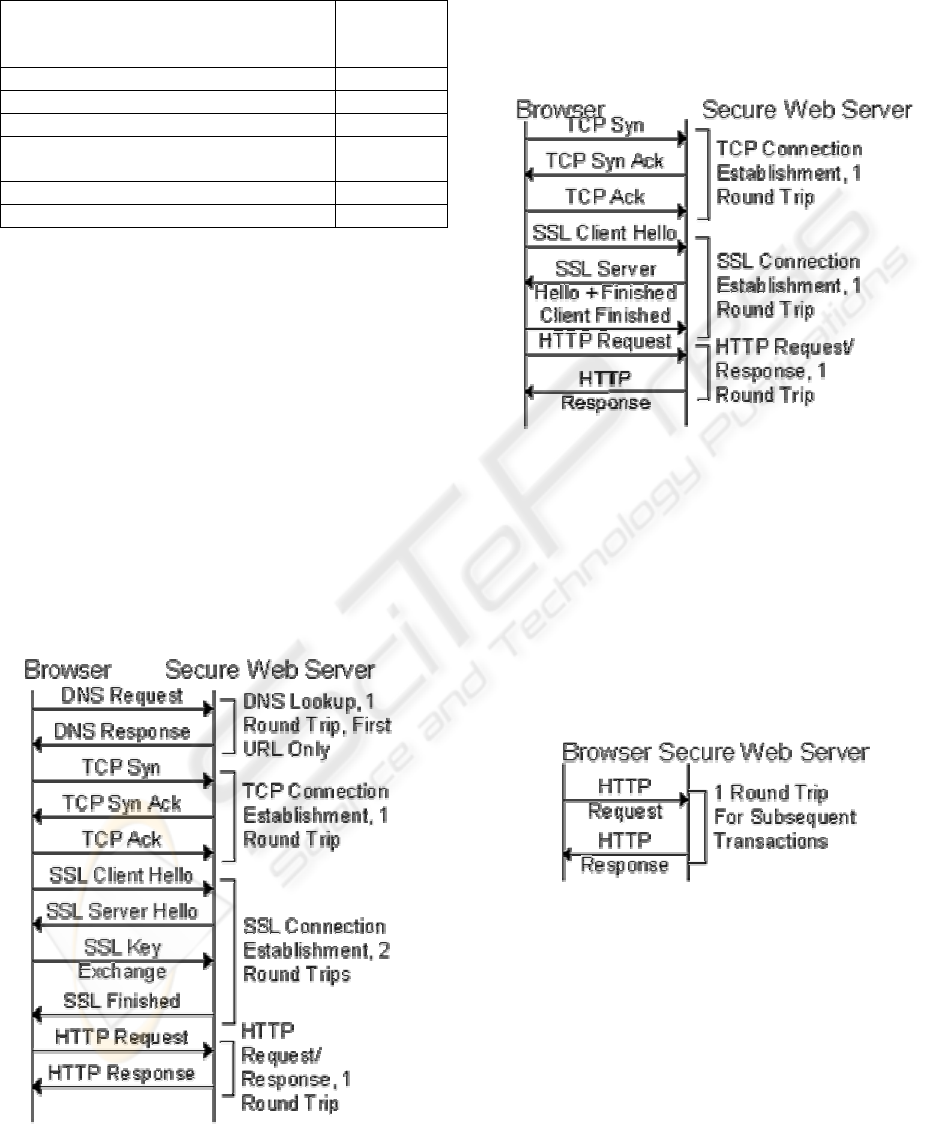

Figure 1: Unoptimized HTTP/SSL Transaction

As illustrated by figure 2, with the SSL Session

Reuse optimization (aka, session resumption),

HTTPS retrieval of a URL is reduced to three round-

trip transactions. A DNS lookup is not typically

performed with Session Reuse as the site name was

resolved when the first SSL connection to the server

was established.

Figure 2: SSL Session Reuse

As illustrated by figure 3, with the use of HTTP

persistent connections, HTTPS retrieval of a URL is

reduced to one round-trip transaction for

transactions that make use of a previously SSL

established connection. The use of persistent

connections is not possible when the server does not

support persistent connection or when the server

sends back an HTTP response entity body with

neither a CONTENT-LENGTH field nor chunked

encoding.

Figure 3: Persistent HTTP/SSL Connection

4 TYPICAL SECURE WEB PAGE

Web pages become more complex as time goes by.

A typical secure web page consists of multiple

URLs of various kinds. This section defines a typical

web page as it currently exists and then analyzes its

response time. The example web page analyzed in

this subsection consists of the URLs described in

table 2.

Network Type Ping

Response

Time (Sec)

Fixed Assignment Satellite Network .65

Demand Assigned Satellite Network 1.3

East Coast USA to India via Internet .30

East Coast USA to Moscow via

Internet

.18

Washington DC to New York .03

Local Area Network .001

SECURE WEB BROWSING OVER LONG-DELAY BROADBAND NETWORKS - Recommendations for Web

Browsers

161

Table 2: Typical Secure Web Page

Num

URLs

Description Of URL

1 HTML web page referencing two

HTML frames

2 HTML page for each of the two

frames

2 Cascading Style Sheet For Each

HTML Frame

2 Background URL Referenced By

Each Frame's Cascading Style

Sheet

2 Javascript File 1 For An HTML

Frame

2 Javascript File 2 For An HTML

Frame

2 Redirection (301 or 302

response) to an image on

another server

2 Redirected embedded images on

the other server

14 Seven Embedded .gifs each

HTML frame

29 Total number of URLs

5 PARALLELISM AND ITS

LIMITS

Browsers utilize parallel HTTPS connections to

retrieve URLs in parallel to reduce web page

response time. For the analysis in this subsection we

assume the browser is configured to support up to 16

parallel connections to each secure web server

currently being accessed by the browser. Although

having parallel connections make possible retrieval

of URLs in parallel, other factors frequently limit the

parallelism achieved. This section introduces those

factors and quantifies their input.

This document refers to a “wave” of URL

retrievals as a set of URLs that can be retrieved in

parallel. For example, a simple web page consisting

of just an HTML page and a set of embedded images

may be retrieved by a browser in two waves, one for

retrieving the HTML and one for retrieving the

embedded images after the HTML has been parsed.

This concept of a wave is an oversimplification in

that it does not consider parallelism that is lost when

the number of available URLs to be retrieved in

parallel exceeds browser limitations on the number

of parallel

Various aspects of web page design limit the

achievable parallelism and increase the number of

waves required to retrieve a web page. These aspects

include:

• HTML Frames - the use of HTML frames

limits parallelism in that a browser cannot

begin to retrieve URLs referenced by an

HTML frame until after that frame has been

retrieved and parsed. A web page that

utilizes HTML frames will always require at

least three waves of URL retrievals (one for

the base HTML page, one for the HTML

frames, one for the items referenced by the

HTML frames).

• Javascript And Cascading Style Sheets (CSS)

- when a browser is parsing an HTML web

page and finds a reference to a javascript

URL or a Cascading Style Sheet (CSS), it

typically stops parsing the HTML and

retrieves the referenced URL. It resumes

parsing the HTML after it has completed

parsing the referenced javascript or CSS

URL. This is because it is possible for the

javascript or CSS file to change the way the

rest of the HTML is parsed. This has the

effect of limiting the parallel retrieval of

URLs in that URLs referenced by the HTML

cannot be retrieved until after they have been

parsed and parsing is suspended while the

javascript or CSS URL is being retrieved.

When a browser behaves this way, a web

page with N javascript and cascading

stylesheet URLs may be retrieved in N + 2

waves, in the best case. This involves one

wave for the HTML retrieval, one wave for

each of the javascript and cascading

stylesheet URLs, and one wave for

embedded image retrieval.

• Javascript And CSS Referenced URLs - both

Javascript and Cascading style sheets may

reference URLs that are required to paint the

web page. When this occurs, such a URL

cannot be retrieved until after the referencing

javascript or cascading style sheet has been

retrieved.

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

162

• Redirections - Often an embedded image or

even an HTML page is actually available

from a different web server than the one from

which it is originally requested. A web server

may instruct the browser to retrieve a URL

from another web page with a redirection. A

redirection may be accomplished either with

an HTTP 301 or 302 response or with

HTML. The use of redirection increases

response time by requiring URL retrieval to

obtain the redirection followed by another

URL retrieval to actually obtain the URL.

6 TYPICAL WEB PAGE

RESPONSE ANALYSIS

A simple table-based simulation of a web browser

(see Table 5) reveals that the typical secure web

page discussed is retrieved in no less than 16 round-

trips even under the following set of reasonably

optimistic assumptions:

• Broadband connection – i.e. the time to

actually transmit packets and browser and server

processing time are negligible compared to the

response time contributed by the number of round

trips required to paint the page.

• The browser permits up to a maximum of 16

simultaneous HTTPS connections to a given SSL

server. The default value for this is for most

browsers is 4 connections to HTTP 1.0 and 2

connections for HTTP 1.1. Assuming this is

optimistic in that changing this configuration is for

experts only in that it involves editing the windows

registry, javscript files or something similarly for

experts only.

• Use of persistent connections. This is enabled

by default for most modern browsers and is

supported in many cases by secure web servers.

• No persistent connections exist when the web

page retrieval begins.

• Use of SSL session reuse. This is enabled by

default for most modern browsers and servers.

• The DNS lookup for the main server does not

cost a round-trip, although a DNS lookup for a

redirected image’s server does cost a round trip.

• Once a URL is assigned to a connection, it

uses that connection even if it has to wait for the

connection to be established.

• No HTTP pipelining. This paper’s analysis of

web page response time does not assume the use of

HTTP pipelining because no popular browser has

this enabled by default. This is probably due to flaws

in the pipelining protocol design and server

implementations thereof.

As can be seen in table 3, while round-trip time

is a major contributor to response time for intercity

broadband connectivity (much less so for LAN

connectivity), it completely dominates

intercontinental Internet and satellite network

response time. This problem is significant enough

for non-satellite networks that at least one Internet

Startup, www.netli.com, is introducing a global

distributed caching solution that advertises 1 sec

secure web browsing to enterprise Intranet servers.

7 BROWSER

RECOMMENDATIONS

Each of the following recommendations mitigates an

inefficiency that applies especially to secure web

browsing. The recommendations are as follows:

1. Connection Pooling – reduces the response

time impact of SSL connection establishment

whether the server supports persistent connections or

not. Connection pooling establishes and maintains a

pool of connections with a secure server so that an

established connection can be allocated to the

retrieval of a URL as soon as the need to retrieve it

is determined. The recommended connection

pooling maintains a historical record of the number

Table 3: Round-Trip Time Impact on Secure Web Page Response Time

Network Type

Response

Time (Sec)

Typical

Secure Web

Page

Response

Time (Sec)

Percentage of Response

Time Due to Round Trips

With .25 Sec Server Response

Time

Fixed Assignment Satellite Network 0.650 10.4 98%

Demand Assigned Satellite Network 1.300 20.8 99%

East Coast USA to India via Internet 0.300 4.8 95%

East Coast USA to Moscow via Internet 0.180 2.88 92%

Washington DC to New York 0.030 0.48 66%

Local Area Network 0.001 0.016 6%

SECURE WEB BROWSING OVER LONG-DELAY BROADBAND NETWORKS - Recommendations for Web

Browsers

163

of simultaneous connections actually utilized for

previous visits to a secure site and trims the

connection pool size accordingly.

2. Historical Prefetch – reduces the overall

response time for repeat visits to a web page by

initiating the retrieval of URLs sooner than

permitted by unoptimized web browsers. Historical

prefetch leverages the fact that users tend to visit the

same secure web pages repeatedly (for example,

once a day to check a bank or brokerage account).

Historical prefetch maintains a persistent cache with

entries for HTML URLs. A cache entry identifies

the URLs that have in the past been consistently

retrieved immediately after the HTML URL was

retrieved. When the retrieval of a URL in the cache

commences, historical prefetch immediately initiates

the retrieval of those URLs that historically were

consistently retrieved immediately after the web

page.

3. Quick Parse – an unoptimized browser

suspends the parsing of HTML and retrieval of

embedded URLs (cascading style sheets, javascript

URLs, and embedded images) when a cascading

stylesheet or javascript file is referenced until that

URL can be retrieved and parsed. This delays the

retrieval of subsequent URLs. Quick Parse quickly

parses HTML to determine the set of URLs that will

needed without waiting for cascading style sheets

and javascript files to be loaded and parsed one at a

time.

8 RECOMMENDATION

RESPONSE TIME ANALYSIS

Using a tabular simulation of a browser

incorporating the above recommendations (see

Tables 6 and 7), allows the number of round-trips

for an initial visit to the typical web page from 16 to

12. Subsequent visits to the same page require only

7 round-trips. Table 4 summarizes the impact of this

reduction in round-trips for various networks.

9 CONCLUSIONS

This paper presents the reasons why current browser

implementations require a large number (e.g.

sixteen) network round-trips to retrieve a typical,

modern secure web page. The paper provides

experimental data demonstrating that these round-

trip times dominate secure web page response time

over transcontinental and satellite broadband

networks. The paper provides recommendations to

browser implementers that allow the number of

round trips to be significantly reduced, especially for

pages that a user repeatedly visits.

REFERENCES

Frier, A., Karton, P. and Kocher, P., 1996. “The SSL 3.0

Protocol,” Netscape, Nov 1996.

Thomas, Stephen A., 2000, “SSL & TLS Essentials:

Securing the Web”, John Wiley & Sons

A. Jungmaier, E. Rescorla, M. Tuexen. , 2002, “RFC 3436

Transport Layer Security over Stream Control

Transmission”, www.ietf.org

Table 4: Improved Response Time for First and Repeat Retrievals

Network Type

Ping

Response

Time (Sec)

Unoptimized

Typical Secure

Web Page

Response Time

(Sec)

Optimized

Typical Web

Page Response

Time First

Retrieval

Optimized

Typical Web Page

Response Time

Repeat Retrieval

Fixed Assignment Satellite

Network 0.650 10.4 7.80 4.55

Demand Assigned Satellite

Network 1.300 20.8 15.60 9.10

East Coast USA to India via

Internet 0.300 4.8 3.60 2.10

East Coast USA to Moscow via

Internet 0.180 2.88 2.16 1.26

Washington DC to New York 0.030 0.48 0.36 0.21

Local Area Network 0.001 0.016 0.01 0.01

Response Time Reduction 25% 56%

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

164

APPENDIX TABULAR BROWSER

SIMMULATIONS

Tables 5, 6 and 7 provide the tabular simulations of

browser retrieval of secure web pages without

incorporating this paper’s recommendations, for a

first retrieval of a page when incorporating the

recommendations and for a subsequent retrieval of

the web page.

Table 5: Round-Trip Analysis of Typical Web Page Retrieval

ent ID

Predecess

or Event IDs

HTTPS

Conn ID

Total

Round

Trips At

End Of This

Event

Event Description

1 1 1 TCP connection establishment

2 1 1 3 SSL connection establishment

3 2 1 4 Retrieval of HTML web page

4 3 1 5 Retrieval of 1

HTML frame

5 3 2 5 TCP connection establishment for 2

HTML frame

6 4 1 6 Retrieval of 1

frame’s cascading style

sheet

7 5 2 6 SSL connection establishment with

session reuse for 2

HTML frame

8 6 1 7 Retrieval of 1

frame’s background URL

9 7 2 7 Retrieval of 2

HTML frame

10 6 3 7 TCP connection establishment for 1

frame’s 1

javascript URL

11 8 1 8 Retrieval of 2

frame’s cascading style

sheet

12 10 3 8 SSL connection establishment with

session reuse for 1

frame’s 1

javascript URL

13 11 1 9 Retrieval of 2

frame’s background URL

14 11 2 9 Retrieval of 2

frame’s first javascript

URL

15 12 3 9 Retrieval of 1

frame’s 1

javascript URL

16 13,14 1 10 Retrieval of 2

frame’s 2

javascript URL

17 14,15 2 10 Retrieval of 1

frame’s 2

javascript URL

18 16,17 1 11 Retrieval of 1

frame’s redirection to an

image on another server

19 16,17 2 11 Retrieval of 2

frame’s redirection to an

image on another server

20 15,17 3 11 Retrieval of 1

frame’s 1

embedded


21 17 4..9 11 TCP connection establishment 1

frame’s

through 7

images

22 16 10..16 11 TCP connection establishment for the 2

frame’s seven embedded images

23 21 4..9 12 SSL connection establishment with

session reuse for 1

frame’s 2

through 7

images

SECURE WEB BROWSING OVER LONG-DELAY BROADBAND NETWORKS - Recommendations for Web

Browsers

165

24 22 10..16 12 SSL connection establishment with

session reuse for 2

frame’s seven embedded

images

25 18 17 12 DNS lookup to other server for 1st frame’s

redirected image

26 19 18 12 DNS lookup to other server for 2

frame’s

redirected image

27 23 4..9 13 Retrieval of 2

through 7

embedded

images

28 24 10..16 13 Retrieval of 2

frame’s seven embedded

images

29 25 17 13 TCP connection establishment to other

server for 1

frame’s redirected image

30 26 18 13 TCP connection establishment to other

server for 2

frame’s redirected image

31 29 17 15 SSL connection establishment without

session reuse to the other server for retrieval

of the 1

frame’s redirected image

32 30 18 15 SSL connection establishment without

session reuse to the other server for retrieval

of the 1

frame’s redirected image

33 31 17 16 Retrieval of 1

frame’s redirected image

34 32 18 16 Retrieval of 2

frame’s redirected image

16 Grand total of 16 round trips to paint

page

Table 6: Optimized First Retrieval Web Page Response Time

ent ID

Predecess

or Event IDs

HTTP

S Conn

Total Round

Trips at End of this

Event Event Description

1 1 1 TCP connection establishment

2 1 3 SSL connection establishment

3 2 2..4 4 Pooled TCP connection establishment

4 2 1 4 Retrieval of HTML web page

5 4 1 5 Retrieval of 1

HTML frame

6 3 2..4 5 Pooled SSL connection establishment

with session reuse

7 4 5..16 5 Pooled TCP connection establishment

triggered by need for more than one

connection

8 6 1 6 Retrieval of 1

frame’s cascading style

sheet

9 6, 4 2 6 Retrieval of 2

HTML frame

10 6, 4 3..4 6 Retrieval of 1

frame’s 1

and 2

javascript URLs

11 7 5..16 6 Pooled SSL connection establishment

with session reuse

12 8, 9 1 7 Retrieval of 2

frame’s cascading style

sheet

13 9, 10 2..3 7 Retrieval of 2

frame’s 1

and 2

javascript URLs

14 10, 5 4 7 Retrieval of 1

frame’s redirection to

image on other server

15 11, 9 5 7 Retrieval of 2

frame’s redirection to

image on other server

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

166

16 11, 5 6..12 7 Retrieval of 1

frame’s embedded

images

17 11, 9 13..16 7 Retrieval on 2

frame’s 1

through 4

embedded images

18 12, 13, 5 1..3 8 Retrieval of 2

frame’s 5

through 7

embedded images

19 14, 8 4 8 Retrieval of 1

frame’s background

URL

20 14 17 8 DNS lookup for retrieval of 1

frame’s

redirected image

21 15 18 8 DNS lookup for retrieval of 2

frame’s

redirected image

22 20 17 9 TCP connection establishment for

retrieval of 1

frame’s redirected image.

23 21 18 9 TCP connection establishment to other

server to retrieve 2

frame’s redirected


24 22 17 11 SSL connection establishment for

retrieval of 1

frame’s redirected image

25 23 18 11 SSL connection establishment to other

server with session reuse to retrieve 2

frame’s redirected image

26 24 17 12 Retrieval of 1

frame’s redirected


27 25 18 12 Retrieval of 2

frame’s redirected


12 Grand total of 12 round trips to

paint page

Table 7: Optimized Web Page Repeat Retrieval

ent ID

Predecess

or Event IDs

HTTP

S Conn ID

Total Round

Trips at End of this

Event Event Description

1 1 1 TCP connection establishment

2 2 1 DNS lookup to retrieve 1

frame’s

redirected image on other server

3 3 1 DNS lookup to retrieve 2

frame’s

redirected image on other server

4 2 2 2 TCP connection establishment

retrieve to 1

frame’s redirected image on

other server

5 3 3 2 TCP connection establishment

retrieve to 1

frame’s redirected image on

other server

6 1 1 3 SSL connection establishment

7 6 1 4 Retrieval of HTML web page

8 4 2 4 SSL connections establishment to

retrieve 1

frame’s redirected image on

other server.

9 5 3 4 SSL connections establishment to

retrieve 1

frame’s redirected image on

other server.

10 2 4..18 4 Pooled TCP connection establishment

triggered by need for more than one

connection which is triggered by

historical prefetches being queued up

11 7 1 5 Retrieval of 1

HTML frame

SECURE WEB BROWSING OVER LONG-DELAY BROADBAND NETWORKS - Recommendations for Web

Browsers

167

12 8 2 5 Retrieval of 1

frame’s redirected


13 9 3 5 Retrieval of 2

frame’s redirected


14 10 4..18 5 Pooled SSL connection establishment

with session reuse

15 11, 14 1, 4..7 6 Retrieval of 1

frame’s cascading

style sheet, 1

javascript, 2

javascript,

background URL and redirection to

image on another server

16 14 8..13 6 Retrieval of 2

HTML frame, 2

frame’s cascading style sheet, 1

javascript, 2

javascript, background

URL and redirection to image on another

server

17 14 14..18 6 Retrieval of 1

frame’s 1

through 5

embedded images

18 15 1, 4 7 Retrieval of 1

frame’s 6

and 7

embedded images

19 15, 16 5..11 7 Retrieval of 2

frame’s seven

embedded images

7 Grand total of 7 round trips to

paint page

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

168
