APPLICATION LEVEL SESSION HAND-OFF MANAGEMENT IN
A UBIQUITOUS MULTIMEDIA ENVIRONMENT
Letian Rong, Ian Burnett
CRC SIT (Smart Internet Technology), University of Wollongong, Wollongong, Australia
Keywords: Universal multimedia adaptation, Mobile multimedia applications, Internet services and applications
Abstract: This paper focuses on one of the most important aspects of user mobility in a ubiquitous mobile
environment: application session hand-off management. Here we use the term Session Mobility to define the
ability of handling application session hand-offs among mobile devices. The paper summarizes the current
research in the field and addresses the important facets and the missing “ingredients” of these treatments.
We then propose an architecture to support and manage application session transfers based on the MPEG-21
multimedia framework. This takes advantage of Digital Items and adaptation metadata to provide a
standards-based approach to the problem. Finally, we validated our framework using a test-bed which
provides for dynamic multimedia adaptation.
1 INTRODUCTION
Mobile devices are becoming increasingly popular.
In the near future, users will be using a series of
devices rather than a single but will also be using
them while changing locations rapidly. This is often
called personal mobility and is therefore the aim of
allowing users to consume services through multiple
devices while changing location. This paper focuses
on one area of personal mobility, Session Mobility
(SM) management, which deals specifically with the
issues involved in consuming a session continuously
or later, following storage of session state, in a
device independent manner.
2 RELATED WORK
To date, the widest published projects in the
personal mobility area have been that of the
Berkeley ICEBERG project
(B. Raman et Al., 1999),
Stanford’s Mobile People Architecture (MPA)
(M.
Roussopoulos et Al., 1999), AT&Ts Telephony Over
Packet networkS (TOPS)
(N. Anerousis et Al., 1999),
the Session Initiation Protocol (SIP)
(M. Handley et
Al., 2001), and the Hand-off Manager middleware
from University of Illinois and Purdue University
(Y.
Cui et Al., 2003)
.
The first four of these are similar in that they were
designed primarily for voice mail, email and
teleconferencing related services. The main feature
of this type of application is that they are usually
short-lived and require only basic resource
adaptations and modality conversions (voice-to-text,
voice-to-video with fixed configurations). Thus, the
main focus of these systems is to deal with issues
involved with user location and they are not
designed for the complex adaptation procedures that
might be required in multimedia applications.
Cui et al,
(Y. Cui et Al., 2003) developed a more
extensive middleware framework to manage the
session hand-off issues of personal mobility missing
from the above systems. Importantly, it was also
designed to target multimedia applications. Their
system supports personal mobility by inserting hand-
off manager middleware between multimedia
applications and the underlying network
infrastructures. They also introduced a User
Metadata Server for storing session state related
information. Their hand-off manager is then
responsible for transferring the session state of the
primary application to the hand-off manager of
another application directly or alternatively to
instruct the User Metadata Server to perform the
operation. They also introduced a QoS mapping
algorithm to facilitate resource transcoding during
session hand-offs.
There are, however, several limitations to Cui et al’s
contribution
(Y. Cui et Al., 2003). First the
transcoding-based QoS adaptation approach from
the hand-off manager middleware is too complex
223
Rong L. and Burnett I. (2004).
APPLICATION LEVEL SESSION HAND-OFF MANAGEMENT IN A UBIQUITOUS MULTIMEDIA ENVIRONMENT.
In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 223-229
DOI: 10.5220/0001394602230229
Copyright
c
 SciTePress

and is limited to one specific element of the
multimedia content adaptation process (i.e.,
transcoding). A more comprehensive adaptation
process is therefore required to support dynamic
adaptation of multimedia resources and sessions.
This is particularly important during the process of
session hand-off amongst a broad variety of devices,
and the middleware should be able to support
universal multimedia in particular, user preference,
terminal capability, network capability, natural
environment characteristics and other requirements.
In addition, the Cui approach takes a session sender
approach that requires a session to be stopped before
the hand-off of the session can occur. In certain
cases the consumer might like to have data
seamlessly streamed from one device to another by
initiating it from the session receiver. On other
occasions the consumer might like to continue the
same session on multiple devices. For example, a
person might like to continue watching a movie on
his PDA while his kids continue watching the same
movie on the TV. Cui’s approach does not facilitate
these possibilities.
Finally, all reported approaches to session mobility
so far deal only with one to one session hand-off. In
real life situations, however, it is quite possible that
the hand-off will involve N to M session transfers.
For example, the session state of a presentation may
need to be synchronized to other devices so that
others can either carry on the presentation or view
the updated presentation session. It is also important
that a device, on receiving several sessions from
multiple session senders try to conserve their
previous application session states (i.e., window
size, window position etc.,). This requires a more
complex session hand-off manager.
The architecture proposed in this paper addresses
these issues and facilitates session hand-off with
particular focus on the following requirements:
1. Enabling sessions to be transferred amongst a
large variety of devices and allowing those sessions
to be adapted to the new environment dynamically.
This involves resource(s) adaptation according to the
specific usage environment and session states.
Furthermore, a mechanism is required to identify
which application data are session related (e.g., how
long a movie has been playing) and which are usage
environment related (e.g., the resolution of a movie).
This would enable the device to identify the
application data which should be transferred to the
session receiver.
2. Enabling sessions to be stored remotely for latter
consumption or to be transferred seamlessly between
devices. The management software should
intelligently support those options.
3. Enabling N to M session transfers and managing
multiple received sessions in an appropriate way so
as to conserve their previous session states.
3 SESSION MOBILITY
ARCHITECTURE
The proposed session mobility architecture (see
Figure 1) was designed based on the MPEG-21
multimedia framework. This approach takes
advantage of Digital Items and adaptation metadata
to provide a standards-based approach to the
problem. The architecture consists primarily of two
parts: the M21 middleware which is installed on all
the consumer devices and the SM server. We shall
now discuss MPEG-21 and the roles of these two
parts of the architecture.
3.1 MPEG-21
MPEG-21 is a new multimedia framework from the
Moving Picture Experts Group (MPEG) that
supports multimedia access and delivery using
heterogeneous networks and terminals in an inter-
operable and highly automated manner
(J. Bormans et
Al, 2003)
. MPEG-21 addresses the requirements of
Universal Multimedia Access (UMA)
(A. Perkis et
Al., 2001) by providing a normative open framework
for multimedia delivery and consumption.
The fundamental unit of distribution and transaction
in the MPEG-21 framework is the Digital Item (DI).
It can be considered as a structured digital object
which consists of resource(s) (e.g., a photo album, a
web page) and related information for the
manipulation of the resource(s) (e.g., terminal

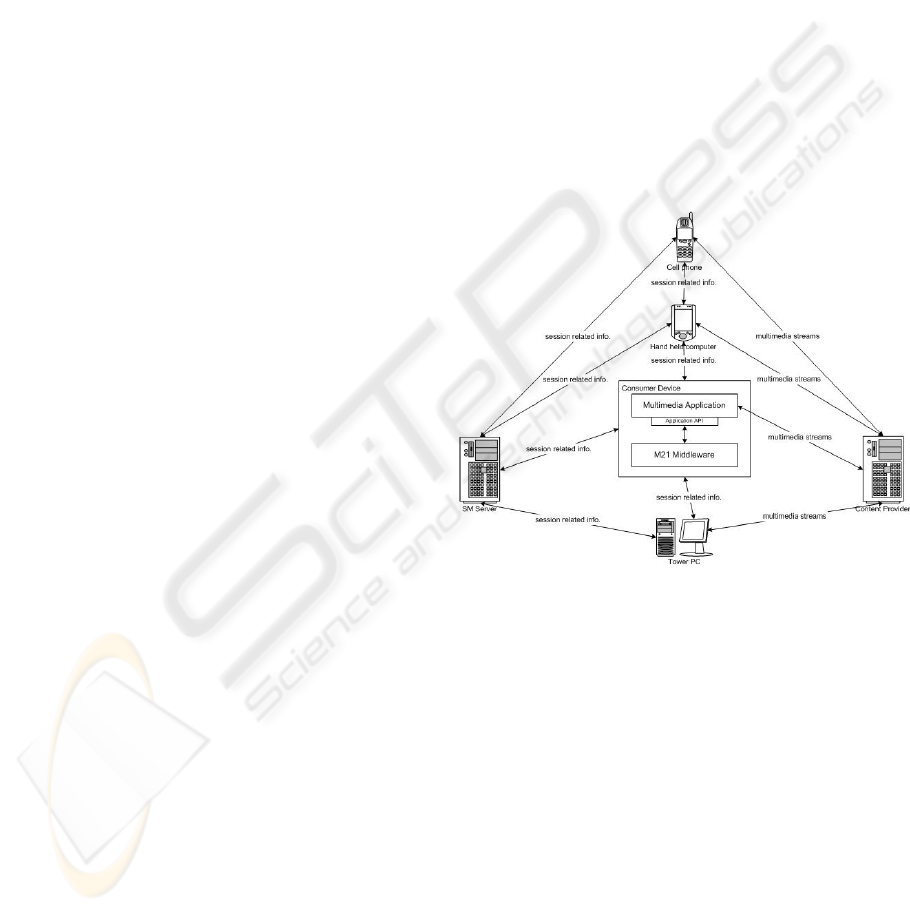

Figure 1: Session mobility architecture
ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS
224

capabilities, intellectual properties). DI is
represented as a Digital Item Declaration (DID) in
MPEG-21 through the Digital Item Declaration
Language (DIDL)
(V. Iverson et Al, 2002) which
conforms to the XML standard. While a DI can have
wide ranging contents (e.g. Rights information), for
our purposes we consider a DI to contain
resource(s), i.e. a list of choices that correspond to
the various adaptation aspects of those resources and
Digital Item Adaptation (DIA) information. DID
(ISO 21000-2) has already become an International
Standard.
The MPEG-21 Digital Item Adaptation (DIA) Tools
are a collection of descriptions and format
independent mechanisms that steer the multimedia
content adaptation process
(A. Vetro et Al., 2004). The
descriptors are represented in XML and can be
either wrapped in a DID or be used independently.
Currently the DIA Tools are clustered into eight
major categories (see Figure 2) and our architecture
mainly uses three of those tools: Usage Environment
Description Tools, Session Mobility and DIA
Configuration Tools.

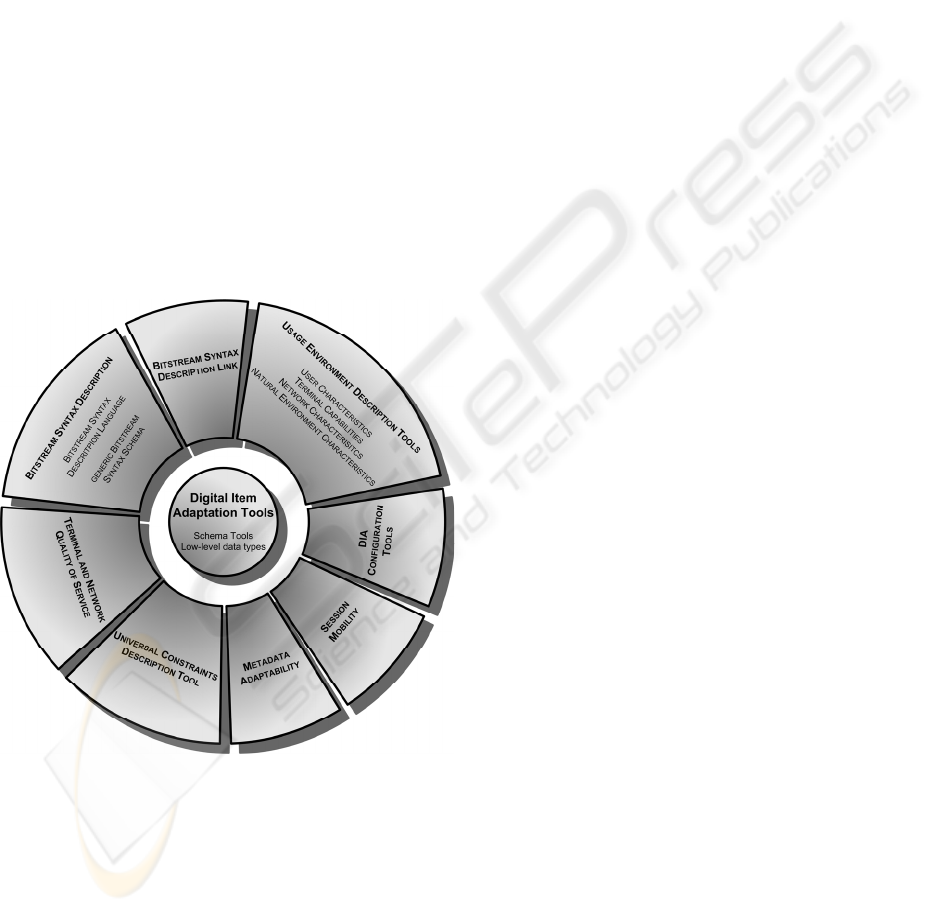

Figure 2: DIA tools architecture (A. Vetro et Al., 2004)
The Usage Environment Description Tools includes
descriptors for the various dimensions of the usage
environment. Those are user characteristics, terminal
capabilities, network characteristics and natural
environment characteristics.
The DIA Configuration Tools specifies how and
where the related usage environment information
can be used for the adaptation of DIs, also it
identifies which configuration state of resources are
session related or should be configured again during
session hand-offs.
Session Mobility describes the application session
state information that pertains to the consumption of
a Digital Item in real time, allowing a Digital Item to
be consumed continuously when it is transferred
from one device to another.
The usage of these related tools are explained in the
following section. Since the scope of MPEG-21 is
very broad, interested readers are referred to
references for information related to MPEG-21
(J.
Bormans et Al, 2003) (A. Perkis et Al., 2001).
3.2 M21 middleware
M21 is a middleware application developed at the
University of Wollongong that implements the base
concepts of MPEG-21. It was used in our previous
work
(L. Rong and I. Burnett, 2004) for enabling
multimedia contents to be adapted to various
devices/terminals in a ubiquitous environment
according to usage environment attributes. Its

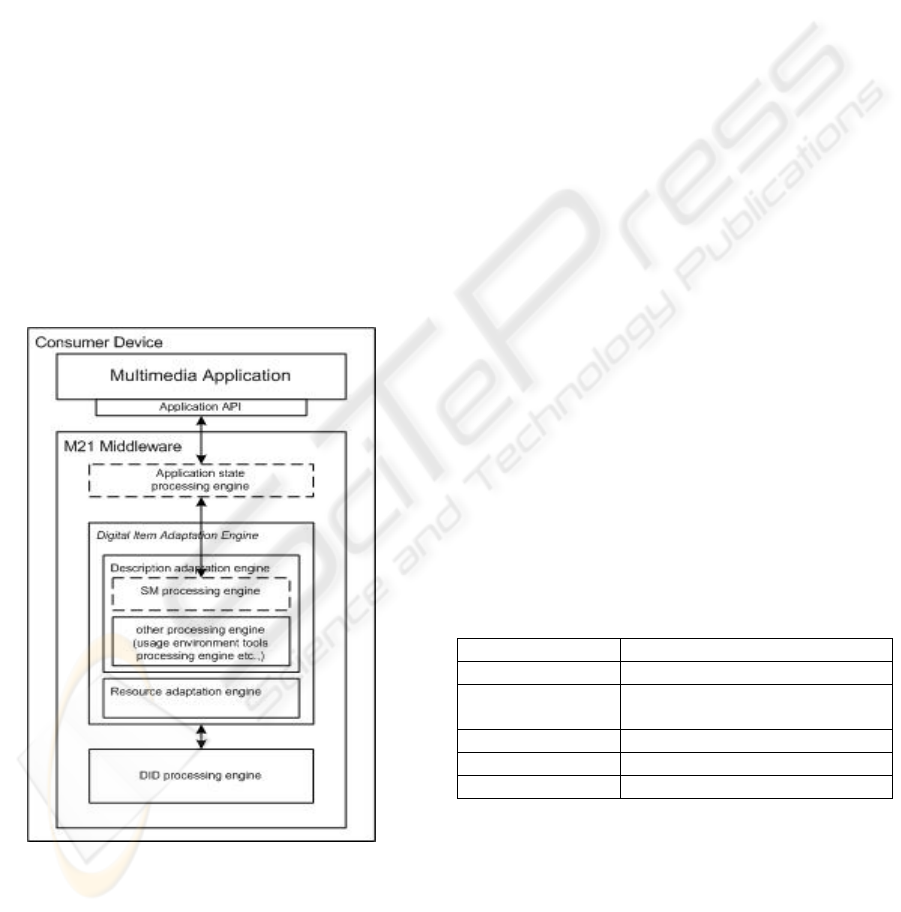

structure is illustrated in Figure 3.
In the multimedia content adaptation approach, the
DI was used as a “Menu” to contain a link or links to
multiple pre-existing variations of resources and a
list of choices which correspond to the resource or
which can be selected so as to configure those
resources further. Furthermore, the DIAC related
information is also encapsulated in the DI to provide
further guidelines on the adaptation process. The
guidelines specify information on the location of
adaptations e.g. at the consumer device, intermediate
nodes or the provider, the types of descriptors
required for adaptations and how the choices should
be selected (by the device automatically or by the
user manually). The consumer then requests a
multimedia resource by first requesting its
corresponding Digital Item and then performs the
resource related configuration and selection
according to his/her usage environment attributes
and the “guidelines” in the DI. The usage
environment attributes are expressed in the Usage
Environment Description Tools. The consumer then
sends that configuration and selection information as
the second request to the provider who in turn,
performs the required resource related adaptations
on their side (according to the same DI) before
sending the resource to the consumer. The M21
middleware is installed on both the consumer and
provider side to perform the DID parsing, DIA
processing and resource adaptation processes. Also
it handles launching of applications to “play” the
resources on the consumer side.
We adopted the existing M21 middleware and the
content adaptation approach into the session
APPLICATION LEVEL SESSION HAND-OFF MANAGEMENT IN A UBIQUITOUS MULTIMEDIA
ENVIRONMENT
225

mobility architecture. This gives us two main
advantages. The first advantage is that we can use
the existing content adaptation functionality to
reconfigure and adapt resources as they are
transferred to a session receiver device. The second
advantage is that the Digital Item is used as the
fundamental unit for multimedia delivery in the
session state transfer process. This broadens the
concept of session state because a DI can then
consist of multiple resources and hence the session
state related to a DI can contain multiple media
session states – each associated with media
resources in the DI. Thus, we define the session state
of a DI as a user’s current state of interaction with a
DI. An example of this concept would be the session
state of a digital CD album which contains audio
clips, movies and photos (i.e., a DI with multiple
resources). The session state of the DI (in our case
the CD) would contain the audio track playing
position, the movie playing position, the photo being
displayed etc. The session state of a DI is inserted
into the DI as a SM schema of the DID Adaptation
Tools when it is transferred to the session receiver
device. Also DIAC is used in the DI to identify
which configuration state is session related.
Figure 3: M21 middleware and its components
A SM processing engine and application state
processing engine are thus added into the
middleware to manage session hand-offs (see as the
dot line boxes in Figure 3). The SM processing
engine is used for generating and parsing session
state information as SM schemas, and it also acts as
the decision maker as to where sessions should be
fetched from. Its decision making mechanism is
explained in section 3.4. It should be noted here that
the SM processing engine links directly with the
application state processing engine by fetching
application session information from it on the
session sender side and passing this information to
the engine on the session receiver side.
The application state processing engine is used to
extract application session information through the
application APIs on the session sender side and
launching appropriate applications on the receiver
side. As mentioned above, the engine connects to the
SM processing engine to transfer the information, so
that session states can be encapsulated/extracted
from DIs as SM schemas. Again, we believe it is
necessary to support multiple session transfers. The
application state processing engine performs this
task by launching appropriate applications with
resources in their preserved session state and
arranging those applications to reflect their previous
application session states. It therefore takes
advantage of the middleware architecture and only
requires different application “drivers” to support
various applications through their APIs.
3.3 SM Server
The second major part of our architecture is the
Session Mobility (SM) server that resides in the
network for storing, redirecting and processing
multimedia sessions. It uses a database to store
session related information as indicated in Table 1.
The SM server either transfers stored sessions
directly to any session receivers or directs session
senders to perform the operation. Its session steering
mechanism is explained in the section below.
Table 1: Session Mobility server information
User ID User identification
IP Address IP address of the device
Application
Name
Application for running the
media
Resource Name Name of media resource
Media Status Playing, Paused or Stopped
Stored Session Exist or empty
3.4 Multimedia session hand-off
management
We categorize session hand-offs into two main
types, session sender driven and session receiver
driven. The two approaches are shown in Figures 4
and 5.
ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS
226

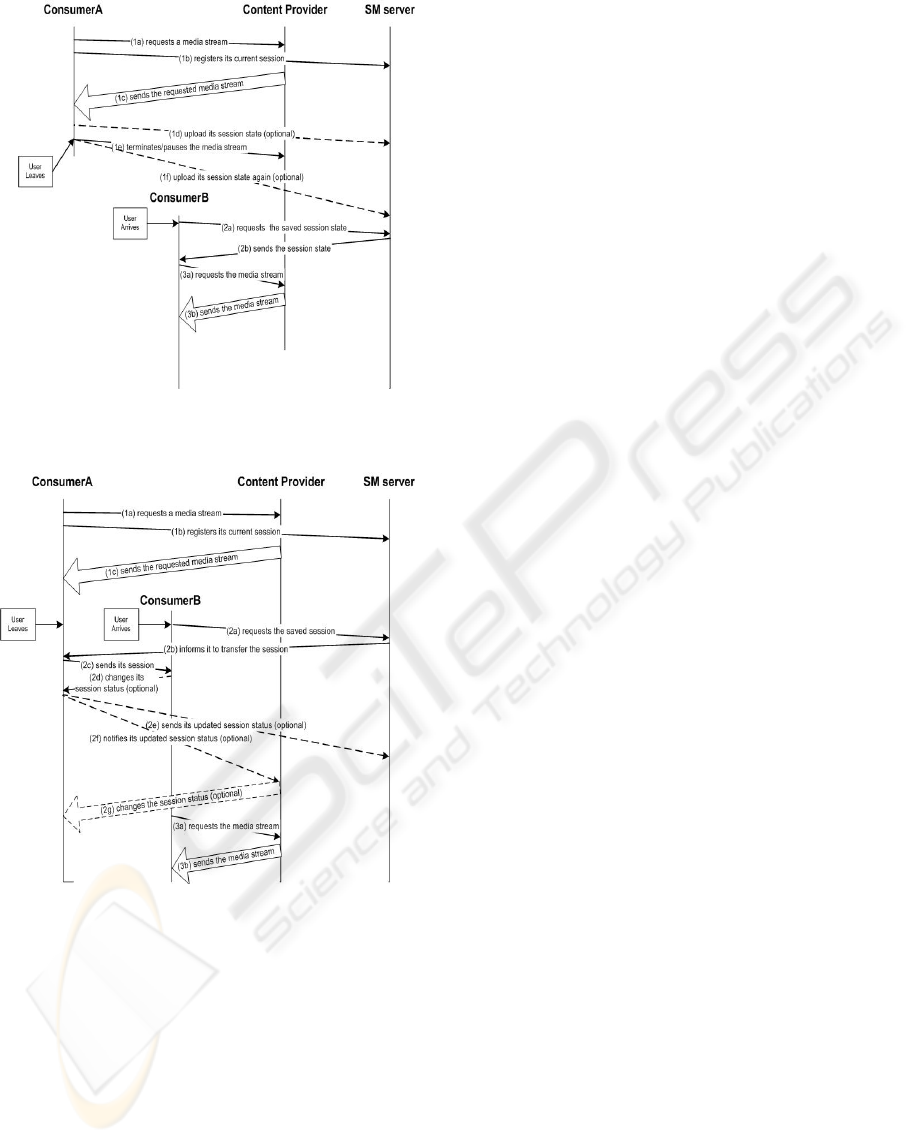

Figure 4: session sender driven approach
Figure 5: session receiver driven approach
Sender driven session hand-off is when the session
sender steers the session hand-off process. In this
case the sending terminal changes its current session
status (i.e., play, pause or stop) before transferring
its session to the session receiver or the SM server.
The alternative, receiver driven approach, enables
the session receiver to control the session status of
the session sender and initiate the session hand-off
process. The steps of each algorithm are shown in
Figure 4 and 5.
In the steps detailed, a content provider is used in the
case of streaming media sessions being transferred
during hand-offs. Those steps however can equally
be used for transferring local data without the
content provider.
Both approaches have been incorporated into our
current architecture and a simple algorithm is used
by the SM processing engine for determining which
approach it should use according to the current
status of the media. If a media resource is currently
playing and there are no corresponding sessions
saved on the SM server, then the session receiver
would contact the session sender to retrieve the
media session directly. Conversely if the media
session has already been saved on the SM server and
it shows the media status as being stopped, paused
or killed, then the session receiver would retrieve the
session from the SM server instead. The advantages
of facilitating both approaches in the architecture are
that: 1. Consumers are given the flexibility to initiate
session hand-offs from different devices; 2. It
reduces SM server load by offsetting some session
hand-offs to peer-to-peer session transfers (i.e., in
the session receiver driven approach). Finally,
several enhanced approaches from
(Y. Cui et Al.,
2003)
can be easily modified to be incorporated into
our proposals.
4 EXPERIMENTAL SETTINGS
AND VALIDATION
The M21 middleware was installed on a test-bed as
the middleware layer application on three separate
computers and a fourth was used as both the SM
server and RTP streaming server.
Two different applications were used in the
experiment to demonstrate multiple session
management. These were a RTP streaming client
and a Java web browser. The RTP streaming
program pair, a RTPTransmitter and RTPReceiver,
have been used previously in our dynamic
multimedia adaptation work
(L. Rong and I. Burnett,
2004)
, and the Java web browser is implemented
based on NetClue
(NetClue Java web browser v4.2)
APIs. All programs were written in Java for
common application interaction and easy code
deployment.
Both session sender driven and session receiver
driven approaches with single or multiple session
transfer(s) have been evaluated in the test-bed. The
session sender devices were able to register their
current sessions with the SM server and transfer
their session to either the SM server or session
receiver devices through the M21 middleware. The
session receiver devices were then able to launch
corresponding applications, adapt contents according
to their usage environment attributes and resume
processing of the Digital Item session. The session
APPLICATION LEVEL SESSION HAND-OFF MANAGEMENT IN A UBIQUITOUS MULTIMEDIA
ENVIRONMENT
227

receivers can also effectively control the media
status of the session sender through the M21
middleware as shown in Figure 6.
Furthermore the application session processing
engine arranges and displays applications according
to their previous application states. Currently the
supported application session information includes
window size, position, state i.e., maximized,
minimized or user defined and size-to-resolution
ratio.

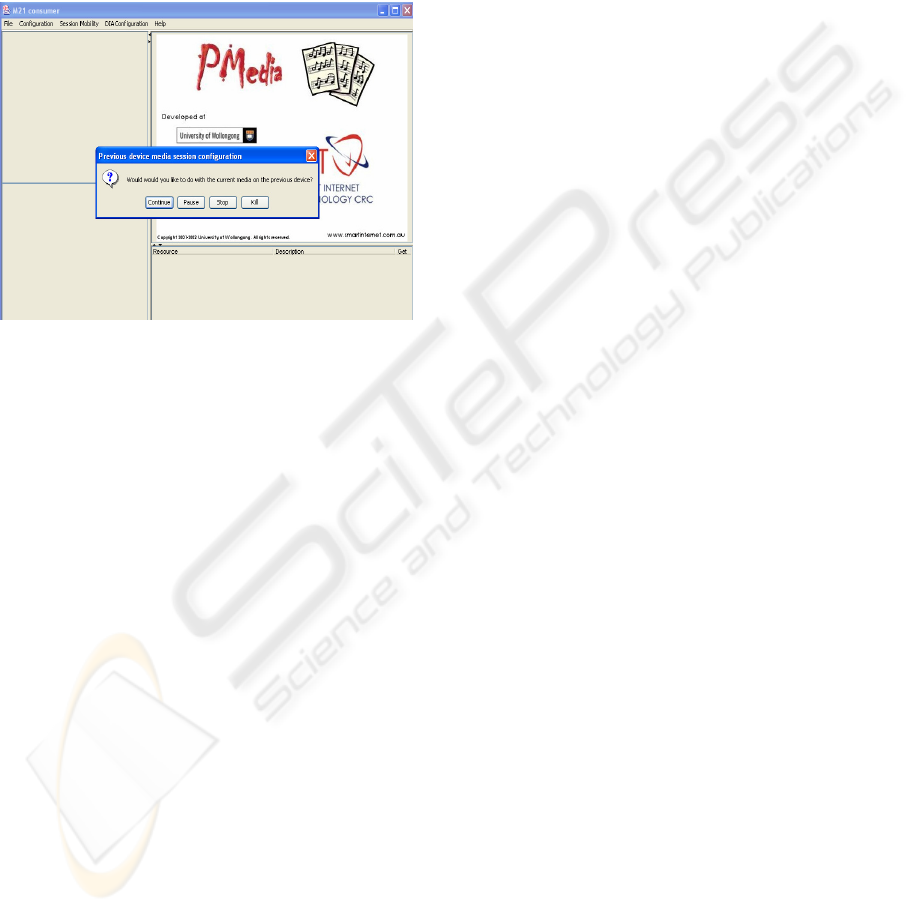

Figure 6: screen shot shows session receiver choosing
media status of session sender through M21
In addition, the test-bed supports the following
usage environment descriptors and choices for
streaming medias: MediaTime, Coarse Language,
CharacterSet and Resolution. The descriptors
MediaTime and Coarse Language are transferred to
the session receiver device as they are session
related, while CharacterSet and Resolution are
configured locally according to the capabilities of
the session receiver. For the web browser, content
adaptation was demonstrated by adapting web pages
of different resolutions to various terminals
according to their resolutions. The generation and
processing overheads of MPEG-21 Digital Items are
shown to be relatively low in the experiment. We
used 83ms and 2ms on average for generating
Digital Items with application session state
information for the RTP streaming client and web
browser respectively, and 279ms for parsing the DIs
on the receiver end. The generation of DI for the
RTP streaming client is relatively higher due to fact
that session information is required to be extracted
from the client program during media streaming.
5 CONCLUSION
In this paper, we proposed a session mobility
architecture to improve the area of session hand-off
management with the aim of targeting multimedia
applications. There are some similarities between
our work and that of Cui’s. We believe that we have
substantiated what is missing from their work and
broader session transfer experience with MPEG-21.
This architecture enables session transfers to be
performed through two different types of approaches
(session sender driven and session receiver driven)
and this then facilitates different types of session
transfer needs. We also adopt the Digital Item
concept to facilitate dynamic session adaptations to
the session receiver, without complex content
negotiation/matching algorithms. Further, an
application state processing engine with different
“application drivers” is used to manage multiple
applications during session transfers. This can be
easily expanded to cater for other multimedia
applications by writing application “drivers” and
incorporating them into the application state
processing engine.
Several Digital Item Adaptation Tools (i.e., DIA
Configuration Tools, Session Mobility and some of
Usage Environment Description Tools), are the end-
result of our work and they are now included in the
Final Draft International Standard (FDIS) version of
DIA Tools and will become an International
Standard in 2004.
As for our future work, we shall implement a more
complex Session Mobility engine that uses more
comprehensive mobility characteristic descriptors
(Z.
Sahinoglu and A. Vectro et Al., 2003)
for facilitating
session hand-offs and their adaptation processes
under more complex mobility situations.
REFERENCES
B. Raman, R. H. Katz and A. D. Joseph, “Personal
Mobility in the ICEBERG Integrated Communication
Network”, Report No. UCB/CSD-99-1048, May,
1999.
M. Roussopoulos, P. Maniatis, E. Swierk, K. Lai, G.
Appenzeller and M. Baker, “Person-level Routing in
the Mobile People Architecture”, 2
nd
USENIX
Symposium on Internet Technologies and Systems
(USITS 1999), October, 1999.
N. Anerousis, R. Gopalakrishnan, C. R. Kalmanek, A. E.
Kaplan, W. T. Marshall, P. P. Mishra, P. Z. Onufryk,
K. K. Ramakrishnan, and C. J. Sreenan, “TOPS: An
Architecture for Telephony Over Packet Networks”,
IEEE Journal of Selected Areas in Communications,
17(1), January 1999.
ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS
228

M. Handley, H. Schulzrinne, E. Schooler and J.
Rosenberg, “SIP: Session Initiation Protocol”,
RFC2543, April, 2001.
Y. Cui, K. Nahrstedt and D. Xu, “Seamless User-level
Hand-off in Ubiquitous Multimedia Service”,
Multimedia Tools and Applications Journal, Special
Issue on Mobile Multimedia and e-Commerce,
Kluwer, 2003.
J. Bormans, J. Gelissen, and A. Perkis, “MPEG-21: The
21
st
Century Multimedia Framework”, IEEE Signal
Processing Magazine, March 2003.
A. Perkis, Y. Abdelijaoued, C. Christopoulos, T.
Ebrahimi, “Universal Multimedia Access from Wired
and Wireless systems”, Birkhauser Boston,
transactions on Circuits, Systems and Signal
Processing, Special issue on Multimedia
Communications, Vol. 20., No.3, 2001, pp. 387-402.
V. Iverson, T. Schwartz, Y. Song, R. Walle, E. Santos and
D. Chang, “MPEG-21 Digital Item Declaration
FDIS”, ISO/IEC JTC1/SC29/WG11/N4813, May,
2002.
A. Vetro, S. Devillers and C. Timmerer, “ISO/IEC 21000-
7 FDIS – Part 7: Digital Item Adaptation”, ISO/IEC
JTC1/SC29/WG11/N6168, January 2004.
L. Rong and I. Burnett, “Dynamic Multimedia Adaptation
with MPEG-21”, Consumer Communication and
Networking Conference (CCNC 2004), January, 2004.
NetClue Java web browser v4.2, NetClue,
www.netcluesoft.com.
Z. Sahinoglu and A. Vectro, “Mobility Characteristics for
Multimedia Service Adaptation”, EURASIP Journal of
Image Communications, Special Issue on Multimedia
Adaptation, October, 2003.
APPLICATION LEVEL SESSION HAND-OFF MANAGEMENT IN A UBIQUITOUS MULTIMEDIA
ENVIRONMENT
229
