REMOVE MULTIMEDIA SERVER BOTTLENECK BY

NETWORK ATTACHED DISK ARRAY WITH

HETEROGENEOUS DUAL CHANNELS

Dan Feng, Fang Wang, Yuhui Deng, Jiangling Zhang

Key Laboratory of Data Storage System , Ministry of Education

Huazhong University of Science and Technology, Wuhan 430074, China

Keywords: Multimedia server, Disk array, Data transfer, Data redirection

Abstract: Multimedia service is pervasive on the Internet now and continu

es to grow rapidly. Most multimedia service

provider systems have adopted a typical system architecture in which the storage devices are attached

privately to the server. When a client browses some multimedia data from the server, data should be fetched

from the storage devices and then forwarded to the client by the server. Unfortunately, with the steady

growth of Internet subscribers, the multimedia server quickly becomes a system bottleneck. Network

attached Disk Array is proposed to solve the bottleneck problem. There are two different channels in the

disk array. One is a traditional peripheral bus to make the disk array work as a normal storage system. And

the other is network interface to transfer data between clients and the disk array directly. The architecture

avoids expensive store-and-forward data copying between the multimedia server and storage devices when

clients download/upload data from/to the server. The latency is less than that with the traditional

architecture and the average data transfer rate is higher. The system performance of the proposed

architecture is evaluated through a prototype implementation based on the logical separation in the File

Transfer Protocol. In multi-user environment, its data transfer rate is 2~3 times higher than that with a

traditional disk array, and service time is about 3 times shorter. The most salient feature of the architecture

is that it eliminates the server bottleneck, while dynamically increasing system bandwidth with the

expansion of storage system capacity.

1 INTRODUCTION

Multimedia service is pervasive on the Internet now

and continues to grow rapidly. All storage devices

with a large volume of digitized media files are

attached privately to the multimedia server.(H.

Radha et Al., 1999), (J. Pieper et Al., 2001) In such

systems, the multimedia server can become a

bottleneck whenever bulk media data is requested,

because the intensive memory-to-memory data

copying between storage devices and the server

occupy will quickly consume all resources of CPU

and memory. Consequently, such systems cannot

sustain the bandwidth requirements of a large

number of media streams.

More recently, there have been some research

effo

rts invested in solving the bottleneck problem of

the multimedia servers. A distributed server

architecture that places the streaming servers close

to the user clusters has been proposed, )FA Tobagi

et Al., 1995), (SA Barnett and GJ Anido, 1996)

where the system is able to achieve scalable storage

and streaming capacities by introducing more

repository servers and local servers as the traffic

increases. A scalable multimedia server based on a

clustered architecture is discussed, (R. Tewari et Al.,

1996) where a group of nodes are connected by a

switch (interconnection network). Storage Area

Network (SAN) based on Fibre Channel is built for

many servers to share its huge logical capability

while multiple servers can process multiple I/O

requests synchronously. (Marc Farley, 2000)

Massively_parallel And Real_time Storage (MARS)

architecture, which connects storage devices to an

ATM_based broadband network, is proposed for

multimedia storage server. (M.M.Buddhikot et Al.,

1994) These related works have made it progressive

to enhance the aggregate bandwidth of the

multimedia system.

In this paper, Network attached Disk Array (Net-

A) is proposed to solve the server bottleneck.

230

Feng D., Wang F., Deng Y. and Zhang J. (2004).

REMOVE MULTIMEDIA SERVER BOTTLENECK BY NETWORK ATTACHED DISK ARRAY WITH HETEROGENEOUS DUAL CHANNELS.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 230-235

DOI: 10.5220/0001395202300235

 SciTePress

There are two different channels in the disk array.

One is SCSI (Small Computer System Interface) bus

to make the disk array work as a normal storage

system. And the other is network interface to

transfer data between clients and the disk array

directly. The architecture avoids expensive store-

and-forward data copying between the multimedia

server and storage devices when clients

download/upload data from/to the server. For

example, when a client requires data from the server,

the read command is sent to the disk array through

the SCSI bus by the server, but the data is directly

transferred from the disk array to the client. So the

latency is lower than that with traditional

architecture. The system performance of the

proposed architecture is evaluated through a

prototype implementation based on the logical

separation in the File Transfer Protocol. In multi-

user environment, its data transfer rate is 2~3 times

higher than that with a traditional disk array, and

service time is about 3 times shorter.

The rest of the paper is organized as follows.

The network attached disk array architecture is

introduced in Section 2. Section 3 describes a

prototype implementation of the FTP server.

Performance of the proposed architecture is

evaluated and analyzed through the prototype in

Section 4. Section 5 concludes the paper with

remarks on main contributions of the paper and

future research directions.

2 ARCHITECTURE DESCRIPTIONS

2.1 Network attached Disk Array

Architecture

Figure1 shows the architecture of the network

attached disk array. There are two interfaces in the

system, one is SCSI (Small Computer System

Interface) and the other is NIC (Network Interface

Card). One SCSI adapter that receives I/O command

from the server is used as target to the server. Other

three SCSI adapters are used as initiator (which we

call a string controller) to the SCSI disks. One NIC

is used to connect the Net-DA to Internet to transfer

data directly.

The control software controls all components.

All disks are organized as one large logical disk and

configured as RAID style. The server manages the

Net-DA through SCSI channel. All data requested

by Internet clients are directly sent out through NIC

to the clients to avoid memory-to-memory data

copying between the server and Net-DA.

2.2 Multimedia Server System with

Net-DA

A broadcast server for playing TV programs is

designed with the network attached Disk array. It is

shown in Figure 2. All Net-DAs are centrally

controlled by the server through the SCSI channel

for the convenience of management just like a

normal storage system, while all network interfaces

of Net-DAs are allowed parallel data transmission.

By keeping the SCSI channel of Net-DA connected

to the multimedia file server to exert central control,

it strikes a good balance between a centralized file

management and a distributed data storage.

When TV programs, which are stored as MPEG-

2 files, are uncompressed and played by the server,

the multimedia data is accessed through SCSI bus.

When data needn’t be processed by the server, such

as TV program files are uploaded/downloaded by

the clients in the editor network, they are transferred

directly between the disk array and the clients

through the network interfaces. A FTP server in the

prototype system is implemented to support Net-DA

transfer mode and it is discussed in detail in the

following sections.

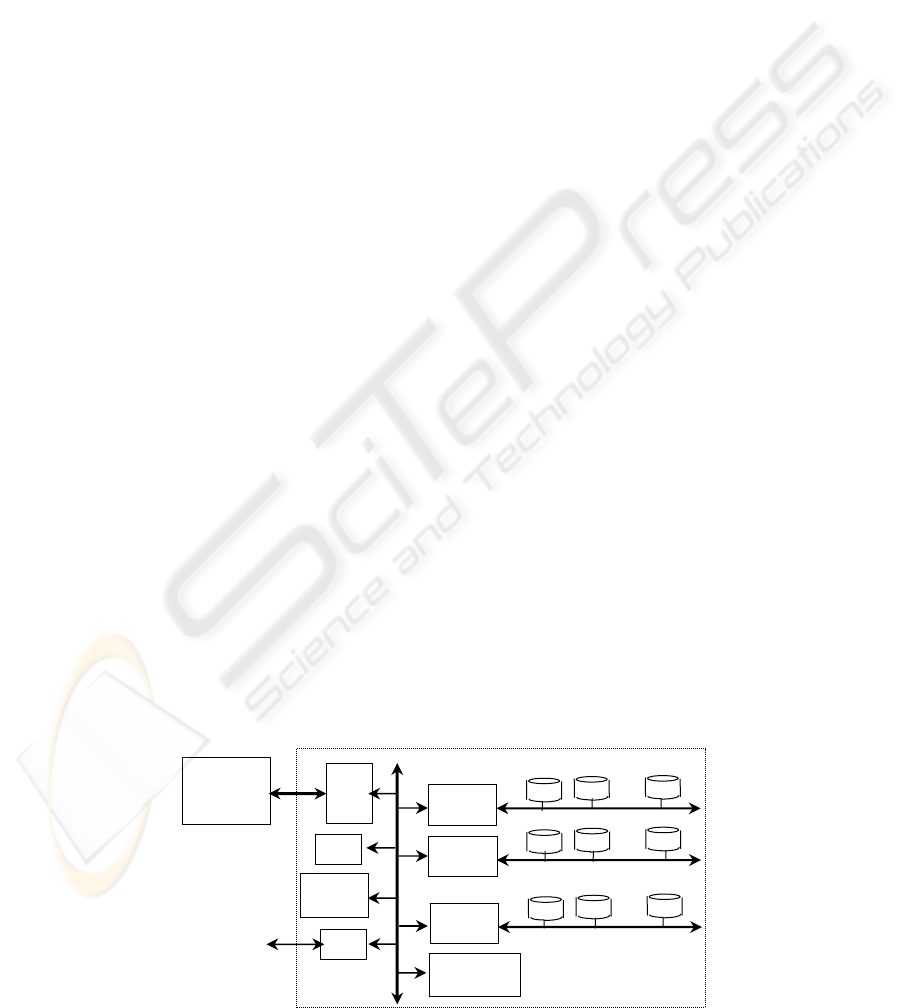

Figure 1: Architecture of Network attached Disk Array

SCSI

String

EPROM

CPU

Cache-

Buffer

SCSI

Control

Software

LSI

53C

8XX

PCI

Multimedia

Server

Controlle

NIC

etwor

LSI

53C8xx

···

LSI

53C8xx

LSI

53C8xx

···

SCSI

REMOVE MULTIMEDIA SERVER BOTTLENECK BY NETWORK ATTACHED DISK ARRAY WITH

HETEROGENEOUS DUAL CHANNELS

231

Storage system capacity must keep pace with the

continuous growth of multimedia data. The system

in Figure 2 achieves this capacity scalability by

expanding the system storage capacity incrementally

with additional Net-DAs along with associated

network interfaces that expand data transmission

rate proportionally.

3 THE PROTOTYPE

IMPLEMENTATION

3.1 The Redirection of FTP

Procedure

A FTP session consists of two connections (see

Figure 3). One is control connection for a client to

connect with the server and it is kept in the whole

session. Another is data connection for the server to

transfer data with a client and it is established when

data should be downloaded/ uploaded to the server.

Because FTP uses different logical channels to

transport control and data packet, we move the

logical channel of data connection from the server to

the physical network channel of Net-DA. Figure 4

shows the redirection procedure of the system, step

by step, as explained below.

TV Pr ogr ams

Edi t or Net wor k

Ne t - DA Ne t - DA Br oadcast Ser ver

Client m

Swi t c h

Br oadi ng Tower

Client 1 Client n

...

SCSI

Client 1

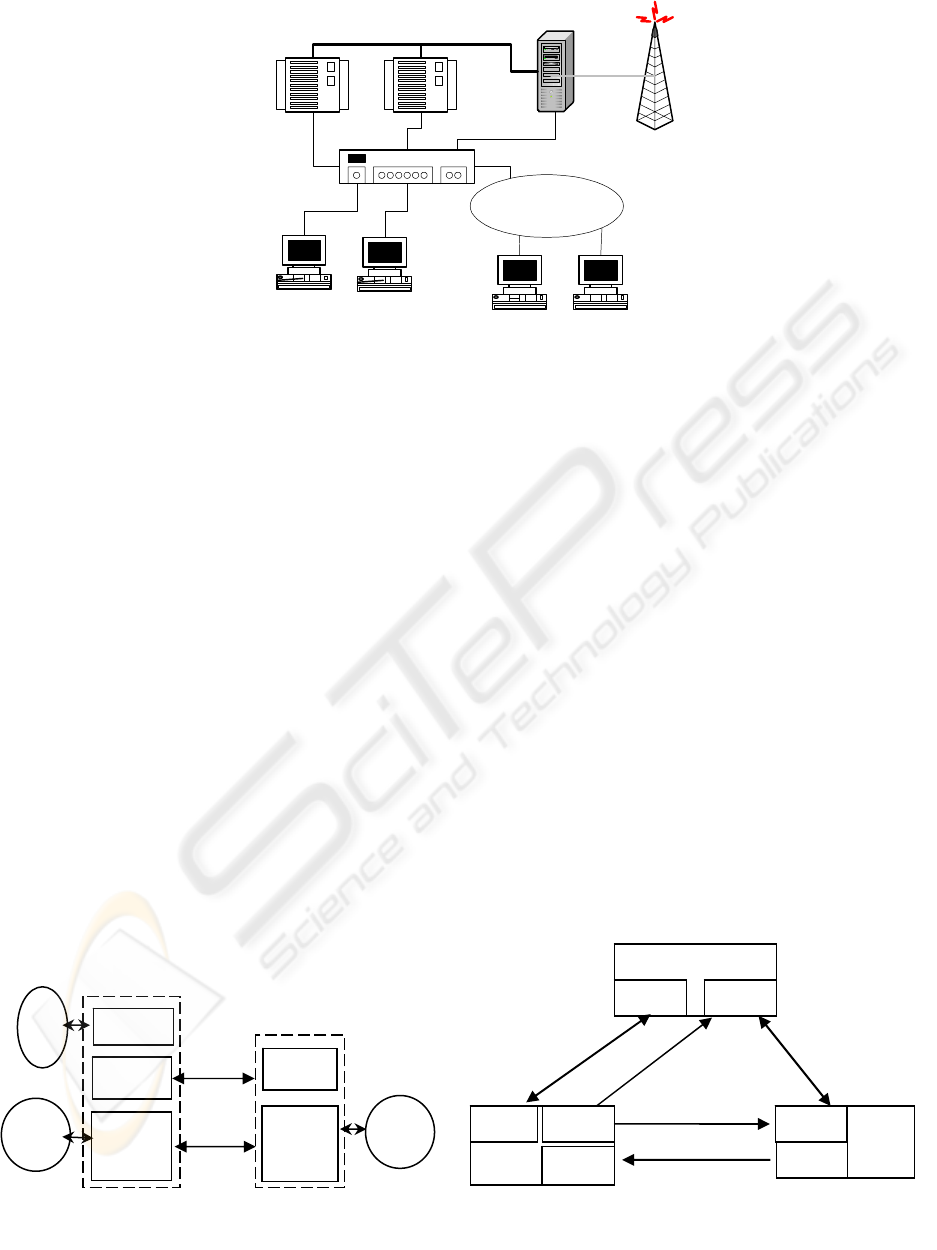

Figure 2: The architecture of the broadcast server system

(1) After a client submits his request for a file

service through FTP, a control connection is

established for basic file service, such as

displaying directory, deleting file and so on.

(2) When the client downloads a file, the server

parses the data information (start address and

data length) of the requested file over SCSI

channel. Afterwards, the server sends the data

information and client information to Net-DA

over the network.

(3) A data connection is established between the

Net-DA and the client.

(4) Net-DA gets the requested data from SCSI disks

in terms of the data information, and transfers

the data to the client according to the client

information. The client begins to receive the

TCP packets.

(5) When the file transfer ends, the Net-DA returns

the finish status to the server.

5. End of Data Transfe

3.Client IP, port and

file information

Figure 4: Redirection of FTP procedure based on the Net-DA

-DA

DataSock

ComSock

Server

CtrlSock DataSock

ComSock

2. Dir

1. REQ/ACK

4. File Data

Client

CtrlSock

DataSock

Data

Server

Control

Client

CMD

/AC

Control

Process

user

File

System

Application

Control

Process

Data

Transfer

Process

Figure 3: FTP connection

File

Syste

Data

Transfer

Process

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

232

3.2 The Software Implementation

3.2.1 Software on the Net-DA Side

The control software modules of Net-DA (see Figure

5) are based on our earlier research prototype

HUST-RAID (Steve Hotz et Al., 1998), with several

noticeable due to because the fact that Net-DA has

two heterogeneous interfaces (network interface and

SCSI interface). The main differences are found in

and described in terms of the following two

modules.

(1) The network interface module

We use embedded real-time Linux with the

priority-scheduling model as the development

platform of Net-DA. Thus simple FS (file system) is

retained, and the network interface module of Net-

DA is implemented in application layer.

(2) The data redirection module

Because different and independent I/O tasks

(coming from the server and network clients) are in

the command queue, we use the data redirection

module to distinguish these I/O tasks and return

appropriate responses.

3.2.2 Software on the Server Side

A simple storage management is developed and FTP

server in Linux is modified to support Net-DA

transfer mode. In order to support a maximum

number of simultaneous requests, the process of

content retrieval is often optimized via two major

approaches, namely, read scheduling and data

placement. We use round-robin read scheduling

method in the system. Data placement will be a

future research direction in our work.

3.2.3 Client Side

Net-DA transfer mode is transparent to the clients

and normal FTP Client software, such as CuteFTP

4.0, can run on the client.

A client application is developed to evaluate the

efficiency of the Net-DA mode. The client

application is multithread. A thread is dedicated to

receiving packets from the network and placing

them in application buffers. Another thread is

invoked with interrupts, takes data from the buffer

and save it. Experimentally, the parallel execution of

I/O and CPU was shown to eliminate packet loss.

4 PERFORMANCE EVALUATION

4.1 Analysis of I/O Performance

4.1.1 Shorten I/O Path

In a traditional system where data is transferred

through a peripheral bus, the I/O path consists of the

following parts:

1. Data is read from disks to the memory in the

Net-DA and the time is T

2. Data is transferred from Net-DA to the kernel

memory of the server through SCSI channel and the

time is T

3. Data is copied from the kernel memory to FTP

application in the server and the time is T

4. Data is transferred from the server to the client

through network and the time is T

5. Data is saved by the client and the time is T5.

So the total time of data download in a

traditional system is T=T

For Net-DA mode in the prototype system in

Figure 2, the I/O path consists of only three parts

which are:

1. Data is read from Disks to the memory in the

Net-DA and the time is T

2. Data is transferred from the Net-DA to the

client through network and the time is T

3. Data is saved by the client and the time is T

Compared with the traditional system, the I/O

path of the prototype system cut two parts. So the

total time of data download in the prototype system

is T’=T

and it is less than that of the

Cache-buffer Management

Data Redirection

Data Reconstruction/Rebuilding

I/O Scheduling

Command Queue Management

Parameter Initialization

Network Interface

mmand Decomposing/Combination

SCSI Interface

Parity Calculating

Figure 5: Control software modules of Net-DA

REMOVE MULTIMEDIA SERVER BOTTLENECK BY NETWORK ATTACHED DISK ARRAY WITH

HETEROGENEOUS DUAL CHANNELS

233

traditional system.

When only one client download/upload

multimedia data from/to the server and the data size

is L, the average rate of data transfer is

541

mod

TTT

eDANet

−

while the rate of the traditional architecture is

54321

mod

TTTTT

ealTradittion

++++

−

4.1.2 Enlarge Bandwidth

Assume that the number of the Net-DAs in the

system is n. When multiple clients access the server

at the same time, the aggregate bandwidth can be

gotten from all the network interface of the Net-

DAs.

Assume that the data size for client i

(i=1,2,…,m) is Li and Pj (j=1,2,…,n) is the

probability that the data is on the Net-DA j. Pj is

affected by the I/O request distribution and the data

location policy on the server system. When the I/O

request follows a uniform distribution and the

location policy balances data on the Net-DAs

dynamically, for an instance, all Net-DAs are

organized as RAID 0 style, the data is located on any

Net-DA equally likely, resulting in Pj =1/n. Total

size of requested data on a Net-DA is

∑∑

=⋅=

iii

pLl

When all requested data

∑

is on a Net-DA and

assume that the access time is t, the access time for

size l

on a Net-DA will be t/n.

When data is balanced on all Net-DAs in the

system, aggregate bandwidth is nearly n times of one

Net-DA because Net-DAs can work in parallel.

4.2 Performance Measurement

Table 1 shows the configuration of the prototype

with Net-DA. In order to get a performance

comparison between the prototype and the

traditional system where the disk array is only

attached to the server, we configure a HUST-RAID

that has the same hardware platform as Net-DA,

except for NIC. The HUST-RAID is directly

attached to the multimedia server through the SCSI

Table 1: Configurations of the prototype system

Client Multimedia server Net-DA

CPU Pentium 450M AMD Athlon MP 1600 Pentium 450M

Memory 128MB 512MB 128MB

NIC RealTek100M RealTek100M RealTek100M

Target SCSI Adapter LSI 53C895

Initiator SCSI Adapter LSI 53C895 LSI 53C875

OS RedHat6.0 RedHat6.0 RT Linux

SCSI Disks ST173404LC

Table 2: Performance comparison between the prototype and the traditional system

Traditional System Prototype system with Net-DA

operation

Number

clients

Data transfer

rate(MB/s)

Average

rate

(MB/s)

Aggregate

bandwidth

(MB/s)

Data transfer

rate(MB/s)

Average

rate

(MB/s)

Aggregate

bandwidth

(MB/s)

1 6.75 6.75 6.75 7.36 7.36 7.36

2.83 4.82

2.41

2.62 5

4.51

4.67 9.33

1.28 3.28

1.12 4.01

1.36

1.25

3.76

2.72

3.34

10.01

0.88 2.62

0.93 2.35

0.76 3.11

Download

File

0.72

0.82

3.29

1.85

2.48

9.93

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

234

channel. Peak read and write performances of

HUST-RAID are 46MB/s and 33MB/s, respectively.

The server is configured as a FTP server and it is

connected to the 100Mbps Ethernet campus LAN of

our university.

The performance of the system is measured by

the aggregate bandwidth when a number of clients

download/upload files from/to the server

simultaneously. Table 2 shows the performance

comparison between the prototype and the

traditional system. The aggregate bandwidth of the

prototype is larger than that of the traditional one

and it approaches the network bandwidth. In multi-

user environment, its data transfer rate is 2~3 times

higher than that with a traditional disk array.

When we add another Net-DA to the prototype

system, the aggregate bandwidth is nearly 20MB/s.

It shows that the performance of the system

increases almost linearly with the increase of the

number of Net-DAs, and the system bottleneck has

been removed from the server to network.

5 CONCLUSIONS

In this paper, we proposed and implemented an

innovative network attached Disk array architecture,

called Net-DA, which adds a network channel to the

RAID and data can be transferred between the Net-

DA and clients directly. A broadcast server with

Net-DA is implemented to avoid the server

bottleneck and has been applied in a TV station. We

described the system architecture and software

implementations in detail. The architecture removes

the server bottleneck and dynamically increases

system bandwidth with the expansion of storage

system capacity. Experimental results provide useful

insights into the performance behavior of the system

based on the Net-DA with heterogeneous dual

channels. The architecture can also be adopted to

transfer massive data in other different servers, such

as database server, HTTP server and so on.

Possible directions for future work include the

development of parallel I/O scheduling algorithm,

data placement methods and storage virtualization

when many Net-DAs are attached to the server.

ACKNOWLEDGEMENTS

This research is supported by National Nature

Science Foundation of China (No. 60273074,

60303032) and Huo YingDong education

Foundation.

REFERENCES

H. Radha, Y. Chen, K. Parthasarathy, R. Cohen, 1999.

Scalable Internet Video Using MPEG-4, Image

Communications.

J. Pieper, S .Srinivasan, B. Dom, 2001. Streaming-Media

Knowledge Discovery, IEEE Computer, IEEE Press.

FA Tobagi, 1995. Distance learning with digital video,

IEEE Multimedia, IEEE Press.

SA Barnett and GJ Anido, 1996. A cost comparison of

distributed and centralized approaches to video-on-

demand, IEEE J. Select. Areas Commun., IEEE Press.

M. M. Buddhikot, G. M. Parulkar, and J. R. Cox, 1994.

Design of a Large Scale Multimedia Stoarge Server,

Computer Networks and ISDN Systems, Elsevier

(North Holland).

R. Tewari, D. Dias, R. Mukherjee, H. Vin, 1996. High

Availability for Clustered Multimedia Servers, In

Proc. Int. Conf. Multimedia Computing and Systems.

Marc Farley, 2000. Building Storage Networks,

Osborne/McGraw-Hill, USA.

Peng Chen, 1999. Design of High Performance RAID in

Real-Time system, ACM, Computer Architecture

News, ACM Press.

Steve Hotz etc, 1998. Internet Protocols for Network-

Attached Peripherals, In Proc. of 6th NASA Goddard

Conference on Mass Storage System and Technologies

in conjunction with 15th IEEE Symposium on Mass

Storage System, IEEE Press.

J. Mache, J. Bower-Cooley, J. Guchereau, P. Thomas, and

M. Wilkinson, 2001. How to achieve 1 GByte/sec I/O

throughput with commodity IDE disks, In

Proceedings

of SC2001 - 14th ACM/ IEEE Conference on High-

Performance Networking and Computing

, ACM/IEEE

Press.

REMOVE MULTIMEDIA SERVER BOTTLENECK BY NETWORK ATTACHED DISK ARRAY WITH

HETEROGENEOUS DUAL CHANNELS

235
