INTERNET, WIRELESS AND LEGACY INTEGRATION

Architectural Framework for Testing

Nenad Stankovic

Nokia, Burlington, MA 01803

Keywords: Internet, wireless, PSTN, testing, distribution

Abstract: Voice and data networks require performing components of highest quality. To achieve these goals software

engineering employs testing. However, software performance and performance testing have been less

studied and reported on. We present here the test-bed developed and used in performance and stability

testing of the intelligent networks integration infrastructure. We used the Visper framework for rapid

distributed application development to build our test-bed. We also report on common programming

problems that have been identified in multiple applications written in Java, and on the experience with our

test-bed. Our findings are based on the work and feedback provided by experienced professionals with a

solid object-oriented background. Their experience with Java and J2EE was mixed, while the test-bed and

the concepts of distributed programming were new to everyone involved.

1 INTRODUCTION

Over the last decade the Internet has become an

everyday source of information, entertainment,

messaging, and many business services for millions

of users and companies around the world. Although

omnipresent, the Internet has an important drawback

due to its restriction to a location. Similar to the

making of a Public Switched Telephone Network

(PSTN) call, the lack of mobility restricts where

those services can be accessed and content

consumed. With the proliferation of wireless

telephony, there is a widespread need for content to

also go wireless and become accessible via mobile

devices. The drive towards convergence of mobile

devices and the Internet to accommodate anytime,

anywhere access to multimedia communications is

resulting in new services for the user and new

business opportunities for the operator.

Each of the mentioned networks has its own

characteristics and technologies as historically and

physically their evolution was independent of the

other domains, and their design was driven by

different requirements. In the world of modern and

integrated communications it is essential to deliver

targeted and timely information and quality services,

development of which is driven by customer needs.

For seamless and reliable end-to-end services it is

required to secure transparent, performing and high

quality interconnect among these networks. In turn,

interoperability between them and communication

between end users across domain boundaries

requires elegant solutions on the technical level.

From an overall perspective, ultimately, it should

appear as if there is only one unified network.

Although the separate domains of wireless,

computer and wired telephony networks remain with

their individual characteristics, recently they became

integrated together. To enable such a seamless

interoperability between key applications, network

domains, and the user identity and addressing

(Figure 1), we have developed a multidomain

integration infrastructure based on open standards,

technologies, and relevant initiatives. As a result, the

user is not concerned with the underlying domain

technologies and directly enjoys the richness of the

supplied services and content irrespective of the

access technology and methods as much as possible.

In the same time, convergence between the same

services regardless of their service providers has

been progressing by addressing harmonization

requirements for service technologies. These

services and implementation should also not be tied

to any proprietary or domain specific technology.

213

Stankovic N. (2004).

INTERNET, WIRELESS AND LEGACY INTEGRATION - Architectural Framework for Testing.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 213-220

DOI: 10.5220/0001398602130220

 SciTePress

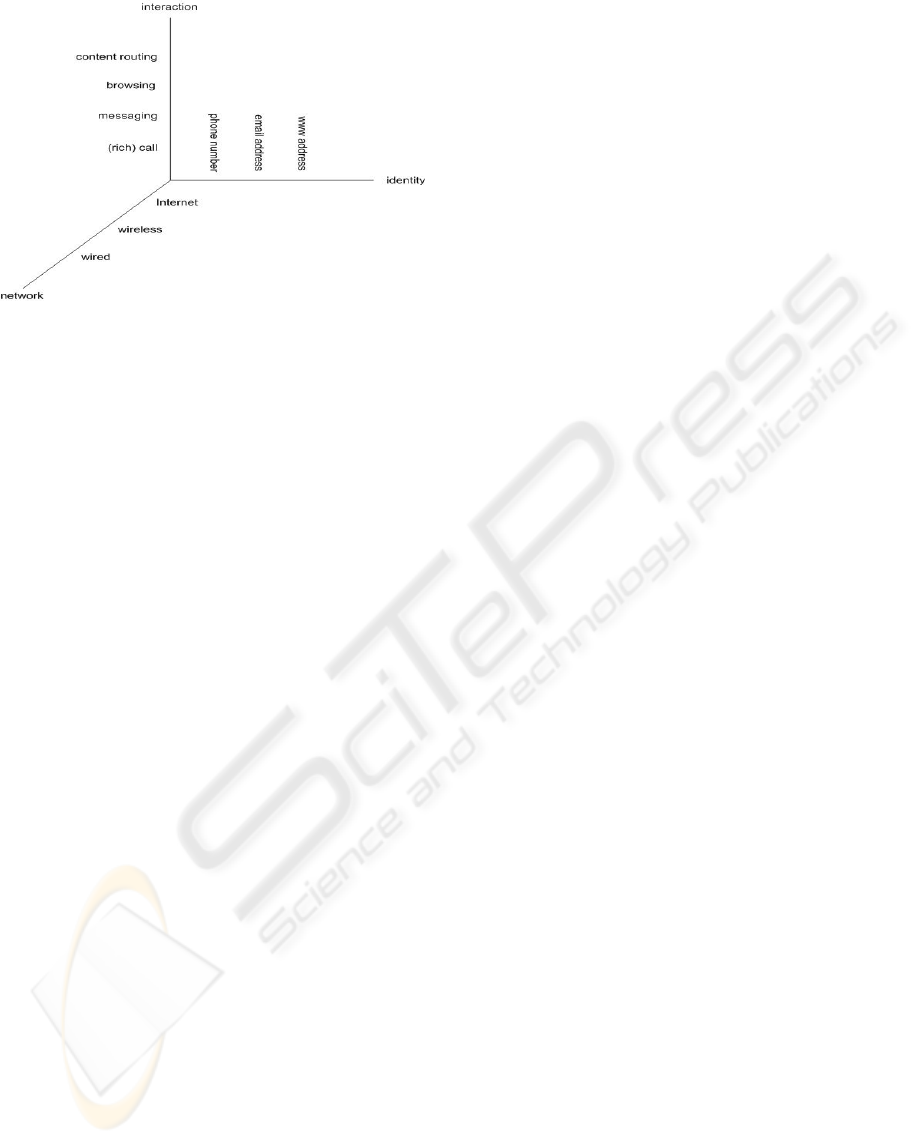

Figure 1: Networks Interoperability

The internetworking infrastructure, as dictated

by the domains it integrates, is characterized by high

availability, scalability, and reliability, while its

usage pattern can change rapidly and dramatically in

time. Therefore, it must be extremely dynamic,

reactive, robust, and capable of handling thousands

of different types of requests concurrently. Its

performance must be predictable, stable under a

wide range of loads, and ensure quality of service

(QOS), all in the same time. To build this

infrastructure is a formidable technical task which

requires highly developed skills, and rapid

development techniques through composability and

component reuse. Subsequently, functional and high

volume stability and performance testing is

conducted. Testing is labour and resource intensive.

On large software projects it often amounts to

between 50 and 60 percent of total software

development cost, even without factoring in the cost

of purchasing equipment for testing. Without

constantly performing quality testing throughout a

whole software lifecycle the risk of the project being

unable to meet the requirements within the given

time and budget constraints is greatly increased.

This paper is primarily concerned with

performance testing of hardware and software

required by this infrastructure. In principle,

performance testing is conducted as end-to-end

black box application testing where test cases are

derived from the use cases and functional

specification. We augment the tests used in

functional testing by generating input load that is

function of time, content and user actions. A

problem with testing such a heterogeneous

collection of applications is that we need many

different tools in the process. Commercial tools are

not only expensive, but different tools apply

different techniques in setting up test cases. They

often lack portability and generate results that are

not easy to correlate and reproduce with other tools.

More importantly, it may be hard to calibrate them

and generally impossible to customize, and optimize

their performance. For example, the capture and

replay tool always picks up the attachment file from

disk, rather than from an in memory cache. On the

other hand, test programs are structured similarly

and are relatively easy to code if not sophisticated.

Based on these premises we can derive a generic

and extensible test-bed that facilitates development

of test programs and setting up of test cases, and

resolves the mentioned problems. By reusing proven

software artefacts new projects and tasks do not

have to reinvent and rediscover what was already

accomplished before. The mentioned characteristics

were successfully implemented and evaluated by

building a large-scale test-bed based on Visper

(Stankovic, Zhang, 2002). Visper is a distributed

programming framework that provides constructs at

programming language level that allow

programmers to directly transfer architectural and

domain specific decisions into an implementation.

The architectural model of Visper has proven easy to

adopt and suitable for rapid prototyping, and

application deployment. Its runtime image is small

in size, efficient in speed. The cost of overhead of its

distributed and local services when integrated into

an application is low and constrained mainly by the

standard low level mechanisms provided by Java

(Campione, et al., 2000), such as the java.io and

java.net packages. Visper is scalable and extensible

to support new applications and programming

models that require the provided services and

abstractions.

The paragraphs that follow first introduce the

intelligent networks integration infrastructure.

Section 3 motivates the test-bed and describes the

main patterns that can be found in performance and

stability testing. We also briefly describe Visper and

the components that were used to accomplish this

task. Section 4 presents a complex test case example

that involves main infrastructure components, as

well as much of the functionality built into the test-

bed in order to drive such a performance and

stability test. Section 5 summarizes our findings and

experience with the infrastructure, Java, and test-

bed, and Section 6 correlates our and similar

research work. Section 7 concludes the paper.

2 INTELLIGENT NETWORKS

INTEGRATION

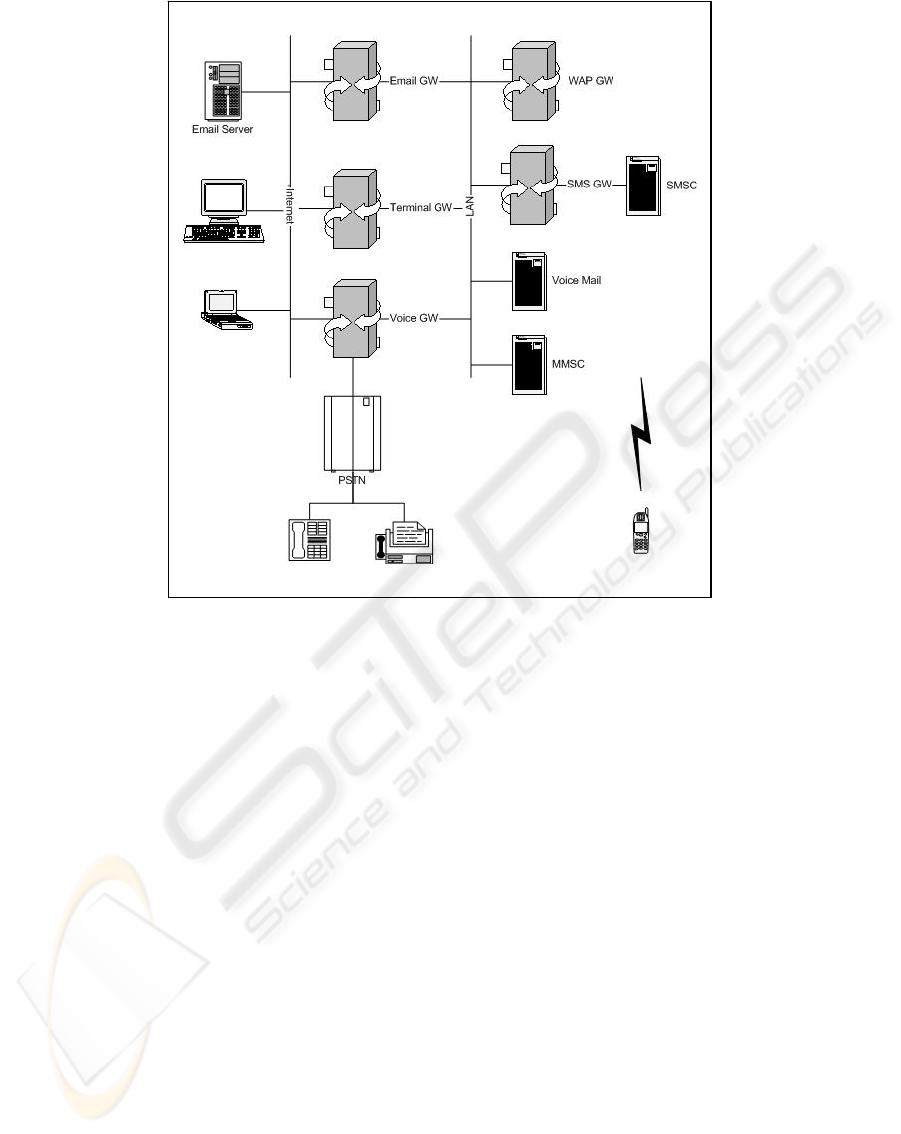

As shown in Figure 2, the applications that support

the seamless and intelligent integration of the

Internet, and wireless and wired telephony

implement a number of gateways (GW) and service

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

214

Figure 2: Intelligent Networks Integration

centers. The reason is that historically these domains

have evolved independently, and are based on

standards that are not compatible, not needed or not

found in the other domains. While the basic

infrastructure requirements are familiar (e.g. billing,

content encoding and conversions, transient and

persistent message repository, notifications), the

number of specialized conversion services (e.g. JPG,

GIF, AIF, BMP, WBMP, WAV, AVI, MOV) and

protocols (e.g. HTTP, HTTPS, SMTP, SS7 (SS7),

T1 (T1), TCP, WAP (WAP)) required is rather large,

which has dictated their separation into multiple

applications that may be enabled or disabled as

necessary.

Therefore:

– The MMSC (Multi-Media Service Center) is the

point of connectivity into and from the wireless

domain. Its main role is to receive multimedia

messages, provide temporary storage and to

attempt to forward the messages to the receivers

– Multimedia Message Service (MMS) delivery to

an email address requires that the MMSC

communicates with an existing email server. The

multimedia Email GW provides the connectivity

between these end points, together with the

routing of messages based on content and

identity

– The Terminal Gateway enables delivery of MMS

messages to legacy terminals. It stores MMS

message content in its own local storage, and

sends an SMS to the receiver, informing the user

of a Web address where the content can be

viewed via a Web browser. The Terminal GW

also provides users with an album for messages

and images. These images can be used to create

a new MMS message either on the phone or in

the browser

– The Voice GW supports unified messaging and

intelligent call routing in all three domains, such

as Voice over Internet Protocol (VoIP), PSTN

voice, and advanced speech recognition. Instead

of receiving a textual notification, the voice

message can be encapsulated as an MMS and

sent directly to the phone

– Content conversion is important when an image

has a format that is not supported by the

recipient. The MMSC routs the MMS to a

content converting application, after which the

new message is sent forward

– The WAP Gateway receives a MMS from the

wireless device via a WAP Post, and transmits

the MMS from the MMSC to the wireless

devices via a WAP Get

INTERNET, WIRELESS AND LEGACY INTEGRATION - Architectural Framework for Testing

215

The Email, Terminal and Voice GWs are known

as external applications to the MMSC. They have

been developed in Java and J2EE (J2EE, 2003),

while the other applications are based on C and C++

with significant embedding into the architecture for

performance reasons.

3 TEST-BED

The development work on these applications has

been conducted in parallel, as has been the testing

work performed both by development teams and

QA. This program organization requires not only

dedicated computing resources for development and

testing, but also requires special tools to conduct the

testing. Even without such a large suite of products,

the cost of commercial testing tools and hardware

would be significant and most likely unacceptable if

unrestricted access is granted to everyone involved.

On the other hand, the software developers are

required, while coding, to produce test programs and

test their classes for functional correctness, stability

and performance. Initially there was no standard for

designing, writing, executing, and managing test

artifacts that would facilitate reuse and controlled

experimentation. Although programmers spent a

good portion of their time on writing test programs,

generally that part of their work was not reused by

their colleagues or shared. Test programs have been

developed and executed locally on a PC, due to

unavailability of dedicated UNIX workstations for

individual testing and development work.

3.1 Requirements

To resolve these shortcomings in the testing process,

a number of possibilities were explored, and Visper

was selected due to the following perceived

advantages:

– Simple yet powerful model that can be adopted

quickly, with low level classes that support

process control and configuration for rapid

definition of test cases and test profiles for

performance and stability testing

– Does not require significant additional

programming skills. Test scripts are organized as

text files, with attribute-value pairs, and they

support nondestructive attribute redefinition.

Reuse of software is mandatory

– Easy and safe sharing of computing resources

between programmers. Since programs in Visper

are executed on dedicated sessions, users are

shielded from any adverse impact that other

users can exert upon them

– Dynamic configurability and transparent

reassignment of resources. Test machines have

been a scarce resource, and often reallocated and

reconfigured. It is not acceptable to constantly

update and rebuild test programs after each

change in the laboratory setup

– Does not require special configuration files and

multiple copies of the same process, that

unnecessary overloads the testing machine. A

cold restart only affects that session, and

deployment and redeployment is dynamic from

multiple network nodes

– Scalability that allows executing thousands of

user profiles and multitude of test cases

concurrently, without a programming

intervention

– Test artifacts are organized in a directory

structure on a per test case basis and under a

versioning control, as to ensure reusability and

reproducibility of experiments

Programmers were introduced to the test-bed in a

1 day get started course in which they were thought

about the relevant concepts, tools, components, how

to code and execute test programs, and prepare and

configure tests in a distributed environment.

3.2 Patterns

Test programs are often not complex to code, but

still require a considerable amount of time to prepare

if sophisticated. This, however, does not address

refinements, potential distribution and scalability

issues. Without guidance from an existing body of

work, the test case implementer must engineer a

solution from scratch, and on a case by case basis.

Architecture plays a central role in software

engineering by developing high level views of the

system, and defining models, components and

guidelines for composing systems. Further, software

engineering has recognized patterns as a means to

capture common and proven design concepts, to

protect and reuse them (Bruegge, Dutoit, 2004).

Patterns can be adapted before being used, either by

wrapping new objects around them or through

inheritance. When designing a test program, we can

identify the following common patterns:

– Driver that performs a task

– Profile that characterizes a task

– Scheduler that provides typical modes of task

invocation

– Configurator that reads textual configuration

files that allow easy test setup without a need for

recompilation

– Logger that provides the methods to create

standardized log files

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

216

– TestBed is the factory that creates a test case

based on a configuration

An important pattern developed for the test-bed

is the Scheduler pattern. It provides three modes of

task invocation: uninterruptible, timer driven, and

counter driven. The uninterruptible mode simply lets

a task run forever. The timer driven mode stops a

task after a predefined time period. In both cases

task invocations can be time sliced, either randomly

or within a fixed time interval. The counter mode

stops a task after a given number of invocations.

Generally, the scheduler is used as is, and requires

no additional programming. Distributed schedulers

can coordinate their activities by joining a group. A

distributed scheduler can also be used when no

distribution is immediately required, providing the

group it joins is unique.

The Profile pattern defines a virtual user of an

application. Profile is an abstract class that is closely

tied to a driver and a test case. A Profile comprises

the attributes and actions required to set up a test

case. A test case can define any number of profiles.

Each profile is assigned a thread to run on by the

scheduler, and a driver by the TestBed. Different

profiles may use different scheduling policy and

drivers. However, this is more a matter of

convenience when testing multiple applications in

the same time, rather than a necessity when

measuring the performance of a single application in

a single end-to-end test case.

The Driver pattern defines the standard interface

to execute a task in our test-bed. Tasks require

establishing the communication channel when

simulating an external entity or user, or simply

invoking a method for white or black box testing.

For example, when testing the Email GW, after

composing the email message with or without

attachments in a profile, an SMTP channel is

established, and the message is sent to an Email

GW. A number of standard drivers and profiles have

been implemented for application, database and

J2EE bean testing.

The Configurator pattern provides the methods

to read in, and parse configuration files and scripts.

These are text files with attribute value pairs, one

pair per line. The same attribute can be

nondestructively redefined multiple times, so that

multiple profiles can be defined by reusing the same

attribute name. Some test cases require a more

complicated mechanism than just sending a

message. Often, interaction with a sequence of

actions is required between a virtual user and a

service provider, such as browsing an album of

messages. Also a man-to-machine dialogue can take

place, where the dialogue is based on a grammar.

For example, when leaving a message on the phone

a hierarchy of menus that lead the user to a goal

must be followed. In Voice GW we use VoiceXML

(VoiceXML) to define the grammar. Rather than

programming multiple profiles for such a use case,

Configurator provides the methods to parse and

prepare a dialogue script for execution. Test scripts,

configuration files, and content files (e.g. message

body, attachments) can be accessed from multiple

locations in a network via a file server.

The Logger pattern defines the methods to create

standardized log files suitable for analyzing in a

spreadsheet. When a test case executes, generated

data can be saved to file or redirected to the console

for online monitoring (see Section 3.3).

These components were built on top of Visper,

either by refining existing classes (e.g. Logger,

Scheduler), or by adding new classes (e.g.

Configurator, Driver, Profile). The reuse ratio was

about 90% excluding the new classes such as Profile

and Driver that are test-bed specific. In terms of

programming work, drivers were the most

demanding, due to their domain specific and case-

by-case nature, and the number of different

protocols and systems employed by the

infrastructure. However, most drivers are simple to

write, as they can reuse existing code or call

standard Java APIs such as JavaMail (JavaMail), or

similar. This has, nevertheless, caused problems

initially because multiple programmers had to code

the same specific drivers, before a comprehensive

database of drivers was established.

3.3 Visper

Visper is a novel object-oriented framework that

identifies and enhances common services and

programming primitives, and implements a generic

set of classes applicable to multiple programming

models in a distributed environment. It emphasizes

separation of concerns in the design, and hierarchy

of layers in the implementation. Component reuse

facilitates easy customizability and adaptability to

different environments and application needs. Visper

also features grouping of distributed collaborating

objects, and agent-based (Genesereth, Ketchpel,

1994) distributed system management.

Visper has been designed and implemented in

Java, with a number of utilities that facilitate

portability and visual program development.

Pertinent to this task, it implements a container in

which remote threads execute, collaborate and

communicate with each other if necessary. A remote

thread is the basic unit of computation controlled by

the host container. Remote threads are autonomous

computing elements that can be dynamically

instantiated and can migrate from one machine onto

another. The Loader class implements a class loader

INTERNET, WIRELESS AND LEGACY INTEGRATION - Architectural Framework for Testing

217

Figure 3: Voice GW Testing

that supports multiple access modes to Java .class

files. The Console package implements a GUI for

user-to-system interaction and system-to-user

feedback. Specifically, following the master-slave

scenario, console is the master that spawns and

controls the remote threads on behalf of the user.

4 EXAMPLE

The configuration in Figure 3 has been used in

testing the Voice GW for performance and stability.

This configuration is rather complex, since it

involves many distributed software and hardware

components. It has multiple input points for load

generation, such as the wired telephony, the VoIP

access, and wireless messaging. In terms of

development work, this was the most demanding

task taking almost 3 man months to complete the

VoIP and wired drivers. The complexity was due to

the usage of native libraries to support SS7 and to

simulate incoming wired phone lines that had to be

linked into the Java Virtual Machine (JVM)

(Lindholm, Yellin, 1999) via a Java Native Interface

(JNI). Also, software for voice activity detection had

to be incorporated.

Test-bed sends MMS messages to the MMSC,

simulates callers dialing Voice GW subscribers,

reroutes the calls to the Voice GW, and plays voice

messages for recording. Voice GW plays voice, text

and fax messages to the subscribers. It sends the

MMS message to the subscriber multimedia terminal

via a WAP GW.

As mentioned before, the standard handling of

configuration and script files had to be improved to

support dialogues with speech and DTMF

grammars. For example, the legacy user dials a

mobile phone number, and the call gets rerouted to a

call center that starts playing a menu. The test script

must be able to select a menu option, detect when

there is no speech activity on the channel, wait for a

tone, record the message, save it or even modify it

before a save option is selected. Also, an option to

verify that the right prompt was played by the Voice

GW could be used in a dialogue.

5 EXPERIENCE

Performance testing is based on a number of

repetitive tasks, with a multitude of user profiles.

With application testing, the number of test cases is

defined by the number of use cases which is often

HEWLETT

PACKARD

MMSC

HEWLETT

PACKARD

SMSC

Voice GW

speechWeb

Visper

Cisco AS5350

VoIP GW

Cisco SLT2611

Sun Netra t 105

Cisco MGC

1st E1 Ports 1-30

2nd E1Ports 31-60

3rd E1 Ports 61-90

Voice Ports

SS7

HEWLETT

PACKARD

WAP GW

NAS Server

Cisco 5300

Wired Phone

Lines

Visper

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

218

low. However, for any realistic testing the number of

user profiles per test case should be large to simulate

closely real world. This is particularly important for

applications written in Java to understand, among

others, the garbage collector (GC) behavior and

optimize the code as to minimize its impact on

performance. The impact of garbage collection due

to bad memory management can be severe, and

could slow down the system by 50% or more. These

implementation problems have been common and

widespread, because the engineers either did not

understand the consequences of their decisions, or

did not feel confident to explore alternative

solutions.

Not all of these deficiencies were easily resolved

and when uncovered through testing and subsequent

code analyses were sometimes ignored due to lack

of time for improvement. Initial code and design

reviews could easily notice this, but, being

performed by peers, they generally failed to do so

for the same reason. We found that peer inspections

tend to degenerate into comments on style and first

order semantic issues. This stands in contrast to the

findings reported by other empirical studies (e.g.

Boehm, Basili, 2001), even though we believe that

these were representative teams for the

semidetached and embedded mode projects both in

size, age, and experience (60 engineers in total).

Occasionally, we ran a short noncompulsory

online survey to identify problems with the test-bed

or gather opinions on the approach as more practical

experience was acquired over time. The test-bed

implementation proved stable and did not cause any

major disruption. Product support was organized

such that problems were resolved with highest

priority. Initially, the main source of problems was

in fact introduced in the introduction course. The

course was focused on explaining the techniques and

classes to write test programs for the test-bed. As

such, little attention was paid to explaining the

overall distributed environment concepts and

programming. It was assumed that programmers

would eventually pick up those through

experimenting, if needed.

However, early on more than half of the

programmers actively using the test-bed were

admittedly confused by the distributed nature of this

environment, and the dynamic program distribution.

The other half understood in principle actions and

reactions as they have been encountered, and they

were comfortable with the tool. As schedule was

tight, there was little or no attempt to investigate

beyond the effort to make the test program work.

The questions asked and problems reported have

shown that concepts from J2EE were blindly applied

here without any discrimination.

One of the reasons to use Visper as a base for the

test-bed was in its ability to easily allocate and use

machines for more processing power, without any

programming intervention. However, as programs

were being written, most of them have been

executed on the same machine. Also, rather than

using more machines to increase the test load, more

Java threads were started via the Scheduler, and log

was sent to the console. All those practices caused

performance problems. Due to lack of time, no

additional group training has been undertaken to

rectify and explain the observed misconceptions, but

most of them were resolved in a person-to-person

conversation, via email, online FAQ and How To

pages.

Overall, the satisfaction with programming in

test-bed was at about 30% initially, but gradually

increased and stayed at about 65%. The main

advantage, as perceived, was that within this

framework it was much easier to write, understand

and share test cases, and more importantly the

drivers, and consequently the system under

development. The situation that many programmers

who worked on the development did not know how

to use the system, or being familiar only with their

own code, and had little or no knowledge of other

parts of the system that have been developed by

other programmers or groups was rectified. Also,

quality of test programs was improved, so that each

developer could perform not only functional testing,

but also stability and performance testing as code

was written and product was being developed. The

task of writing test programs became very much

mechanical, and while the time required to program

a test case was reduced, the test results were

improved, and became more comprehensive.

6 BACKGROUND

As pointed out by Weyuker and Vokolos (Weyuker,

Vokolos, 2000), not many research papers have been

published in the domain of software performance

testing. Interestingly, their findings are also rooted in

telephony, but their contribution is mainly in the

domain of performance testing per se rather than

testing tool development. While they made

recommendation on how to approach software

performance problems, the reported findings are not

based on a whole software lifecycle. They

experimented with an existing gateway system that

was being redeployed on a new platform.

Nevertheless, we find their conclusion that

performance testing differs in many ways from

functional testing correct.

INTERNET, WIRELESS AND LEGACY INTEGRATION - Architectural Framework for Testing

219

Recently, Gorton and Liu (Gorton, Liu, 2002)

investigated different J2EE compliant COTS

middleware for large-scale applications and found

that their adoption and use is not straightforward,

which complies with our findings. Also, when

selecting a middleware technology, it is important

that it provides and sustains the necessary peak

performance. As one would expect, the main

middleware vendors (i.e. BEA, Borland, and IBM)

yielded similar performance results. The more

interesting question remains, as to how much of that

raw performance can be exploited and retained when

business specific code is added. The problem is not

defined only as how computationally expensive is

each use case, what is the background noise, but also

how to identify and mitigate the bad design and

implementation decisions.

7 CONCLUSION

Thus far, the answer to building a large commercial

system has been in server centric 2-to-n-tier

architecture and middleware to support it. Among

the most recent addition to this family of products

has been the J2EE middleware. As information

exchange and availability became more and more

ubiquitous, so did the demand for system integration

become paramount. We find that the main

contribution of J2EE is in providing a

comprehensive platform for developing such

systems. J2EE relieves programmers from thread

and pool management, as they do not have to deal

with these issues explicitly. On the other hand Java

beans have introduced a new level of behavioral

complexity and configuration problems that has to

be understood and managed. Otherwise, unexpected

problems may occur that are hard for a novice to

resolve. Typical performance problems found in

Java applications and techniques to overcome them

have been extensively studied and published, but

their broad adoption and understanding by (less

experienced) programmers is still questionable.

In this paper we also focused on evaluating

Visper in a production environment, where it served

as a basis for building a comprehensive set of testing

tools and programs. The easy configurability and

simple programming model have proven valuable in

an environment where the pressure of change is

constant and activities evolve quickly. Even though

the tool was new to the programmers, it was

generally quickly adopted and used without major

problems or dissatisfaction. Test-bed gave the

programmers a chance to interact with the

application as it was being developed, and to

understand and resolve problems as they appeared.

As a result, quality was significantly improved, and

the number of problems discovered and reported by

QA was proportionally reduced.

REFERENCES

Boehm, B., and Basili, V.R., 2001. Software Defect

Reduction Top 10 List, IEEE Computer, 34(1), pp.

135-137.

Bruegge, B., and Dutoit, A.H., 2004. Object-Oriented

Software Engineering, Pearson Education, Inc. Upper

Saddle River, NJ 07458.

Campione, M., Walrath, K., and Huml, A., 2000. The Java

Tutorial: A Short Course on the Basics, Addison-

Wesley, Reading, MA, 3

edition.

Genesereth, M.R., and Ketchpel, S.P., 1994. Software

Agents, Communications of the ACM, 37(7), pp.48-53.

Gorton, I., and Liu, A., 2002. Software Component

Quality Assessment in Practice: Success and Practical

Impediments, ICSE, pp. 555-558.

J2EE, 2003. java.sun.com/j2ee/1.4/docs/index.html

JavaMail. java.sun.com/products/javamail/index.jsp

Lindholm, T., and Yellin, F., 1999. The Java Virtual

Machine Specification, Addison-Wesley, Reading,

MA, 2

edition.

SS7. www.iec.org/online/tutorials/ss7

Stankovic, N., and Zhang, K., 2002. A Distributed Parallel

Programming Framework, IEEE Transactions on

Software Engineering, 28(5), pp.478-493.

T1. www.t1-t3-dsl-line.com

VoiceXML. www.w3.org/Voice/Guide

VoIP. www.fcc.gov/voip

WAP. www.wapforum.org

Weyuker, E.J., and Vokolos, F.I., 2000. Experience with

Performance Testing of Software Systems: Issues, an

Approach, and Case Study, IEEE TSE, 26(12), pp.

1147-1156.

ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

220
