NETWORK-BASED INTRUSION DETECTION SYSTEMS

EVALUATION THROUGH A SHORT TERM EXPERIMENTAL

SCRIPT

Leonardo Lemes Fagundes, Luciano Paschoal Gaspary

Programa Interdisciplinar de Pós-Graduação em Computação Aplicada,Universidade do Vale do Rio dos Sinos

Av. Unisinos 950

−

93.022-000

−

São Leopoldo, Brazil

Keywords: Security, intrusion detection systems, evaluation.

Abstract: Intrusion Detection Systems (IDSs) have become an

essential component to improve security in networked

environments. The increasing set of available IDSs has stimulated research projects that investigate means

to assess them and to find out their strengths and limitations (in order to improve the IDSs themselves) and

to assist the security manager in selecting the product that best suits specific requirements. Current

approaches to do that (a) require the accomplishment of complex procedures that take too much time to be

executed, (b) do not provide any systematic way of executing them, and (c) require, in general, specific

knowledge of IDSs internal structure to be applied. In this paper we address these limitations by proposing a

script to evaluate network-based IDSs regarding their detection capability, scalability and false positive rate.

Two Intrusion Detection Systems, Snort and Firestorm, have been assessed to validate our approach.

1 INTRODUCTION

With the large scale use of Internet, the number of

attacks against all kinds of organizations has

increased considerably. Through the exploration of

different types of vulnerabilities such as

configuration flaws, implementation flaws and

improper use of available resources, a universe of

possible attacks emerge. Examples of such attacks

go from port scanning, denial of service, connection

hijacking to more sophisticated attacks, such as

distributed denial of service, insertion and evasion.

Aiming at minimizing an intruder's chances to obtain

success in his/her activities, several protection

mechanisms are used. Among these mechanisms are

cryptography, digital certification, public key

infrastructures, firewalls, authentication protocols

and intrusion detection systems.

The IDSs represent an important monitoring

echnique, whose main function is to detect

malicious actions, such as attack attempts and illegal

access to information. There are several intrusion

detection systems available in the market. Among

these IDSs some that stand out are Snort (Roesch,

1999), Bro (Paxson, 1999), NFR (Network Flight

Recorder) (NFR, 2001), Firestorm (Firestorm, 2001)

and RealSecure (ISS, 1999). Considering the

increasing number of IDSs, the identification of their

strengths and limitations is essential, not only to

stimulate specific research niches in the area (to

improve the IDSs), but to assist the security

managers in their grueling task of selecting the most

appropriate system for the environment used as well.

Several approaches have been proposed to assess

trusion detection systems (Puketza et al., 1997;

Lippmann et al., 1999; Alessandri, 2000; Barber,

2001). Those approaches, however, don't describe a

systematic way of executing the procedures,

presenting a series of exhausting activities that take

several weeks and demand specific knowledge from

the users, such as the internal structure of IDSs

(which is not possible in case of proprietary IDSs).

This paper presents an alternative approach to

eval

uate network-based IDSs by presenting a script

with a set of systematic procedures, which can be

done in a short period of time and that do not require

previous knowledge of the detection tools to be

assessed. Despite the fact that the results of the

evaluation don’t present as many details as some

approaches just mentioned, they can be easily

carried out (without requiring highly specialized

human resources and materials). The tests here

evaluate the following IDS characteristics: detection

capability, scalability and false positive rates. These

characteristics were chosen for they are the most

Paschoal Gaspary L. and Lemes Fagundes L. (2004).

NETWORK-BASED INTRUSION DETECTION SYSTEMS EVALUATION THROUGH A SHORT TERM EXPERIMENTAL SCRIPT.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 54-60

DOI: 10.5220/0001399300540060

 SciTePress

representative to an organization decision process

when choosing an IDS. It is also worth mentioning

that our approach has been proposed to

comparatively access two or more intrusion

detection systems (and not to measure the individual

capabilities of a single system). The paper is

organized as follows: section 2 presents some related

work. Section 3 describes the script proposed to

conduct the assessment. The results obtained with

Snort and Firestorm IDSs are presented in section 4.

Section 5 concludes the paper with some final

remarks and presents perspectives for future work.

2 RELATED WORK

This section presents the main approaches developed

up to this date to assess intrusion detection systems.

The criteria applied in this comparison were: type of

assessment, nature of background traffic generated

to perform the experiments and requirement of test

settings.

Regarding the type of assessment, it has been

observed that most of the approaches assess only the

IDSs’ signatures bases (Puketza et al., 1997;

Lippmann et al., 2000, Barber, 2001) which, in

addition to being exhaustive work considering the

size of these bases, generates a valid result only for a

short time period, because signatures are developed

by IDSs’ creators or even by users quite frequently.

Therefore, in order to consider the results of these

approaches reliable, it is necessary to run all the

experiments every time a new signature is released.

On the other hand, approaches such as the ones

proposed in this paper and in (Alessandri, 2000),

instead of testing the signature base, actually test the

IDS’s detection capabilities. By using them,

experiments must be re-run only when new detection

functionalities are added to the system itself.

The representation of background traffic is a

fundamental feature in the assessment of IDSs,

because it interferes directly in the results of some

tests, such as the ones on false positive rates and

scalability. There are approaches like (Lippmann et

al., 1998) and (Lippmann et al., 1999) that do not

describe how background traffic is composed. This

leads to the objection of results, especially in the

assessment of false positives, because there is no

way to assure if there are attacks inserted on this

traffic, nor there are ways to identify which reasons

might have led the IDSs to generate such results.

Except for the methodology proposed by

(Alessandri, 2000), all the others require some sort

of test setting to run the experiments. Approaches

such as (Puketza et al., 1997) and (Lippmann et al.,

1999) require complex test settings, with dozens of

stations (attackers, victims, evaluated systems,

traffic generators and traffic collectors), various

interconnectivity equipments (hub, switch and

routers), and even firewalls. These requirements in a

test setting often result in an impracticable choice,

due to the fact that they demand an extended time

period and a dedicated environment up until

completion of tests. Furthermore, the use of firewalls

prevents several attacks from being captured by the

IDSs, since they are blocked before reaching the

company’s internal network. The use of firewalls is

extremely crucial for any business and must be part

of every study which aims at assessing security

infrastructure. However, considering this specific

purpose, it is a factor that limits the assessment

process.

As a general rule, what is observed in the

approaches quoted is that they lack a proposal which

could be applied by organizations security staff. In

order to accomplish that, it is necessary to develop

an approach that presents well defined procedures,

that can be easily achievable, and that can fully

reflect the reality of the criteria assessed. The

approaches referenced here fail in these aspects. In

addition to not providing adequate documentation on

how some important tests were conducted, some of

these proposals have not yet been properly validated,

or do not offer the necessary means to be applied.

3 EVALUATION SCRIPT

The script is composed by five steps: selection of

attacks, selection of tools, generation of traffic

settings for evaluation, assembly of evaluation

environment and IDSs analysis.

3.1 Selection of Attacks

The goal is to select a set of attacks that present

distinct technical characteristics amongst them.

Instead of simply gathering a set of attacks, we

propose to select, by the end of this phase, attacks

whose detection is possible through different

existent mechanisms in an IDS. For instance, for an

IDS to be capable to detect an insertion attack, the

URL Encoding, it needs more than the capability of

analyzing an HTTP packet, because a content

decoding mechanism of the packet header is also

necessary. Similarly, to detect denial of service

attacks such as the teardrop a mechanism capable to

rebuild fragmented IP packets is required. Thus, the

attacks selected in this step present a unique set of

characteristics that allows the evaluation of different

NETWORK-BASED INTRUSION DETECTION SYSTEMS EVALUATION THROUGH A SHORT TERM

EXPERIMENTAL SCRIPT

HTTP IP TCP ICMP UDP

Multiple packets

Does not establish a connection

Establishes a connection

Requisition line

Requisition encoding

Requisition size

Fragment off-set

IP packet with an enabled DF bit

Fragment identification

Raw IP packet

Fragmentation control flags

Options (NOP, MSS, Windows, …)

Field: service type

Sequence number

TCT initial window

Packet with SYN flag

Packet with FIN flag

Packet with ACK flag

Packet with URG flag

Packet with PUSH flag

Packet with all flags disabled

ICMP packet

ICPM error message size

0 bytes UDP packet

TCP Connect X X

Syn scan X X X

Ack Scan X X X

Window Scan X X X

Fin scan X X X

UDP Scan X X X

Null Scan X X X

Xmas X X X X X X

TCP Ping X X X

TCP Fragmentation X X X X X X X X X X

IP Scanning X X X

Fingerprinting X X X X X X X X X X

Ident Reverse TCP X X X

Figure 1: Technical description of the initial attack setting proposed

IDSs detection capabilities and not only the

signature database.

Figure 1 shows the characteristics explored by the

set of possible attacks to be used in the IDSs

evaluation (in columns). In the lines all attacks are

listed. Due to space limitation, the figure illustrates

only the port scanning attack, but evasion, insertion

and denial of service attacks were also considered.

The attacks used in the assessment are those that

explore combinations of different characteristics (in

bold). To ease the problem that the IDS does not

have the signature of the selected attack and to avoid

reaching a conclusion that the IDS is not capable to

detect the attacks, we always selected two attacks

that explore the same characteristics: one past and

one recent. This approach allows reducing the initial

attack setting. We assume, for instance, that if an

IDS is capable to detect an Ident Reverse TCP

attack, it should also be capable to detect a

TCPConnect (that explores the same characteristics);

it only needs to be configured with appropriate

signatures to do so.

3.2 Selection of Tools

This step is dedicated to the obtention of tools that

allow reproducing the attacks selected in the

previous stage. This task can be accomplished in a

short time period, since the tools applied are easy to

find and use. For instance, to reproduce the port

scannings listed in figure 1 the tool Nmap 2.54

(GNU/Linux) could be used.

3.3 Generation of the Evaluation

Traffic Settings

The evaluation set up is formed by the selected

attacks and by the background traffic (necessary for

the scalability analysis). Following, we present the

description proposed in the script (a) to store the

attack traffic and (b) to generate the background

traffic.

3.3.1 Gathering of the attack traffic

In order to avoid the manipulation of each attack

tool every time that the several tests (presented in

section 3.5) have to be performed, we suggest the

previous gathering and storage of the attack traffic.

In order to do that, an environment such as the one

illustrated in figure 2a must be setup. In the Attacker

station all attack tools selected in the tools selection

step are installed, while the Victim station has all

services to be attacked installed. Finally, the Sniffer

station collects the traffic (using a tool such as

tcpdump) generated by both the attack tools and the

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

attacked station (when, in some level, it presents a

reaction to them). So, for each attack to be collected

and stored, the following sequence of steps is

suggested: (a) start up the tcpdump, (b) execute the

attack, (c) stop the tcpdump and (d) store the traffic.

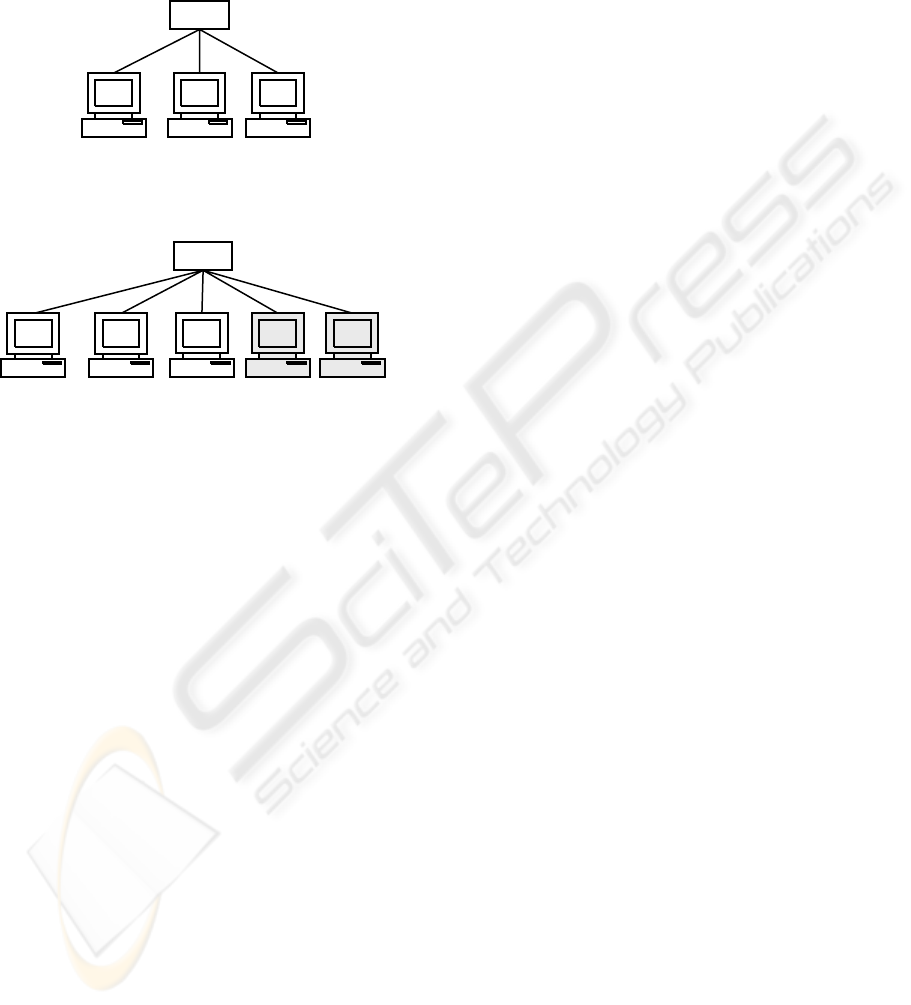

Figure 2: Network environment (a) to collect and store the

traffic of attacks and (b) to evaluate the IDSs

3.3.2 Generation of background traffic

The background traffic is necessary in order to

analyze the IDSs scalability. Our group decided to

use uniform artificial background traffic in the

analysis because when using real traffic, due to the

throughput rate oscillation and the alternation of the

applications used, it would be difficult to identify,

for instance, at which rate the IDS starts to discard

packets. Besides, the use of real traffic (unless the

traffic was known in full detail), could lead to non-

foreseen alarms (for instance, if there were any

attacks inserted in that traffic), what would generate

noise in the evaluation in course.

So we propose to use a background traffic

composed by 256 bytes UDP packets. This traffic

must be reproduced at different rates (e.g. 4, 6, 8, 10

and 12 Mbps). An appropriate tool to do so is

udp_generator, developed at LAND/Federal

University of Rio de Janeiro, since it is easy to

manage and, for that, makes it unnecessary to store

the traffic for subsequent reproduction.

3.4 Assembly of the Assessment

Environment

The evaluation environment should be composed by

the IDSs to be evaluated, the target stations (Victims)

that will undergo the attacks, a station to reproduce

the attack traffic (Attacker) and another to reproduce

the background traffic (Traffic) during the scalability

tests. Figure 2b shows the environment used in our

evaluation, while the results are presented in section

The number of victim stations and the operating

system installed in those stations may vary

according to the attacks selected to compose the

evaluation setting. For instance, if the evaluation

setting is comprised of attacks to Solaris and

Windows 2000 Server stations, the network

environment represented in figure 2b should use two

additional victim stations, in which those systems

should be properly installed and configured. Also,

the amount of IDSs evaluated may vary. As

consequence, the number of stations to host these

systems can also be larger.

3.5 IDSs Analysis

As already mentioned, the script proposed evaluates

the following IDSs characteristics: detection

capability, scalability and false positive rates

generated by these systems. Detection capability is

the test that allows identifying the IDSs detection

strengths, in other words, which types of attacks the

system is able to detect. The scalability test allows

identifying at which transmission rate the IDS starts

to discard packets. The false positive rate shows the

tendency of the IDS to generate false alarms. It

occurs when normal traffic is erroneously

considered an attack or when an attack takes place

but the IDS generates alarms informing of other

attacks instead of the one going on.

3.5.1 Detection capability

To evaluate the IDSs detection capability the

following sequence of steps is suggested: (a) clean

the log files and begin the IDSs log service, (b)

reproduce, one by one, the traffic collected from the

attacks (see section 3.3.1), (c) stop the log service,

(d) save the generated files, and (e) count and

identify the detected and non detected attacks (from

the log analysis). The reproduction of the attacks

will be triggered from the Attacker station, at a low

rate (so the IDS does not discard packets), using a

tool such as tcpreplay.

Attacker Traffic Victim IDS1 IDS2

(

)

hub

Attacker Sniffer Victim

(

)

NETWORK-BASED INTRUSION DETECTION SYSTEMS EVALUATION THROUGH A SHORT TERM

EXPERIMENTAL SCRIPT

3.5.2 Scalability

For the scalability analysis results to be reliable,

only the attacks detected by the IDSs in the previous

analysis are reproduced. For example, if in an

evaluation A five attacks are identified and an

evaluation B detects only three, the scalability

analysis is going to consider five and three attacks,

respectively.

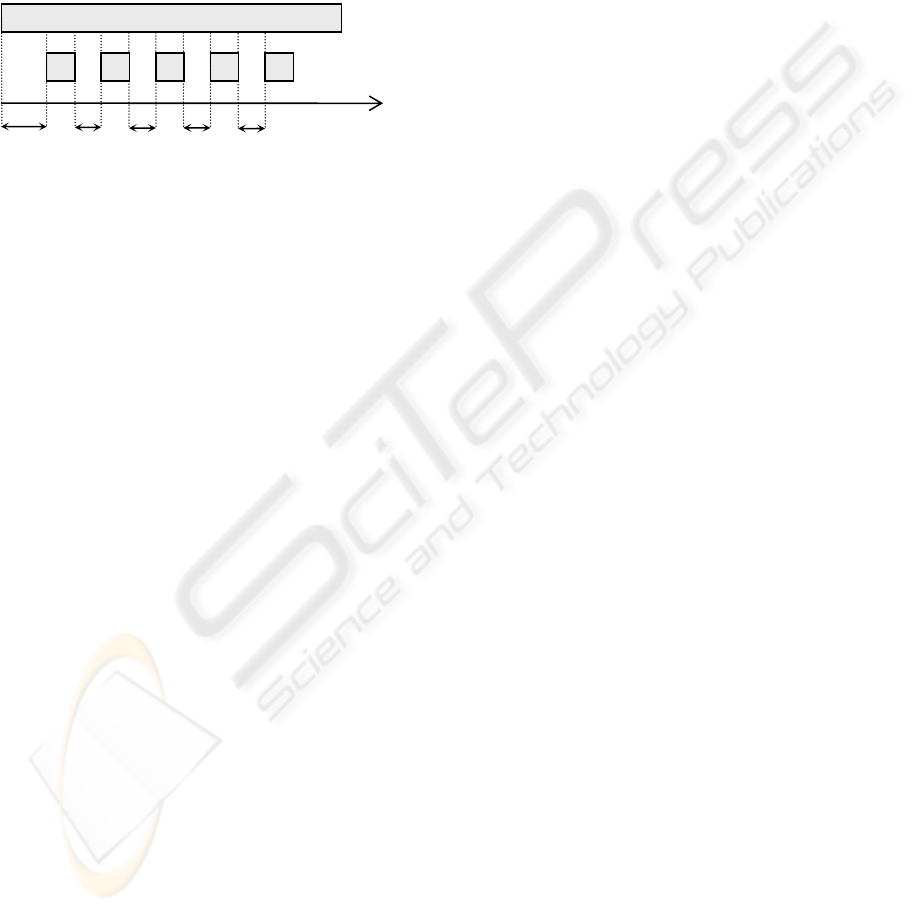

Figure 3: Traffic generation and reproduction sequence

used for scalability analysis

Figure 3 represents the relationship between the

attack traffic and the background traffic (uniform,

generated at a constant rate), reproduced

simultaneously in this analysis. Each type of attack

considered in the evaluation (in our case, denial of

service, evasion, insertion and port scanning) must

be executed in a different series of tests. Figure 3,

for example, refers to the scalability analysis of an

IDS under the denial of service attacks. In this case,

five attacks (Smurf, UDP Storm, Syn Flood,

Teardrop and ICMP Fragmentation) are being

reproduced in parallel with the background traffic

(a). The attacks are executed one by one with a two

second interval between them. The generation of

background traffic starts five seconds before the first

attack is reproduced and is only stopped after all

attacks have been transmitted. So, as soon as that

sequence has been terminated, (b) the log system

must be stopped, (c) the number of alerts generated

by the IDS should be stored (for later account), (d)

the log system must be restarted and, soon

afterwards, (e) the next type of attack must be

reproduced. After every possible type of attack has

been reproduced for each IDS, (f) the background

traffic transmission rate must be increased and the

procedure described must be repeated (a).

3.5.3 False positive rates

False positive is every alarm that indicates that an

attack is happening, when actually another kind of

activity is taking place. For example, when a support

user executes a ping command for a server and the

IDS stores this event as an attack. Another example

occurs when the network is actually under one type

of attack (e.g. UDPstorm), but the IDS generates

alarms not only for this attack but for other type of

attacks, that are not happening at the moment (e.g.

ICMP fragmentation).

Our proposal to identify the false positive is

based on the analysis of the logs generated in the

detection capability tests. After a set of attacks, the

IDS log stores the alarms. The security manager can

easily sort the alarms that identify actual attacks and

false positive alarms. The ratio between the number

of additional alarms over the total of alarms

generated for a set of attacks represents an important

indicator of the IDS tendency to generate false

positives. For that, the log files generated by the

detection capability test should be checked again.

Back

round traffic

ttacks

time

5s 2s 2s 2s 2s

4 CASE STUDY

This section presents the results achieved by two

IDSs submitted to our experimental script described

in the previous section. The IDSs used in this case

study were Snort 1.83 (Roesch, 1999) and Firestorm

0.4.6 (Firestorm, 2001), both available under GNU

GPL version 2 license.

4.1 Detection Capability

The detection capability analysis was carried out

based on the attacks mentioned in section 3.1. This

analysis was made simultaneously with the two

chosen IDSs. The results achieved by Snort and by

Firestorm are shown in Figure 4. It is important to

emphasize that, although the sequence of tests

described in section 3.5.1 has been repeated ten

times, the results were always the same (statistical

variance equals zero).

The results demonstrate that Snort is a tool

capable to detect insertion, evasion, port scanning

and denial of service attacks very efficiently.

Firestorm, on the other hand, did not present an

efficient mechanism to decode HTTP requests.

4.2 Scalability

To evaluate the scalability, the IDSs were submitted

to the procedure described in section 3.5.2, with

background traffic of 4, 6 and 8 Mbps. The tests

were carried out ten times and presented a 2.5%

variance. It was observed that, at a transmission rate

of 4 Mbps, the IDSs don't present packet loss. So,

the number of alerts generated (including false

positive) corresponds to the maximum possible for

the set of attacks being analyzed.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

Snort Firestorm

Evasion

Method Matching X X

Session Splicing X X

Insertion

Long URL X X

Self Reference X X

URL Encoding X

Port scanning

UDP Scan X

Xmas X X

TCP Fragmentation X X

IP Protocol Sweeping X

Fingerprinting X X

Ident Reverse TCP X X

Denial of Service

Smurf X X

UDP Storm X X

Syn Flood X X

Teardrop X X

ICPM Fragmentation X X

Obs.: The “x” means that the respective IDS

detected the attack. If the space is blank it means

that the IDS did not detect the attack.

Figure 4: Detection capability analysis results

In figure 5, the results obtained with the IDS

evaluation are presented. As it can be observed,

Snort is slightly superior compared to Firestorm

regarding the scalability analysis as to all attack

types considered. However, both IDSs can fail to

detect attacks even at a low transmission rate (8

Mbps).

Evasion Insertion

Port

Scanning

Denial of

Service

4 Mbps

Snort 100% 100% 100% 100%

Firestorm 100% 100% 100% 100%

6 Mbps

Snort 98,81% 97,86% 99,32% 99,83%

Firestorm 97,56% 95,18% 99,57% 99,36%

8 Mbps

Snort 89,99% 86,10% 94,85% 94,41%

Firestorm 86,04% 83,42% 90,49% 92,24%

Obs.: The value in each cell is obtained by dividing the number of

logs stored (including false positive) by the number of maximum

alarms expected.

Figure 5: Scalability analysis results

4.3 False Positive Rate

The false positive rate analysis, as described in

section 3.5.3, is done by using the log file data

generated by the IDS when executing a detection

capability analysis. The sequence of tests described

in section 3.5.3 was carried out ten times, always

obtaining the same results (statistical variance equals

zero).

Figure 6 shows the false positive rates generated

by Snort and by Firestorm. The high values indicate

that the IDSs has an imprecise set of signatures,

what causes the mistaken generation of alarms. The

table demonstrates that this matter is more critical in

Firestorm, although the results presented for Snort

are not encouraging as well.

Evasion Insertion

Port

Scanning

Denial of

Service

Snort 36,73% 29,97% 4,71% 4,63%

Firestorm 41,32% 42,97% 12,93% 7,47%

Obs.: The value in each cell is obtained by dividing the number of

additional alarms (false positives) by the total of alarms generated.

Figure 6: False positive rate analysis

5 CONCLUSIONS AND FUTURE

WORK

Nowadays the main approaches regarding IDS

assessment use a large amount of reproduced

attacks, because it is believed that this allows the

evaluation to be more detailed. However, there

aren’t any preexistent criteria for the selection of the

attacks. Therefore, many of them explore the same

characteristics making a wide and detailed

evaluation of the IDS strengths impossible. Besides,

the selection of attacks leads to extremely

exhausting experiments given the amount of attacks

that they analyze. The script proposed in this paper

describes a method for attack selection, in which the

setting used in the IDSs analysis is composed only

by attacks that present unique characteristics.

Through this selection, described in section 3.1, the

initial attack setting is reduced by approximately

50%.

Regarding the IDSs scalability evaluation, it can

be said that the sustained capacity of the system

being evaluated is very clear, even though the script

is based on a uniform traffic rate. Another aspect is

that even when submitted to low traffic, the IDSs

begin to discard packets (compromising the

NETWORK-BASED INTRUSION DETECTION SYSTEMS EVALUATION THROUGH A SHORT TERM

EXPERIMENTAL SCRIPT

detection process). It still remains to be done an

extended scalability evaluation of those IDSs for

rates higher than 10 Mbps (ex: up to 100 Mbps).

The evaluation of false positive rates generated,

as proposed in this paper, is influenced by the power

of description languages to describe signatures and

by the precision of the network manager when

specifying them. An additional mechanism for this

analysis, that takes into account the typical

background traffic found in the organization where

the IDS is going to be used, requires further

investigation.

Future work include (a) the extension of the

evaluation setting, through the selection of other

types of attacks, (b) the investigation of procedures

to evaluate other criteria (ex: capacity to handle

concurrent attacks) and (c) the development of a tool

to assist the execution of the script proposed.

REFERENCES

Alessandri, D. (2000). Using rule-based activity to

evaluate intrusion - detection systems. In Third

International Workshop on Recent Advances in

Intrusion Detection (RAID), pages 183-196.

Barber, R. (2001). The evolution of intrusion detection

systems – the next step. Computer & Security,

20(2):132-145.

Firestorm (2001). Firestorm network intrusion detection

system Homepage. http://www.scaramanga.com.uk/.

ISS (1999). Real Secure Systems Inc. Homepage.

http://iss.net.

Lippmann, R., Fried, David J., Graf, I., Haines, Joshua W.,

Kendall, Kristopher R., McClung, D., Weber, D.,

Webster, Seth E., Wyschogrod, D., Cunningham,

Robert K. and Zissman, M. (1998). Evaluating

intrusion detection systems: The 1998 DARPA off-

line intrusion detection evaluation. In proceedings of

the DARPA Information Survivability Conference and

Exposition (DISCEX) 2000, IEEE Computer Society

Press, Los Alaminos, CA.

Lippmann, R., Haines, D., Fried, D. J., Das, K. J., and

Korba, J. (1999). Evaluating intrusion detection

systems the 1999 darpa off-line intrusion detection

evaluation. Computer Networks, 34 (4):579-595.

NFR (2001). Network Flight Recorder, Inc. Homepage.

http://www.nfr.com/.

Paxson, V. (1999). Bro a system for detecting network

intruders in real-time. Computer Networks, 31(23-

24):2435-2463.

Puketza, N., Chung, M., Olsson, R. A., and Mukherjee, B.

(1997). A software platform for testing intrusion

detection systems. IEEE Software, 14(5):43-51.

Roesch, M. (1999). Snort – lightweight intrusion detection

for networks. In USENIX LISA Conference.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS
