FAST AND STRONG CONTROL OF CONGESTION-MAKING

TRAFFIC

Gaeil Ahn, Kiyoung Kim, Jongsoo Jang

Security Gateway Research Team, Electronics and Telecommunications Research Institute (ETRI)

161 Gajeong-dong, Yuseong-gu, Daejon, 305-350, Korea

Keywords: Network congestion, DDoS attack, Packet markin

g, Priority queue, Traffic control

Abstract: In case that malicious or selfish user congests network, the tr

aditional congestion control schemes such as

ECN (Explicit Congestion Notification) in TCP protocol could not control the pernicious congestion so

perfectly as they protect normal traffic. In this paper, we propose a strong congestion-making traffic control

scheme, which is capable of preventing malicious or selfish user from congesting networks by dropping only

packets corresponding to congestion-making traffic when a network congestion occurs. Our scheme involves

two mechanisms: a traffic service decision mechanism that is able to fast and correctly determine whether an

incoming packet is normal traffic or congestion-making, and a marking mechanism for identifying

congestion-making traffic. In the marking mechanism a router can mark a packet in order to notify

downstream routers that the marked packet is congestion-making traffic. To show our scheme's excellence,

its performance is measured and compared with that of the existing schemes through simulation.

1 INTRODUCTION

Congestion at a router occurs when the sum of input

streams is greater than output capacity. Once

congestion occurs, packet delay and packet loss

increase because congested router's buffers become

full. In solving the congestion problem, most of the

traditional mechanisms assume that sender makes an

effort to adjust its transmission rate to network state

or reserves a certain amount of network resource

before sending packets. For example, network in

ECN (Explicit Congestion Notification) mechanism

(S. Floyd, 1994) notifies TCP senders/receivers

about incipient congestion in expectation that if they

receive an ECN signal they'll decrease their

transmission rate.

However, malicious or selfish users may

tentionally congest network. Actually, Denial of

Service (DoS) attackers (K. J. Houle et al, 2001), (X.

Geng et al, 2000) as malicious user result in network

congestion by generating a huge volume of traffic

for the purpose of assailing a victim system or

networks. Selfish users also establish many

connections to get better network service. In that

case, ECN-like approach would be of little use in

controlling such pernicious congestion. That is,

when congested router sends an ECN signal to

senders, only normal senders will decrease its

transmission rate. On the other hand, malicious or

selfish users will ignore the ECN signal by

increasing the number of flows. This is why network

is still congested nevertheless normal user’s

decreased its transmission rate.

In this paper, we define congestion-making traffic as

ne of which transmission rate is still high under

network congestion. To control congestion-making

traffic, it has been proposed a static rate-limit

scheme (Cisco, 2000) in which the rate to limit is

fixed in advance. But the scheme has a disadvantage

that the amount of packets during normal state

should be first measured to set the correct threshold

value for rate-limiting congestion-making traffic.

And also, it has been proposed a dynamic rate-limit

scheme called ACC (Aggregate-based Congestion

Control) (R. Mahajan et al, 2002) in which when

congestion occurs the rate to limit is dynamically

determined based on the bandwidth of each

aggregate. Even if ACC is much better than static

rate-limit, it is likely to have a weak point in

determining precise rate-limit value. As explained

above, TCP-like adaptive traffic decreases its

transmission rate when congestion occurs. So, the

threshold for rate-limiting congestion-making traffic

may be overestimated. As a result, ACC may not

protect adaptive traffic from congestion-making

traffic.

In this paper, we propose a strong congestion-

aking traffic control scheme for preventing

malicious or selfish user from congesting networks.

Our elementary strategy is to drop only packets

corresponding to congestion-making traffic when

network congestion occurs. We don't use rate-limit

Ahn G., Kim K. and Jang J. (2004).

FAST AND STRONG CONTROL OF CONGESTION-MAKING TRAFFIC.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 20-29

DOI: 10.5220/0001399700200029

 SciTePress

approach in controlling congestion-making traffic.

Instead, we employ three priority queues: high,

medium, and low priority queues. We provide

normal traffic with high priority queue and

congestion-making traffic with medium or low

priority queue. Our scheme prevents the buffer of

high priority queue from becoming full. So when

network congestion occurs, only medium and low

priority queues experience that their buffer become

full. In other words, network congestion is localized

to only congestion-making traffic without having

any effect on normal traffic.

Our scheme involves two mechanisms: a traffic

service decision mechanism that is able to fast and

correctly determine whether an incoming packet is

normal traffic or congestion-making, and a marking

mechanism for identifying congestion-making traffic.

In the marking mechanism, a router can mark a

packet in order to notify downstream routers that the

marked packet is congestion-making traffic. If a

router receives a marked packet, it forwards the

packet to low priority queue at once without

determining the service queue for it.

The rest of this paper is organized as follows.

Section 2 overviews our scheme and section 3

illustrates an algorithm for determining the service

of an incoming packet in detail. In section 4, the

performance of the proposed scheme is measured

and compared with that of the existing schemes

through simulation. In section 5, the other works that

tackle the problems of DoS attacks is shortly

described. Finally conclusion is given in Section 6.

2 CTC OVERVIEW

In this section, we describe our scheme, Congestion-

making Traffic Control (CTC)

2.1 IP Spoofing Problem

Generally, severe network congestion occurs by

malicious or selfish user. Malicious user is likely to

employ the faked source IP to hide his/her identity,

while selfish user does not use the faked source IP

because his/her purpose is not to attack

networks/systems, but to get better network service.

In this paper, we don't address IP spoofing problem.

We assume that there is no IP-spoofed packet on

networks or if it exists it is detected/dropped by

using the existing mechanism such as ingress

filtering (P. Ferguson et al, 2000), unicast reverse

path forwarding (uRPF) (Cisco, 2001) and so on.

2.2 Identifying Congestion-making

Traffic

Malicious or selfish user has a common

characteristic that generates a huge volume of traffic

without any consideration of network state. That is,

they generate heavy traffic and never decrease their

transmission rate even if network congestion occurs.

For such reason, we define congestion-making

traffic as one that generates heavy traffic under

network congestion.

STT Class 1

STT 1

STT 2

STT n

STT Class 2

STT 1

STT 2

STT n

STT Class m

STT 1

STT 2

STT n

Classified by application type

Classified

source IP

network address

STT Class 1

STT 1

STT 2

STT n

STT Class 2

STT 1

STT 2

STT n

STT Class m

STT 1

STT 2

STT n

Classified by application type

Classified

source IP

network address

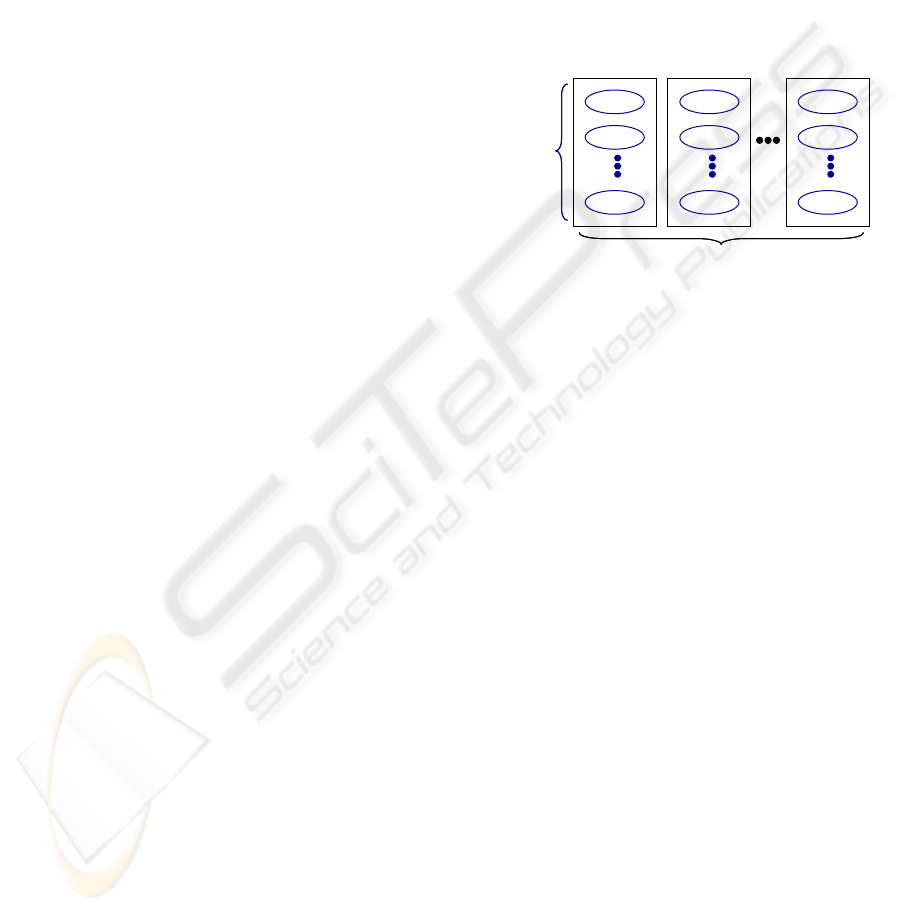

Figure 1: STT and STT class

In this paper, we classify all traffic by its source IP

network address and application type (i.e,

destination port and protocol). More specifically, we

define two terms, a source-based traffic trunk (STT)

and a STT class as shown in Fig. 1. The original

concept of traffic trunk was introduced by T. Li and

Y. Rekhter (T. Li et al, 1998). In this paper, a STT

indicates an aggregate of flows with the same source

IP network address. The granularity of STT depends

on the size of address prefix. A STT class indicates

the set of STTs with the same application type. STT

class can be defined with a policy. For example, it is

possible to define STT class 1 as one for Web traffic

and STT class 2 as one for voice traffic.

In this paper, we define normal traffic as one that

consists of STTs with relatively less load than other

STT, and of which the sum of load does not exceed

MaxLoad_Threshold. MaxLoad_threshold can be

configured by an administrator. The definition of

normal traffic and congestion-making traffic is as

follows :

FAST AND STRONG CONTROL OF CONGESTION-MAKING TRAFFIC

()

{}{}

STTsNormalSTTsActiveAll

STTofLoadSTTofLoad

ThresholdMaxLoadSTTofLoadSTTSTT

mMAX

ficMakingTraf-Congestion

, _ | ..

Traffic Norma

−

⎪

⎭

⎪

⎬

⎫

⎪

⎩

⎪

⎨

⎧

≤

⎟

⎠

⎞

⎜

⎝

⎛

∑

To fast and correctly distinguish between normal

and congestion-making traffic, we propose a novel

algorithm. The algorithm is described in section 3.2

in detail.

Resource to service

MaxLoad

threshold

Sum of load of

normal STTs

Sum of load of

malicious/selfish

STTs

Medium

priority

queue

High

priority

queue

Resource to service

Sum of load of

normal STTs

MaxLoad

threshold

Sum of load of

malicious/selfish

STTs

Medium

priority

queue

High

priority

queue

Figure 2: Our strategy for controlling congestion-making

traffic

Our strategy for controlling congestion-making

traffic is to keep the sum of load of normal STTs

from exceeding

MaxLoad_threshold and to provide

them with better service than congestion-making

STTs for the purpose of localizing the effect of

network congestion to congestion-making STTs.

To realize this, we employ two kinds of priority

queues, high and medium priority queues as shown

in Fig. 2. We provide normal STT with high priority

queue and congestion-making STT with medium

priority queue. If the sum of load of normal STTs is

greater than

MaxLoad_threshold, we change the

property of the worst one of the normal STTs to

congestion-making traffic for the purpose of

avoiding that network congestion occurs in high

priority queue. On the contrary, if the sum of load of

all normal STTs is less than

MaxLoad_threshold, we

changes the property of the best one of the

congestion-making STTs to normal traffic for the

purpose of increasing network utilization.

2.3 Architecture of CTC

We now describe our scheme. Fig. 3 shows the

architecture of CTC-enabled router. The architecture

is composed of two parts: packet forwarding and

STT examiner.

CM-

Marked

Packet ?

LPQ

Queue

MPQ

HPQ

Yes

LPQ

MPQ

HPQ

STT

Service Table

insert/

delete/

update

lookup

Packet In

Packet Out

Marking

with CM

STT

Examiner

Packet

Classification

by STT

• CM : Congestion Maker

• LPQ: Low-Priority Queue

• MPQ: Medium-Priority Queue

• HPQ: High-Priority Queue

LPQ

MPQ

CM-

Marked

Packet ?

LPQ

Queue

MPQ

HPQ

Yes

LPQ

MPQ

HPQ

STT

Service Table

insert/

delete/

update

lookup

Packet In

Packet Out

Marking

with CM

STT

Examiner

Packet

Classification

by STT

• CM : Congestion Maker

• LPQ: Low-Priority Queue

• MPQ: Medium-Priority Queue

• HPQ: High-Priority Queue

LPQ

MPQ

Figure 3: Architecture of a CTC-enabled router

Firstly, we explain about packet forwarding. When

CTC-enabled router receives a packet, it checks if

the packet is marked with congestion-maker (CM).

If it is, CTC-enabled router sends it to Low Priority

Queue (LPQ). Otherwise, it classifies the incoming

packet by STT (i.e. source IP network address,

destination port, and protocol) and looks up the

service queue of the STT corresponding to the

packet from STT Service Table. And then it sends

the packet to High Priority Queue (HPQ), Medium

Priority Queue (MPQ) or LPQ according to the

lookup result. If the service queue of the packet is

MPQ or LPQ, then the packet is marked with CM.

Secondly and finally, STT-Examiner takes the

responsibility of determining whether a STT

corresponding to an incoming packet is congestion-

making traffic or not. STT-Examiner calculates the

average bandwidth of a STT corresponding to an

incoming packet and determines the service queue of

the STT based on bandwidth of the STT and the sum

of bandwidth of normal STTs. The operation result

is stored in STT Service Table. Algorithm of STT-

Examiner is described in section 3 in detail.

STT Service Table consists of several fields such as

STT-Identifier, service queue by STT-Examiner,

service queue by Intrusion Detection Agent (IDA),

the average bandwidth of STT, and so on. Where,

IDA means IDS (Intrusion Detection System)-like

agent.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

192.168.10.x MPQ

192.168.21.x HPQ

192.168.32.x HPQ

192.168.41.x HPQ

•

LPQ

MPQ

192.168.51.x MPQ

•

STT

(/24 prefixes)

Service Queue

by STT-Examiner

Service Queue

by IDA

192.168.10.x MPQ

192.168.21.x HPQ

192.168.32.x HPQ

192.168.41.x HPQ

•

LPQ

MPQ

192.168.51.x MPQ

•

STT

(/24 prefixes)

Service Queue

by STT-Examiner

Service Queue

by IDA

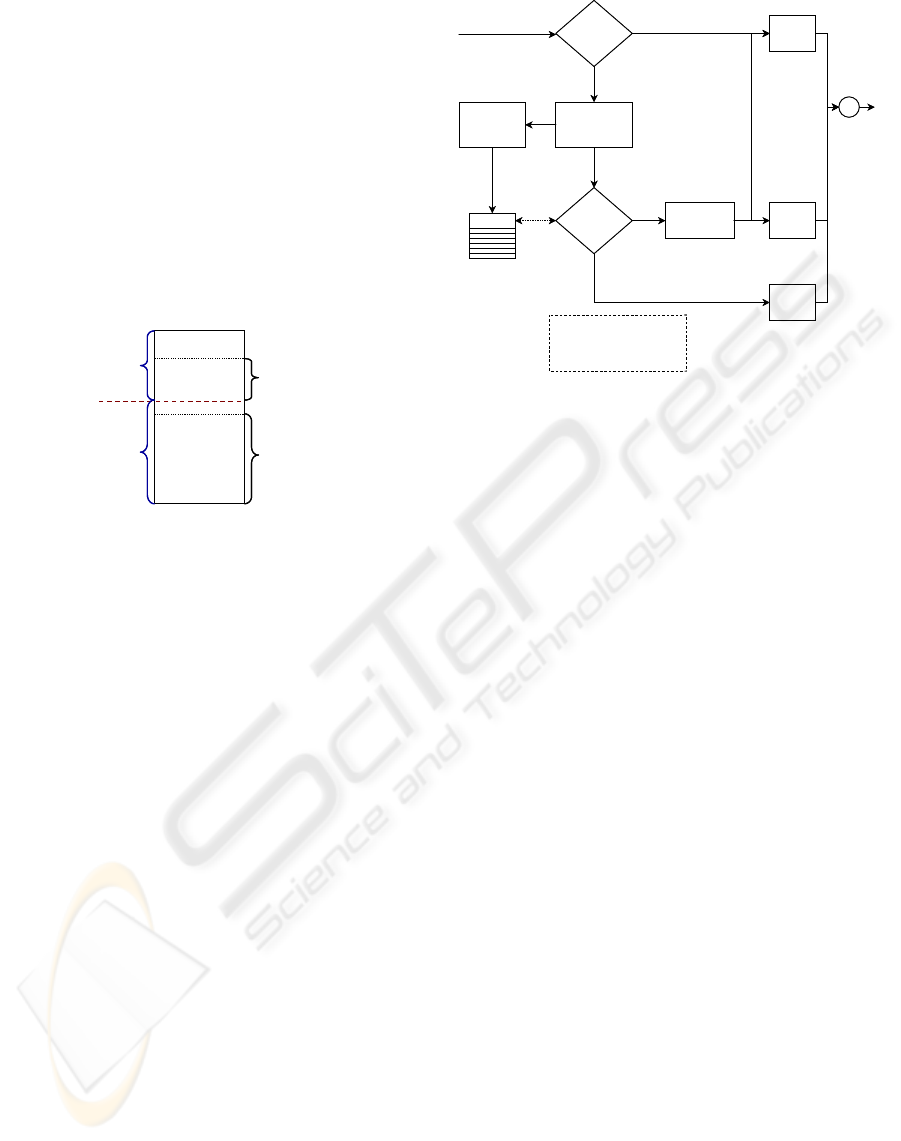

Figure 4: Update of STT service table: can be done by

IDA as well as by STT-examiner

Our architecture can support IDA in order to

enhance the correctness when distinguishing

between normal and congestion-making traffic. That

is, STT Service Table can be updated by IDA as

well as by STT-examiner as shown in Fig. 4. In that

case, IDA has higher priority than STT-examiner in

packet forwarding. For example, if IDA regards a

STT (e.g., 192.168.32.x in Fig. 4) as malicious

traffic and set its service queue to LPQ, then packets

with the STT will be forwarded to LPQ irrespective

of the service decision of STT-examiner.

• Normal Link :

• Congested Link:

• Non-Marked Packet :

• CM-Marked Packet :

• HPQ-experienced Packet :

• MPQ-experienced Packet :

• LPQ-experienced Packet :

• Normal Packet with STT-ID, 1 :

• Congestion-making Packet

with STT-ID, 2 :

• Normal Link :

• Congested Link:

• Non-Marked Packet :

• CM-Marked Packet :

• HPQ-experienced Packet :

• MPQ-experienced Packet :

• LPQ-experienced Packet :

• Normal Packet with STT-ID, 1 :

• Congestion-making Packet

with STT-ID, 2 :

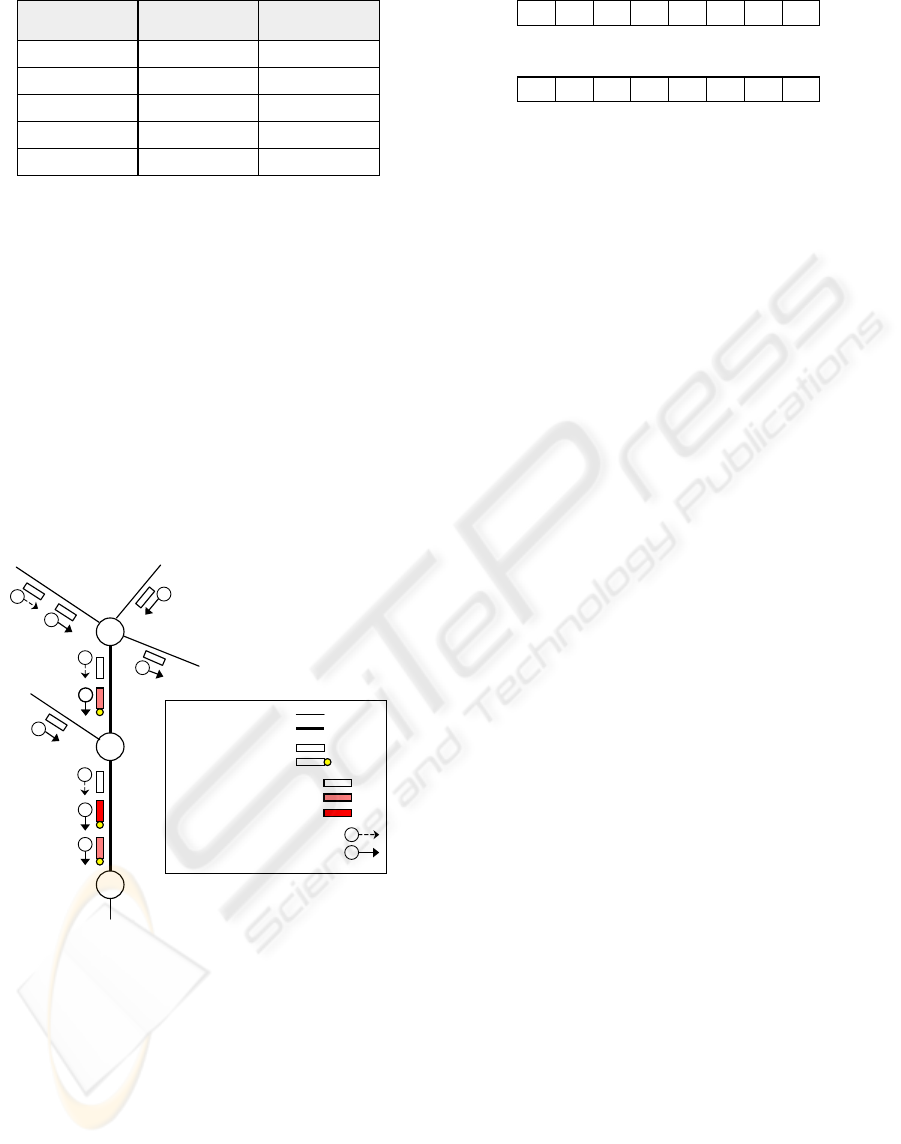

Figure 5: Example about how congestion-making STT is

controlled

Fig. 5 shows how our CTC scheme controls

congestion-making traffic. In the Fig. 5, the two

links between R1 and R3 are congested. c,d,e,

and f indicate STT identifier. The normal packet

with STT-ID, c gets good Quality of Service (QoS)

at both R1 and R2. The congestion-making packet

with STT-ID, d, however, gets bad QoS at R1 and

worse QoS at R2 than at R1. So, The drop

probability of the packet is very strong because it is

forwarded using MPQ at R1 and LPQ at R2,

respectively.

P2 P1 P0 T3 T2 T1 T0 CU

DS5 DS4 DS3 DS2 DS1 DS0 ECN ECN

ToS Byte

(IP precedence: three bits (P2.P0), ToS: four bits (T3.T0), CU: one bit)

DiffServ Field

DSCP: six bits (DS5.DS0), ECN: two bits

P2 P1 P0 T3 T2 T1 T0 CU

DS5 DS4 DS3 DS2 DS1 DS0 ECN ECN

ToS Byte

(IP precedence: three bits (P2.P0), ToS: four bits (T3.T0), CU: one bit)

DiffServ Field

DSCP: six bits (DS5.DS0), ECN: two bits

Figure 6: Use of ToS field in IP Header by Diffserv

To support CM-marking proposed in this paper, we

need a field in IP header. There is ToS field in IP

header to show precedence and type of service for a

packet. But, the ToS field is now used by DiffServ

(Differentiated Service) (K. Nichols et al) as shown

in Fig. 6. The six most signification bits of the ToS

byte are now called the DiffServ field. The last two

Currently Unused (CU) bits are now used as ECN

bits. Until now,

DS0 in DiServ Field is always 0 (F.

Baker et al) (V. Jacobson et al). So we have under

investigation whether we can use

DS0 in doing CM-

marking.

3 STT SERVICE

DETERMINATION

ALGORITHM

We now describe an algorithm for determining on

the service for a STT in detail, which is executed by

STT examiner explained in previous section.

3.1 Fluctuation-sensitive STT

metering

To correctly determine which one is congestion-

making traffic, it requires precisely calculating the

average bandwidth of STT. However, it’s not easy to

get exact bandwidth of STT because packets in

current TCP/IP Internet are forwarded from a router

to a router at variable bit rate. To make it worse,

malicious user may generate artificial congestion-

making traffic with violent fluctuations in on-off

sending pattern.

FAST AND STRONG CONTROL OF CONGESTION-MAKING TRAFFIC

t1 t2 t3 t4

BW Calculation Time

STT

t1 t2 t3 t4

BW Calculation Time

STT

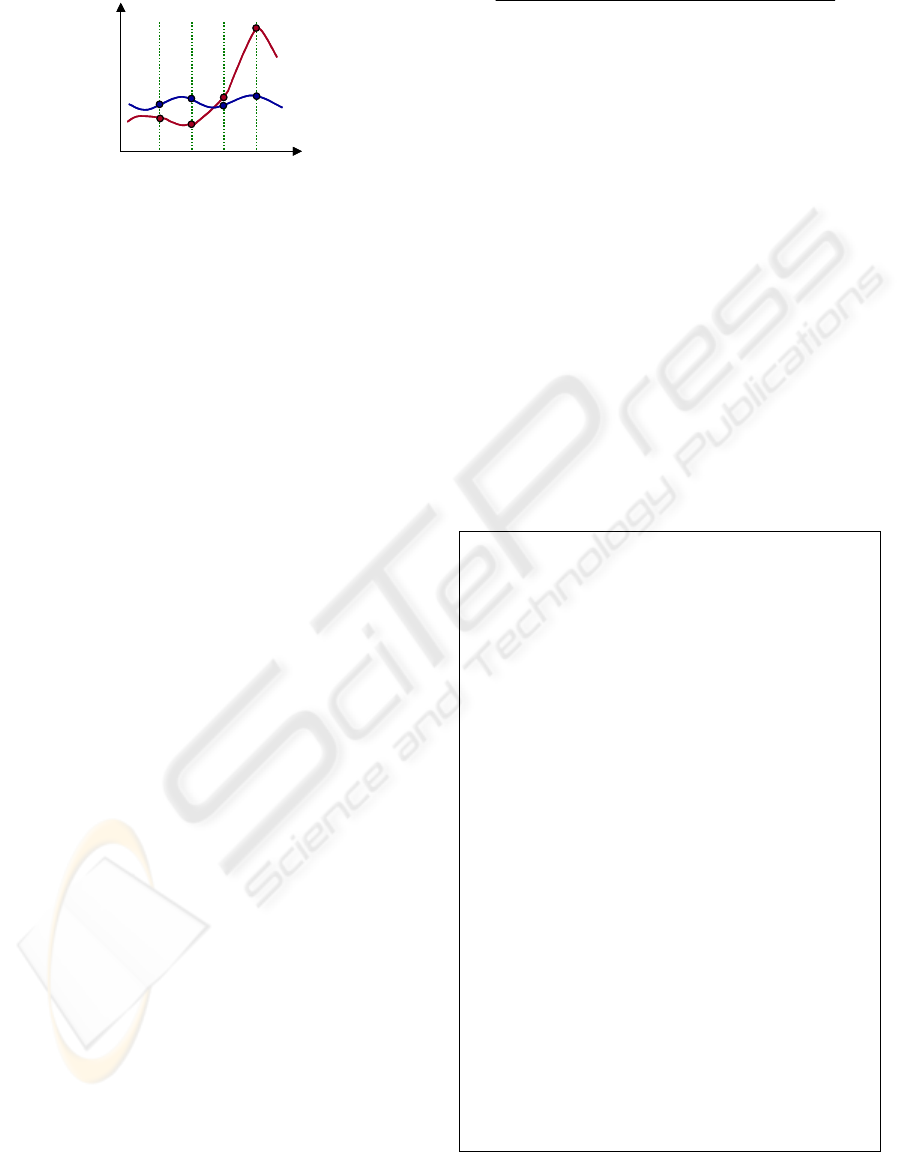

Figure 7: Congestion-making traffic (STT

) with violent

fluctuations

For Example, let's suppose that STT

and STT

shown in Fig. 7 are normal traffic and congestion-

making traffic, respectively. In Fig. 7, t1-t4 each

indicates the time to calculate the average bandwidth

of STT and to determine which one is congestion-

making traffic. STT

is generating heavy traffic in an

instant from t2 to t4 to bring out network congestion.

In that case, if the bandwidth of both STTs is

ordinarily metered, it'll be difficult to be aware at t3

that STT

is congestion-making traffic. This is

because the average bandwidth of STT

underestimated.

For fast detection of congestion-making traffic, we

propose a fluctuation-sensitive metering scheme,

which considers traffic increasing rate as well as

current traffic volume in calculating the average

bandwidth of STT. The proposed metering scheme

makes use of Exponentially Weighed Moving

Average (EWMA), which employs a statistic to

average the data in a way that give more weight to

recent observations and less weight to older

observations. In this paper, the average bandwidth of

a STT is calculated as follows :

×+

+−×=

)..(

)0.1(..

BWadditionalSTTsampleBWSTT

avgBWSTTavgBWSTT

Where,

STT.sampleBW indicates the current

bandwidth of STT calculated based on the total size

of packets received during a certain given time. 0 <

alpa < 1 and alpa is used to mitigate a sudden

change of

STT.avgBW.

The value of

STT.additionalBW dedepnds on traffic

increasing rate of the STT. If the traffic increasing

rate (i.e.

STT.sampeBW - STT.avgBW) is less than or

equal to 0, then

STT.additionalBW is 0. Otherwise,

STT.additionalBW is calculated as follows:

()

avgBWSTT

sampleBWSTTavgBWSTTsampleBWSTT

additionalST

...

×−

3.2 Fast STT Service Determination

In this paper, we propose an algorithm as shown in

Fig. 8, which is capable of determining fast if the

service queue of a STT is HPQ or MPQ according to

its average bandwidth.

The proposed procedure has four parameters:

STT,

AvailableBW, STT_ToPromote, STT_ToDemote.

STT contains information about a STT that an

incoming packet belongs to.

AvailableBW indicates

the available bandwidth for a STT class. In initial

time,

AvailableBW is set to the max bandwidth that

can be allocated for the STT class.

STT_ToPromote

is one to promote foremost of all the MPQ-served

STTs in case that one of them have to be changed to

HPQ in service queue. And

STT_ToDemote is one to

demote foremost of all the HPQ-served STTs in case

that one of them have to be changed to MPQ in

service queue.

Procedure Fast-STT-SQ-Decision ( STT, AvailableBW,

STT_ToPromote, STT_ToDemote )

// STT : Source-based Traffic Trunk that a incoming packet belongs to.

// AvailableBW : the available bandwidth for a STT class.

// initially, it’s set to the max bandwidth for the STT class

// STT_ToPromote : is one to promote foremost of all the MPQ-served STTs

// in case that one of them have to be changed to HPQ in service queue.

// STT_ToDemote : is one to demote foremost of all the HPQ-served STTs

// in case that one of them have to be changed to MPQ in service queue.

if ( time to calculate the average bandwidth of STT ) then

previousAvgBw ← STT.avgBw

// calculate the average bandwdith of STT

calculate-STT-BW (STT)

if ( STT.sq = MPQ && STT.avgBw ≤ AvailableBW ) then

STT.sq ← HPQ

AvailableBW ← AvailableBW − STT(i).avgBw

else if ( STT.sq = HPQ ) then

AvailableBW ← STT.avgBw − previousAvgBw

if ( AvailableBW < 0 )

STT.sq ← MPQ

AvailableBW ← AvailableBW − STT.avgBw

end

if ( STT.sq = HPQ ) then

STT_ToDemote.avgBw ← max (STT_ToDemote.avgBw , STT.avgBw )

else

STT_ToPromote.avgBw ← min (STT_ToPromoote.avgBw, STT.avgBw )

end

if (STT_ToDemote.avgBw > STT_ToPromote.avgBw ) {

AvailableBW ← AvailableBW +

(STT_ToDemote.avgBw − STT_ToPromote.avgBw)

STT_ToDemote.sq ← MPQ

STT_ToPromote.sq ← HPQ

end

END Fast-STT-SQ-Decision

Figure 8: Algorithm for determining on the service

queue of a STT

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

The proposed algorithm,

Fast-STT-SQ-Decision is

executed whenever a packet arrives. Firstly, the

algorithm checks if it's time to calculate the average

bandwidth of the STT corresponding to the packet.

If yes, it calculates the average bandwidth of the

STT. If the service queue of the STT is MPQ and

there is available bandwidth for it, then its service

queue is changed to HPQ. On the contrary, Even if

the current service queue of the STT is HPQ, if the

increased bandwidth of the STT is greater than

available bandwidth then its service queue is

changed to MPQ. Without regard to STT bandwidth

calculation time, the proposed algorithm is always

trying to set

STT_ToPromote to a STT consuming

the least bandwidth of MPQ-served STTs, and to set

STT_ToDemote to a STT consuming the most

bandwidth of HPQ-served STTs. If the average

bandwidth of

STT_ToDemote is greater than that of

STT_ ToPromote, the service queue of

STT_ToDemote is changed to MPQ and that of STT_

ToPromote

is changed to HPQ.

The proposed algorithm is capable of satisfying the

definition of normal and congestion-making traffic

defined in section 2.2 within a fast time without

using time-consuming operation such as sort. We'll

show how fast and correctly the proposed algorithm

can determine whether a STT is normal STT or

congestion-making through a simulation in next

section.

4 SIMULATIONS

4.1 STT service queue determination

algorithm

The purpose of this simulation is to see how fast the

proposed algorithm (i.e., Fast-STT-SQ-Decision

algorithm of Fig. 8) can determine the service queue

for a STT. For the simulation, we assume that the

bandwidth of each STT is fixed at simulation initial

time and the packet inter-arrival time of each STT is

10ms. The simulation finishes when the proposed

algorithm provides all normal STT with HPQ and all

congestion-making STT with MPQ.

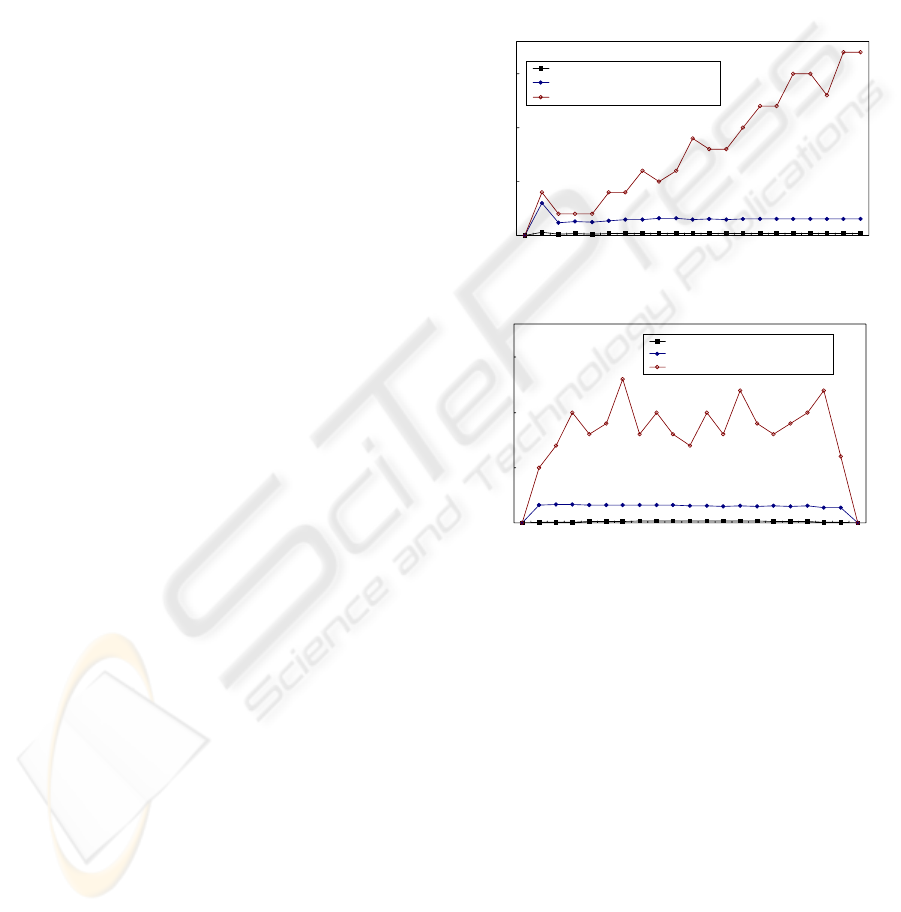

Fig. 9 shows simulation results of the STT service

queue determination algorithm proposed in this

paper. In Fig. 9, <average waiting time of a STT>

means the average time taken to correctly determine

the service queue of a STT. In <average waiting

time of a failed STT>, a failed STT means one that

fails to find out its service queue at one time. And in

<waiting time of the worst failed STT>, the worst

failed STT indicates one that most fails to find out

its service queue. In the simulation of Fig. 9-(a), we

fix the percentage of congestion-making STT to

60%. In the simulation of Fig. 9-(b), we fix the

number of STTs to 10000.

The performance of our algorithm is very excellent

as shown in Fig. 9. Our algorithm is little influenced

by both the total number of STTs and the percentage

of congestion-making STTs.

(a) Increase in the total number of STTs

100

150

0.5K

10K

0.1M

0.3M

NB of new STTs

Waitting Time (ms)

average waiting time of a STT

average waitting time of a failed STT

waiting time of the wrost failed STT

(b) Increase in the percentage of congestion-making STTs

100

150

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100

% of congestion-making STTs

Waitting Time (ms)

average waiting time of a STT

average waitting time of a failed STT

waiting time of the wrost failed STT

Figure 9: Simulation results of the STT service queue

determination algorithm

Fig. 9 means that once the average bandwidth of a

STT is calculated, our scheme can correctly

determine on the service queue of the STT within

2ms (the average time). In Fig. 9, the average

waiting time of a failed-STT is about 25ms. The

waiting time, 25 ms is not long in this simulation

because it means that only two packets (since the

inter-arrival time is 10ms) are forwarded to wrong

queue.

4.2 CTC

In order to compare performance between our

scheme and the existing algorithms, we use ns-2

Network Simulator (UCB/LBNL/VINT). In this

simulation, the priority queues of our scheme are

implemented using CBQ (Class-based Queuing).

FAST AND STRONG CONTROL OF CONGESTION-MAKING TRAFFIC

Fig. 10 shows the network topology for simulations.

The topology consists of six source nodes from 0 to

5, three router nodes from 6 to 8, and two target

nodes from 9 to 10. In the source nodes, the node 0-

3 and 5 mean normal user and the node 4 means

malicious/selfish user. In this simulation, we

consider three kinds of traffic type: adaptive TCP,

non-adaptive UDP, and Web-like traffic.

Firstly, the simulation scenario for adaptive TCP and

non-adaptive UDP traffic is as follow. The node 0

and 2 each has three non-adaptive UDP flows of

which each transmission rate is 0.5 Mbps and target

is the node 9. The node 1 and 3 each have ten

adaptive TCP flows of which each window size is 11

and target is the node 9. The node 4 has forty non-

adaptive UDP flows of which each transmission rate

is 0.5 Mbps and target is the node 9. The node 4

results in congestion at link 7-8 and 8-9 by

increasing its transmission rate every 1 seconds. The

node 5 has ten adaptive TCP flows of which each

window size is 15 and target is the node 10. We

refer to the traffic generated by the node 5 as

background traffic because its target is different

from that of other source nodes.

20Mb

10Mb

Normal Traffic

(non-adaptive UDP)

10Mb

Normal Traffic

(adaptive TCP)

Normal Traffic

(non-adaptive UDP)

Normal Traffic

(adaptive TCP)

Congestion-making

Traffic

(non-adaptive UDP)

Background Traffic

(adaptive TCP)

Target of

both normal &

congestion-making

traffic

Target of

background

traffic

20Mb

10Mb

Normal Traffic

(non-adaptive UDP)

10Mb

Normal Traffic

(adaptive TCP)

Normal Traffic

(non-adaptive UDP)

Normal Traffic

(adaptive TCP)

Congestion-making

Traffic

(non-adaptive UDP)

Background Traffic

(adaptive TCP)

Target of

both normal &

congestion-making

traffic

Target of

background

traffic

Figure 10: Network topology for simulation: link 7-8 and

8-9 are congested.

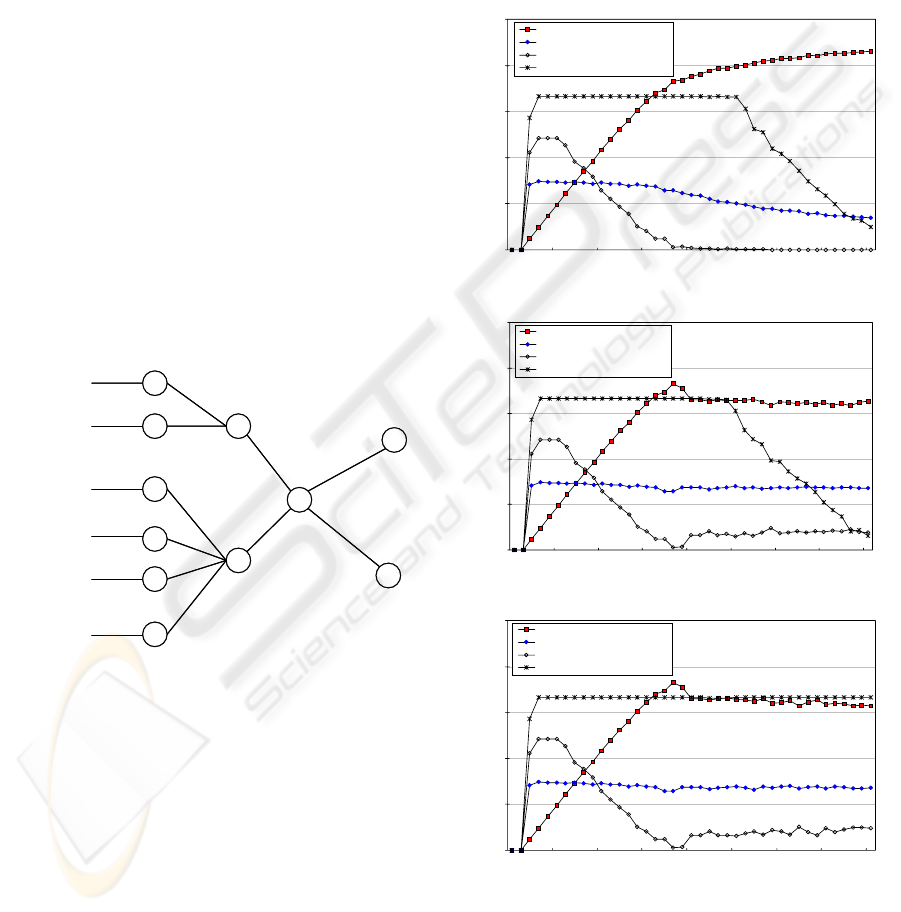

Fig. 11-(a),(b),(c),(d) show the simulation results of

RED, ACC, PushBack (R. Mahajan et al, 2002), and

CTC scheme, respectively. In RED, the congestion-

making traffic consumes most of link bandwidth. As

a result, both normal and background traffic are not

good in throughput. ACC is better than RED in

performance. ACC can protect the non-adaptive

normal traffic. But, it fails to protect both the

adaptive normal traffic and the background traffic.

Pushback protects the background traffic as well as

the non-adaptive normal traffic. But, Pushback fails

to protect the adaptive normal traffic. This is

because the adaptive normal traffic decreases its

transmission when congestion occurs.

CTC protects all normal and background traffic as

shown in Fig. 11-(d). CTC provides almost the full

bandwidth that the normal users requested. This is

because network congestion is localized to only

congestion-making traffic without having any effect

on normal traffic.

(a) RED

0 102030

Number of Congestion-making Flows

Throughput (Mbps) .

Congestion-making Traffic

Non-daptive Normal Traffic

Adpative Normal Traffic

Adaptive Background Traffic

(B) ACC

0 102030

Number of Congestion-making Flows

Throughput (Mbps) .

Congestion-making Traffic

Non-adaptive Normal Traffic

Adpative Normal Traffic

Adaptive Background Traffic

0 102030

Number of Congestion-making Flows

Throughput (Mbps)

Congestion-making Traffic

Non-adaptive Normal Traffic

Adpative Normal Traffic

Adaptive Background Traffic

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

(d) CTC proposed in this paper

0 102030

Number of Congestion-making Flows

Throughput (Mbps

)

Congestion-making Traffic

Non-adaptive Normal Traffic

Adpative Normal Traffic

Adaptive Background Traffic

Figure 11: Throughput of adaptive TCP and non-adaptive

UDP traffic under congestion

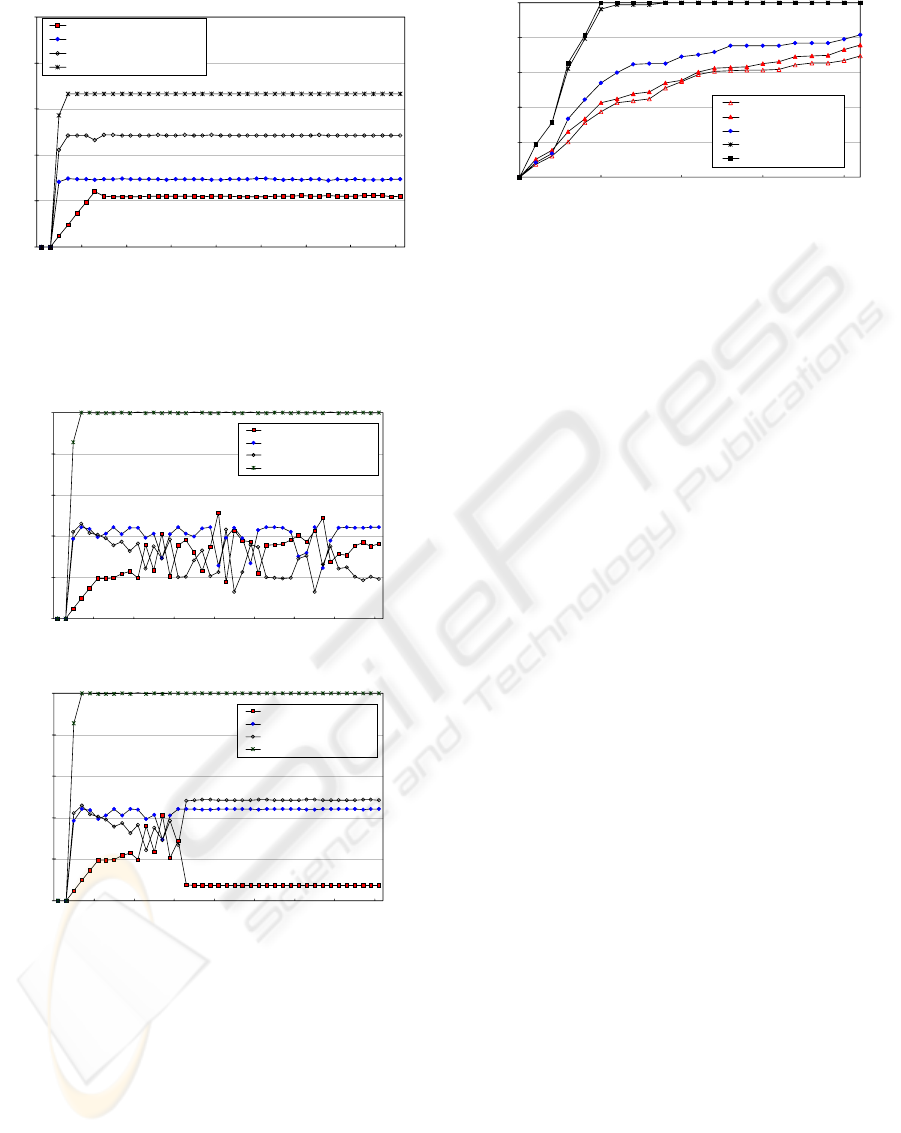

(a) CTC without marking

0 1020304

Number of Congestion-making Flows

Throughput (Mbps)

Congestion-making Traffic

Adaptive Normal Traffic A

Adpative Normal Traffic B

Total Traffic

(b) CTC with marking

0102030

Number of Congestion-making Flows

Throughput (Mbps)

Congestion-making Traffic

Adaptive Normal Traffic A

Adpative Normal Traffic B

Total Traffic

Figure 12: Non-marking vs Marking

CM-marking mechanism proposed in this paper is

very useful when multiple congestions occur. Fig.

12-(a) and (b) show the simulation results of CTC

without marking and CTC with marking,

respectively. In this simulation, all normal sources

generate only adaptive TCP traffic. As shown in Fig.

12, CTC with marking makes more exact

determination because downstream node gets

information on which one is congestion-making STT

from upstream node

100

010

Simulatin Time (seconds)

Degree of achievement (%)

FIFO

RED

AC C

CTC without marking

CTC with marking

Figure 13:

Time taken to finish a Web service under

congestion

To compare CTC with the existing schemes in Web-

like traffic environment, we rewrite link bandwidth

in network topology shown in Fig. 10. Each uplink

bandwidth between 6-8, between 7-8, and between

8-9 is set to 1 Mbps. In this simulation, the node 9 is

a web server. Fig. 13 shows the time taken to finish

a Web service under congestion. As shown Fig. 13,

CTC is better than any other schemes.

5 RELATED STUDY

It is said that DDoS attack strategy rests on the

followings (X. Geng et al, 2000):

(1) Using the Internet's insecure channels

(2) Hiding the attacker's identity

(3) Generating huge traffic volume

The first problem can be mitigated by installing

intrusion detection system and firewall on customer

networks, and also virus scan program and personal

firewall on each user's PC.

To solve the second problem, there have been

proposed a few approaches: ingress filtering (P.

Ferguson et al, 2000), uRPF (Cisco, 2001), packet

marking (S. Savage et al, 2001) and ICMP

Traceback (S. Bellovin et al, 2001). Ingress filtering

employs the scheme that boundary router filters all

traffic coming from the customer that has a source

address of something other than the addresses that

have been assigned to the customer. uRPF discards

faked packet by accepting only packet from interface

if and only if the forwarding table entry for the

source IP address matches the ingress interface.

Packet marking scheme is one that probabilistically

marks packets with partial path information as they

arrive at routers in order that the victim may

reconstruct the entire path. ICMP Traceback scheme

uses a new ICMP message, emitted randomly by

routers along the transmission path of packet and

sent to the destination. The destination can

FAST AND STRONG CONTROL OF CONGESTION-MAKING TRAFFIC

determine the traffic source and path by using the

ICMP messages.

This paper addresses the third and last problem. The

problem can be thought of as the typical queuing

discipline problem in network router. The core of the

queuing discipline problem is to determine which

packets get transmitted and which packets get

discarded. There have been proposed many queuing

algorithms (S. Keshav, 1997) such as FIFO: First-In-

First-Out, FQ (Fair Queuing), RED (Random Early

Detection), and so on. Those queuing algorithms

cannot be used as a solution for the problem. For

example, RED has a merit that the more packets sent

by a flow, the higher the chance that its packets will

be selected for dropping. But, RED also has a

disadvantage that the more increase the volume of

malicious user's traffic, the higher the probability

that legitimate user's packet will be dropped because

DDoS attacker can generate a huge volume of traffic.

(F. Lau et al, 2000) recommended CBQ as the

queuing algorithm that can protect legitimate user

from DDoS attack. Using CBQ requires

classification of traffic into each class. But, they

didn't handle the problem.

There has been proposed static rate limit that blocks

(or marks) packets exceeding a threshold (Cisco,

2000). This strategy is available only in DoS attack

and also has a disadvantage that amount of packets

during normal state should be first measured to fix

the correct threshold value for limiting malicious

traffic.

Yau has proposed max-min fair server-centric router

throttle scheme (D.K.Y. Yau et al, 2002). The key

idea is for a server under stress to install a router

throttle (e.g. leaky-bucket) at selected upstream

routers. The scheme can defeat DDoS traffic by

controlling the router throttle. Mahajan has proposed

a mechanism for detecting and controlling high

bandwidth aggregates (R. Mahajan et al, 2002).

They've researched recursive pushback of max-min

fair rate limits starting from the target server to

upstream routers. Both throttle and pushback

mechanisms are likely to have a weak point in

determining the threshold value for rate-limiting

DDoS traffic and in requiring a new protocol for

communication between victim and routers.

6 CONCLUSIONS

In this paper, we proposed a strong congestion-

making traffic control scheme for preventing

malicious or selfish user from congesting networks.

Its key idea is to drop only packets corresponding to

congestion-making traffic when network congestion

occurs by providing congestion-making traffic with

worse service (i.e., worse priority queue) than the

normal traffic. We simulated the proposed scheme

and the existing schemes to evaluate the

performance of each scheme. The simulation results

demonstrate that the proposed scheme is better than

or almost same as the existing schemes in

performance.

Even if our scheme is able to control congestion-

making traffic effectively, we still need more

research in analysing the attack traffic of malicious

user in order to detect real congestion-making traffic

generated by malicious user. We introduced IDA

(Intrusion Detection Agent) in this paper. We think

IDA will play an important role in defeating various

kinds of attacks such as virus and worm, needlessly

to say DoS attacks

Our future work is to implement and evaluate our

scheme on real networks.

REFERENCES

S. Floyd, “TCP and explicit congestion notification,”

ACM Computer Communication Review, vol. 24, no.

5, pp. 8.23, October 1994

K. J. Houle and G. M. Weaver. "Trends in Denial of

Service Attack Technology," The fall 2001 NANOG

meeting, Oct. 2001

X. Geng and A. B. Whinston, "Defeating Distributed

Denial of Service Attacks", IT Pro, July-August 2000,

pp 36-41

Cisco, "Strategies to Protect Against Distributed Denial of

Service (DDoS) Attacks," white paper,

http://www.cisco.com/…/newsflash.html, Feb. 2000.

R. Mahajan, S. M. Bellovin, S. Floyd, and et al.,

"Controlling High Bandwidth Aggregates in the

Network," ACM SIGCOMM Computer

Communications Review, Vol. 32, No. 3, pp. 62-73,

July 2002.

P. Ferguson and D. Senie, "Network Ingress Filtering:

Defeating Denial of Service Attacks which employ IP

Source Address Spoofing," RFC 2827, May 2000.

Cisco, "Unicast Reverse Path Forwarding (uRPF)

Enhancements for the ISP-ISP Edge", http://www.

cisco.com/…/uRPF_Enhancement.pdf, Feb. 2001.

T. Li and Y. Rekhter "A Provider Architecture for

Differentialted Services and Traffic Engineering

(PASTE)". RFC 2430. October 1998.

K. Nichols,S. Blake, F. Baker and D. Black, "Definition of

the Differentiated Services Field (DS Field) in the

IPv4 and IPv6 Headers," RFC 2474

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

F. Baker, W. Weiss and J. Wroclawski, "Assured

Forwarding PHB Group," RFC 2597

V. Jacobson, K. Nichols, K. Poduri, "An Expedited

Forwarding PHB," RFC 2598

UCB/LBNL/VINT, "ns Notes and Documentation,"

http://www.isi.edu/nsnam/ns.

S. Savage, A. Karlin and T. Anderson, "Network Support

for IP Traceback," IEEE/ACM Transactions on

Networking, Vol. 9, No. 3, June 2001, pp. 226-237

S. Bellovin, M. Leech, and T. Taylor, "ICMP Traceback

Messages," Internet draft, Oct. 2001.

S. Keshav, "An Engineering Approach to Computer

Networking: ATM Networks, the Internet, and the

Telephone Network", Addison Wesley, 1997.

F. Lau, S. H. Rubin, M. H. Smith, and L. Trajkovic,

"Distributed Denial of Service Attacks," IEEE

International Conference on Systems, Man, and

Cybernetics, 2000.

D.K.Y. Yau, J.C.S. Lui, and Feng Liang, "Defending

against distributed denial-of-service attacks with max-

min fair server-centric router throttles," Tenth IEEE

International Workshop on Quality of Service, pp.35 -

44, May 2002.

FAST AND STRONG CONTROL OF CONGESTION-MAKING TRAFFIC
