UGSP: AUTHENTICATION BASED SECURE PROTOCOL FOR

AD-HOC NETWORKS

Neelima Arora

Tata Institute of Fundamental Research

Mumbai, India

R. K. Shyamasundar

Tata Institute of Fundamental Research

Mumbai, India

Keywords:

Ad-hoc networks, key distribution, security

Abstract:

A wireless ad-hoc network is a collection of mobile nodes with no ﬁxed infrastructure. Security in such net-

works poses serious challenges due to (i) the network connectivity could be intermittent and hence on-line

authentication is not guaranteed, and (ii) susceptible to wide range of attacks due to broadcast communication

and large scale number of users. In this paper, we propose a security protocol, called UGSP, for wireless ad-hoc

networks using a tamper-proof hardware. We show that the proposed protocol ﬁts well with the resurrecting

duckling security paradigm (Stajano and Anderson, 1999). Once the hardware is imprinted for authentication,

UGSP is robust to man-in-the-middle attack, passive eavesdropping, active impersonation attacks ensuring

source authentication, data conﬁdentiality and data integrity for communication amongst nodes with identi-

cally conﬁgured hardware. The system is amenable to dynamic addition of new members whose hardware

has also been imprinted with authentication information. We provide a comparative evaluation of UGSP with

other approaches and show that UGSP is scalable and cost-effective.

1 INTRODUCTION

Ad-hoc networks do not have ﬁxed infrastructure such

as base station or mobile switching centers. Mobile

nodes, which are within the range of each other, com-

municate directly while those that are far apart rely

on other nodes to forward messages as routers. Node

mobility in the network causes frequent changes of

the network topology.

The salient features of ad-hoc networks pose both

challenges and opportunities in achieving security

goals characterized by attributes like availability, con-

ﬁdentiality, integrity, source authentication and non-

repudiation (Zhou and Haas, 1999). Nodes, roaming

in hostile environment (e.g., a battleﬁeld) with rela-

tively poor physical protection, have non-negligible

probability of being compromised. Therefore, we

should not only consider malicious attacks from out-

side a network, but also take into account the attacks

launched from within the network by compromised

nodes. We envision ad-hoc networks to be formed

by nodes without any prior contact, trust or authority

relation. This precludes any pre-distributed symmet-

ric keys or a reliable (external) PKI supported across

all nodes. This issue has been largely ignored until

now; most protocols assume that the key-distribution

has already taken place. Further, security mechanisms

should be scalable to handle large networks.

1.1 Current State of Ad-Hoc

Network Security

One of the largely investigated areas of ad-hoc

network security research is devoted to secure rout-

ing protocols (Toh, 2001)(Royer and Toh, 1999),

that form an essential component of security in ad-

hoc networks (Khaili and Arbaugh, 2002). How-

ever, most of the routing schemes known neglect

the crucial challenge in ad-hoc security: key estab-

lishment and key distribution. Protocols such as

ARAN, Ariadne(Hu and Perrig, 2002), SPINS(Perrig

et al., 2002b), TESLA(Perrig et al., 2002a), SEAD

(Hu et al., 2002) and SRP (Papadimitratos and Haas,

2002) all assume the pre-existence and pre-sharing of

secret and/or public keys for all the nodes. In other

words, key management and key distribution in an ad-

hoc networks has been left a wide open problem. Re-

cently some approaches for key distribution in ad-hoc

networks have been proposed (Zhou and Haas, 1999;

Bobba et al., 2002; Khalili and Arbaugh, 2003). Note

191

Arora N. and K. Shyamasundar R. (2004).

UGSP: AUTHENTICATION BASED SECURE PROTOCOL FOR AD-HOC NETWORKS.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 191-196

DOI: 10.5220/0001400601910196

 SciTePress

that a mechanism is needed wherein we can accom-

modate the new trust scenarios in ad-hoc networks.

1.2 Our Approach

In this paper we assume that both active and passive

attackers are present in the environment. The attacker

is allowed to watch regular runs of the protocol be-

tween the two communicating nodes and also send

arbitrary messages to the parties. We also assume

that the attacker has sufﬁciently large computational

power.

In this paper, we describe a protocol called UGSP

(User Group Security Protocol) for communication

amongst a dynamic user group (DUG), that is resilient

against the above mentioned attacks while maintain-

ing all the necessary attributes (conﬁdentiality, in-

tegrity and authenticity). Even if the node gets com-

promised, it should not allow the attacker to gain ac-

cess to any useful secret of the network. We see exam-

ples of DUG in our day to day life such as employees

of a company or all the mobile cell-phone users of a

particular network.

Rest of the paper is organized as follows: section 2

gives the system architecture required for the proto-

col, section 3 details the protocol, analysis of the pro-

tocol is done in section 4, section 5 gives the imple-

mentation details and section 6 contains the conclu-

sion, future work and generalizations.

2 SYSTEM ARCHITECTURE FOR

THE UGSP

To make UGSP as generic as possible, we have de-

signed the protocol minimizing the energy cost. Most

previous work on secure ad-hoc network relies on

asymmetric cryptography for establishing the secu-

rity parameters every time. However, computing such

signatures on resource-constrained nodes is expensive

and hence may not be the ideal solution. A protocol

with shared secret is the most generic option, as it is

not expensive both in terms of bandwidth and compu-

tation.

The system has the following three components:

(1) Communication Link: Our system does not as-

sume any special characteristic of the communication

link and will work over any form of communication

system such as ethernet, bluetooth, 802.11, optical

ﬁber etc.

(2) Nodes: Every node that participates in the ad-hoc

network is assumed to have the structure shown in

Figure 1. That is, it has

• Processing and storing capabilities as demanded by

the protocol,

CPU

Memory

Wireless

Communication

Interface

Tamper Resistant Hardware

USER

Protected

User Interface

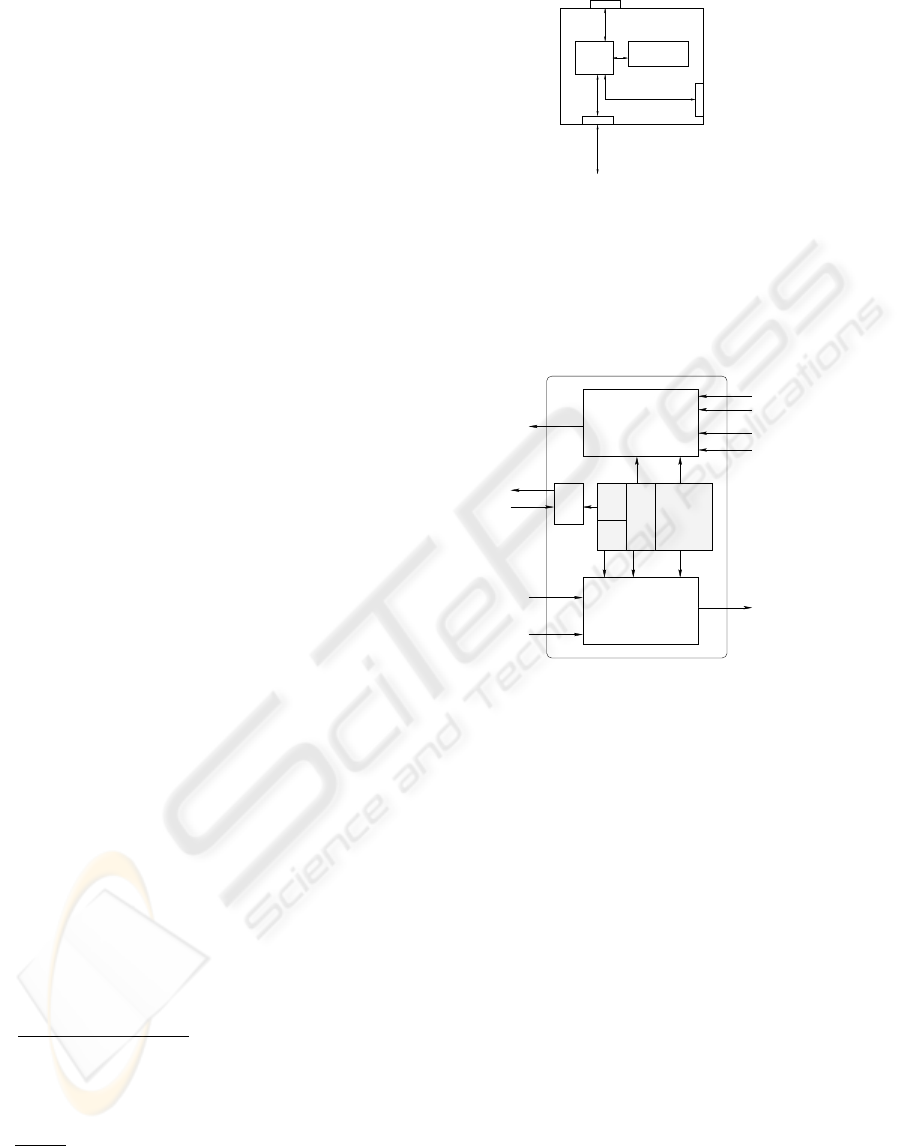

Figure 1: A valid node in the network.

• Tamper Resistant Hardware: the capabilities of this

hardware are described in the next paragraph,

• Interface for the tamper resistant hardware.

y’

x’

id’

Flag

used for generating

MAC for transmit

F(GAC,id,y,z)

F(w,x,y,z)

GAC

HAC

Flag

HAC’

used for authentica−

ting received data

Figure 2: Hardware on the node.

The structure of the ideal tamper proof hardware

(TPH) for UGSP is shown in Figure 2. The salient

features of the TPH are given below:

• a universally unique, unalterable id

• Write only memory for group access code (GAC)

and hardware access code (HAC), attempt to over-

write HAC destroys GAC as well.

• non invertible pseudo random hash function

F (w, x, y, z) embedded in the hardware (Lamport,

1981)

• provides service of three functions F

(used to gen-

erate message digest for transmission), F

(used for

authenticating the message digest received from the

sender) and F

(used for local authentication of the

HAC) deﬁned below:

(y, z) = F (GAC, id, y, z)

(w, id

, y

, x

)

= T RU E if w = F (GAC, id

, x

, y

);

= F ALSE otherwise

(HAC

, HAC) = T RUE if HAC = HAC

= F ALSE otherwise

• Tamper resistance of the hardware is interpreted as:

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

192

– Codes of functions (F (w, x, y, z), F

, F

)

and id cannot be accessed by any one, and

– For F

, id and GAC are implicit (or hidden) pa-

rameter, for F

, GAC is implicit parameter and

HAC is implicit parameter for F

• Password Enabled Access: the use of the hardware

will be restricted by a HAC. Only after a user

has entered the HAC correctly, he will be able to

use the TPH. This ensures source authenticity at the

user level.

Imprintable TPH can be obtained in the market and

the user can download the image for the speciﬁc ap-

plication over a secure channel to imprint the TPH.

(3) User Group Administrator

: We envisage the pres-

ence of a User Group (UG) Administrator with the

following roles:

• Assign a GAC for the UG

• Develop and maintain image for imprinting TPH

• Provide image and conﬁgure the TPH on request

by a user on getting necessary information.

The role of UG administrator is limited to conﬁgur-

ing the nodes and does not have any role during the

interaction between the end nodes.

3 UGSP: USER GROUP

SECURITY PROTOCOL

The TPH token is not integrated with the mobile host,

but the user carries the token with himself.

The protocol consists of the following steps:

1. First, every node that is allowed into the network

is initialized by the group administrator by writing

the HAC (user speciﬁc) ﬁrst and then the GAC

(which is same for all nodes) in the write only

memory of the tamper resistant hardware. HAC is

written before GAC because write to HAC over-

writes GAC also. The write-only memory is inter-

preted as follows: once the secret is written into the

memory, no one can read the secret. That is, a node

can be a part of a DUG ad-hoc network provided it

has the TPH with the same GAC.

2. The user will carry the conﬁgured TPH with him as

a token. In order to use the hardware, the user will

be required to interface it with his mobile device

and to enter the HAC correctly, which will be lo-

cally authenticated within the hardware. Only after

successful authentication, he can use the hardware

for the subsequent steps.

3. Communicating nodes generate 1024 bit RSA key

pair and exchange their public keys using the MAC

generated by the TPH.

4. The sender now generates a 64 bit DES symmetric

key, encrypt it using the receiver Public Key, ap-

pend a MAC generated by the hardware and trans-

mit. The receiver also conﬁrms that he has received

the correct symmetric key by sending the symmet-

ric key encrypted with the sender Public Key.

Note that due to the underlying tamper proof hard-

ware, the following properties are satisﬁed:

• No user has any control over implicit inputs to the

functions F

, F

and F

• When a node wants to transmit data, it gives the

data to the TPH which in turn evaluates the MAC

using function F

and transmits. Note that the user

cannot change the ﬁrst two inputs of function F

i.e. the GAC and id of the node (they are taken

automatically from the memory of the hardware).

Because the id cannot be changed, active imper-

sonation is not possible in the network.

• Now consider a node receiving data and the cor-

responding MAC. The node now needs to authen-

ticate the MAC against the data, id of the sender

node and the GAC. For this purpose, the node

passes the received data and the sender id to the

TPH, which computes the function F

taking the

GAC stored in its memory. If the result of F

T RU E then the node will accept the data other-

wise the node realizes that there is some mismatch

in data, id or GAC, and rejects the packet and ter-

minates the communication.

3.1 Formal description

Notation

• Nodes i and j want to communicate with each other,

where i is the sender and j is the receiver.

• F(w,x,y,z) is the pseudo random hash function im-

plemented in the TPH, which takes in four input

parameters w, x, y, z

• id(k) is the identity of the node k

• K

is the public key of the node j

• E

(N) means N encrypted with K

• N denotes the nonce which is unpredictable.

• (k → l : M ) is interpreted as follows: node k is

sending message, M, meant for node l

• K

is the symmetric session key established be-

tween the pair of communicating nodes

• (M

, M

) means message M

concatenated with

• For ease of reference in the sequel, we shall refer

the value of F (w, x, y, z) as MAC.

UGSP: AUTHENTICATION BASED SECURE PROTOCOL FOR AD-HOC NETWORKS

193

In UGSP, even if the attacker is able to predict the

nonce, he will not be able to learn any secret in

the network unlike most other protocols (will become

clear in the sequel).

Every time a node wants to transmit, it computes

MAC using F

and transmit, and a receiving node

to authenticate the received data will compute F

mentioned above. With this background, we are ready

to describe the steps in the protocol formally.

The protocol consists of two Phases. Phase I of the

protocol consists of bootstrapping of the valid nodes

of the network, while the second phase will be session

speciﬁc and will happen as and when nodes want to

communicate with each other. In more hostile envi-

ronments, such as battleﬁeld, where the chances of

bootstrapped nodes getting compromised is higher,

one can make bootstrapping also session speciﬁc.

Operational steps in the execution of UGSP:

P hase I: the network is being formed. In Step 1,

the user gets authenticated by the TPH by the HAC.

User inputs the HAC when prompted to do so, which

will be compared with the HAC stored on the TPH.

This can be thought of as if the smart card PIN is

stored on the smart card and which can only be read

by the smart card reading machine. Hence, user au-

thentication can be done by a standalone ad-hoc smart

card machine, not connected to the bank’s back-end

server, by comparing the PIN stored on the card with

the PIN entered by the user. In Step 2, the commu-

nicating nodes, which have been authenticated in step

1, will exchange RSA keys.

P hase II: will be invoked when any node want

to communicate with some other node in the network.

During step 3, the two communicating nodes establish

a symmetric key. We could directly use the private-

public key pair established in step 3 for secure com-

munication, but that will be bandwidth and computa-

tion expensive. Hence, we need to establish a sym-

metric key, which is accomplished after this step.

We encrypt the data using the symmetric key and ap-

pend a MAC computed using the data and the sym-

metric key and transmit in step 4. As highlighted

already, UGSP uses the Public Key operations in a

limited way as compared to other protocols.

4 ANALYSIS OF THE PROTOCOL

In this section, we will analyze UGSP with respect to

security assurance and scalability.

4.1 Security Analysis

In this section we will discuss possible attacks in ad-

hoc network and analize the security assurance pro-

vided by UGSP as well as the approaches of TESLA

PHASE I : Bootstrapping

Step 1 : local authentication of HAC

1.a : Node i : user i enters his HAC

1.b : Node j : user j enters his HAC

Step 2 : exchange public keys

2.a : i → j : F(GAC, id(i), N

, K

), N

, K

, id(i)

2.b : j → i : F(GAC, id(j), E

), K

, K

, id(j)

2.c : i → j : F(GAC, id(i), E

), ∗)

PHASE II : Session speciﬁc

Step 3 : establish a shared symmetric

key using the established public key

3.a : i → j : F(GAC, id(i), N

, E

)),

, E

)

3.b : j → i : F(GAC, id(j), E

), E

))

3.c : i → j : F(GAC, id(i), E

(id(i)), ∗)

Step 4 : data transfer

4.a : i → j : E

(Data), F(id(i), data, K

)

Figure 3: Protocol for communication between Node i and

Node j

and PKI based security system. We shall show robust-

ness of our protocol with respect to outside attack and

the risks of compromised nodes.

4.1.1 Attacks from outside the network

When we say a node is outside the network, we mean

a node that does not have the TPH token conﬁgured

with the GAC for that group, say GAC

. In this case,

either the attacker will fail to authenticate himself to

the hardware token in the Step 1 itself (cf. Figure

3) or if the user knows the valid HAC for the TPH

(which means that he is a valid user for some other

similar network with group access code GAC

) then

he will generate the MAC corresponding to GAC

Such a MAC would fail to match with the MAC gen-

erated at the receiving end because of the different

GAC. While if such a node wants to become a re-

ceiver, then it will fail to authenticate itself to the

sender as it will not be able to form a valid P acket

2.b (cf. Figure 3) because of a different GAC. Thus,

such a node would fail to be a sender as well as a valid

receiver in the network.

4.1.2 Attack from a compromised node

Here, the attacker is assumed to have the valid com-

promised node, i.e. a node with the TPH token conﬁg-

ured with the group access code for that group. Here,

again two level of attacks are possible:

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

194

Packet 2.c

Packet 3.a

Packet 3.b

Packet 4.a

Packet 3.c

Packet 2.a

Packet 2.b

1. User i is locally

authenticated with

the hardware access

code else abort

PHASE1 : Bootstrapping

Step 1

SENDER

node i

hardware access code

authenticated with the

else abort

2. User j is locally

RECEIVER

node j

5. Authenticate

if authenticated

then proceed

else abort

Step 2

packet

3. Generate 1024bit

RSA key pair

4. Authenticate

if authenticated

then generate

6. Authenticate

if success

values exchanged

so far and proceed

else abort

the 1024 bit

RSA key pair

and proceed

else abort

and send the

then store the various

with symmetric

key, append a

MAC and send

13. Encrypt the data

14. Verify the MAC

PHASE 2 : Session Specific

Step 3

Step 4

7. Generate a 64 bit

DES symmetric

key and transmit

10. Verify the MAC

11. Generate the MAC

8. Verify the MAC

9. Generate the MAC

12. Verify the MAC

Figure 4: Algorithm at the nodes (Packets are labeled in

Figure 3).

• Attacker does not know the HAC: The authentica-

tion will fail during Step 1 (cf. Figure 4). While if

the attacker tries to overwrite the HAC, the GAC

also gets overwritten (as mentioned above, TPH to-

ken is has been designed with such a feature) and

then the case becomes similar to the one mentioned

in Section 4.1.1.

• Attacker knows the HAC: In this case the attacker

can send valid packets to the network, but with his

own id. Active impersonation is not possible in the

network. The attacker cannot simulate the hard-

ware behavior and try to pass any other id to the

model, because the group access code is not known

outside the hardware. In such a scenario, if other

nodes in the network come to know that a node is

compromised, then they can block that particular

node from any communication because when that

node wants to participate in the communication, it

can do so with its own identity, which is blocked.

In case of PKI or TESLA, when the node gets com-

promised the attacker would get the keys and will be

able to actively impersonate the user. Even though

the keys may be password protected but note that

they would be accessible through brute-force meth-

ods (such as bit by bit reading of the hard disk), to

which TPH is resistant.

4.2 Scalability

After the conﬁguration of HAC and GAC at the

hardware, the key establishment and data transfer etc

can be initiated as per the ad-hoc network require-

ments. The nodes can form an ad-hoc network with

other nodes in DUG securely without having to main-

tain any database, without going to trusted third party,

without requiring any other authenticated channel for

each data transfer. Thus, UGSP is suitable for ad-

hoc wireless network security. Note that, the cost of

TPH required for the purpose is available and is quite

cheap. In other words, UGSP is quite scalable.

Let us consider the needs of TESLA and PKI-

based security from the perspective of scalability. In

TESLA, every time two nodes want to communicate,

they will be required to exchange some information

(like: T

int

, key disclosure delay, key commitment to

the key chain) over an authenticated channel. This is

not possible in ad-hoc environment as it requires con-

stant presence of a trusted third party.

Now, let us consider PKI-based security: Assume

that each node eligible to join the network has been

given a public-private key pair by PKI. Thus, when

any node wants to communicate, it will send the cer-

tiﬁcate along with the data. For the other node to ver-

ify the certiﬁcate either it has to go to the trusted third

party (which is not possible in ad-hoc network) or

maintain its own database of public keys of the other

nodes (which is not scalable). Due to the property that

on-line authentication is needed, a typical PKI-based

security is not feasible for ad-hoc network security.

5 IMPLEMENTATION DETAILS

We have implemented UGSP using iButton

. The

iButton is a computer chip enclosed in a 16mm

stainless steel can available off-the shelf for less than

ten dollars in retail. Note that the iButton provides

more functionality than what is needed for UGSP. We

have used it as it is available off-the shelf. The steel

button can be mounted virtually anywhere because it

is rugged enough to withstand harsh environments, in-

doors or outdoors. Each iButton has a unique and

unalterable address that is laser etched onto its chip

inside the can. In response to tampering, the iButton

would rather erase the key than reveal its secrets.

www.ibutton.com

UGSP: AUTHENTICATION BASED SECURE PROTOCOL FOR AD-HOC NETWORKS

195

Each has an onboard 512-bit SHA-1 engine that can

compute 160-bit MACs in less than 0.0005 seconds

as compared to 0.5 seconds for a typical microcon-

troller. iButton can be interfaced with a host system

via serial/parallel port or USB. Our protocol has been

tested with iButton. Mobility of the nodes was also

emulated and multihop routing scenarios were evalu-

ated against performance and energy cost. However,

iButton does not realize the function F

but indicates

that the TPH described in the protocol can be devel-

oped at a much cheaper cost. We have completed the

design of the required TPH and are in the process of

testing it on an FPGA board.

6 DISCUSSIONS

To sum up, it can be seen that UGSP is resilient to all

attacks on an ad-hoc network forming a DUG men-

tioned earlier. UGSP is based on mutual authentica-

tion rather than only the client authenticating to the

server, or only the sender authenticating to the re-

ceiver. Our protocol provides dual security since we

are using a TPH token and access code for using the

TPH. Thus, even if the conﬁgured hardware token is

stolen or compromised, an attacker cannot use the to-

ken without knowing the valid hardware access code.

In a sense, it achieves security using the paradigm of

“Something you know, and something you get” pro-

viding dual security to the network. This concept is

similar to the one used by banks for cash dispensation

at ATM’s (a combination of card and PIN is required

to access the account).

Based upon our experience of using the prototype, we

have found that implementation of UGSP can be done

in cost-effective way. UGSP is scalable and robust to

addition of new members in the User Group. In this

paper we have demonstrated and discussed UGSP for

data transfer in a User Group in mobile ad-hoc net-

work. However, there are certain generalizations pos-

sible as stated follows:

Communication Protocol Independent: Using

UGSP, we are able to establish a secure communi-

cation channel between nodes at the end of Phase 1.

Once this happens, we can use any of the existing pro-

tocols, such as TESLA, for data communication.

Multiple Applications: Although, we have chosen

data transfer as a sample application for the demon-

stration of the protocol, UGSP can be used for several

purposes like authenticated routing, node-to-node key

agreement and ubiquitous computing.

Network Infrastructure Independent: UGSP has

been developed for mobile ad-hoc networks, but it

is equally efﬁcient in wired networks as well. It re-

places PKI in the sense that there is no need to go to

the trusted third party everytime you want to validate

any certiﬁcate.

Membership to Multiple DUG: The TPH token can

be made to have more than one location for storing

the GAC. A node can thus be a valid user in more

than one different ad-hoc networks simultaneously.

iButton, for example, has eight locations for stor-

ing GAC. We are evaluating the system performance

when a node is a part of eight simultaneous ad-hoc

networks.

REFERENCES

Bobba, R. B., Eschenauer, L., Gligor, V., and Arbaugh,

W. A. (2002). Bootstrapping security associations for

routing in mobile ad-hoc networks. In Technical Re-

port, Institute for Systems and Research, UMD, TR

2002-44.

Hu, Y., Johnson, D., and Perrig, A. (2002). Sead: Secure

efﬁcient distance vector routing for mobile wireless

ad hoc networks. In Workshop on Mobile Computing

Systems and Applications, IEEE.

Hu, Y.-C. and Perrig, A. (2002). Ariadne: A secure on-

demand routing protocol for ad hoc networks. In Mo-

bicom.

Khaili, A. and Arbaugh, W. A. (2002). Se-

curity of wireless ad hoc networks. In

http://www.cs.umd.edu/ aram/wireless/survey.pdf.

Khalili, A. and Arbaugh, W. (2003). Toward secure key dis-

tribution in truly ad-hoc networks. In IEEE Workshop

on Security and Assurance in Ad-Hoc Networks.

Lamport, L. (1981). Password authentication with insecure

communication. In Communications of the ACM, pg.

770-771, Number 81, Volume 24.

Papadimitratos, P. and Haas, Z. (2002). Secure routing

for mobile adhoc networks. In Communication Net-

works and Distributed Systems Modeling and Simula-

tion Conference.

Perrig, A., Canetti, R., Tygar, J., and Song, D. (2002a). The

tesla broadcast authentication protocol. In RSA Cryp-

tobytes.

Perrig, A., Szewczyk, R., Tygar, J., Wen, V., and Culler,

D. E. (2002b). Spins: Security protocols for sensor

networks. In Wireless Network Journal (WINE).

Royer, E. M. and Toh, C. K. (1999). A review of current

routing protocols for ad hoc mobile wireless networks.

In IEEE Personal communications.

Stajano, F. and Anderson, R. (1999). The resurrecting duck-

ling: Security issues for ad-hoc wireless networks. In

Proceedings of the 3rd AT & T Software Symposium.

Toh, C. K. (2001). Maximum battery life routing to sup-

port ubiquitous mobile computing in wireless ad hoc

networks. In IEEE Communications Magazine.

Zhou, L. and Haas, Z. (1999). Securing ad hoc networks.

In IEEE Network Magazine, 13(6).

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

196
