AN APPROACH TO THE SEMANTIC MODELING OF AUDIO

DATABASES

Mustafa Sert

Bas¸kent University

Department of Computer Engineering

06530 Ankara, TURKEY

Buyurman Baykal

Middle East Technical University

Department of Electrical and Electronics Engineering

06531 Ankara, TURKEY

Keywords:

Audio databases, audio modeling, content-based retrieval, MPEG-7

Abstract:

The modeling of multimedia databases for multimedia information systems is a complicated task. The designer

has to model the structure and the dynamic behavior of multimedia objects, as well as the interactions between

them. In this paper, we present a data model for audio database applications in the context of MPEG-7.

The model is based on the object-oriented paradigm and as well as low-level and high-level signal features,

which are standardized within the MPEG-7 framework, thus enabling interoperability of data resources. The

model consists of two parts: a structural model, which provides a structural view of raw audio data, and

an interpretation model, which allows semantic labels to be associated with audio data. We make use of an

object-oriented approach to capture the audio events and objects in our model. Compared to similar models,

particular attention is paid to integration issues of the model with commercial database management systems.

Temporal relations between audio objects and events are also considered in this study.

1 INTRODUCTION

With the advances in information technology, the

amount of multimedia data captured, produced and

stored is increasing rapidly. In addition to this, mul-

timedia content is widely used in many applications

in today’s world, and hence, a need for organizing

this data and accessing it from repositories with vast

amount of information has been appeared. In ad-

dition to video and image, audio content-based re-

trieval, content analysis and classiﬁcation have a wide

range of applications in the entertainment industry,

audio archive management, commercial musical us-

age, and surveillance. As stated in (Petkovic and

Jonker, 2000), the fast increase in the amount of au-

ditory data caused audio to draw more attention as a

multimedia data type and revealed an important prob-

lem; hence new methods should be developed to man-

age them because existing data management tech-

niques do not provide sufﬁcient support for audio data

type. However as pointed out in (Ghafoor, 1994), one

of the challenging issues that the researchers have to

encounter is the development of such models which

capture the characteristics of that data type.

Audio content-based retrieval requires many ad-

justments in a multimedia database management sys-

tem compared to a traditional database management

system. Traditional database management systems

are not suitable to manage auditory data since au-

dio data has its own characteristics, which differen-

tiate it from simple textual or numerical data. Tra-

ditional database management systems must be en-

hanced with new capabilities to handle audio data, as

a data type to query. The ﬁrst step in achieving this

goal can be to create a multimedia data model and in-

corporate it into the existing database architectures.

As stated in (Grosky, 1997), a multimedia data model

has different properties relative to a traditional data

model. Such models should be able to capture and

represent various types of information about multi-

media objects, their structures, operations and prop-

erties, as well as real-world objects and relationships

among them. The deﬁned model can then be used for

retrieval and querying of audio with the extracted in-

formation.

This paper proposes a data model in the mentioned

ﬁelds of a multimedia database management system

in the context of audio databases, and organized as

385

Sert M. and Baykal B. (2004).

AN APPROACH TO THE SEMANTIC MODELING OF AUDIO DATABASES.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 385-390

DOI: 10.5220/0001401503850390

 SciTePress

follows. In Section 2, related approaches are ex-

plored. Our model is explained in Section 3. In Sec-

tion 4, integration issues of the model with commer-

cial database management systems are discussed. The

following section gives some practical examples to

provide an understanding of possible applications of

the model. Finally, our conclusions with the further

issues are presented.

2 RELATED WORK

Content-based retrieval of multimedia data has been

explored in several studies. Early attempts have ad-

dressed the problem of retrieval of images. After-

wards, the problem of video retrieval has attracted

much more attention. Audio, however, is generally

studied with regard to video retrieval, and not much

has been done on this issue. As stated in (Gudivada

and Raghavan, 1995), we can broadly classify the var-

ious approaches into three categories: keyword based,

feature based, and concept based approaches. In key-

word based approaches, which is the simplest way to

model the content, is by using free text manual an-

notation. In feature based approaches, a set of fea-

tures are extracted from the multimedia data, and rep-

resented in a suitable form. In the latter case, applica-

tion domain knowledge is used to interpret an object’s

content and may require user intervention.

Systems in the ﬁrst category are mostly based on

textual data, hence a traditional database management

system which provides support for object retrieval is

adequate for this purpose. In the latter categories, fur-

ther considerations are needed in the context of mod-

eling in multimedia database systems.

In the literature, there are a few works on content-

based retrieval systems for auditory data both com-

mercially and academically. However, most of these

systems support only segmentation and classiﬁcation

of audio data, that is, the signal processing aspects of

the audio. As query languages are very dependent on

the underlying data model, our survey will take ac-

count of some of the multimedia query languages.

One speciﬁc technique in content-based audio

retrieval is query-by-humming. The approach in

(A. Ghias, 1995) deﬁned the sequence of relative dif-

ferences in the pitch to represent the melody contour

and adopted the string matching method to search

similar songs.

In the content-based retrieval (CBR) work of the

Muscleﬁsh Company (E. Wold, 1996), they took sta-

tistical values (including means, variances, and auto-

correlations) of several time and frequency-domain

measurements to represent perceptual features like

loudness, brightness, bandwidth, and pitch. As

merely statistical values are used, this method is only

suitable for sounds with a single timbre.

A music and audio retrieval system was proposed

in (Foote, 1997), where the Mel-frequency coefﬁ-

cients were taken as features, and a tree-structured

classiﬁer was built for retrieval.

In (A. Woudstra, 1998), an architecture for mod-

eling and retrieving audiovisual information is pro-

posed. The proposed system presents a general frame-

work for modeling multimedia information and dis-

cusses the application of that framework to the spe-

ciﬁc area of soccer video clips.

In (L. Lu, 2003) an SVM-based approach to

content-based classiﬁcation and segmentation of au-

dio streams is presented for audio/video analysis. In

this approach, an audio clip is classiﬁed into one of

the ﬁve classes: pure speech, non-pure speech, mu-

sic, environment sound, and silence. However, there

is no underlying database model for content-based au-

dio retrieval in the system.

(J.Z. Li, 1997) describes a general multimedia

query language, called MOQL, based on ODGMs’

Object Query Language (OQL). Their approach is

to extend the current standard query language, OQL,

to facilitate the incorporation of MOQL into existing

object-oriented database management systems. How-

ever, as stated in (J.Z. Li, 1997), further work needs

to be done to investigate the support for audio media

and to establish the expressiveness of MOQL.

There are other audio data models, which are ex-

plored in the context of video (G. Amato, 1998),

(A. Hampapur, 1997), (R. Weiss, 1994). However,

since the main purpose is video, less attention is paid

on the audio component.

The main contribution of this work lies on the fol-

lowing. We mainly emphasized on the audio com-

ponent. Particular attention is given to the integra-

tion issues of the model with commercial database

management systems, and ﬁnally, we believe that the

interoperability of the model is enabled by utilizing

the signal features, which have been standardized in

MPEG-7 framework.

3 AUDIO DATA MODEL

In this section, we present our audio data model, its

components and some details on representation of

audio data. As identiﬁed in the work on MPEG-7

(John R. Smith, 2000), audio-visual content can be

described at many levels such as structure, semantics,

features and meta-data. At this stage, MPEG-7 takes

place by standardizing a core set of descriptors and

description schemes to enable indexing, retrieval of

audio-visual data, and interoperability of the data re-

sources (MPEG-7, 1999). A descriptor (D) is used to

represent a feature that characterizes the audio-visual

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

386

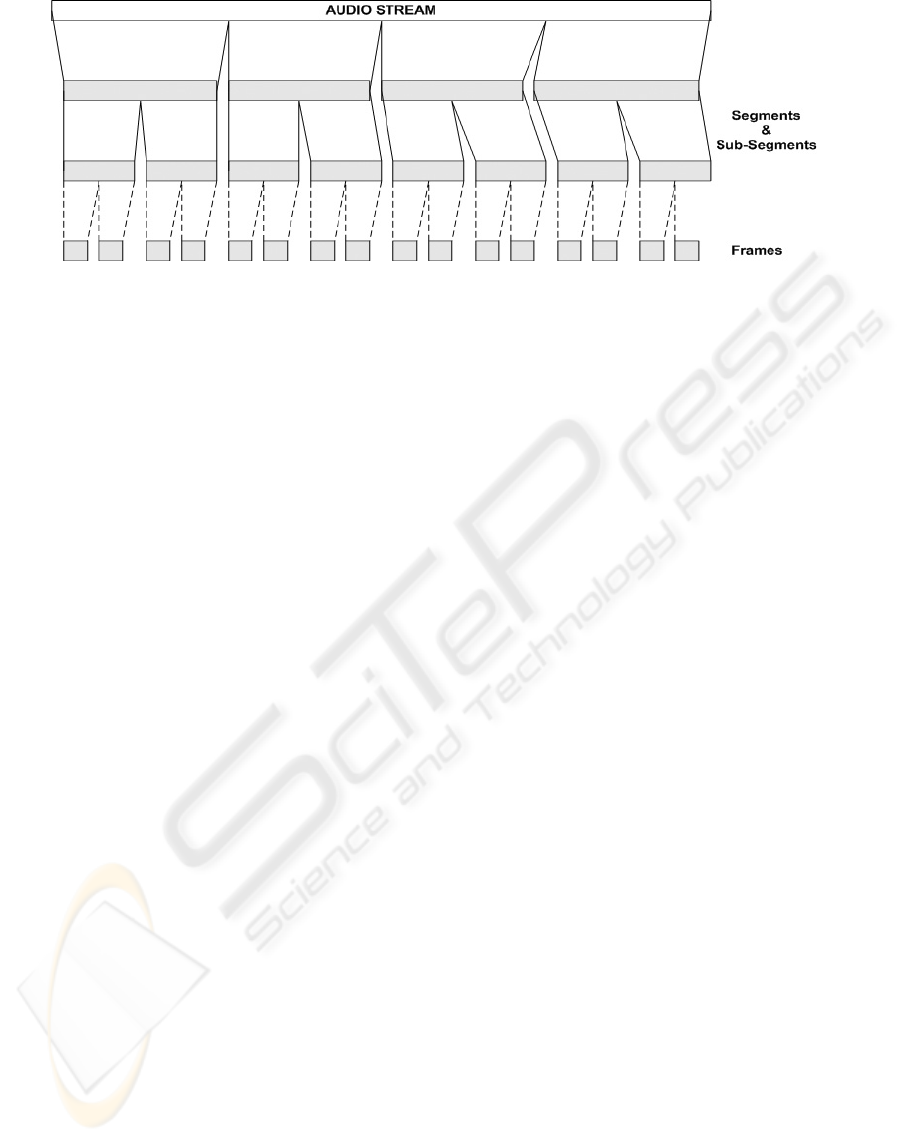

Figure 1: Segmentation of an audio for Audio DS.

content, while a descriptor scheme (DS) is used to

specify the structure and semantics of a relation be-

tween its components, such as descriptors and de-

scription schemes. Descriptors in MPEG-7 deal with

low-level features of a multimedia data (e.g., audio,

video), such as color, motion, audio energy, and so

forth. On the other hand, descriptor schemes deal

with high level features, such as semantic description

of objects and events. In this context, by separating

the distinct tasks of conceptual, logical and physical

modeling as in database design, we separate the con-

tent description process into two levels, namely struc-

tural and interpretation.

3.1 Modeling the Structure and

Concept

At the lowest level of representation, an audio data is

an unstructured piece of information as a sequence of

sample values (raw object) that can be represented in

the time domain or the frequency domain. Different

features can be extracted from these two representa-

tions, however this is not our goal in this study. In-

terested readers are referred to (MPEG-7, 2001) for

low and high level features of audio data. A raw

object contains a large amount of signiﬁcant infor-

mation and should be managed by using an explicit

representation. Our model stands for this purpose,

and includes hierarchical structures, as well as object-

oriented methodologies for identifying the possible

conceptual entries in a raw object.

Our data model consists of two parts: A struc-

tural model, which provides a structural view of raw

audio data, and an interpretation model, which al-

lows semantic labels to be associated with audio

data. Structural and semantic information of an au-

dio are described by MPEG-7 meta-data in order to

enable indexing and retrieval of an audio data. Struc-

tural modeling includes 17 low-level MPEG-7 fea-

tures (e.g., AudioFundamentalFrequencyType, Au-

dioWaveformType, AudioPowerType) to describe an

audio. Semantic modeling consist of identifying au-

dio entities (objects) and their relations. We make use

of an object-oriented approach to capture audio events

and objects in an audio. We have deﬁned an audio ob-

ject as a sound source, and that any kind of behavior

of that object is an event. Events develop in time by an

object and also have a duration property. As the main

function of an object is describing sound sources, it is

possible to distinguish different levels for describing

audio objects. Some generic source objects can be a

musical instrument, speech voice/owner, environmen-

tal sound, and sound effects. Similarly, as event is

the temporal behavior of some audio object along or

around a certain time; crying, shouting, dialogs be-

tween persons, and a musical note can be considered

as events. As a consequence, these two components

together are very useful for querying at the semantic

level.

In our model, we have extended the idea which is

presented in proposal (P. Salembier, 1999). What we

present here is a ﬁrst step towards that. We are uti-

lizing a frame-based view at the bottom level of rep-

resentation instead of a scene-oriented view. In addi-

tion, we have classiﬁed an audio into some common

types such as speech (sp), music (mu), sound (so),

and combination of all-mixed (mi). These classes

are immediate descendants of Audio DS with the is

a relation type. For instance, a music is an audio,

a speech is an audio, and so forth. An Audio TOC

is constructed for all these types, in other words, ev-

ery component of an audio has an Audio TOC which

also shows the aggregation relation. Class mixed is

deﬁned to handle the audio pieces which are not clas-

siﬁed into other three classes due to signal character-

istics. The inclusion of these classes to the model is

important for several reasons such as different audio

types have different signiﬁcance to different applica-

tions, the audio type or class information itself may

be very useful for some applications, and the search

space after classiﬁcation is reduced to a particular au-

dio class during the retrieval process.

AN APPROACH TO THE SEMANTIC MODELING OF AUDIO DATABASES

387

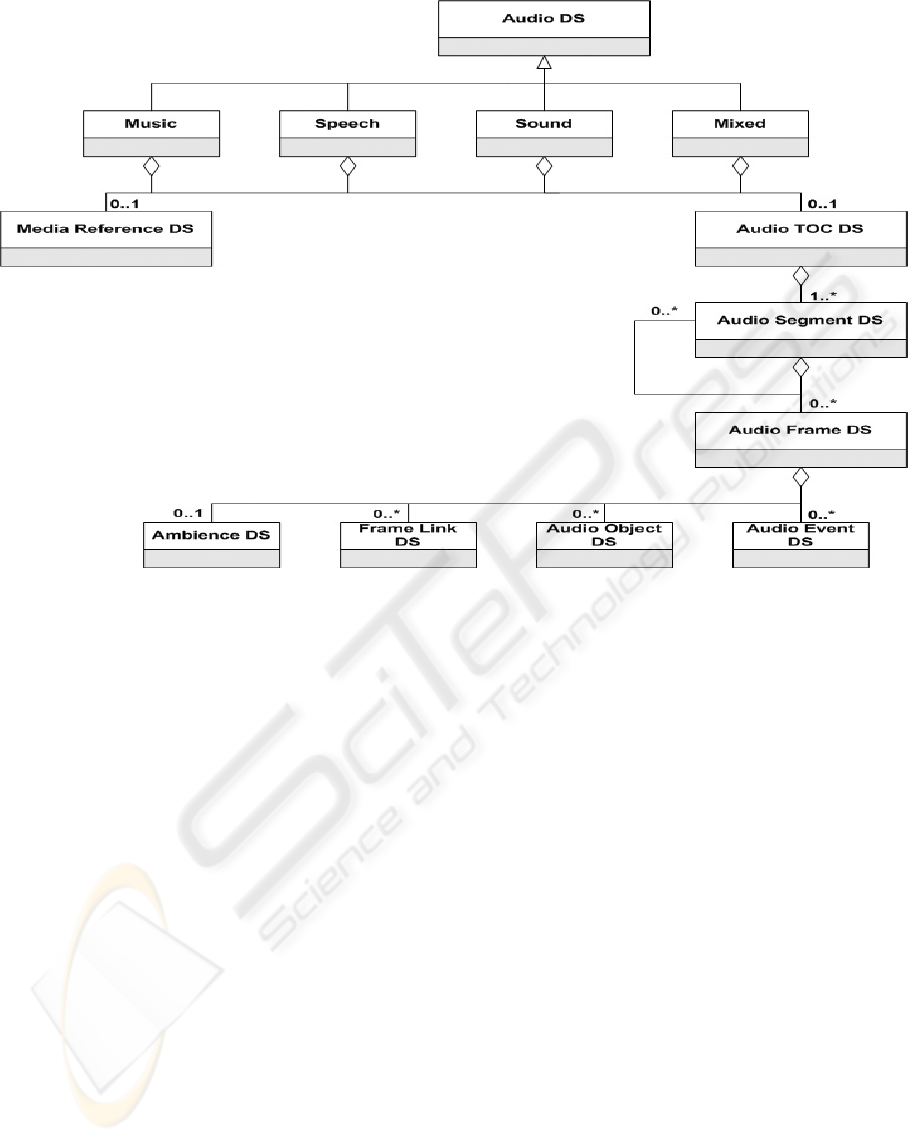

Figure 2: UML diagram of the overall model (not exhaustive).

The overall structure of the generic audio DS is

constructed as follows. An audio entity is pro-

gressively partitioned to temporal segments and sub-

segments (Fig. 1). This process is continued until

the segments cannot be sub-segmented any further.

At this stage, we call the bottom-level elements as

frames.

An audio segment may contain any number of de-

scendant segments and frames, which both have their

own begin and end times. As stated in (Adam T. Lind-

say, 2000), this abstraction provides a view called au-

dio table of contents (TOC), which is very similar to

a table of contents in a book. The overall view of

the model (but not exhaustively), in the context of

MPEG-7 description tools is presented in Fig. 2.

Audio DS provides a general framework for the de-

scription of audio and is composed of labels and de-

scriptors to identify the audio to be described.

The Media Reference DS holds two descriptors

concerning with the media, one for the begin and end

time (Time DS), while the other one is to identify the

media.

Audio Segment DS is a specialized instance of Seg-

ment DS. Segment DS is an abstract type, and deﬁnes

the properties of segments, such as Audio Segment

DS. The Audio Segment DS is utilized to describe a

temporal interval or segment of an audio. In order to

describe the structural relations among segments, seg-

ment relation description tools should be used. In the

context of temporality, we make use of the thirteen

interval relations as indicated in (Allen, 1983), such

as before, after, overlaps, during, starts, ﬁnishes, and

meets.

An Audio Frame DS is also a temporal portion of

the audio stream that have one or more characteris-

tics different from other frames in the stream. Audio

frames may contain a list of components such as au-

dio objects and audio events.

The semantic information about an audio object

and event are handled by the Audio Object and Au-

dio Event DSs, respectively. Each object and event

are described with their attributes such as start-time,

end-time, duration and high-level information to fa-

cilitate understanding of an audio content. These two

components together are also very useful for querying

at the semantic level.

Ambience DS, which is an optional DS, is used

to describe some information about the entire audio

frame to be able to distinguish it from others, while

frame link DS is used to capture the relations between

audio frames. There may be any number of frame

links and any number of relationships.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

388

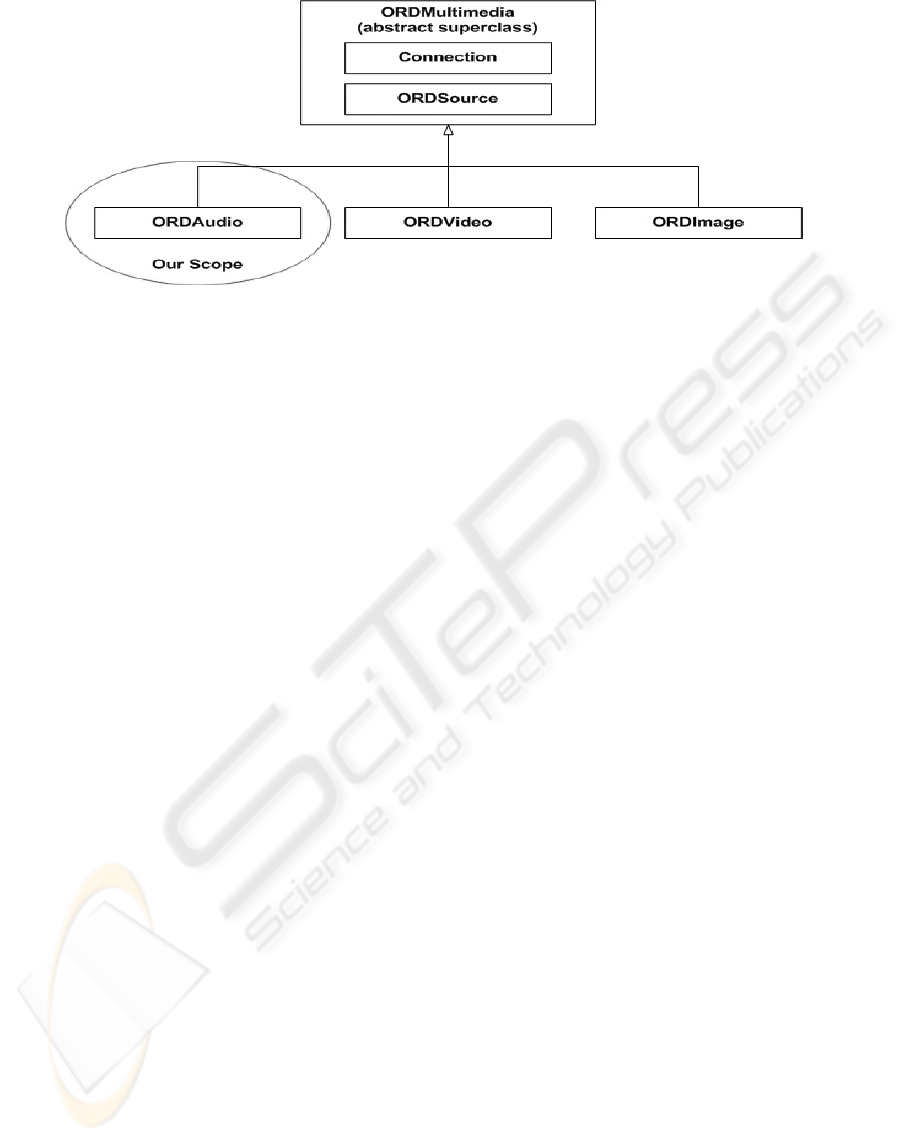

Figure 3: Oracle’s multimedia object data types.

3.2 Query Examples

This section provides some query examples and po-

tential applications of the proposed model. Proposed

system supports both the Query-by-Example (QBE)

and semantic (textual) queries. QBE queries are per-

formed by providing an example query object, while

semantic queries are expressed in the form of object

and event concepts. Example queries are,

• Retrieve audio piece(s) that are similar to A

• Retrieve audio piece(s) in which object O appears

• Retrieve audio piece(s) in which event E appears

• Retrieve audio piece(s) in which object O1 appears

before object O2

• Retrieve audio piece(s) in which event E1 appears

after event E2

where A, O, and E represent an audio instance, an

object, and an event, respectively. In the examples,

before and after are temporal predicates. Other tem-

poral predicates (e.g., starts, ﬁnishes, overlaps) are

also supported. In addition, the queries can also be

expressed in the form of conjunctive and disjunctive

queries.

4 INTEGRATION ISSUES

Several database management system vendors have

included characteristic features of object-oriented

databases to relational database management systems.

In particular, many database vendors, such as IBM

and Oracle provide the capability of handling ob-

ject data by embedding content-based retrieval pro-

totypes. For instance, IBM’s DB2 provides content-

based retrieval for images and video, and its prototype

has been employed from the research called QBIC

(M. Flinker, 1995), while Oracle makes use of the

prototype called Virage (A. Hampapur, 1997). Al-

though both systems reasonably support the content-

based retrieval of image and video, they do not pro-

vide the same capability for audio (Sert and Baykal,

2003).

We have mainly emphasized to the Oracle database

management system for integration issues of our

model. Oracle is an object relational database man-

agement system (Oracle, 2000). This means that, in

addition to its traditional role in the safe and efﬁcient

management of relational data, it provides support for

the deﬁnition of object types, including the data asso-

ciated with objects and the operations (methods) that

can be performed on them. This mechanism is estab-

lished in the object-oriented paradigm, thus enabling

complex objects, such as digitized audio, image, and

video to the databases.

Within Oracle, multimedia data is handled by the

ORD* data types (ORDAudio, ORDImage, and OR-

DVideo), which are provided by the technology called

interMedia. All three data types derived from the

abstract object type called ORDSource. This hier-

archy is shown in Fig. 3. Interested readers may

refer to (Sert and Baykal, 2003) and (Oracle, 2000)

for content-based retrieval capability of the database.

However, this feature is a lack for auditory data.

Therefore, Oracle provides some methods to extend

this feature for ORD* data types. ORD* data types

make possible the following features:

• Manipulating multimedia data sources

• Extracting attributes from multimedia data (par-

tially)

• Content-based retrieval of image and video

These data types can be extended to support audio

and video data processing, as well as content-based

retrieval of auditory data. In order to achieve these

goals, we apply the following procedures:

• Design of the new/extended data source (model)

AN APPROACH TO THE SEMANTIC MODELING OF AUDIO DATABASES

389

• Implementation of the new/extended data source

(model)

• Installation of the new module as a plug-in by using

the ORDPLUGINS schema

• Adjustment of the privileges of new plug-in

5 CONCLUSIONS

Considerable research has been conducted on video

and audio data modeling in recent years. However,

to the best of our knowledge, most of them were ap-

plication of speciﬁc approaches. With this motiva-

tion, in this paper, we described the audio modeling

constructs and presented how an audio information

can be modeled in the context of MPEG-7 descriptors

and description schemes, in order to provide interop-

erability in world-wide scale. Finally, we have ex-

plored the integration issues of the model in commer-

cial database management systems. Since proposed

model exposes the structure of a generic audio de-

scription scheme, as a result, it can be used in vari-

ous audio applications as an underlying data model to

handle the audio characteristics and their semantics.

Our future work lies on two directions: (a) encap-

sulation of the proposed data model to constitute a

composite audio data type, (b)implementation of a

symbolic query language to query it.

REFERENCES

A. Ghias, J. Logan, e. a. (1995). Query-by-humming-

musical information retrieval in an audio database. In

ACM Multimedia Conference. Proc. ACM.

A. Hampapur, e. a. (1997). Virage video engine. SPIE,

3022.

A. Woudstra, e. a. (1998). Modeling and retrieving audio-

visual information. LNCS, 1508.

Adam T. Lindsay, e. a. (2000). Representation and linking

mechanism for audio in mpeg-7. Signal Processing:

Image Communication, 16:193–209.

Allen, J. (1983). Maintaining knowledge about temporal

intervals. Communications of ACM, 26(11):832–843.

E. Wold, T. Blum, e. a. (1996). Content-based-

classiﬁcation, search, and retrieval of audio. IEEE

Multimedia, pages 27–36.

Foote, J. (1997). Content-based retrieval of music and au-

dio. In Proceedings of SPIE’97.

G. Amato, e. a. (1998). An approach to a content-based

retrieval of multimedia data. Multimedia Tools and

Applications, 7(1/2):5–36.

Ghafoor, A. (1994). Multimedia database course notes. In

ACM Multimedia Conference.

Grosky, W. (1997). Managing multimedia information

in database systems. Communications of the ACM,

40(12):73–80.

Gudivada, V. and Raghavan, V. (1995). Content-based

image retrieval systems: Guest editors’ introduction.

IEEE Computer, pages 18–22.

John R. Smith, A. B. B. (2000). Conceptual modeling of

audio-visual content. In IEEE International Confer-

ence on Multimedia and Expo (II), pages 915–. IEEE

Press.

J.Z. Li, M.T. Ozsu, e. a. (1997). MOQL: A Multimedia Ob-

ject Query Language. In The 3rd International Work-

shop on Multimedia Information Systems.

L. Lu, H.J. Zhang, e. a. (2003). Content-based audio classi-

ﬁcation and segmentation by using support vector ma-

chines. Multimedia Systems, 8:482–492.

M. Flinker, e. a. (1995). Query by image and video content:

The qbic system. IEEE Computer, 28:23–32.

MPEG-7 (1999). Mpeg-7 requirements document v.8,

iso/iec jtc1/sc29/wg11/n2727. Technical report, Seoul

Meeting.

MPEG-7 (2001). Multimedia content description interface

- part4: Audio, iso/iec jtc1/sc29n. Technical report,

MPEG-7.

Oracle (2000). User’s guide and reference: Oracle interme-

dia audio, image, and video. Technical report, Oracle.

P. Salembier, e. a. (1999). Video ds. Proposal P185, P186,

MPEG-7 Lancaster Meeting.

Petkovic, M. and Jonker, W. (2000). An overview of data

models and query languages for content-based video

retrieval. In International Conference on Advances

in Infrastructure for Electronic Business, Science, and

Education on the Internet.

R. Weiss, e. a. (1994). Content-based access to algebraic

video. In Proc. of Int. Conf. on Multimedia Computing

and Systems, pages 140–151. IEEE Press.

Sert, M. and Baykal, B. (2003). A web model for query-

ing, storing, and processing multimedia content. In

IKS’03, International Conference on Information and

Knowledge Sharing. ACTA Press.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

390
