Digital Switchover: An alternative solution towards

broadband access for all citizens

E. Pallis

, C. Mantakas

, G. Xilouris

, G. Gardikis

, A. Kourtis

Centre for Technological Research of Crete, Estavromenos, Heraklion , 71500 Greece

METIL Telecom consultant, Spetses, 18050, Greece,

National Centre for Scientific Research Demokritos, Institute of Informatics and

Telecommunications, Patriarxou Grigoriou, Agia Paraskevi, Athens, 15310, Greece

Keywords. Internet services, Dial-up networking

Abstract. The paper anticipates that the actions to be taken concerning the

Digital Switchover (transition form analogue to digital broadcasting – DSO) in

UHF are of strategic importance for the European Member Countries and most

candidate ones, as long as DSO arises as a possible and complementary solution

towards the deployment of Broadband Access Infrastructures, especially in less

favoured regions. Taking into account the networking potentialities of the new

digital TV in UHF (Terrestrial Digital Video Broadcasting – DVB-T) and the

broadband capabilities of the recent access technologies (i.e. WLAN, UMTS,

etc.), the paper proposes a networking infrastructure that utilises the DVB-T

stream in regenerative configurations for the realization of a common Ethernet

backbone capable to interconnect all citizens within the broadcasting area.

Citizens access this backbone via appropriate Distribution Nodes (DN), which

make use of broadband access technologies. Such an approach enables for a

multi-service capable environment (digital TV programmes, Interactive TV

programmes, Internet access, e-mail, video/audio on demand, etc.), which is

commonly shared among broadcasters, telecom operators and any active citizen

who creates, manipulates and distributes his own content to the entire

infrastructure (MPEG-21 approach).

1 Introduction

Despite the intrinsic technological differences between Telecommunications and

Digital Broadcasting sectors, a notion of convergence has been recently achieved not

only at technological level, but also at service level. This convergence was mainly

empowered in European level by the work carried out in the field of ‘Interactive

Broadcasting’, which was the subject of innovative work carried out by a number of

Pallis E., Mantakas C., Xilouris G., Gardikis G. and Kourtis K. (2004).

Internet services, Dial-up networking..

In Proceedings of the 1st International Workshop on Shaping the Broadband Society, pages 31-40

DOI: 10.5220/0001404200310040

 SciTePress

Research and Development projects in the 5th European Framework Programme. The

ultimate goal of these projects was to provide new affordable services to the users,

fulfilling two observed tendencies: i) the personalisation of services, that cannot be

offered by traditional one-to-many broadcasting networks, and ii) the consumption of

bandwidth hungry multimedia services that cannot be offered by existing

communication networks especially on the move. The objective of further

development of the subject of Interactive Broadcasting was confronted by the

European commission in a lately organised workshop that identified the technological

and service issues which require further R&D including: i) video and audio delivery

to mobile terminals, ii) traffic symmetry/asymmetry, iii) market prospects of the

introduction of new services and applications, vi) regulatory and spectrum issues, and

finally, and most predominant, the need of synergy (better than convergence) between

broadcasters and telecom operators towards the introduction of the next generation

networks (NGN).

In Sevilla European Council [1] Europe expressed its current interest for next

generation networks by defining the actions-to-be-taken and by identifying the issues

to be studied in depth (and in parallel) prior to the deployment of NGN. Two of these

issues are (as they appear in the Sevilla document) the “Digital Switchover” (i.e. the

transition from analogue to digital broadcasting), and the “Broadband access for all

citizens”.

Accomplishment of Europe’s vision for the next generation networks requires,

however, extensive study and in depth examination of the digital switchover and the

broadband access for all issues. Currently, there is no clear point that such action have

been taken, neither by the interesting sectors (broadcasting and telecommunication),

nor by the political and governmental authorities [2], [3], [4]. Major barriers are the

political authorities’ unawareness about the potentialities and advantages of the new

technologies, and the clashes between the broadcasting and telecommunication

sectors in the market field.

Realising the networking capabilities of the new digital television in UHF (DVB-T),

and the importance of broadband access technologies in the Information Society, this

paper presents and draws-up the routes towards a successful deployment of NGN, by

elaborating on the relation between “Digital Switchover” and the “Broadband Access

for all” issues. It proposes the use of the DVB-T stream in regenerative configurations

for the creation of a powerful backbone that interconnects distribution nodes within a

city. As these distribution nodes (local networks) make use of broadband access

technologies (i.e.WLAN, LMDS, MMDS, Optical) they enable all citizens to have

broadband access to the entire network and to be interconnected. Such a configuration

enables for multi-service capability, as the regenerative DVB-T creates a single

access network physical infrastructure, shared by multiple services (i.e. TV

programmes, interactive multimedia services, Internet applications, etc.).

Following this introductory section, the rest of this paper is structures as follows:

Section 2, presents the overall architecture of the proposed infrastructure, Sections 3

and 4 describe its functional components (regenerative DVB-T and Cell Main Nodes),

while Section 5 presents the principles of a real time dynamic bandwidth management

system (DBMS), required for optimised spectrum usage. Finally, Section 6 concludes

the paper.

2 Overall architecture

The overall architecture of such an infrastructure (see figure 1) comprises two core

subsystems: I) a number of Cell Main Nodes (CMN), and II) a central broadcasting

point (regenerative DVB-T). Each CMN enables a number of users/citizens

(geographically neighbouring the CMN) to access IP services hosted by the network.

The communication between the users and the corresponding CMN is achieved via

broadband point-to-multipoint links (i.e. WLAN). The CMN gathers all IP traffic

stemming from its users, and forwards it to the central broadcasting point (UHF

transmission point visible by all CMNs) via dedicated point-to-point links (uplinks).

IP traffic stemming from all CMNs is received by the broadcasting point, where a

process unit filters, regenerates and multiplexes them into a single transport stream

(IP-multiplex) along with digital TV programme(s), stemming from the TV

broadcaster(s), forming the final DVB-T "bouquet". The regenerated/combined traffic

is then broadcasted via the UHF channel at high data rates following the DVB-T

standard. Each user receives the appropriate IP reply signals indirectly via the

corresponding CMN, while receiving the digital TV programme directly via the UHF

channel. In such configuration both reverse and forward IP data traffic are

encapsulated into the common DVB-T stream, thus improving the flexibility and

performance of the Network.

The cellular conception that is adopted utilises DVB-T stream in a backbone topology

which interconnects all cells that are located within the broadcasting area. Thus, a

unique virtual common Ethernet backbone is created, which is present at every cell

(via its Cell Main Node). The IP traffic of this Ethernet is supplied by the DVB-T bit

stream. Users access the network via the appropriate Cell Main Node.

In such configuration, all kind of citizens/providers are co-equal users of the same

infrastructure via which they access (or provide) IP services. Such implementation

can be used and exploited as common infrastructure by 3G and B3G operators and

broadcasters having independent business plans and different users/clients.

Extension of this configuration will be achieved by using a regenerative satellite, in

order to interconnect nodes and users around Europe (see figure 2).

Citizens, who utilise common PSTN/ISDN/xDSL lines access the common Ethernet

backbone via an appropriate node (i.e. ISP node), who takes the responsibility to

redirect data traffic targeted to them (IP reply signals stemming from any other

user/citizen located within the same broadcasting area) to the UHF broadcasted

Ethernet backbone. These citizens are the usual passive consumers of predefined

content, accommodating best effort capabilities. This proposal is oriented to the active

users/citizens that can provide and manipulate their own services to the entire

Ethernet backbone (i.e. spin-off businessman, off line IP television multicasters, etc.).

The use of regenerative DVB-T configurations in conjunction with intermediate

distribution nodes (cell main nodes - CMNs) that utilize broadband uplinks,

constitutes a broadband access infrastructure capable to accommodate the active

users/citizens, i.e. those who create, manipulate and distribute their own content to the

entire network.

In this case, each CMN constitutes the ‘physical interface’ to the common Ethernet

backbone of:

A service/content provider.

The users/citizens of a local network (intranet) who access the entire network

indirectly via the appropriate CMN. This intranet may cover a part of the city (i.e.

neighbourhood, outskirts, industrial zone, etc.) or comprise the LAN of a business

centre that may be based on the IEEE 802.11x technology, for example.

The customers of a mobile network operator making use of 3G and B3G technology

(i.e. UMTS).

Individual active users and implicit service providers, who access the common

Ethernet backbone via the corresponding CMN in order to create, manipulate and

provide their own content to the entire network (i.e. e-businessmen). (Also individual

passive users, who request predefined content/services via common

PSTN/ISDN/xDSL links and receive them via the UHF beam).

Br oadcastingarea

(i .e .50k mradius)

CM N atoutskir ts

(i.e.40 k mfrom

regenerative

DVB

‐

CM Nat

In du s trial zone

CM N at

metr opolis

dow ntow nwit h

WLAN

Downl i n



DVB ‐T

Uplink

formCM N 

TV studio

TV Link

Regenerative

DVB ‐T

Br oadcasting

area

UHF

reception

an tenn a

UHFtr ansmissionto 

broadcastingare a

(TVpr ogr a mmes+IP tr affic)

PS TN/ISDN

MHP

LEGEND

MMDS/

LMDS

Wir eless

Opt ic al

IS DN

PSTN

xDSL

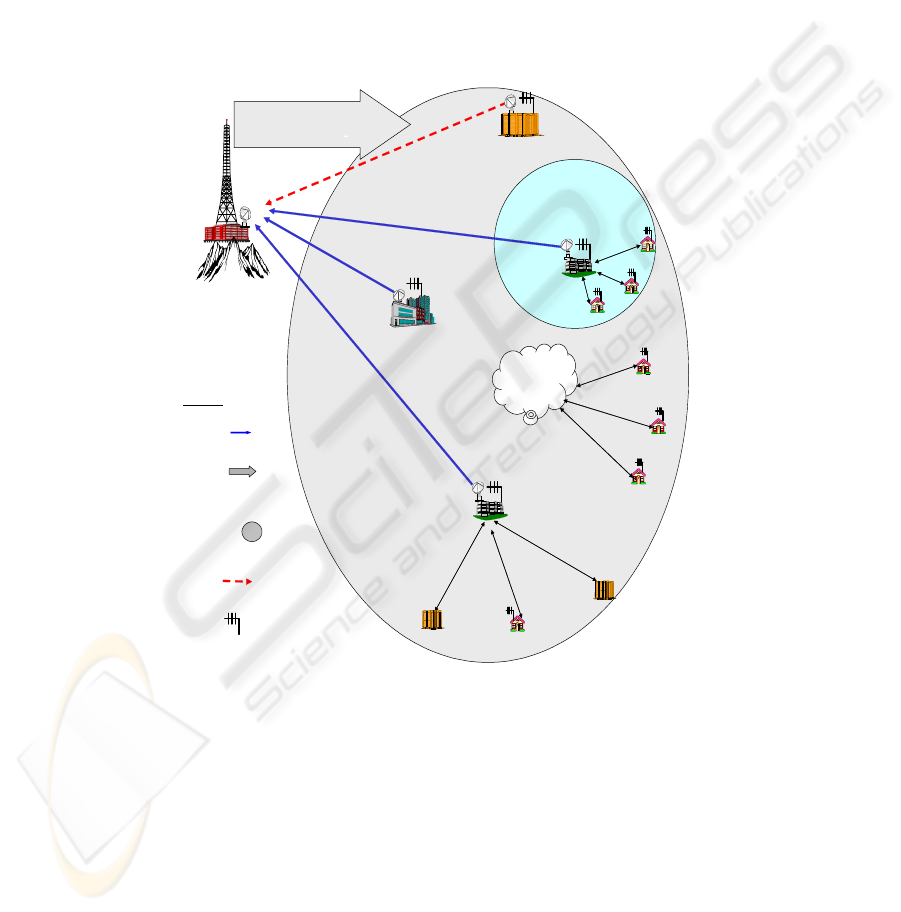

Fig. 1. Overview of the network configuration, where the common Ethernet backbone, access

by both active and passive users/citizens, is present in the entire broadcasting area

City1,Node1

City2,Node2



City3,Node3

F2

F1

D ownlink 

‐S

U plink 

‐S

CM N 

link 

‐T

downlink

WLA



Reg en erative 

satellite

TV studio

UMTS

/BS

UMTS

DVB ‐S&DV

‐

televiewer

‐T

broadcastin

area

‐T&UMTS

device

F3

CM N 

‐S&UMTS

devic



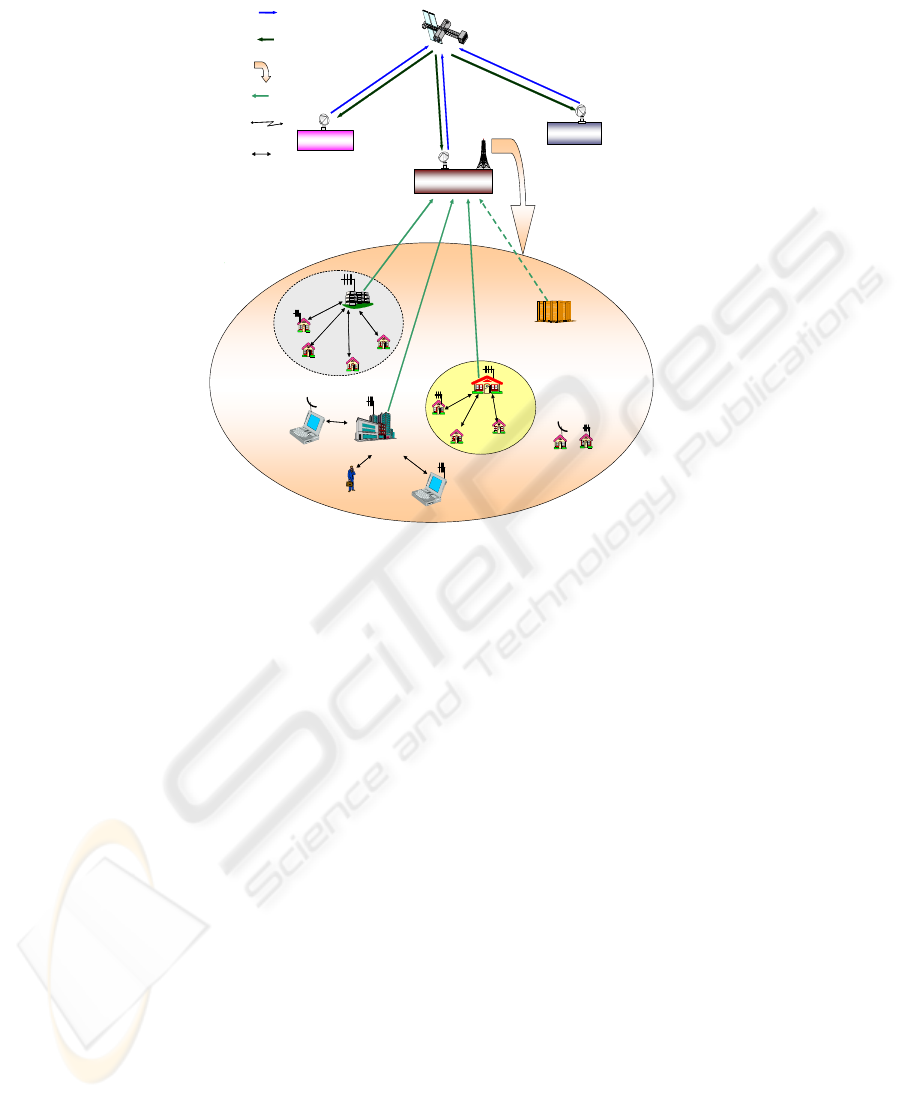

Fig. 2. Interconnecting nodes and citizens across Europe via the television stream

3 Configuration of the regenerative DVB-T

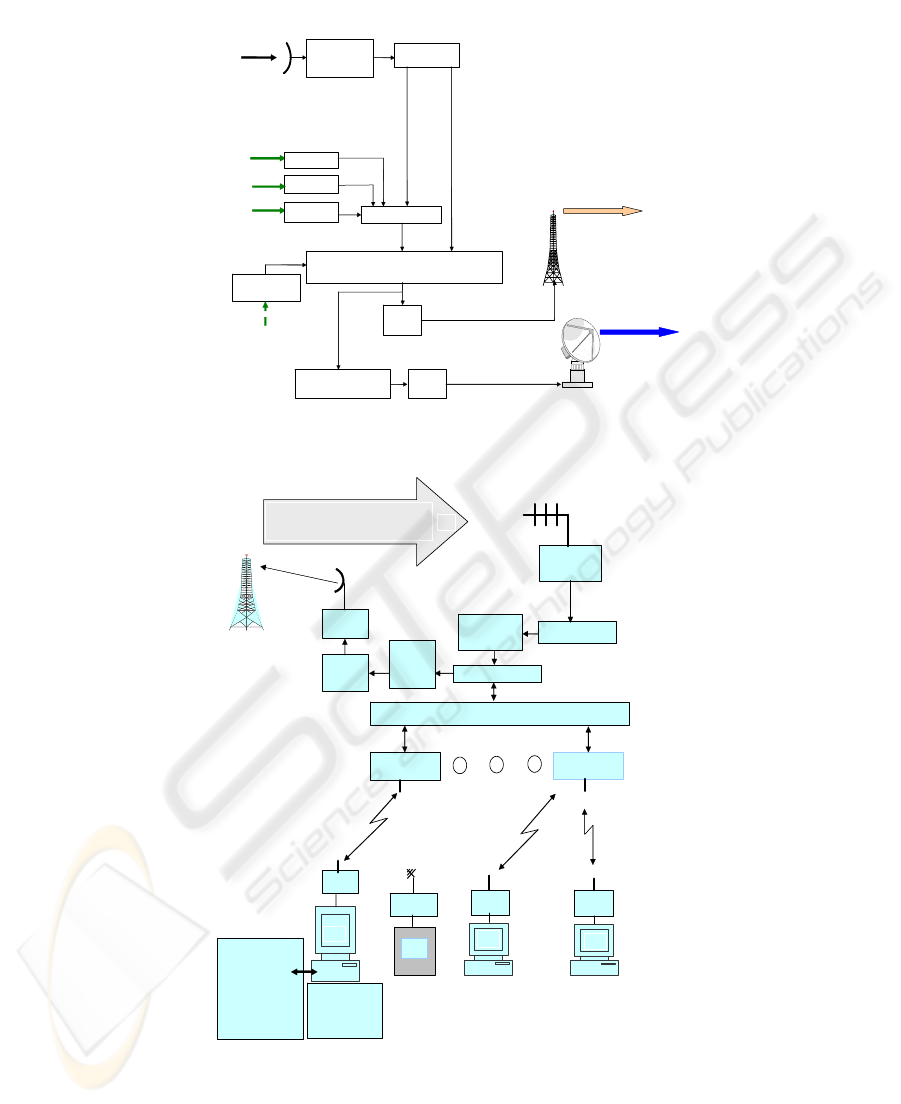

The proposed architecture of the regenerative DVB-T, which is depicted in figure 3, is

capable to:

Receive the users/citizens IP traffic over terrestrial uplinks (via the appropriate CMN

in the case of intra-metropolitan communication – see F1, F2, and F3 at figure 3).

Receive any local digital TV programme (stemming from the TV studio

broadcasters).

Broadcast a common UHF downlink that carries the IP data targeting to all CMNs

(located within the broadcasting area) and the digital TV programmes. Following the

configuration depicted in figure 3, the multiplexing device must be able to receive any

type of data (IP and/or digital TV programmes), to adapt any IP and MPEG-2 traffic

into a common DVB-T transport stream (IP to MPEG-2 encapsulation), and finally to

broadcast the common DVB-T stream following the DVB-T standard (COFDM

scheme in the UHF band).

In the case that inter-metropolitan communication is required (communication and

data exchange between users/citizens of different cities within Europe), the

regenerative DVB-T must be able to i) receive the requests for IP services via the

satellite downlink stemming from users/citizens located in another region, and any

digital TV programme (stemming from the TV studio broadcasters either form the

same country or from a distant one – via the DVB-S stream), and ii) transmit any IP

and/or digital TV programmes, destined to other metropolitan area(s), to the satellite

for cities interconnection (see figure 3).

4 Cell main nodes configuration (wlan case)

The overall configuration of the CMN that utilises WLAN technology is depicted in

figure 4. This part of the infrastructure is compliant with the IEEE 802.11xx standard.

Its physical layer is based on Spread Spectrum techniques, using either Direct

Sequence or Frequency Hopping. Such a network will allow for the realisation of

point-to-multipoint communication between the CMN and the citizens/users.

The WLAN network configuration follows a cellular architecture, as outlined in

figure 4 (for a single cell). Such a configuration comprises an Access Point (AP) at

the cell main node site, which maintains a full duplex communication with the Station

Adapters (SA) at the citizen’s/users’ site. The output from each SA is in IP form,

which can be transparently processed by the upper layers of the software of the end-

user’s terminal.

Each CMN enables a number of users (geographically neighbouring the CMN) to

access IP services hosted by the network. The communication between users and the

corresponding CMN is via broadband point-to-multipoint links. The CMN gathers all

IP traffic stemming from its users, and forwards it to the central broadcasting point

(UHF transmission point visible by all CMNs) via dedicated point-to-point links

(uplinks). IP traffic stemming from all CMNs is received by the broadcasting point,

where a process unit filters, regenerates and multiplexes them into a single transport

stream (IP-plex) along with a digital TV programme (stemming from the TV

broadcaster) forming the final DVB-T "bouquet". The regenerated/combined data

traffic is then broadcasted to all CMNs via the UHF channel at high data rates

following the DVB-T standard. Each user receives the appropriate IP reply signals

indirectly via the corresponding CMN, while receiving the digital TV programme

directly via the UHF channel.

Upon a user’s request for inter-cell communication (i.e. between the specific user and

any other content provider/user/server of the entire infrastructure), the AP and the IP

backbone, as well as the router and the dynamic bandwidth management system

(DBMS – see section 5) at the CMN, provides the necessary information (i.e. data

requests, data acknowledgements) to the entire metropolitan network via the common

downlink backbone (created at the regenerative DVB-T, see figure 3). The

corresponding reply signals are received by a DVB-T compliant downlink adapter (in

the CMN) via the common DVB-T stream (in the UHF band), and are forwarded to

the appropriate user via the user’s SA (see figure 4).

In this respect, the uplink of figure 4 may be named (according to the ordinary

terminology) as the reverse path channel for the active user (carrying the data

requests/acknowledgements), who requires access to services/content hosted by any

provider within the entire network. The same physical link may be also named as the

forward channel for an interactive user who accesses the services hosted by the active

user.



IP/ DVBMUL TI PL E XE R(TV+IP)

‐

T

Tx

Receiv er2

Fro mCe ll

MainNodes

UHF br oadcasting

Loca lEtherne

Rece iv er

Demodul a t or 

FromTV 

studio

Receiv er1

Receiv er3

Receiv er

demodulator

de mu ltiplexer

TV 

progr amm e(s)

F0

F3

F2

F1

Fro mregenerative

satellite

(DV B ‐Sdow nlink)

F

‐

m ultiplexer

‐

S

Toregenerative

satellite

(DV B ‐Suplink)

Fig. 3. Overall configuration of the regenerative DVB-T





UHF/OFD

Receiv er and 

DownCon verter

DVB

‐

TTran sp ortStrea m

MPEG

‐

2Demultiplexe

MPEG

‐

Tran spo rtStream

ToIP ad aptor

IP rou ting

QPS

Modulator

Mic rowave

Tra n smitter 

ETHERN ET

Wi r e l e ssLA

Access Point

Nth(=10)Wi rel es

LA NA cce ssPoint

To

regenerative

DVB ‐T

UHFAnt enna

Station

Adapter

WLAN

EuropeanETSI

Standard

Station

Adapter

Station

Ada

IPInteractive

user

Acti veUser

SettopBox

Simple user

Tele ‐view er

UHF

antenn a

M ultimedia

Serv e r

ContentProvider

IP TVmultica s t e r

UHFchannel

(TV prog ra mmes+IPtrafficfr omallCMNs)

F0

Regen era tive

DVB ‐T

IPInteractiv e

user

CellMainNode

Act iveuser 

P a rticipa t ing in

strea mcr e a t io n

In te r a ctiv e TV

Program m e(off‐

line )

Push/Carousel

Dynamic

Bandwidth

Management

Sy s t e m

(DBMS)

Fig. 4. Overall configuration of the CMN with WLAN

Both reverse and forward IP data traffic are encapsulated into the common DVB-T

stream:

The ‘Active user’ and the ‘IP interactive users’ generate the IP traffic that is carried

via the DVB-T stream to all broadcasting area.

Data IP traffic targeted to these users (and stemming from any other CMN within the

broadcasting area) is supplied by the DVB-T stream to the local Ethernet, via the

UHF channel.

5 Dynamic Bandwidth Management System

The proposed configuration enables for a multi-service capable platform, as long as

the regenerative DVB-T creates a single access network physical infrastructure,

shared by multiple services (i.e. TV programmes, interactive IP multimedia services,

Internet applications, etc.). In such a configuration, a real time and dynamic

management of the bandwidth is mandatory, in order to enhance the capability of

DVB-T platform as a networking infrastructure and allow the provision of multiple

kinds of services everywhere, anytime and over any type of network. The consequent

adoption of this bandwidth-on-demand proposed capability, allows an optimised

provision of heterogeneous types of traffic in respect to the available spectrum.

Towards this, a real time Dynamic Bandwidth Management System is utilised,

operating within the distribution node and managing the distribution of bit rate of IP

traffic, in order to provide optimal allocation of the bandwidth available for the

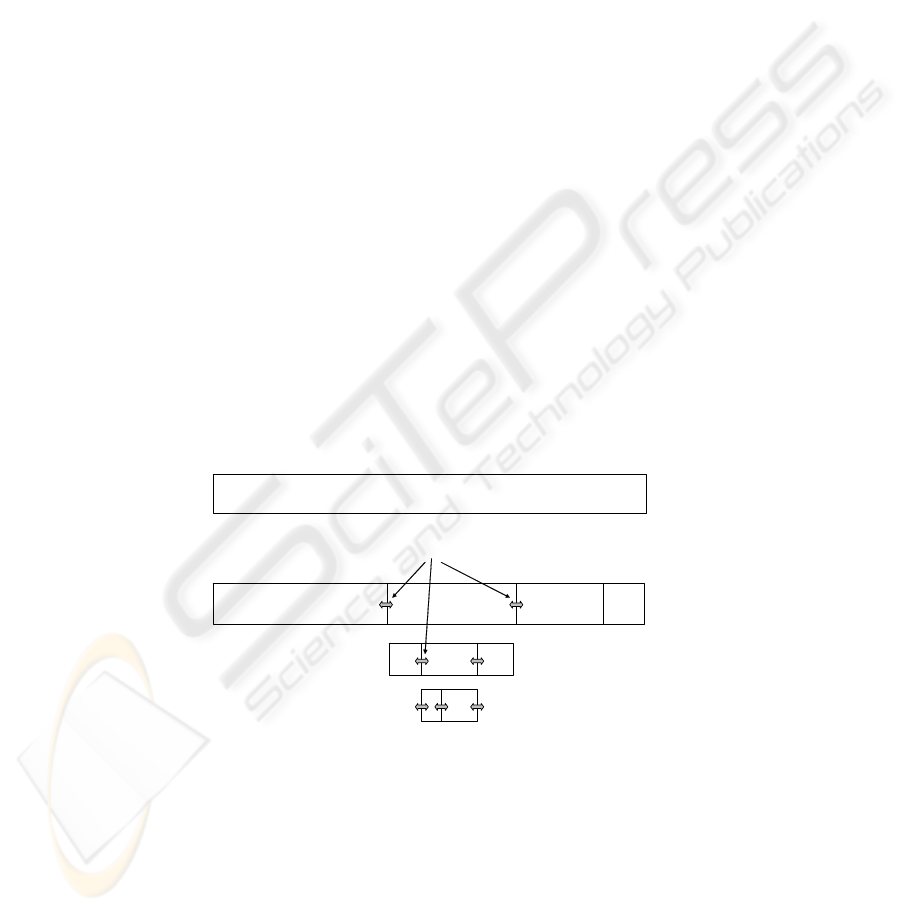

uplink. Referring to figure 5, the total bandwidth of the uplink (from the CMN to the

regenerative DVB-T) of e.g. 7 Mbps is sliced into Virtual IP Channels and each

channel into a number of services, whose bit rate can be variable and dynamically

changed. Each service can be allocated one or more PIDs within the transport stream.



Uplinkfr om aCM Ntoth eregenerativeDVB‐T



Virt ualIP

Chann el3

0,5Mbps



Virt ualIP 

Chan nel2

1Mbps



Virt ualIP 

Chan nel1

1,5Mbps



Virt ualIP 

Channel 0

0‐4Mbps



Service

1

Servi ce

3

Servi ce

2

PID



2

Modifiedby th eCMN 

DBMS

Fig. 5. Bandwidth slicing in a DVB-T transport stream

6 Conclusions

This paper presented an approach towards the realization of broadband access next

generation networks (NGN), by taking into account the networking potentialities of

the new digital TV in UHF (Terrestrial Digital Video Broadcasting – DVB) and the

broadband capabilities of the recent access technologies. It described the overall

architecture of a networking platform that makes use of regenerative DVB-T

configurations for the realization of a common Ethernet backbone capable to

interconnect all citizens within the broadcasting area, who access it via the

appropriate distribution node over broadband links. Such an approach enables for a

multi-service capable platform (digital TV programmes, Interactive TV programmes,

Internet access, e-mail, video/audio on demand, etc.), which is commonly shared

among broadcasters, telecom operators and any active citizen who creates,

manipulates and distributes his own content to the entire infrastructure.

Acknowledgements

The proposed approach has been adopted by ATHENA (Digital Switchover:

Developing infrastructures for broadband access, FP6-507312) project in the Sixth

Framework of IST, (thematic priority IST-2002-2.3.1.3 ‘Broadband for all’), and will

be implemented in a medium sized city (Heraklion, Crete, Greece). ATHENA would

delve into the Digital Switchover to address the Broadband access for all, alleviating

the digital divide. It would pave the way for key European researchers to propose cost

effective broadband infrastructure in cities and in rural areas based on DVB-T

technology and take advantage of the eminent transition towards digital broadcasting

in UHF. The consortium partners of ATHENA (distributed across industry, research

institutes and universities in Europe) are: NCSR Demokritos Project Co-ordinator

(Greece), Space Engineering (Italy), Thales Broadcast and Multimedia (France),

Rhode & Schwarz (Germany), Centre for Technological Research of Crete (Greece),

Telscom (Switzerland), Rundfunk Berlin-Brandenburg (Germany), T-Systems Nova

(Germany), University Politchnica Bucharest (Romania), PRISM-CNRS (France),

Temagon (Greece), and University of Bournemouth (U.K).

References

1. “eEurope 2005: An information society for all. An action plan to be presented in view of the

Sevilla European Council, 21/22 June 2002”, Communication from the Commission to the

Council, the European Parliament, the Economic and Social Committee and the Committee

of the regions.

http://europa.eu.int/information_society/eeurope/news_library/documents/eeurope2005/eeur

ope2005_en.pdf

2. “Barriers to widespread access to new services and applications of the information society

through open platforms in digital television and third generation mobile communications”,

February 2003, organised by DG Information Society A1.

http://europa.eu.int/information_society/topics/telecoms/regulatory/publiconsult/documents/

211_29_en.pdf

3. “Digital switchover in broadcasting” a document created by BIPE consulting on behalf of

the European Commission (Directorate General Information Society) and which was the

subject for a public hearing organised by DG A1 (June 2002) provided by BIPE consulting.

http://europa.eu.int/information_society/topics/telecoms/regulatory/studies/documents/final

_report_120402.pdf

4. “Public consultation on the study on Digital Switchover in Broadcasting”, 1st July 2002,

organised by DG Information Society A1.

http://europa.eu.int/information_society/topics/telecoms/regulatory/publiconsult/comments/

digital_switchover/list_of_comments_on_digital_switchover.htm
