IMPROVING TCP PERFORMANCE OVER WIRELESS WANS

USING TCP/IP-FRIENDLY LINK LAYER

Markku Kojo, Davide Astuti, Laila Daniel, Aki Nyrhinen and Kimmo Raatikainen

Department of Computer Science, University of Helsinki

P.O. Box 26, FIN-00014 University of Helsinki, Finland

Keywords:

TCP/IP, Satellite Networks, DVB-S/RCS, FEC, ARQ, Link-Layer protocols, TCP performance

Abstract:

In this paper we propose the use of a TCP/IP-friendly link level error recovery mechanism with novel de-

performance on network paths involving Wireless Wide-Area Network (W-WAN) links. We show that by

combining a selected set of TCP enhancements TCP performance is signiﬁcantly improved over W-WAN

links. In addition, we employ a TCP/IP-friendly link layer protocol which minimizes the additional delay due

to the Automatic Repeat reQuests (ARQ) by limiting the number of retransmission attempts and by adding

redundancy in the retransmitted frames in a novel way. We perform experiments in an emulated satellite envi-

ronment with a real implementation of the TCP/IP-friendly link layer and TCP enhancements in Linux. The

results show that both TCP enhancements and link-level ARQ signiﬁcantly improve TCP performance over

W-WAN links, and combining the approaches yields the best performance.

1 INTRODUCTION

Transmission Control Protocol (TCP) is the main

transport protocol in the Internet and it carries the

bulk of the trafﬁc in the Internet. With the rapid rise

in wireless communication in recent years, it has be-

come important to adapt TCP to heterogeneous en-

vironments that include both wireline networks and

Wireless Wide-Area Networks (W-WANs), such as

satellite and terrestrial wireless networks. TCP per-

formance over W-WANs is often poor due to the char-

acteristics of wireless links such as high latency, link

losses and often limited bandwidth. The link losses

often occur in bursts resulting in the loss of several

segments in a single TCP window. In terms of re-

sulting transport performance the TCP loss recovery

tends to be inadequate with such loss patterns. Typi-

cally wireless links also possess other characteristics,

such as bandwidth-on-demand allocation, bandwidth

asymmetry, that may affect TCP performance.

The several schemes proposed to improve the per-

formance of TCP over wireless links can be broadly

classiﬁed as split-connection, link-layer and end-to-

end approaches (Balakrishnan et al., 1997). The split-

connection approach replaces an end-to-end TCP

connection with two or more separate connections.

One of the connections is across the problematic wire-

less link allowing TCP modiﬁcations for more efﬁ-

cient loss recovery or even replacing TCP with an al-

ternative transport protocol. This, however, has seri-

ous implications as it breaks the end-to-end seman-

tics of the connection. In particular, it cannot coexist

with the end-to-end use of Internet Protocol security

(IPsec)(Border et al., 2001).

In the link-layer approach, link-level error recovery

is used locally on an error-prone link to improve the

reliability of the link. Local knowledge of the link can

be used to optimize the recovery mechanism. Many

link-layer recovery mechanisms are based on Auto-

matic Repeat reQuests (ARQ) used in a highly persis-

tent mode of recovering lost frames. This may cause

unwanted interaction with TCP retransmissions (Bal-

akrishnan et al., 1997)(Fairhurst and Wood, 2002). In

particular, highly persistent link ARQ easily leads to

delay spikes that can result in suboptimal TCP perfor-

mance by causing spurious TCP timeouts, unneces-

sary retransmissions and a multiplicative decrease in

the congestion window size.

The end-to-end approach preserves the end-to-end

semantics of TCP. The proposals in this category in-

clude TCP enhancements that follow the Internet con-

gestion control principles (Floyd, 2000)(Allman et al.,

420

Kojo M., Astuti D., Daniel L., Nyrhinen A. and Raatikainen K. (2004).

IMPROVING TCP PERFORMANCE OVER WIRELESS WANS USING TCP/IP-FRIENDLY LINK LAYER.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 420-429

DOI: 10.5220/0001404504200429

 SciTePress

1999) suggested by Internet Engineering Task Force

(IETF) such as large initial window (Allman et al.,

2002), TCP Selective Acknowledgment Option (TCP

SACK) (Mathis et al., 1996), window scaling (Jacob-

son et al., 1992), and TCP Control Block Interde-

pendence (TCP-CBI) (Touch, 1997). Other propos-

als include research work such as TCP Peach (Aky-

ildiz et al., 2001) and TCP Westwood (Mascolo et al.,

2001).

In this paper, we propose the use of a selected

set of state-of-the-art TCP enhancements in conjunc-

tion with a TCP/IP-friendly link-level error recov-

ery mechanism to achieve acceptable TCP perfor-

mance over W-WANs. There has been little earlier

work in evaluating TCP performance when a proper

set of TCP enhancements are combined. Studying

the combined effect of the TCP enhancements al-

lows better understanding how well a state-of-the-

art TCP can perform in such a challenging environ-

ment. The TCP/IP-friendly link protocol is employed

over the error-prone wireless link to reduce the resid-

ual packet-error rate and thereby allow more efﬁcient

TCP operation. It minimizes the additional delay due

to the ARQ by limiting the retransmission attempts to

a low number, but still keeping the residual packet-

error rate at low level. This is possible by adding

FEC-encoded redundancy in the retransmitted frames

in a novel way, increasing the probability that a re-

transmitted frame is successfully delivered without

additional retransmissions.

In addition, we incorporate other important and

useful features into the TCP/IP-friendly link proto-

col implementation. One such feature is the use

of ﬂow control between the IP layer and the link

layer together with limiting the amount of link buffer-

ing. With wireless systems, such as Digital Video

Broadcasting-/Return Channel via Satellite (DVB-

RCS) satellite systems (ETSI, 2003), IP packets often

ﬂow directly to the Medium Access Control (MAC)

buffer without ﬂow control between the layers and

the excess packets are dropped if the MAC buffer be-

comes full. The IP queue will always be empty; thus,

proper IP router queue sizes to control total amount

of buffering cannot be used and the use of the IP ac-

tive queue management mechanisms is not effective.

In the TCP/IP-friendly approach, arriving packets are

forwarded to the MAC buffer only if space is avail-

able in the MAC buffer; otherwise, packets are kept in

the IP buffer. In addition, any unnecessary link-level

buffering is avoided to minimize the overall delay.

We perform an extensive set of performance ex-

periments in an emulated satellite DVB-S/DVB-

RCS environment with real TCP/IP stacks in the

end hosts and employing our implementation of the

TCP/IP-friendly link-layer protocol, called Satellite-

Link Aware Communication Protocol (SLACP) (Kojo

et al., 2004), over the satellite segment. A satellite

platform is used to emulate several levels of error rate

and a Demand Assignment Multiple Access (DAMA)

bandwidth-on-demand allocation scheme on the satel-

lite return link.

The results show that employing the selected set of

TCP enhancements reduces the median transfer time

up to 68 % depending on the link error rate. Employ-

ing the SLACP protocol on a lossy link is extremely

beneﬁcial to TCP, reducing the median transfer time

more than 90 % for high error rates. Although both

TCP enhancements and SLACP protocol can signiﬁ-

cantly improve TCP performance, combining the use

of the TCP enhancements with the SLACP protocol

yields additional performance gain.

2 TCP/IP-FRIENDLY LINK

LAYER FOR W-WAN LINKS

Typically link-layer design follows a strict layering

paradigm. This implies that most design choices are

done almost in full isolation from the other protocol

layers. However, when designing a link layer for a W-

WAN link with an intention to best support Internet

protocols, several crucial design choices that heavily

affect the performance of the TCP/IP trafﬁc carried

over the link must be made.

As W-WAN links typically experience speciﬁc link

characteristics, in particular high latencies and fre-

quent frame losses due to bit-corruption, designing

link-level error recovery requires speciﬁc care. TCP

suffers from uncorrected link errors as it interprets all

losses as congestion signals and reduces the transmis-

sion rate drastically. With high error rates TCP spends

excessive time in slow start or congestion avoidance

procedures triggered by packet losses due to transmis-

sion errors, resulting in severe performance penalty.

In addition, W-WAN links not only incur high loss

rates but often errors occur in bursts, resulting in mul-

tiple segment losses within a TCP window. Regu-

lar TCP with NewReno-based fast recovery (Floyd

and Henderson, 1999) can recover at most one seg-

ment per Round Trip Time (RTT), resulting in ad-

ditional performance penalty in presence of bursty

losses. The TCP SACK option (Mathis et al., 1996)

with an appropriate loss recovery algorithm (Blanton

et al., 2003) is more effective than NewReno when

multiple TCP segments are lost within a window as it

may recover multiple segments without requiring one

or more round-trips per lost segment (Dawkins et al.,

2001b). However, even the SACK-based loss recov-

ery is often inefﬁcient if a large number of segments

are lost in a single TCP window or if the window is

small, because the number of duplicate ACKs may

remain too low to provide enough SACK-information

for recovering the lost segments.

IMPROVING TCP PERFORMANCE OVER WIRELESS WANS USING TCP/IP-FRIENDLY LINK LAYER

421

The high link latencies typical for W-WAN links

translate to long end-to-end RTT for TCP. Long RTT,

in particular when combined with high error rate, ad-

versely affects TCP throughput (Padhye et al., 1998)

(Dawkins et al., 2001b). This is because after each

loss event it may take multiple round trips for TCP to

repair the lost segments and, more importantly, after

recovering the lost segments TCP enters congestion

avoidance with a reduced congestion window, requir-

ing several round trips to increase the congestion win-

dow back to the level prior the loss event. Therefore,

it is much slower for TCP to restore the earlier trans-

mission rate if the RTT is long.

When traversing over a lossy W-WAN link, it

would be highly beneﬁcial for TCP to employ link-

layer ARQ as it lowers the residual packet loss rate

signiﬁcantly. However, link-layer ARQ techniques

tend to introduce delay spikes that easily lead to spuri-

ous TCP Retransmission Timeouts (RTOs), if highly

persistent ARQ is employed (Fairhurst and Wood,

2002). After a spurious RTO, the late TCP acknowl-

edgements of original TCP segments arriving at the

sender usually trigger unnecessary retransmissions of

whole window of segments during the RTO recovery

(Sarolahti et al., 2003). This is inefﬁcient and results

in wasting the scarce link capacity. Another way to

reduce the frame loss rate is to use Forward Error

Correction (FEC), but it decreases the available link

bandwidth by introducing signiﬁcant amount of over-

head in the form of redundancy.

Perfect reliability is not a requirement for IP net-

works, nor is it a requirement for links (Karn, 2004).

In order to best serve TCP trafﬁc, the link-level ARQ

mechanism should reduce the number of retransmis-

sion attempts down to minimum with the intention to

minimize the additional delay and possible interac-

tion with TCP timers. This can be achieved in our

TCP/IP-friendly approach with a novel use of FEC

with retransmitted frames. The original transmission

of frames is not protected with FEC to save bandwidth

when link conditions are good.

The frames that require retransmission are immedi-

ately retransmitted when a repeat request arrives. The

FEC-encoded redundancy is not added separately to

each frame as usual. Instead, the retransmitted frames

are organized as FEC blocks. Each FEC block con-

sists of actual frames and redundancy frames (see Fig-

ure 1). The FEC-encoded redundancy is added to the

redundancy frames by computing the Reed-Solomon

codeword vertically so that the i

octet of each frame

in a FEC block comprises a codeword. As soon as

a predetermined amount of retransmitted frames, or

other frames deserving FEC protection, has been sent

or a threshold timer expires, a proper amount of FEC-

encoded redundancy frames are computed to com-

plete the FEC block and transmitted. A link receiver

can use the redundancy frames in a FEC block for

recovering any of the retransmitted but lost actual

frames. In addition, the position of the errors (missing

octet in a codeword) is known, resulting in an erasure

channel with much better recovering capability.

…

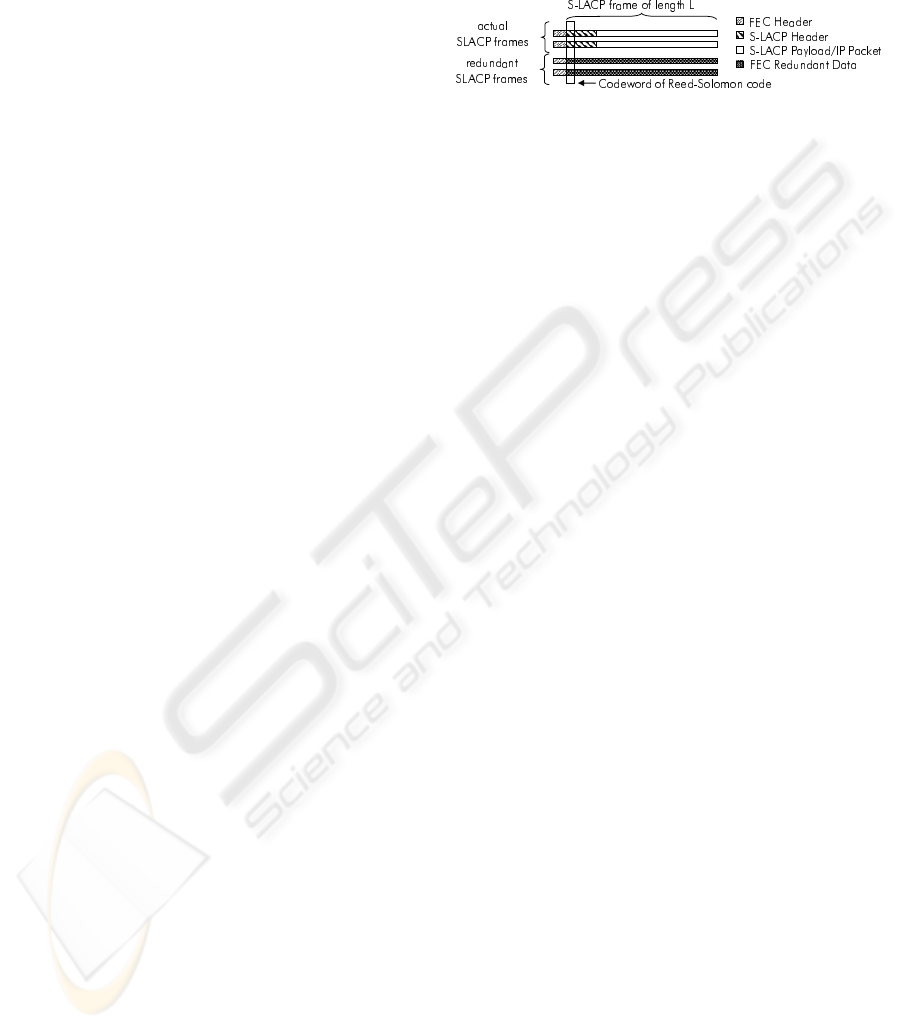

Figure 1: Organization of a FEC block

To minimize the additional delay due to the re-

transmissions we suggest reducing the number of re-

transmission attempts down to one attempt only. The

delay is further reduced by assigning higher priority

for retransmitted frames by scheduling them ﬁrst for

transmission and by implementing selective repeat re-

quests without relying on link sender retransmission

timers. Instead, an ACK timer is used at the link re-

ceiver to repeat the latest acknowledgement if new

frames are not arriving.

With this approach low delay is achieved without

sacriﬁcing the reliability or adding excessive amount

of redundancy to all frames. Even though the ap-

proach improves reliability with minimal amount of

extra delay, it is not desirable for all types of ﬂows

to increase the reliability at the cost of any extra de-

lay. The additional delay and variations in delay that

ARQ introduces may be highly undesirable for delay-

sensitive ﬂows such as interactive audio, for example.

Therefore, the link layer should be able to treat sep-

arately IP ﬂows with different classes of service and

turn off the link ARQ mechanism for ﬂows not ben-

eﬁting from it. This requires implementing several

logical link channels over a single physical link.

Implementing an efﬁcient ARQ mechanism re-

quires storing the sent but not yet acknowledged

frames in a relatively large send buffer for possible re-

transmission. Many link-layer ARQ implementations

accept a full buffer of packets from the upper layer to

be queued at the link head before transmission over

the channel. However, buffering unsent packets at the

link layer adds to the queuing delay and thereby to

the end-to-end RTT which is undesirable for TCP. A

link sender implementing an ARQ mechanism does

not need to buffer a full window of unsent data, but

it is quite enough to accept only one or a few unsent

packets. This requires ﬂow control between the IP

layer and link layer. The additional beneﬁt is that the

majority of packets can be kept in IP queues subject

to proper IP-level queue management.

We have implemented the SLACP protocol on

Linux (Kojo et al., 2004). It is a logical link layer pro-

tocol that runs on top of satellite link service and fol-

lows closely the TCP/IP-friendly link protocol princi-

ples discussed in this section.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

422

3 TCP IMPROVEMENTS

In this section we brieﬂy introduce several techniques

that we have selected for enhancing the performance

of TCP in W-WAN networks. We have selected only

such enhancements that follow the congestion con-

trol principles (Floyd, 2000)(Allman et al., 1999) and

therefore can be safely used over the global Internet.

Increasing TCP’s Initial Window from 1 up to 4

segments (Allman et al., 2002) increases the number

of segments during the ﬁrst RTT, allowing more rapid

opening of the congestion window. This is extremely

useful for high latency environments.

With the Delayed ACKs After Slow Start

(DAASS) (Allman et al., 2000) technique the receiver

is sending an acknowledgment for every segment dur-

ing slow start instead of using delayed acknowledge-

ments from the very beginning of the connection.

This will also inﬂate the congestion window faster.

TCP Window Scaling (Jacobson et al., 1992) al-

lows a TCP connection to use a window larger than

the standard maximum TCP window size (65,535

bytes) in order to fully utilize the available bandwidth

on a network path with large bandwidth-delay prod-

uct. This is useful in many high latency environ-

ments where the bandwidth-delay product easily ex-

ceeds 65,535 bytes.

Limited transmit (Allman et al., 2001) allows the

sender to transmit a segment for every of the ﬁrst

two duplicate acknowledgments. This is useful for

TCP connections with small congestion windows or

when a large number of segments are lost in a sin-

gle transmission window as otherwise it may happen

that not enough duplicate acknowledgments arrive at

the sender to trigger the fast retransmit algorithm and

the TCP sender must wait for a costly retransmission

timeout.

TCP SACK option (Mathis et al., 1996) enables

the use of a loss recovery algorithm (Blanton et al.,

2003) that allows TCP to recover more efﬁciently

from multiple segment losses in a window of data as

discussed in Section 2.

Forward RTO Recovery (F-RTO) (Sarolahti

et al., 2003) (Sarolahti and Kojo, 2004) algorithm

effectively helps detecting spurious TCP RTOs and

avoiding unnecessary retransmissions and thereby

improves TCP performance in the presence of delay

spikes. This is very useful as delay spikes may still

occur even though a TCP/IP-friendly link ARQ mech-

anism is used, for example, due to dynamic link band-

width allocation. An alternative to F-RTO is the TCP

Eifel algorithm (Ludwig and Katz, 2000), which can

detect spurious TCP timeouts and avoid unnecessary

retransmissions as well.

TCP Control Block Interdependence (TCP-

CBI) (Touch, 1997) mechanism aims to share a part

of the TCP Control Block (TCB) to improve transient

TCP performance. TCB is a data structure associ-

ated with each TCP connection containing informa-

tion about the connection state such as the RTT esti-

mate, congestion window size, and slow-start thresh-

old (ssthresh). In particular, sharing the ssthresh

value from a previous TCP connection is useful. If

no packet losses occur during the initial slow-start,

the slow-start overshoot (Dawkins et al., 2001a) oc-

curs in the end of the slow-start, resulting in multiple

packet losses in a single TCP window. Sharing the

ssthresh value from the previous connection allows a

TCP sender to use this value as a better estimate of the

available bandwidth when initializing the ssthresh for

a new connection. Thus, the new connection is able

to complete the initial slow-start earlier and avoid the

slow-start overshoot problem. However, reusing the

ssthresh value can also create problems of using too

low initial ssthresh value when the ssthresh of a pre-

vious connection is reduced by the occurrence of a

packet loss due to a link error.

4 PERFORMANCE

EXPERIMENTS

We ran experiments to evaluate the performance of

the TCP enhancements combined with our implemen-

tation of the TCP/IP-friendly link layer, the SLACP.

We compare the TCP performance of regular and en-

hanced TCP variants over an emulated satellite link.

We also compare the TCP performance with and with-

out SLACP.

Figure 2 shows an overview of the network topol-

ogy used in the experiments. The satellite end-host

(H1) accesses the emulated satellite network through

a Satellite Terminal (ST). The other end host (H2) is

connected to the satellite network through a Broad-

band Access Server (BAS). The ST and BAS act as

routers. The direction from the ST to the BAS is

referred to as Return Link; the other direction is re-

ferred to as Forward Link. The SLACP protocol is

employed over the satellite link between the ST and

the BAS. The SLACP protocol is conﬁgured to re-

transmit a missing frame at most once. The retrans-

mitted frames are protected with FEC-encoded redun-

dancy frames. The number of redundancy frames in

a FEC block equals to the number of actual frames in

the block.

BAS

H2H2H1H1

Satellite

Emulator

Satellite

Emulator

SLACP

Return Link

Forward Link

Figure 2: Network Topology for Performance Experiments

For emulating the satellite link characteristics we

IMPROVING TCP PERFORMANCE OVER WIRELESS WANS USING TCP/IP-FRIENDLY LINK LAYER

423

used a satellite emulator platform provided by Alca-

tel Space. The Network Emulation Platform (NEP)

is representative of a DVB-S/DVB-RCS satellite sys-

tem. In this study, we used the following three DAMA

classes of trafﬁc assignment deﬁned in the DVB-RCS

standard.

In the Constant Rate Assignment (CRA) class the

allocated bandwidth is guaranteed and requires no dy-

namic signaling. The trafﬁc is not subjected to any

scheduling delay.

In the Rate Based Dynamic Capacity (RBDC)

class the bandwidth allocation is based on instanta-

neous rate requests sent by the ST. The ST can re-

quest bandwidth up to a pre-ﬁxed ceiling value that

the ST is guaranteed to get. The request remains ef-

fective until it is updated by ST or until it is timed

out. During the time that a bandwidth request re-

mains effective, the ST trafﬁc is not subjected to any

additional bandwidth allocation delay. In contrast to

CRA, RBDC strategy allows for statistical multiplex-

ing among many terminals, resulting in a more efﬁ-

cient use of the satellite bandwidth.

In the Volume Based Dynamic Capacity (VBDC)

class the bandwidth is assigned in response to a re-

quest by the ST. The bandwidth request is based on

the amount of data waiting in the MAC buffer. The

scheduler assigns capacity from a queue of requests

among all STs it serves, within the constraint of the

remaining capacity after CRA and RBDC assign-

ments. As bandwidth is shared by a number of termi-

nals there is no guarantee on capacity availability for a

speciﬁc bandwidth request. This strategy provides an

efﬁcient use of the network resources but trafﬁc may

experience a signiﬁcant delay.

The DAMA bandwidth allocation scheme is ap-

plied on the Return Link and accurately emulated by

the NEP emulator. The emulated bandwidth on the

satellite Forward link is 512 kbps and on the Re-

turn link 128 kbps. The Maximum Transmission Unit

(MTU) size is 1450 bytes and the one-way propaga-

tion delay is set to 250ms. The connection between

H1 and ST as well as H2 and BAS is 100 Mbps ﬁxed

LAN.

The satellite MAC buffer size has been tuned ex-

perimentally to allow the maximum utilization of the

bandwidth in the case of VBDC. Test results showed

that a MAC buffer size of 14400 bytes is enough.

As discussed earlier, a typical IP-to-satellite inter-

face does not provide ﬂow control between the IP

and MAC layer and therefore all buffering occurs at

the MAC layer. However, a certain amount of buffer

space is needed to allow the TCP congestion win-

dow to grow up and correctly estimate the available

link bandwidth. Therefore, when SLACP is not used

the MAC buffer size is set to 28800 bytes, which

is roughly the Return Link bandwidth-delay prod-

uct with an RTT of 2 seconds (typical RTT values

with VBDC are between 1.3 and 2 sec). When us-

ing SLACP with ﬂow control between the layers, we

were able to reduce the MAC buffer to 14400 bytes.

The SLACP accepts only one unsent packet to its send

buffer. The IP queue size is 40 kbytes.

When modeling the satellite errors, we wanted to

experiment with several error levels having the em-

phasis on bursty error behavior. This is modeled with

a two-state Markov model with an error-free good

state and a bad state where an error burst corrupts all

packets. In order to achieve better control over the

state lengths, we use uniform distributions for both

burst inter-arrival time (good state duration) and error

burst length. The burst inter-arrival time is selected

such that several error bursts occur during a single

transfer. The parameter values of the six error models

used in this study are shown in Table 1. The error-

free link model (None) is used as a baseline. In the

”Low” error model, error burst length is static 60 ms

representing error behavior in which only one or two

full-sized packets are lost during the error burst. In the

”Medium” (Med) and ”High” error models, the error

burst occurs more frequently, but the burst length is

not very long; from 2 to 5 packets are lost. In the

”Very High” (VHigh) and ”Huge” models adjacent or

close-to-each-other error bursts are possible, resulting

in an error behavior that is challenging for the SLACP

protocol as a latter error burst is likely to affect the re-

transmitted SLACP frames. We had to limit the error

burst length with the ”Huge” model to static 100 ms

as otherwise TCP started to experience serious prob-

lems in completing the transfer in too many test cases.

Table 1: Satellite error models

Error model

None Low Medium High VHigh Huge

Burst interval (s) - 10-30 5-15 2-10 0-10 0-7

Burst length (ms)

- 60 100-300 100-300 100-300 100

We modiﬁed the TCP implementation in Linux to

implement two TCP variants: Reference TCP and En-

hanced TCP. The Reference TCP modiﬁes the default

Linux TCP behavior to use the initial window size

of one segment, disable Limited Transmit and rate-

halving, and set delayed ack threshold to 200ms. TCP

SACK and Window Scaling options are disabled. We

consider the Reference TCP to implement a behavior

that is typical for a regular TCP today.

The Enhanced TCP enables the enhancements dis-

cussed in Section 3, that is, the initial window of

4 segments, Window Scaling, TCP SACK, Limited

Transmit, DAASS, and F-RTO. Using the initial win-

dow of 4 segments with the Maximum Segment Size

(MSS) of 1410 bytes is not exactly allowed (Allman

et al., 2002). Therefore, we repeated a large number

of the tests also with the initial window of 3 segments

but there were no notable differences in the results.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

424

Table 2: TCP performance results (32 replications)

Transfer time for 1 flow 1x1MB (sec) Transfer time for 4 flows 4x250KB (sec)

NOSLACP SLACP NOSLACP SLACP

DAMA

Error

Model

TCP

25perc Median

75perc

25perc

Median

75perc

25perc

Median

75perc

25perc

Median

75perc

None

Ref

90,20

90,21

90,22

86,69

86,71

86,76

80,02

80,04

80,05

84,81

85,17

85,97

None Enh

85,07

85,09

85,10

86,92

86,97

87,04

83,44

83,47

83,48

86,05

86,19

86,29

Low Ref 94,61

98,35

104,62

91,02

91,84

92,36

81,59

83,32

84,98

86,91

87,54

87,98

Low Enh

86,52

86,95

88,13

88,51

88,88

90,74

84,24

84,60

85,08

86,28

87,70

88,60

Med Ref 154,80

169,68

183,68

96,26

98,25

100,36

87,09

90,60

93,67

90,50

91,59

92,96

Med Enh

105,07

113,96

123,85

92,20

93,24

95,33

86,47

89,42

95,01

90,62

92,44

94,08

High Ref 228,59

239,93

256,75

102,04

103,74

108,62

98,70

102,59

110,63

95,60

97,33

98,48

High Enh

145,62

153,12

174,69

96,45

98,21

101,12

89,83

95,27

99,56

93,24

96,12

98,15

VHigh

Ref

231,66

105,40

107,41

110,40

103,77

112

137,83

97,61

98,84

101,83

VHigh

Enh

163,30

101,3

102,22

105,21

93,20

100,49

102,34

96,89

98,59

100,73

Huge Ref

490,37

117,25

122,71

130,80

176,85

211,47

302,74

112,32

115,47

119,27

CRA

Huge Enh

279,14

112,49

120,17

146,96

125,05

165,10

223,66

109,56

112,00

115,94

None

Ref

103,98

104,04

104,06

89,97

90,20

90,67

83,54

83,61

84,70

87,88

88,29

89,02

None Enh

93,67

93,69

93,70

89,32

90,17

91,41

82,68

89,36

89,46

87,35

89,45

90,12

Low Ref 113,84

123,25

137,85

96,58

97,19

98,80

85,06

86,78

89,64

89,44

0,48

91,65

Low Enh

90,94

97,37

110,05

91,33

93,16

95,86

85,63

91,13

93,83

87,37

89,20

92,43

Med Ref 368,25

422,91

463,37

103,73

106,47

108,25

95,33

101,19

107,00

94,05

95,04

96,65

Med Enh

151,92

172,40

201,63

95,72

99,40

106,15

92,60

95,30

106,36

91,11

93,19

96,72

High Ref 1019,10

1125,12

1454,49

109,84

113,79

117,05

119,00

135,85

188,21

99,30

101,53

105,91

High Enh

309,15

359,58

456,51

102,35

106,34

110,98

100,92

114,94

129,95

96,33

97,36

102,14

VHigh

Ref

1420,18

115,89

118,50

124,96

140,97

162

245,02

101,59

103,58

107,82

VHigh

Enh

453,21

102,66

106,40

112,48

102,47

136,64

228,25

99,19

101,83

107,27

Huge Ref

>3hours

138,11

152,00

169,80

>3hours

119,21

123,27

131,07

RBDC

Huge Enh

>3hours

118,54

131,73

146,86

>3hours

112,94

118,20

122,66

None

Ref

126,65

126,68

126,69

95,39

96,31

97,34

110,53

110,54

110,55

97,36

98,78

100,05

None Enh

100,14

100,15

100,17

105,55

108,62

114,82

87,62

88,29

90,48

92,97

96,83

103,98

Low Ref 200,18

229,06

253,26

108,07

110,37

114,52

103,69

108,49

115,01

101,13

103,56

105,41

Low Enh

137,92

147,77

156,14

109,92

112,50

118,67

91,83

96,13

99,55

95,06

99,31

103,62

Med Ref 351,65

400,74

428,87

120,86

124,98

138,97

118,82

135,19

147,22

106,45

109,85

116,19

Med Enh

234,82

256,29

291,03

109,04

114,78

127,31

101,51

109,74

120,35

99,84

103,45

111,82

High Ref 451,97

493,56

551,65

128,68

134,23

149,69

149,80

162,77

195,18

113,13

118,94

124,66

High Enh

340,80

369,50

402,14

113,75

121,87

132,38

109,56

125,76

140,68

105,17

108,52

117,27

VHigh

Ref

557,26

136,04

139,76

166,18

158,32

178

201,33

119,74

25,71

131,12

VHigh

Enh

419,87

118,01

124,43

132,76

120,63

130,57

143,41

108,49

112,79

119,72

Huge Ref

1559,18

158,78

178,67

226,87

245,52

270,51

347,66

137,71

144,94

163,53

VBDC

Huge Enh

675,34

144,07

162,19

177,96

153,38

172,85

213,58

121,78

130,54

135,76

The DAASS mechanism is implemented by enabling

the Quick ACKs in Linux. With Quick ACKs, Linux

TCP receiver acknowledges every segment in the be-

ginning of the connection until the threshold equaling

a half of the receiver advertised window is reached. In

addition, a subset of tests is repeated using the TCP-

CBI with the ssthresh reuse.

A single TCP connection is used for a bulk data

transfer of 1 MB from H1 to H2 (Return Link). We

choose the Return Link direction as it is more chal-

lenging to TCP due to the DAMA mechanism. We

repeated the same tests transferring the same amount

of data with four parallel TCP connections (4x250

kbytes) to verify the results in presence of competing

TCP ﬂows. Each test case is replicated 32 times.

5 RESULTS

Table 2 presents the TCP performance results for one

TCP ﬂow and for four competing TCP ﬂows. We re-

port the median elapsed time as well as lower and

upper quartiles (25

and 75

percentiles) over 32

replications. The test cases with the ”Very High” and

”Huge” error models and without SLACP have been

executed only with a reduced amount of replications

as the resulting performance turned out to be very

poor and the time needed to complete the tests be-

came very long. Only the median values over 5 repli-

cations are reported. With RBCD we were not even

able to complete the transfers within 3 hours when the

”Huge” error model is in use without SLACP.

When a single TCP ﬂow is used without SLACP,

the Enhanced TCP performs better than the Refer-

ence TCP for all error models and for all DAMA

schemes. When the error rate becomes higher, the

performance gain with the Enhanced TCP clearly in-

creases. When the DAMA allocation delay increases,

the elapsed time increases for both TCP variants, indi-

cating that the TCP performance is strongly affected

by the increasing delay; the long RTT slows down

TCP loss recovery and the congestion window in-

crease. However, the Enhanced TCP suffers less from

the increased delay as it is able to ﬁll up the available

bandwidth faster and is able to recover from multiple

losses within a few round trips.

Even on an error-free link the Enhanced TCP is

slightly more efﬁcient than the Reference TCP as it

is able to inﬂate the congestion window faster due

to the larger initial window and the DAASS mech-

anism. This difference is more signiﬁcant when the

transfer size is small, like in most Web transfers. Ta-

ble 3 shows the median elapsed times for transferring

the ﬁrst 50 kbytes with a single TCP connection and

IMPROVING TCP PERFORMANCE OVER WIRELESS WANS USING TCP/IP-FRIENDLY LINK LAYER

425

employing VBDC. The elapsed time of the Reference

TCP is roughly 50 % longer in all cases.

Table 3: Median elapsed times for short transfers using a

single TCP ﬂow (with VBDC, 32 replications)

Error model

Transfer

Size

TCP

None Low Med High

Ref

16,58 16,63 18,75 26,03

NOSLACP

50KB

Enh

10,51 10,73 11,66 14,66

Ref

15,83 16,57 18,89 19,00

SLACP

50KB

Enh

10,48 11,40 11,42 12,78

When a single TCP ﬂow is used, employing the

SLACP protocol improves TCP performance consid-

erably, especially at high error rates. This is true

for both Reference and Enhanced TCP. When the er-

ror rate increases to high values, it becomes obvious

that Enhanced TCP alone is not able to provide ade-

quate performance; the Reference TCP with SLACP

is able to provide signiﬁcantly better performance

compared to Enhanced TCP without SLACP. Even on

an error-free link and at low error rate (error mod-

els ”None” and ”Low”), employing SLACP with the

Reference TCP is beneﬁcial. This is because of ﬂow

control between the IP and the MAC layer. Without

SLACP, IP packets ﬂow directly to the MAC buffer.

This prevents from utilizing the IP level buffering and

the slow-start overshoot occurs earlier. In addition,

packets are frequently dropped also in later phases of

the connection due to MAC buffer congestion. With

SLACP, the new arriving packets are kept in the IP

buffer if no space is available in the MAC buffer. This

does not avoid packet drops in the case of congestion

(IP buffer may also overﬂow) but allows TCP to keep

up larger congestion window with the help of the ad-

ditional IP-level buffering capacity.

Table 2 shows that without the SLACP and with the

RBDC allocation scheme the elapsed time of a single

TCP ﬂow grows steeply when the error rate increases,

resulting in very poor performance. The resulting per-

formance is even lower than with VBDC. This is be-

cause the TCP congestion window remains small due

to the high error rate. With RBDC, the amount of

bandwidth allocated is based on the instantaneous rate

requests. As the TCP sender is sending only an occa-

sional burst with a small number of packets that arrive

at the MAC buffer one by one, the resulting RBDC

allocation request is made for the data in the MAC

buffer comprising of a few packets only. The amount

of data in the MAC buffer is less than the ceiling value

and a single RBDC allocation cycle is not enough to

ﬂush the MAC buffer once all packets in the burst

have arrived. Furthermore, since the allocated band-

width is low the packets arrive at the TCP receiver at

very low rate, triggering TCP ACKs at low rate too.

The problematic behavior continues as the low rate

of TCP ACKs is not able to trigger new data packets

fast enough so that more packets could accumulate in

the MAC buffer and result in an RBDC allocation re-

quest with more bandwidth. The Enhanced TCP is

able to keep up larger congestion window and recover

from the error losses more efﬁciently than the Refer-

ence TCP. Hence, it suffers little of this phenomenon.

When SLACP is used, TCP performance with RBDC

is not adversely affected since the SLACP drastically

reduces the residual packet error rate as seen by TCP.

In the case of multiple competing ﬂows the TCP

performance is better than in case of single TCP ﬂow

since the four parallel TCP connections act more ag-

gressively and the TCP loss recovery performs sig-

niﬁcantly better than with a single TCP ﬂow. The

TCP loss recovery works efﬁciently because usually

not all simultaneous TCP ﬂows suffer from packet

losses at the same time and therefore some of the TCP

ﬂows may continue utilizing the link while the other

ﬂows are recovering from losses and proceed slowly.

Consequently, the performance gain with the SLACP

protocol is not as signiﬁcant as for one TCP ﬂow.

The usefulness of SLACP becomes evident when er-

ror rate is high. With CRA, the Reference TCP with

SLACP starts yielding shorter elapsed times than the

Enhanced TCP without SLACP when the error rate

becomes very high (the error models ”Very High” and

”Huge”). With lower error rates the Enhanced TCP

alone performs better than either of the TCP variants

with SLACP bacause the SLACP overhead slightly

degrades performance and the SLACP recovery does

not provide additional beneﬁt over the TCP recovery.

On the other hand, with RBDC and VBDC that intro-

duce longer RTTs, the TCP loss recovery is less ef-

ﬁcient and using SLACP with multiple simultaneous

connections becomes useful already with the ”High”

error model.

Combining Enhanced TCP with SLACP yields ad-

ditional performance gain for a single TCP ﬂow com-

pared to the other cases, except in the case of error-

free link. In the presence of errors, the combined ap-

proach (Enhanced TCP with SLACP) performs dras-

tically better than the baseline approach (Reference

TCP without SLACP). A single TCP ﬂow on an

error-free link and at low error rates with SLACP

starts to suffer from the slow-start overshoot prob-

lem (Dawkins et al., 2001a). For example, the Ref-

erence TCP performs slightly better than Enhanced

TCP when SLACP is used as the latter experiences

a larger number of congestion-related losses during

the slow-start overshoot. This problem is more seri-

ous with the Enhanced TCP as it uses a larger initial

window and the DAASS mechanism being more ag-

gressive during the initial slow-start phase and there-

fore having larger number of outstanding packets at

the time when the router buffer at the ST overﬂows.

The recovery from the large number of lost packets

in a single TCP window lasts very long as there are

not enough duplicate ACKs with SACK information

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

426

arriving at the TCP sender.

The slow-start overshoot occurs also with the four

simultaneous TCP ﬂows. Now it affects the Enhanced

TCP also when used without SLACP. The Enhanced

TCP yields longer elapsed time than the Reference

TCP when using an error-free link or the ”Low” er-

ror model with CRA and RBDC. On the other hand,

with VBDC the Enhanced TCP performs better than

the Reference TCP also at low error conditions. This

happens because the Enhanced TCP does not expe-

rience the VBDC bandwidth allocation delay as it is

able to ﬁll up the available satellite link bandwidth al-

ready during the initial RTT with the four connections

injecting 16 segments to the network. The total num-

ber of the outstanding packets remains high enough

to avoid the VBDC allocation delay for entire dura-

tion of the transfer. The Reference TCP starts with

four segments only and it takes several RTTs with the

VBDC allocation delay on each RTT before it is able

utilize the available bandwidth. In addition, the Ref-

erence TCP suffers heavily from the VBDC allocation

delay towards the end of the transfer. Typically one of

the four TCP ﬂows is proceeding very slowly with a

very small congestion window. When the other ﬂows

complete, the last ﬂow continues alone with the small

window and is forced to experience the VBDC allo-

cation delay on each of its remaining RTTs.

In the case of four TCP ﬂows with SLACP the

slow-start overshoot is the other dominating factor

in addition to the SLACP overhead that keeps the

elapsed times fairly long with both TCP variants when

the error rates are not high. At higher error rates the

ﬁrst packet losses occur already during the initial slow

start, terminating the slow start and preventing the

slow start overshoot.

Figure 3 shows an example trace for the slow-start

overshoot with the Enhanced TCP over an error-free

link using the VBDC DAMA scheme. The graph in-

dicates the packet trace of a single TCP ﬂow from

the sender point of view. The sequence numbers of

the sent packets, acknowledgements and retransmis-

sions are shown. The overshoot starts roughly at t =

10 sec. The ﬁrst loss is detected with the three dupli-

cate ACKs arriving roughly at t = 15 sec, when the

sender has transmitted approximately 250 Kbytes. A

large number of packets are lost between t = 10 sec

and t = 15 sec and the recovery phase lasts over 30

seconds.

It turned out that the slow-start overshoot remained

the only major problem with the combined approach

of using SLACP and Enhanced TCP. In order to at-

tack the slow-start overshoot problem, we used two

modiﬁed versions of Enhanced TCP. The ﬁrst version

uses the TCP Control Block Interdependence (CBI),

which allows the TCP sender to reuse the ssthresh of

the previous connection. The use of CBI can be better

justiﬁed when there are little or no uncorrected link

Trace of Enhanced TCP

100

150

200

250

300

350

400

0 10 20 30 40 50 60

Time (in s)

Sequence Number (x 10^3)

Sent

Ack

Retransmissions

Figure 3: Example of slow-start overshoot

Elapsed Time vs Error model - SLACP

VBDC - 1MB

100

110

120

130

140

150

160

170

180

None Low Medium High VHigh Huge

Error model

Median transfer time (in s)

Ref

Enh

Enh w/ CBI

Enh w/o DAASS

Figure 4: Comparison of Enhanced TCP variants

errors (which is the case when SLACP is used). The

second version disables the DAASS mechanism, so

that it is less aggressive during the initial slow-start

phase. Figure 4 compares the median elapsed times

of a single TCP ﬂow with these two Enhanced TCP

versions included and when SLACP is employed over

the satellite link with VBDC DAMA scheme. Table 4

summarizes the medians as well the lower and upper

quartiles for the elapsed times.

In general, the two new Enhanced TCP versions

outperform the original Enhanced TCP as well as the

Reference TCP with all error models. The two new

Enhanced TCP versions perform the best because dis-

abling DAASS in the Enhanced TCP mitigates the

slow-start overshoot problem whereas the Enhanced

TCP with CBI prevents the overshoot problem from

occurring even though DAASS mechanism is enabled

with this TCP version. On the other hand, Enhanced

TCP with CBI misbehaves in the presence of error re-

lated losses as the initial ssthresh value derived from

the previous connection tends to have too low value,

forcing the TCP sender to enter congestion avoidance

IMPROVING TCP PERFORMANCE OVER WIRELESS WANS USING TCP/IP-FRIENDLY LINK LAYER

427

Table 4: Comparison of Enhanced TCP variants (with

SLACP and VBDC, 32 replications)

Transfer Time

for 1MB

Error

Model

TCP

25perc

Median

75perc

Ref

95,39

96,31

97,34

Enh 105,55

108,62

114,82

Enh w/ CBI 89,93

90,43

92,01

None

Enh w/o DAASS

93,37

94,69

95,74

Ref 108,07

110,37

114,52

Enh 109,92

112,50

118,67

Enh w/ CBI 92,17

92,87

94,31

Low

Enh w/o DAASS

95,41

97,45

98,81

Ref

120,86

124,98

138,97

Enh 109,04

114,78

127,31

Enh w/ CBI 96,71

99,36

102,89

Med

Enh w/o DAASS

101,96

104,94

107,49

Ref

128,68

134,23

149,69

Enh 113,75

121,87

132,38

Enh w/ CBI 104,63

108,82

112,80

High

Enh w/o DAASS

107,65

110,11

117,78

Ref 136,04

139,76

166,18

Enh 118,01

124,43

132,76

Enh w/ CBI 107,8

110,17

111,73

VHigh

Enh w/o DAASS

109,89

113,01

120,05

Ref

158,78

178,67

226,87

Enh 144,07

162,19

177,96

Enh w/ CBI 131,68

141,25

166,65

Huge

Enh w/o DAASS

130,18

133,22

146,23

too early. Therefore, the Enhanced TCP with CBI

is performing worse than the Enhanced TCP with-

out DAASS in the ”Huge” error model case, where

the SLACP protocol is not able to recover from all

frame losses. One additional reason for the subopti-

mal performance of the Reference TCP with SLACP

is spurious TCP RTOs. The Reference TCP is suf-

fering from the spurious TCP RTOs in all error mod-

els except with the ”None” and ”Low” error models.

The additional delay due to the link-level error recov-

ery introduces an occasional delay spike, resulting in

unnecessary retransmission of the last TCP window.

The F-RTO algorithm employed with the Enhanced

TCP variant is able to detect the most of the spurious

RTOs and thereby avoid the unnecessary retransmis-

sions.

The results suggest that either of the Enhanced TCP

variants should be selected for use in order to re-

ceive the best TCP performance. The fact that it is

very hard in general for a TCP sender to gauge in ad-

vance whether a new TCP connection would experi-

ence error-related losses on the end-to-end path and

therefore possibly incur suboptimal behavior with the

TCP CBI is likely to elevate the Enhanced TCP with-

out DAASS to the recommended Enhanced TCP vari-

ant.

6 CONCLUDING REMARKS AND

FUTURE WORK

This paper proposes the use of a TCP/IP-friendly link-

level error recovery mechanism in conjunction with a

number of the state-of-the-art TCP enhancements to

improve TCP performance over W-WAN links. While

the proposed link-level error recovery mechanism for

W-WAN links allows efﬁcient TCP operation over

error-prone wireless links it minimizes the additional

delay due to the ARQ by adding FEC-encoded redun-

dancy in the retransmitted frames in a novel way. A

TCP/IP-friendly link layer implementation also incor-

porates ﬂow control between IP and MAC layer which

limits the amount of the link buffering and allows the

use of queue management at IP layer.

We ran an extensive set of experiments to eval-

uate the performance of a selected set of TCP en-

hancements together with our implementation of the

TCP/IP-friendly link layer, called SLACP. We com-

pared the performance of a regular version and en-

hanced version of TCP over a satellite link, with

and without SLACP. In the experiments we used real

TCP implementations on Linux end hosts and a satel-

lite emulator platform representative of a DVB-RCS

satellite system.

The results show that both SLACP and TCP en-

hancements are beneﬁcial on their own. However,

the TCP enhancements alone cannot cope with high

error rates efﬁciently, especially in case of one TCP

ﬂow. On the other hand, employing SLACP over the

error prone satellite link yields very signiﬁcant perfor-

mance gain. The combined approach of the TCP en-

hancements and SLACP yields the best performance.

We also found that Enhanced TCP performance suf-

fers from the slow-start overshoot phenomenon when

the residual link-error rate is zero. Introducing TCP

CBI mechanism for sharing the slow start threshold

from previous TCP connection is helpful to attack the

problem in most cases. Alternatively, disabling the

DAASS mechanism from the set of the selected TCP

enhancements turned out to be equally worthwhile so-

lution.

In the future we intend to study the performance

of the SLACP approach with different levels of FEC

as well as with different ARQ persistency levels. We

also intend to seek for alternative approaches to the

TCP slow-start overshoot problem. In addition, in-

corporating an explicit loss notiﬁcation to the SLACP

seems a promising approach as with a novel design

in the SLACP we avoid the common problem of not

being able to reliably infer the TCP sender to notify

when a frame is corrupted on the link. This is not

a problem with the SLACP as the link sender keeps

the original copy of each TCP segment and the link

receiver informs it whether or not the corresponding

frame was successfully delivered.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

428

ACKNOWLEDGEMENTS

This work has been carried out as a part of the

TRANSAT project of European Space Agency. We

thank J. Lacan for his contribution to the design of the

FEC mechanism in the SLACP and J. Fimes for im-

plementing the Reed-Solomon encoder and decoder

for the SLACP. We thank Alcatel Space for provid-

ing the NEP satellite emulator platform used in the

experiments. In addition, we would like to thank all

our colleagues in the TRANSAT project for fruitful

discussions and feedback on this work.

REFERENCES

Akyildiz, I. F., Morabito, G., and Palazzo, S. (2001). TCP-

Peach: a new congestion control scheme for satellite

IP networks. IEEE/ACM Transactions on Networking,

9(3):307–321.

Allman, M., Balakrishnan, H., and Floyd, S. (2001). En-

hancing TCP’s Loss Recovery Using Limited Trans-

mit. RF C 3042, Internet Society.

Allman, M., Ed., Dawkins, S., Glover, D., Griner, J., Tran,

D., Henderson, T., Heidemann, J., Touch, J., Kruse,

H., Ostermann, S., Scott, K., and Semke, J. (2000).

Ongoing TCP Research Related to Satellites. RFC

2760, Internet Society.

Allman, M., Floyd, S., and Partridge, C. (2002). Increasing

TCP’s Initial Window. R FC 3390, Internet Society.

Allman, M., Paxson, V., and Stevens, W. (1999). TCP Con-

gestion Control. RF C 2581, Internet Society.

Balakrishnan, H., Padmanabhan, V. N., Seshan, S., and

Katz, R. H. (1997). A comparison of mechanisms

for improving TCP performance over wireless links.

IEEE/ACM Transactions on Networking, 5(6):756–

769.

Blanton, E., Allman, M., Fall, K., and Wang, L. (2003).

A Conservative Selective Acknowledgment (SACK)-

based Loss Recovery Algorithm for TCP. RFC 3517,

Internet Society.

Border, J., Kojo, M., Griner, J., Montenegro, G., and

Shelby, Z. (2001). Performance Enhancing Proxies

Intended to Mitigate Link-Related Degradations. RF C

3135, Internet Society.

Dawkins, S., Montenegro, G., Kojo, M., and Magret, V.

(2001a). End-to-end Performance Implications of

Slow Links. RFC 3150, Internet Society.

Dawkins, S., Montenegro, G., Kojo, M., Magret, V., and

Vaidya, N. (2001b). End-to-end Performance Impli-

cations of Links with Errors. R FC 3155, Internet So-

ciety.

ETSI (2003). Digital Video Broadcasting (DVB): Interac-

tion Channel for Satellite Distribution System. Tech-

nical Speciﬁcation EN-301-790, ETSI.

Fairhurst, G. and Wood, L. (2002). Advice to link designers

on link Automatic Repeat reQuest (ARQ). RF C 3366,

Internet Society.

Floyd, S. (2000). Congestion Control Principles. RFC 2914,

Internet Society.

Floyd, S. and Henderson, T. (1999). The NewReno Modiﬁ-

cation to TCP’s Fast Recovery Algorithm. RFC 2582,

Internet Society.

Jacobson, V., Braden, R., and Borman, D. (1992). TCP

Extensions for High Performance. RFC 1323, Internet

Society.

Karn, P. (2004). Advice for Internet Subnetwork Designers.

RF C 3819, Internet Society.

Kojo, M., Astuti, D., Daniel, L., Nyrhinen, A., and

Raatikainen, K. (2004). Enhancing TCP Performance

Over Satellite Networks - A TCP/IP-Friendly Link-

Layer Approach. Technical Report C-2004-50, Uni-

versity of Helsinki, Department of Computer Science.

Ludwig, R. and Katz, R. (2000). The Eifel algorithm:

Making TCP robust against spurious retransmissions.

ACM SIGCOMM Computer Communication Review,

30(1):30–36.

Mascolo, S., Casetti, C., Gerla, M., Sanadidi, M. Y., and

Wang, R. (2001). TCP Westwood: Bandwidth es-

timation for enhanced transport over wireless links.

In Proceedings of the 7th Annual International Con-

ference on Mobile Computing and Networking, pages

287–297. ACM Press.

Mathis, M., Mahdavi, J., Floyd, S., and Romanow, A.

(1996). TCP Selective Acknowledgement Options.

RF C 2018, Internet Society.

Padhye, J., Firoiu, V., Towsley, D., and Kurose, J. (1998).

Modeling TCP throughput: a simple model and its

empirical validation. In Proceedings of the ACM SIG-

COMM ’98 Conference on Applications, Technolo-

gies, Architectures, and Protocols for Computer Com-

munication, pages 303–314. ACM Press.

Sarolahti, P. and Kojo, M. (2004). F-RTO: An Algorithm

for Detecting Spurious Retransmission Timeouts with

TCP and SCTP. Internet Draft. Work in progress.

Sarolahti, P., Kojo, M., and Raatikainen, K. (2003). F-RTO:

An enhanced recovery algorithm for TCP retransmis-

sion timeouts. ACM SIGCOMM Computer Communi-

cation Review, 33(2):51–63.

Touch, J. (1997). TCP Control Block Interdependence. RF C

2140, Internet Society.

IMPROVING TCP PERFORMANCE OVER WIRELESS WANS USING TCP/IP-FRIENDLY LINK LAYER

429
