A POLICY-BASED DESIGN METHODOLOGY AND

PERFORMANCE EVALUATION FRAMEWORK FOR A SECURE

VOIP INFRASTRUCTURE

Valentina Casola, Raffaele Chianese, Nicola Mazzocca, Massimiliano Rak

Seconda Universita’ di Napoli - Dipartimento di Ingegneria dell’Informazione

Aversa (CE) - Italy

Antonino Mazzeo

Universita’ degli Studi di Napoli, Federico II - Dipartimento di Informatica e Sistemistica

Naples, Italy

Keywords:

Security Mechanisms, Design Methodology, SIP Performance.

Abstract:

The increasing interest in telecommunication systems and the wide spreading of computer networks within

commercial and scientiﬁc ﬁeld, are going in the direction of a deep integration of phone and data systems

into a single network infrastructure. We are particular interested in security issues that arise in such context,

thinking, for example, about authentication and billing problems. The available security mechanisms can offer

different guarantees but their introduction greatly affect the whole system performances. To guarantee system

usability and an efﬁcient resource usage, we propose a design methodology and a framework to evaluate

how each security choice affects the whole system performances and help system designers in evaluating the

performance-security trade-off.

1 INTRODUCTION

Traditional telephone systems are based on circuit

switching mechanisms; this necessarily implies that

all needed resources need to be allocated along the en-

tire communication, even during break times; now we

are assisting the ﬁrst evolution in telecommunication

systems, thanks to digital transmission: in fact, the

real innovation has happened when vocal signals have

begun to be transmitted on Internet. Voice over IP

(VoIP) concept is based on this innovation. Actually

there are two protocols which are considered standard

in the VoIP context: H.323 and SIP. Each standard de-

ﬁnes communication rules between the two terminals,

and also provides the deﬁnition of complex architec-

tures for managing calls establishment, and holding

on. But while the ﬁrst one provides for architectural

dedicated solutions, the second one is a textual proto-

col, which places itself at the Application level of the

TCP/IP architecture, and it is more interesting for us.

For this reason in Section 2 a very brief overview on

SIP architecture (components and protocols) is laid;

it will be very brief because the target of this paper

is quite different; we are particularly interested in se-

curity issues that arise in such context, thinking, for

example, of the authentication and billing problems.

The available security mechanisms can offer differ-

ent guarantees but their introduction greatly affects

the whole system performances. In order to guaran-

tee system usability and an efﬁcient resource usage,

we propose a security policy (representative of differ-

ent security mechanisms) and a methodology which

could help a VoIP designer in evaluating how each se-

curity choice affects the whole system performances.

The paper is structured as follows: in the next Sec-

tion we will illustrate a brief overview of a SIP-based

VoIP architecture; in Sections 3 and 4 we will de-

scribe the architecture design parameters (both archi-

tectural and security) and all the steps of the design

methodology needed to support system designers in

evaluating the performance-security trade-off and, so,

to help them in choosing system conﬁguration param-

eters to meet performance and security requirements.

In Section 5 we will propose a performance evalu-

ation development framework and we will illustrate

the deﬁnition of interesting tests, very suitable to take

in count chosen security mechanisms. Finally, in Sec-

tion 6 a full Case Study will be illustrated and some

conclusion and future works will be discussed.

2 SIP AND SECURITY

In this Section we report an overview on SIP archi-

tecture and some security mechanisms (RFC3329,

2003; Cisco1, 2002 ; Cisco2, 2002) which could

209

Casola V., Chianese R., Mazzocca N., Rak M. and Mazzeo A. (2004).

A POLICY-BASED DESIGN METHODOLOGY AND PERFORMANCE EVALUATION FRAMEWORK FOR A SECURE VOIP INFRASTRUCTURE.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 209-215

DOI: 10.5220/0001405002090215

 SciTePress

be found in literature, this section is absolutely not

exhaustive but a lot of useful references will be

provided.

2.1 SIP Architecture Overview

SIP (Session Initiation Protocol) is a protocol able

to set up a session among one or several users; the

deﬁnition of session, which we refer to, is given in

(RFC3261, 2002), that is: ”A multimedia session is a

set of multimedia senders and receivers and the data

streams ﬂowing from senders to receivers. A multi-

media conference is an example of a multimedia ses-

sion”.

For brevity sake, here we just report a number of

entities which take part in SIP communication, the

most important components of the SIP architecture

are:

• SIP User Agent which represents an extremity of

the connection, that is the application used by the

ﬁnal user in order to take part in the conversation.

It can act as client (User Agent Client - UAC), if it

makes requests, and it can act as server (User Agent

Server - UAS), if it must grant a request.

• SIP Network Server, which manages the signal-

ing to set up the connection. It can be of different

types: a Proxy Server: it is an intermediate appli-

cation which routes received SIP messages; its aim

is putting in touch the calling part with the called

part. A Redirect Server: it has only the task to ac-

cept the SIP requests, making addresses translation

to set up the call. A Registrar is a server which

accepts particular requests of registration by new

SIP users, which give the necessary information to

allow their location; such information are appro-

priately inserted in a database called ”location ser-

vice”.

According to the SIP protocol, the described

entities communicate through SIP suitable messages.

The protocol is of peer-to-peer type, even if the User

Agent interaction is of client-server type. The SIP

element, who takes the initiative in the communica-

tion for settling a session, assumes the role of client,

sending on a request of INVITE type towards a SIP

user, who is invited to the dialogue (SIP request). A

proxy has both client and server functionalities, while

a redirect server simply transmits responses to client

request, by mapping a speciﬁed address into actual

addresses.

2.2 Security in SIP

Currently, SIP requirements identify either HTTP Di-

gest or S-MIME as security mechanisms for provid-

ing selective security at SIP level. Both mechanisms

do not guarantee a high level of security, furthermore,

only the ﬁrst one provides an authentication mecha-

nism. (radsip, 2001) examines the proposal for a

SIP extension to allow authentication of an user-agent

through a proxy with a RADIUS (RFC2865, 2000)

server; basic RADIUS protocol is not too much se-

cure, especially because all messages are exchanged

in plain text.

Some proposals which face such problems are

based on TLS session between the user-agent and

the proxy (TLS, 1999); with TLS, all SIP mes-

sages are exchanged in a secure environment. TLS

seems to be a good security solution but it requires

overhead and complexity, and the client needs to be

changed ad hoc to support the protocol. In (kerbpki,

2003) is described how to use Kerberos-PKI mech-

anism (RFC1510, 1993) for providing end-to-end

security between SIP clients. Once the client is au-

thenticated, and Kerberos key is generated, SIP client

can use the given key for encrypting and authenticat-

ing each others. Details about these and other secu-

rity mechanisms and protocols are omitted for brevity

sake; however, we are carrying on our analysis on

different mechanisms (diameter, 2003; RFC1994,

1996), trying to let the SIP-architecture support differ-

ent security-levels, because, as explained later, these

could strongly affect the deﬁnitive performance of the

architecture.

3 ARCHITECTURE DESIGN

PARAMETERS

The design of systems, which are critical for time and

security, is a very complex task that needs to be faced

in a systematic way to take in count all critical pa-

rameters. Almost all choices, needed from the early

stages of the design process, could heavy inﬂuence

the global system security/performance; this suggests

us to consider all the playing parameters and ana-

lyze their possible impact on those critical aspects, as

soon as possible during the design phases. At this

aim, in this paper we propose a ”policy-based and

performance-oriented framework” to be able to de-

sign a SIP architecture with pre-assigned performance

and security requirements. The framework has been

designed on standard SIP components and speciﬁca-

tions and on a set of security rules about the way these

components must be interconnected to guarantee a

pre-assigned set of functionality and a pre-deﬁned se-

curity level which characterizes the speciﬁc security

mechanism. As said, the way to interconnect the ba-

sic elements is one of the most critical aspect, it has

a great impact on system security, on availability and

on performances, too.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

210

Table 1: Logical Components

Component Name Description

Proxy The SIP proxy

Radius The Radius Server

AS Kerberos Authentication Server

TGS Kerberos Ticket Granting Server

In particular, the deﬁned framework takes in con-

sideration the following elements:

• the logical base components of the SIP architec-

ture,

• a set of security rules (the policy),

• the physical components of the real SIP architec-

ture to implement.

Logical Components

The Logical components are the base components

of a SIP architecture as seen in Section 2, they are

reported in Table 1.

An instance of the Logical architecture will be

represented in this paper by means of a vector V of

4 components whose numerical values represent the

number of logical components really present in the

architecture; for example V=(2,0,0,0) indicates that

there are two Proxies and no one security server.

Security Policy

The security policy rules are reported by means

of tables; as shown in Table 2 (a) the parameters

that we consider critical for security are just four:

the authentication system, the communication type

between UA and Proxy and the communication type

among Proxies and ﬁnally the number of domains.

This policy is very simple because we have just

considered security problems related to authen-

tication mechanisms at application and network

levels, indeed, the methodology we are proposing

remains still valid if we add other security parameters

(further authentication server types, authorization

mechanisms, and so on). The security policy adopted,

the description of its parameters and the values they

could actually assume are reported in Table 2 (b,c,d)

Physical Components

The physical components we have located are just

two: the physical nodes on which the logical compo-

nents must be mapped and the network components

(their numbers and performance/features usually rep-

resent an important parameter that designers need to

consider to build the effective infrastructure).

Table 2: Security Policy and its Parameters

Parameter Description

Authentication System ....

UA-Proxy Communication ....

Proxy-Proxy Communication ....

Domains Number ....

Authentication System Values Description

No Mechanism ....

Radius ....

Kerberos ....

UA-Proxy and Proxy-Proxy

Communication Values Description

Plain text ....

Encrypted text ....

SSL Protocol ....

Kerberos Protocol ....

Domains Number Values Description

Integer Value ....

4 DESIGN METHODOLOGY

In this Section, we will describe the design method-

ology which could help any system builder while tak-

ing in count critical aspects in all design phases. The

methodology we propose here is made of 6 steps

which are described here in details:

1. Choosing Phase;

2. Logical Architecture deﬁnition;

3. Physical Architecture deﬁnition;

4. Architecture Evaluation;

5. Repeat from step 4;

6. Choosing the optimal architecture.

Steps 1-2 The ﬁrst step of our methodology con-

sists of choosing the security policy; this step in fact

strongly affects the logical architecture as it implies

the presence of a number of minimal speciﬁc logical

components and a number of speciﬁc functionalities

(for example if we decide to implement SSL proto-

col among Proxies, speciﬁc mechanisms must be im-

plemented). According to the deﬁned policy, if we

represent each policy instance by a vector P of four

components (the number of components is represen-

tative of the number of the parameters of the policy),

and if we consider the basic logical elements of the

A POLICY-BASED DESIGN METHODOLOGY AND PERFORMANCE EVALUATION FRAMEWORK FOR A

SECURE VOIP INFRASTRUCTURE

211

Table 3: Policy and Logical Components relation

Policy Proxy Radius AS,TGS

(0,x,x,x) X - -

(1,x,x,x) X X -

(2,3,0,x) X - X

(2,0,3,x) X - X

(2,3,3,x) X - X

architecture, all the possible combinations are illus-

trated in Table 3. To each component of the vector

is associated a numerical value which ordinally cor-

respond to the real semantic value of that parame-

ter (the row index of the corresponding table, start-

ing by row zero) as it appears in Tables 2 (b,c,d);

for example the instance (1,2,0,x) indicates that the 1-

st component (Authentication System=”1”) assumes

the value of the 2-nd row: ”Radius”; the 2-nd com-

ponent (UA-Proxy Communication=”2”) assumes the

value ”SSL Protocol”; the 3-rd component (Proxy-

Proxy Communication=”0”) assumes the value ”Plain

Text”; the 4-rd component (Domains Number=”x”)

could assume any value (”x” lower case); an X (up-

per case) in the other columns indicates the presence

of the corresponding logical components in the ﬁnal

logical architecture.

With one policy instance, it is possible to combine

logical components in different ways but the kind

and the minimal number is deﬁned by choosing

the policy (see for example Table 4 of the case

study); this implies that the functionalities of the

global system, the number of user-domains, user’s

authentication mechanisms and the role that each

logical components will assume in the architecture,

are deﬁned in this phase by properly choosing the

policy.

Step 3 This phase includes the choice of the

real available components on which the logical

components will be mapped. Physical components

do not affect system functionalities (if they permit

the allocation of all minimal logical components)

but global performances and security are certainly

depended on this parameter (for example if the

Radius Server is running on the same physical node

of the Proxy to authenticate, the security involved is

certainly less critical than a distributed approach).

Steps 4-5 These two steps consist in evaluating

the performances of all possible ﬁnal architectures.

There are in fact more than one way to combine

and map the logical components on the physical

ones (see for example Table 5 of the case study).

Once we have addressed all possible combination,

we have to repeat the evaluation process for all

corresponding solutions. The evaluation is made

against performance measures for all solutions and

the optimal one is implemented.

Step 6 The optimal architecture derived by the ﬁrst

steps is implemented.

5 PERFORMANCE EVALUATION

The security mechanisms introduced in the proposed

architecture have a side effect on the overall perfor-

mances of the system. In order to compare the differ-

ent proposed solutions a set of performance indexes

are needed. At the state of the art no standard bench-

mark exists for SIP-based architecture, even if the

SIPStone (sipstone, 2002) benchmark is probably the

most appropriate solution; it is very useful to choose

the architecture to deploy in a real environment, but

its metrics are of a too high level to really understand

the performance effects of low level design choice.

These considerations lead us to develop an evaluation

framework that helps in developing dedicated tests.

In the following a brief overview of our perfor-

mance evaluation development framework will be

carried on. We will describe the way in which the

workload will be described, how we organize and de-

velop new tests and the performance indexes that we

can evaluate. A real system evaluation will be given

in the next section (Case Study).

5.1 Workload Modelling

While a common benchmark aims to study the system

performances under real workloads, that usually re-

produce common server usages, our tests aim at point-

ing out performance bottlenecks due to design choice.

This means that instead of pointing out the system

behavior under common user population, we aims to

evaluate many different system working conditions

This information can be adopted in future to pre-

dict the server behavior under many different work-

load condition (see future works). Note that many

SIP Server implementations (almost all) create a new

thread each time a new request arrives (this is true if

a thread pool policy is adopted) so the number of the

contemporary requests heavily affects the system per-

formances (as will be shown in the ﬁnal results). This

consideration leads us to generate the tests as closed

loops, in a closed-loop test, each new request is only

issued after the completion of the previous one. In

A working condition will represent a system state un-

der which the architecture will show the same performance

behavior to the same requests

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

212

this way, the number of waiting requests on the server

is (almost) constant if we assume that the time spent

in communication is less than the time spent by the

Proxy to complete the requests

. Another important

consideration is that in our tests the client behavior

has to affect as few as possible the tests, so the testing

UAC should be as simple as possible, closed-loops

does not need to maintain and manage information

about the sent requests. Thanks to this approach the

number of parallel clients (N parameters) corresponds

to the waiting requests on the server, and so the server

working condition.

5.2 Tests Description

Our tests aim at pointing out the performance of the

system design proposed for each functionality imple-

mented. Tests can be organized in a hierarchic way

as:

• Transaction Level: These tests aim at measuring

the time spent in a SIP transaction. Different tests

are needed for different transactions.

• Session Level: These tests aim at evaluating the

performances of a complete SIP Session.

• Workload Level: This is the level at which

SIPStone operates: it describes the System perfor-

mances under known workload condition.

It is out of the scope of this paper to point out a

more detailed classiﬁcation of the tests and point out

the state of our SIP evaluation framework. In this

paper we will focus on a transaction level test for

the REGISTER SIP operation and a simple Session

Level test, because this tests will clearly exploit the

effects of the security mechanism on the system

performance, as we will point out in the following

sections. Each test measures its own index, which

is usually deﬁned as the response time to the given

sequence of SIP services on the client side. It is

important to point out that all the performance index

can be gathered from the client side, so that it is

possible to perform an evaluation of an existing

architecture without changing it.

simply measures a REGISTER transaction on the

target system, and its response. The result of this test

will be the response time on the client, we will call it

RRT (Register Response Time). Of course, security

mechanisms have heavy impact on performances of

this tests, in fact the response time will be different

for any different authentication process.

The testbed should assure this condition through the

choice of the network

INVITE-BYE Session Level Test The Session

is simply described as the Sequence INVITE-BYE

from one UAC to another one. This simple test aims

at pointing out the system behavior when managing

many complete sessions. The result index will be

named SRT (Session Response Time). In the test

evaluation we will consider the response time to the

RINGING signal as zero.

Final Considerations The Measurement method-

ology carried on is similar to the one proposed by

SipStone: request rates (and so the number of parallel

clients) are increased until the number of the trans-

action failure reachs an high value (15%). A graph

for each test, reporting its index and the different pro-

posed architectures, will be proposed. The proposed

evaluation approach is oriented to exploit the effects

of the design choice done on the target system, so it is

of great help in building a high performance system;

however, it is not a substitute of a standard bench-

mark, like SIPSTone, but it is proposed to work in

conjunction with it to give a clear idea of the ﬁnal re-

sult of the proposed architecture.

6 CASE STUDY

The laboratory dedicated to the SIP security architec-

ture is composed by two node (Pentium II, 400Mhz,

512 MB and Peniutm III, 733 Mhz, 256 MB) and a

fast ethernet switch. We adopted a RedHat Linux 7.3

as operating system, SUN Java 1.4.2 and NIST-SIP

(nistsip, 2002; jainsip, 2003)as SIP stack implemen-

tation. A four node, biprocessor cluster is available as

workload generator, this helps us to grant that client

side do not affect heavily the performance indexes. In

the following we will show step by step the analysis

carried on during the system design.

6.1 Choose the Security Policy and

the logical Architecture

Due to space limitations we will evaluate only few of

the available security policies. Note that each policy

can be mapped onto many logical architectures. Table

4 brieﬂy describes the analyzed policies and the logi-

cal architectures that satisfy the policy requirements.

6.2 Choose the Physical Architecture

Each logical architecture can be carried out in many

diverse physical conﬁguration, tables 5 and 6 describe

the analyzed conﬁgurations.

The ﬁrst column of table 5 contains the name of the

A POLICY-BASED DESIGN METHODOLOGY AND PERFORMANCE EVALUATION FRAMEWORK FOR A

SECURE VOIP INFRASTRUCTURE

213

Table 4: Security Policies and Logical Architecture

Policy Logical Architectures

(0,0,0,0) (1,0,0,0)

(0,0,0,1) (2,0,0,0)

(1,0,0,0) (1,1,0,0) (2,1,0,0)

(1,0,0,1) (2,2,0,0) (1,2,0,0)

conﬁguration and the second column the security pol-

icy and the logical chosen architecture, while the sec-

ond and third columns of table 6 contain the logical

components on the available nodes, where P identiﬁes

a Proxy Server Component, and R a Radius Server on

the nodes SipSec1 and SipSec2.

Table 5: Conﬁguration Name and Logical Architecture

Conﬁguration Logical Architecture

C1 [(0,0,0,0) ; (1,0,0,0)]

C2 [(0,0,0,0) ; (1,0,0,0)]

C3 [(1,0,0,0) ; (1,1,0,0)]

C4 [(1,0,0,0) ; (1,1,0,0)]

C5 [(1,0,0,0) ; (1,1,0,0)]

C6 [(1,0,0,0) ; (1,1,0,0)]

C7 [(1,0,0,0) ; (2,1,0,0)]

C8 [(1,0,0,0) ; (2,1,0,0)]

Table 6: Logical Architecture Mapped on the physical con-

ﬁguration

Conﬁguration SipSec1 SipSec2

C1 P -

C2 - P

C3 P R

C4 R P

C5 P+R -

C6 - P+R

C7 P+R P

C8 P P+R

Last two conﬁgurations correspond to a unique user

domain (stored in the Radius server) whose users

adopts two different access points (Proxies). For sake

of simplicity we equally subdivide the load between

the proxies.

6.3 Architectures Evaluation

In this last section we report some considerations to

show the correctness of the approach. An interest-

ing result is presented in Figure 1 which shows RRT

values against the number of parallel clients for each

conﬁguration. In particular, the diagrams C1-reg.dat

and C2-reg.dat respectively refer to REGISTER in a

SipSec2 machine, without any authentication mech-

anism. The diagrams C3-reg.dat and C4-reg.dat re-

spectively refer to REGISTER in a Register Server

on the SipSec1 machine and on the SipSec2 machine,

with a local Radius Server as authentication mecha-

nism. Finally, the diagrams C5-reg.dat and C6-reg.dat

are different from the previous ones because the Ra-

dius Server is invoked remotely. We explicitly note

that conﬁgurations C3 and C5, such as C4 and C6,

have similar behavior; this means that the use of two

nodes for the Radius server and the proxy has no real

positive performance impact whilst it is a more ex-

pensive solution.

7 CONCLUSIONS AND FUTURE

WORKS

Security issues and their effects on the system per-

formances in VoIP architectures is an open research

issue, on which only few work was done. In this pa-

per we have proposed a design methodology to help

in carrying out real SIP-based architectures integrated

with security mechanisms and a framework for per-

formance evaluation of the built systems. We have

applied the proposed approach to a real case study,

showing the effects of different design choices (both

in terms of security mechanisms and of their imple-

mentation) on the target system performances. We

have shown how to apply the methodology on a real

case, building a real system in many different conﬁg-

urations and comparing them.

Future evolution of the work will cover both

methodology and framework extensions. The

methodology should be integrated with performance

prediction tools that will help to predict design choice

performance effects before real implementation on

the system. Framework can be used both for testing

existing systems to tune the predicting models and

to validate ﬁnal results in late development stages.

Framework should be extended with new tests, point-

ing out relationship between tests and design choices.

SIPstone benchmark results could be predicted from

framework measurements and predictive models.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

214

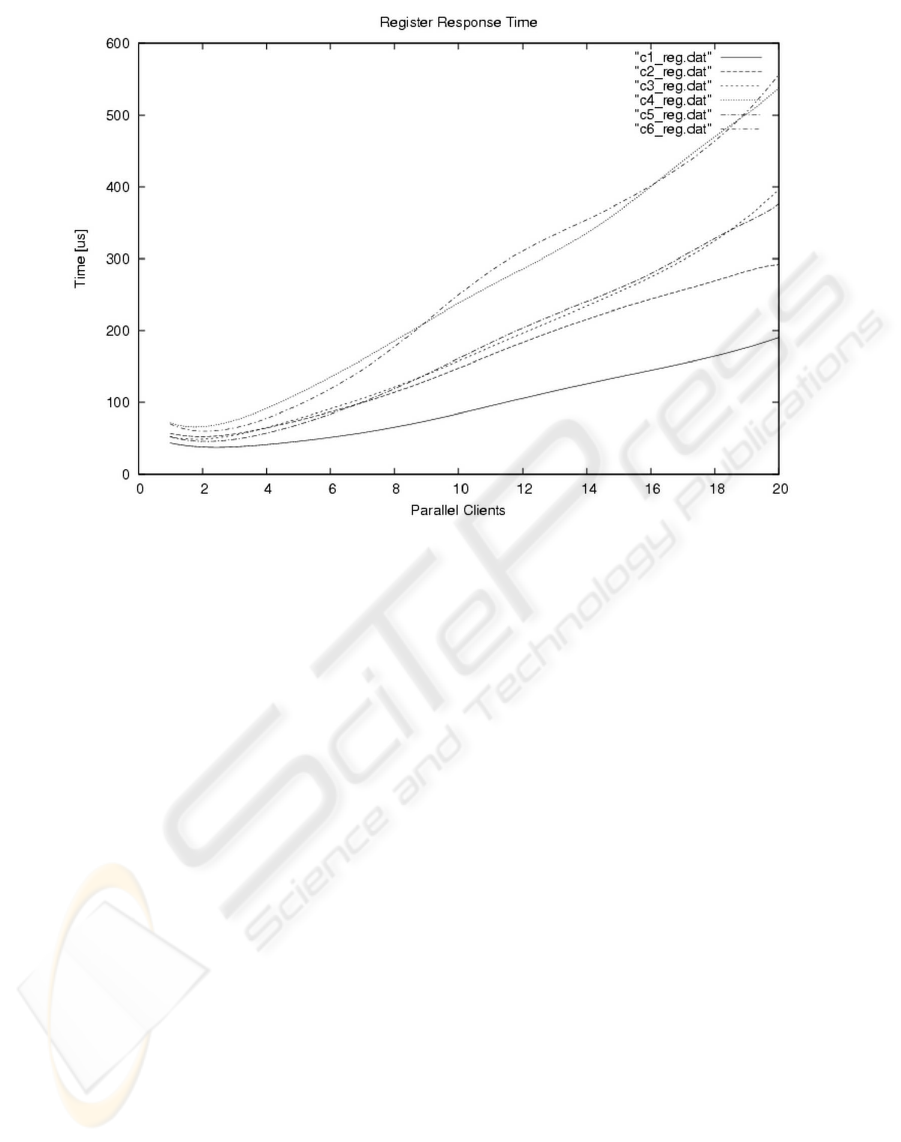

Figure 1: REGISTER Response Time Results

ACKNOWLEDGEMENT

This work was partially supported by ”Centro di

Competenze” Regione Campania. We want to thank

Roberto Torella, Pietro Ferrara and Fabio Sibiano for

their technical support.

REFERENCES

J. Kohl and C. Neuman (1993). RFC1510 - The

Kerberos Network Authentication Service V5.

http://www.ietf.org, 1993.

M. Wagle and R. Aradhaya (2003). An Out-of-Band Au-

thentication Procedure for SIP. http://www.ietf.org,

2003.

C. Rigney, S. Willens, A. Rubens, and W. Simpson (2000).

RFC2865 – Remote Authentication Dial in User Ser-

vice RADIUS. http://www.ietf.org, 2000.

C. Allen and T. Dierks (1999). RFC2246 – The TLS Proto-

col version 1.0. http://www.ietf.org, 1999.

J. Rosenberg, H. Schulzrinne, G. Camarillo, A. Johnston,

J. Peterson, R. Sparks, M. Handley, and E. Schooler

(2000). RFC3261 - Session Initiation Protocol SIP.

http://www.ietf.org, 2002.

J. Arkko, V. Torvinen, G. Camarillo, A. Niemi, and

T. Haukka (2003). RFC3329 - Security Mechanism

Agreement for the Session Initiation Protocol (SIP).

http://www.ietf.org, 2003.

W. Simpson (1994). RFC1994 - PPP Challenge Handshake

Authentication Protocol. http://www.ietf.org, 1996.

Cisco White Paper. High-Availability Solutions for SIP

Enabled Voice-over-IP Networks, 2002.

Cisco White Paper. Security in SIP-Based Networks, 2002.

M. Ranganathan (2002). JAIN-SIP: Architecture, Im-

plementation, Testing. NIST. http://www-

x.antd.nist.gov/proj/iptel/index.html, 2002.

H. Schulzrinne, S. Narayanan, J. Lennox, and M. Doyle

(2002). SIPstone – Benchmarking SIP Server

Performance. Columbia University, Ubiquity.

http://www.sipstone.org, 2002.

JAIN SIP Relase 1.2 Speciﬁcation Standard. Java Interface

to the Session Initiation Protocol (SIP). Sun Microsys-

tems, 2003.

B. Sterman (2001) Digest Authentication in SIP using RA-

DIUS. SIP WorkGroup – INTERNET DRAFT, 2001.

P. Calhoun, J. Loughney, E. Guttman, G. Zorn and J.

Arkko (2003). RFC3588 – Diameter Base Protocol.

http://www.ietf.org, 2003.

A POLICY-BASED DESIGN METHODOLOGY AND PERFORMANCE EVALUATION FRAMEWORK FOR A

SECURE VOIP INFRASTRUCTURE

215
